DaierTek Smart Dual Battery Smart Isolator 12V 140A Digital Voltage Sensitive Relay VSR Split Charge For Camper Car RV

DaierTek Smart Dual Battery Smart Isolator 12V 140A Digital Voltage Sensitive Relay VSR Split Charge For Camper Car RV

$117.09

$117.09 $0.00

Description

SPECIFICATIONS

Brand Name: Daiertek

Choice: yes

Cut-in Voltage: 13.3V

Cut-out Delay: 3-5 Seconds

Cut-out Voltage: 12.8V

Function: Dual Battery Smart Isolator

High-concerned chemical: none

Is It Charged: No

Item: Voltage Sensitive Relay

Item Type: Car Relays

Material: Plastic

Model Name: ASW-A401M-1

Origin: Mainland China

Protection: Surge

Rating: 140A 12V

Special Features: smart battery isolator

Type: sensitive voltage relay

Waterproof: IP67

Year: 2023 Year

DaierTek Smart Dual Battery Smart Isolator 12V 140A Digital Voltage Sensitive Relay VSR Split Charge For Camper Car RV

By DaierTek

About this item

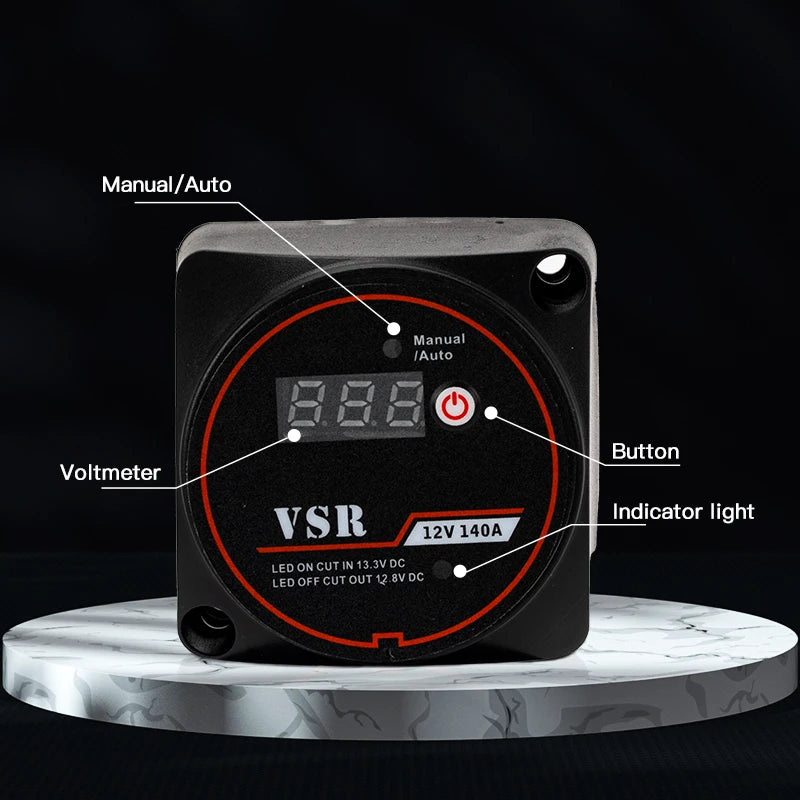

【Manual State Function】： Long Press the button for 3 seconds, the BLUE led will be On, and the manual mode is on. Press the button each time, you can complete the circuit connection and disconnection. Circuit switched on the red indicator, voltmeter lights up at the same time. Switched off the red indicator, voltmeter lights off.
【Auto State Function】： Long press the button for 3 button again, the BLUE led will be Off, the Auto mode is on. Voltage exceed 13.3V: Circuit will be automatically connected. Voltmeter & Indicator ON. Voltmeter lower than 12.7V: Circuit will be automatically disconnected. Voltmeter & Indicator Off.
【Voltage Display】： This dual battery isolator is constructed with a voltmeter which will display the real-time voltage. If you connect 2 batteries, then the voltmeter will display the battery that has high voltage. The smart battery isolator is universal fit for truck, UTV/ATV, boat, marine, bus, etc.
【Voltage Sensitive Relay】： Cut-in voltage: 13.3V and Cut-out voltage: 12.8V. Ensure the main battery is always charged so that you won’t worry about the the battery will drain out and stuck on the road. Very convenient and safe to use.
【Pressure Protection】： Input voltage lower than 11V or Input voltage more than 17V: Circuit will be automatically disconnected so as to protect the main battery from over discharging. Please buy and use the dual battery isolator with confident because we offer quick and excellent after-sales service and “12 Months Warranty” for the products.

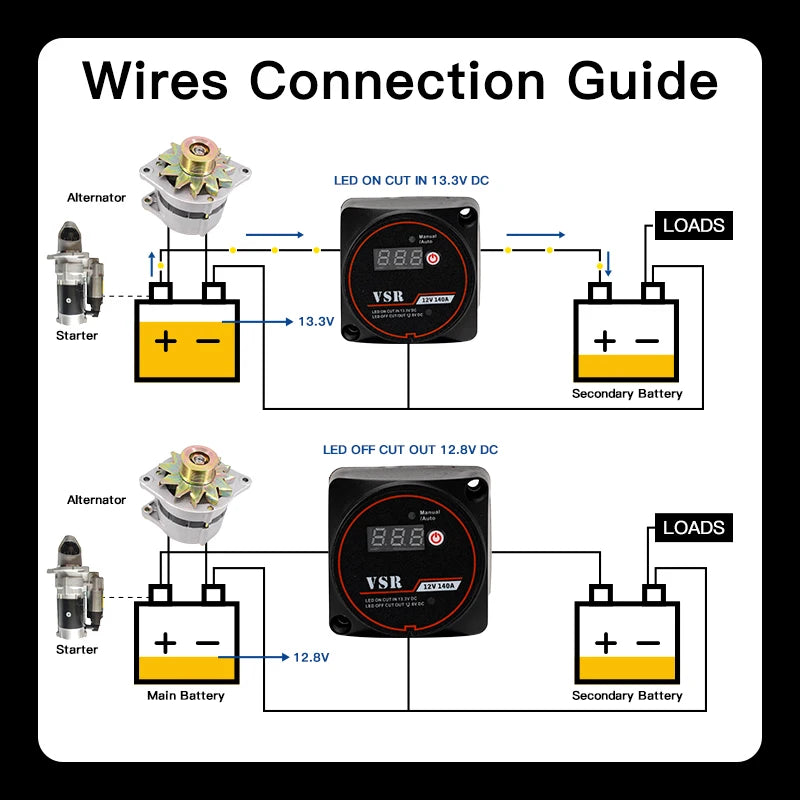

Voltage Sensitive Relay VSR Smart Dual Battery Isolator Kit

Ensure Main Battery Charged First. Keeping the primary battery charged and ensuring the car always ready to go and start whenever you want to drive it. Ensure main battery charged first and no need to worry about getting stuck on the road. Work as having two power source for each battery while only having one alternator!

Compact and Convenient to Carry. The battery isolator kit fits with your cars, boats,trucks, marines and any other electrical vehicles. Compact and Convenient to carry.

High Quality & Durable: Made of high quality and heavy duty made of zinc and aluminum, durable made for safety use. Also, constructed with a voltmeter display, which allows you to read the real-time voltage.

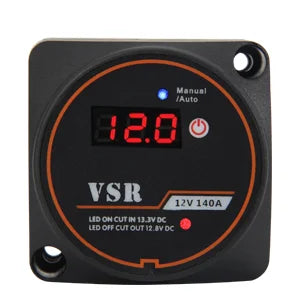

Real-time Voltage Display

Built with a voltmeter display, which can help you read the real-time voltage.

Voltage: 12V

Charging Current: 90-120 Amp Continuous, 160 Amp Peak

Current Draw: Charging 250 Amp, Standby 10mA

Cut-in Voltage: 13.3V

Cut-out Voltage: 12.8

Cut-out Delay: 3-5 Seconds

Protection: Surge （Spike）

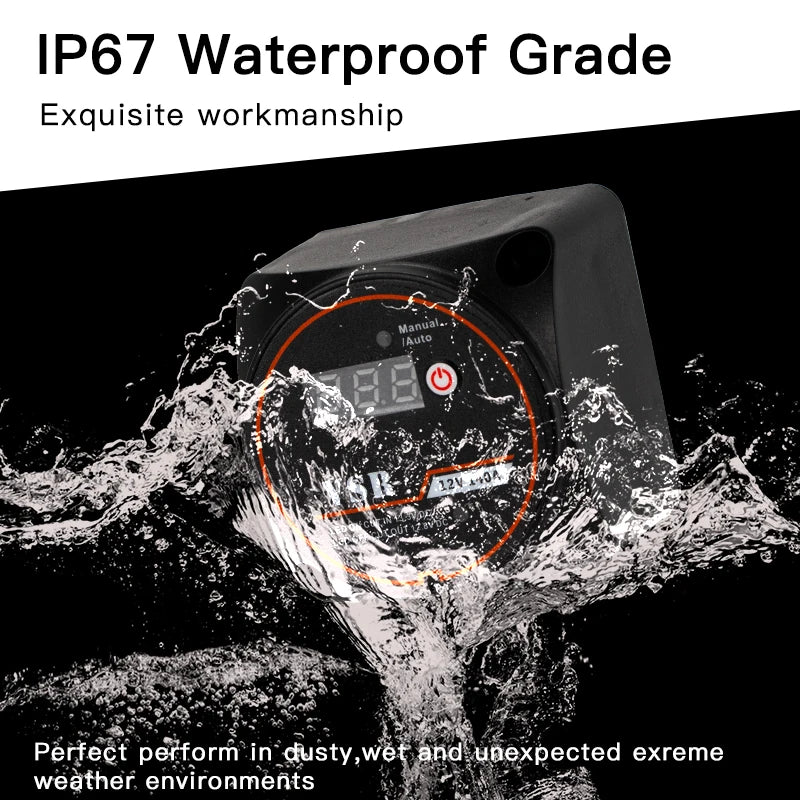

Waterproof：IP67


Manual State Use Function Long Press the button for 3 seconds, the BLUE led will be On, and the manual mode is on. Press the button each time, you can complete the circuit connection and disconnection. Circuit switched on the red indicator, voltmeter lights up at the same time. Switched off the red indicator, voltmeter lights off.	High & Low Pressure Protection & Waterproof This dual battery isolator is built to withstand harsh weather, withstand and vibration. It's IP67 waterproof.Input voltage lower than 11V or more than 17v, the circuit will be automatically disconnected so as to protect the main battery from being over discharging.	Auto State Use Function Long press the button for 3 button again, the BLUE led will be Off, the Auto mode is on. Voltage exceed 13.3V: Circuit will be automatically connected. Voltmeter & Indicator ON. Voltmeter lower than 12.7V: Circuit will be automatically disconnected. Voltmeter & Indicator Off.
