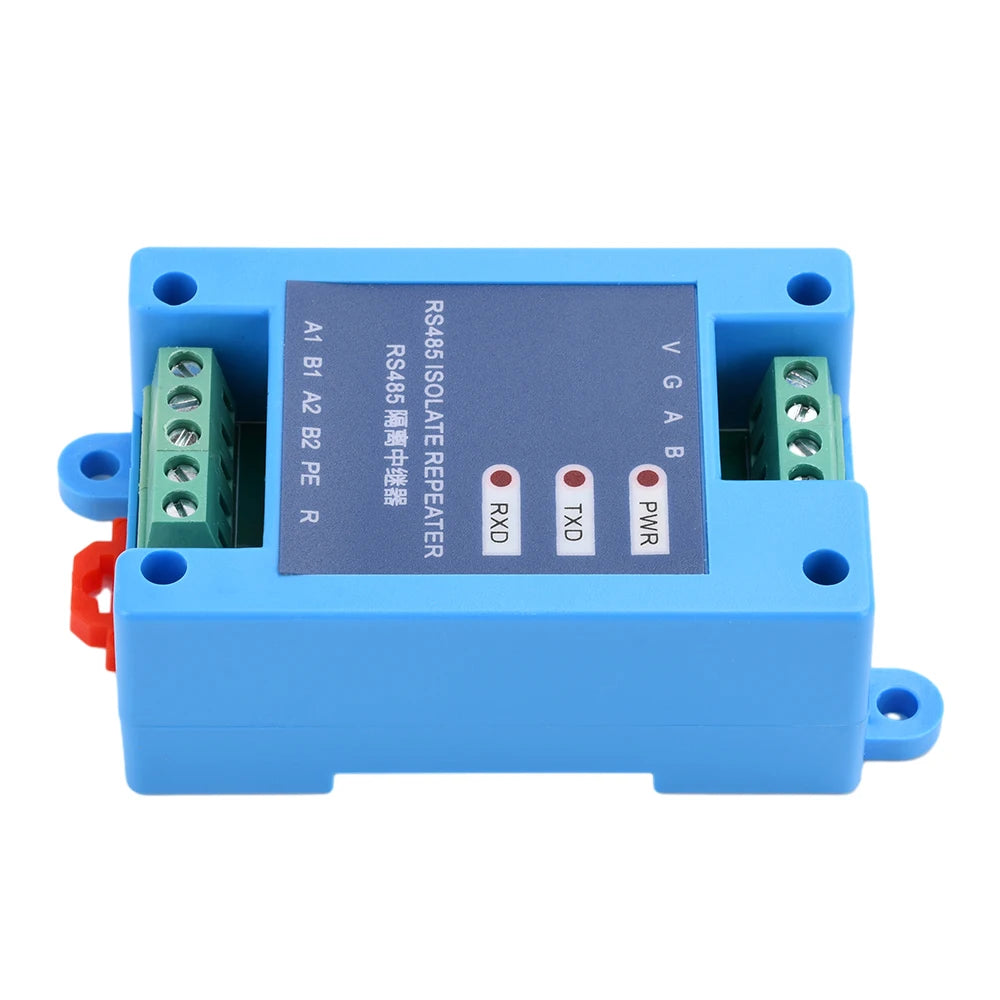

DC 12-36V RS485 Isolation Repeater Hub 2-port Communication Isolation Module Signal Amplifier Supports Din35mm Guide Rails

DC 12-36V RS485 Isolation Repeater Hub 2-port Communication Isolation Module Signal Amplifier Supports Din35mm Guide Rails

$44.16

$44.16 $0.00

Description

SPECIFICATIONS

Brand Name: Gaqqee

Choice: yes

Condition: New

DIN35 rail: RS485 network

Dissipation Power: DC12-36V RS485 isolation repeater

High-concerned chemical: none

Modbus RS-485: rs485 hub

Operating Temperature: 0-50C

Origin: Mainland China

Package: SMD

Quantity: 1

Supply Voltage: DC12-36V

Type: Relay

dropshipper: support

is_customized: Yes

rs485: rs485 repeater

rs485 module: isolated rs485

semi_Choice: yes

wholesale: support

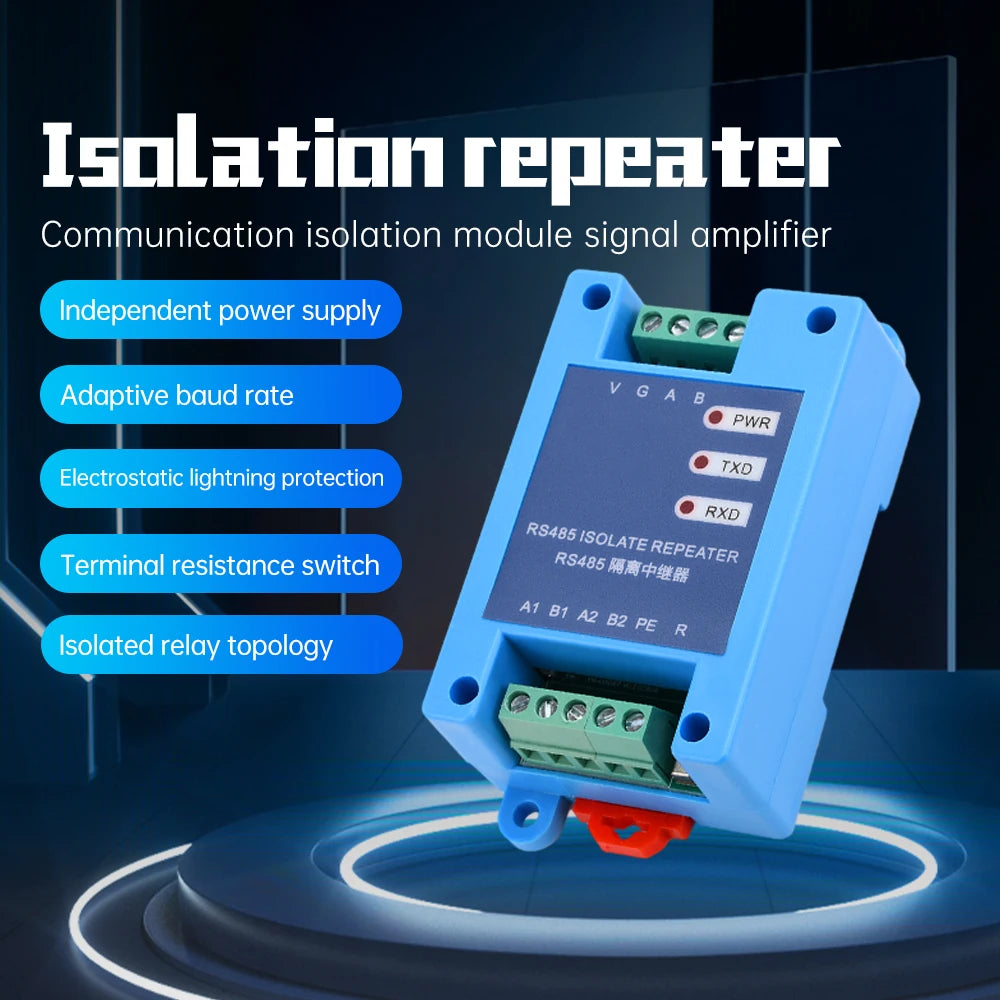

Features:

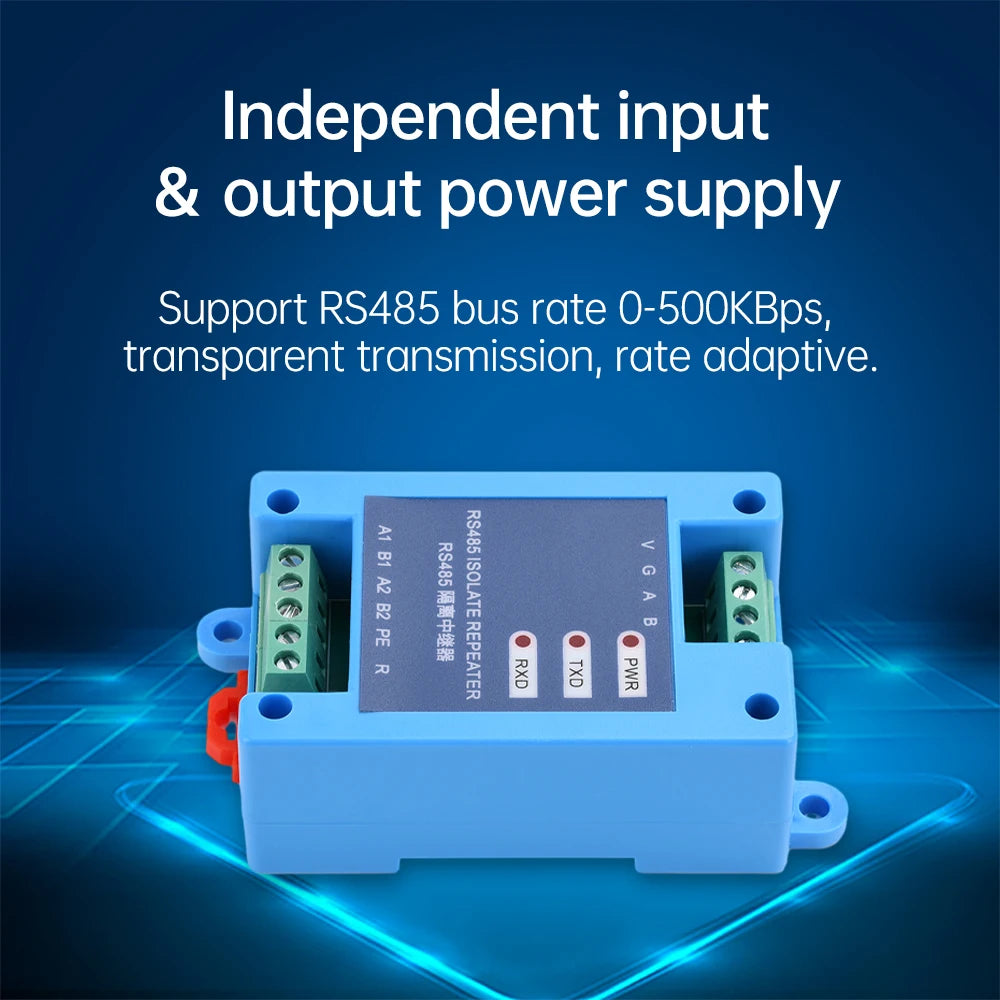

1. Input/output independent power supply
2. Supports RS485 bus speed from 0-500KBps, transparent transmission, and adaptive speed

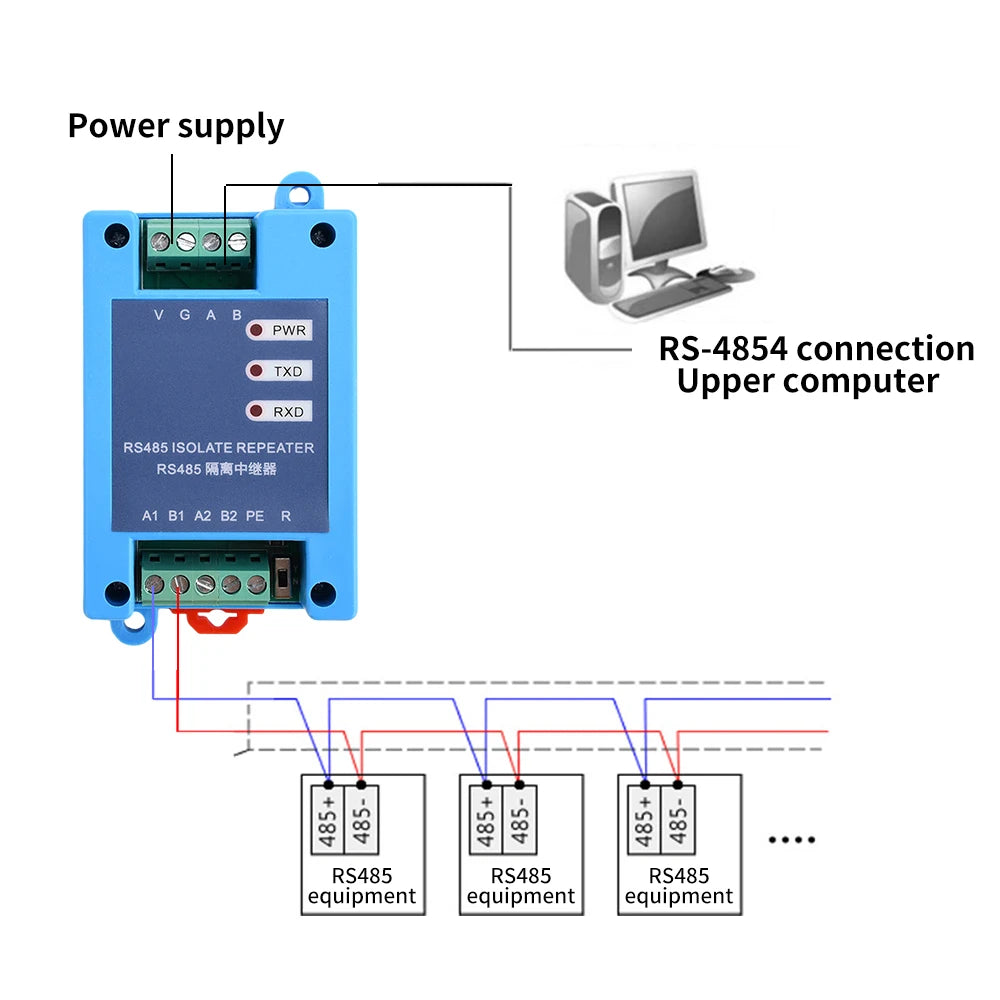

3. Support point-to-point, star shaped, and cascaded topology structures
4. Equipped with power indicator light and data transmission indicator light
5. It has the characteristics of electrostatic protection, lightning protection, and self recovering diode
6. Supports DIN35mm industrial card rail installation
7. The output terminal has a 120 ohm terminal resistor switch, which can be selected according to the needs for convenience and speed

Product Introduction:
This product is an RS485 fieldbus isolated repeater that complies with the RS485 protocol standard and is suitable for all RS485 networks such as PROFIBUS, PPI, MODBUS, and free communication networks. It isolates and amplifies signals and has the characteristics of bidirectional extension of communication distance, automatic signal flow switching, and automatic baud rate adaptation. 2 independent bus power supply, fully electrically isolated input and output, automatic switching of data transmission direction, fully transparent data transmission, rate adaptive. This product not only extends the transmission distance of RS485 bus, but also has electrical isolation and reduces interference performance; This product has a wide power supply (12-36V) input, power isolation protection, lightning protection, DIN35mm rail installation, and can meet the requirements of industrial use.

Parameter:
Input interface: 1 RS485 interface
Output interface: 2-channel (internal parallel) RS485 interface
Communication rate: 0-500KBps rate adaptive
Working power supply: DC12-36V 200mA, internal two isolated power supplies
Communication distance: 2000 meters (9.6Kbps), 1500 meters (19.2Kbps), 800 meters (187.5Kbps), 200 meters (500Kbps)

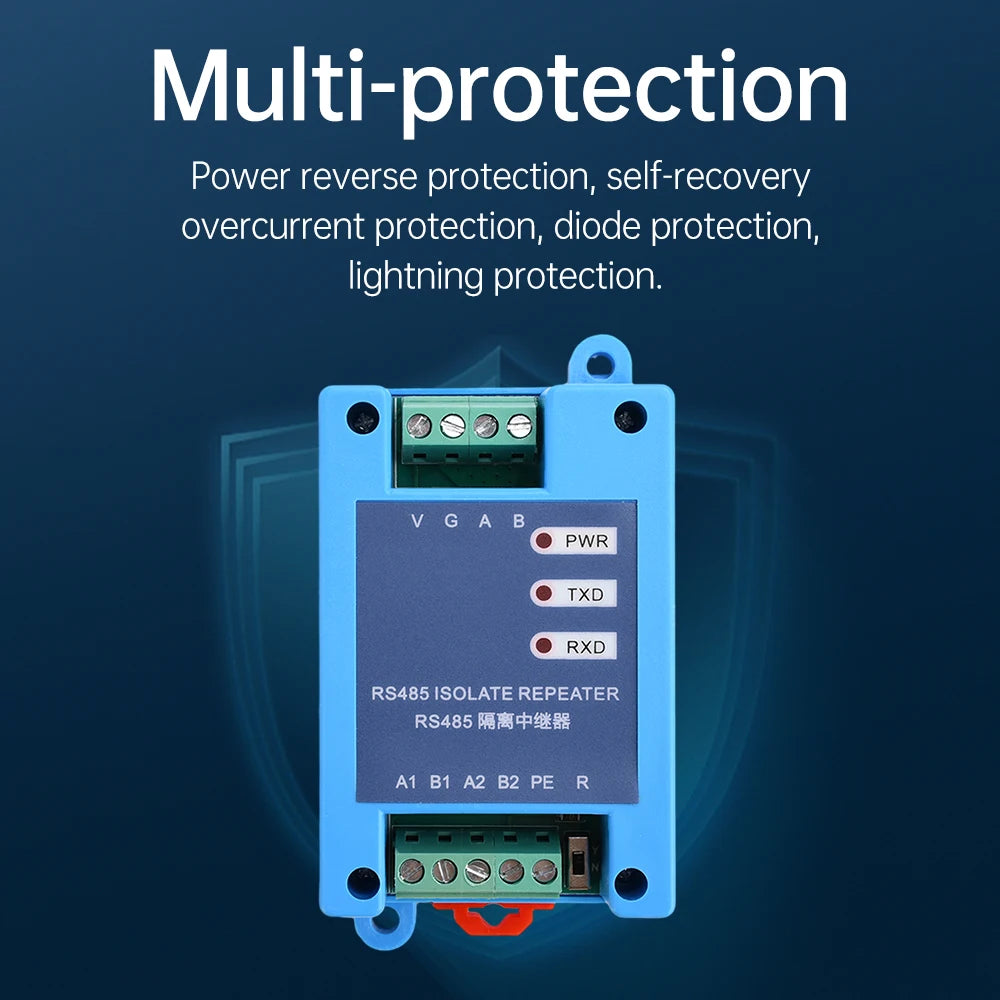

Isolation protection: power reverse connection protection, self recovery overcurrent protection, RS485 ESD protection, TVS diode protection, lightning protection
Installation method: DIN35 guide rail or fixed hole installation

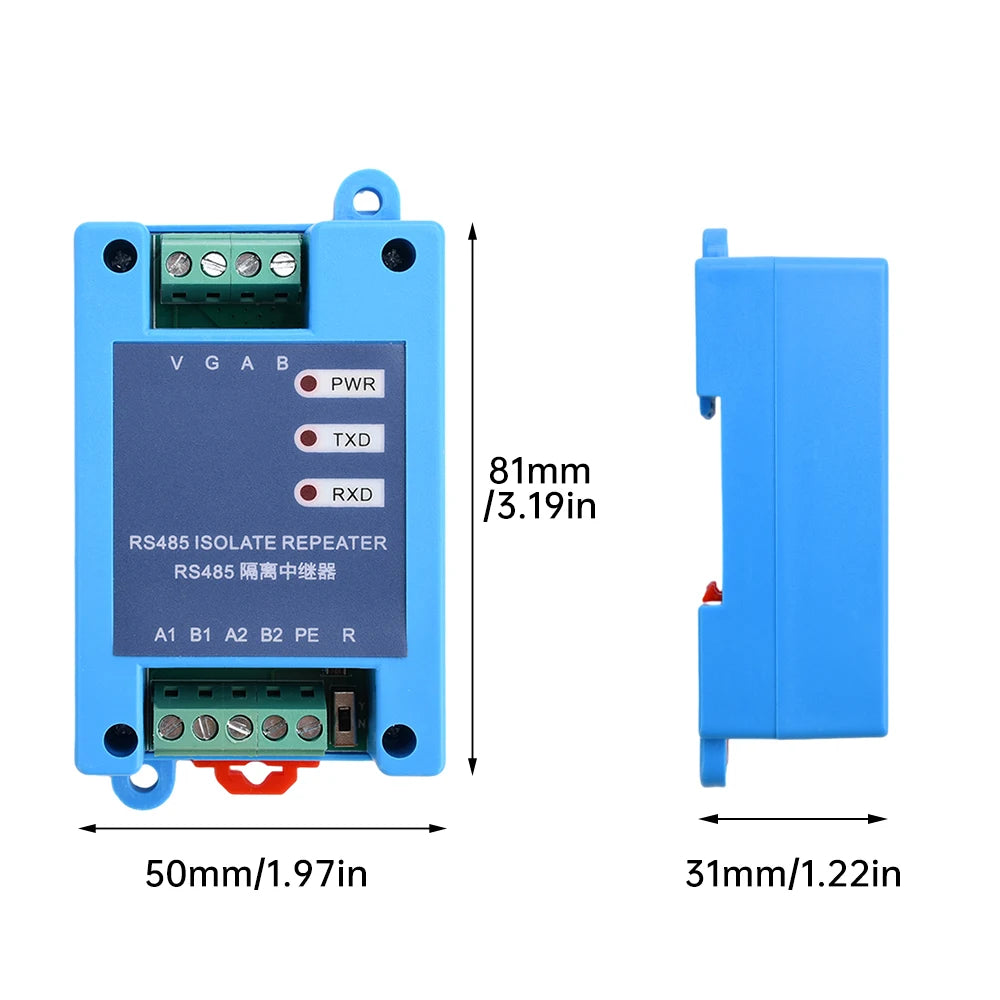

Product size: 9 * 5 * 3.1cm
Ear removal size: 81X50X31 mm
Ear size: 90X50X31 mm
Installation method: DIN35 rail or screw
Compliant with the RS485 protocol standard, it automatically sends and receives data, and is electrically isolated.
