SPECIFICATIONS

Brand Name: Gaqqee

Certification: CE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Load current: AC 250V/10A, DC 30V/10A

Model Number: LR12A01

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Size: 48mm X 17mm X 17.5mm

Standby current: 20uA (or zero power standby)

Theory: Electromagnetic Relay

Trigger mode: low pulse trigger

Use: General Purpose

Voltage: 12V

Weight: 12.5g

Working current: 60MA (only provide current when switching states)

Working voltage: DC 12V (8-18V)

is_customized: Yes

semi_Choice: yes

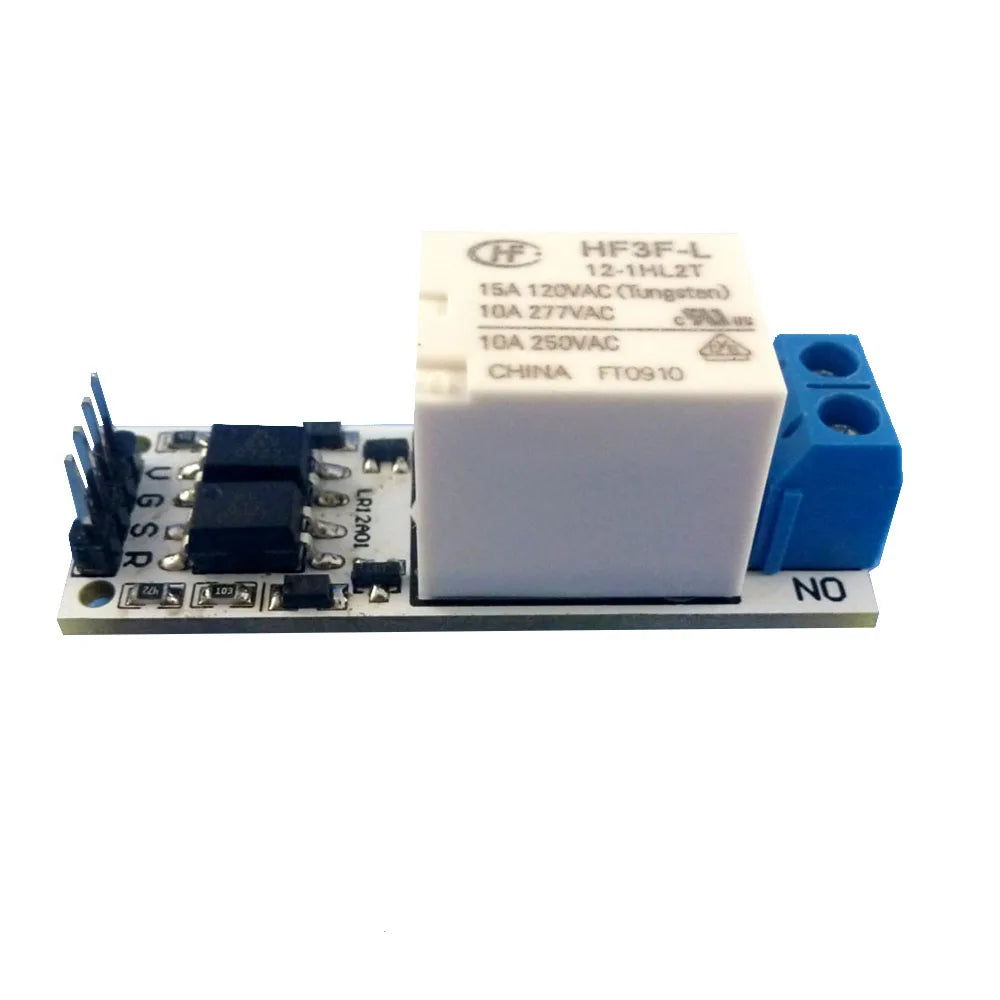

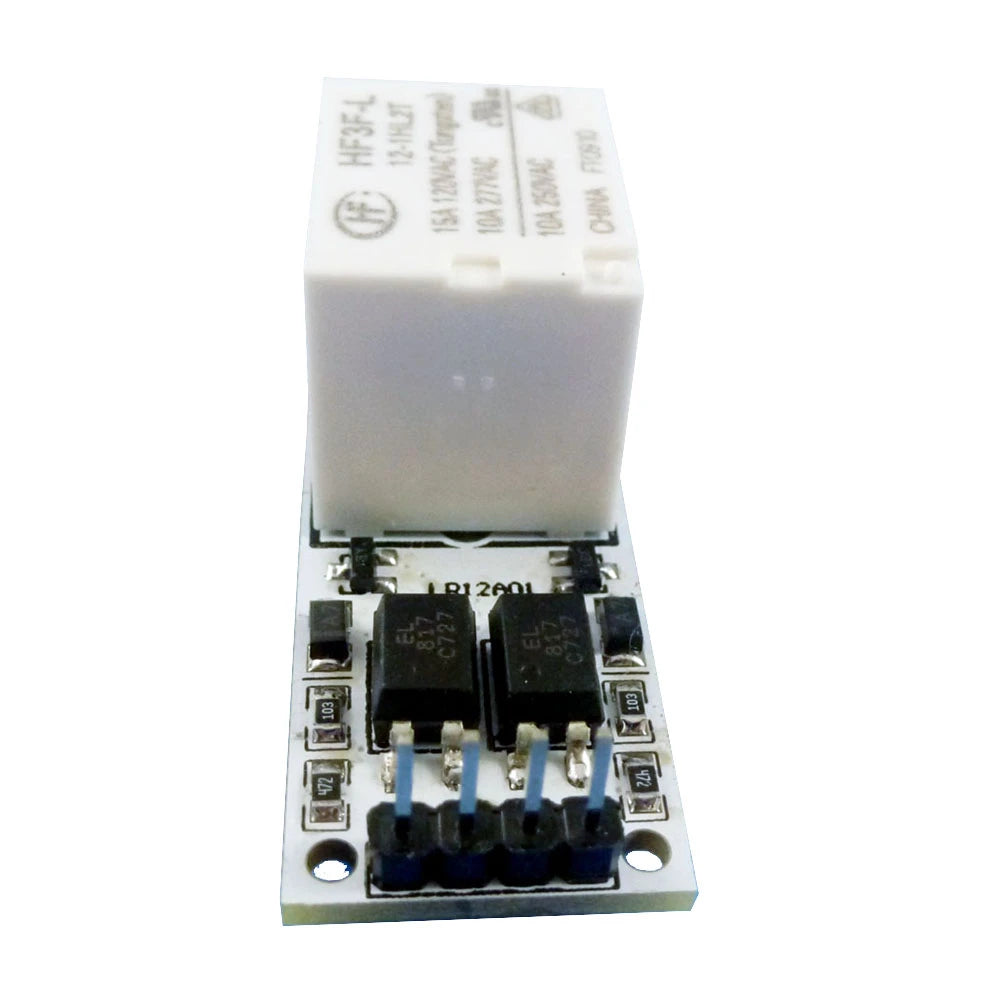

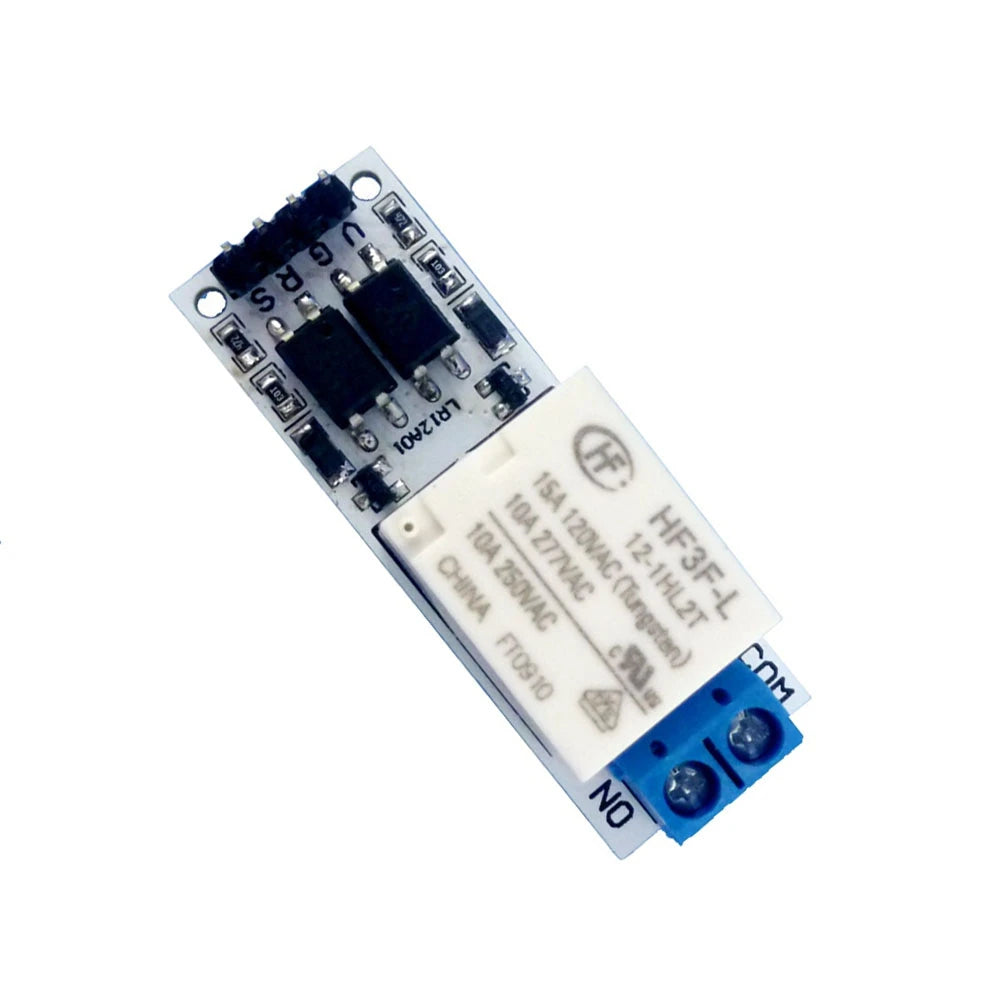

DC 12V 10A Magnetic Latching Relay Module Zero Power Hold Switch Bistable Self-locking Board for LED Motor CCTV PTZ

Feature:
1: Wide range of applications
2: Small size
3: Simple to use
4: stable performance
5: Long service life

Describe:
Working voltage: DC 12V (8-18V)
Working current: 60MA (only provide current when switching states)
Standby current: 20uA (or zero power standby)
Load current: AC 250V/10A, DC 30V/10A
Trigger mode: low pulse trigger
Size: 48mm X 17mm X 17.5mm (L * W * H), small size
Weight: 12.5g

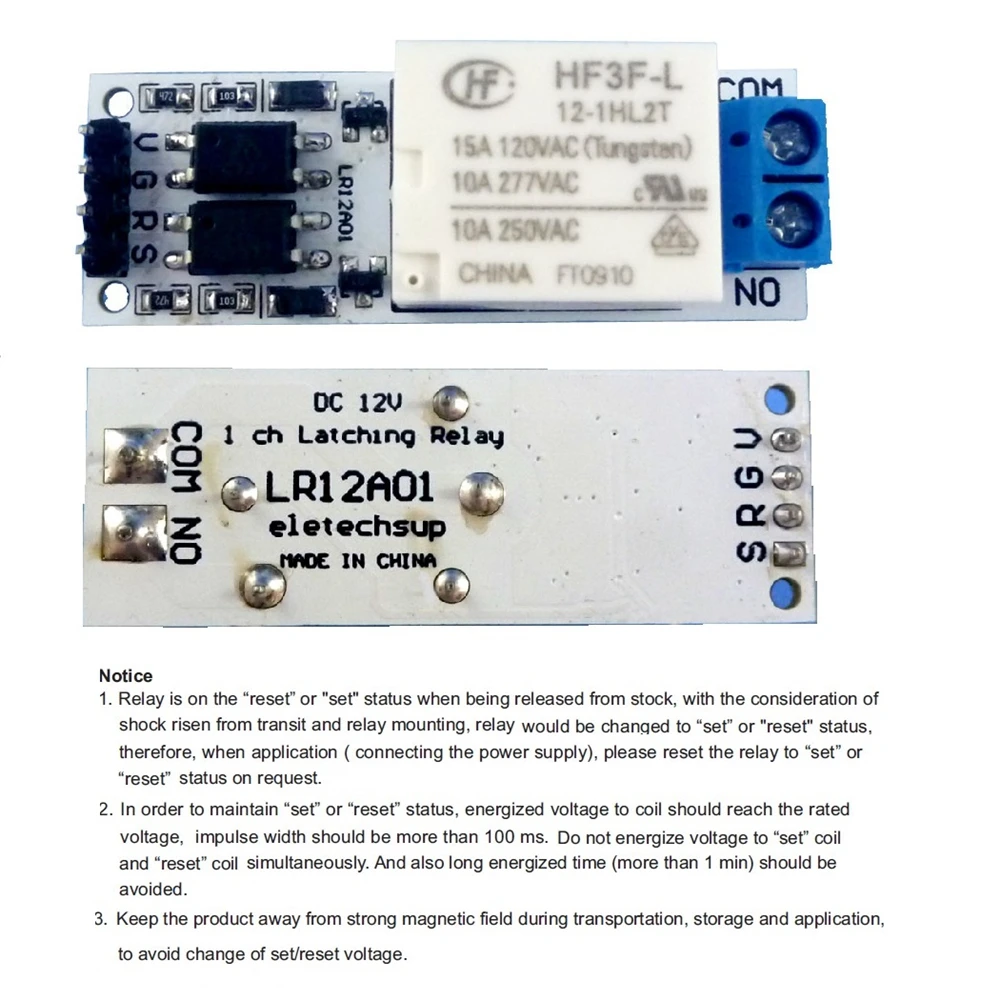

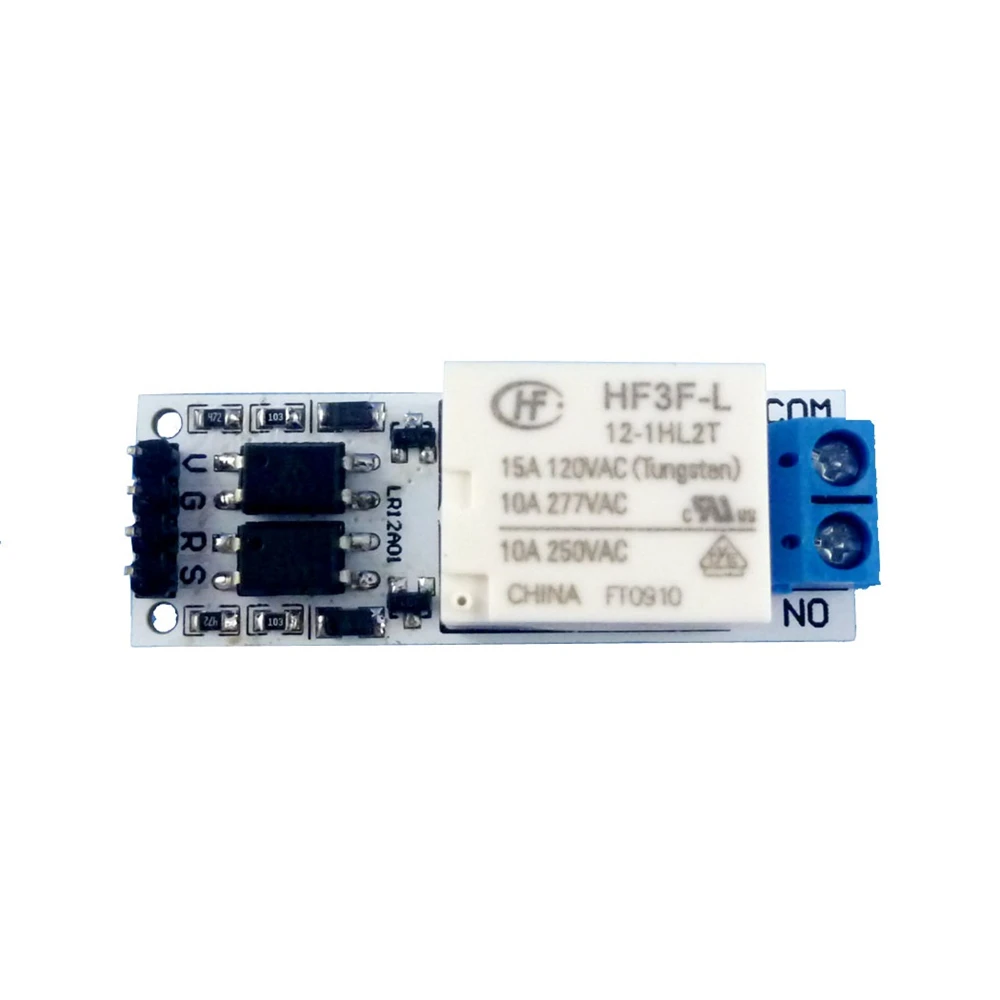

Module Interface:
1. V: Positive power supply (VCC)
2. G: Negative power supply (GND)
3. R: Reset (Relay OFF)
4. S : Set(Relay ON)

Relay Output:
1. NO: normally open relay interface
2. COM: Common Interface Relays

This is a self-latching (hold) relay module, trigger the S port, the relay is pulled (and held); trigger the R port, the relay is released (and held)

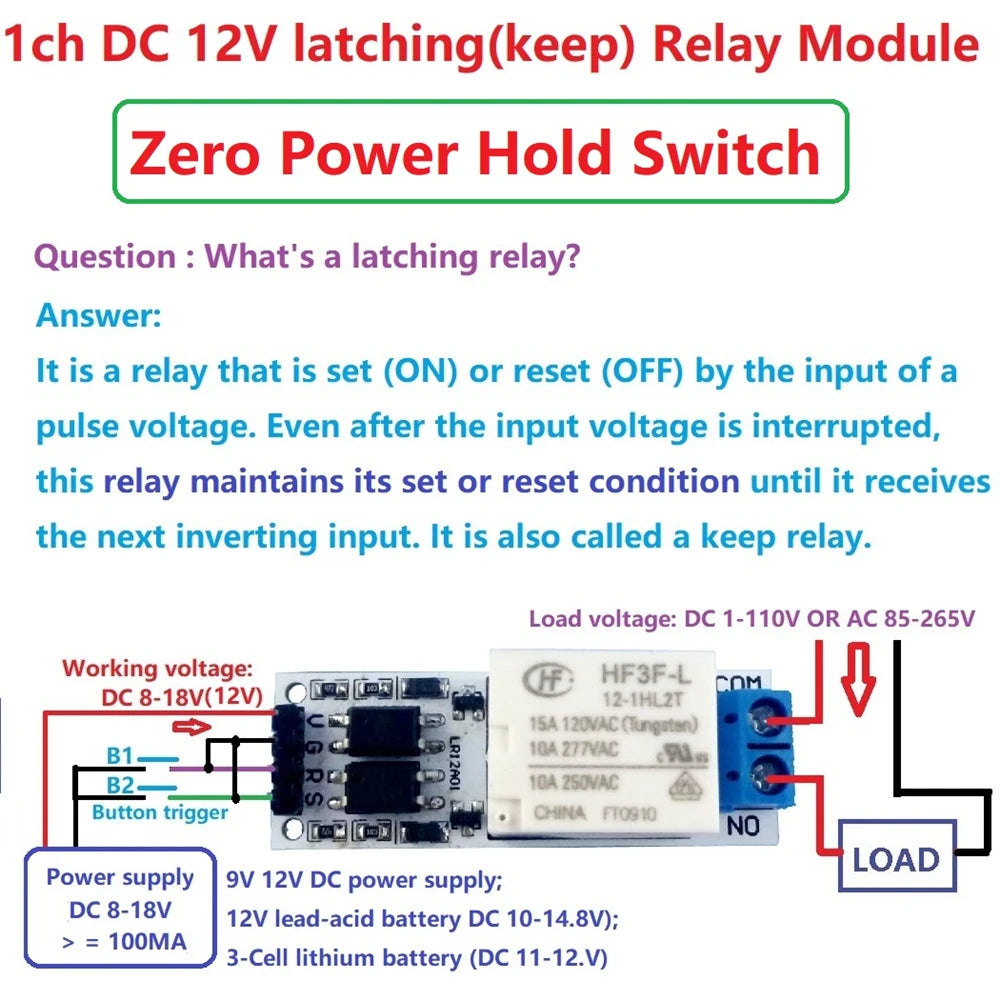

The trigger duration is 0.5-2 seconds, it is recommended not to exceed 1 minute. Q: What is a self-locking relay? A: It is a relay that is set (ON) or reset (OFF) by inputting a pulse voltage. Even after the input voltage is interrupted, the relay maintains its set or reset state until it receives the next inverting input. It is also called a holding relay.

Typical Application:
vehicle electronics
Industrial equipment
Motor LED PLC
Camera PTZ CCTV
UPS uninterruptible power supply
smart home
emergency lighting
MCU development board
toy car

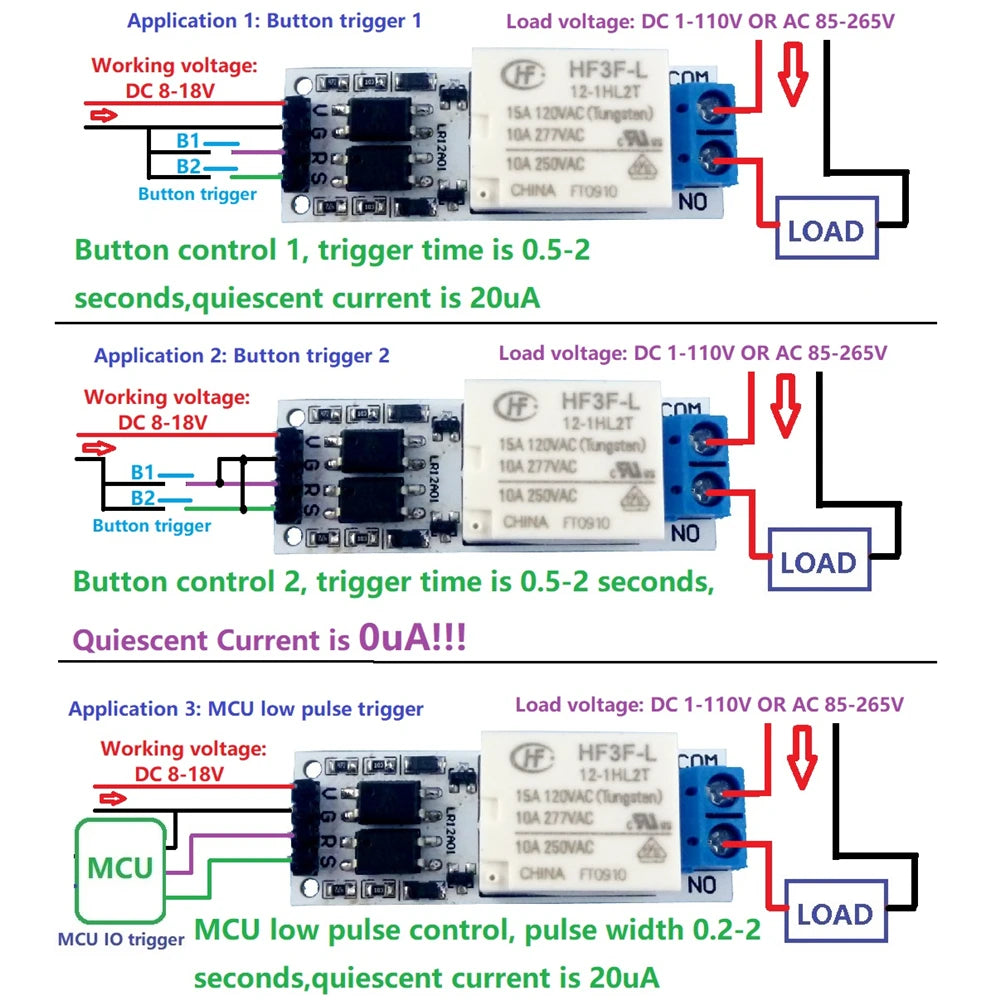

If you follow the wiring method of application 2, you can achieve zero-power standby

Note:

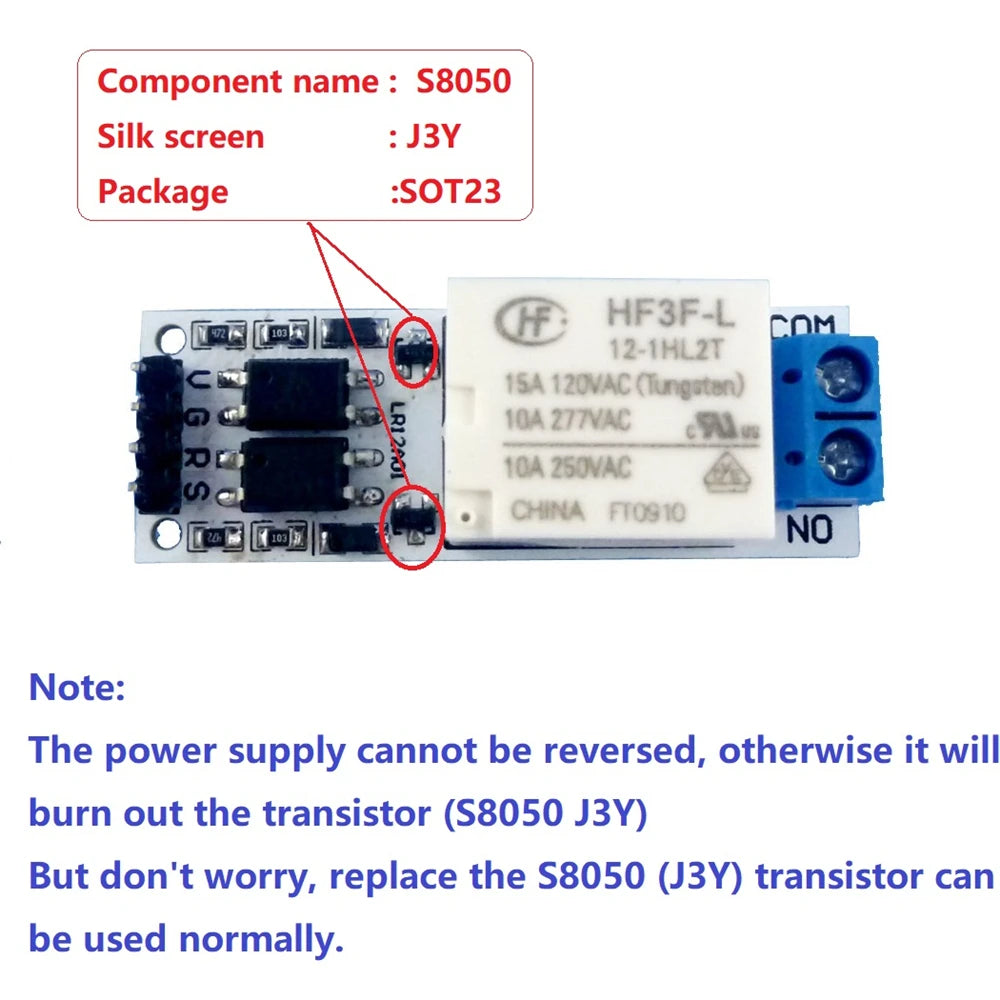

The power supply cannot be reversed, otherwise the triode (S8050 J3Y) will be burned out, but don't worry, the replacement of the S8050 (J3Y) transistor can be used normally.

Package Included:
1*Magnetic latching relay module zero power latching switch bistable self-locking module
