SPECIFICATIONS

Application: Computer

Brand Name: Gaqqee

Choice: yes

Condition: New

Dissipation Power: low power consumption

High-concerned chemical: none

Operating Temperature: Details Page

Operating current: 8-50MA

Operating voltage: DC 6.5-30V (7.5V, 9V, 12V, 15V, 24V)

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: Details Page

Type: Module

is_customized: Yes

Product Features:

1: Wide range of applications

2: Maximum load: 300mA per channel

3: Available with or without mounting rail

4: Simple and intuitive operation

5: Insulation rating: Flame-retardant VO grade

Product Description:

1: Operating voltage: DC 6.5-30V (7.5V, 9V, 12V, 15V, 24V)

2: Operating current: 8–50mA

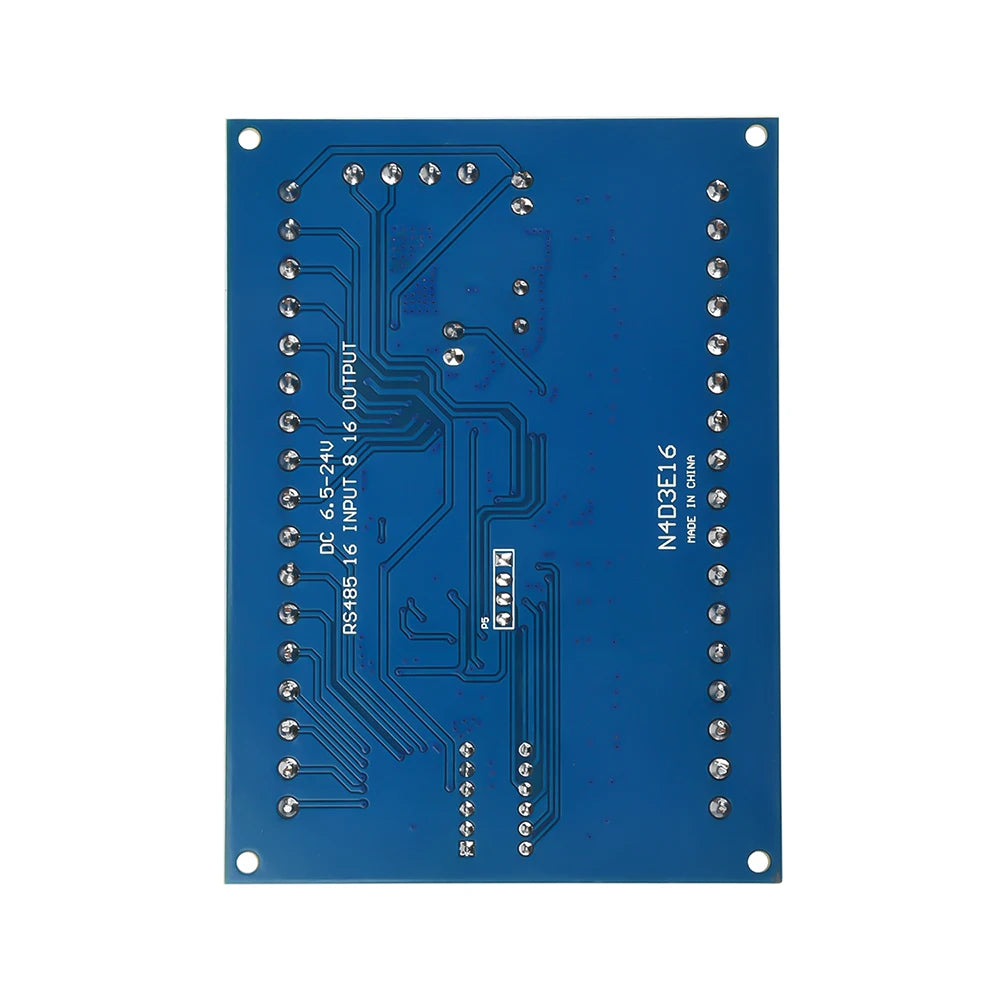

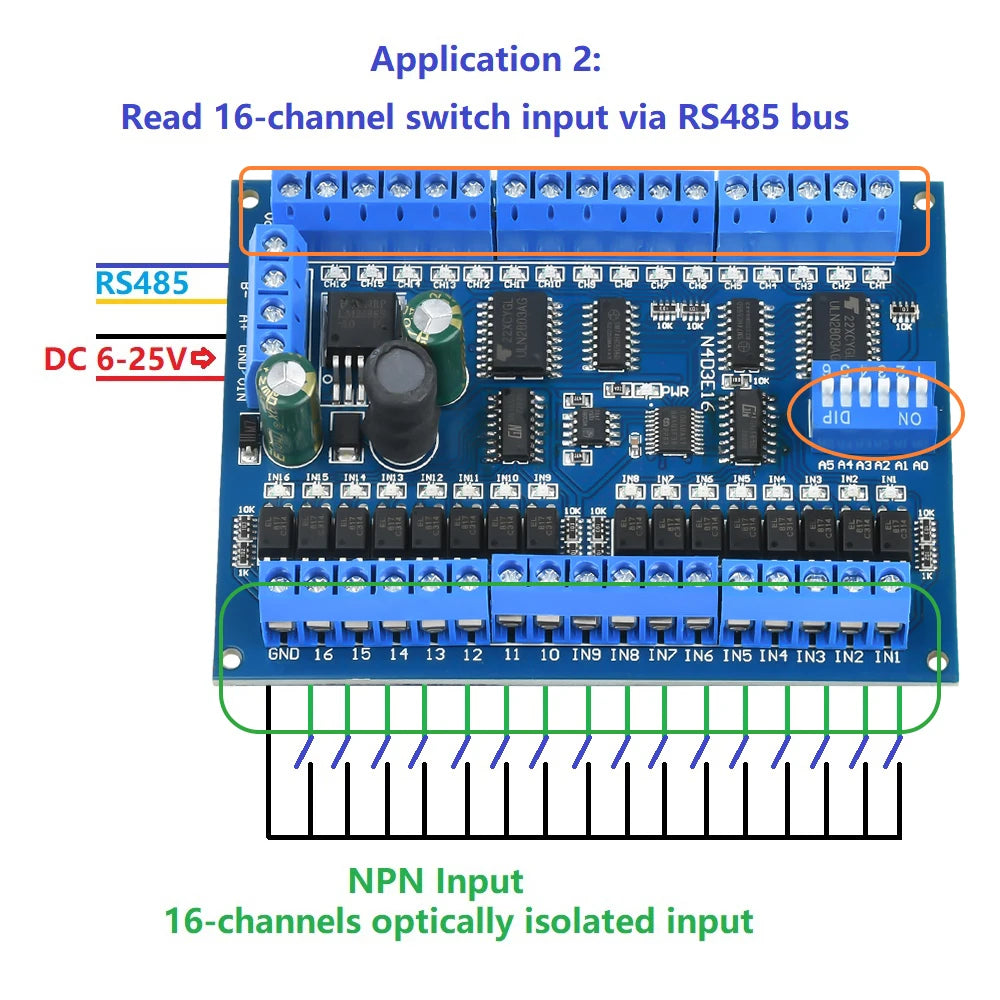

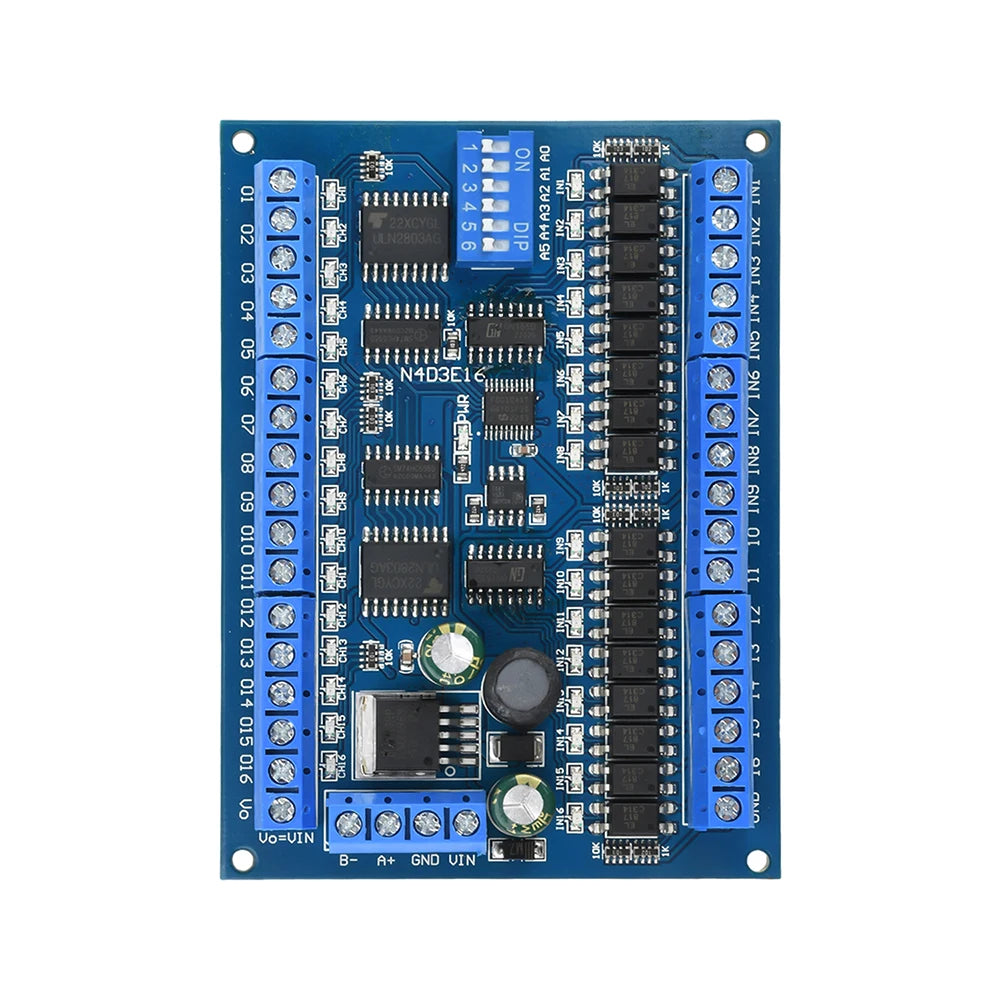

3: 16 optically isolated input ports (NPN low-level active)

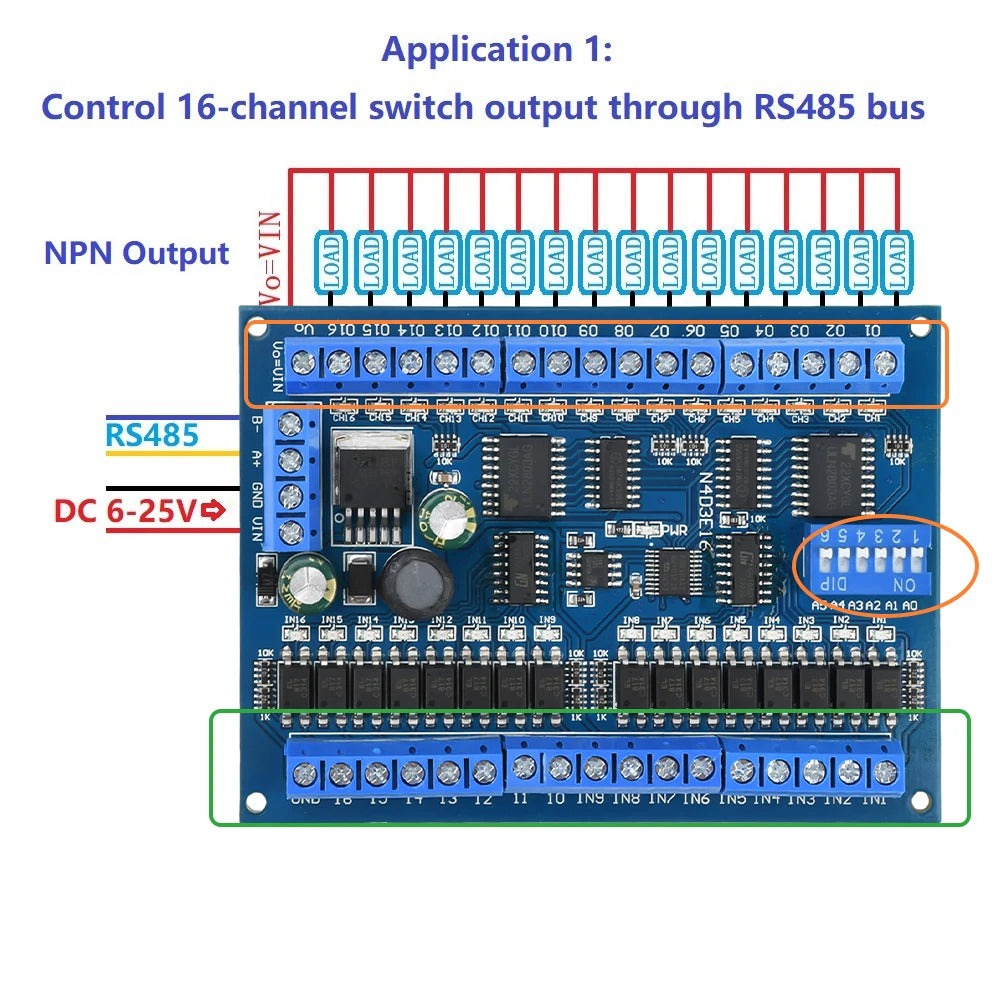

4: 16 Darlington outputs (ULN2803 NPN output)

5: Six commands: “ON”, “OFF”, “Instant”, “Self-lock”, “Interlock”, 'Delay'

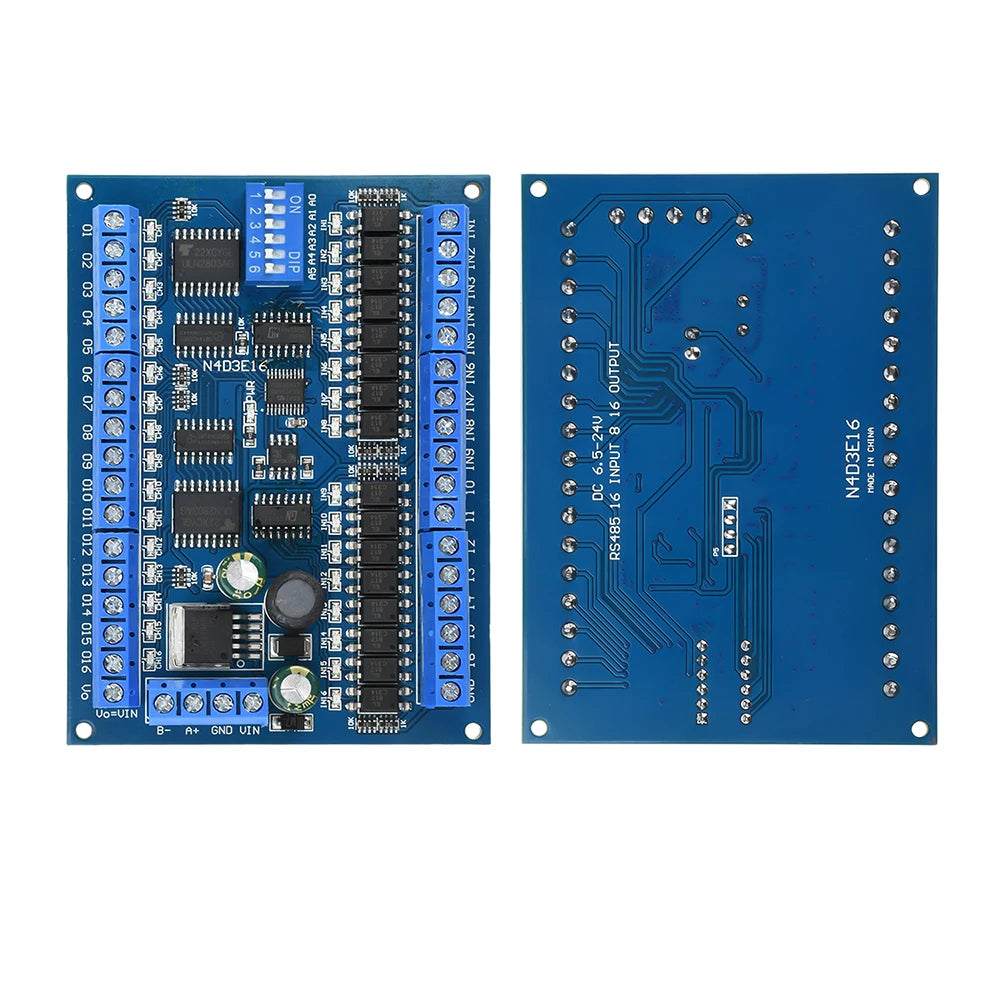

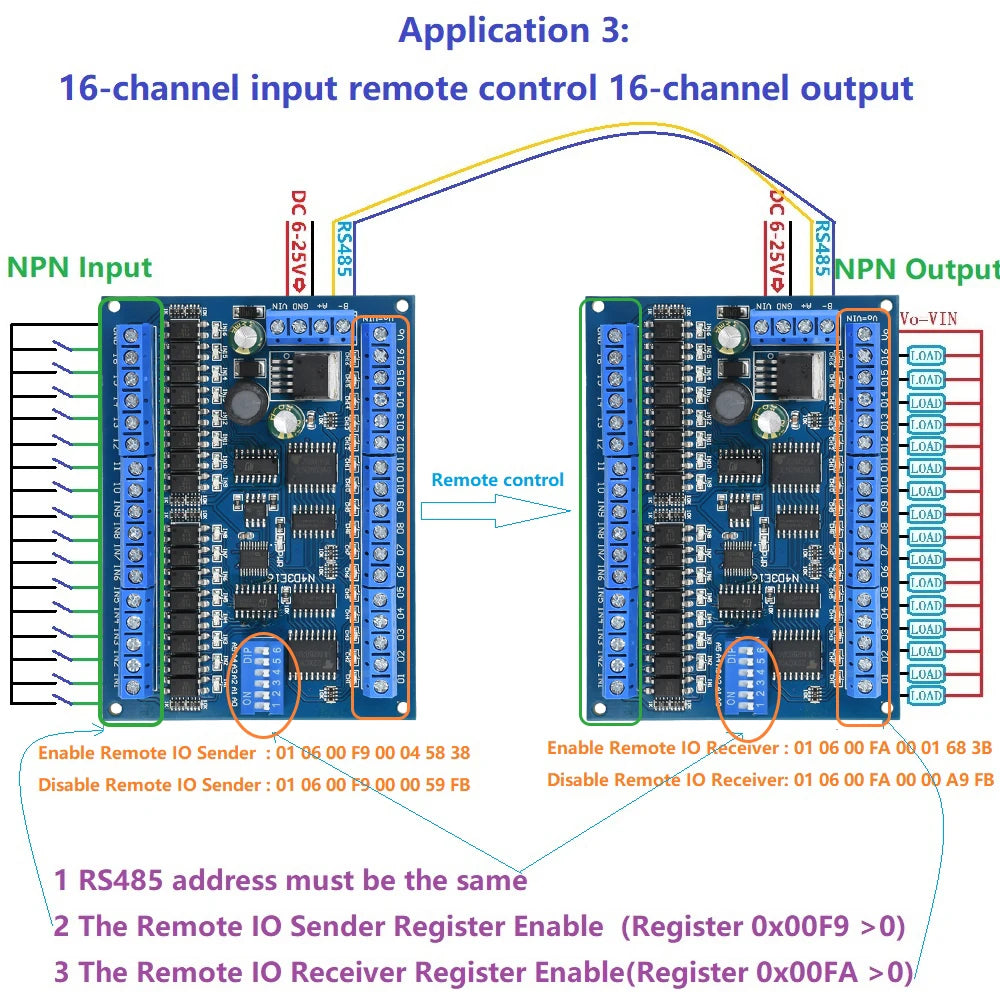

6: 16 inputs can remotely control another board's 16 outputs via RS485 bus (requires relevant register configuration)

7: MODBUS RTU protocol, supporting function codes 03 and 06 (some registers support function code 16)

8: Maximum delay under “Delay” command is 255 seconds;

9: MODBUS commands can be entered via serial terminal software (Serial Assistant) OR by pressing Enter in “'Modbus Poll”' mode;

10: In MODBUS command mode, supports up to 64 devices in parallel

11: Default baud rate is 9600 BPS. Baud rate selectable via jumper: 2400, 4800, 9600, 19200 BPS

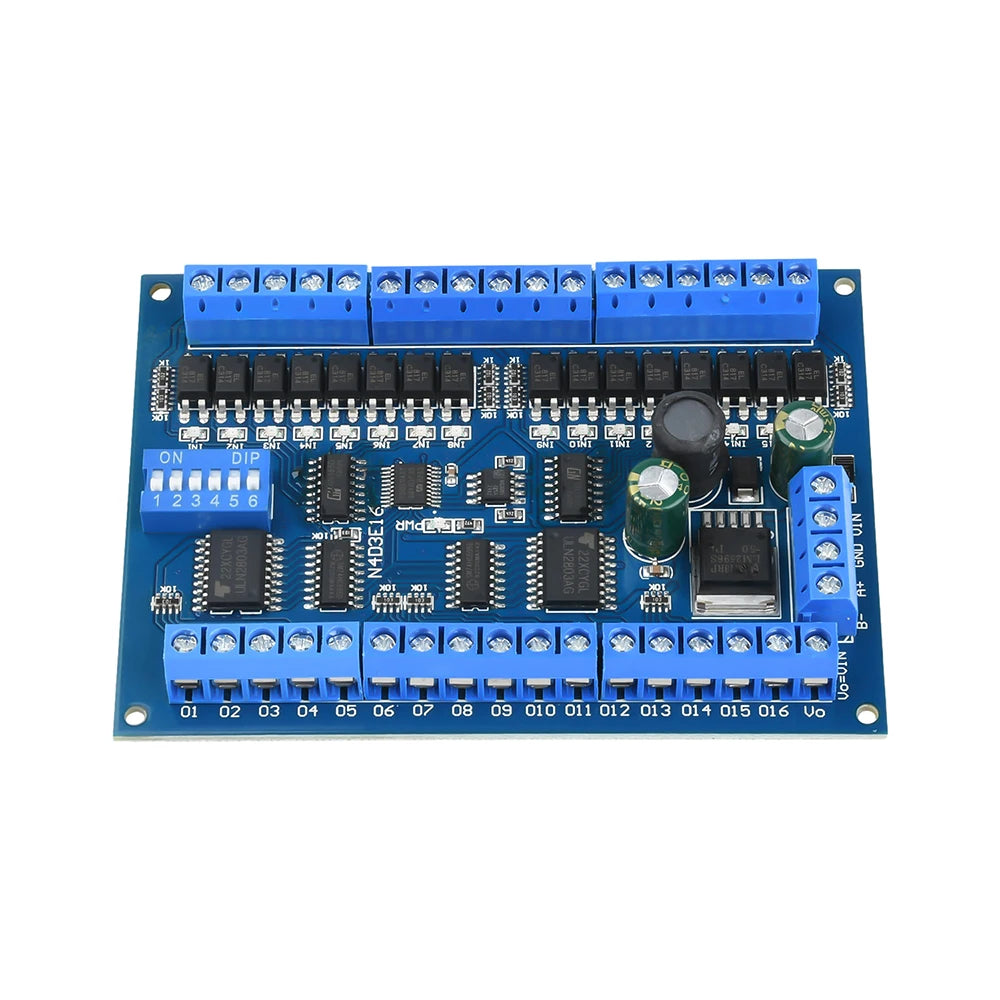

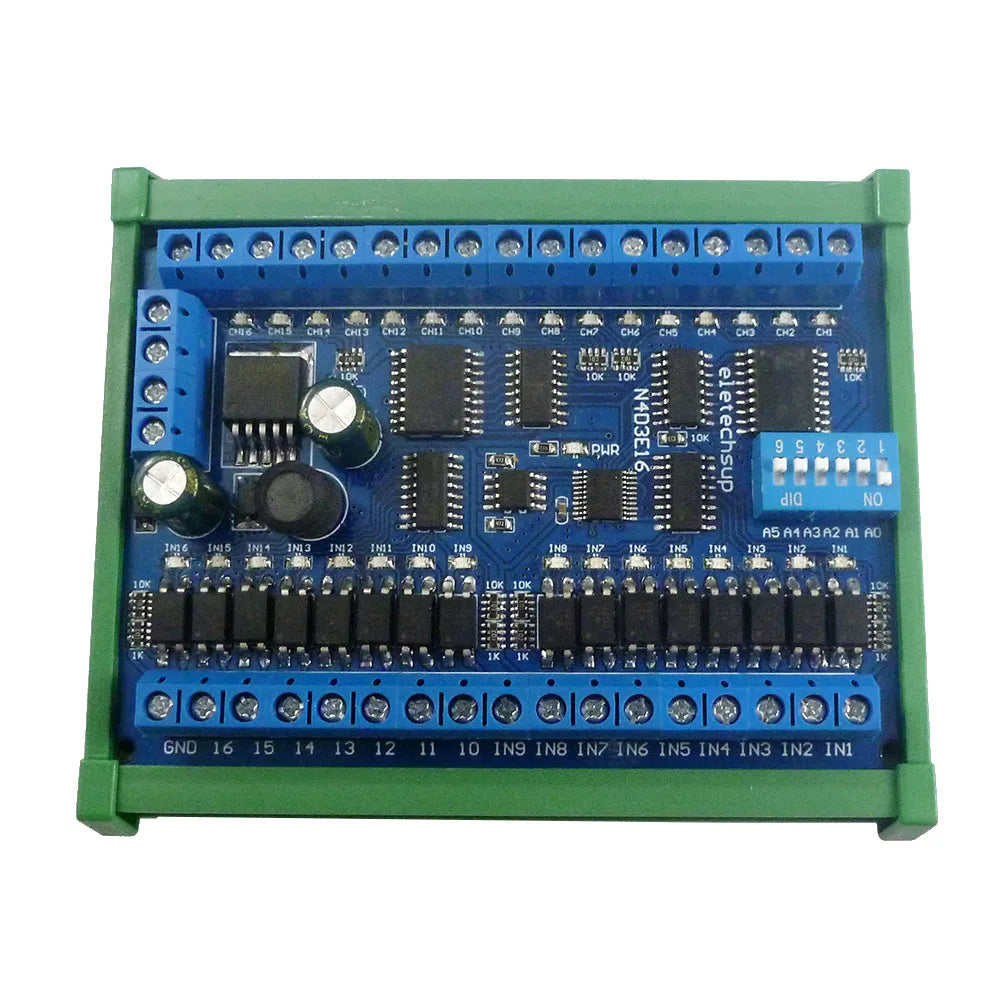

12: Dimensions: 100 × 72 × 20mm (PCB board only); 120 × 88 × 42mm (with DIN rail enclosure)

13: Weight: 64g (PCB board only); 143g (with rail enclosure)

14: Maximum load: 300mA per channel

DIN Rail Box Specifications:

Model: UM72

Colour: Green

Width: Suitable for UM72 PCB width (72mm)

Insulation Rating: Flame-retardant VO grade

Backplate Length: Compatible with 100mm PCB boards

Net Weight: 72g

Mounting Method: DIN 35 and C45 rails

Applications:

PLC IO expansion boards

Smart home, home automation, intelligent home systems

PTC cameras

Security surveillance

Recognition systems

Network cameras

LED light drivers

Automated curtain control

Contents:

Module ×1
