SPECIFICATIONS

Applicable Object: Other

Brand Name: NONE

Certification: CE

Choice: yes

Coil power: 1.8W

Coil power supply: 1.8W

Contact Load: Low Power

EAN Code: 4 Pin 5 Pin 30A Auto Relay

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: 4 Pin 5 Pin 30A Auto Relay

Origin: Mainland China

Power Source: DC,DC

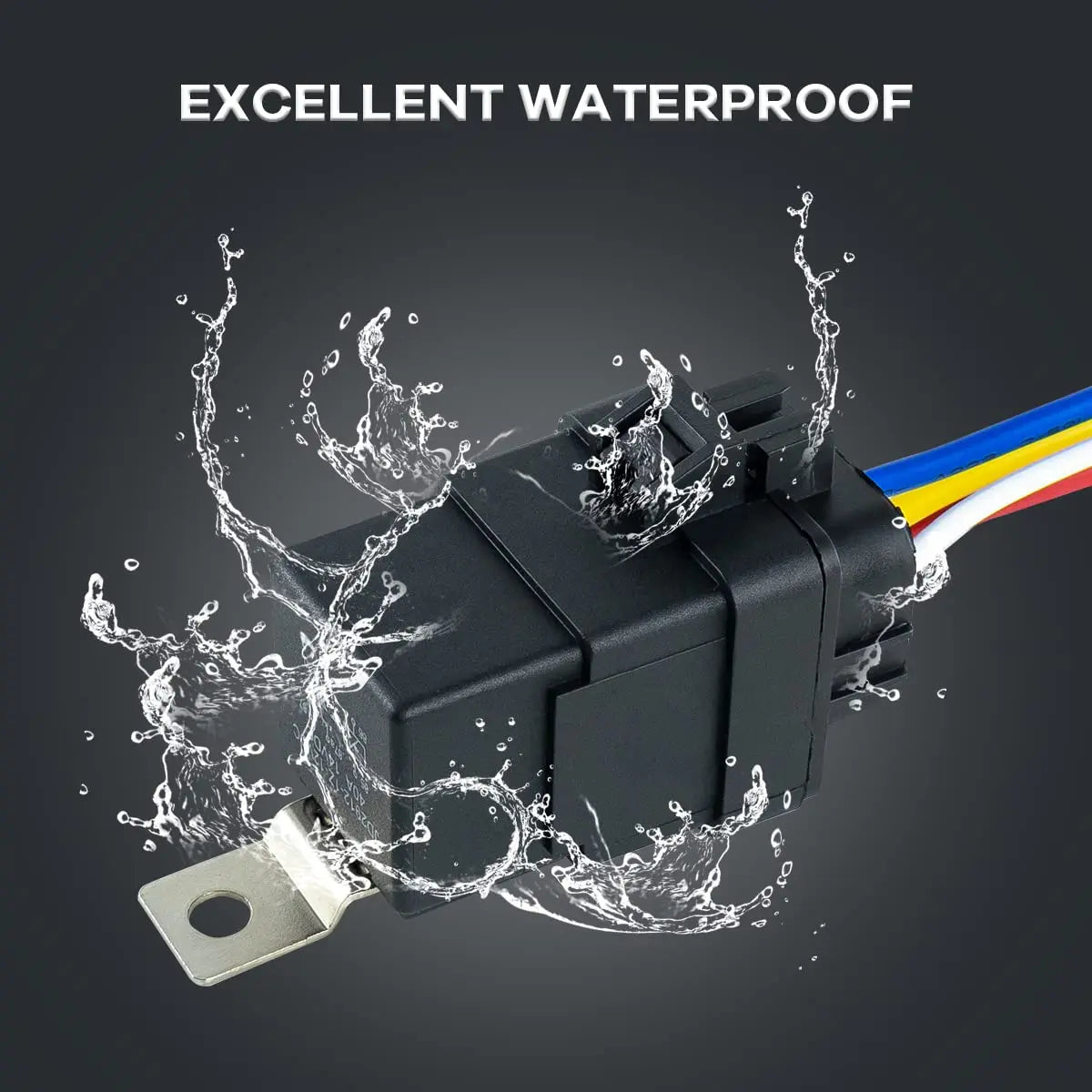

Protect Feature: Sealed

Theory: Voltage relay,Electromagnetic Relay

Usage: Auto

Use: General Purpose

Voltage: 12V,12V 24V

is_customized: Yes

semi_Choice: yes

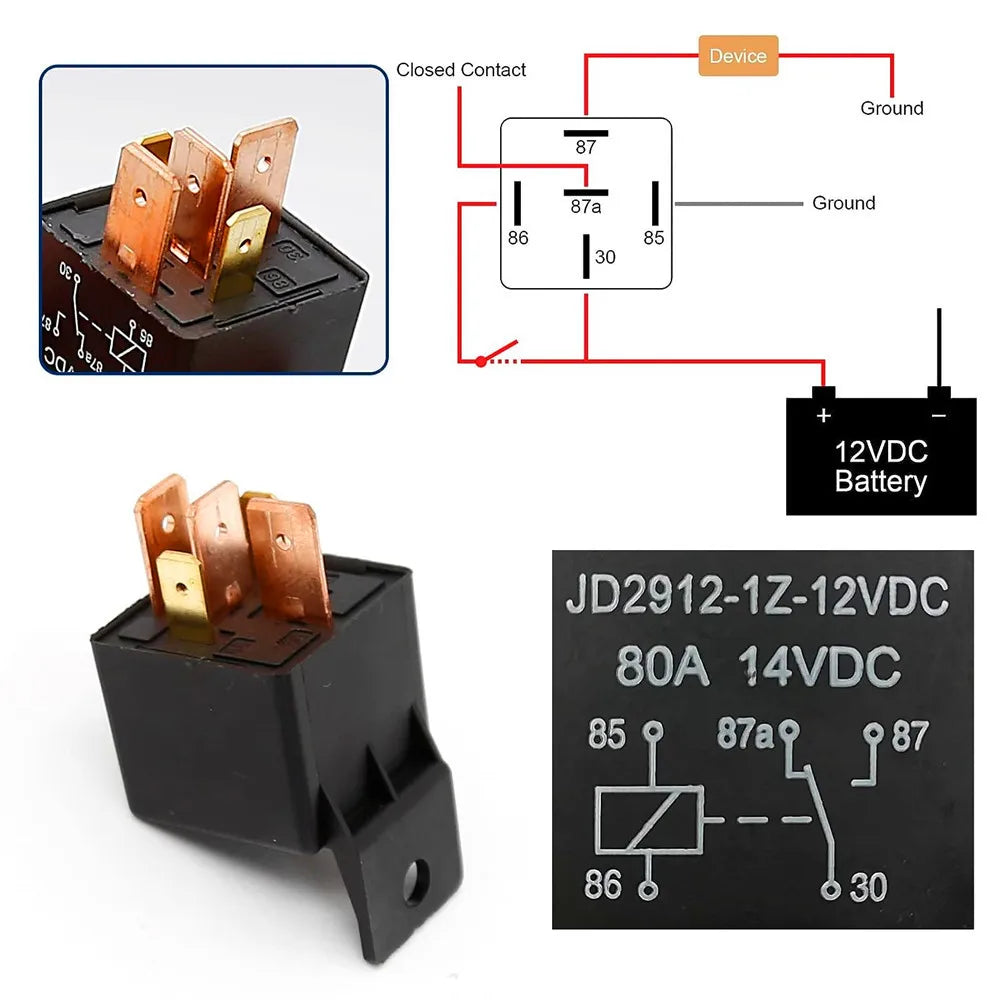

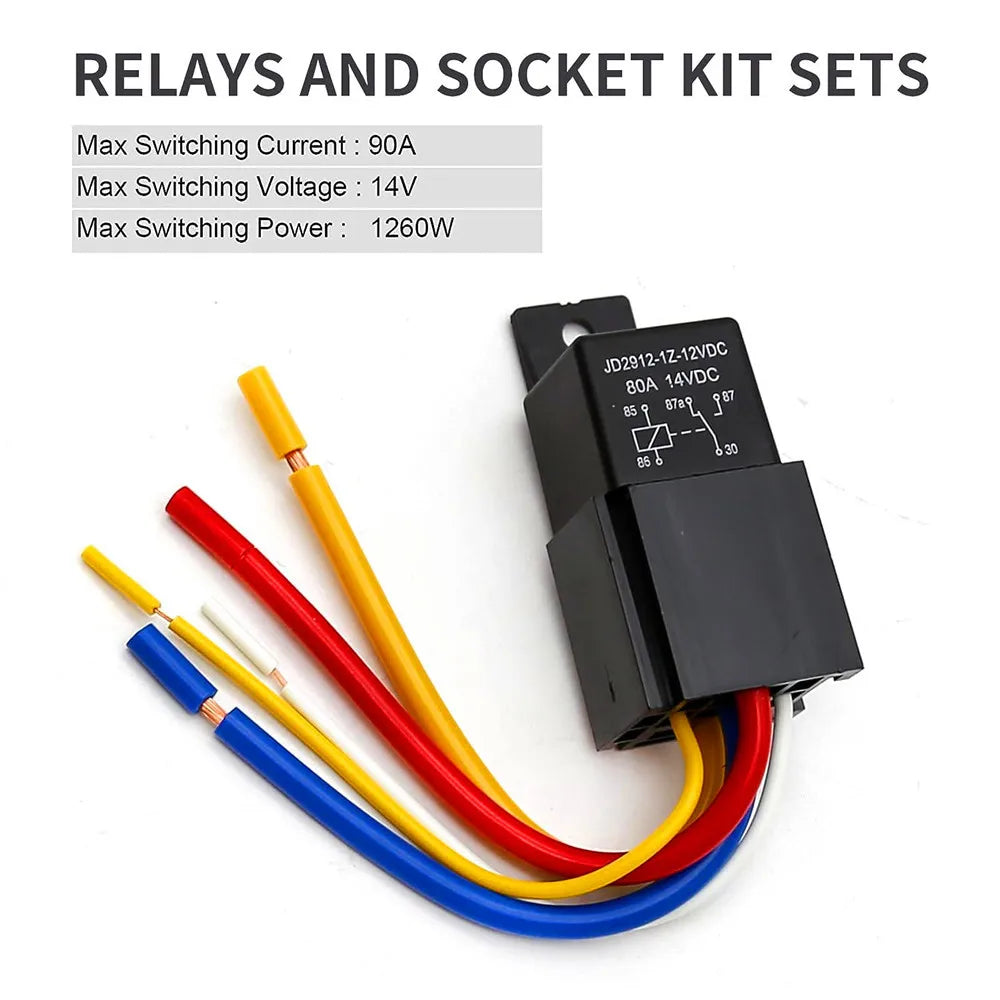

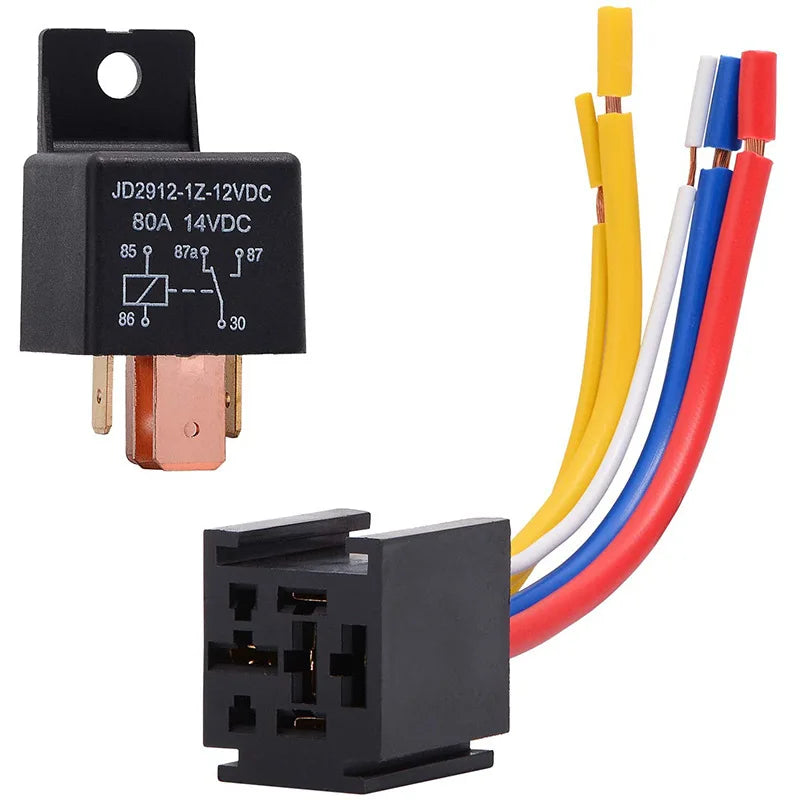

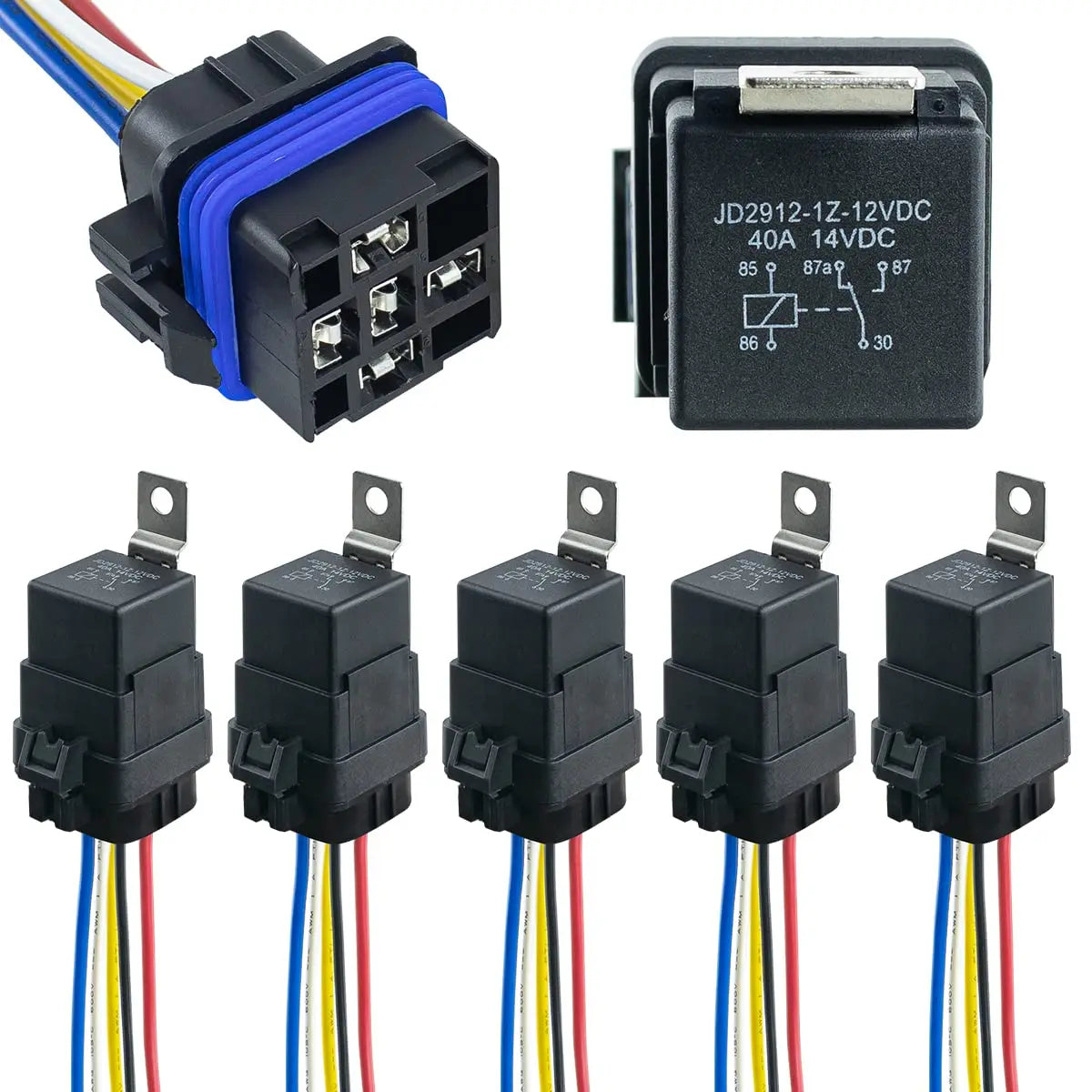

Model: JD2912

Product features: Large capacity, capable of switching 80 amperes of current; Standard contact forms available include: 1 set of normally open, 1 set of normally closed, and 1 set of switching,.

Working temperature: -40 to+125 ℃

Product use: Automotive control device

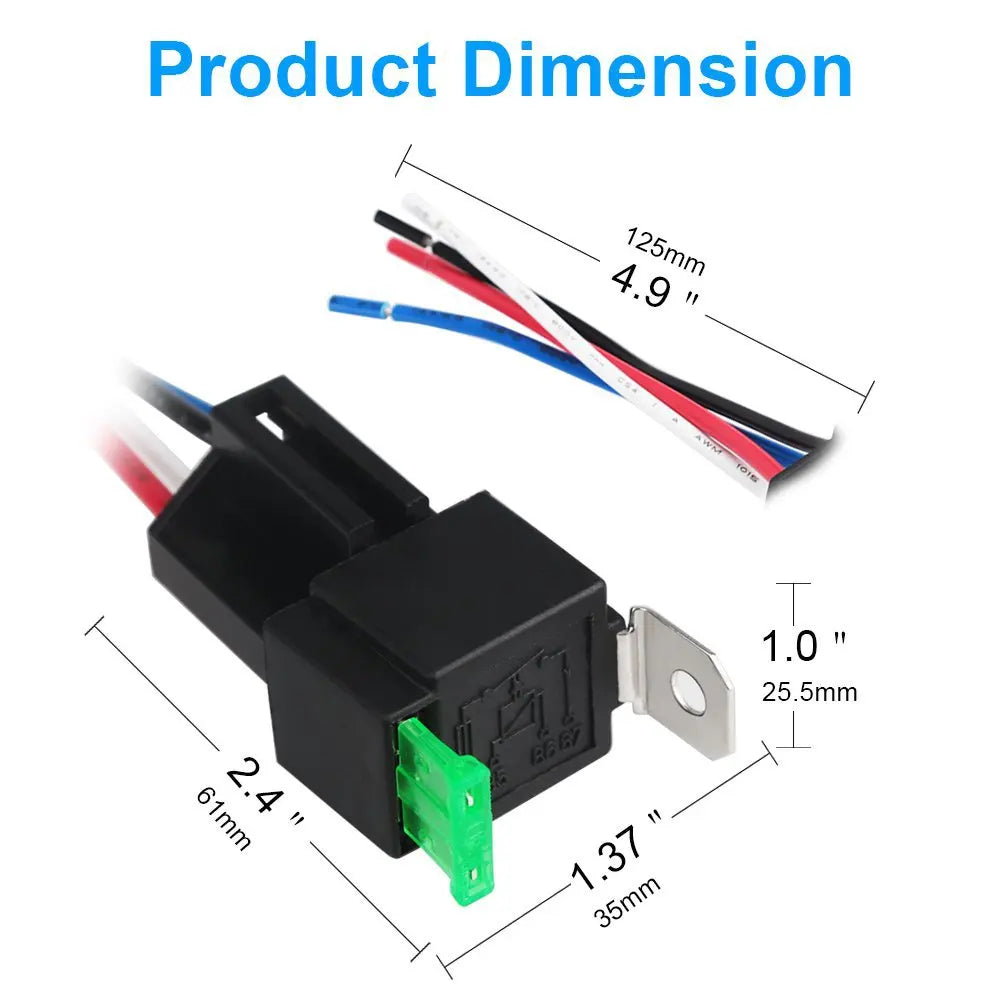

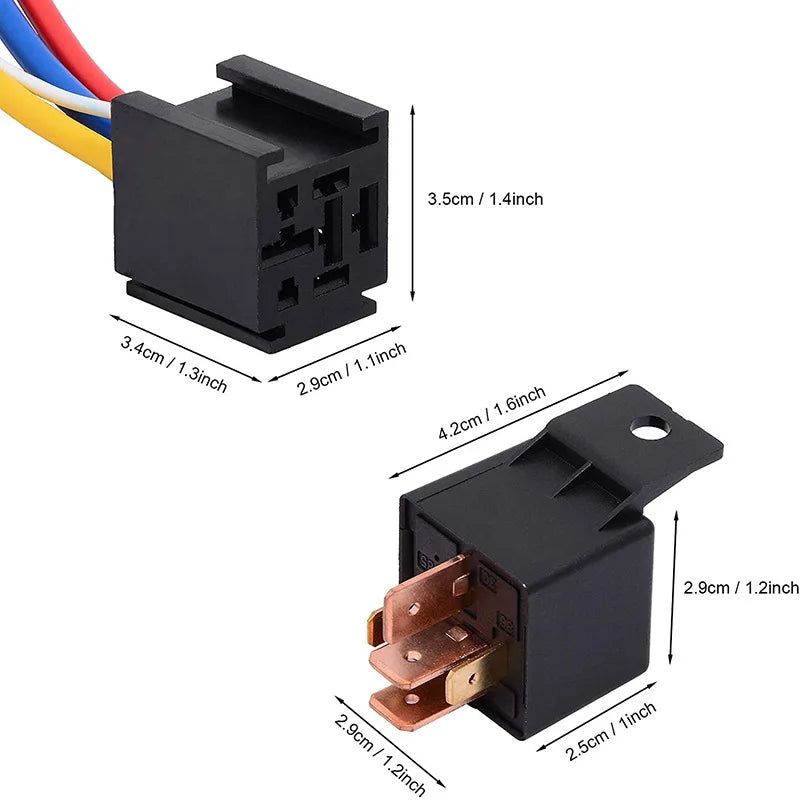

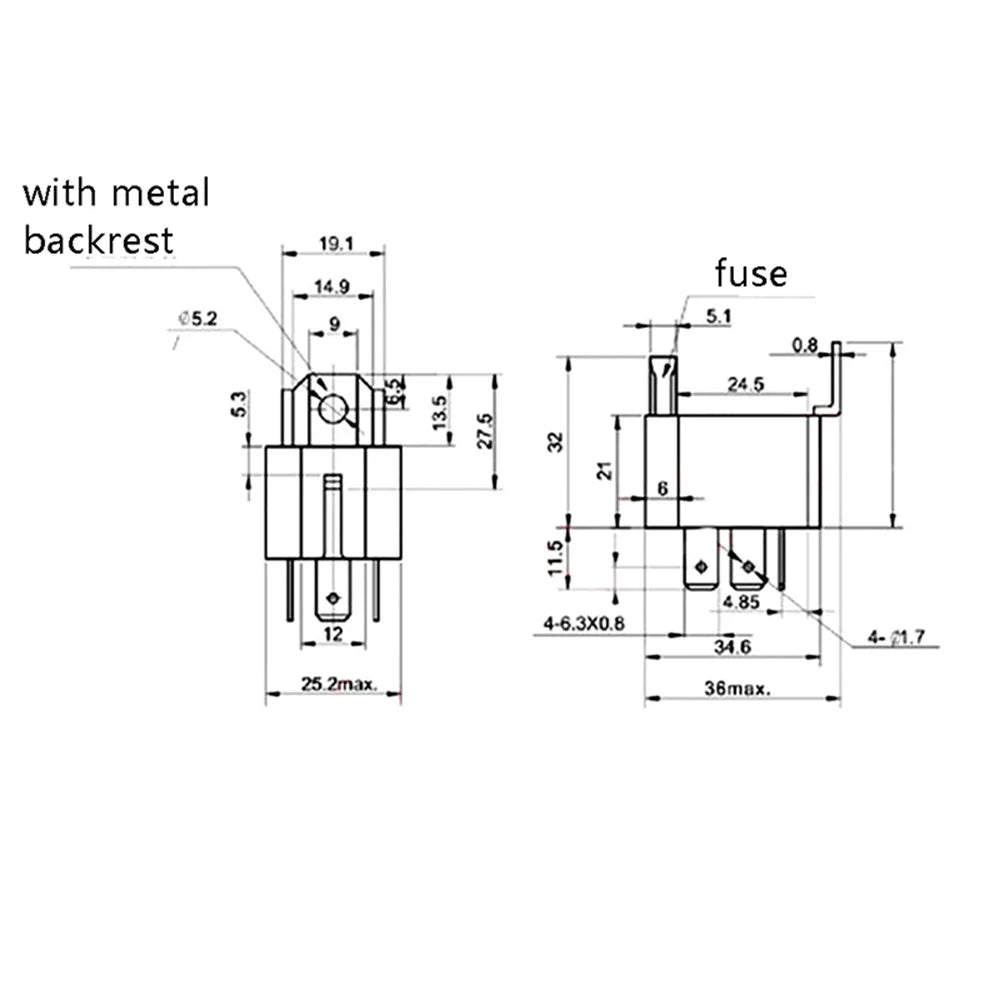

External dimensions (length * width * height) (mm): 28.0 * 28.0 * 25.0

Contact form: 1a, 1b, 1c

Contact capacity: 1a: 80A 14VDC

1b: 60A 14VDC

1c: 80A/60A 14VDC

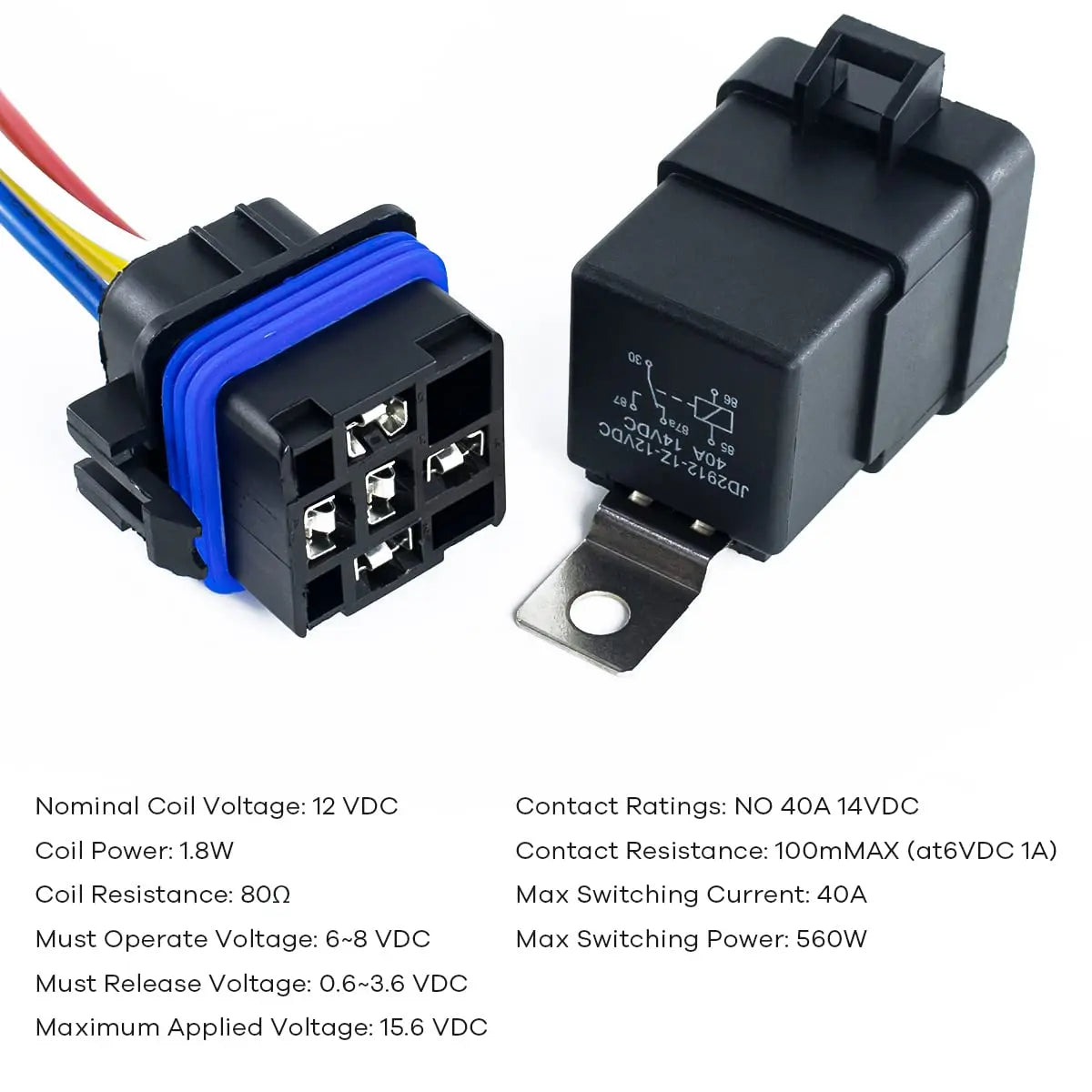

● Coil voltage: 6VDC, 9VDC, 12VDC, 24VDC, 48VDC, 36VDC, 72VDC

Car relay coil parameters

● Coil power (W): 1.80

Contact resistance: ≤ 50m Ω

Insulation resistance: ≥ 1,00M Ω

● Service life (times): Electrical 1 * 100000

Mechanical 1 * 10000000

● Dielectric withstand voltage: 500VAC between open circuit contacts

500VAC between coil contacts

Environmental temperature: -40 ℃~+125 ℃

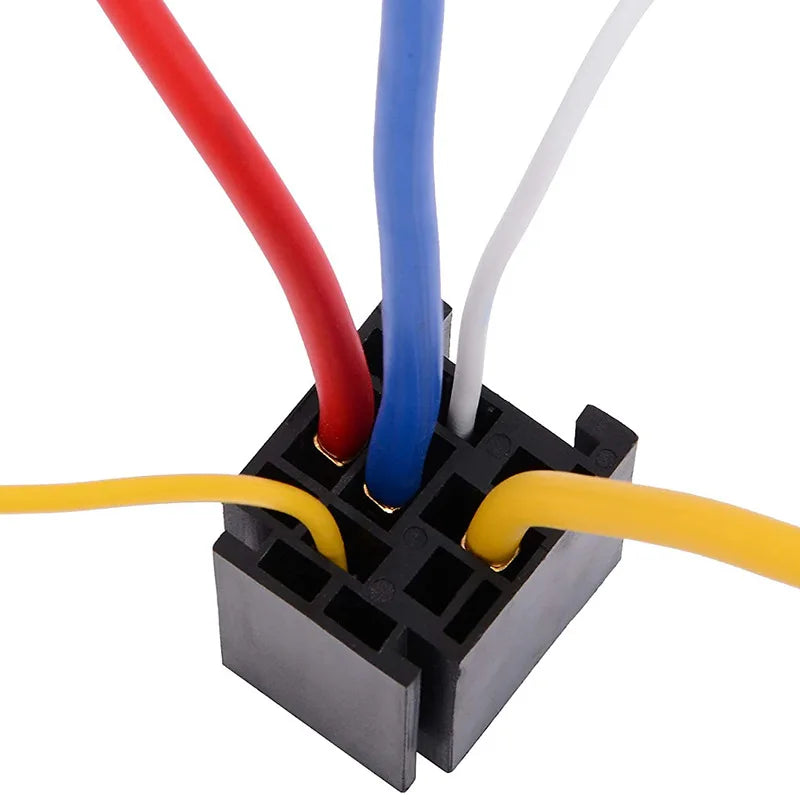

Installation form: quick connect type, socket type

Weight: 0.2KG

Specification:

Brand new

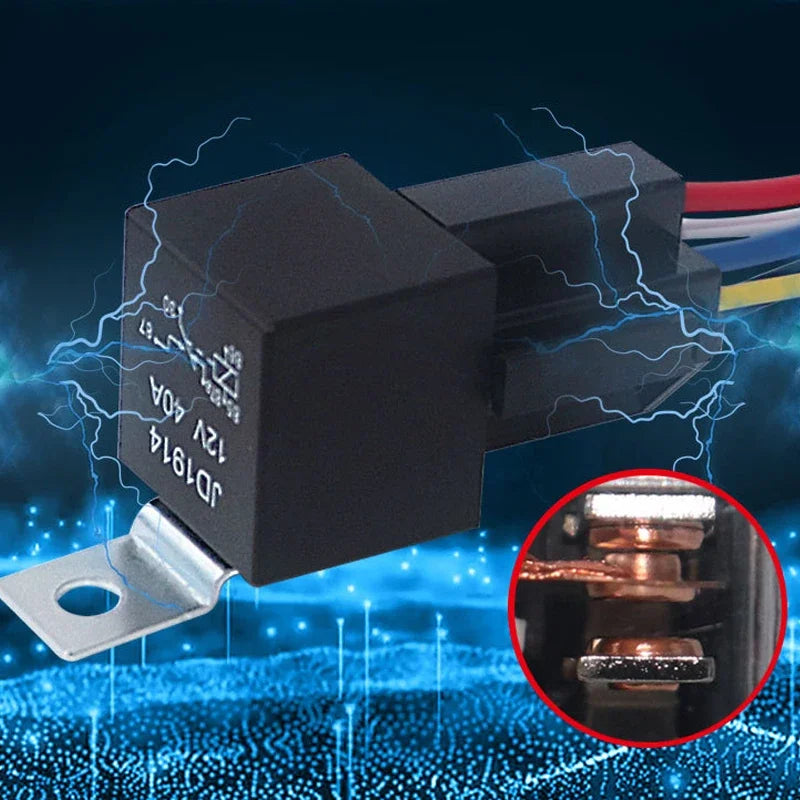

Contact material: Silver Alloy

Color: Black

Rated Voltage: DC 12V / DC 24V

Operating Current: 40A

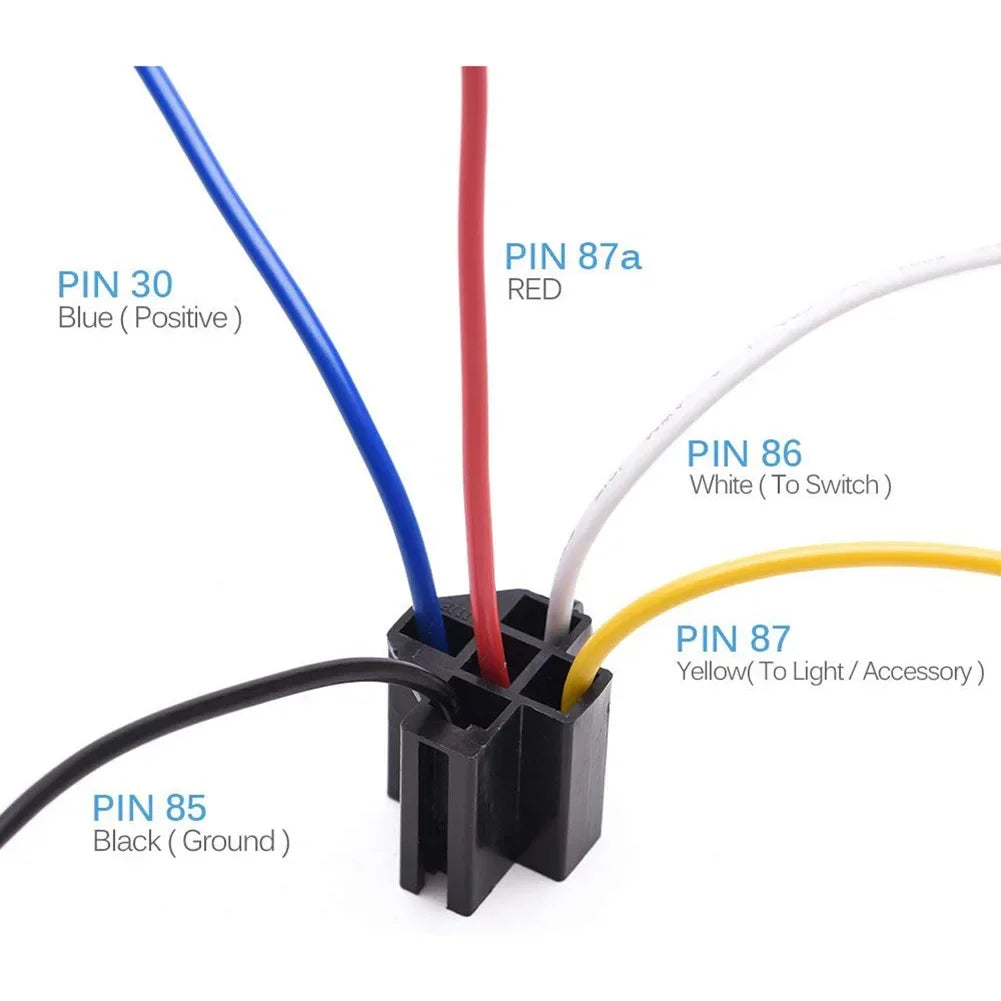

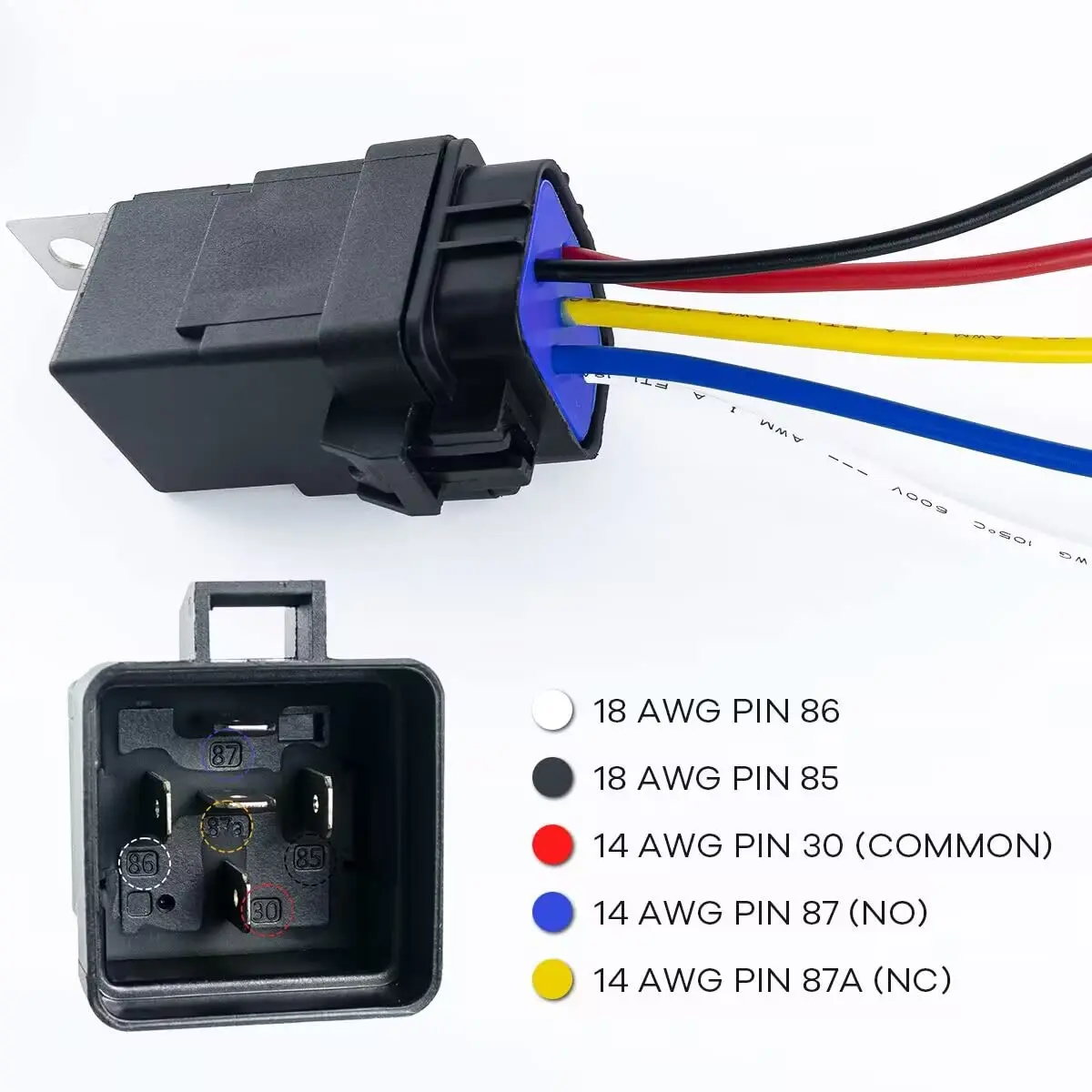

Pin Number: 4 5 Pin

Electrical Life: 100000 ops

Mechanical Life: 10000000 ops

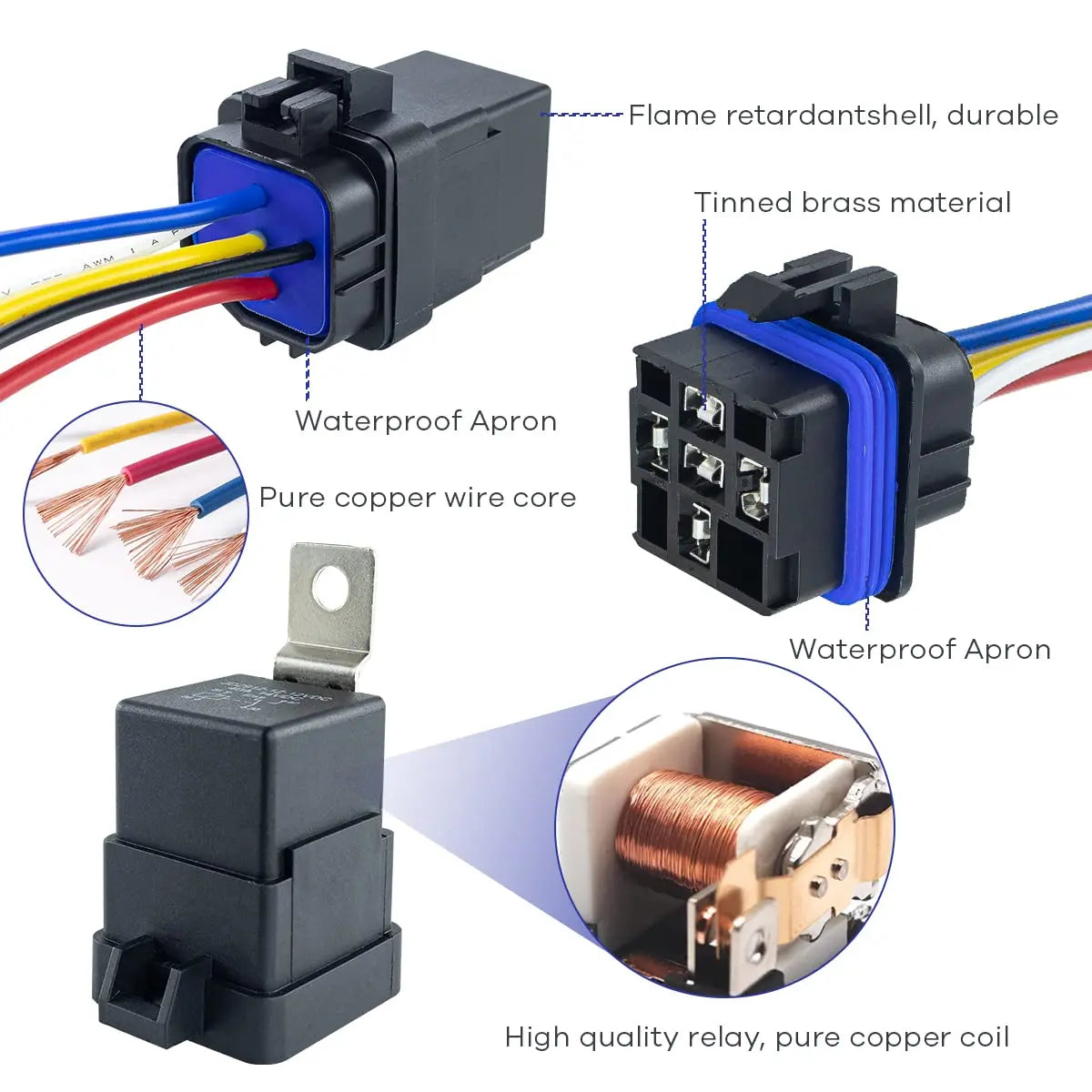

Feature:

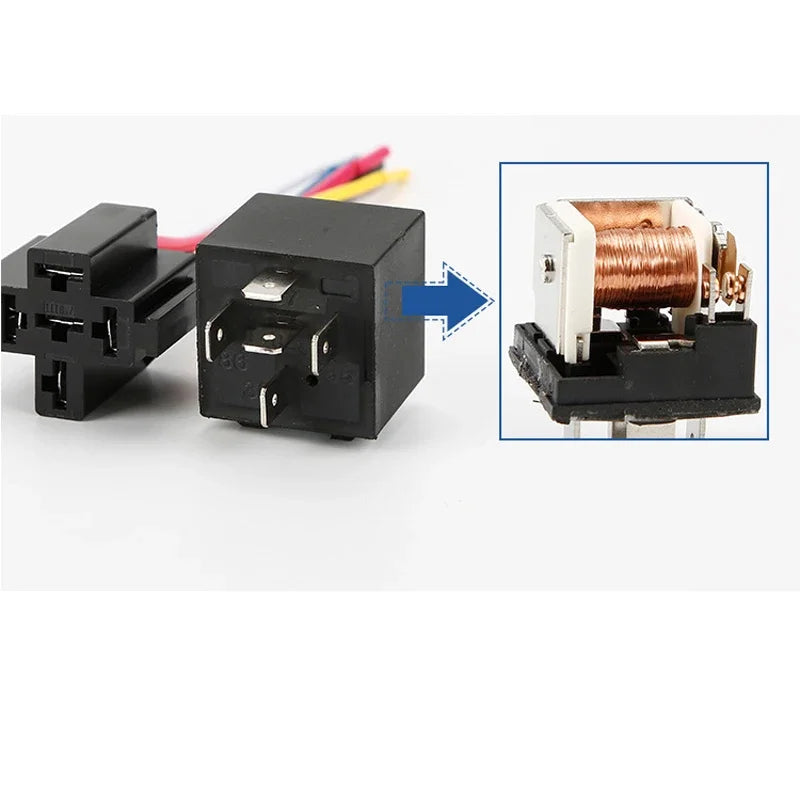

Red Copper coil.

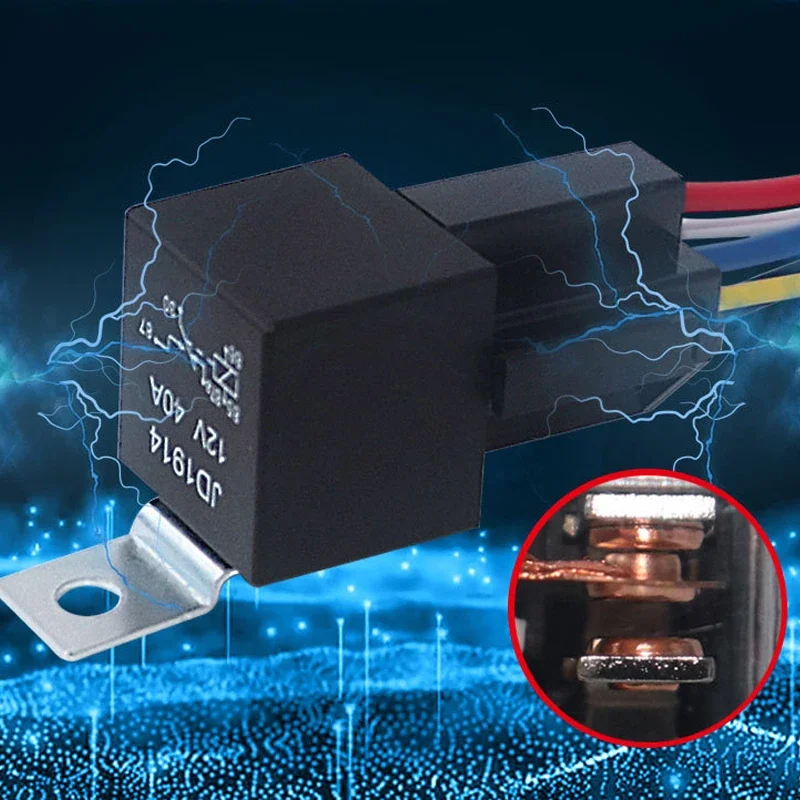

Cu-AG-Cr alloy touch point.

Red Copper over-current protection.

Fine workmanship, excellent performance.

Durable in use.

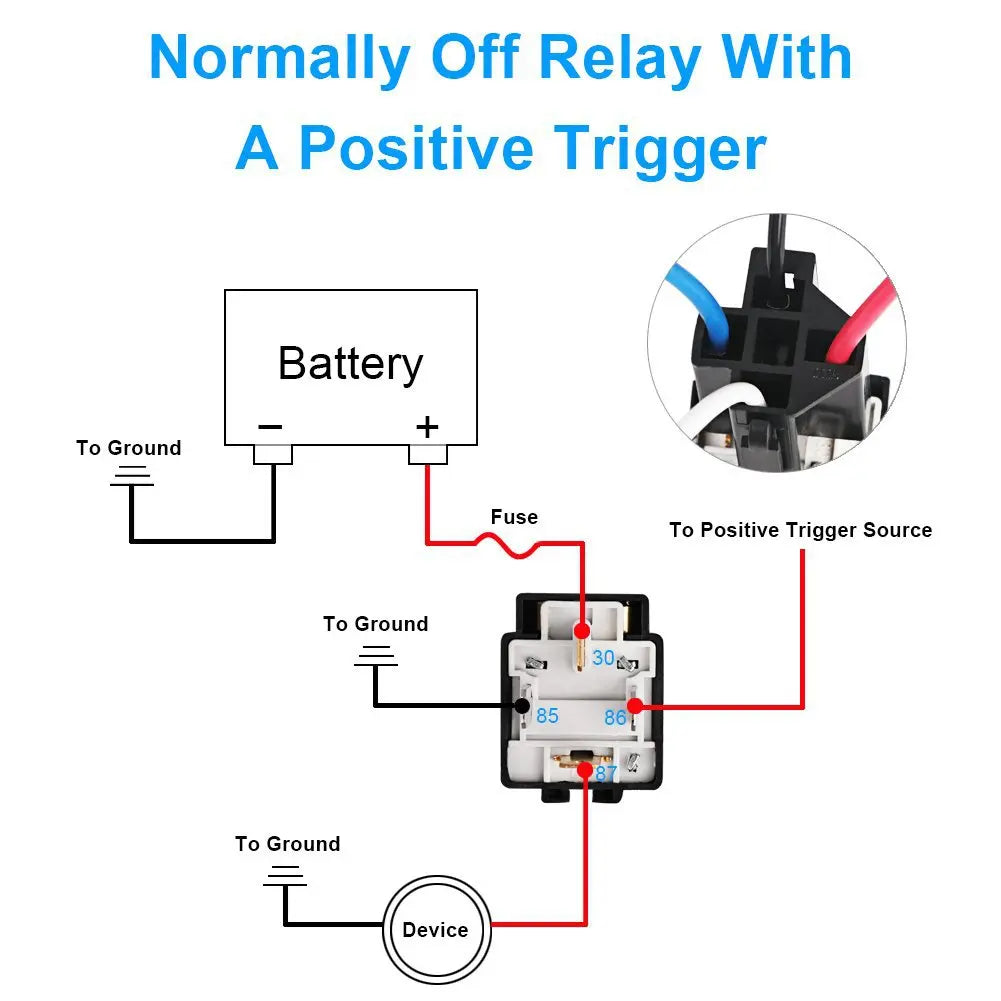

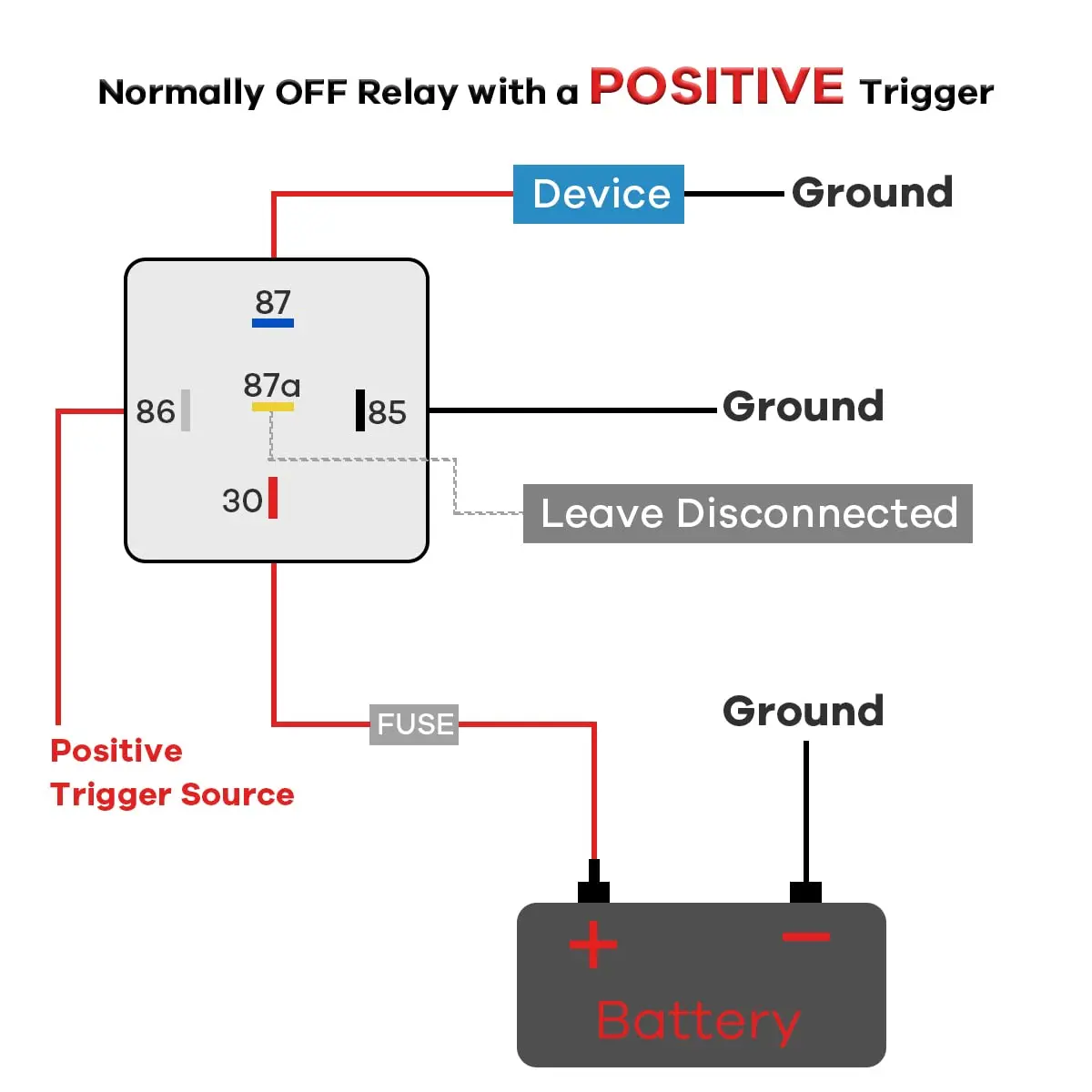

Used for fog light, head light, battery control, oil pumb control, fan control, air conditioner, harness.

Package included:

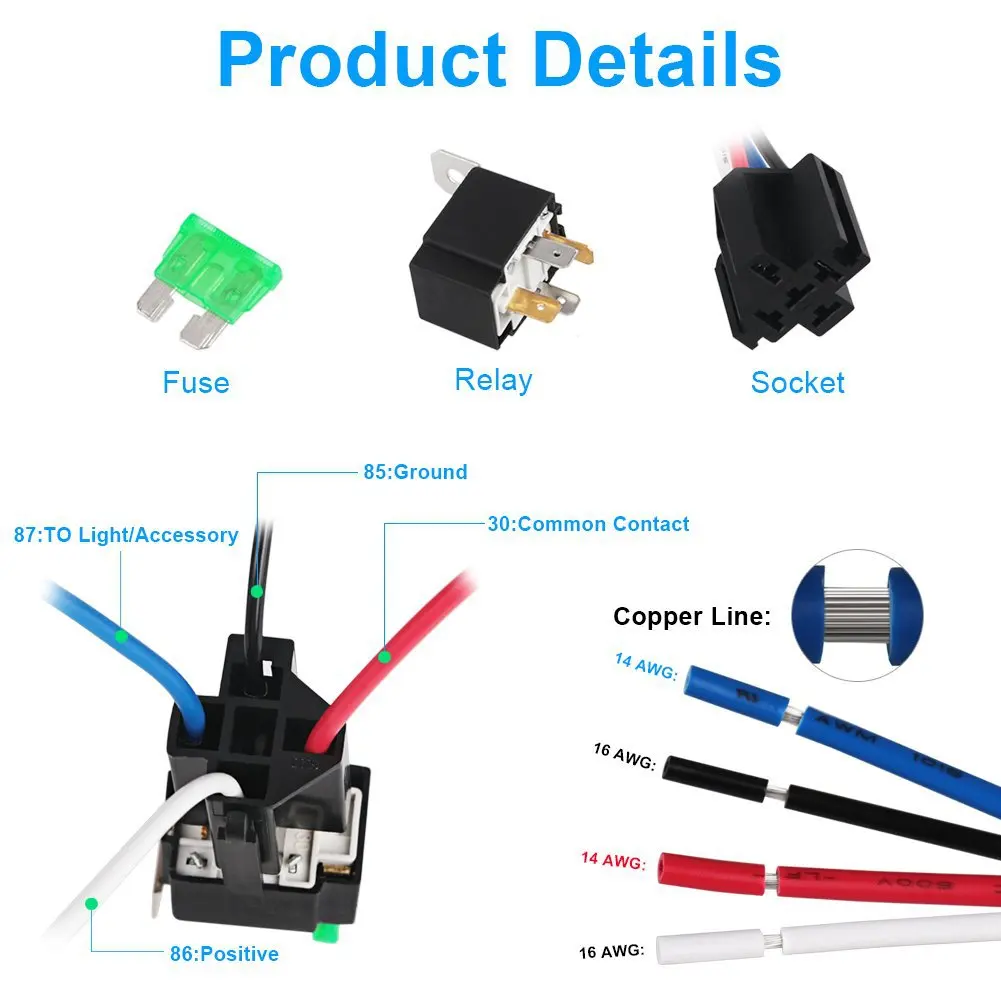

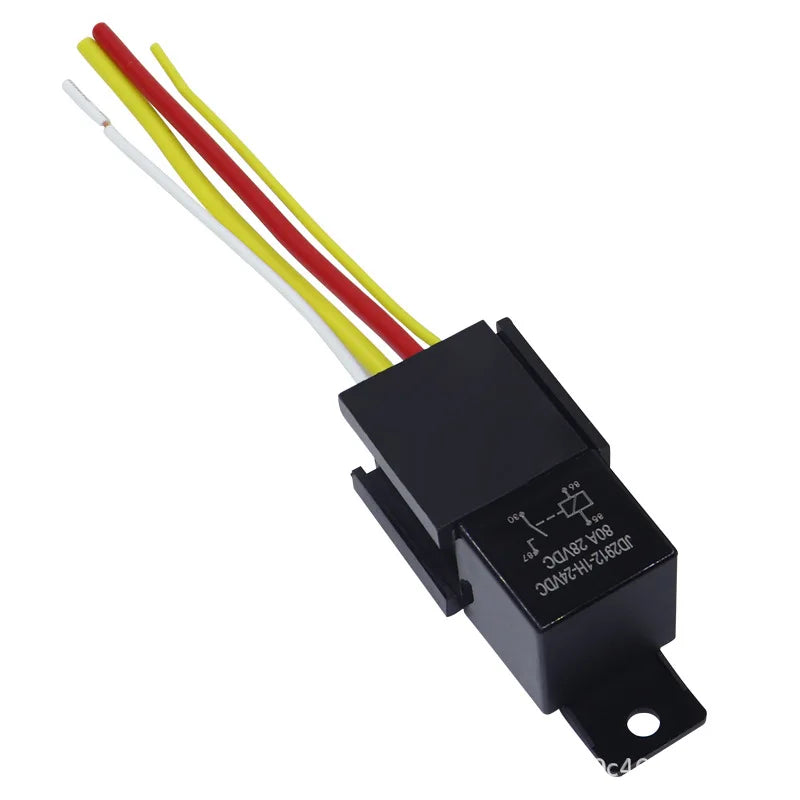

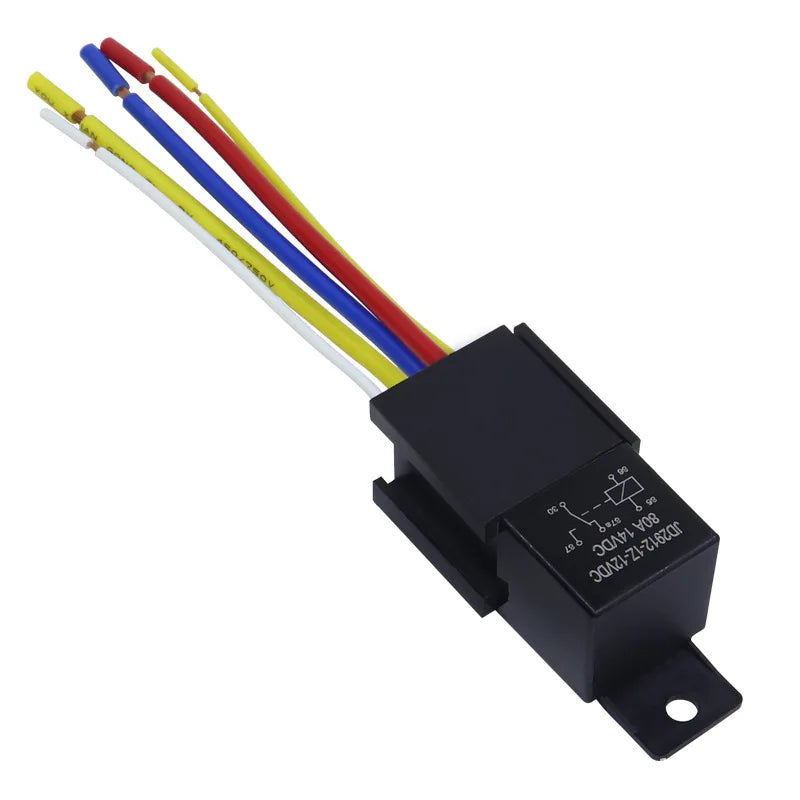

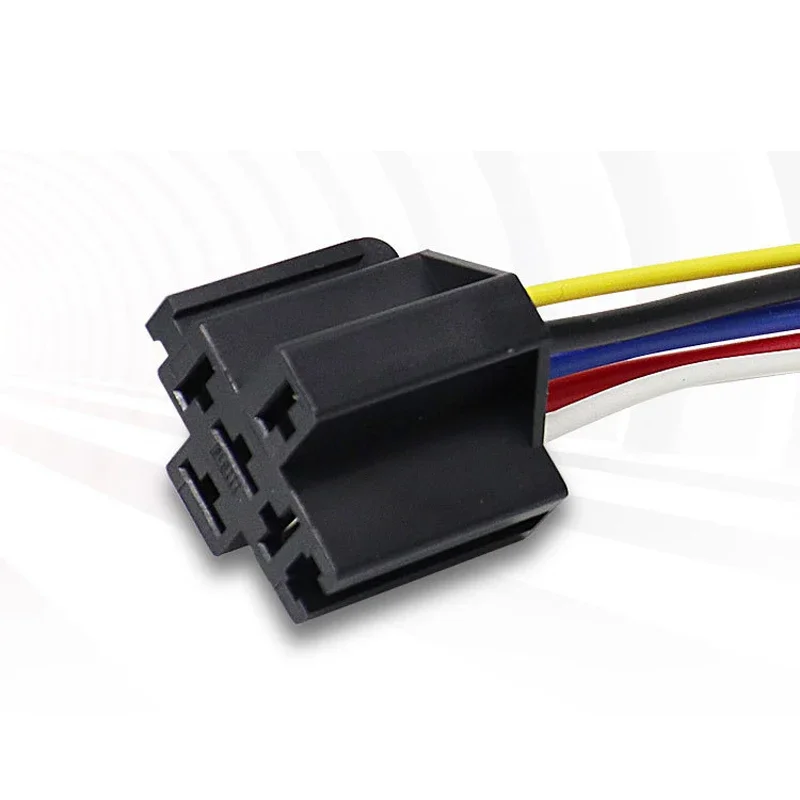

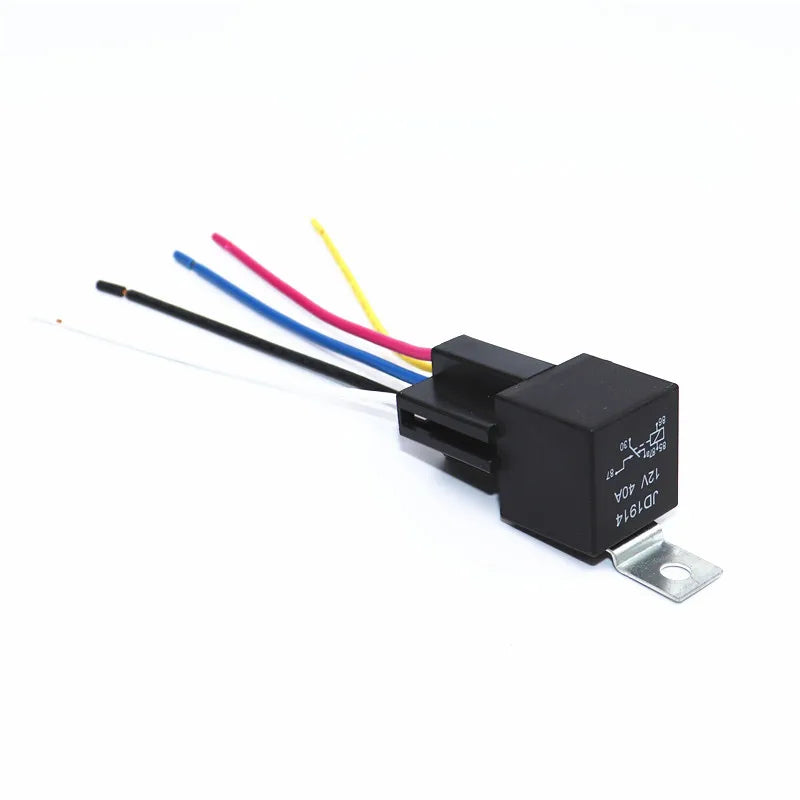

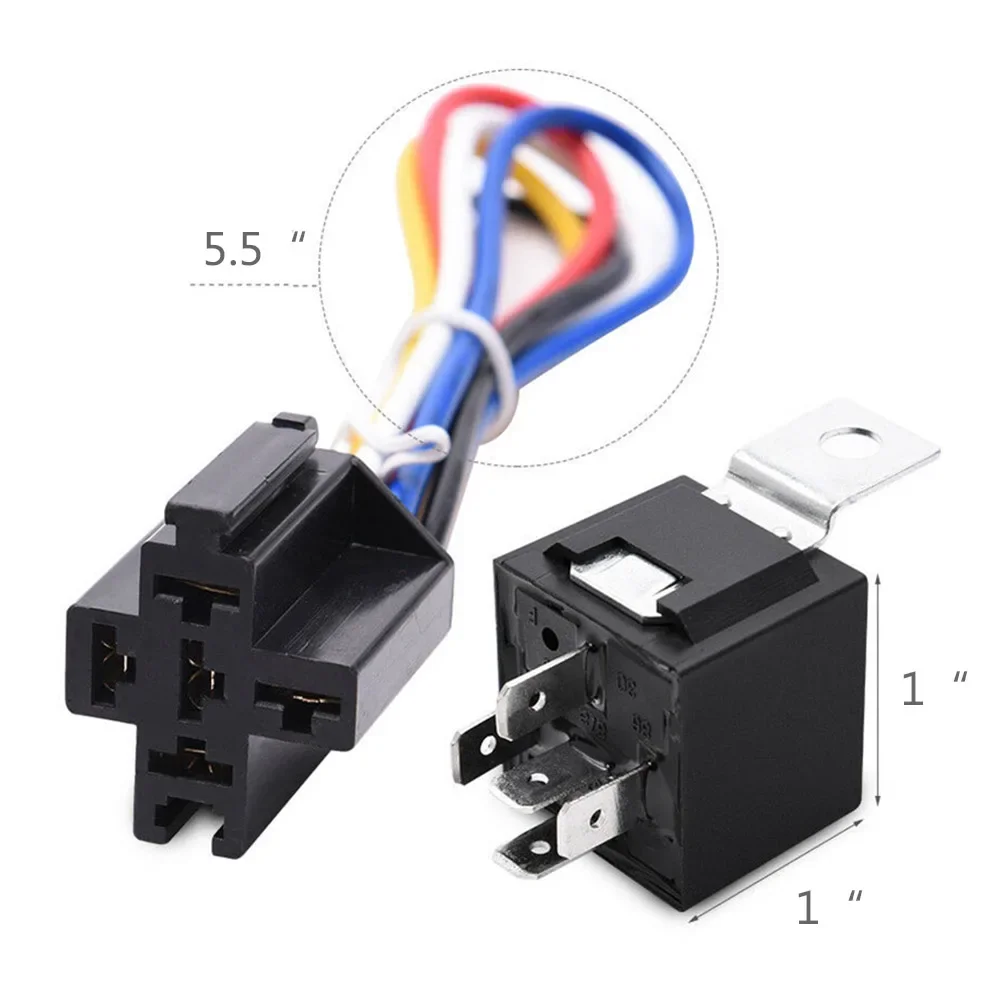

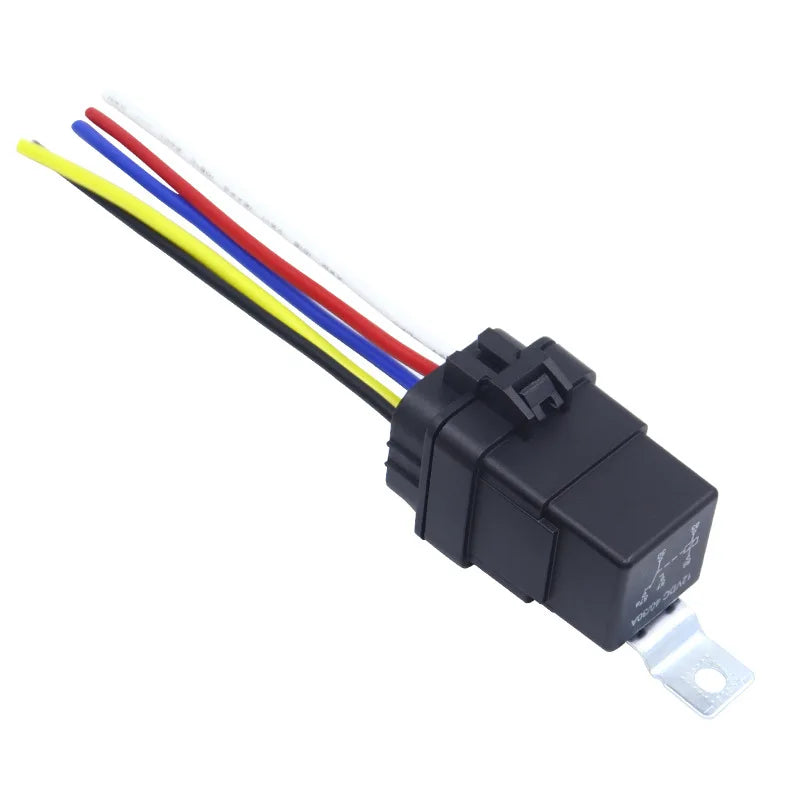

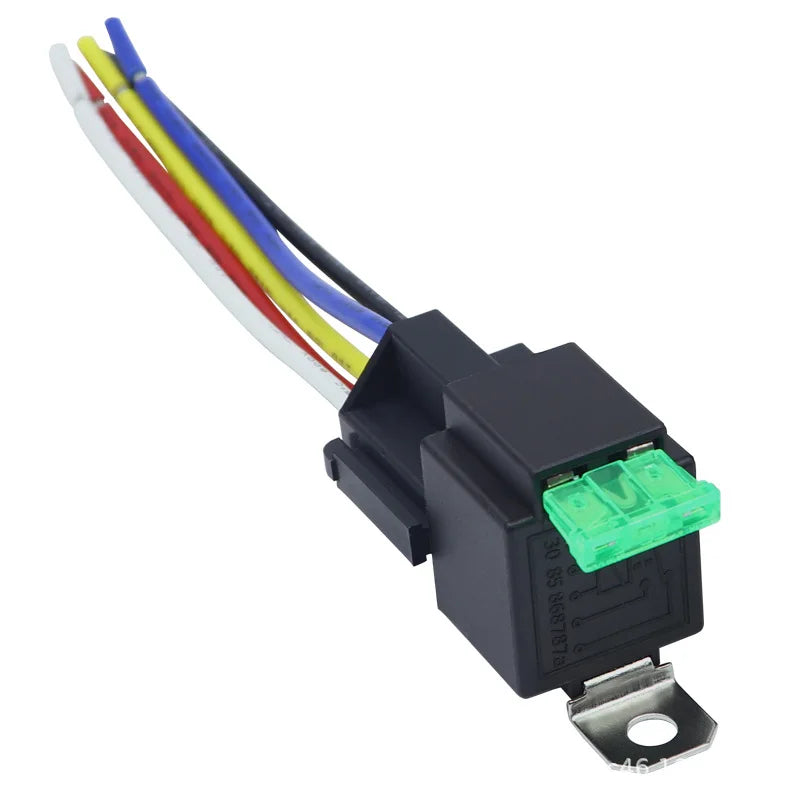

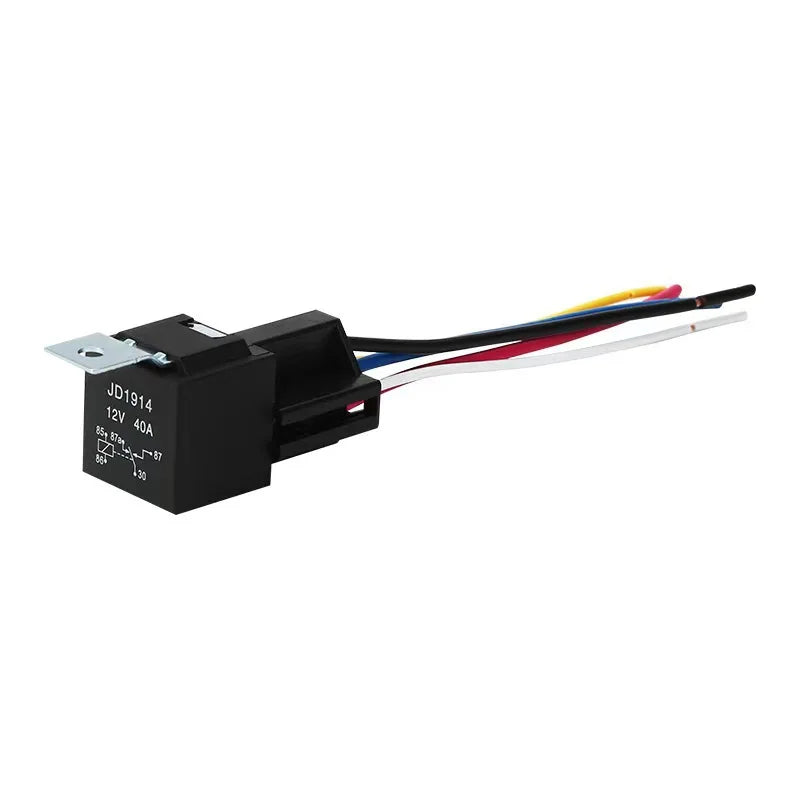

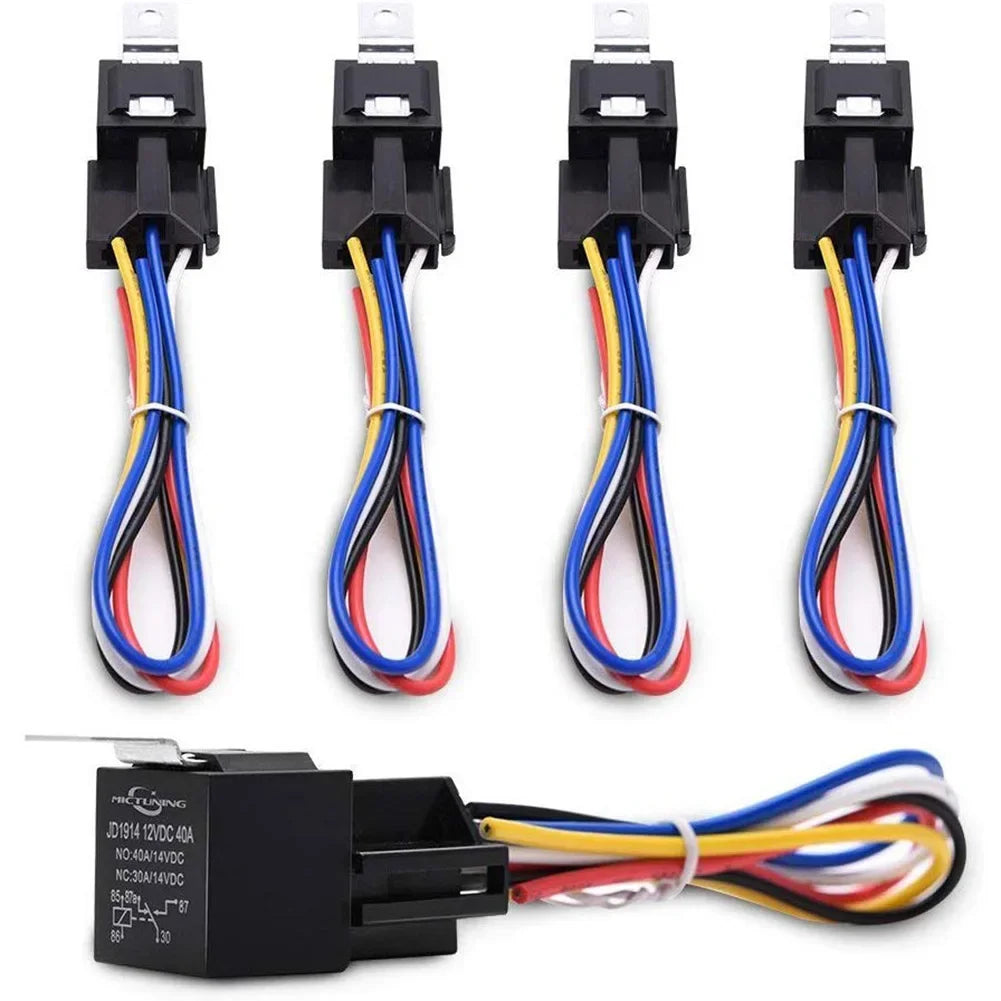

1 x Relay and socket
