SPECIFICATIONS

Brand Name: Gaqqee

Certification: CE

Choice: yes

Direction control: Yes

Drive power: ≤500W

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Enable control: Yes

High-concerned chemical: none

Model Number: Brushless DC Motor Controller Module

Motor: DC Motor

Motor Type: DC Motor

Origin: Mainland China

Overcurrent protection: Yes

Speed regulating voltage: 0.1V-5V

Speed signal: Yes

Stall protection: Yes

Working current: ≤15A

Working humidity: ≤90%RH

Working temperature: -40~85℃

Working voltage: 12V-36V

semi_Choice: yes

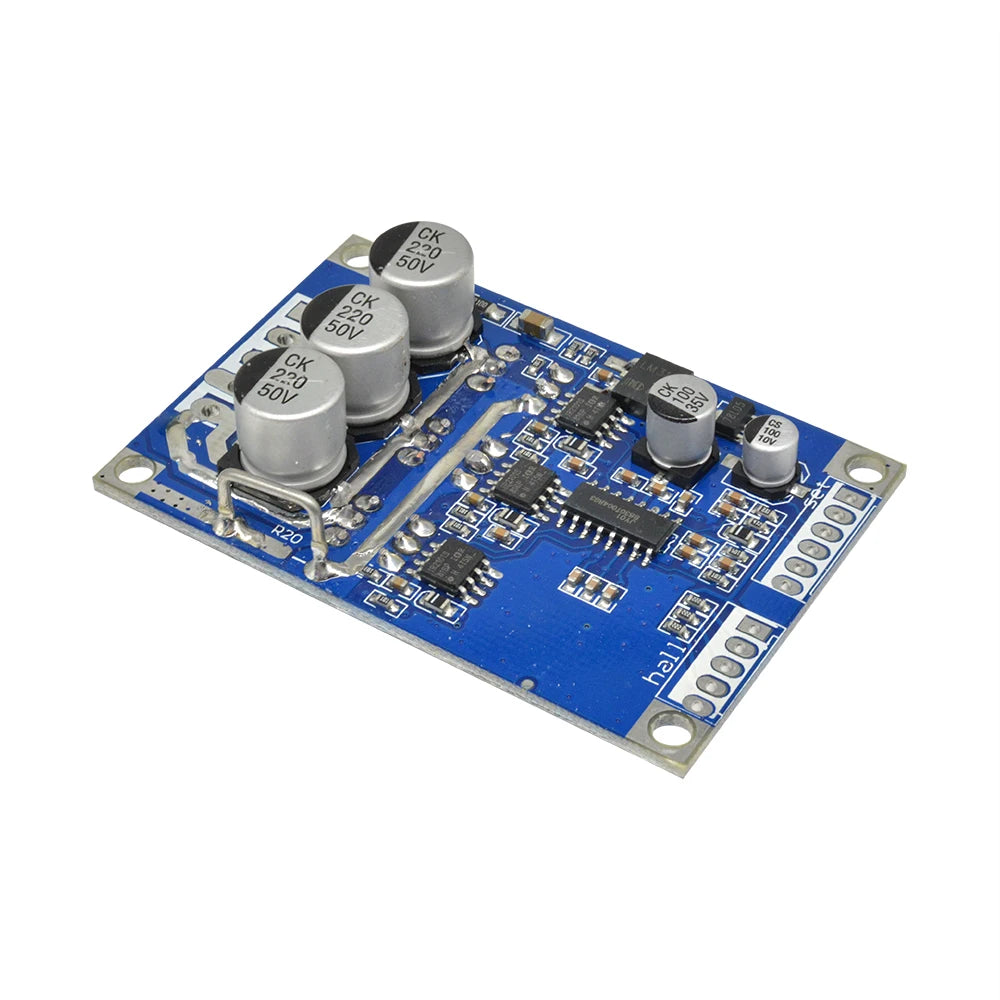

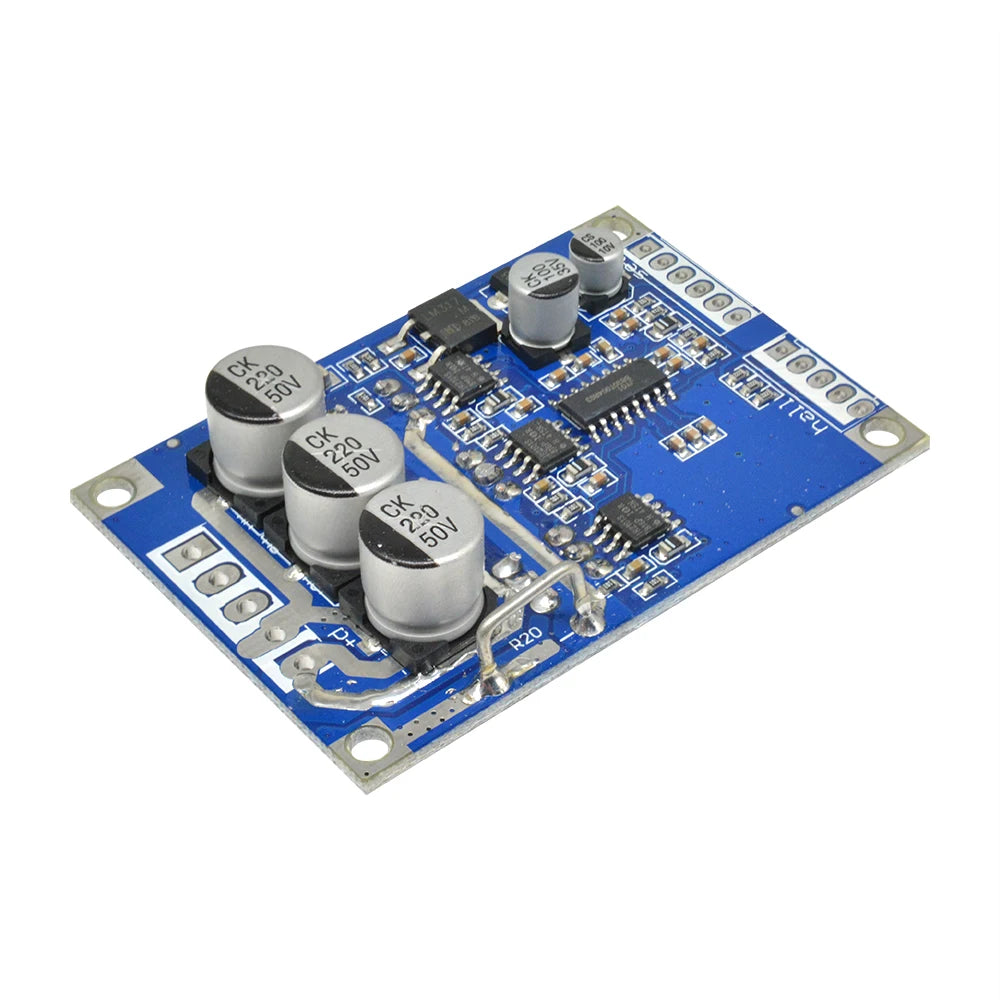

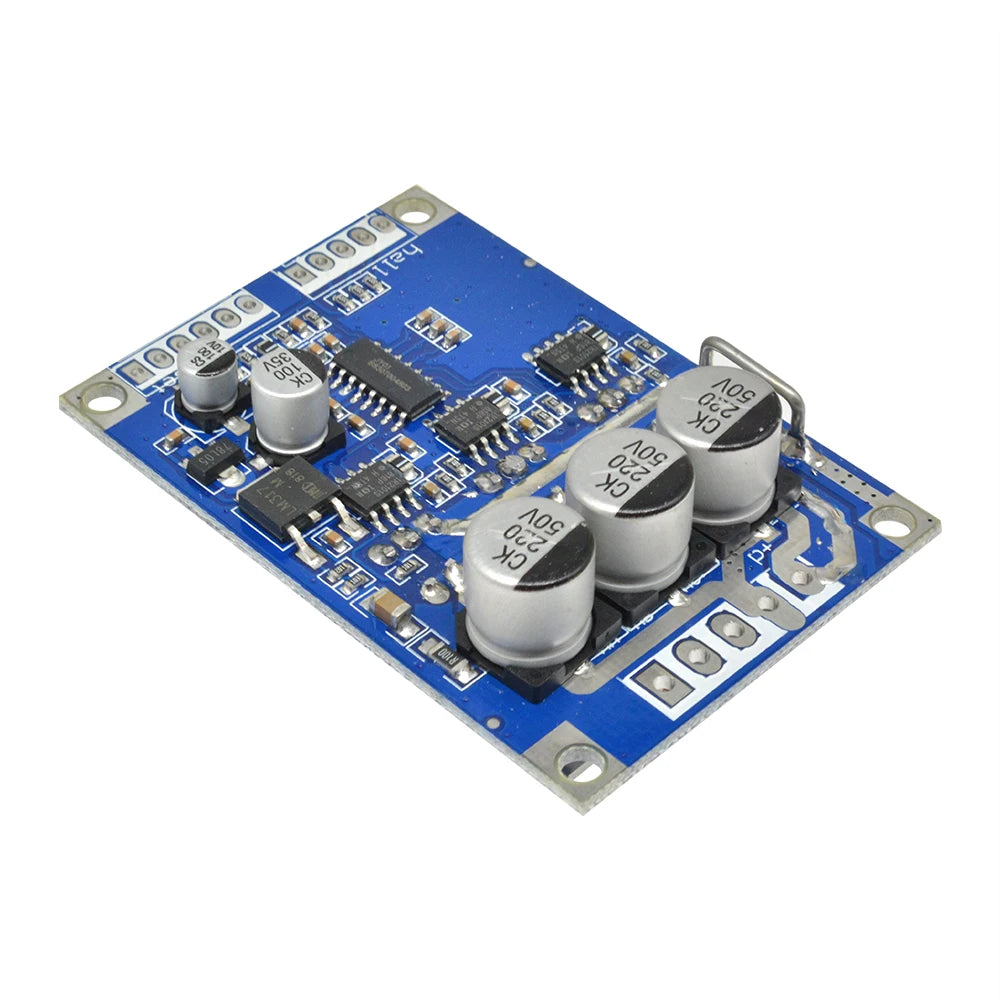

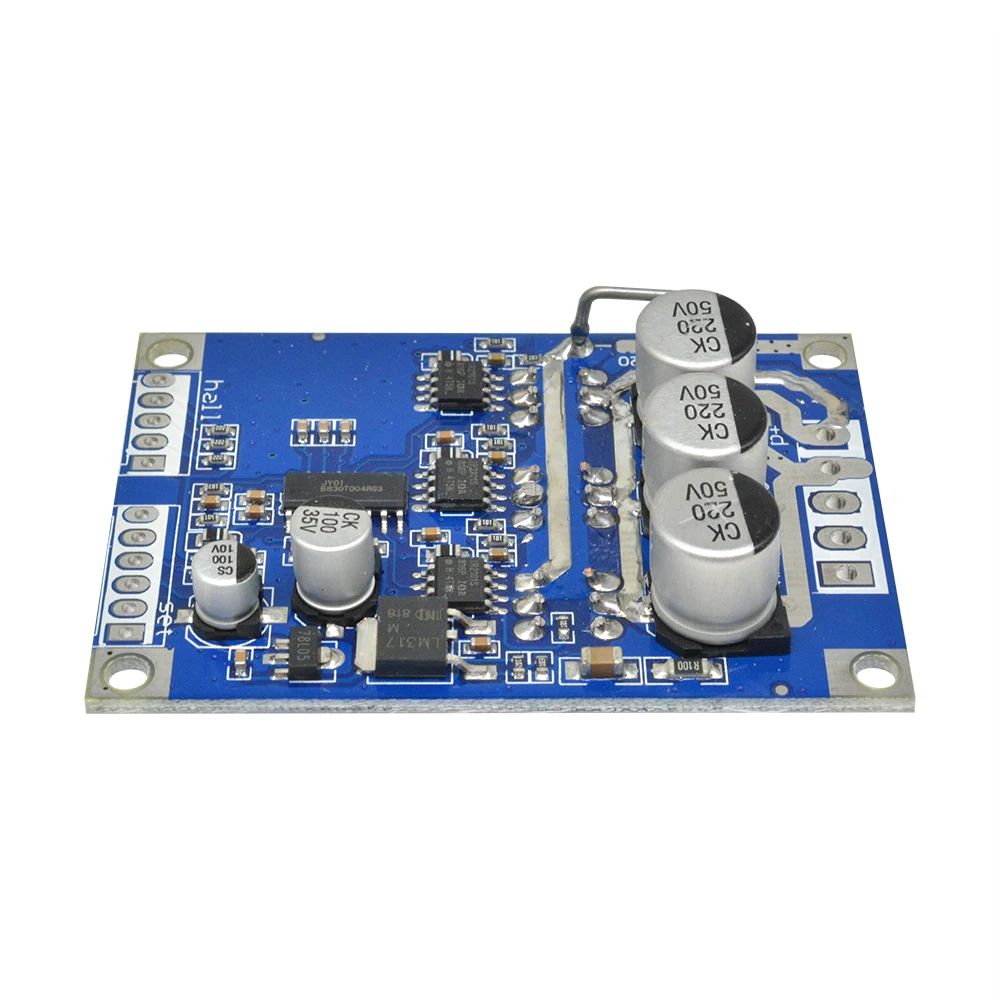

DC 12V-36V 15A 500W Brushless DC Motor Controller With Hall Motor Balancing Automotive Balanced BLDC Car Driver Control Board

Features:

1. Brushless motor drive with Hall brushless motor

2. Simple wiring and easy to use

3. With overcurrent protection

4. Has stall protection

5. With enable control, speed signal





Specifications:

1. Working voltage: 12V-36V

2. Working current: ≤15A

3. Drive power: ≤500W

4. Speed regulating voltage: 0.1V-5V

5. Working temperature: -40~85℃

6. Working humidity: ≤90%RH

7. Overcurrent protection: Yes

8. Stall protection: Yes

9. Direction control: yes

10. Enable control: yes

11. Speed signal: yes

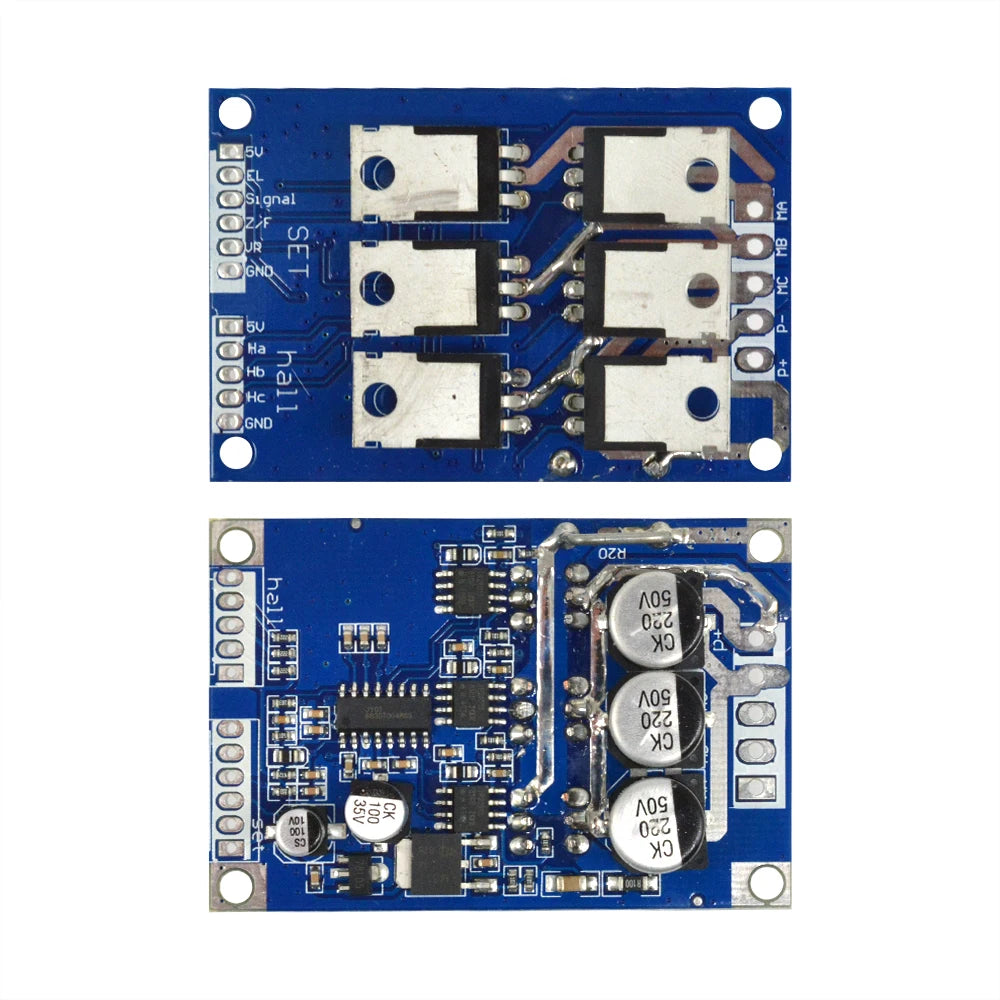

Leads and application instructions: (Explanation of the actual picture above)

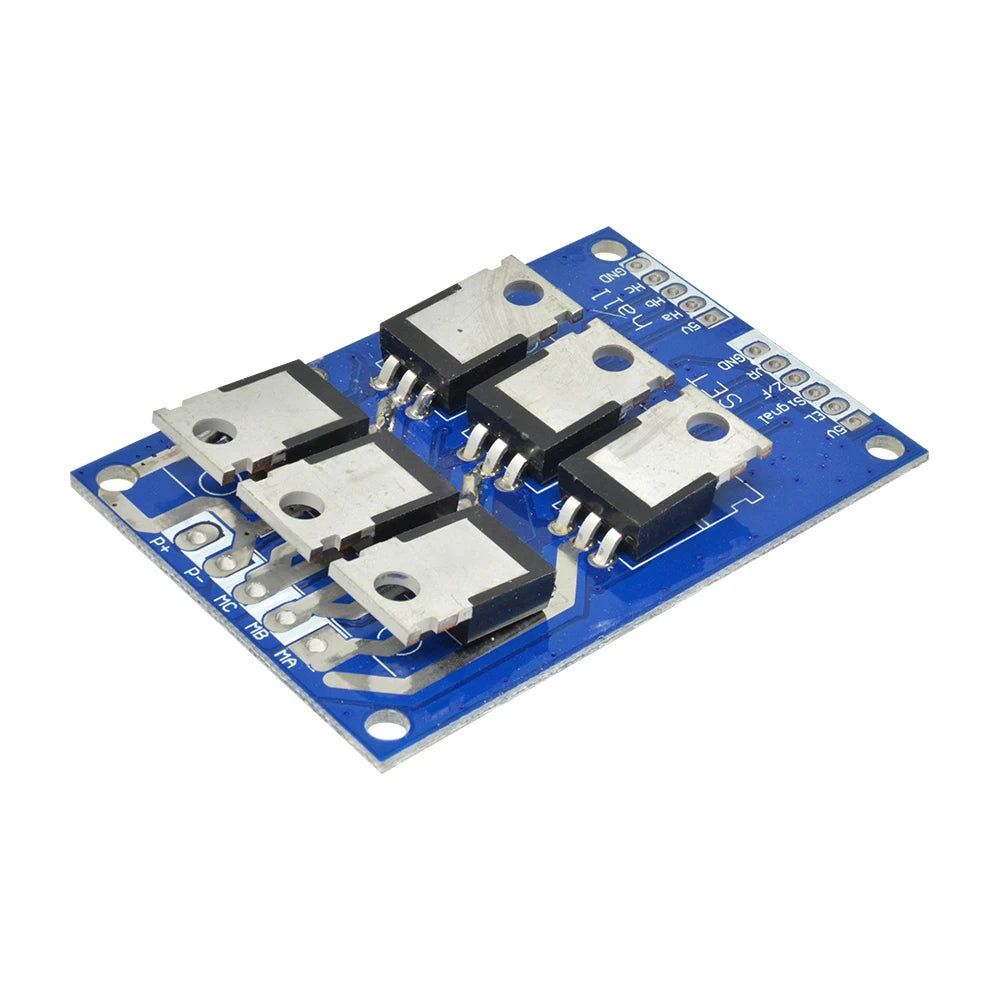

1. Connection method on the left side:

Power terminal OUT

VCC--(connect to the positive pole of the power supply)

GND--(connect to the negative pole of the power supply)

MC--(connected to motor phase wire W)

MB--(connected to motor phase line V)

MA--(connected to motor phase wire U)

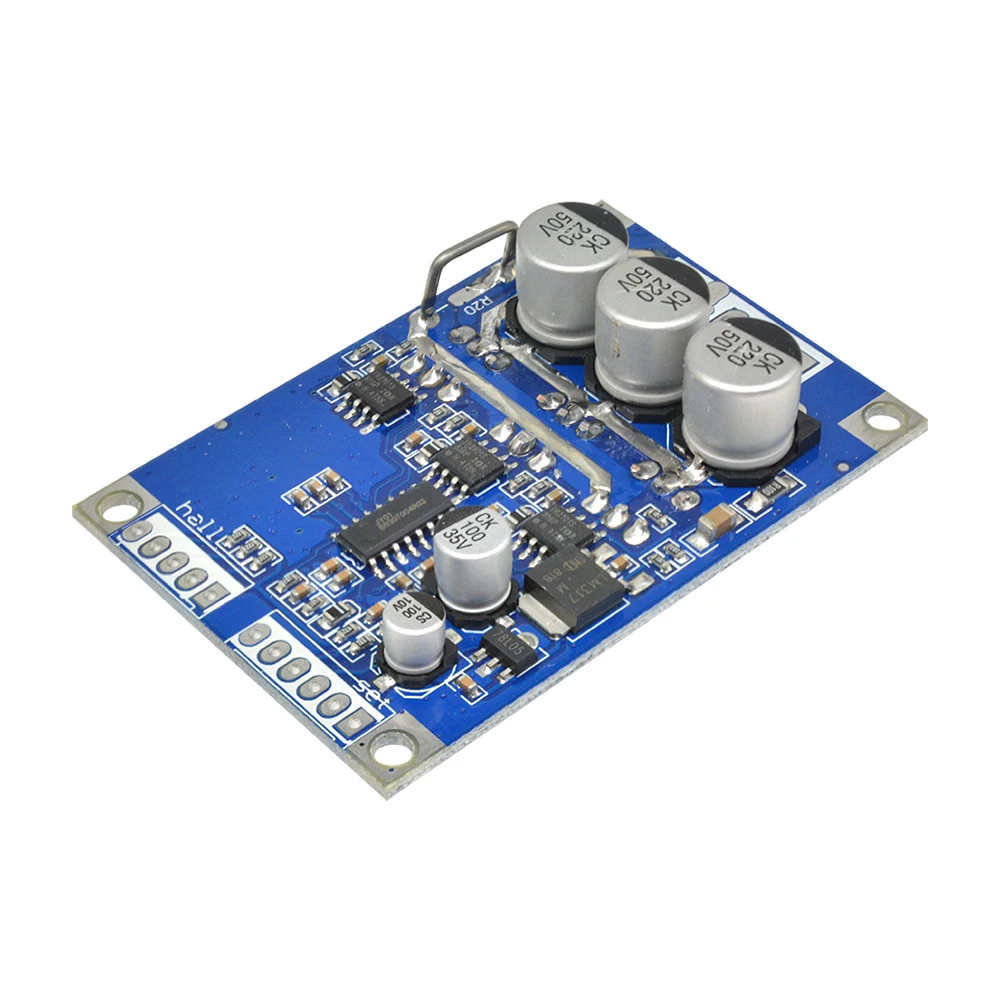

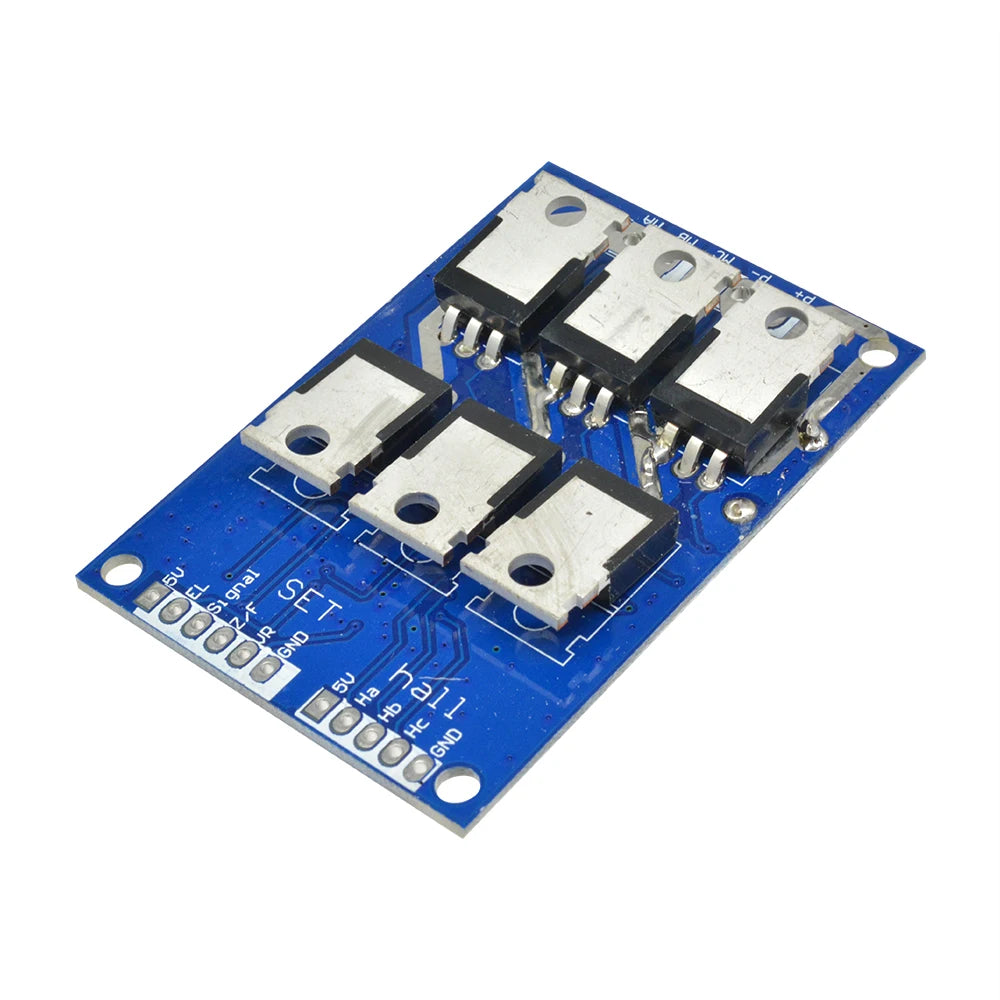

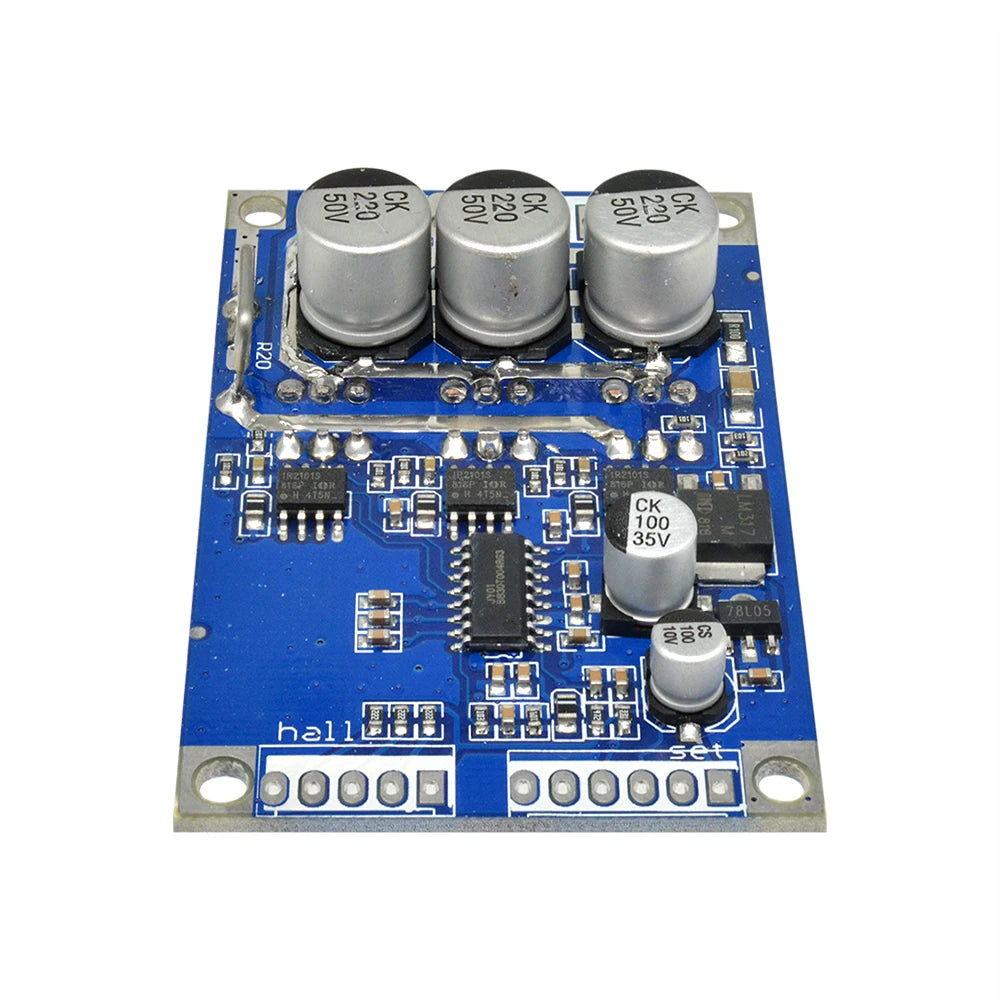

2. Connection method on the right side:

Motor Hall line

GND--Hall line negative pole

Hc--Hall line

Hb--Hall line

Ha--Hall line

5V--Hall line positive pole

Control terminal SET

GND--Control terminal ground

VR--speed regulating end 0-5V (corresponding to motor speed 10%--100%)

ZF--Forward and reverse control (connecting to 5V or grounding can change the direction of motor rotation)

M--Speed pulse output (depending on the number of poles of the motor, the corresponding number of pulses is output per revolution)

EL--Enable control terminal (connect to 5V or ground, connect to 5V for normal operation, and the motor stops when grounded)

5V--Control terminal 5V





Note:

Since the Hall line sequence made by different Hall motor manufacturers does not necessarily match the line sequence on the board, it needs to be adjusted. Please pay attention! If the line sequence is wrong, the startup will be abnormal, the current will be large, or the startup will not start, etc. If you use it forcibly, the driver board will be burned! ! ! If you have any questions, please contact customer service, otherwise the wrong wiring sequence will cause damage to the board.





Package Included:

1X module
