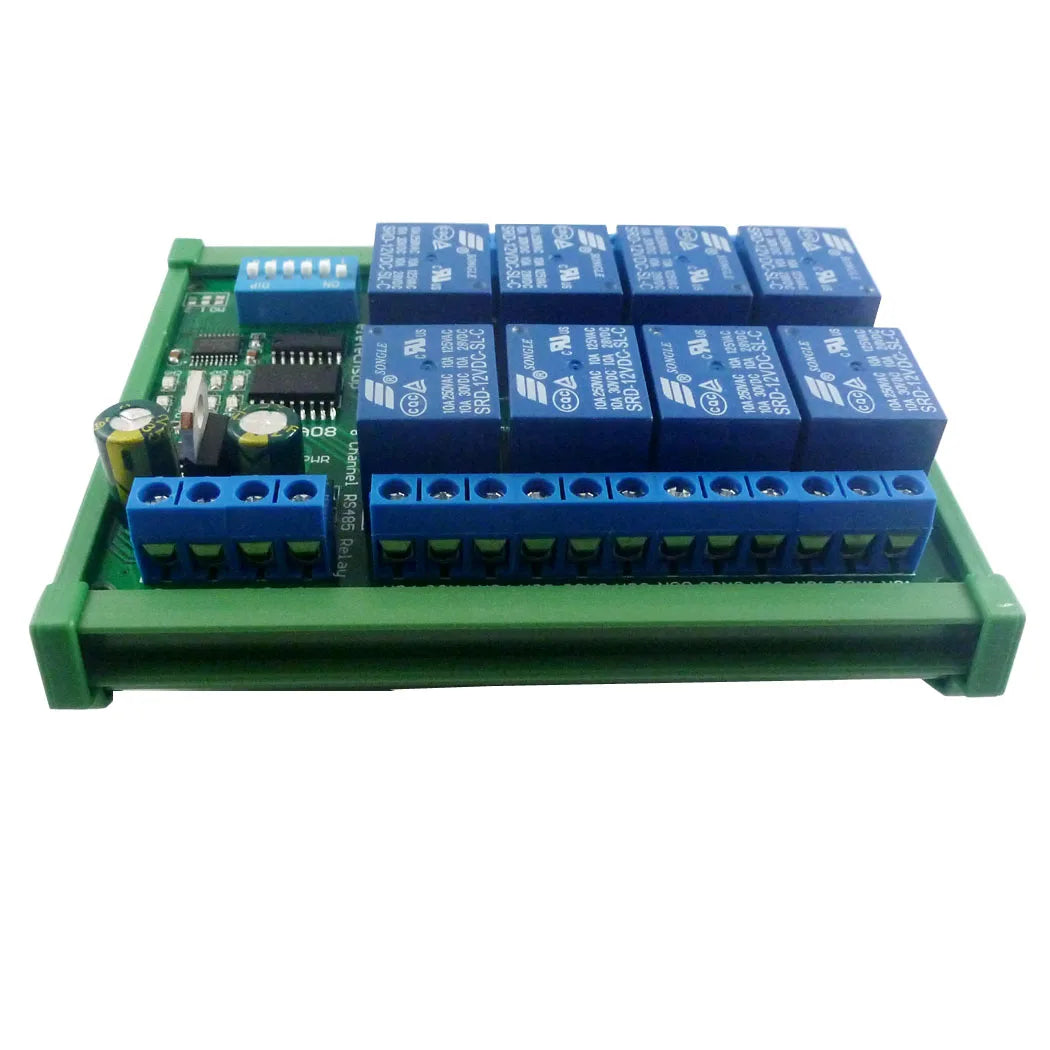

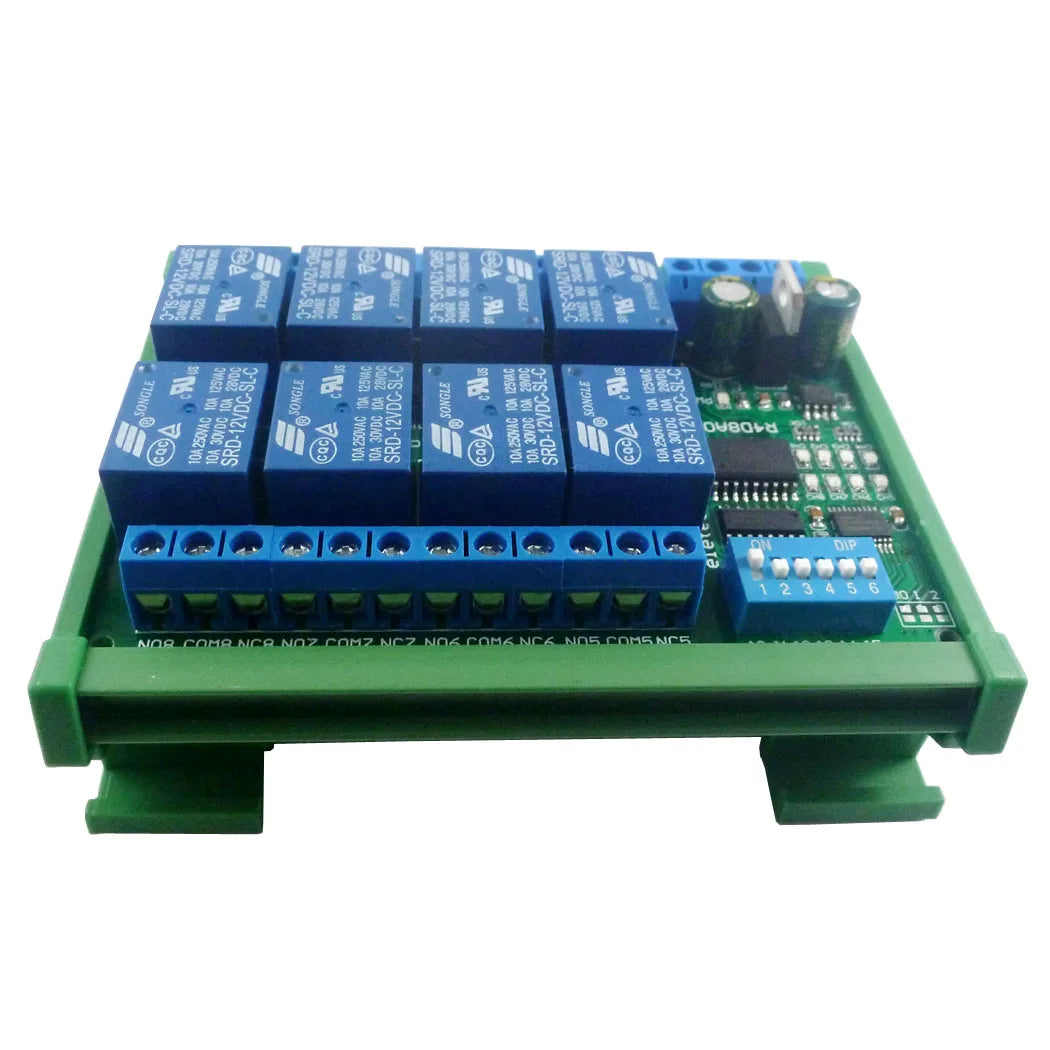

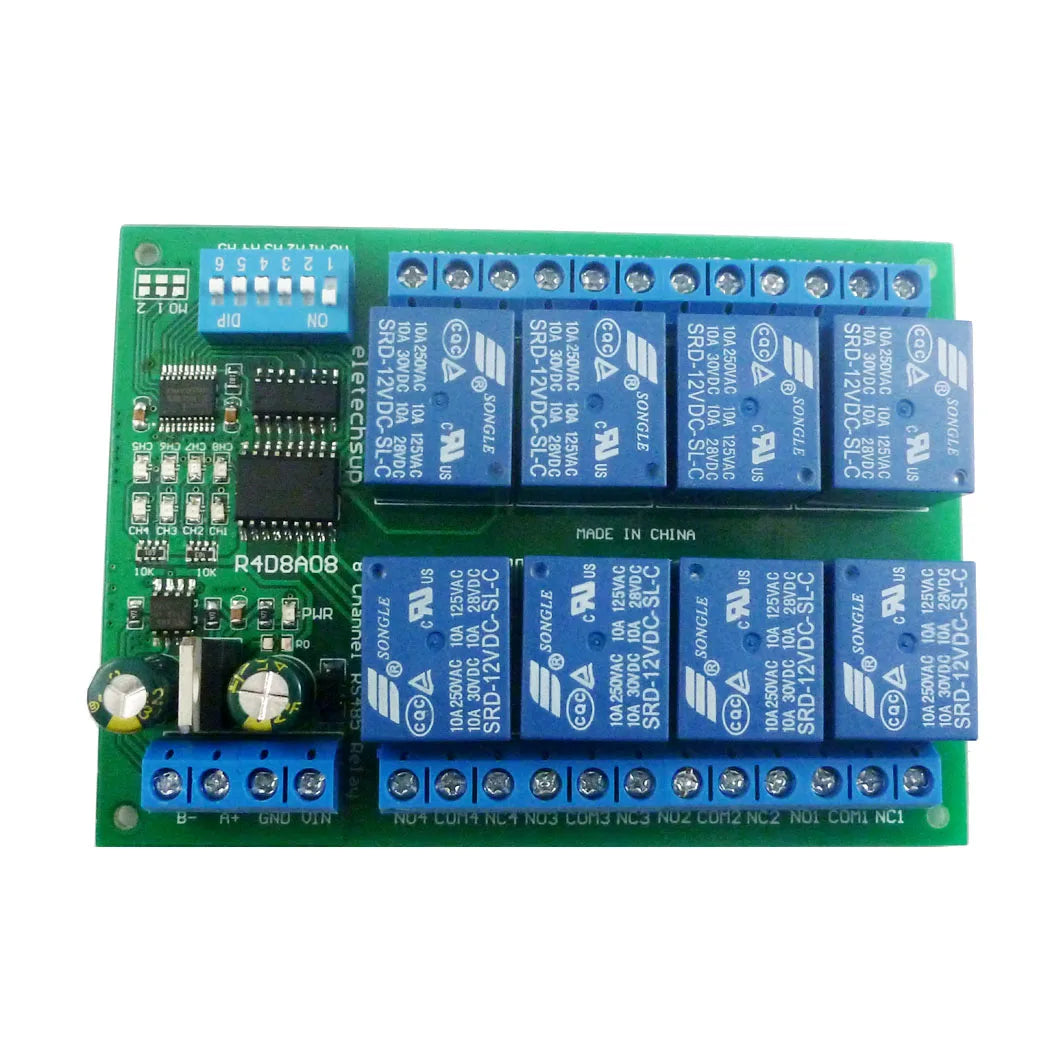

DC 12V 8 Ch RS485 Relay Board Modbus RTU UART Remote Control Switch DIN35 Rail Box for PLC Automation Control

DC 12V 8 Ch RS485 Relay Board Modbus RTU UART Remote Control Switch DIN35 Rail Box for PLC Automation Control

$84.04

$84.04 $0.00

Description

SPECIFICATIONS

Application: Computer

Brand Name: eletechsup

Bus Interface: RS485

Channels: 8

Choice: yes

Condition: New

Dissipation Power: 2W

High-concerned chemical: none

Operating Temperature: -40-80

Operating Voltage: DC 12V

Origin: Mainland China

Rail: DIN35 C45

Standby current: 12MA

Supply Voltage: DC 12V

Type: Drive IC

is_customized: Yes

semi_Choice: yes

Product Name:

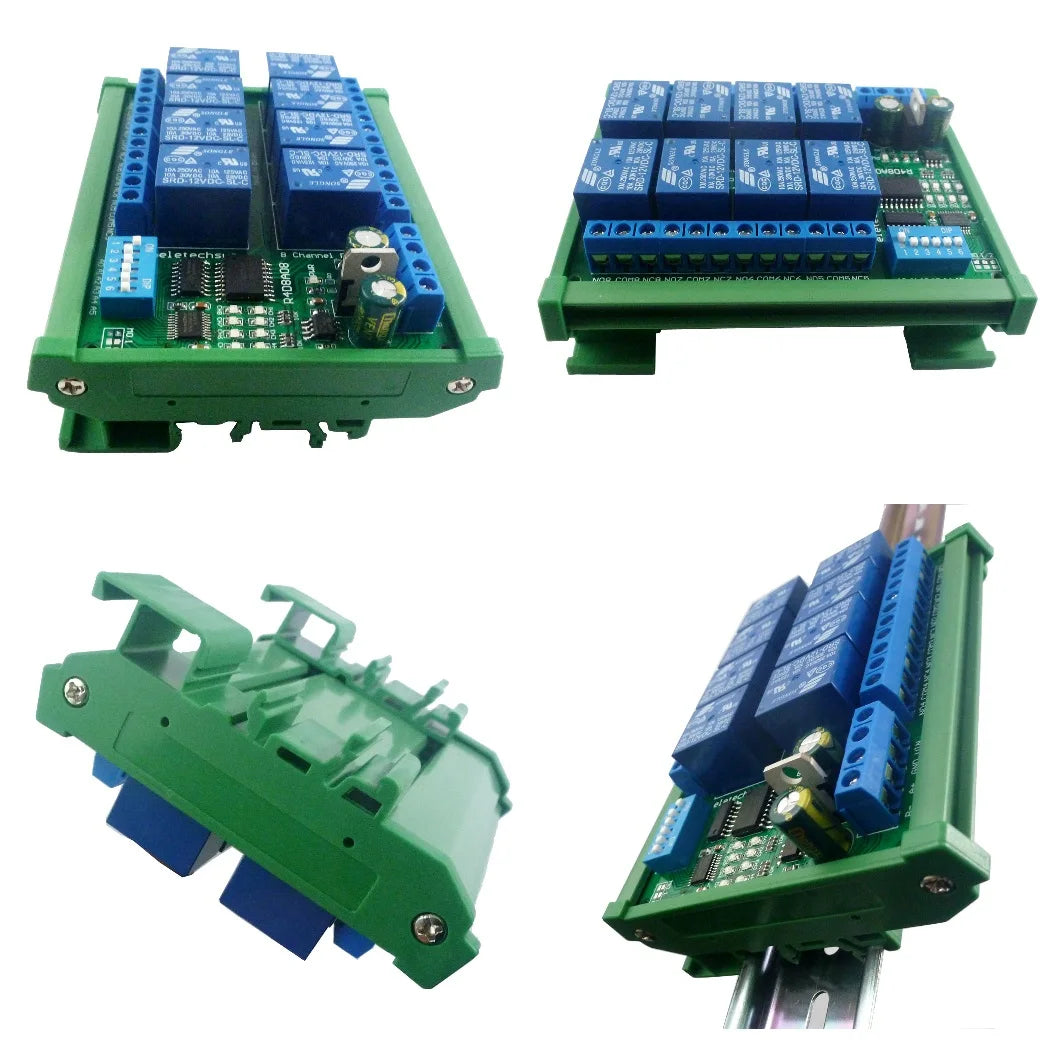

DC 12V 8 Ch RS485 Relay Board Modbus RTU UART Remote Control Switch DIN35 Rail Box for PLC Automation control

Package inlcuded:

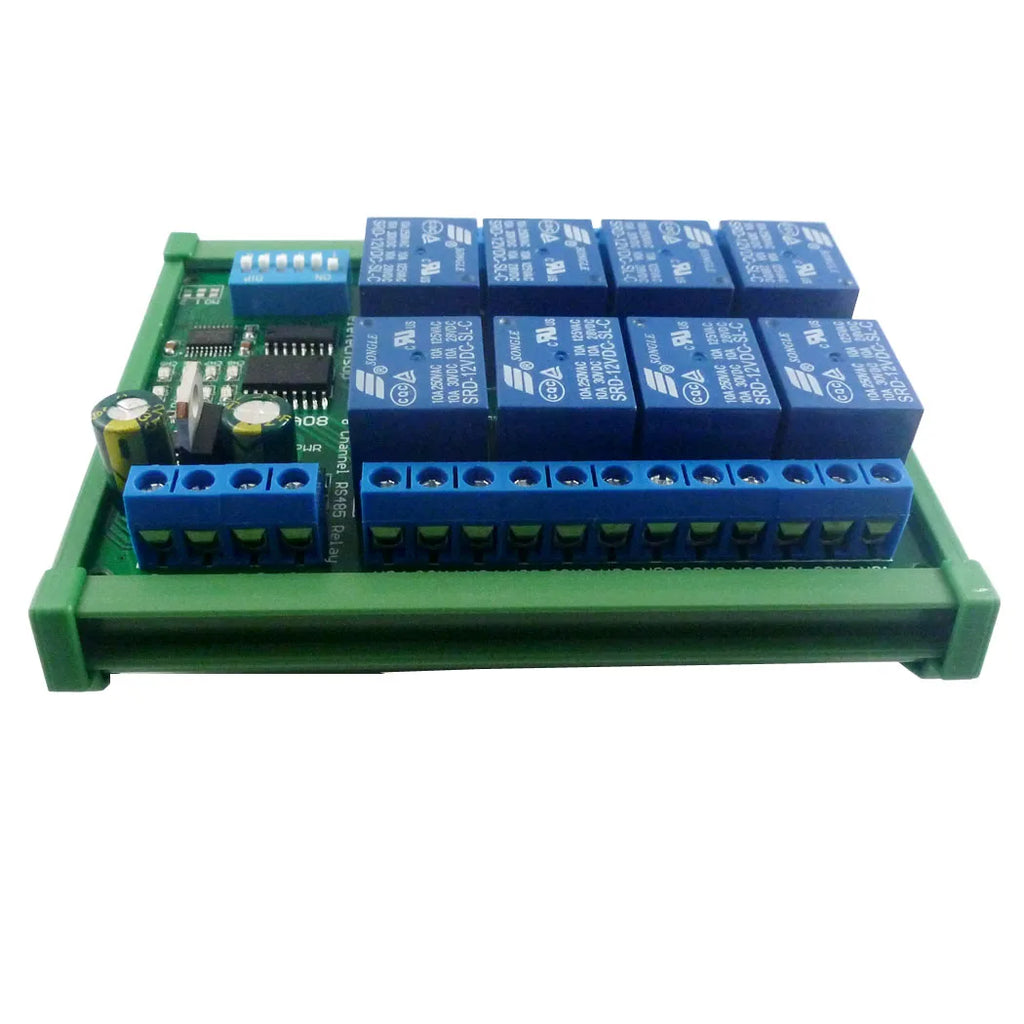

1PCS DC 12V 8Ch Din35 Rail RS485 Modbus RTU Relay Module

(Specific according to the version and quantity you choose)

Description:

1: DC 12V power supply(Range 10-13V)

2: Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 68MA, 3 relays open 94MA,4 relays open 122MA,5 relays open 148MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 224MA

3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands

4: Two instruction-control mode : MODBUS RTU command and AT command

5: Under the ''Delay'' command ,the maximum delay is 255 seconds;

Under the AT command ,the maximum delay is 9999 seconds

6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter; AT commands can be made serial HyperTerminal (serial assistant) Enter;

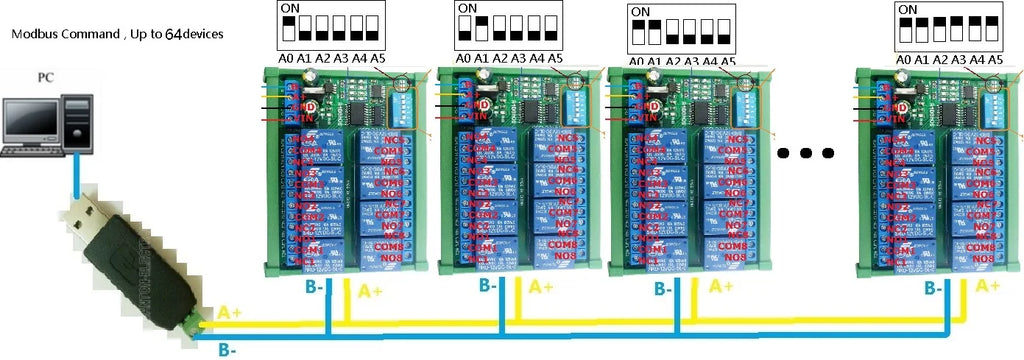

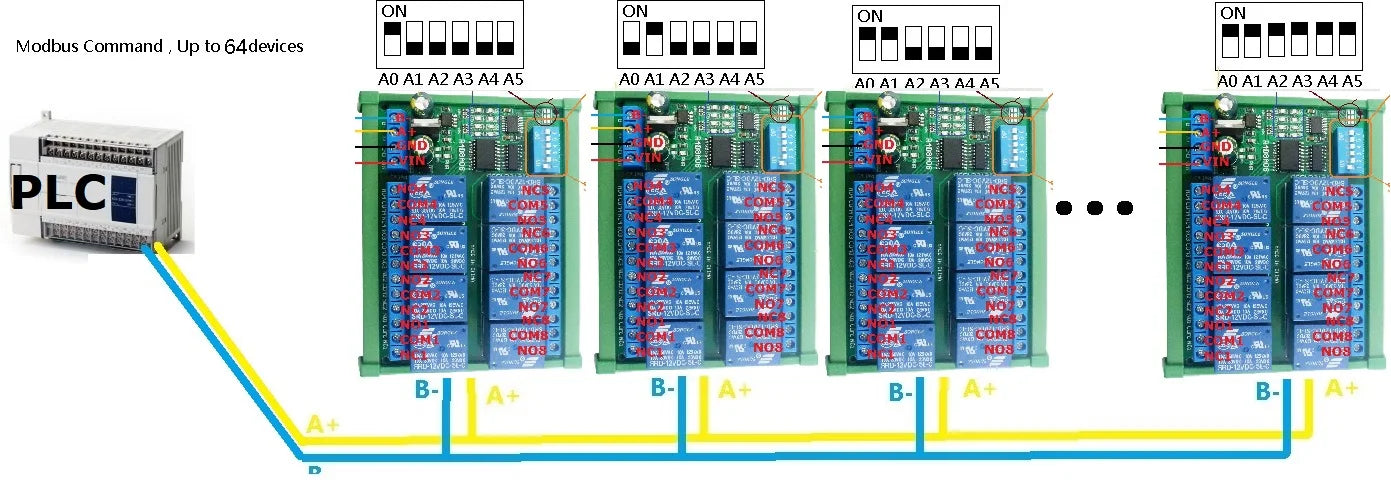

7 Under the MODBUS command mode, it can support up to 64 devices in parallel

8 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS

9 Size: 100 * 72 * 20mm(Only PCB Board);120 * 88* 42mm(with Din Rail Box)
10 Weight: 120g(Only PCB Board);198g(with Din Rail Box)

11 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

For more information, please open the link and download:
https://1drv.ms/u/s!AjrAGEbCBLls2AtnIBgCqTG4gUvd?e=mNnb35

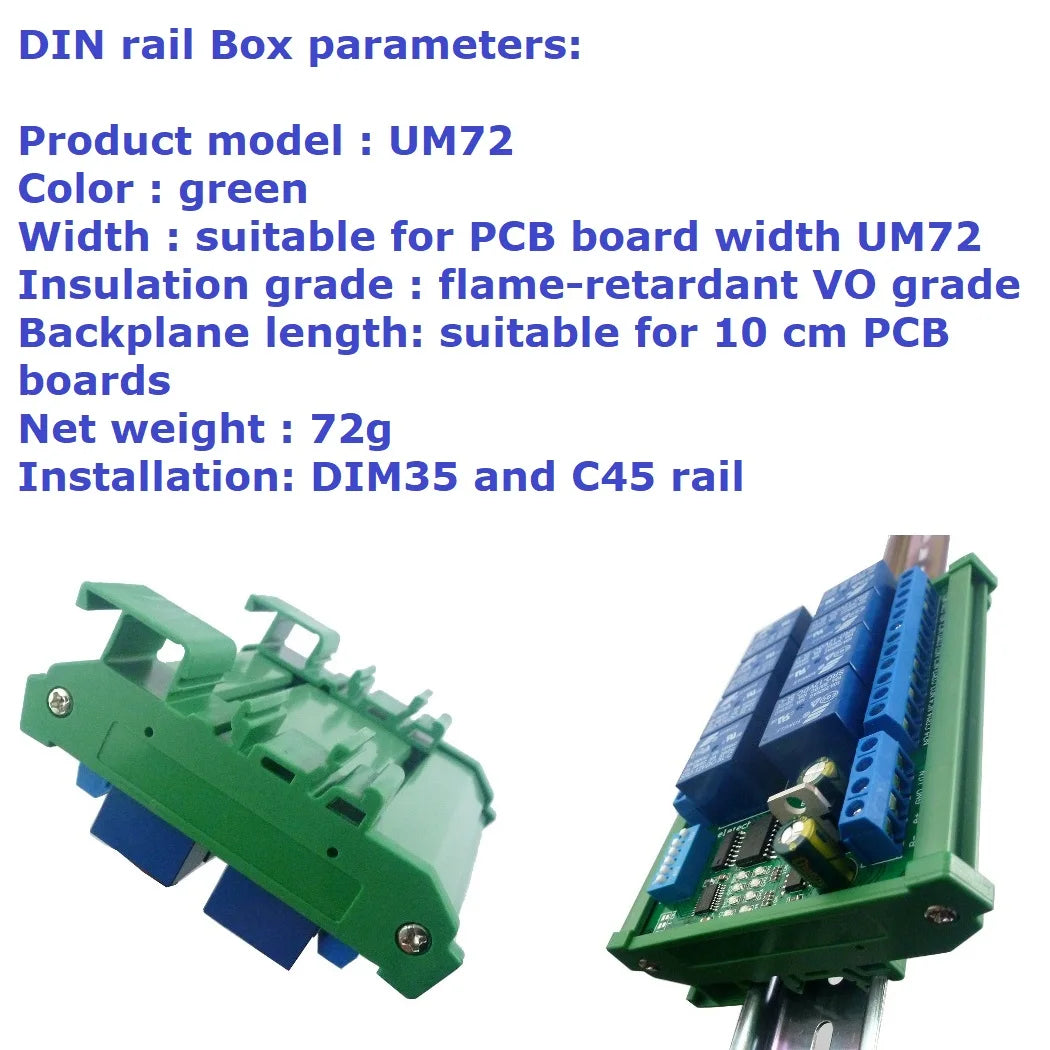

DIN rail Box parameters:
Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm PCB)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 100 mm PCB boards
Net weight: 72g

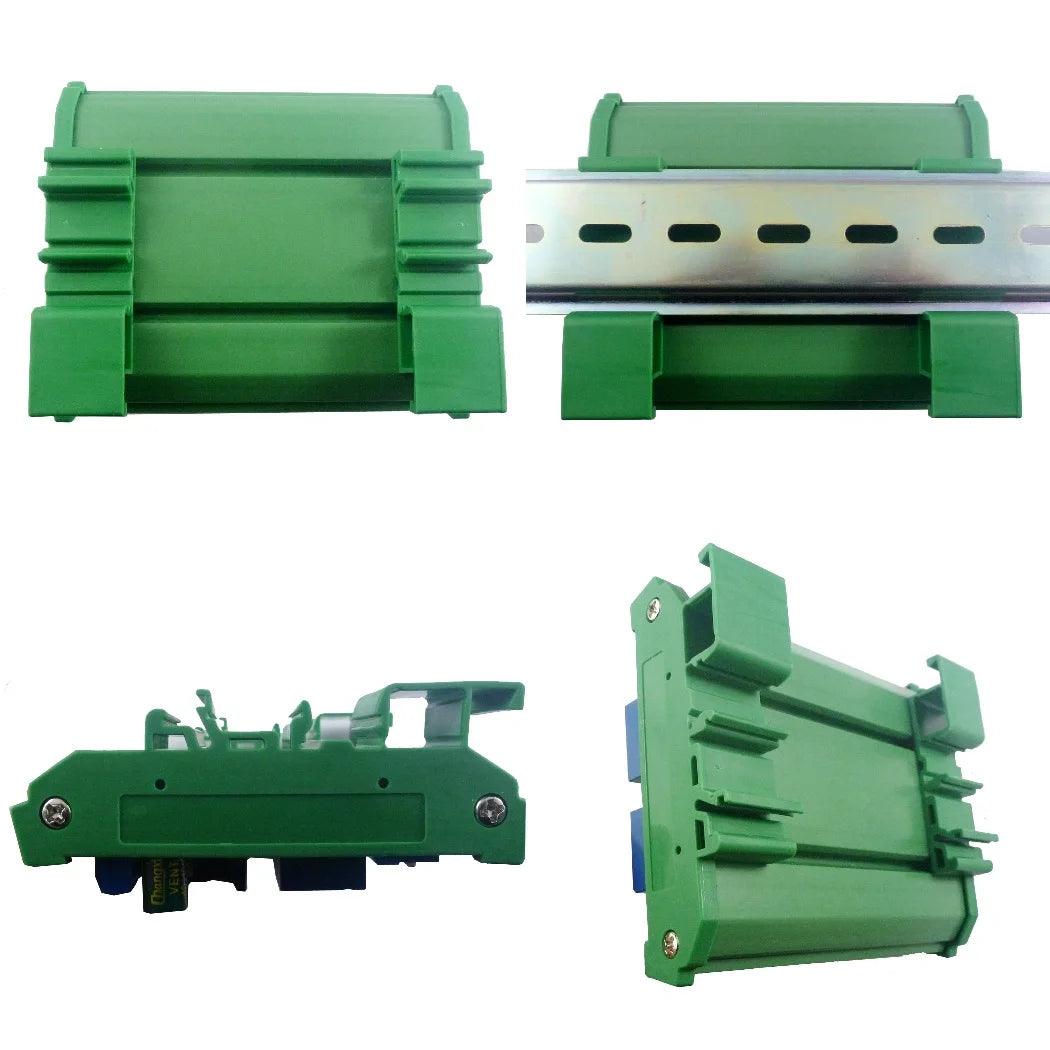

Installation: DIN35 and C45 rail

Application

Automated industry PLC

Smart Home,Home Automation ,Wiser Home;

CCTV PTZ Camera

Security Monitoring

Identification system;

Motor FW & BW
Automatic curtain control
Automatic door control

Typical applications:

1 When controlling a module, you can use the MODUBS RTU instruction or the AT instruction. In AT command mode, the dial switch (slave address) is invalid and can only control one module at a time.

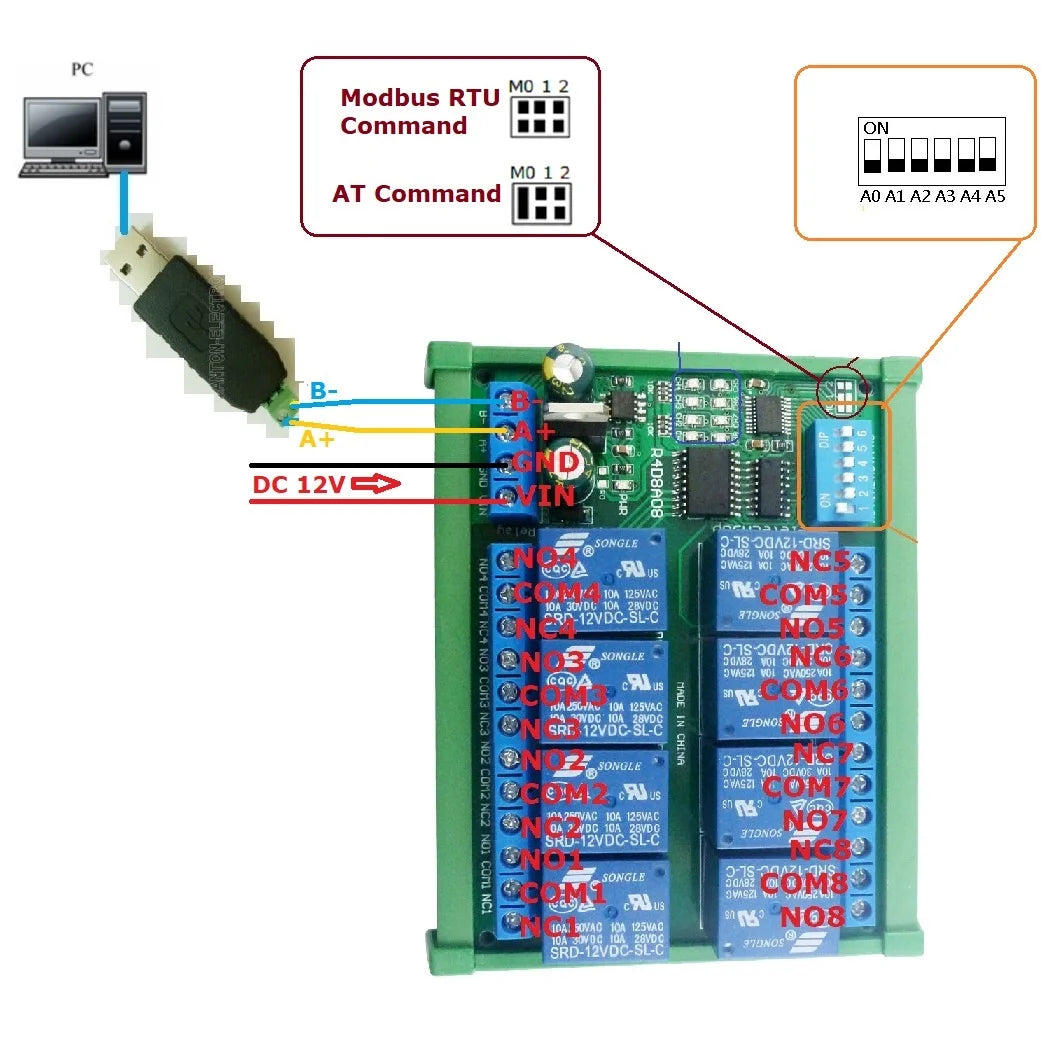

MODBUS RTU command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control

Wiring Diagram:

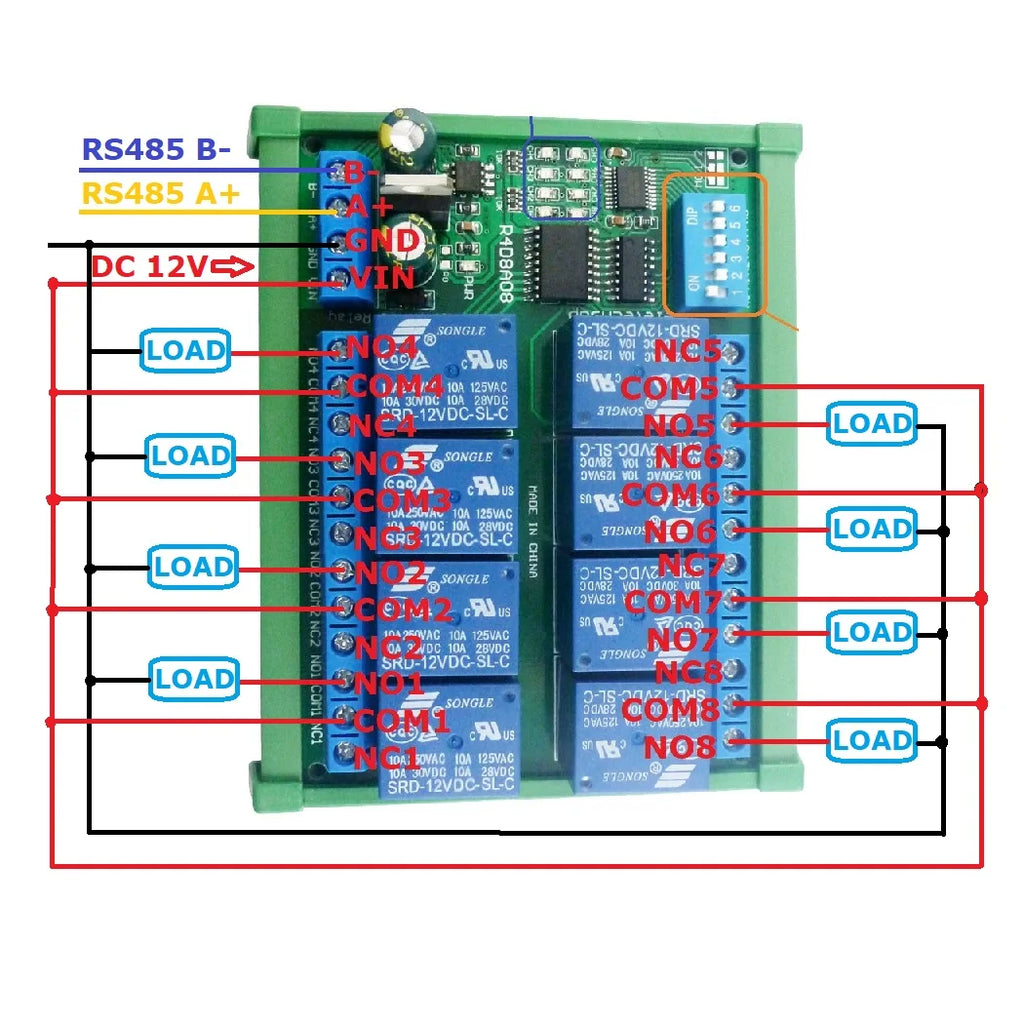

1 DC 12V control circuit,Wiring diagram below. ''LOAD'' may be camera,LED lights, fans, motors and other DC 12V equipment

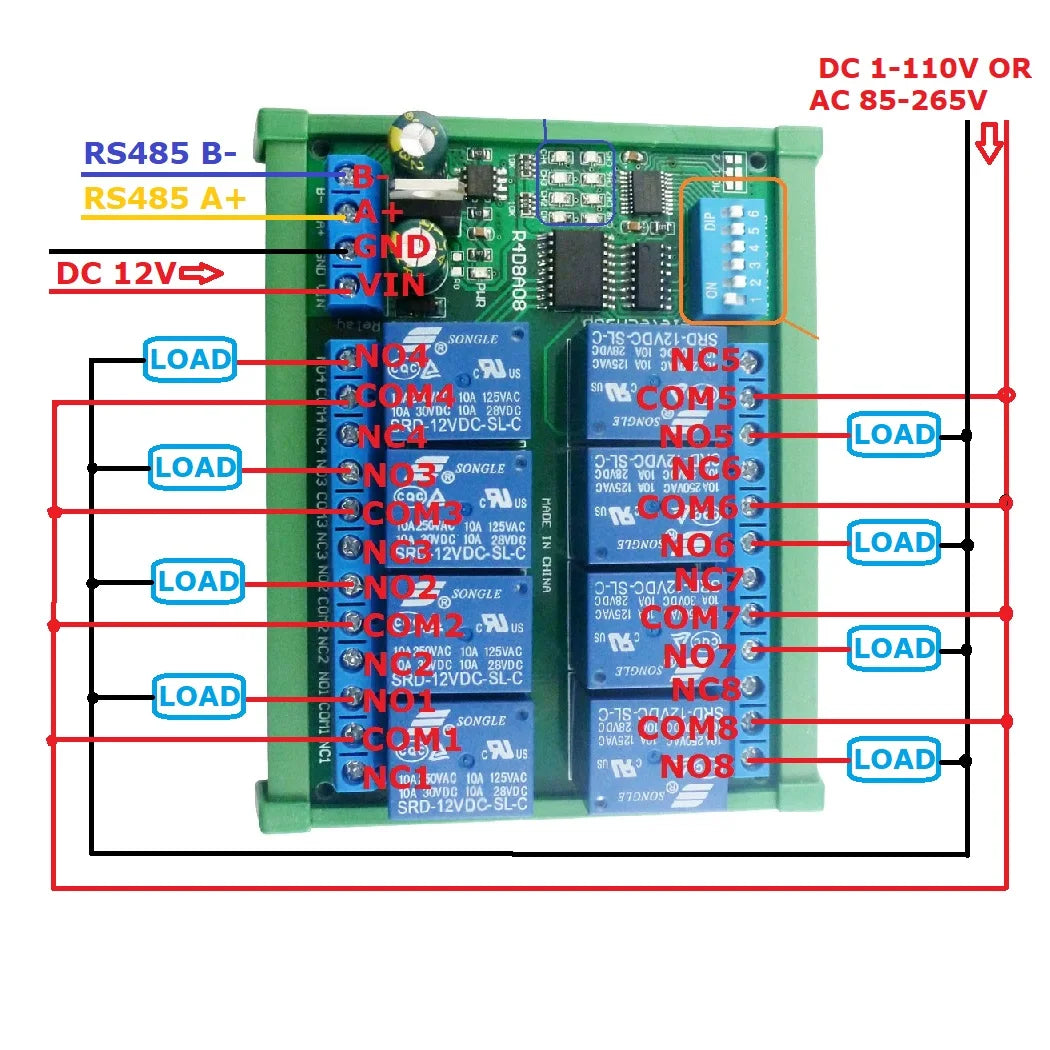

2 DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). ''LOAD'' may be LED lights, fans, motors Lights, fluorescent lights, solar water heaters and other DC AC equipmen
