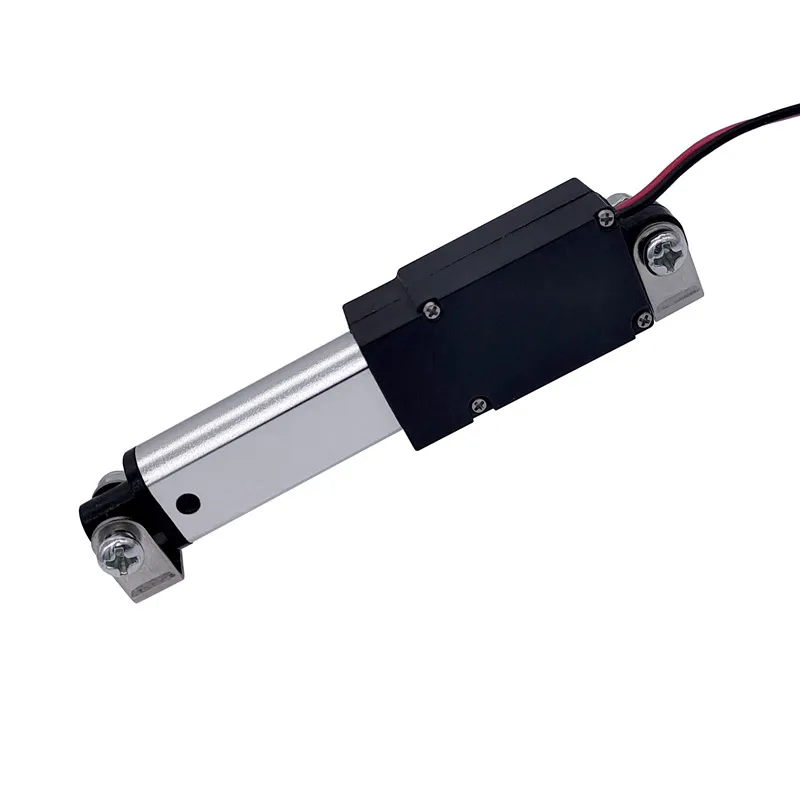

DC 12V Electric Linear Actuator 30mm 50mm Stroke Linear Actuator Motor 30N/60N/100N/150N Linear Motor Controller MINI
12V-30mm-100N
$76.40
Sale price
$76.40
Regular price
$0.00
Skip to product information
DC 12V Electric Linear Actuator 30mm 50mm Stroke Linear Actuator Motor 30N/60N/100N/150N Linear Motor Controller MINI
$76.40
Sale price
$76.40
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: CNMAWAY
Certification: ce
Commutation: Brush
Construction: Permanent Magnet
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: none
Model Number: 30mm Stroke/50mm Stroke
Origin: Mainland China
Output Power: ＜18.65
Output Voltage: 12V
Protect Feature: Totally Enclosed
Torque: 30N/60N/100N/150N
Type: Gear Motor
Use: Home Appliance
Lmin=54.5mm+Stroke
For example: If Sroke is 50mm,the normal Lmin is 54.5+50=104.5mm.
Lmin means the length when linear actuator 100% fully closed, meanwhile,it will touch the tail limited switch and stop automatically.
Stroke means the movement length of linear actuator.
Lmax=Lmin+Stroke=54.5+2×Stroke
For example: If Sroke is 50mm,the normal Lmin is 54.5+2×50=154.5mm.
Lmax means the length when linear actuator 100% fully open, meanwhile,it will touch the head limited switch and stop automatically.
Stroke 30MM Lmin=54.5+30=84.5MM,Lmax=84.5+30=114.5MM
Stroke 50MM Lmin=54.5+50=104.5MM,Lmax=104.5+50=154.5MM

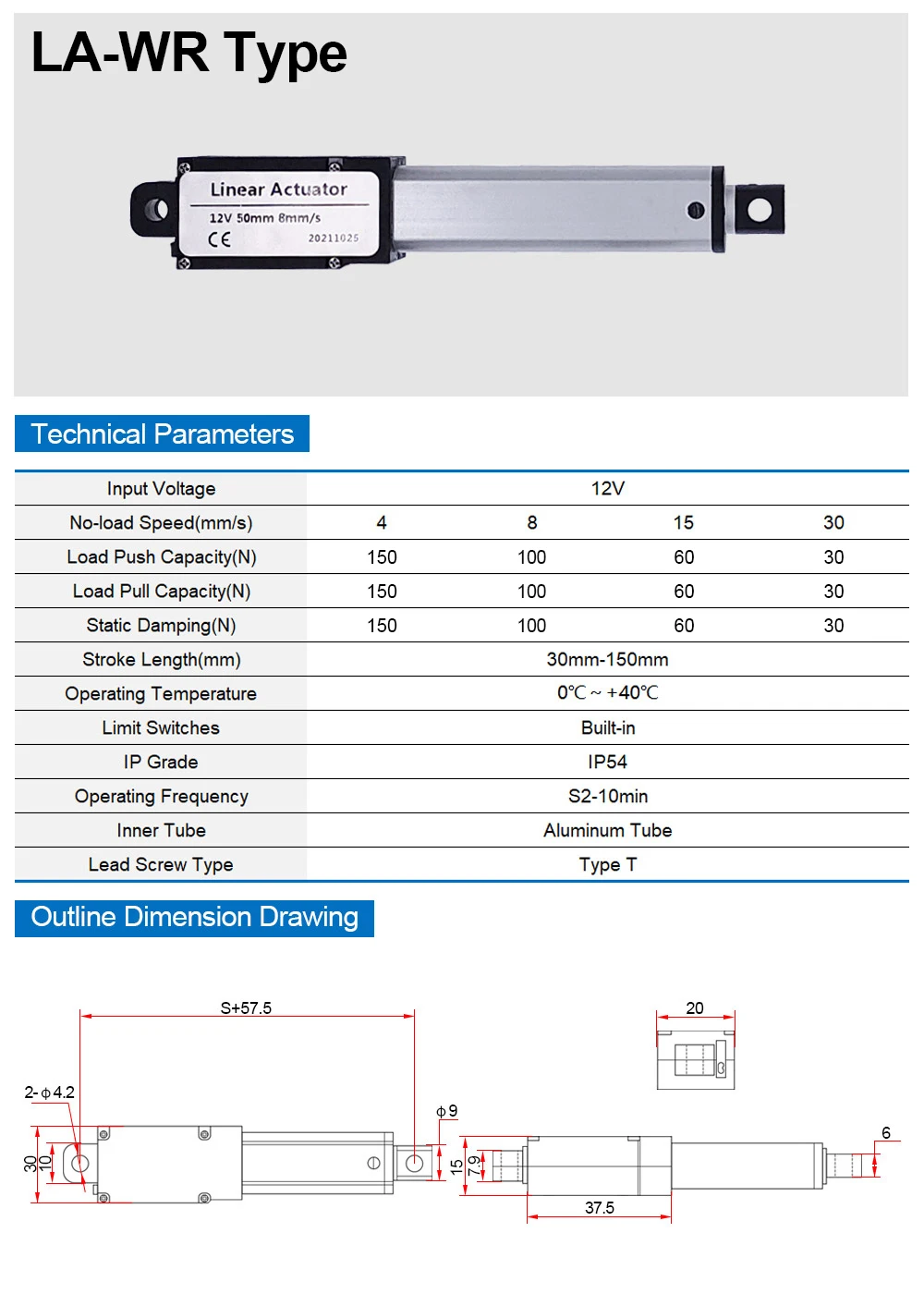

Linear actuator spec:
Input:12V DC
Load:Max 188N/18.8KG/41.36LBS
Limited switch:With
Duty cycle:10%
Poduct Material:Metal and plastic

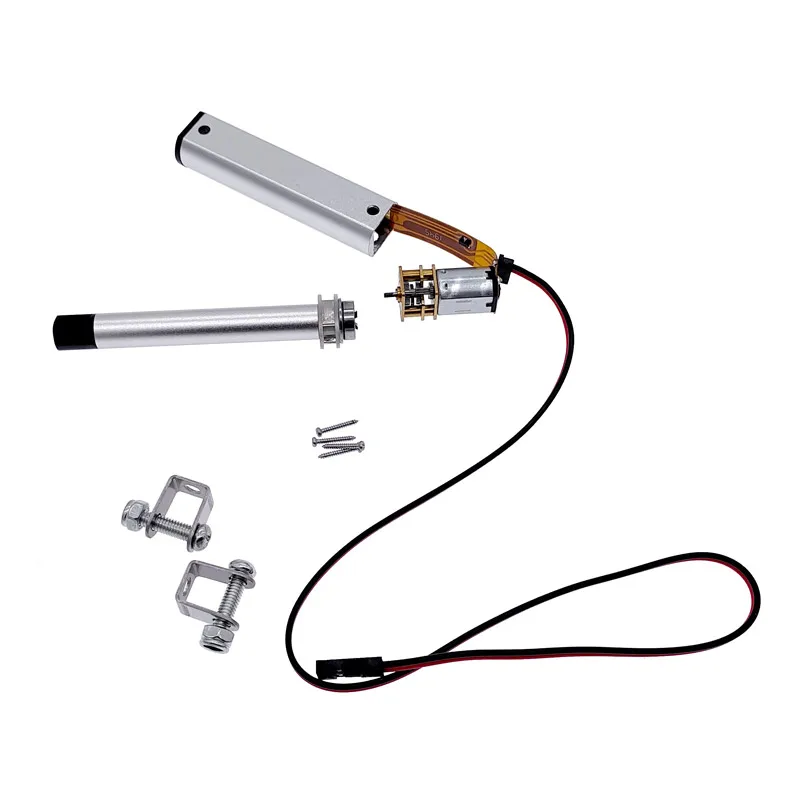

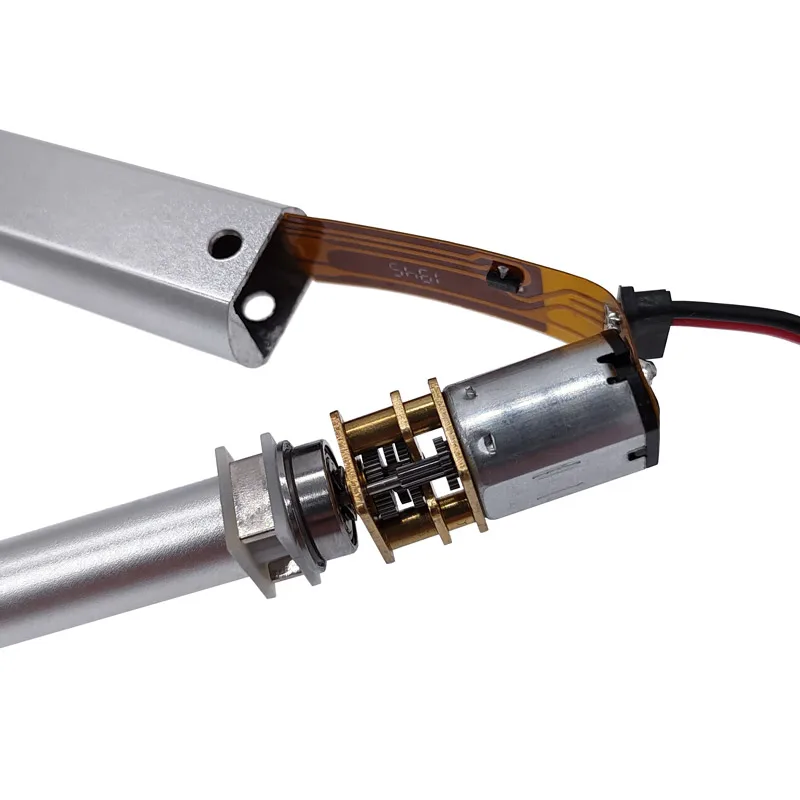

Worm Gear:Metal gear
Color:Black
Operation temperature:-26 ~ +65 degree
