SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: TQFP

Quantity: 1

Type: Module

is_customized: Yes

Features:

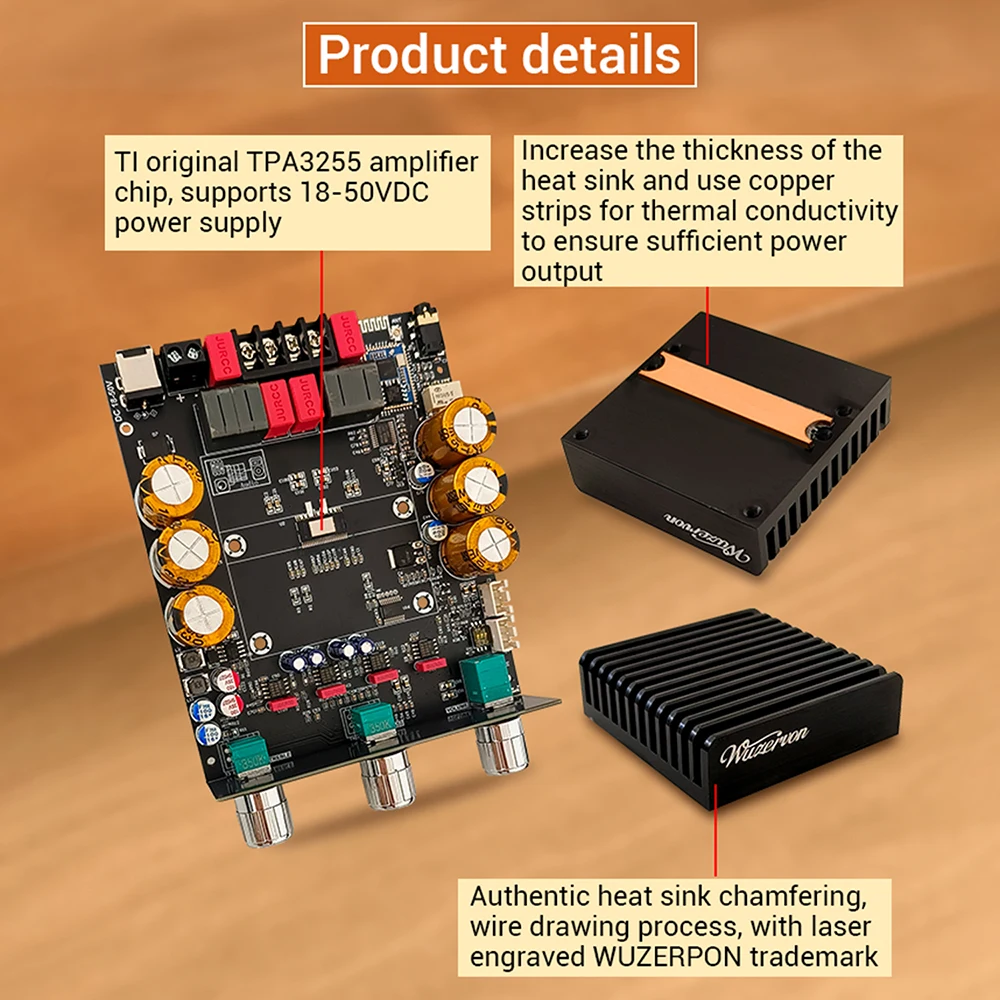

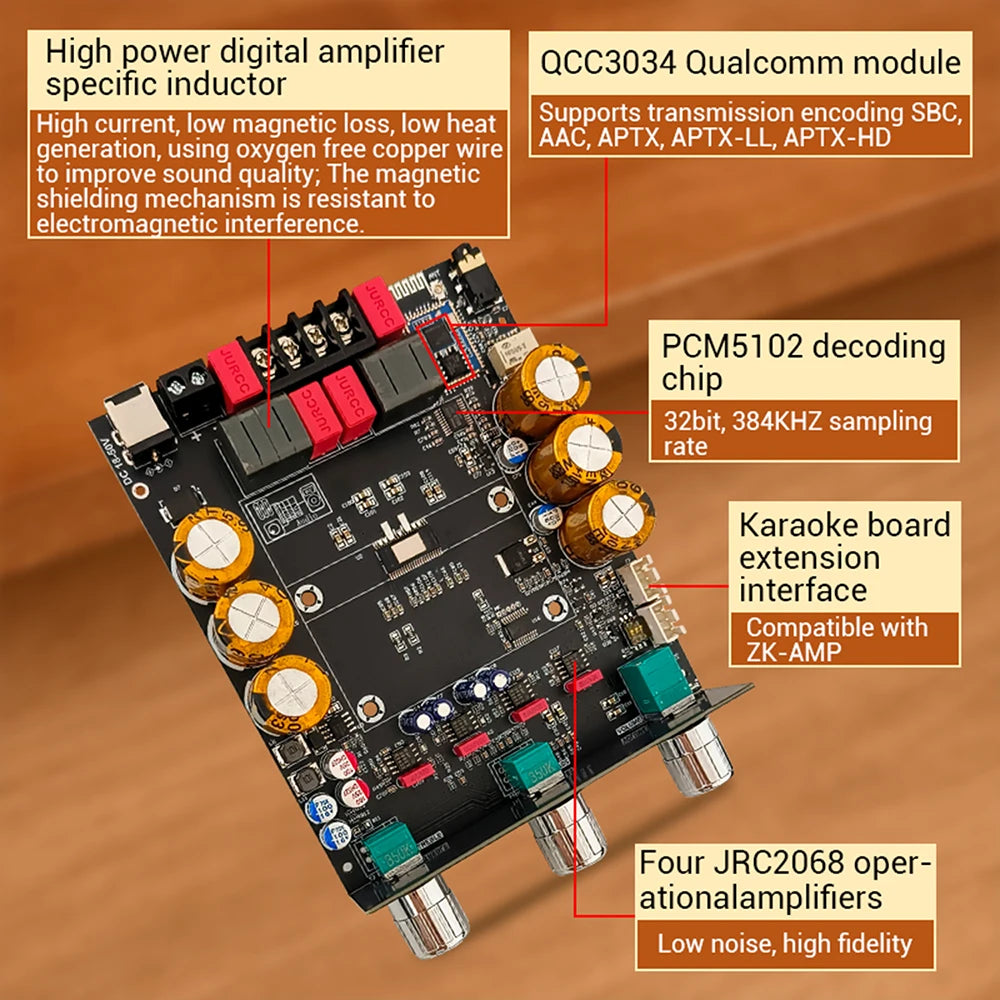

1. Adopting the original TPA3255 chip, stable and efficient, with clear and delicate sound quality.

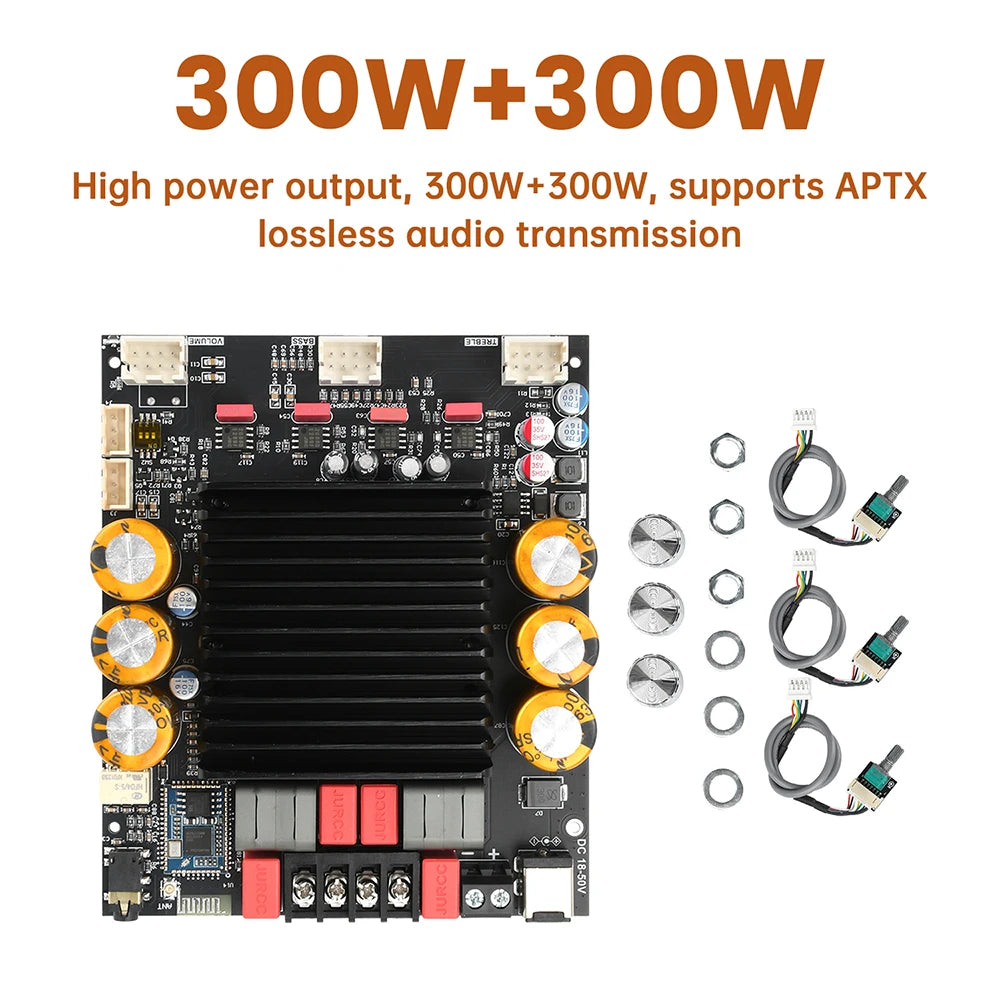

2. High power output, 300W+300W, supports APTX lossless audio transmission, with stunning sound effects.

3. Intelligent protection mechanism, automatic protection against undervoltage, overheating, and overcurrent.

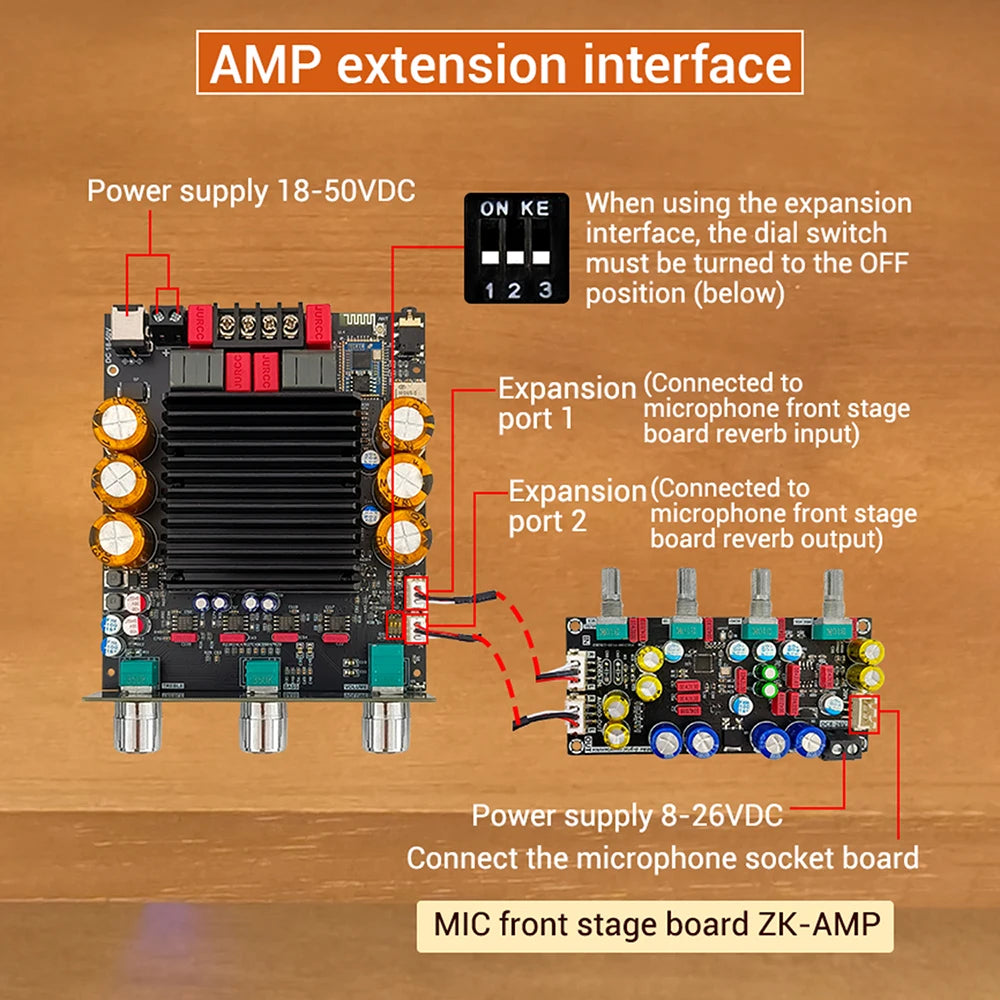

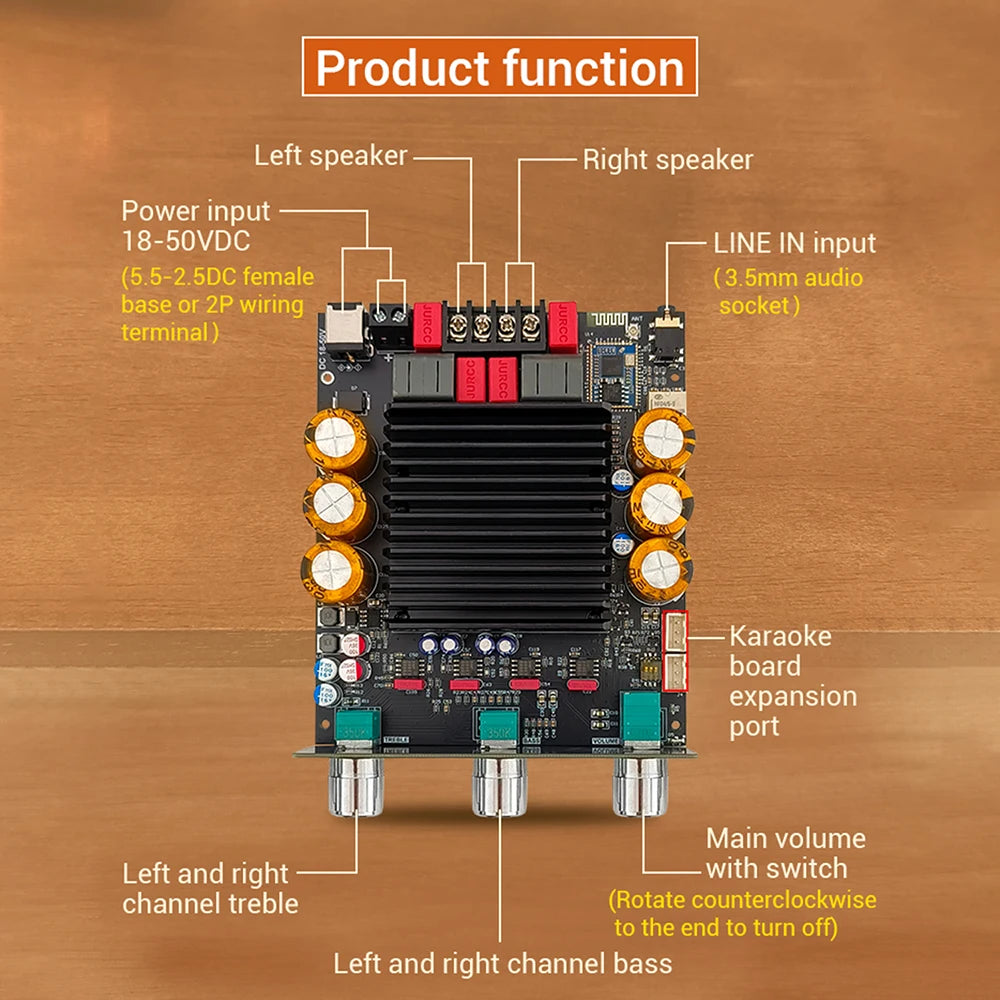

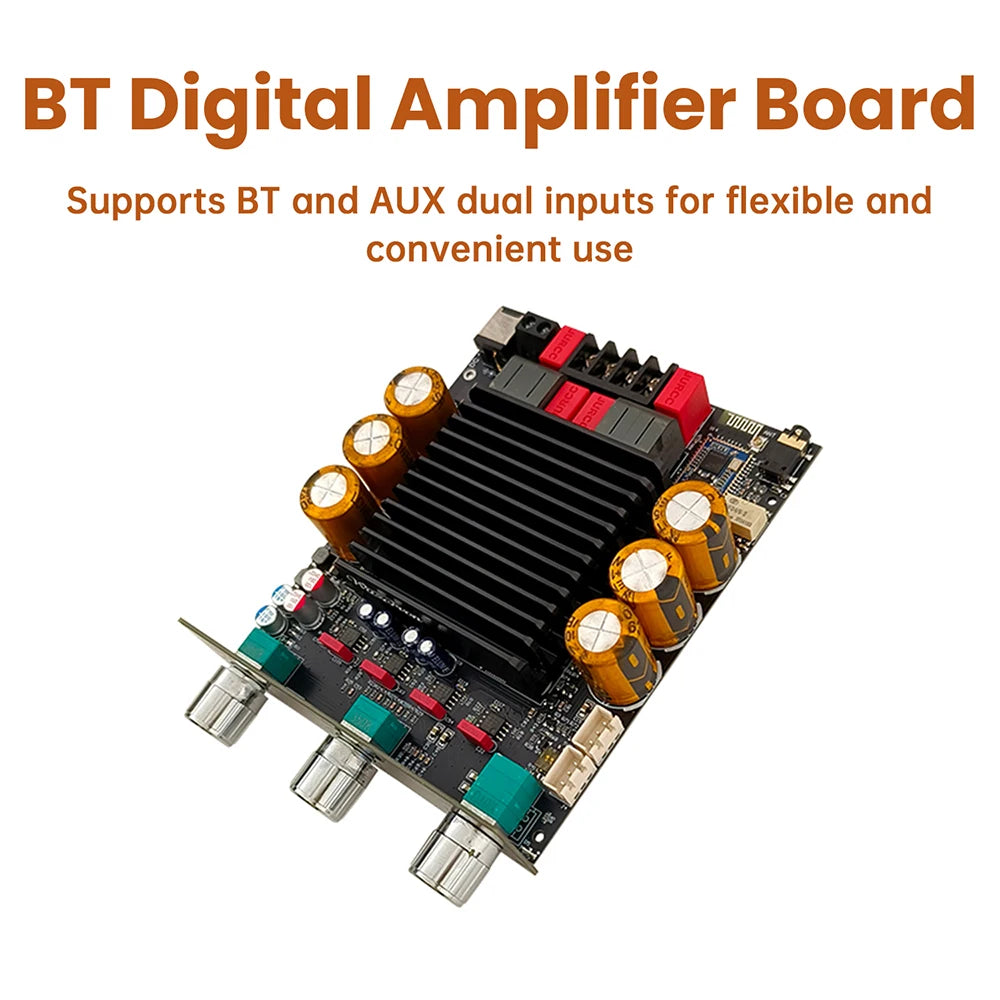

4. Supports dual input of Bluetooth and AUX, making it flexible and convenient to use.

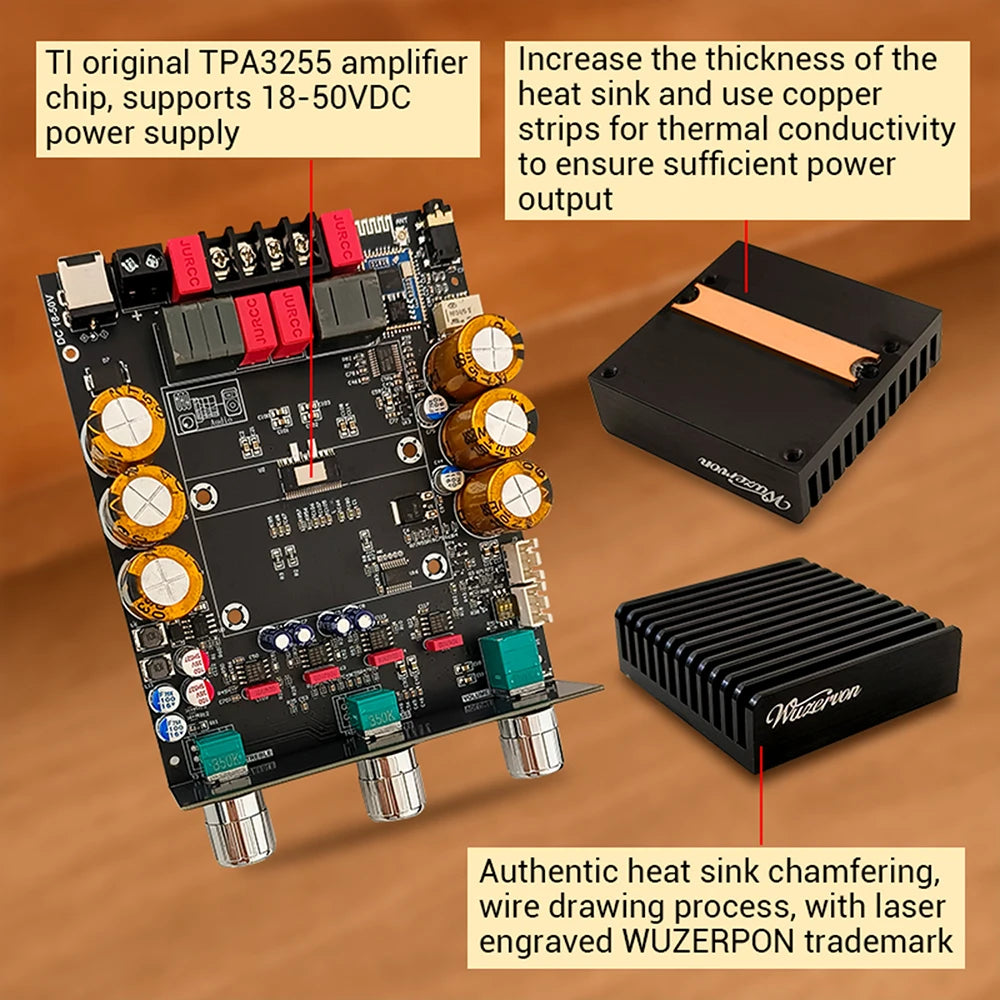

5. Excellent heat dissipation performance, copper thermal conductivity, and stable continuous high-power operation.

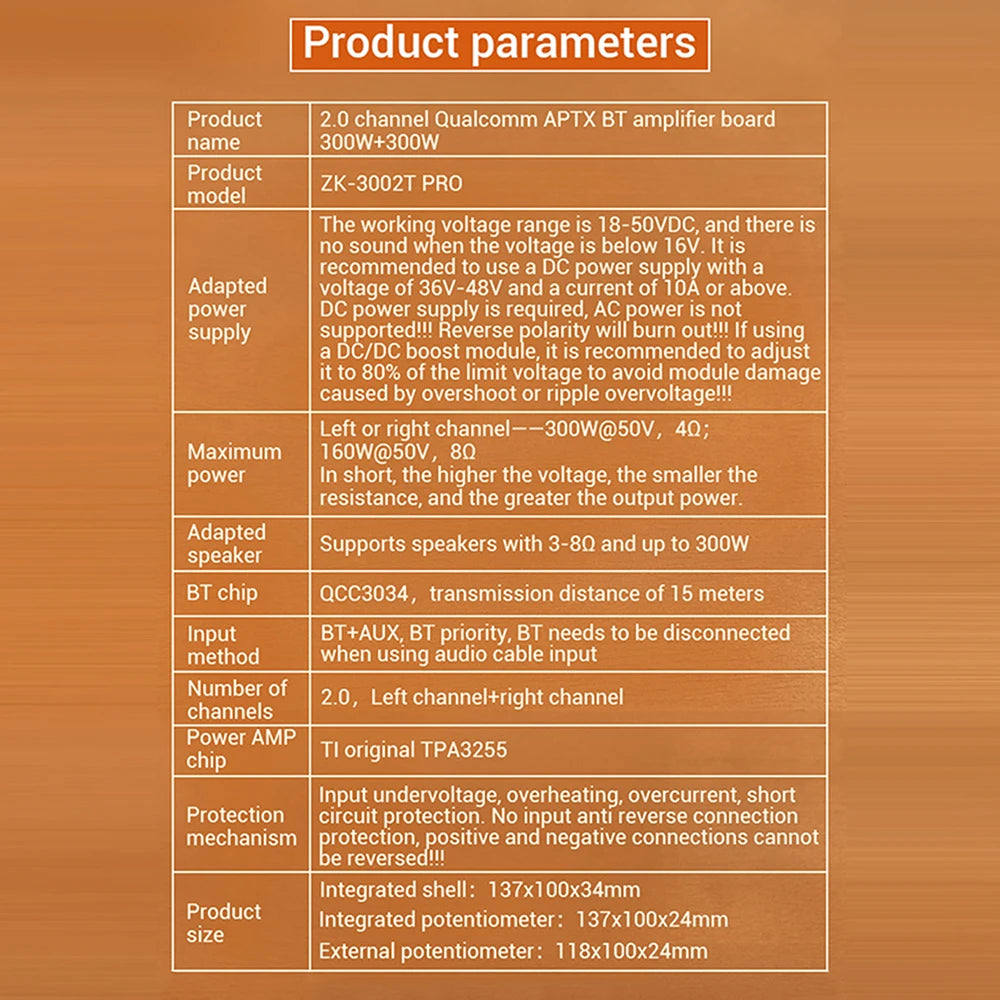

Product parameters:

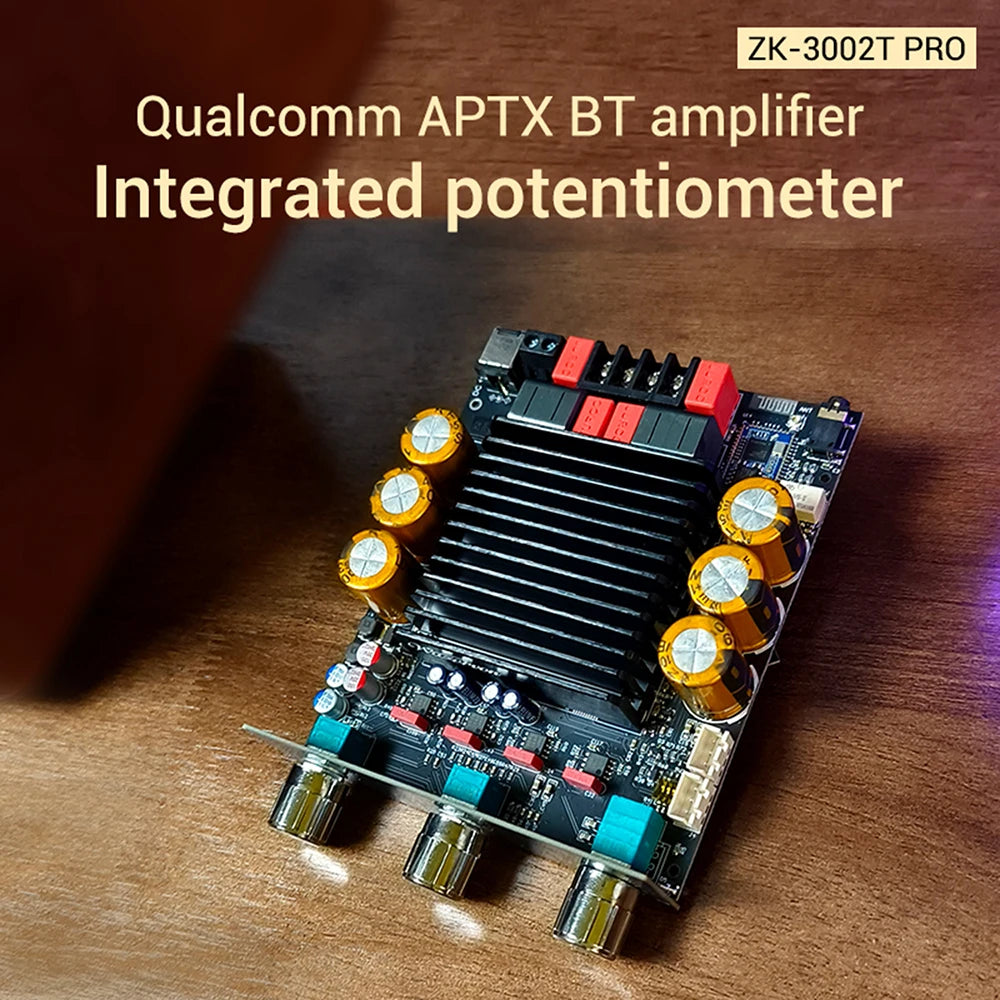

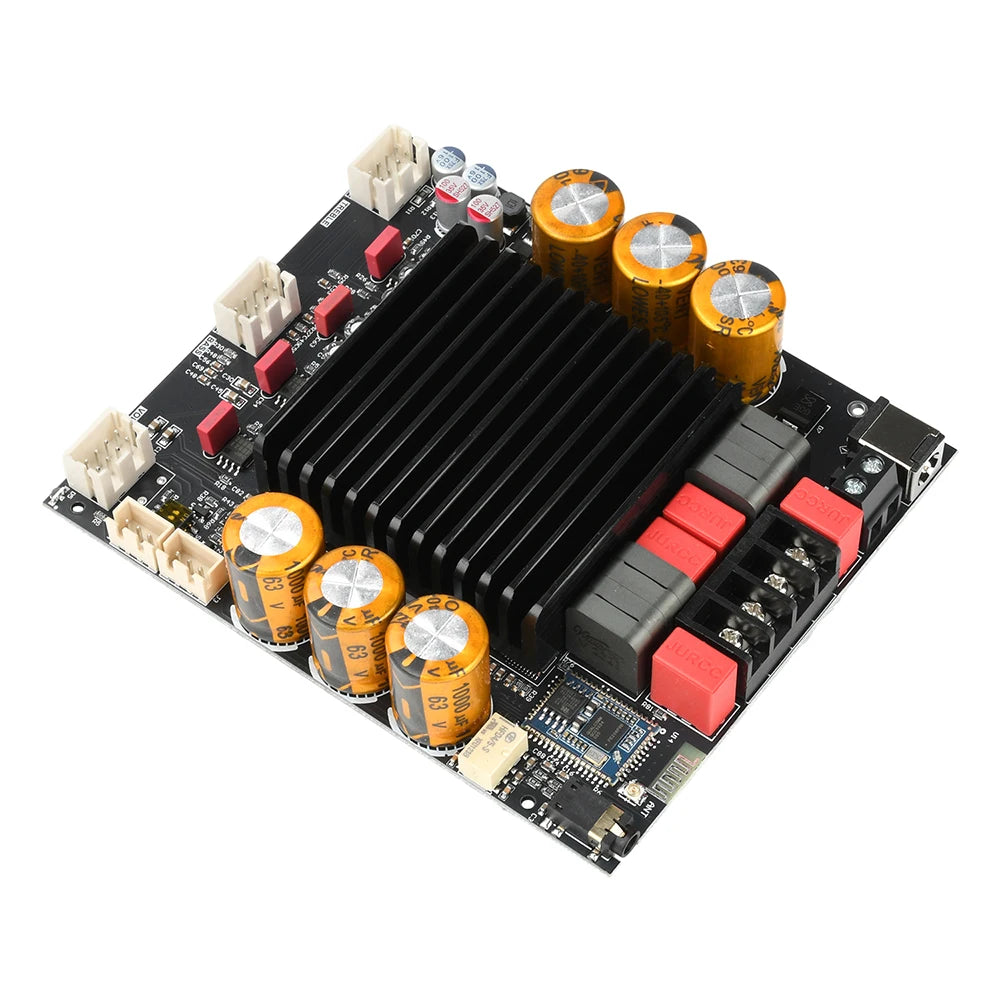

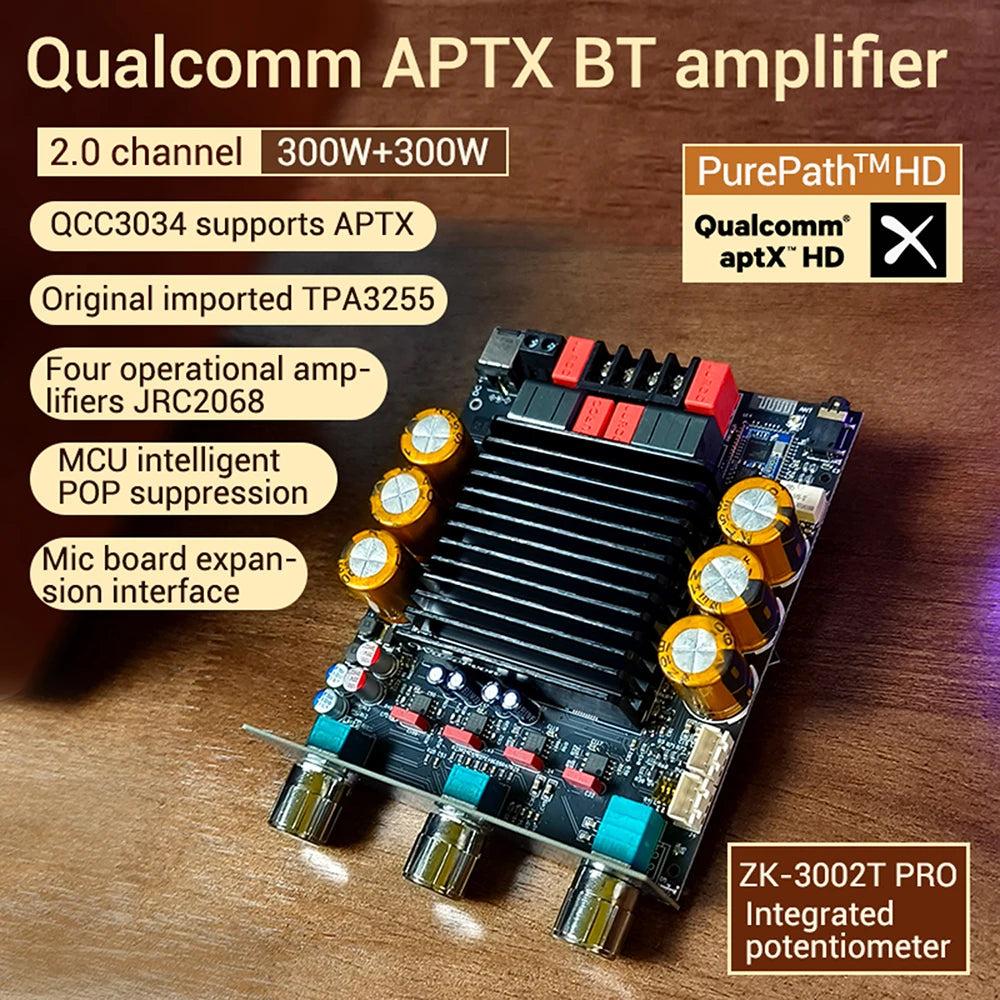

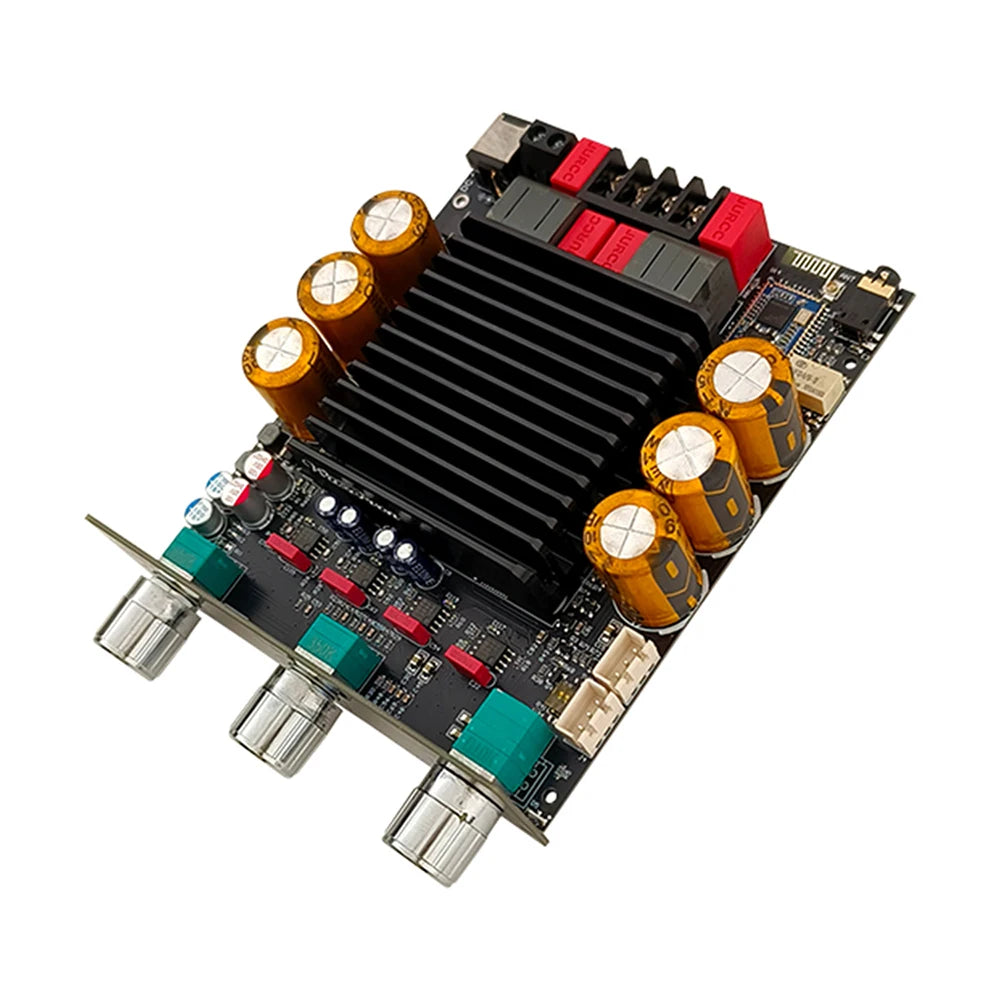

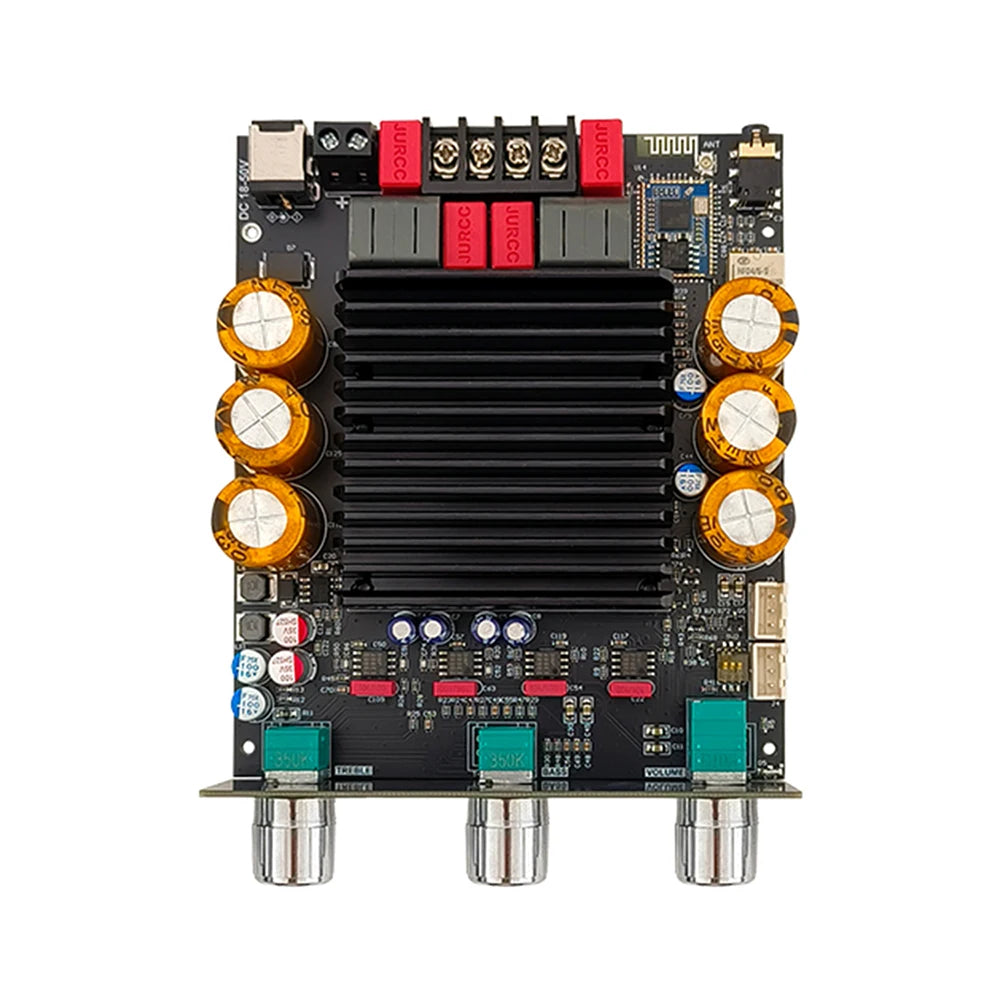

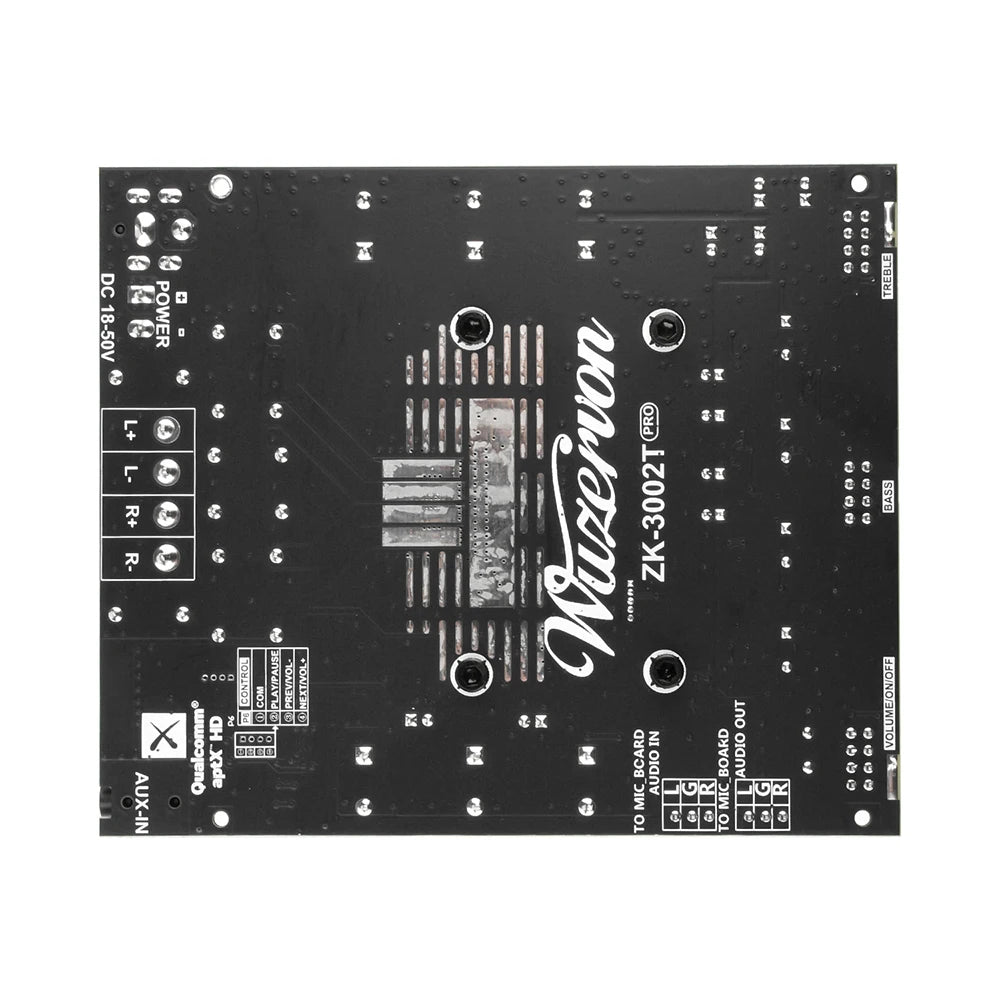

Product Name: 2.0 Channel Qualcomm APTX Bluetooth Amplifier Board 300W+300W

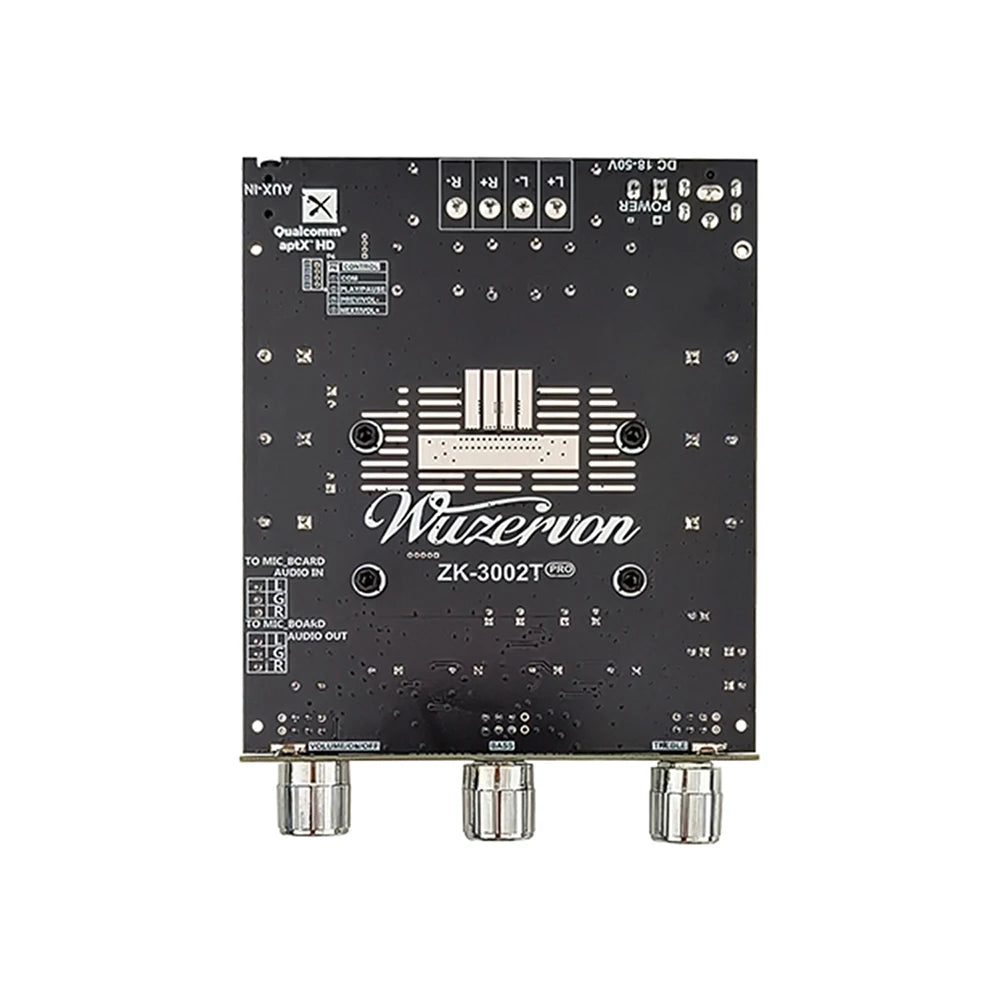

Product model: ZK-3002T PRO

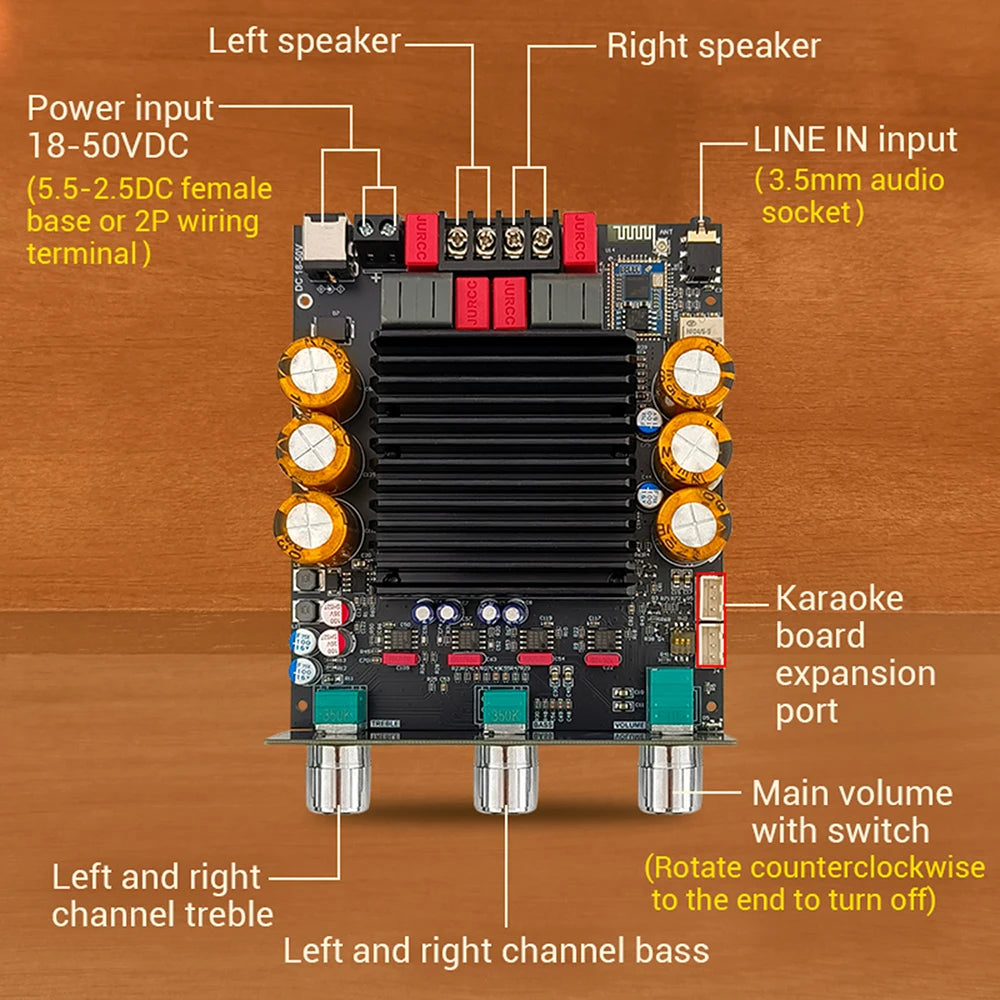

Adaptive power supply: Operating voltage range: DC 18-50V, no sound when the voltage is below 16V. It is recommended to use a DC power supply with a voltage of 36V-48V and a current of 10A or above. DC power supply is required, AC power is not supported!!! Reverse polarity will burn out!!! If using a DC/DC boost module, it is recommended to adjust it to 80% of the limit voltage to avoid module damage caused by overshoot or ripple overvoltage!!! )

Maximum power: left or right channel—— 300W@50V ，4Ω； 160W@50V , 8 Ω. In short, the higher the voltage, the smaller the resistance, and the greater the output power.

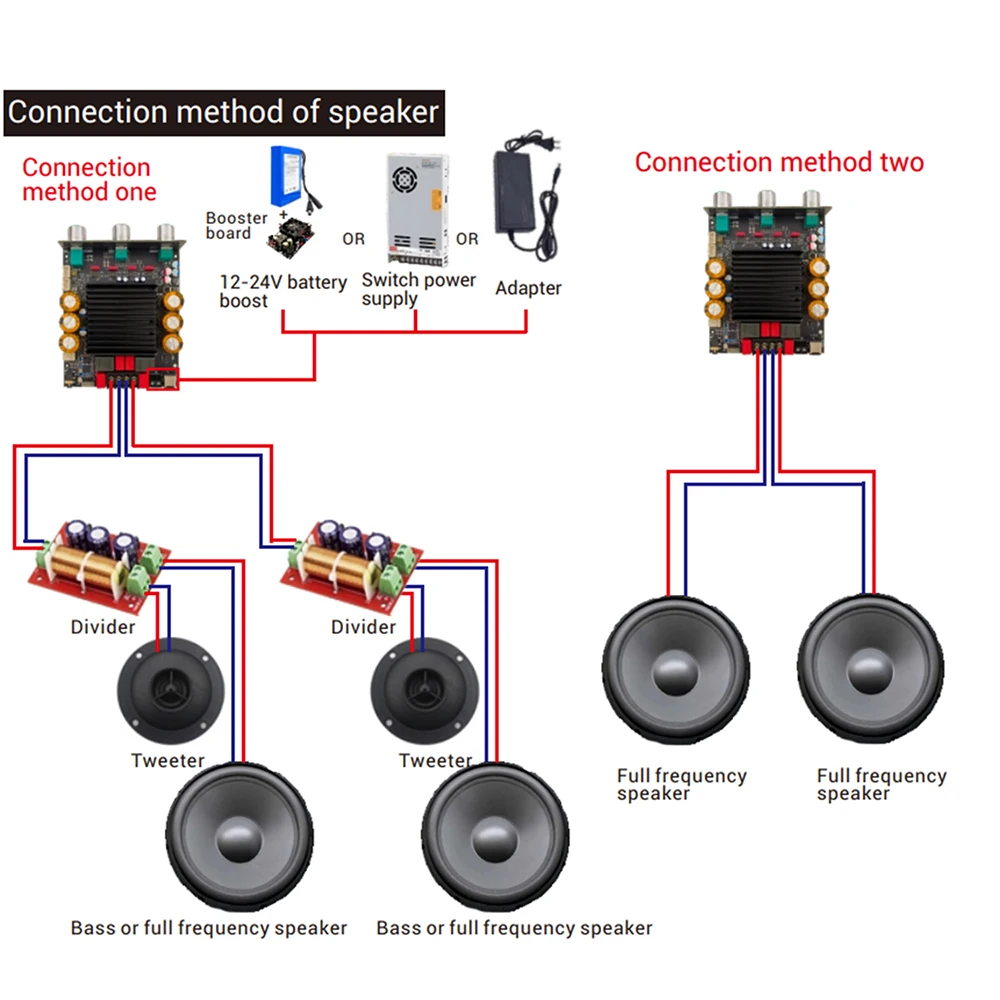

Compatible speaker: Supports speakers up to 3-8 ohms and 300W.

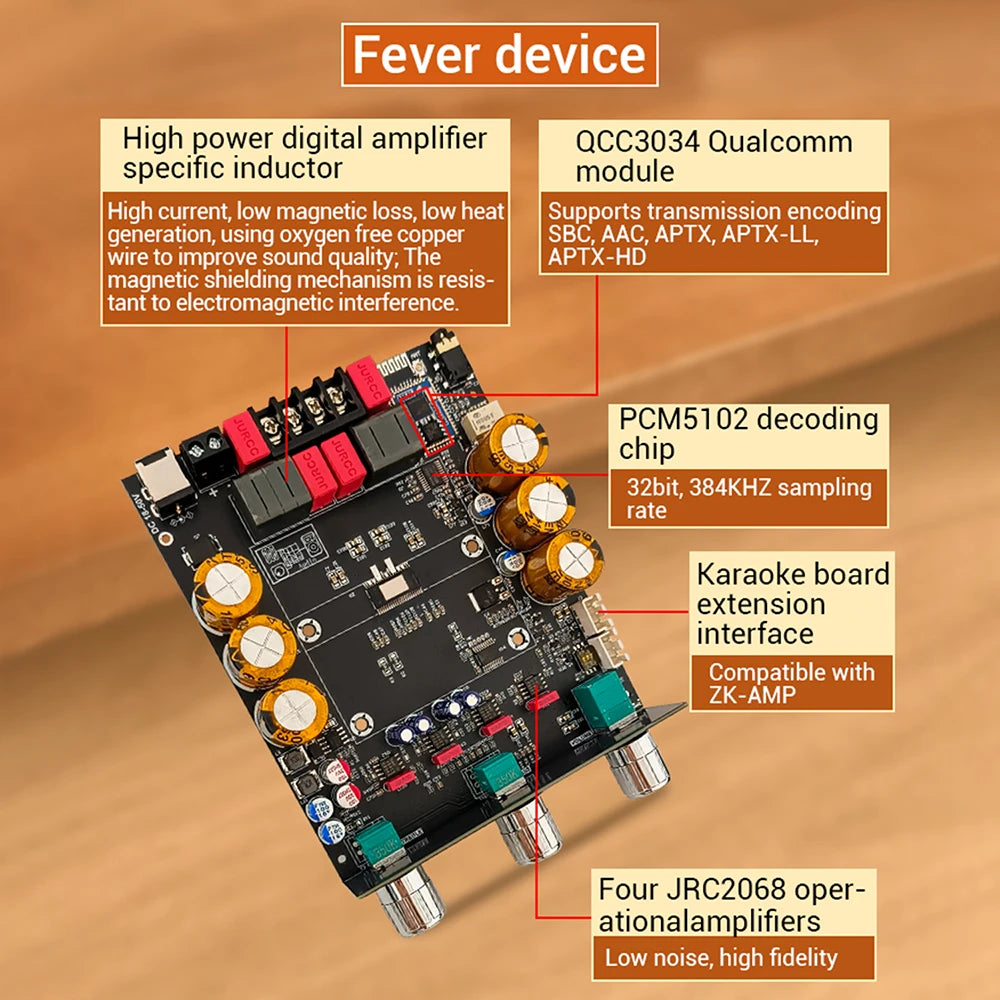

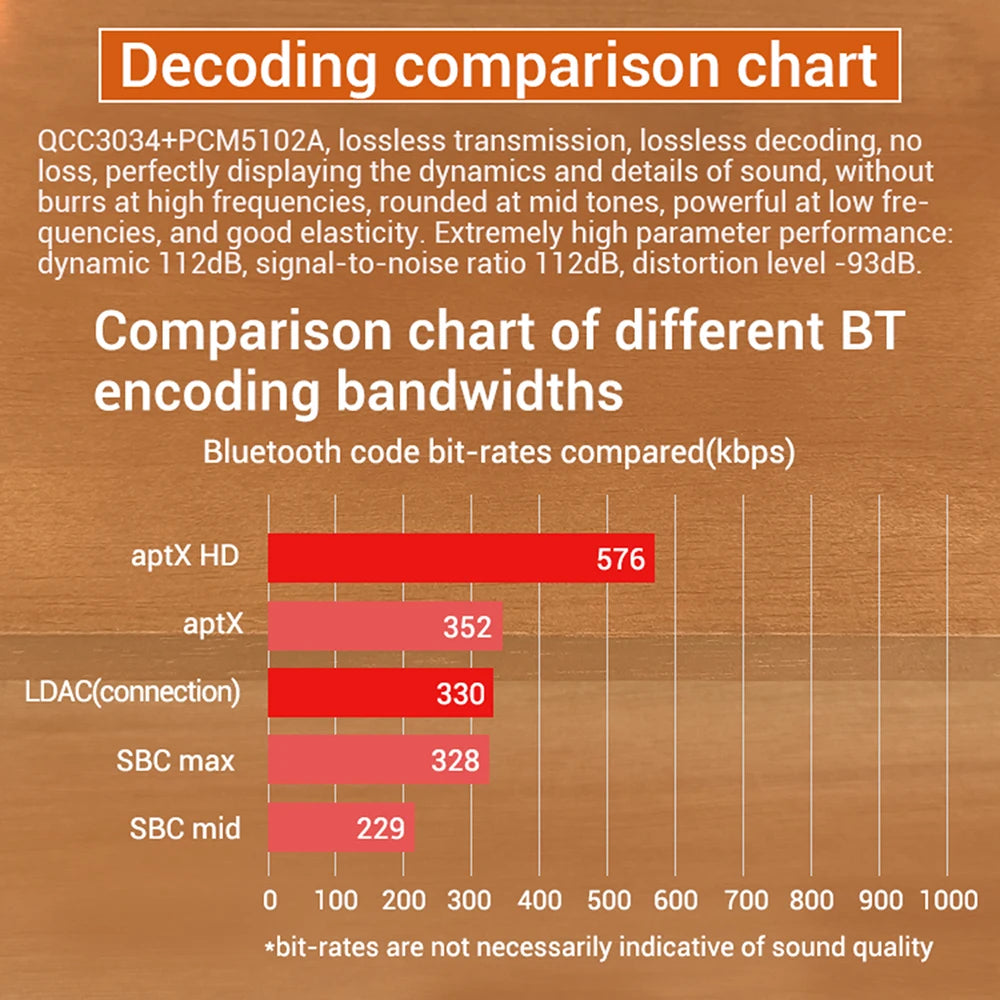

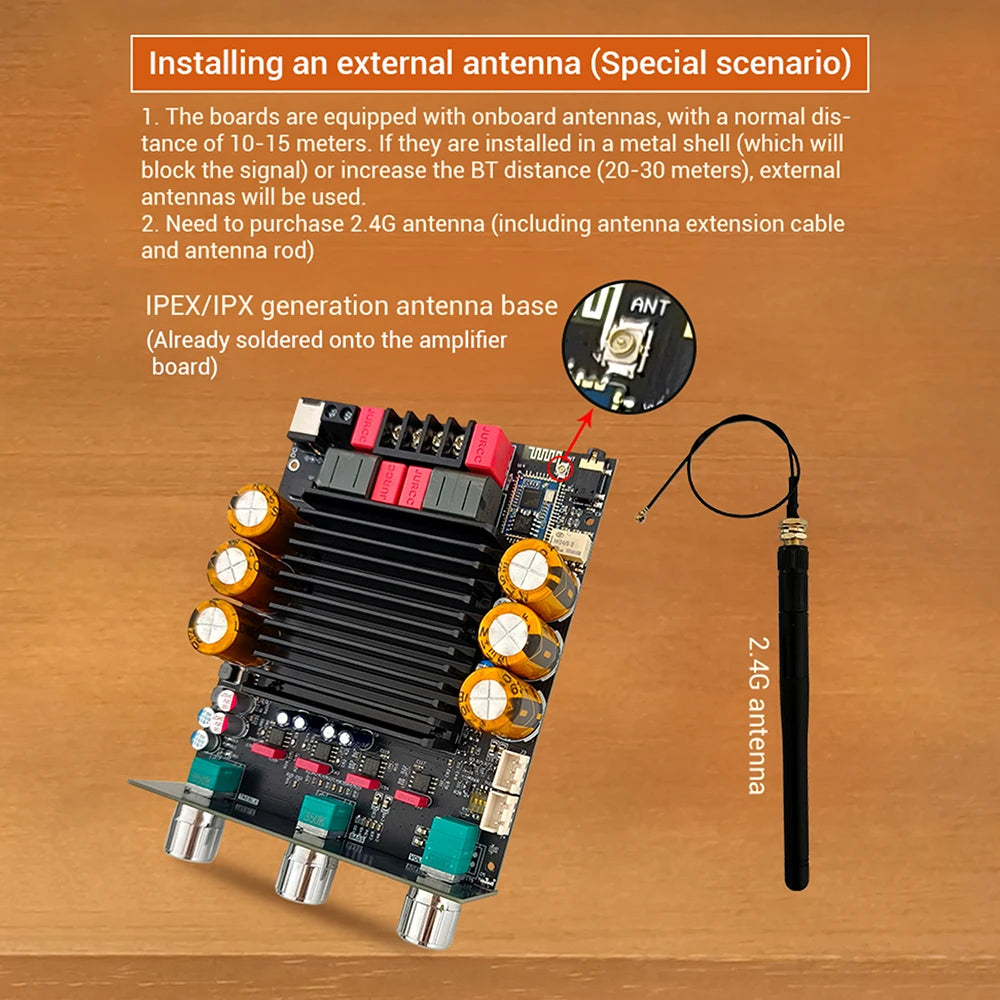

Bluetooth chip: QCC3034, transmission distance of 15 meters.

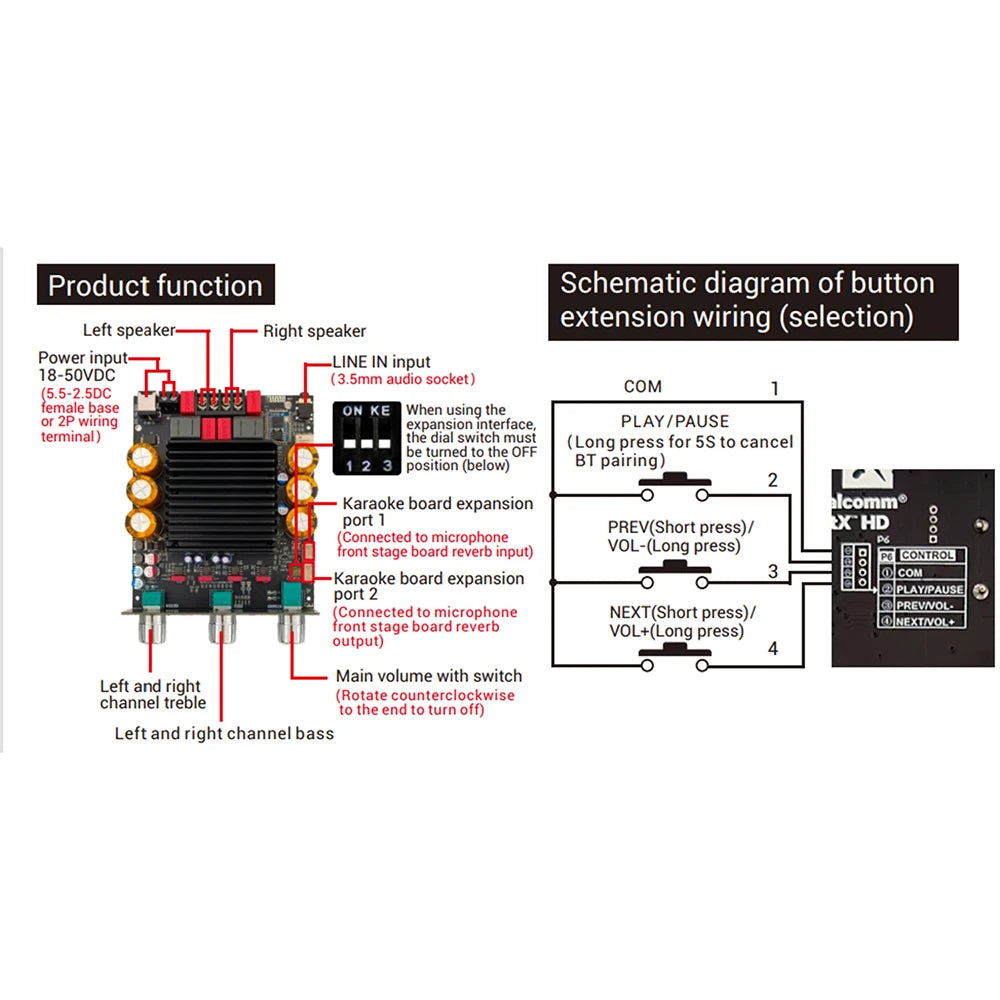

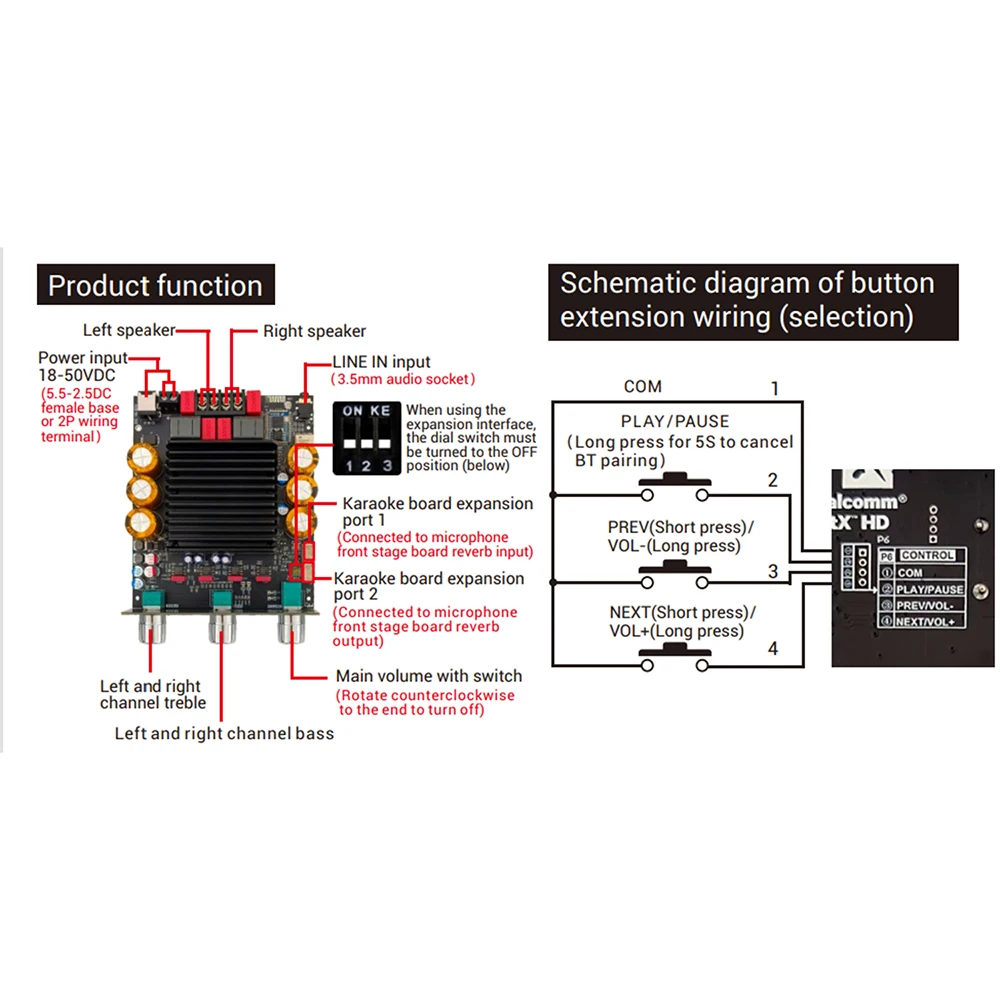

Input method: Bluetooth+AUX, Bluetooth priority. When using an audio cable for input, Bluetooth needs to be disconnected.

Number of channels: 2.0, left and right channels

Amplifier chip: TI original TPA3255

Protection mechanism: Input undervoltage, overheating, overcurrent, short circuit protection. No input anti reverse connection protection, positive and negative connections cannot be reversed!!!

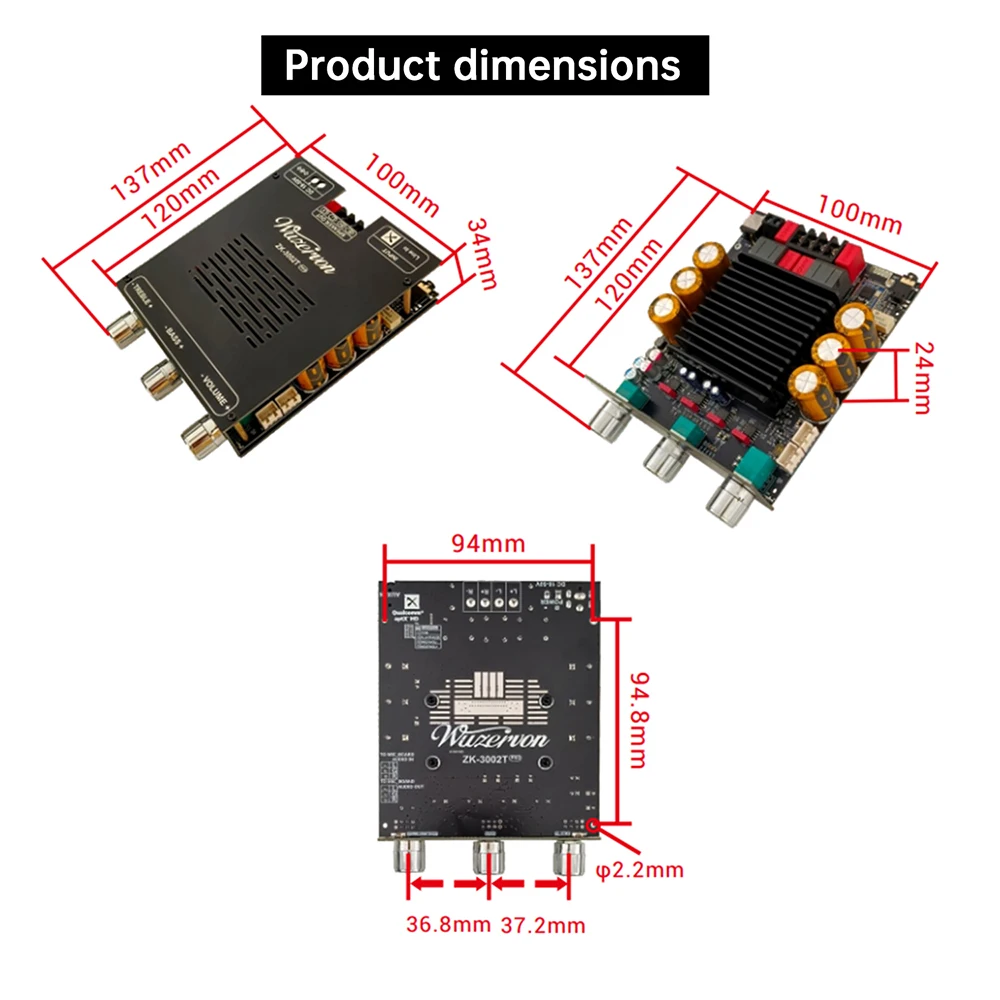

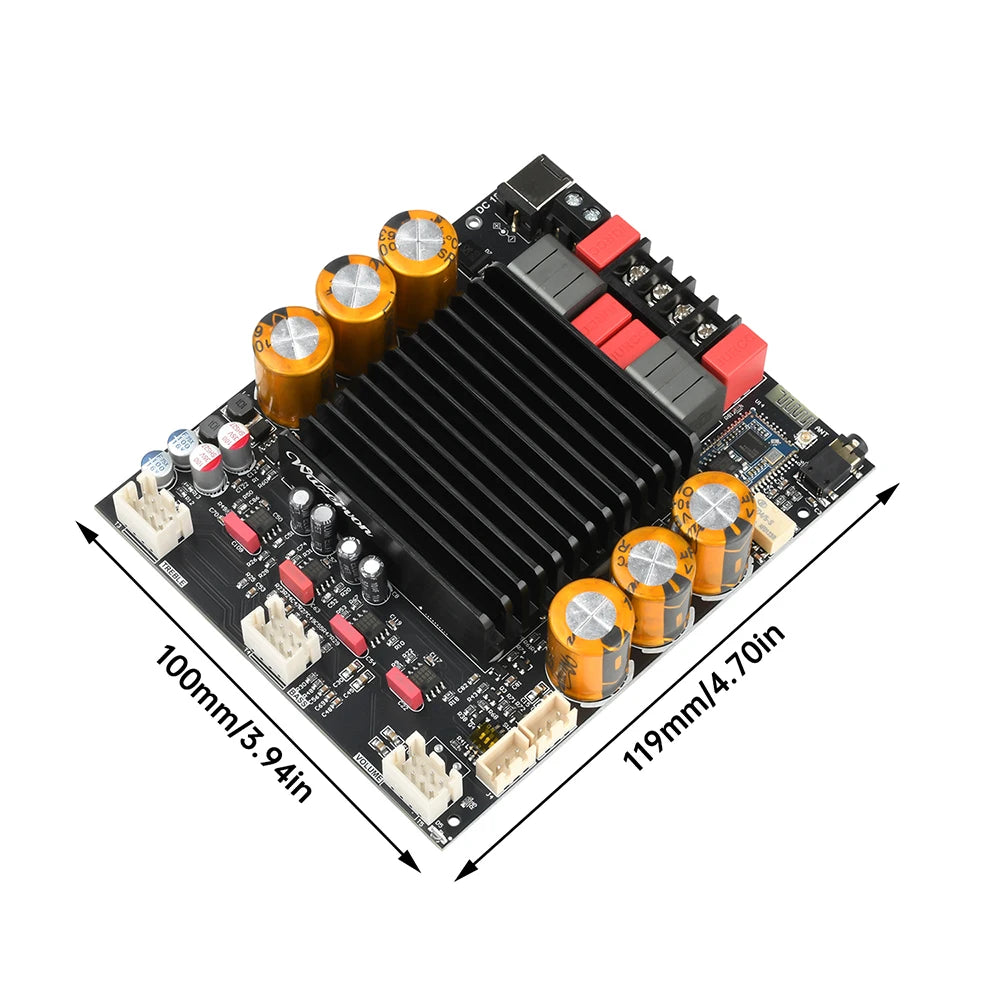

Product dimensions:

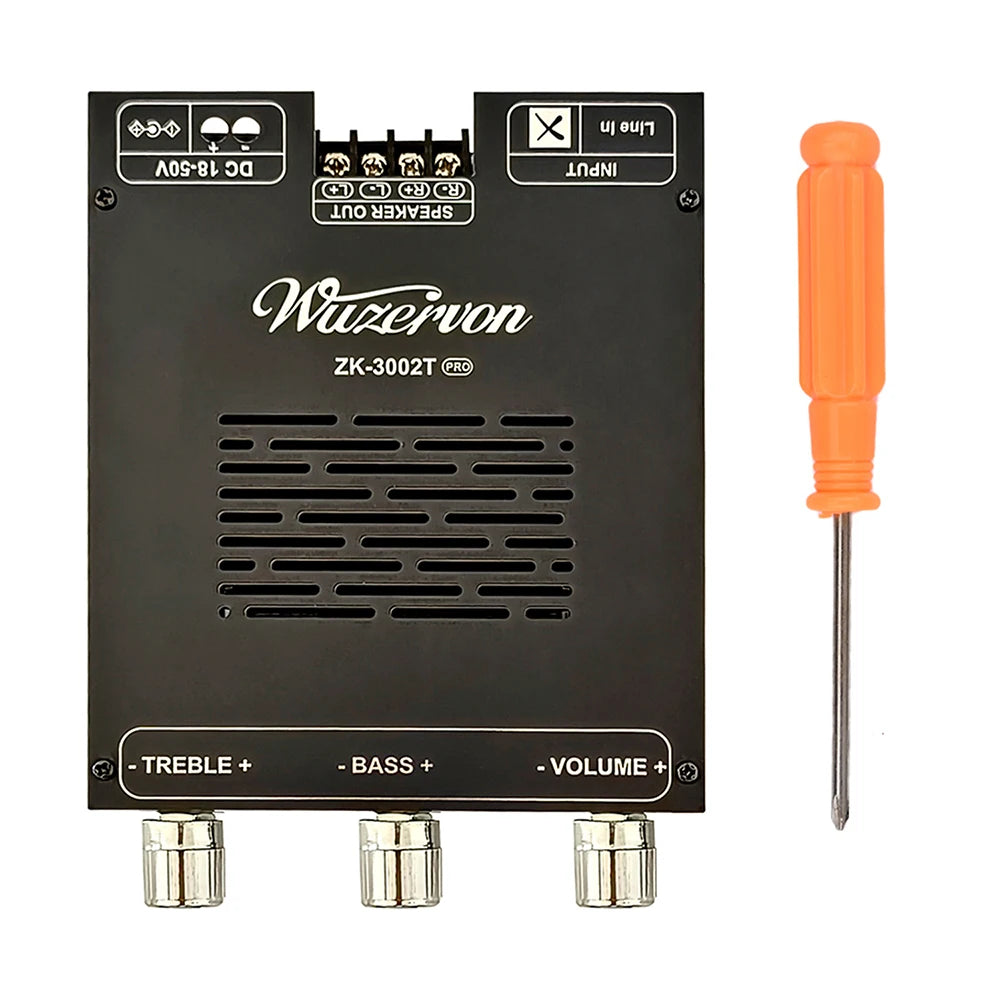

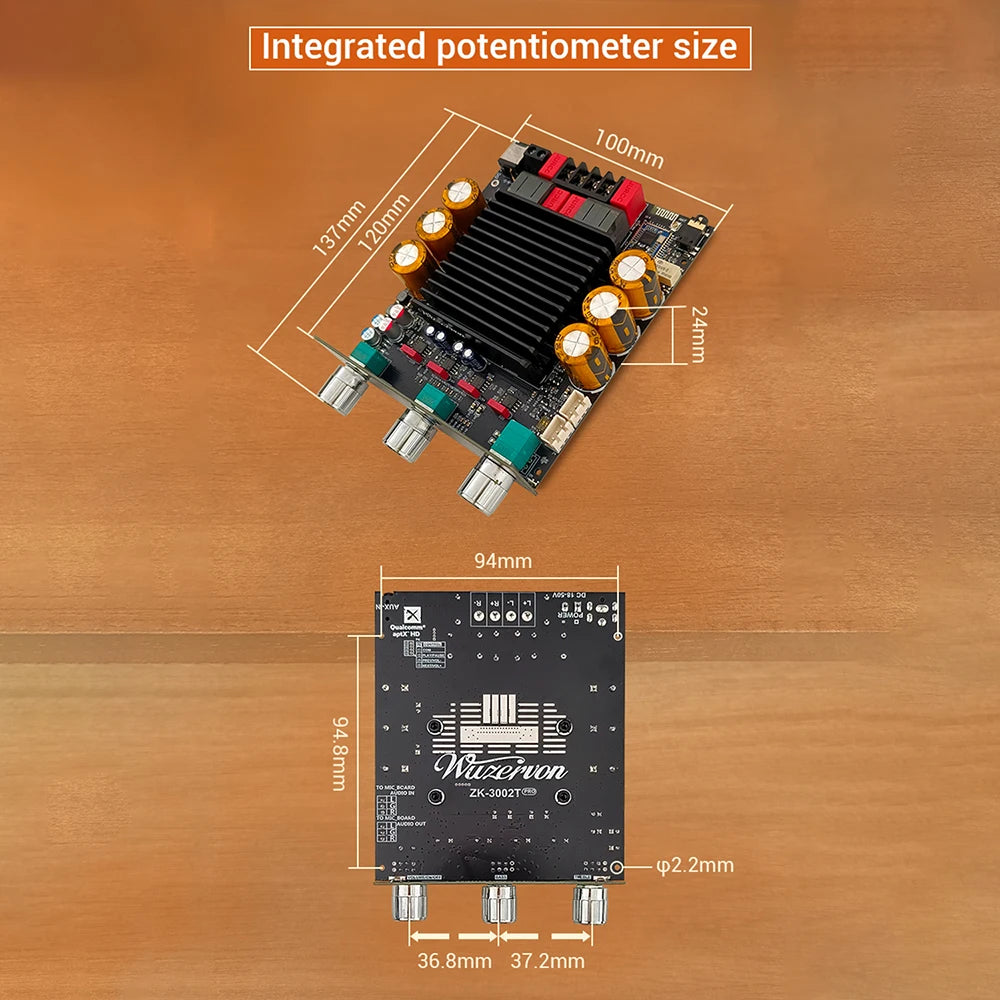

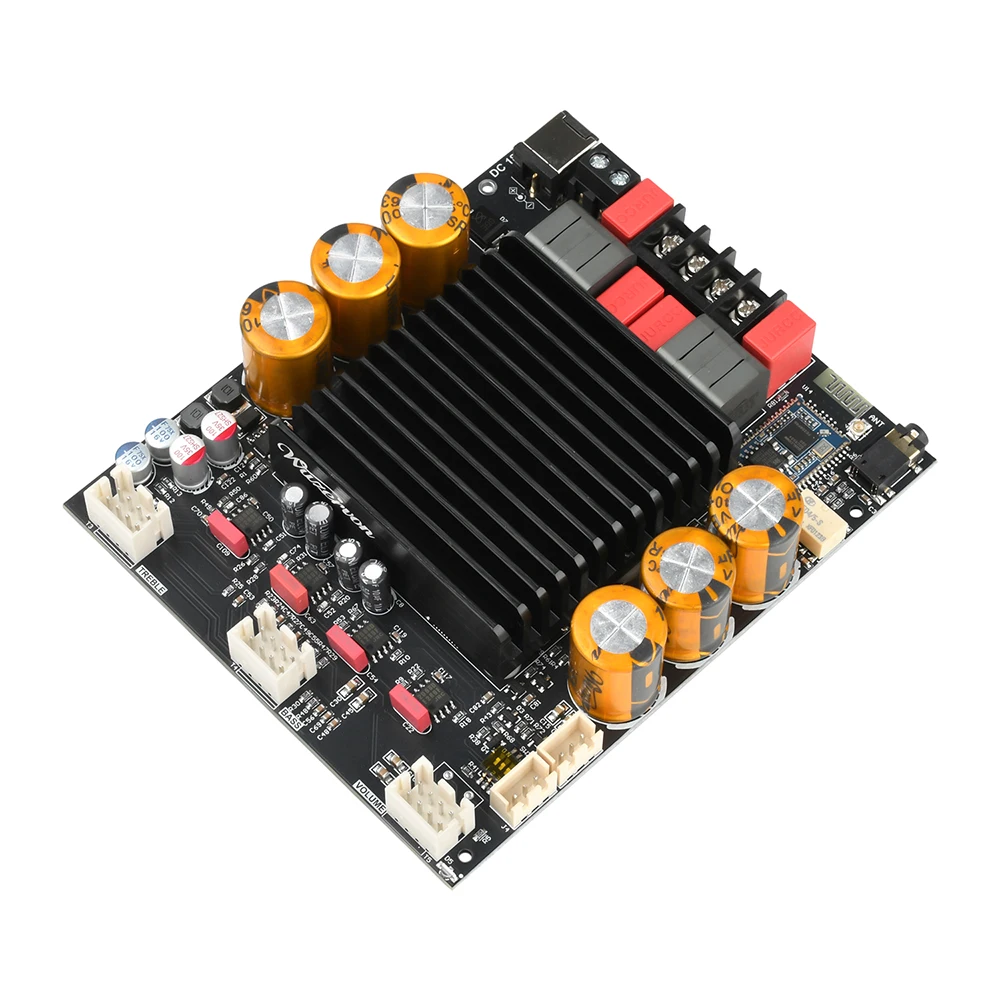

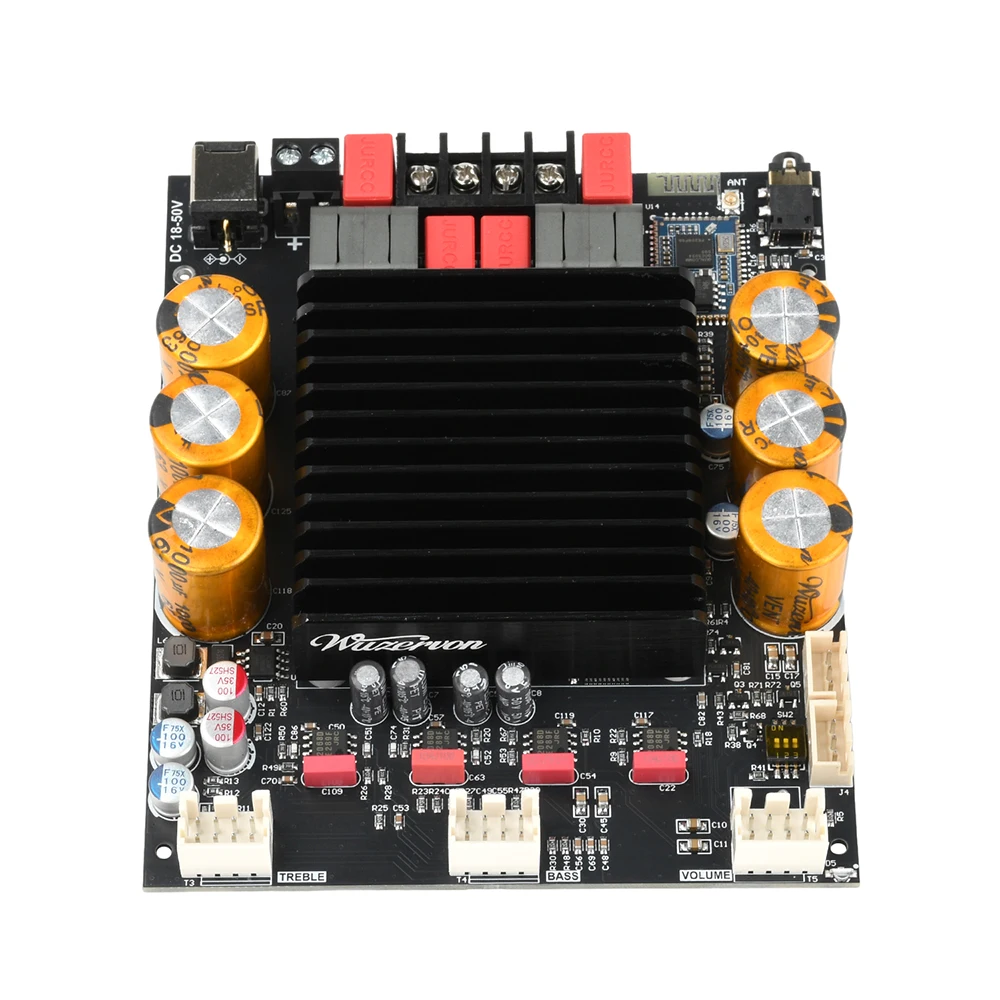

Integrated without shell: 137x100x24mm;

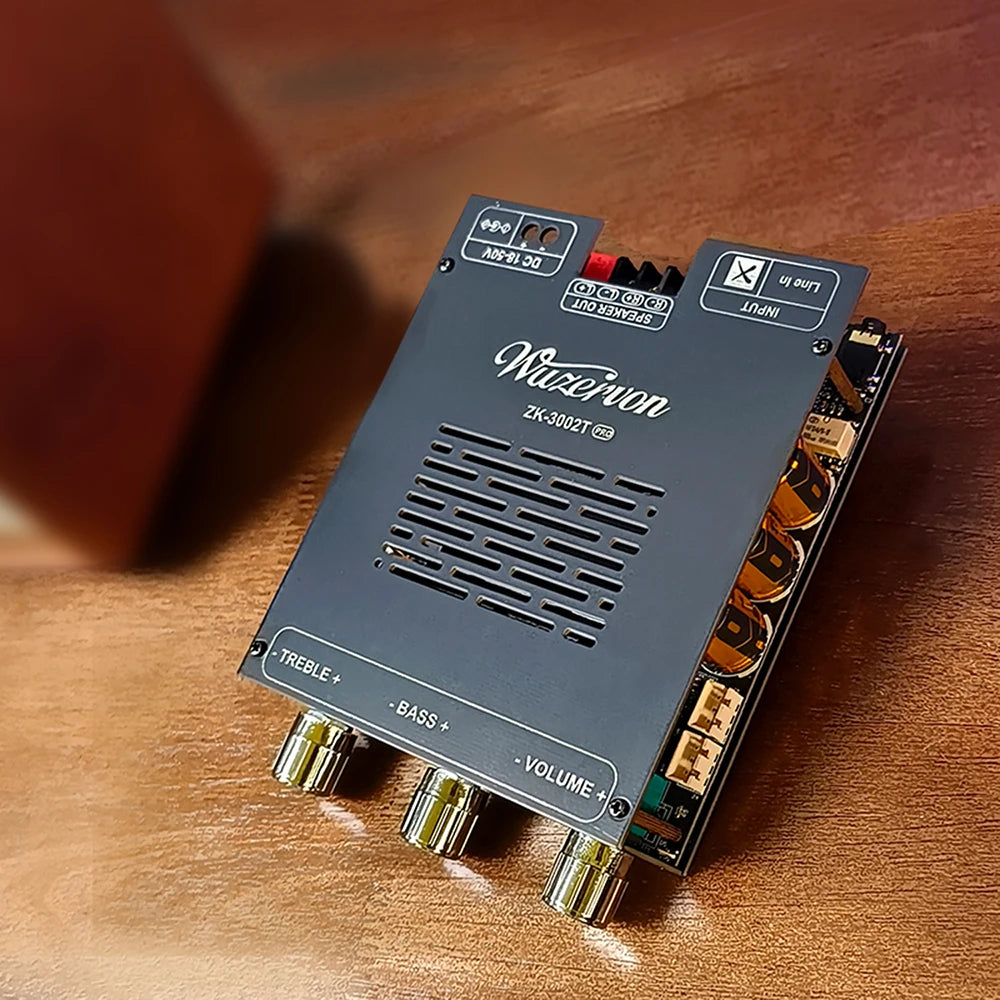

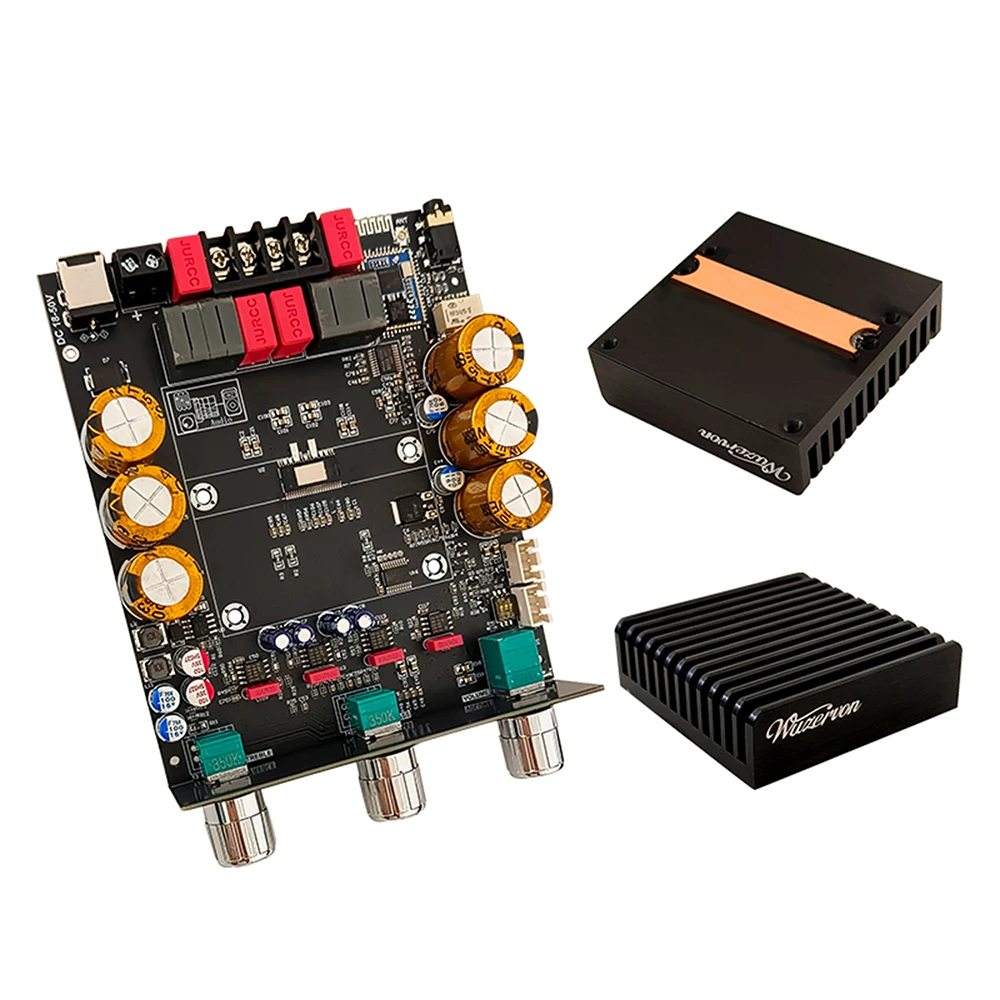

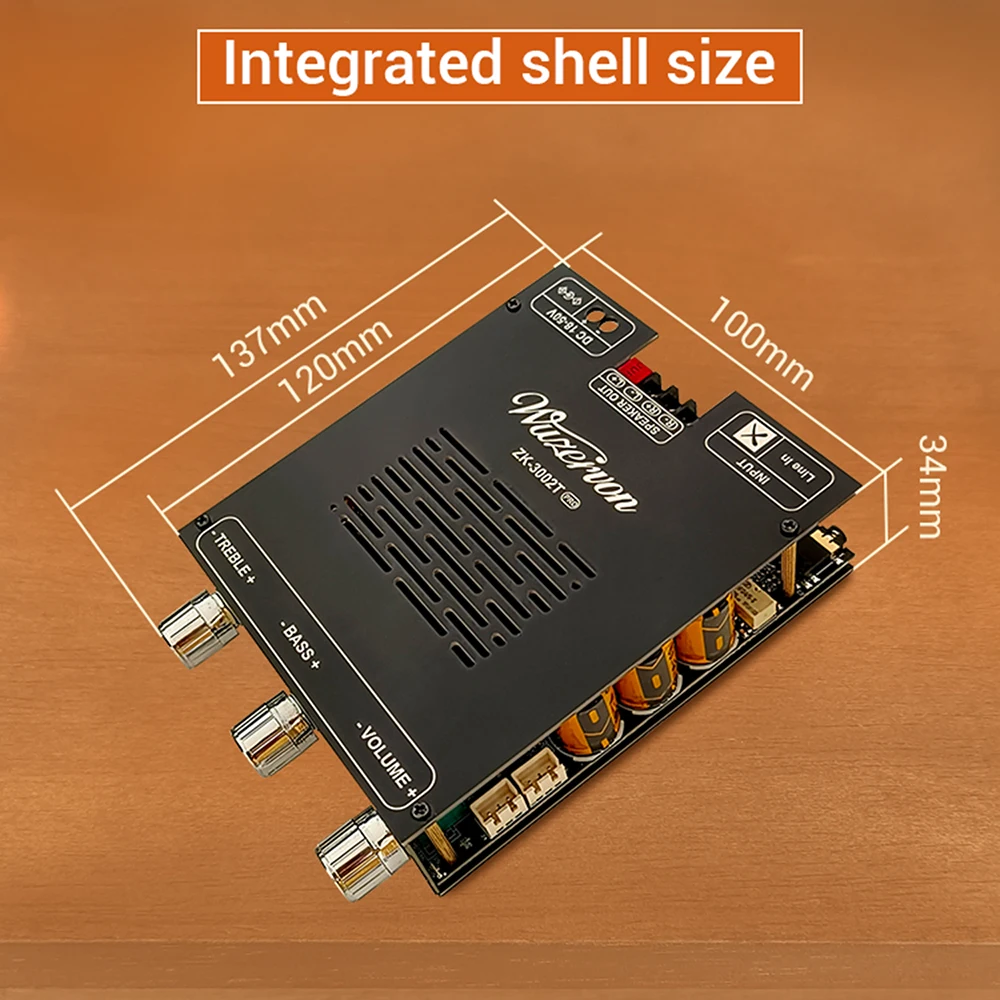

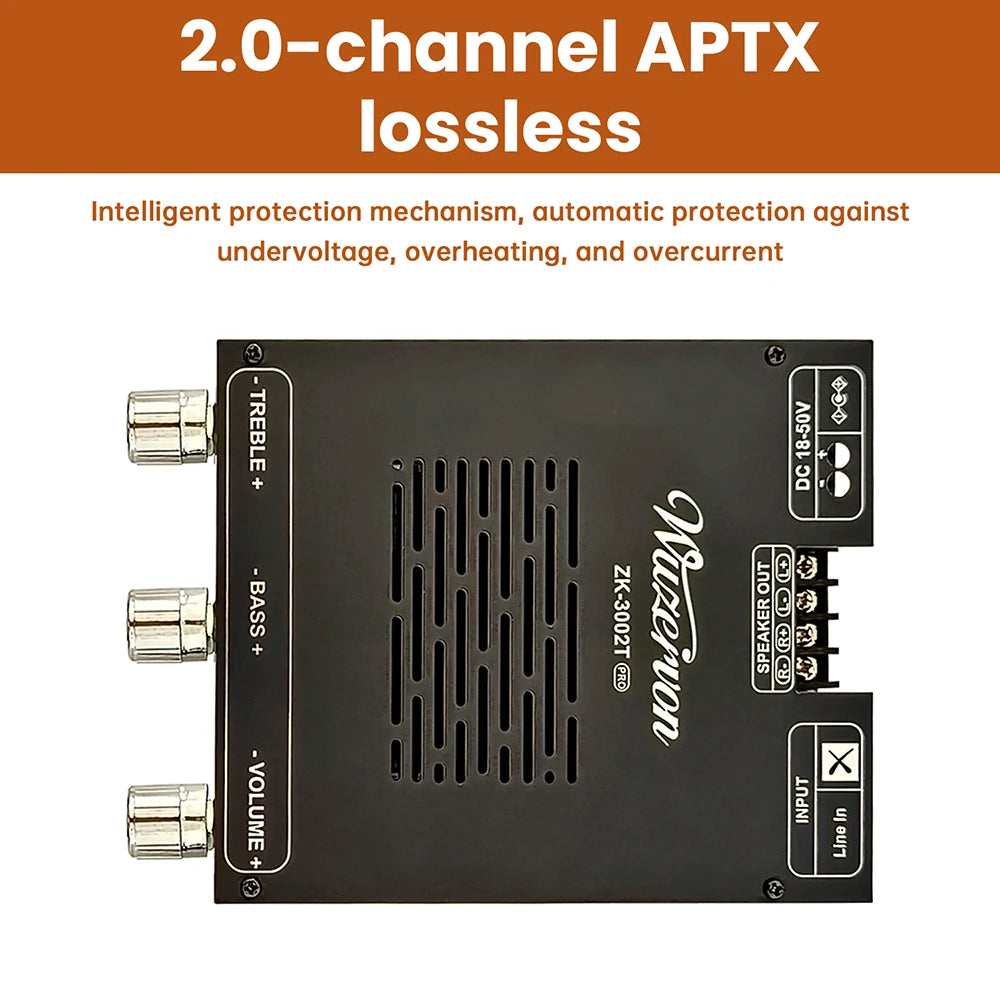

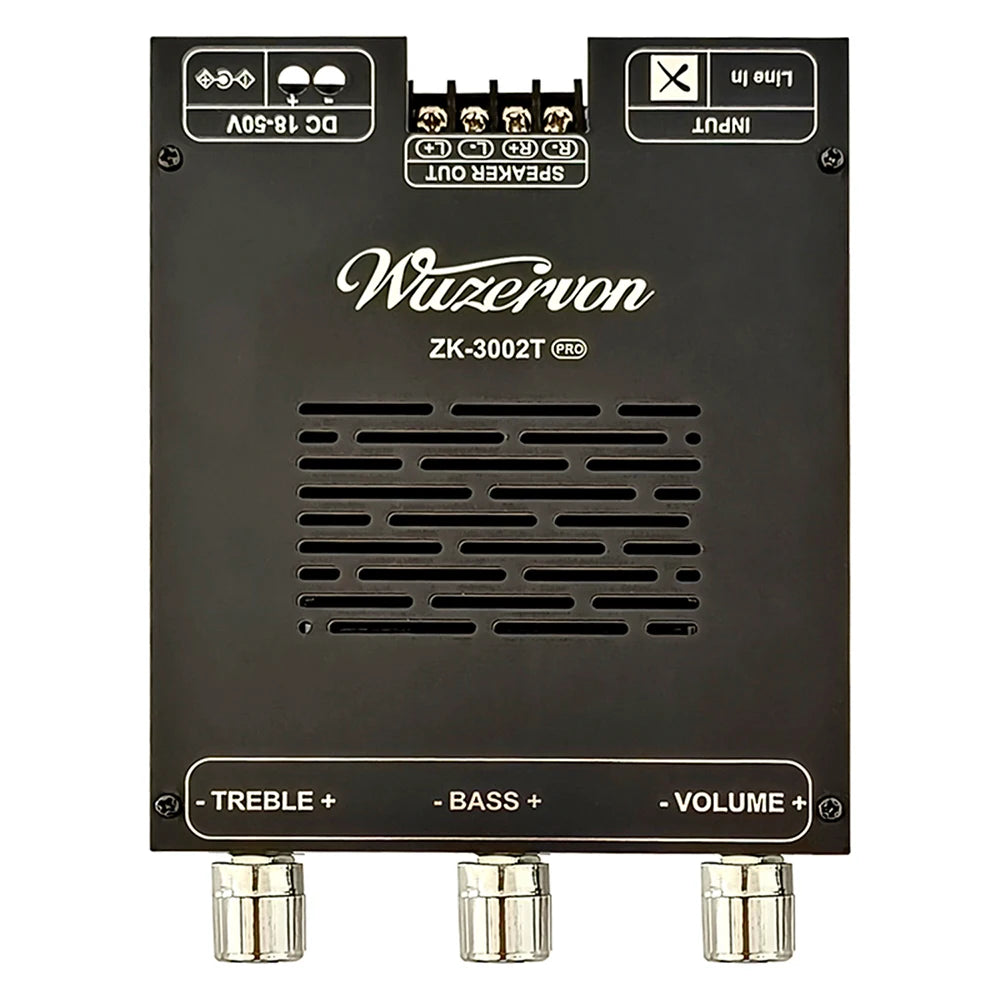

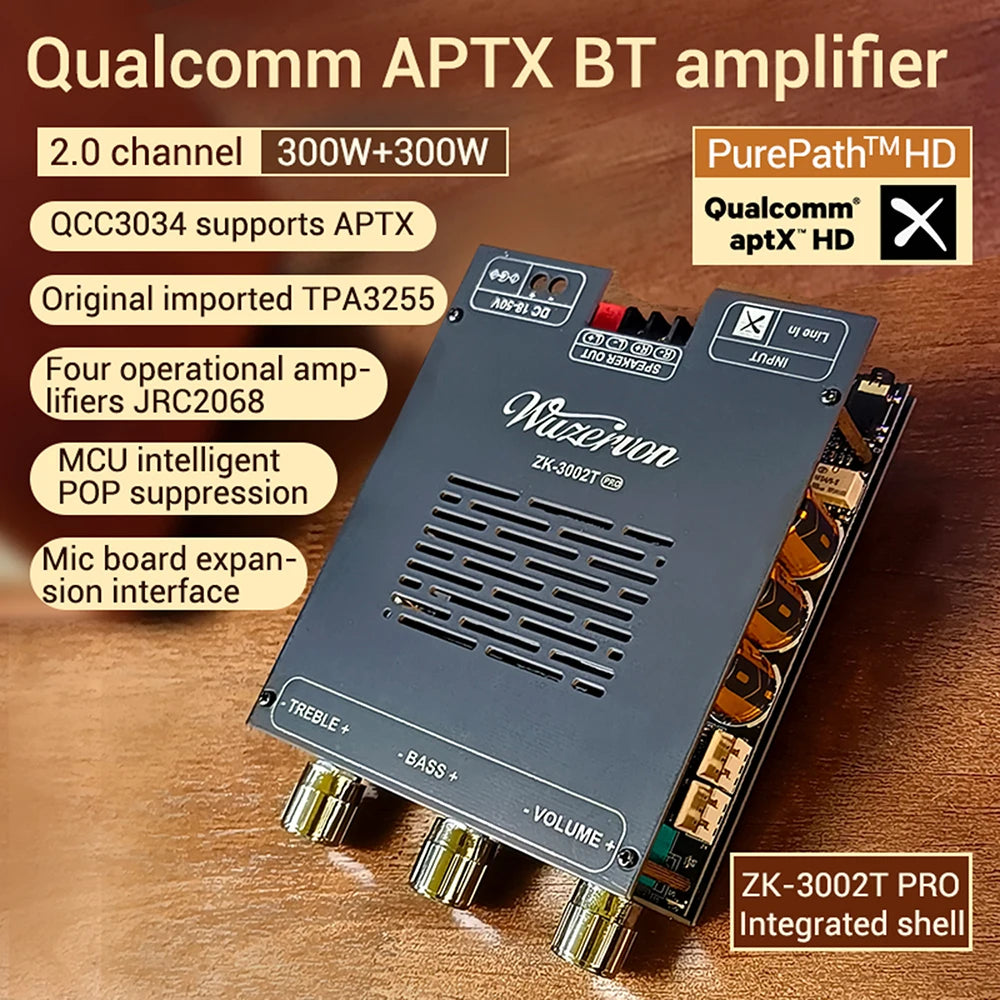

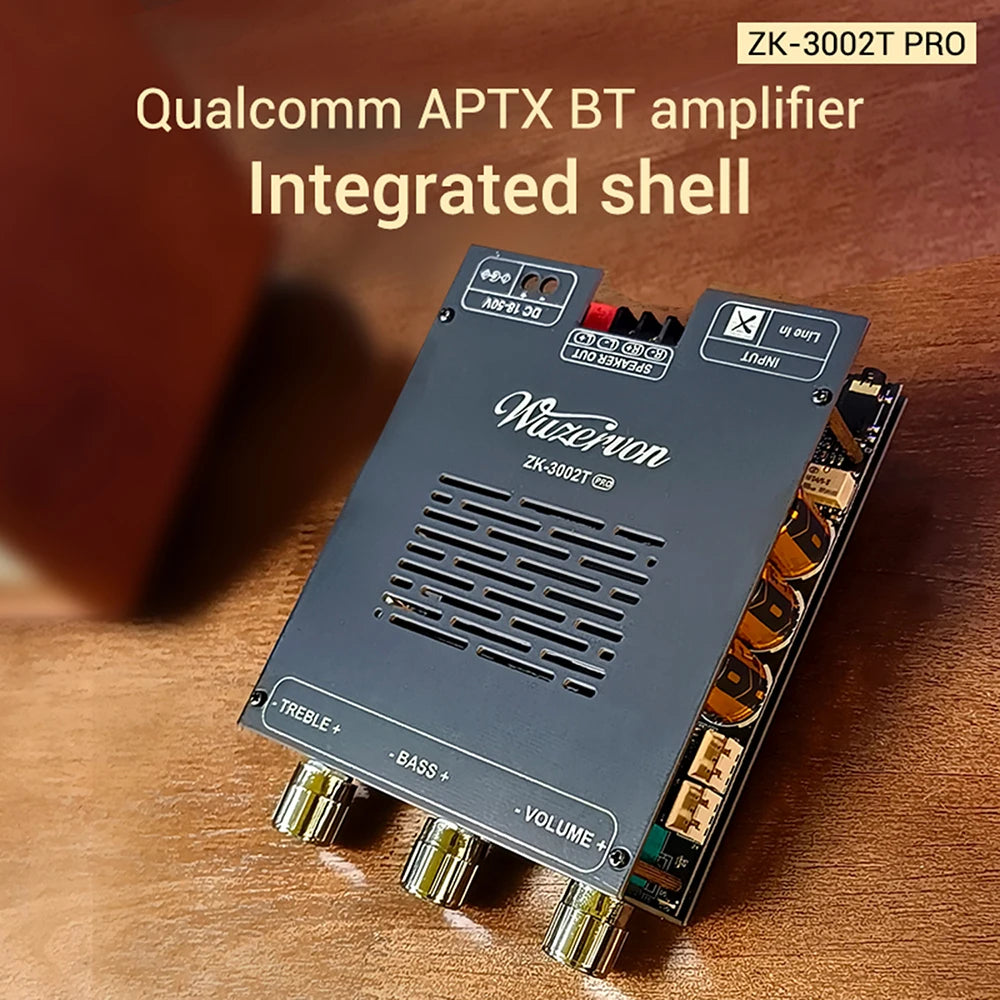

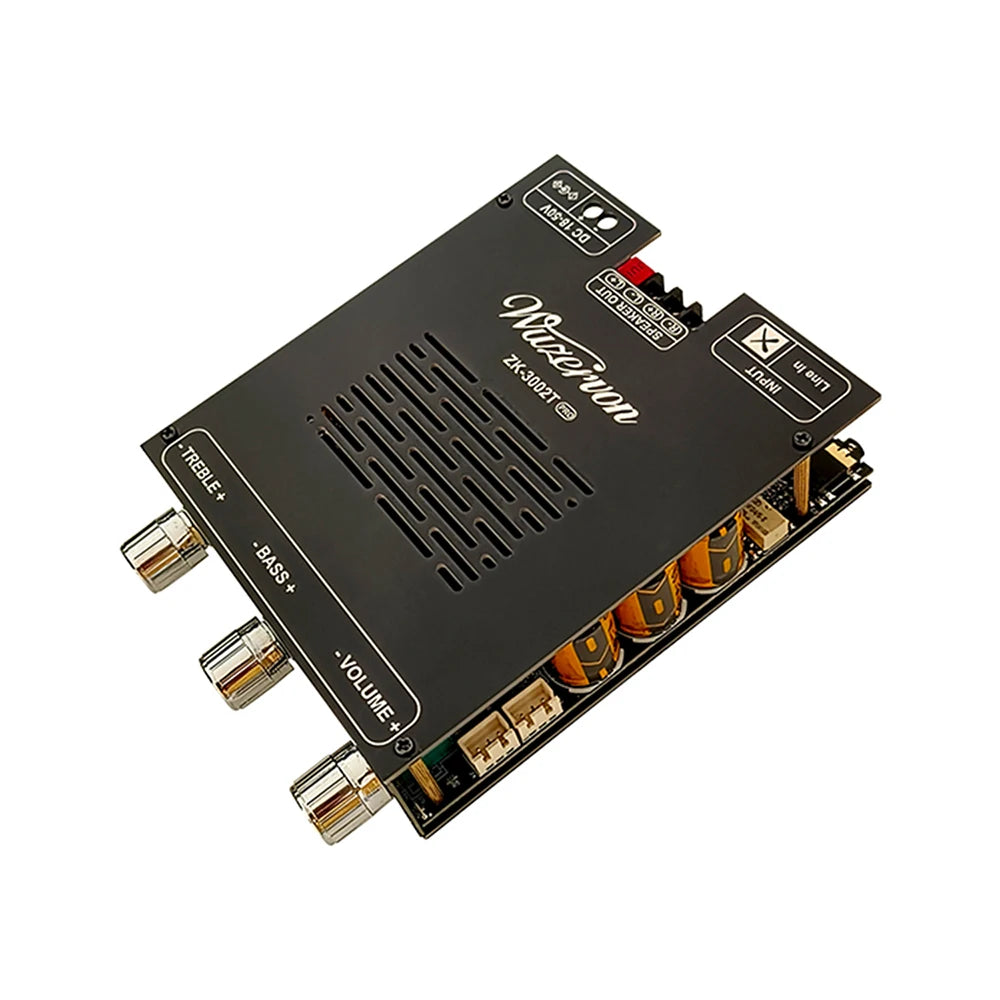

Integrated with shell: 137x100x34mm;

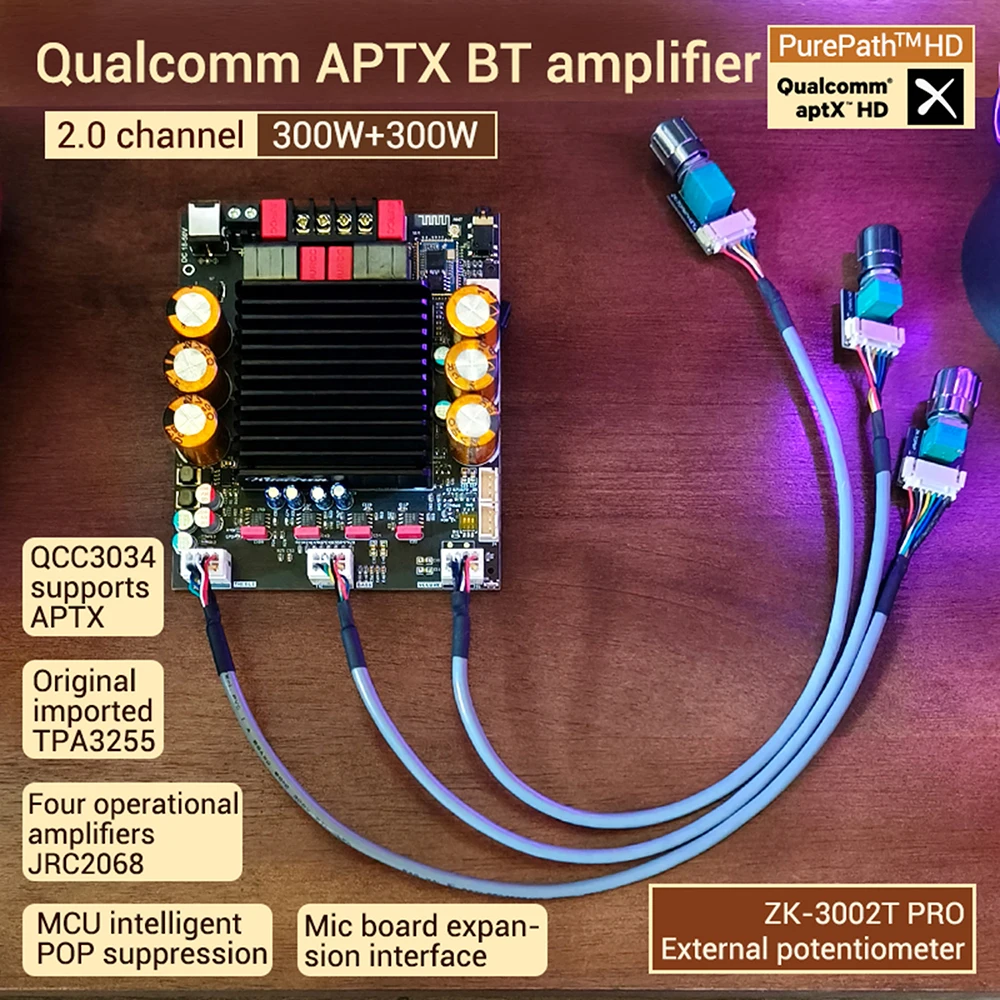

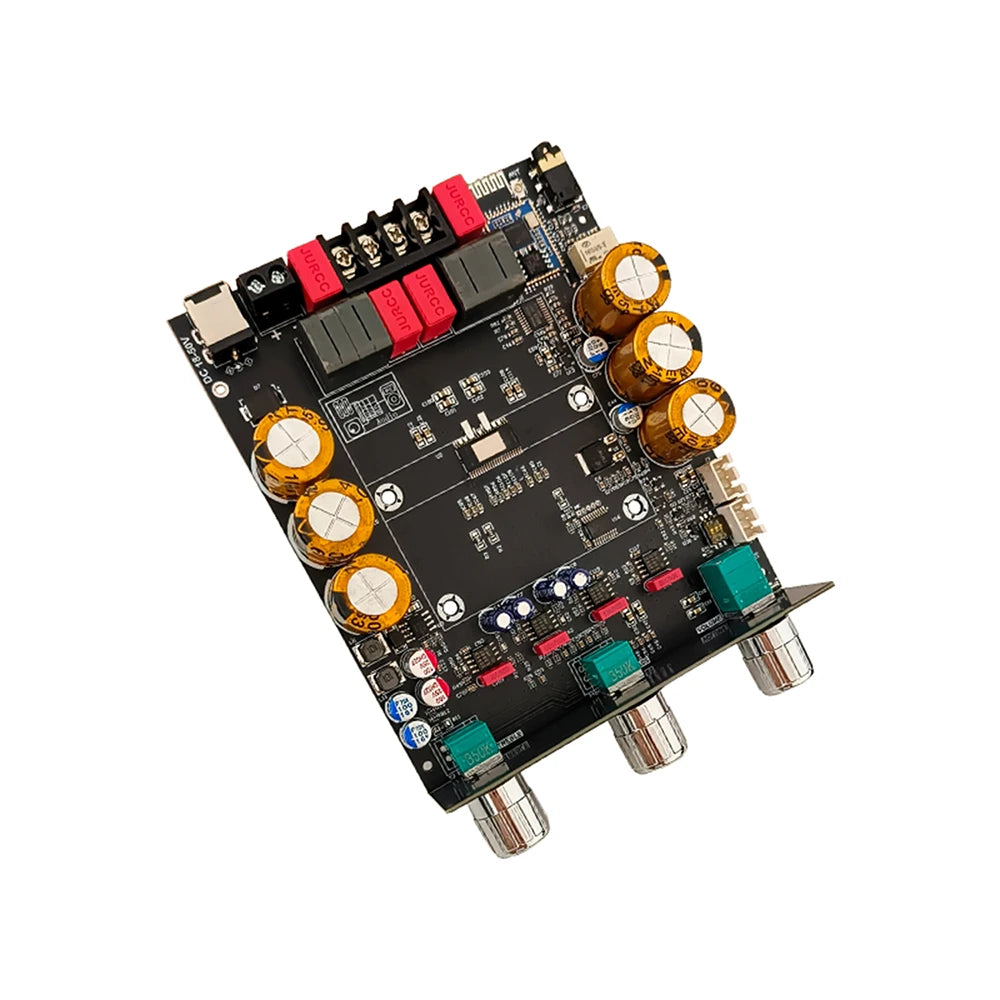

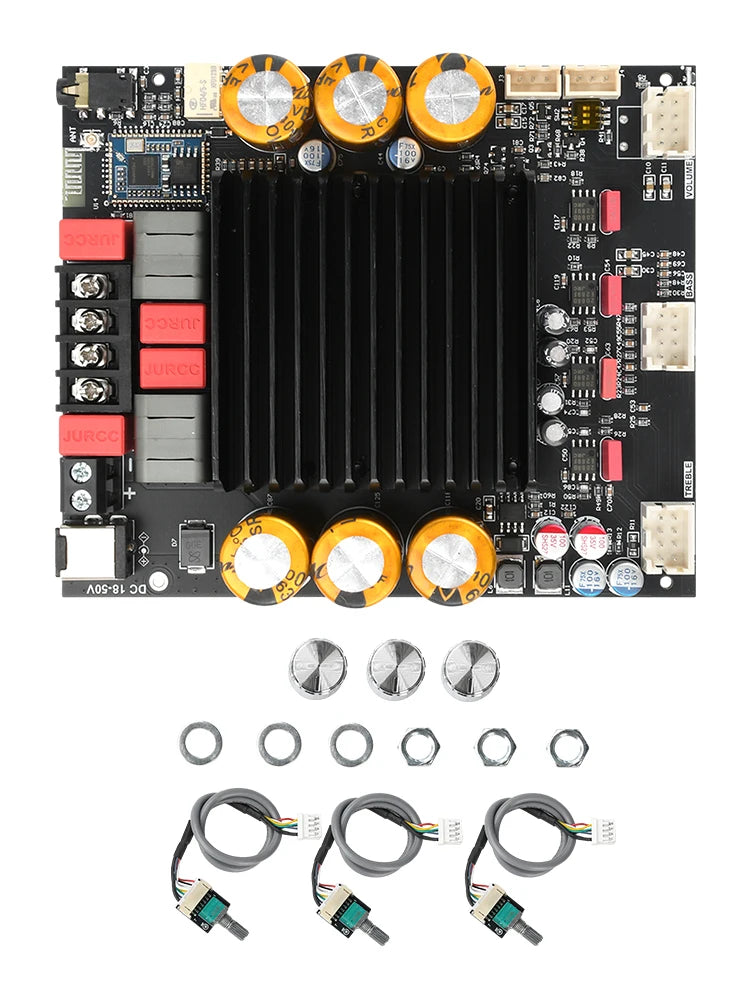

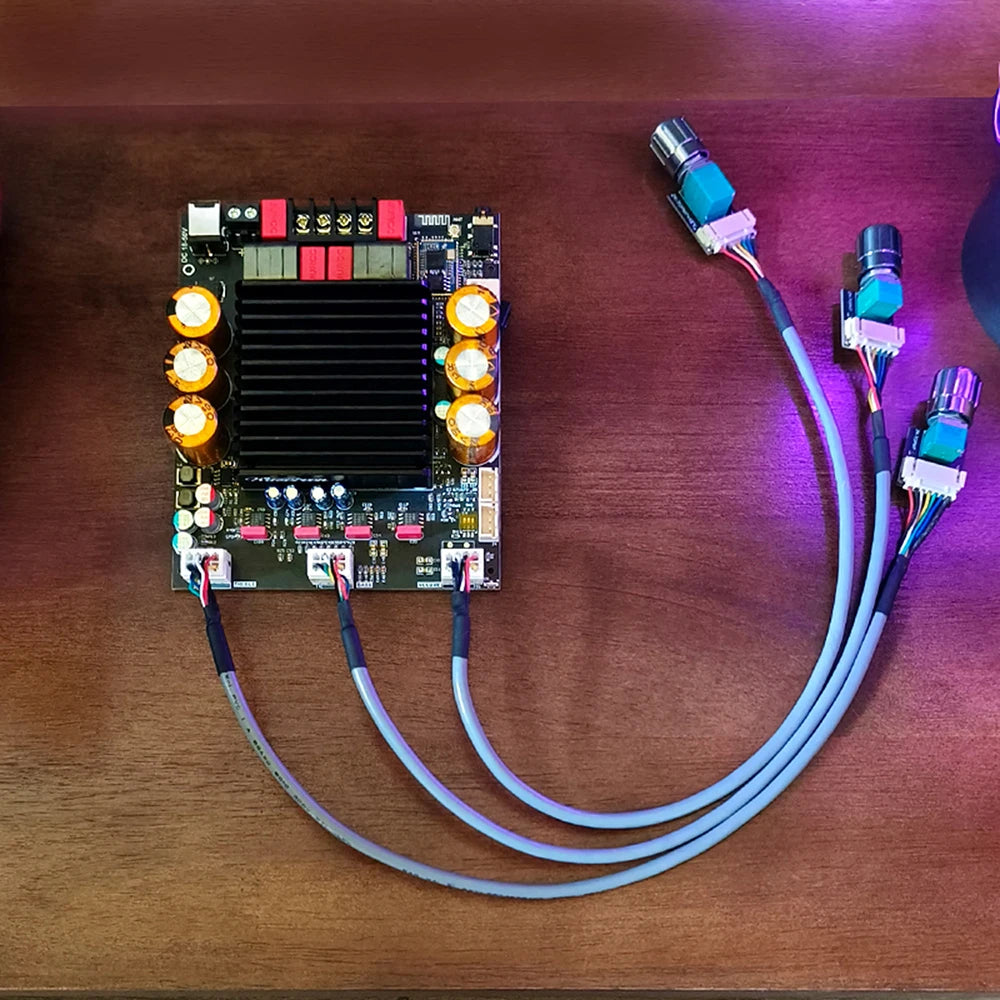

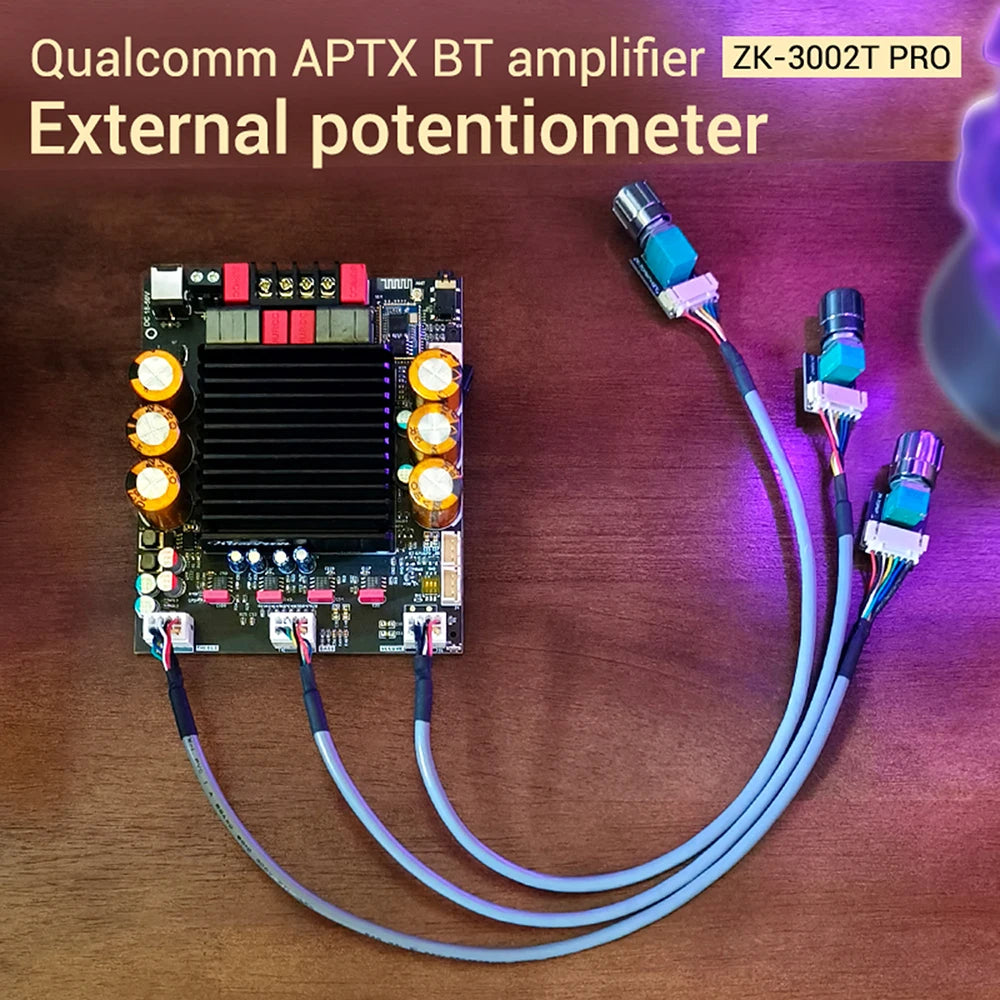

External potentiometer: 118x100x24mm;

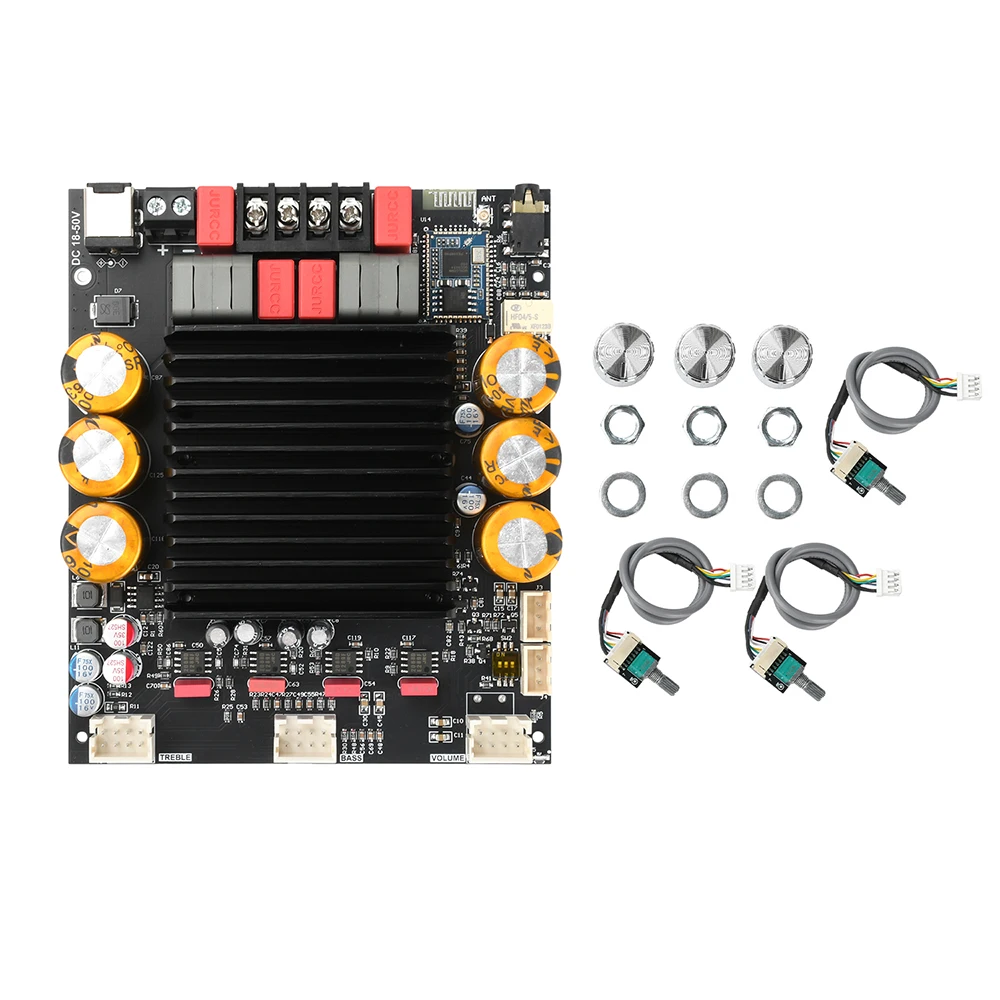

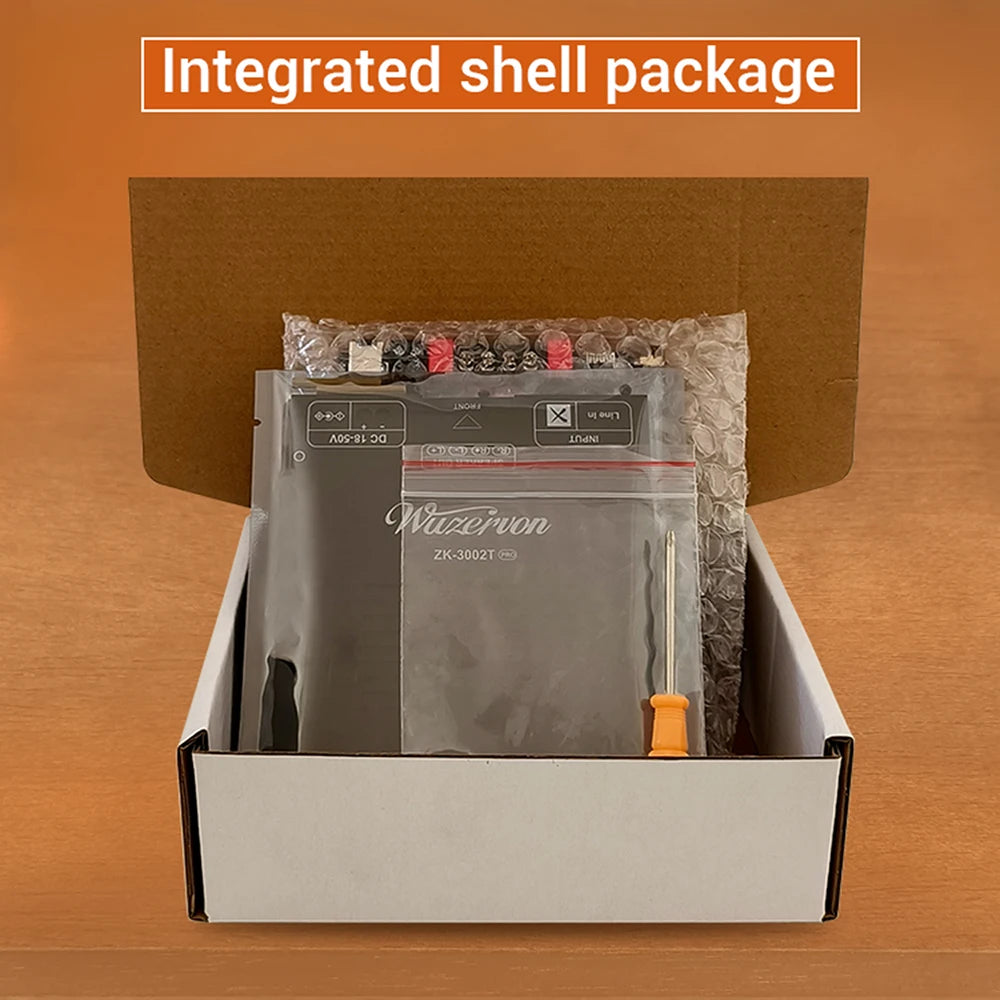

Product List:

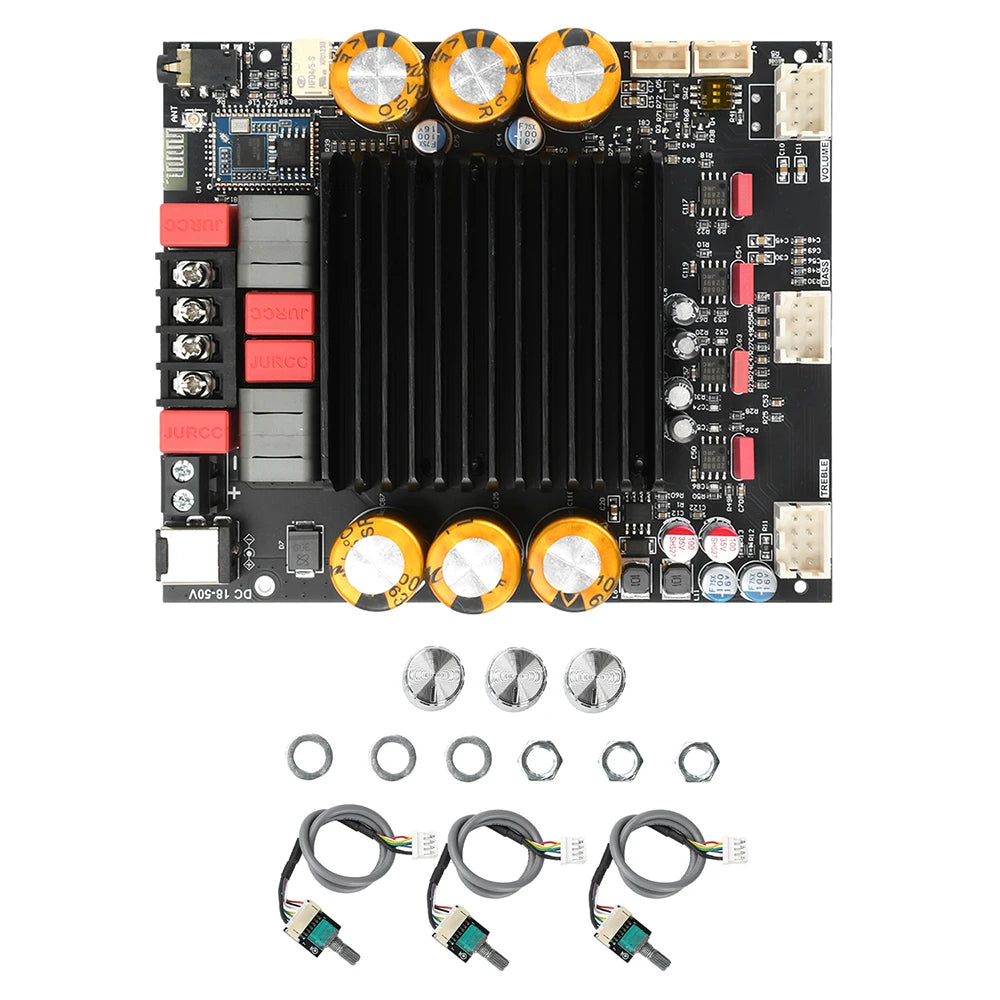

1X power amplifier board

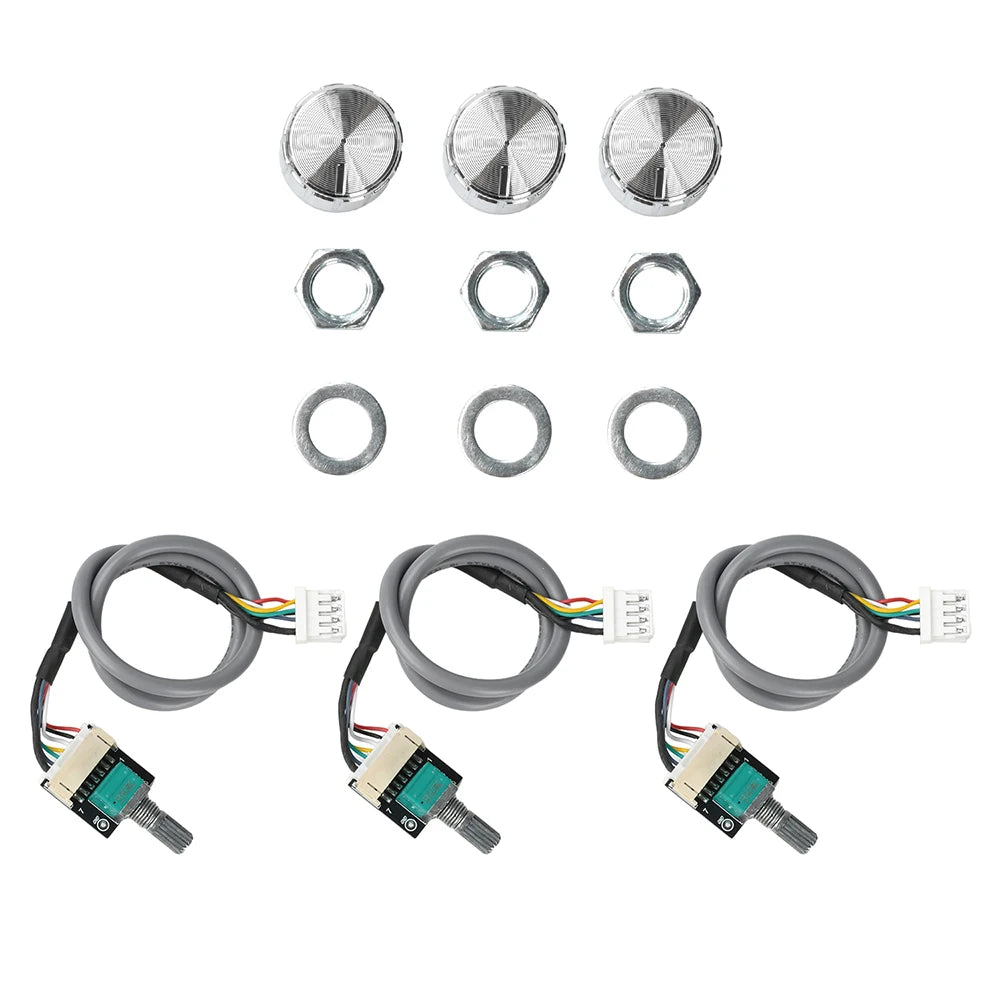

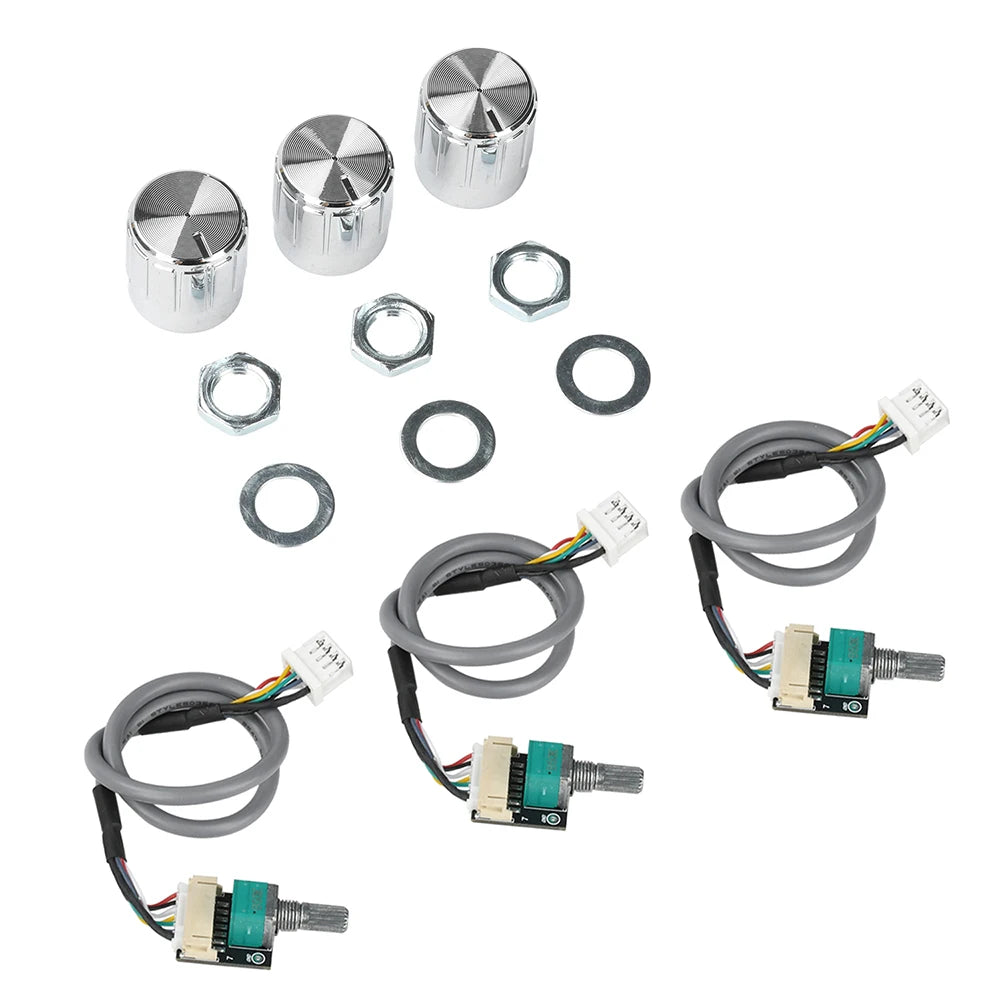

1X accessory kit
