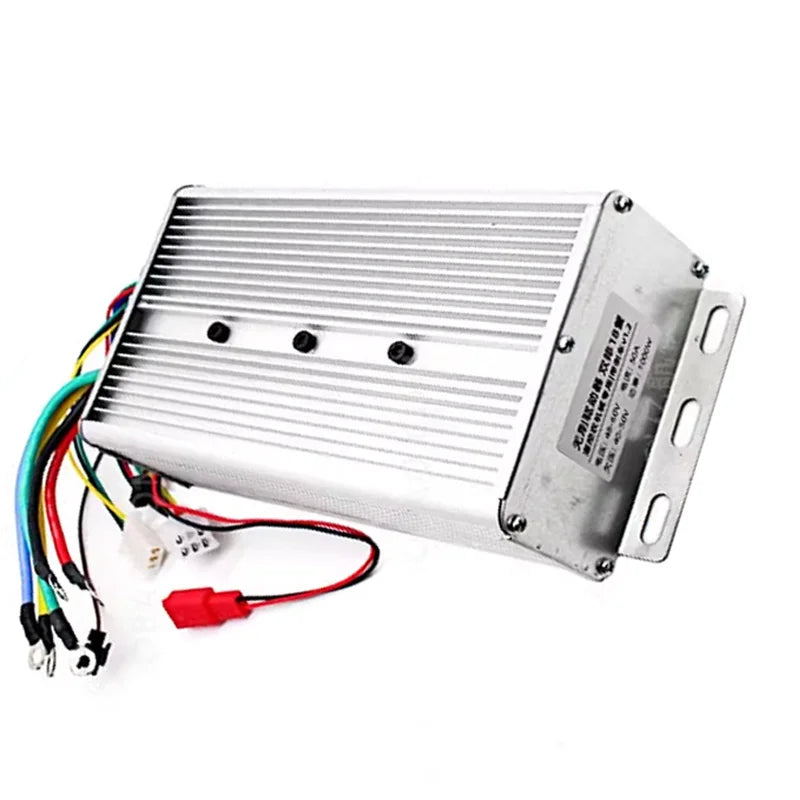

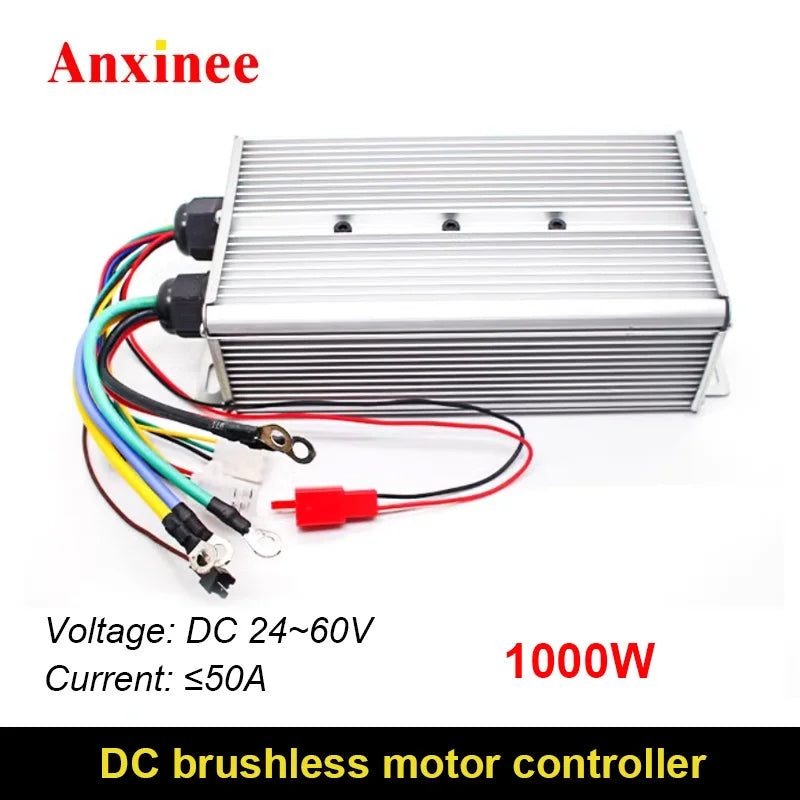

DC 24V-60V 50A 1000W High Power Brushless Motor Controller BLDC Driver For 3-phase Speed Regulator With Hall Senser

DC 24V-60V 50A 1000W High Power Brushless Motor Controller BLDC Driver For 3-phase Speed Regulator With Hall Senser

$221.49

$221.49 $0.00

Voltage Throttle SC (1 way) Throttle SC (2 way) 48V-84V 45A 24v-36v 50A 2-18mos 48v-60v 50A 2-18mos 12V-24V 50A RC

Description

SPECIFICATIONS

Brand Name: NONE

Color: Silver

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: none

Model Number: 24-60-1000

Motor: DC Motor

Motor Type: DC Motor

Origin: Mainland China

Power Source: DC

Power Supply: DC

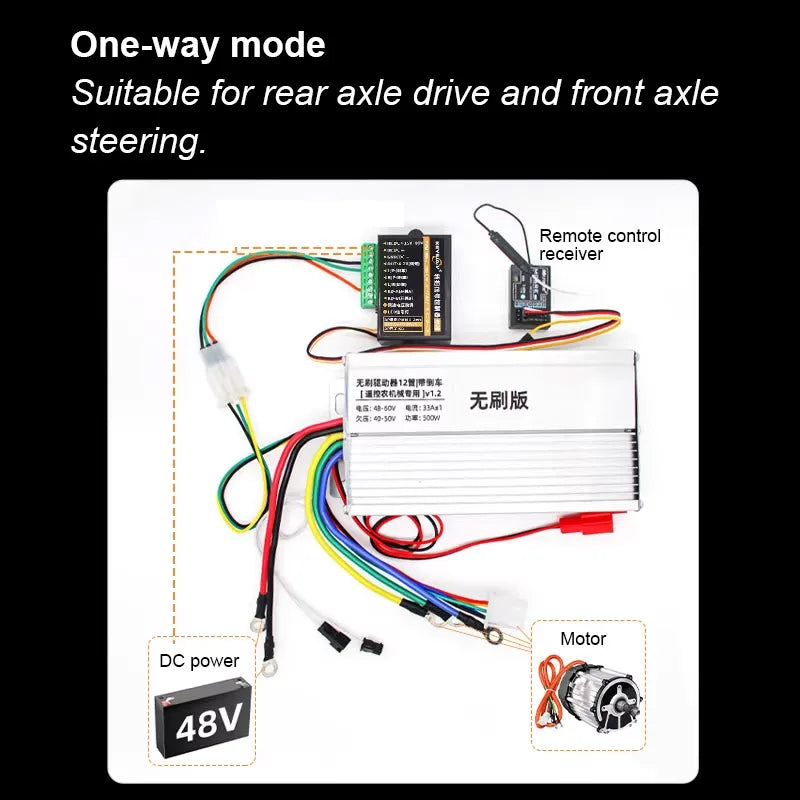

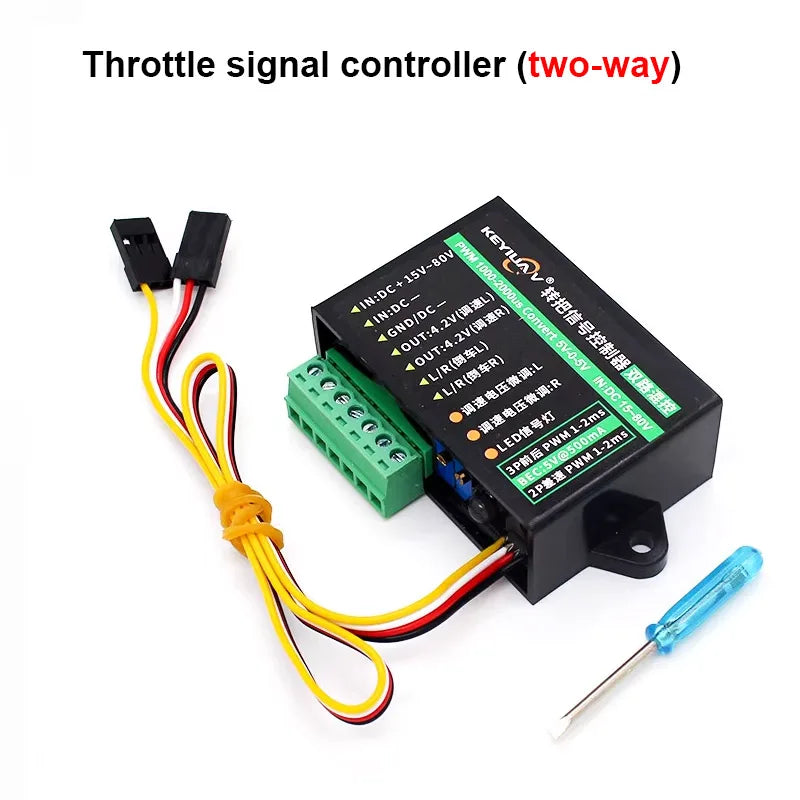

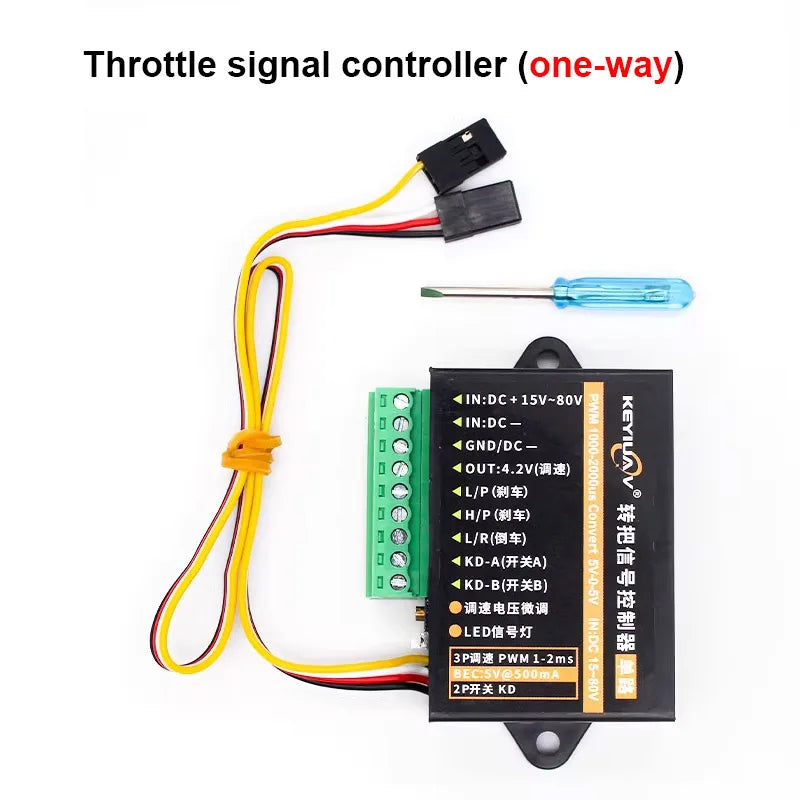

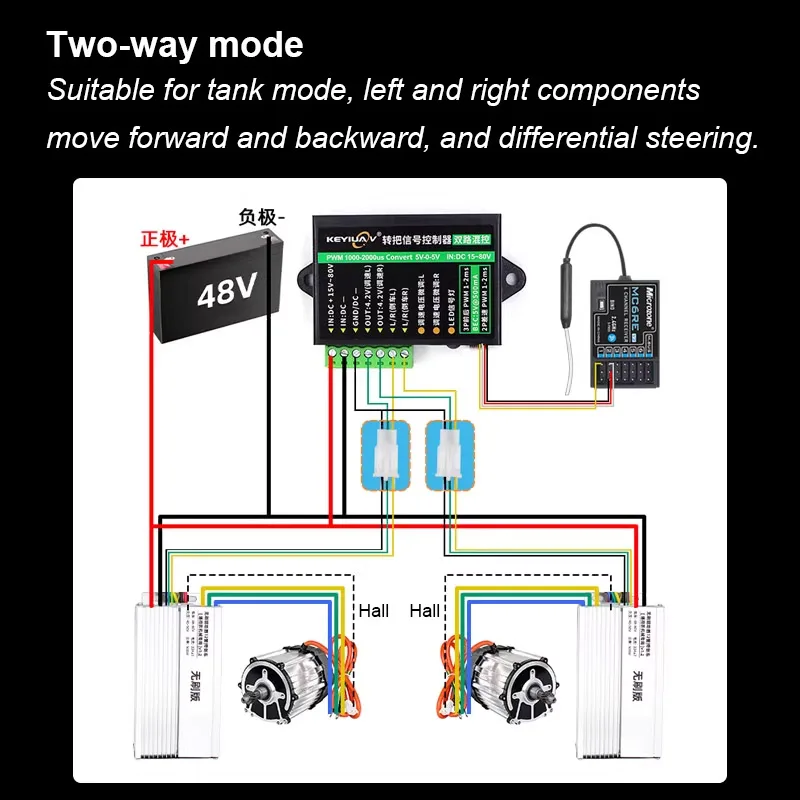

Throttle SC——Throttle signal controller，capable of converting the signal from the model aircraft remote control receiver into the signal of the brushless motor controller

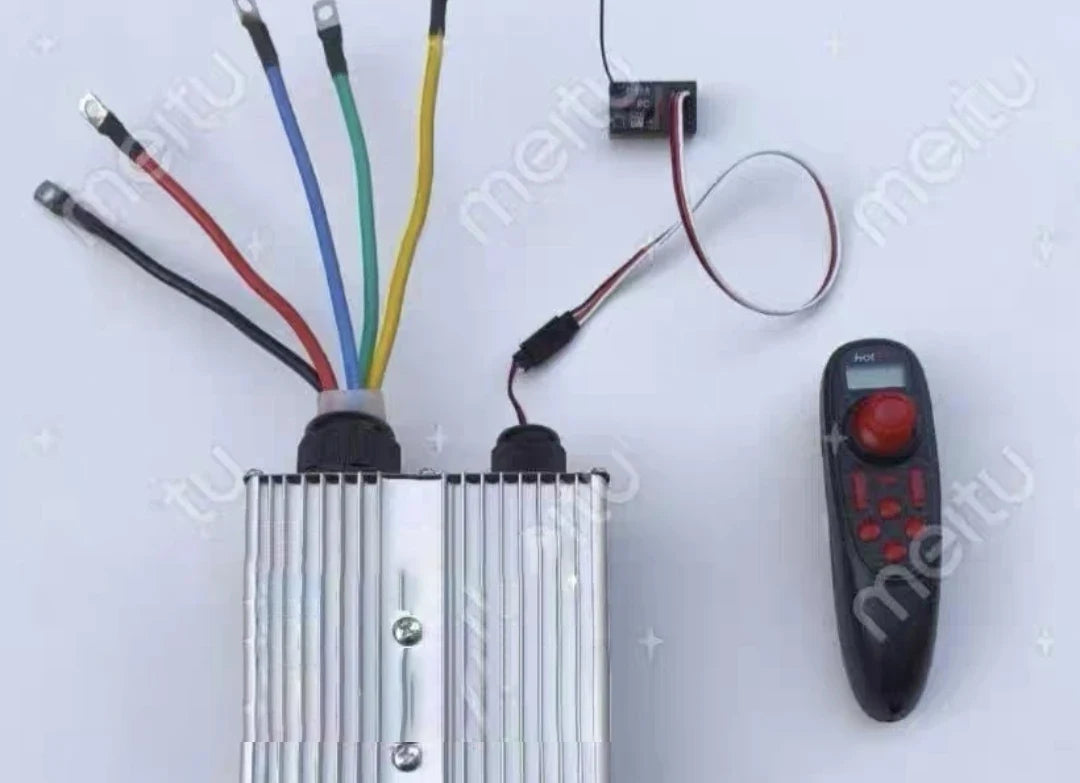

12V-24V 50A RC——no Hall drive mode, supports direct connection control of model aircraft PWM signals without the need for a signal converter. The remote control and receiver need to be matched by yourself

Product features：

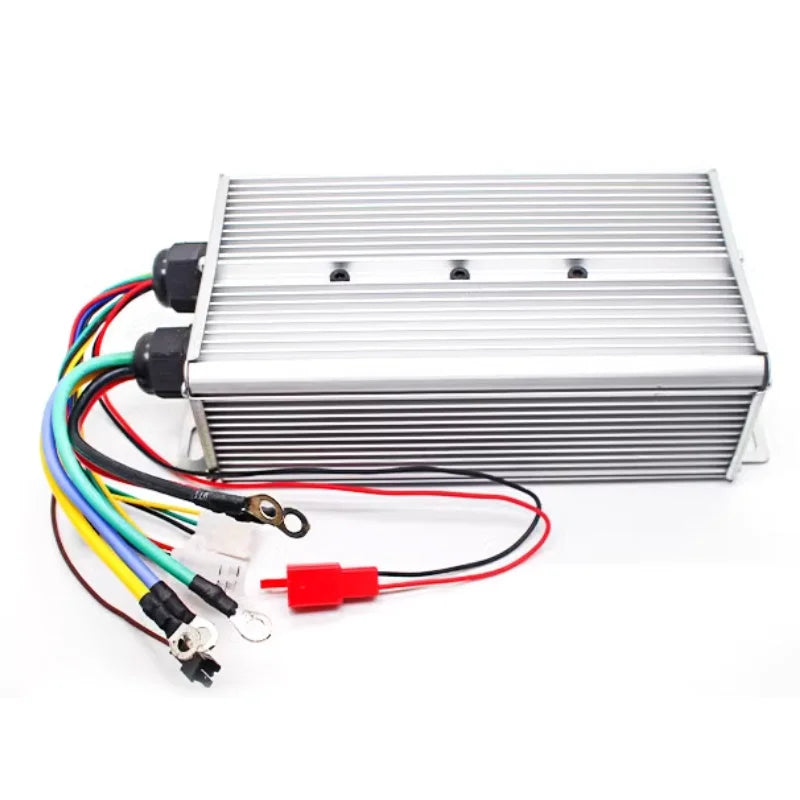

1. Made of high-strength aluminum alloy material: The controller shell is made of high-strength aluminum alloy material, which is durable

2. It has good heat dissipation characteristics: the design has an efficient heat dissipation system, which can quickly dissipate the internal heat

3. Durable cables and interfaces: The use of high-quality durable cables and interfaces to ensure a low failure rate during long-term use.

4. Multiple protection mechanisms: over-current protection, over-voltage/under-voltage protection, out-of-control protection and short-circuit protection

5. Wide range of application: flexible design, suitable for a variety of equipment and various types of DC brushless motors.

>> Performance parameter

Power :1000W

Voltage :24~36V/48~60V

Undervoltage: 20~30V/40~50V

Current :50A

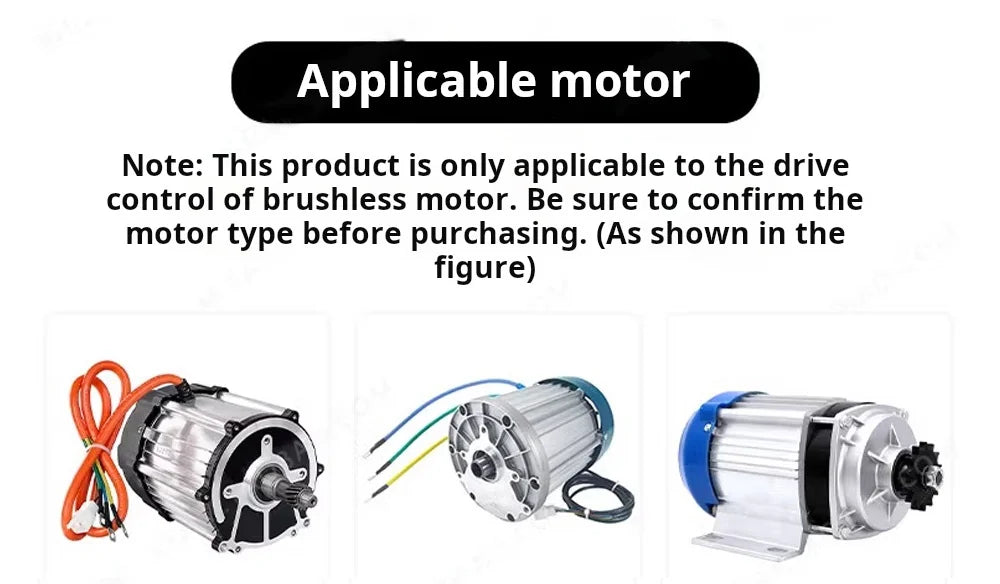

Applicable motor: brushless motor

Speed control: Yes

Reverse or not: Yes

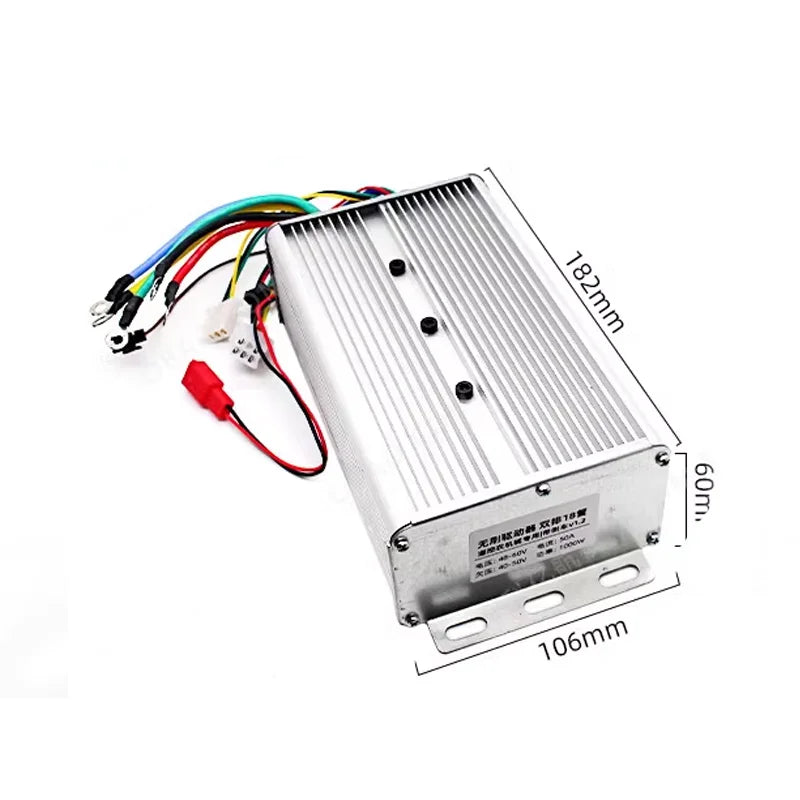

Main size :182*106*60mm

Weight: About 909g

>> Precautions for use

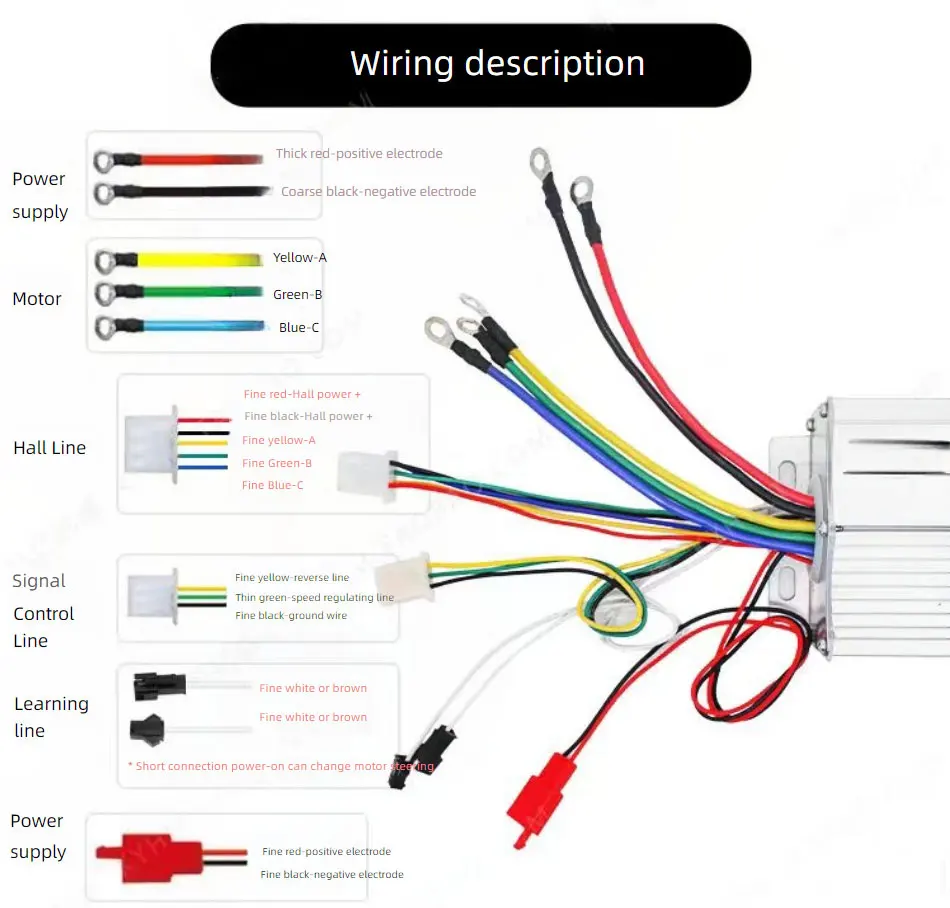

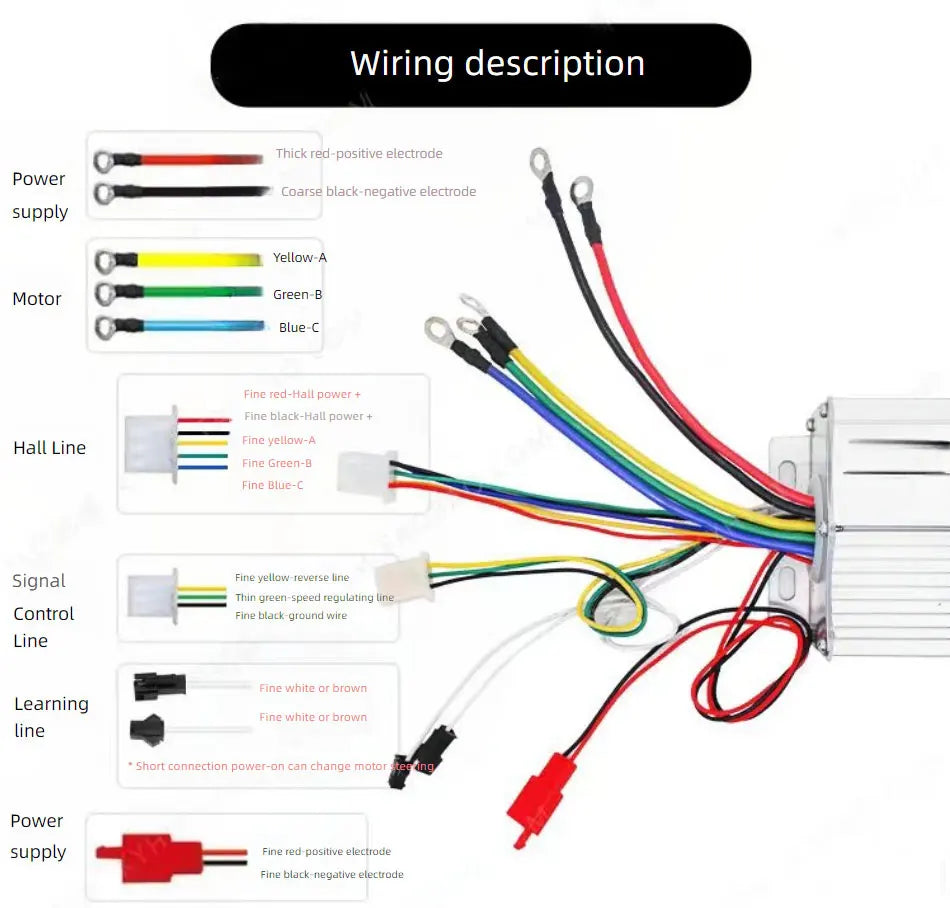

Wiring Instructions:

Self-learning line (identify phase) , be sure to put the rear wheel hanging, to prevent accidents, and then turn on the power, Insert the controller self-learning line for 5-10 seconds to observe whether the motor rotation:

1, if the motor rotation, that the controller has completed self-learning, Please unplug the learning line.

2, if the motor reverse, please unplug the learning line and re-insert, wait for the motor forward and then separate the learning line

Signal control line description - The color may change in different batches, but the function remains the same. The thin black line is the ground wire, the middle line is the speed control line, and the other line is the reverse line

Notes:

The input voltage must be divided between positive and negative, and 220V household electricity cannot be input
The input voltage should be equal to the rated voltage of the motor
If the motor does not rotate after being wired and powered on, Please switch the three-phase wire sequence of the motor and try again.
If reverse rotation is required, it can also be achieved by changing the motor phase sequence
This governor is not suitable for high-speed DC brushless motors. It is recommended to use motors within 6000 rpm.
