SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: TQFP

Supply Voltage: DC 3.3V/5V

Type: Module

is_customized: Yes

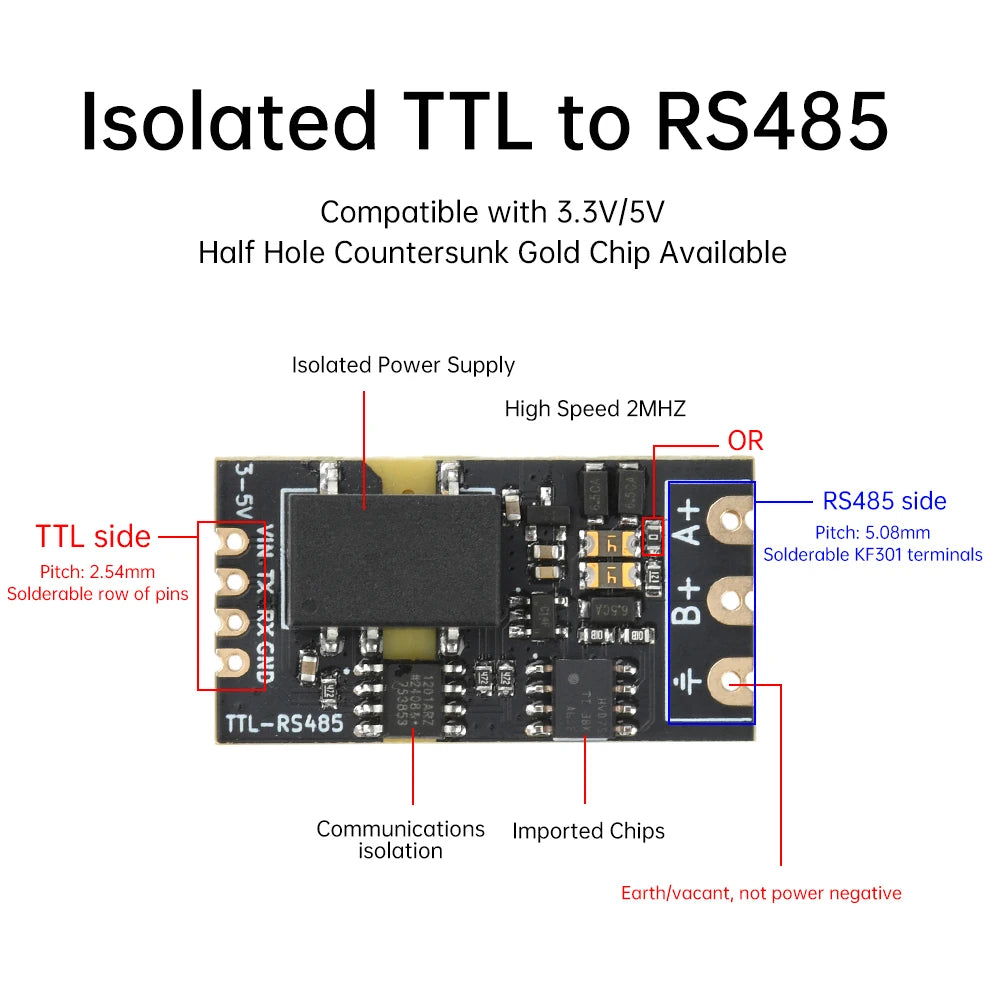

Features:
1.Completely isolated design: Adopt completely isolated TTL to RS485 level conversion module, effectively prevent signal interference and improve communication stability.
2.Compatible with 3.3/5V power supply and communication: TTL terminal supports 3.3V/5V power supply and communication level, adapting to the needs of a variety of devices.
3. High-speed communication: the maximum communication rate can reach 2Mbps, to meet the needs of high-bandwidth application scenarios.
4. Multiple protection measures: On-board TVS tubes and insurance devices provide over-voltage and surge protection to ensure safe and reliable operation of the module.
5. Half-hole immersed gold pads: Half-hole immersed gold pads are designed to facilitate the user's placement operation and enhance assembly efficiency and flexibility.

Parameter:
Supply voltage: DC 3.3/5V compatible
Communication rate: 2Mbps
On-board balancing resistor: 120Ω
TTL Pitch: 2.54mm Solderable Pin Header
RS485 Pitch: 5.08mm Solderable KF301 Terminal

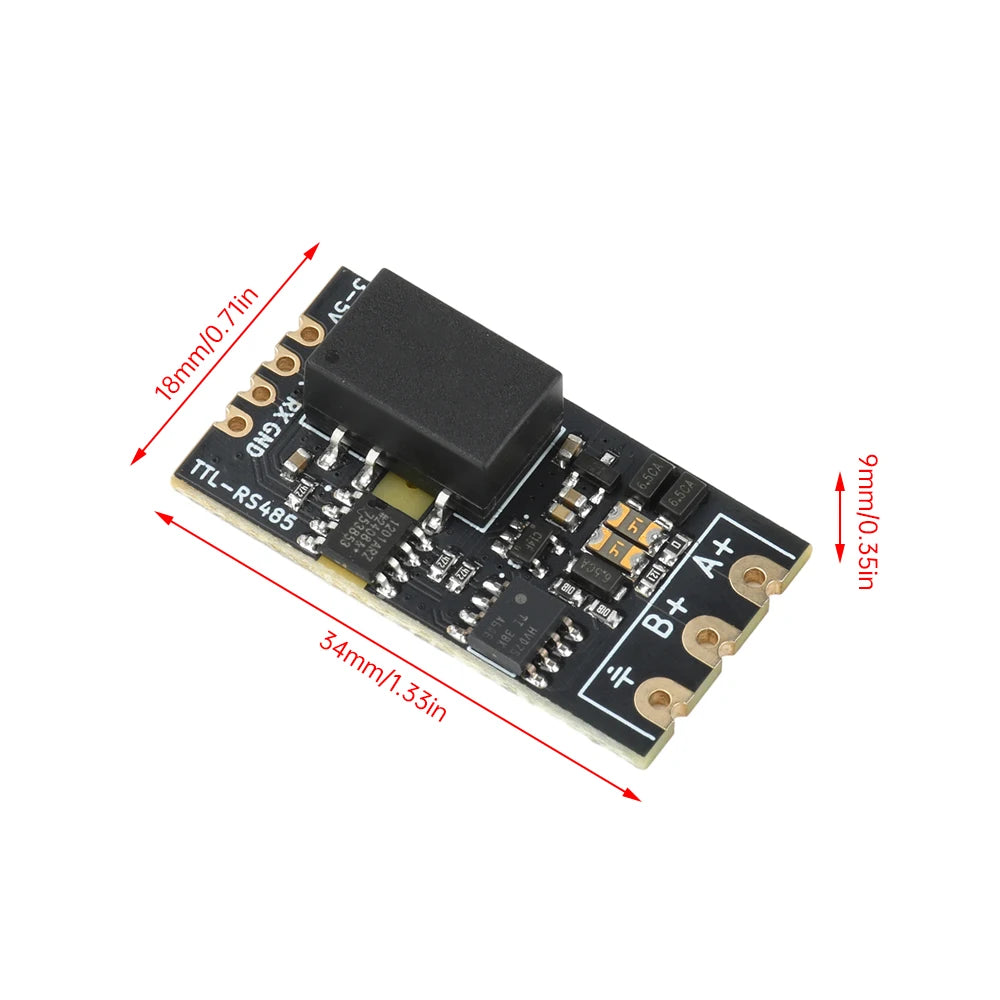

Product size: 34*18*9mm

Package include:
Module*1
