SPECIFICATIONS

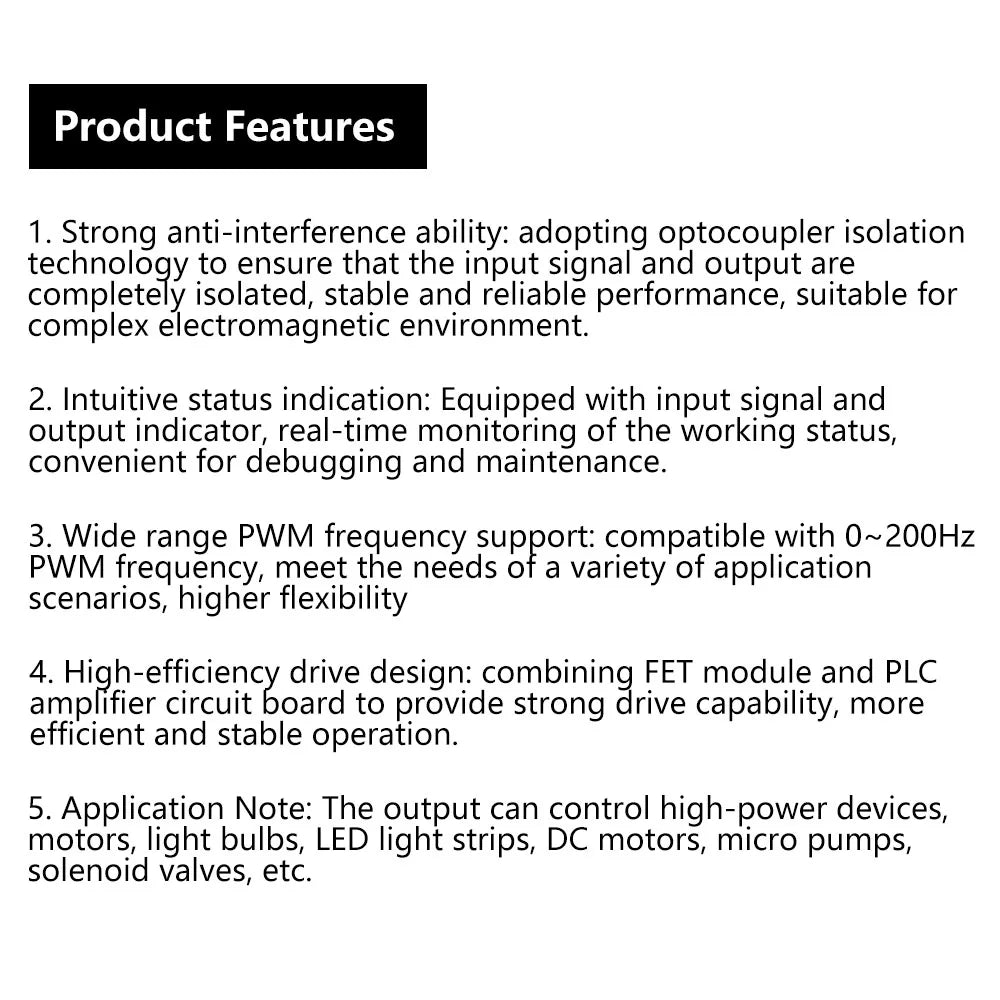

Features:
1. Strong anti-interference ability: adopting opto-coupler isolation technology to ensure complete isolation of input signals and outputs, stable and reliable performance, suitable for complex electromagnetic environments.
2. Intuitive status indication: Equipped with input signal and output indicator, real-time monitoring of the working status, convenient for debugging and maintenance.
3. Wide range PWM frequency support: compatible with 0~200Hz PWM frequency, meet the needs of a variety of application scenarios, higher flexibility.
4. High-efficiency drive design: Combined with FET module and PLC amplifier circuit board, it provides strong drive capability, more efficient and stable operation.
5. Application Note: The output can control high-power devices, motors, light bulbs, LED light strips, DC motors, micro pumps, solenoid valves and so on.

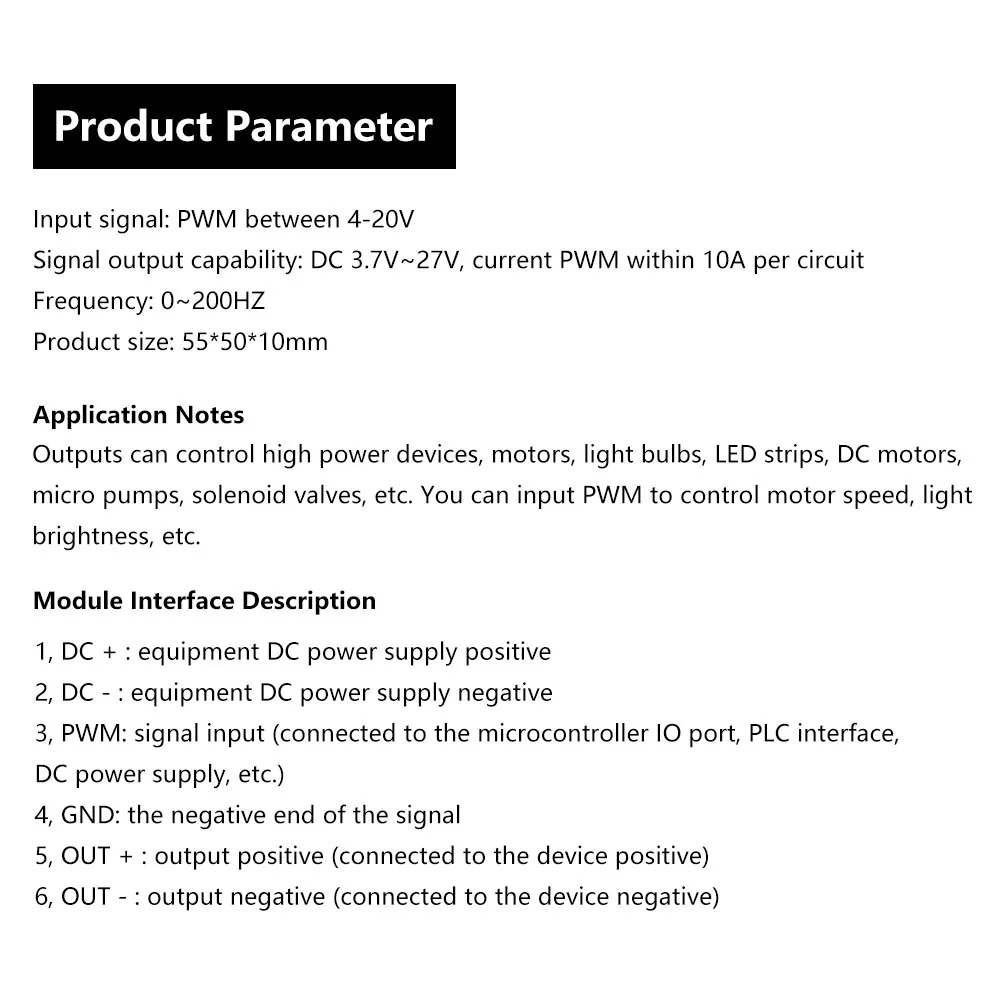

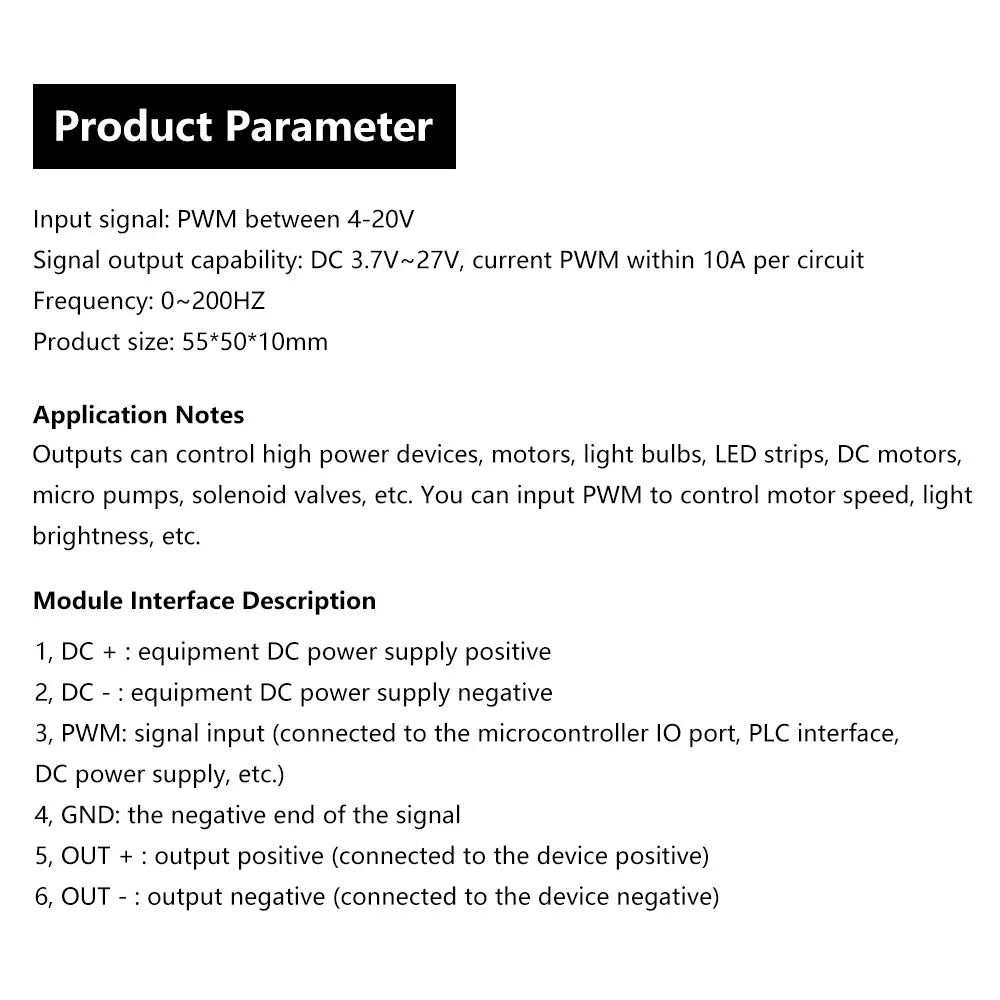

Parameter:
Input signal: PWM signal between 4-20V
Output capacity: DC 3.7V~27V, current within 10A per circuit
PWM frequency: 0~200HZ

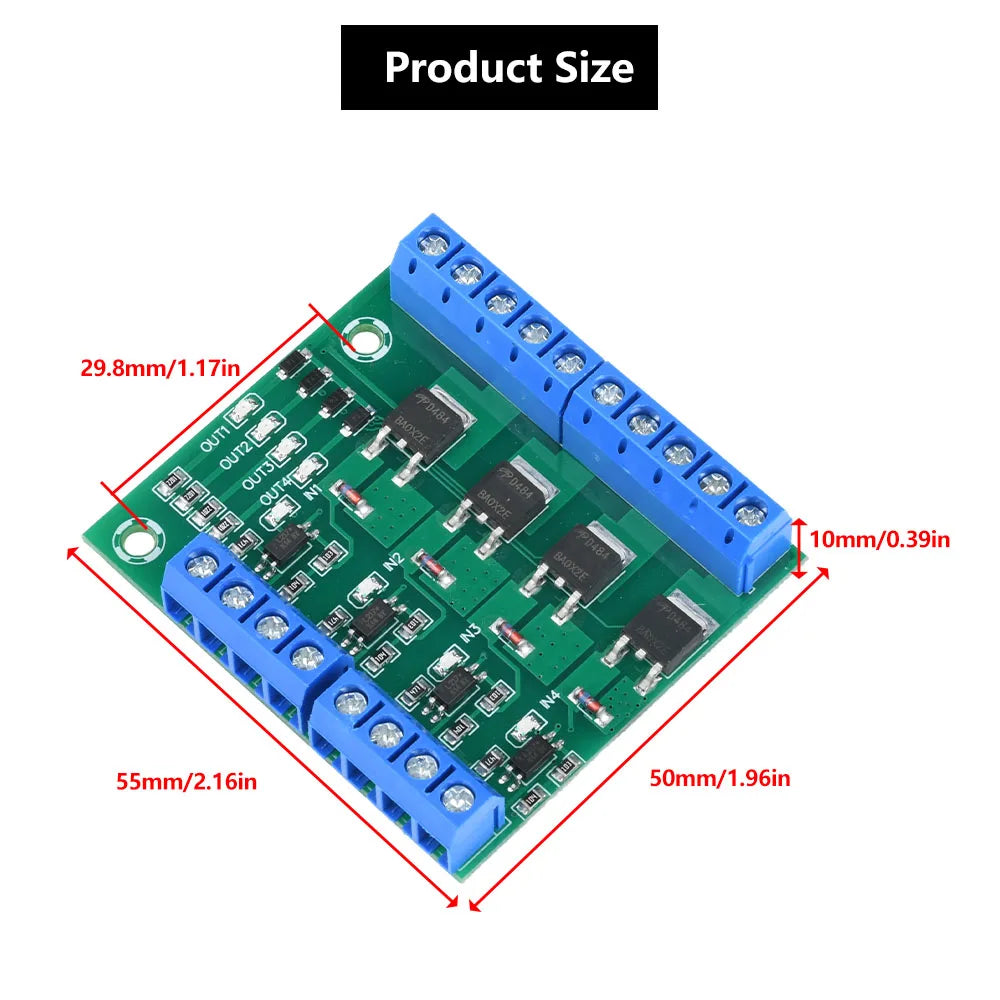

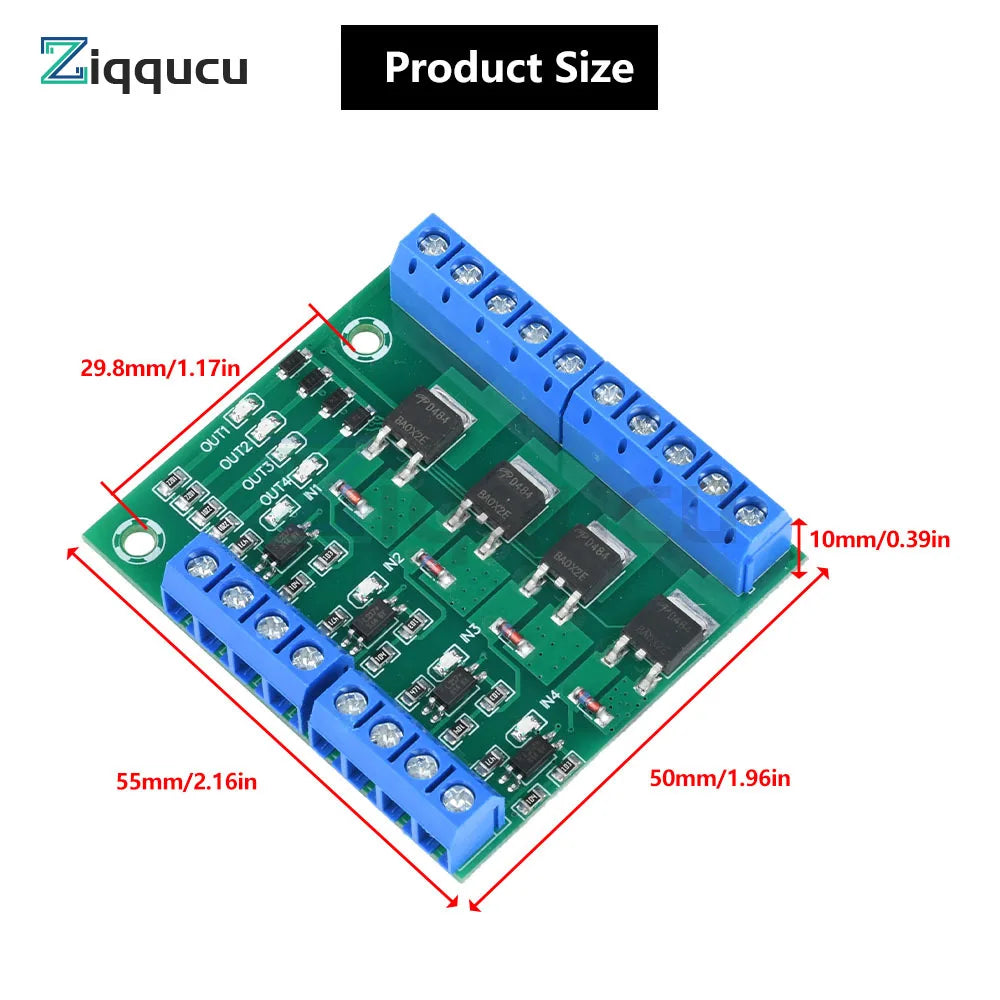

Product size: 55*50*10mm
Application note: The output can control high power devices, motors, light bulbs, LED light strips, DC motors, miniature pumps, solenoids and so on. Speed, brightness of lights, etc.

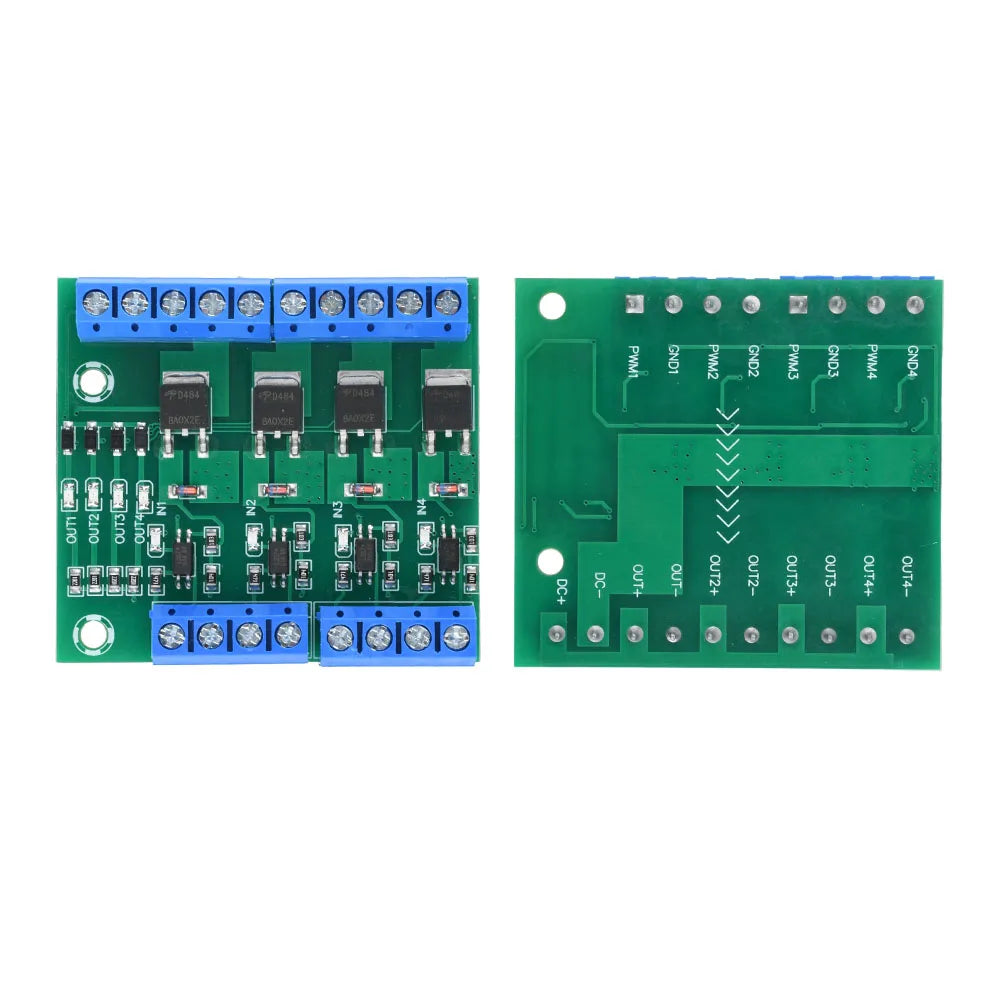

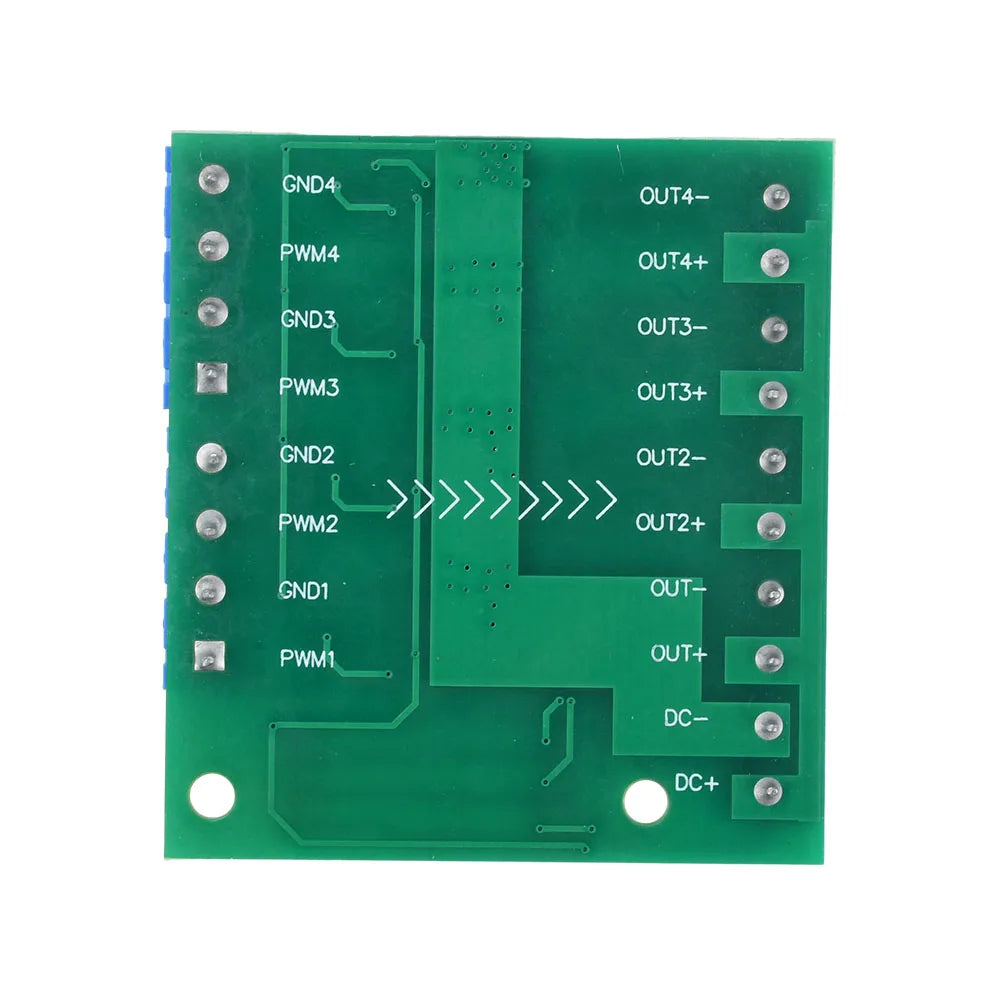

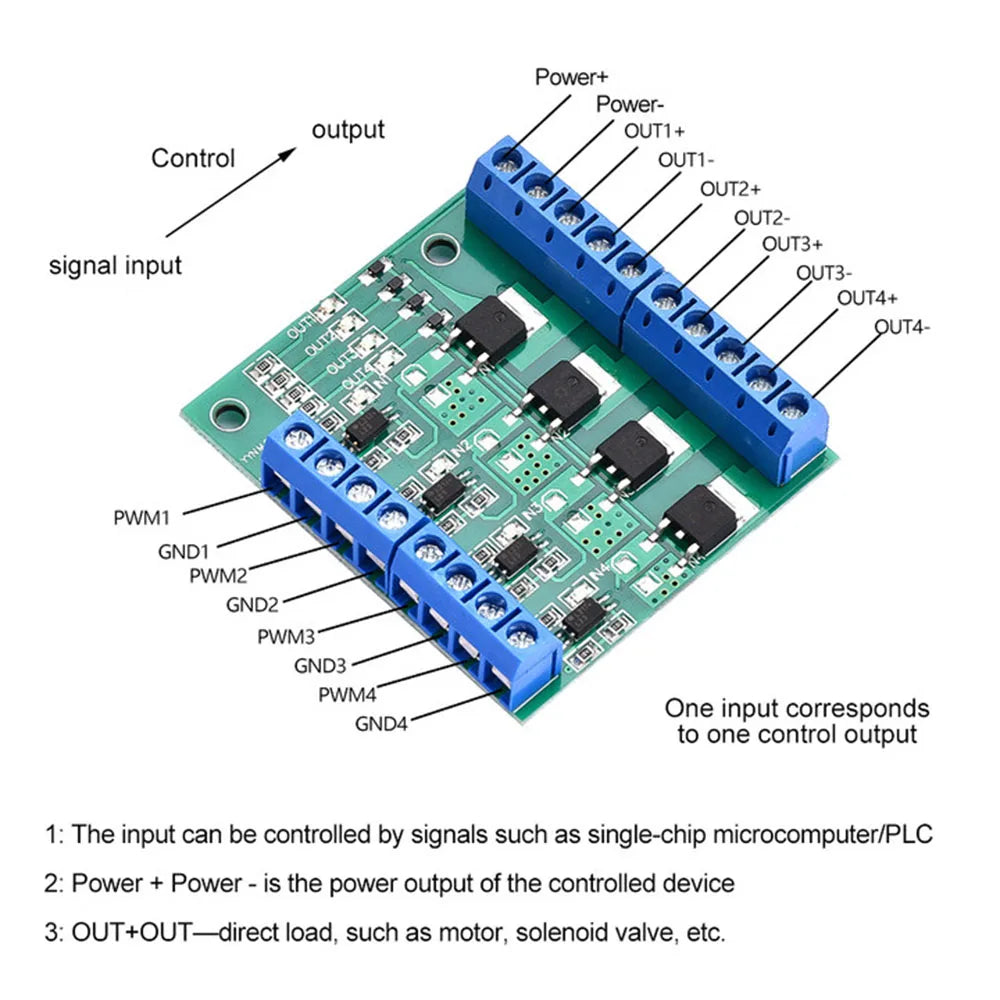

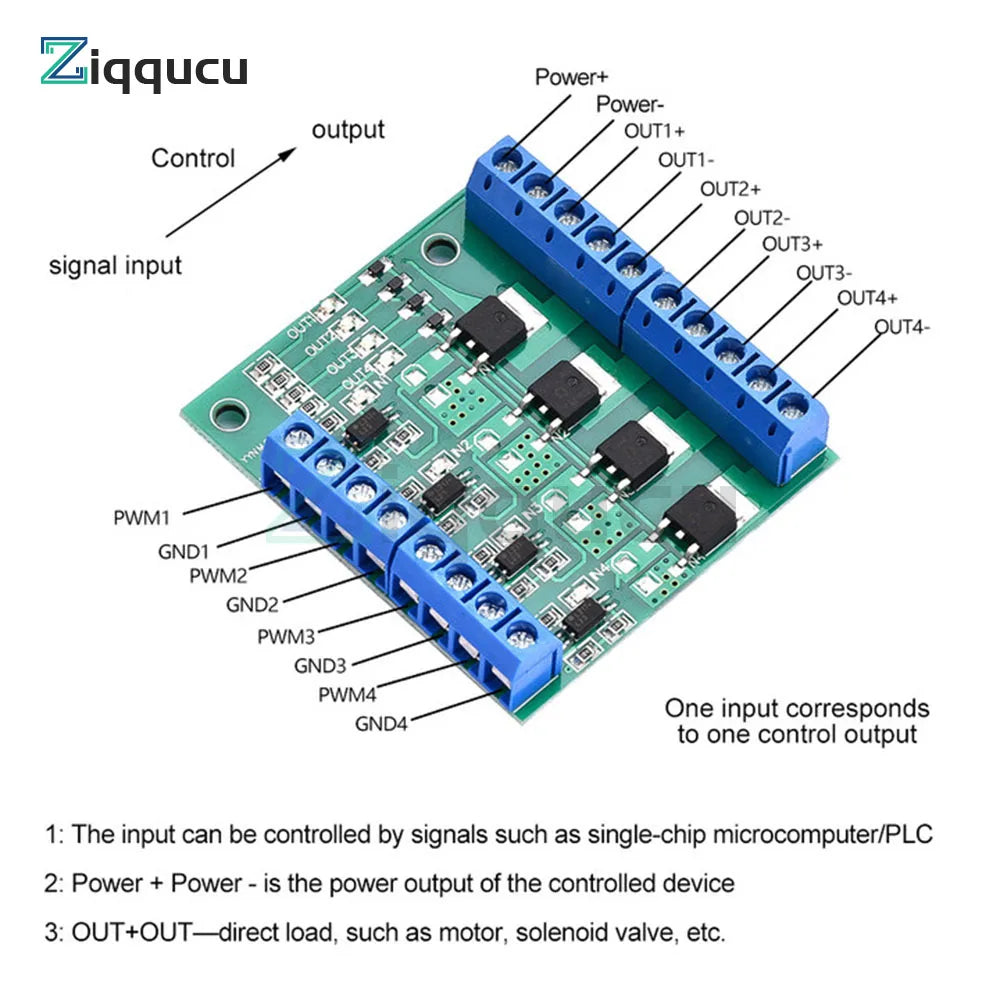

Module interface description:
1, DC +: equipment DC power supply positive
2, DC-: equipment DC power supply negative
3, PWM: signal input (connected to the microcontroller IO port, PLC interface, DC power supply, etc.)
4, GND: the negative end of the signal
5, OUT +: the positive end of the output (connected to the equipment positive)
6, OUT-: the negative output (connected to the negative end of the equipment)

Package include:
Module*1
