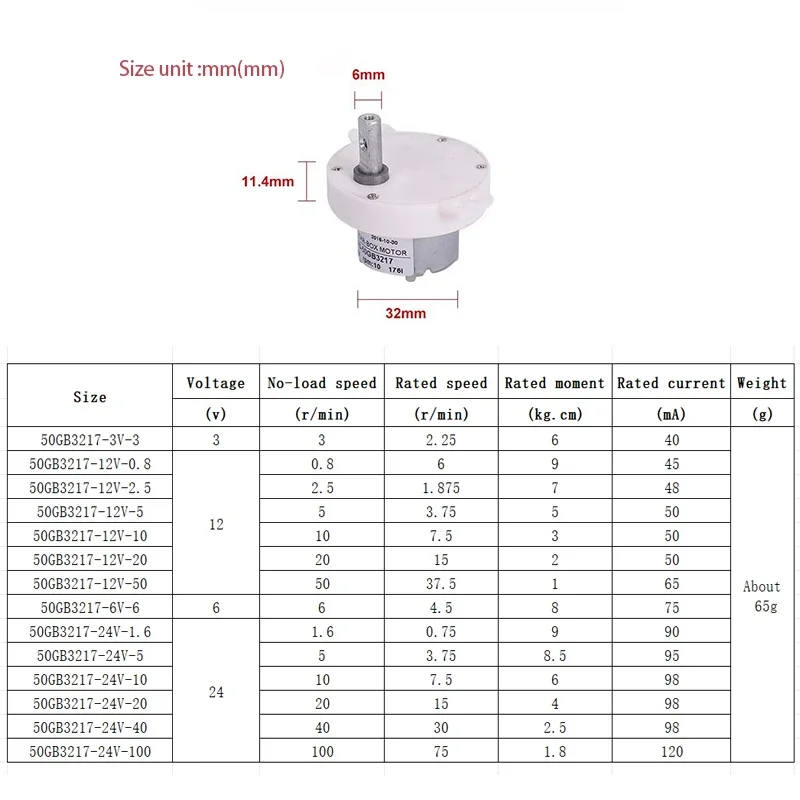

SPECIFICATIONS

Note:

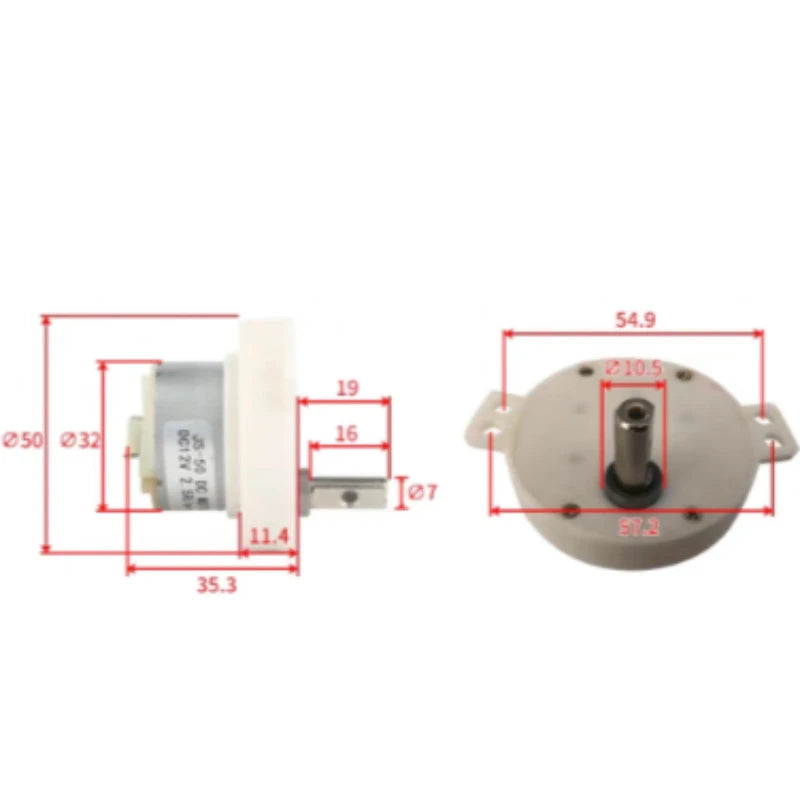

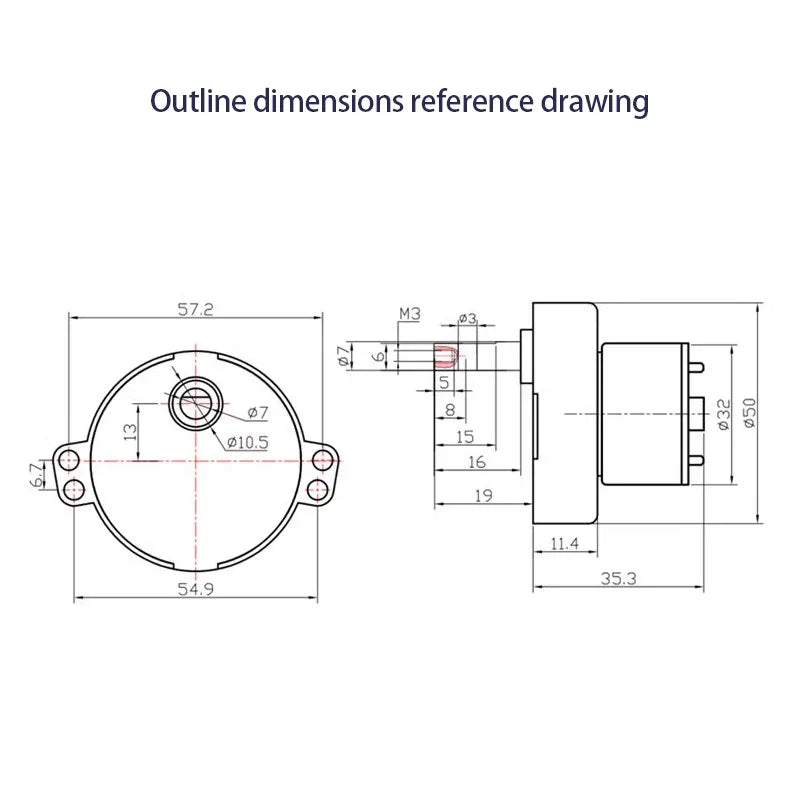

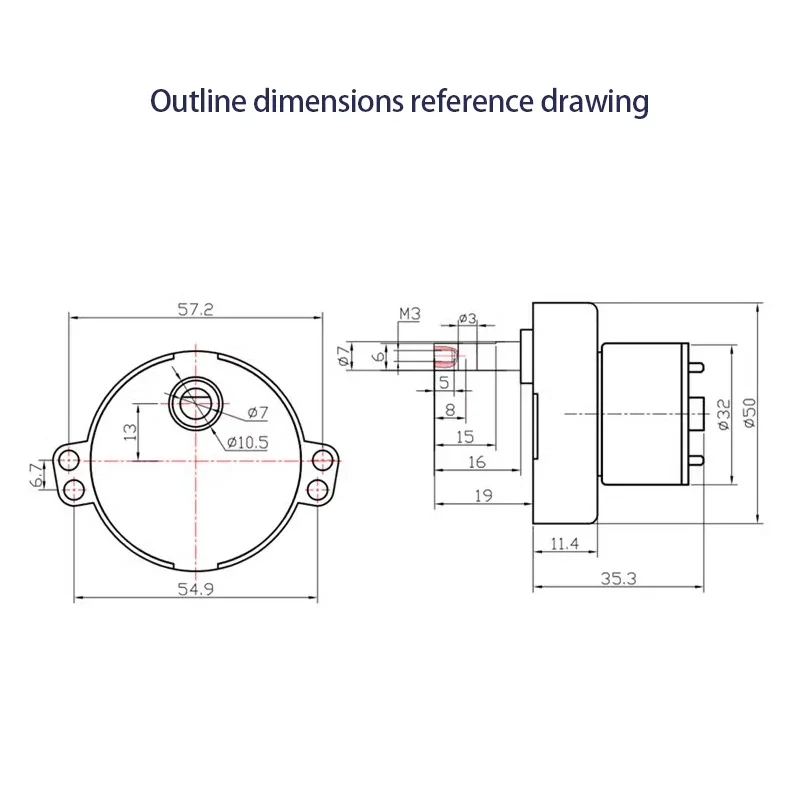

The size is just for reference, there maybe exist a measurement error, please check carefully before you buy it.
Color may vary slightly due to different calibration of each monitor.

Motor use precautions:
1, before use, confirm the motor voltage is correct, if it is a DC motor, but also confirm whether the power supply current is enough
2, can not be overloaded, the overload reason is mainly divided into two parts, torque and shaft force, load torque can not exceed the rated torque of the motor, the shaft force can not exceed the axial and radial force of the shaft, and the actual current of the motor can not exceed the rated current after the load, the general motor must be equipped with a fuse to avoid overload burning the motor
3, do not store or operate in a high temperature or humid environment, do not place corrosive gas, will reduce the motor effect
4. When assembling transmission parts such as gears and belts on the motor shaft, do not beat abnormally when pressing
5, the positive and negative motor terminals of the power supply to solder, soldering iron temperature 340 ° C to 40 ° C, heating time within 3 seconds can not make plastic deformation, in the work, let the solder point into the motor or break the end of the wire, which will make the motor function decline
6, when installing the motor, pay attention to whether the screw is too long, and prevent too long screws from touching the parts inside the motor
