SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Supply Voltage: DC 5-80V

Type: Module

is_customized: Yes

Product Selling Points:
1. It is equipped with a mature and stable ESP-12F (ESP8266MOD) module on the board, with a large-capacity 32Mbit SPI Flash.
2. All the I/O ports of the ESP-12F module and the UART program download port are led out, facilitating secondary development.
3. There is an RST reset button on the board; a Micro USB port and a DC 5-80V to 5V power supply circuit are on the board (it is recommended to supply power with DC 12V).

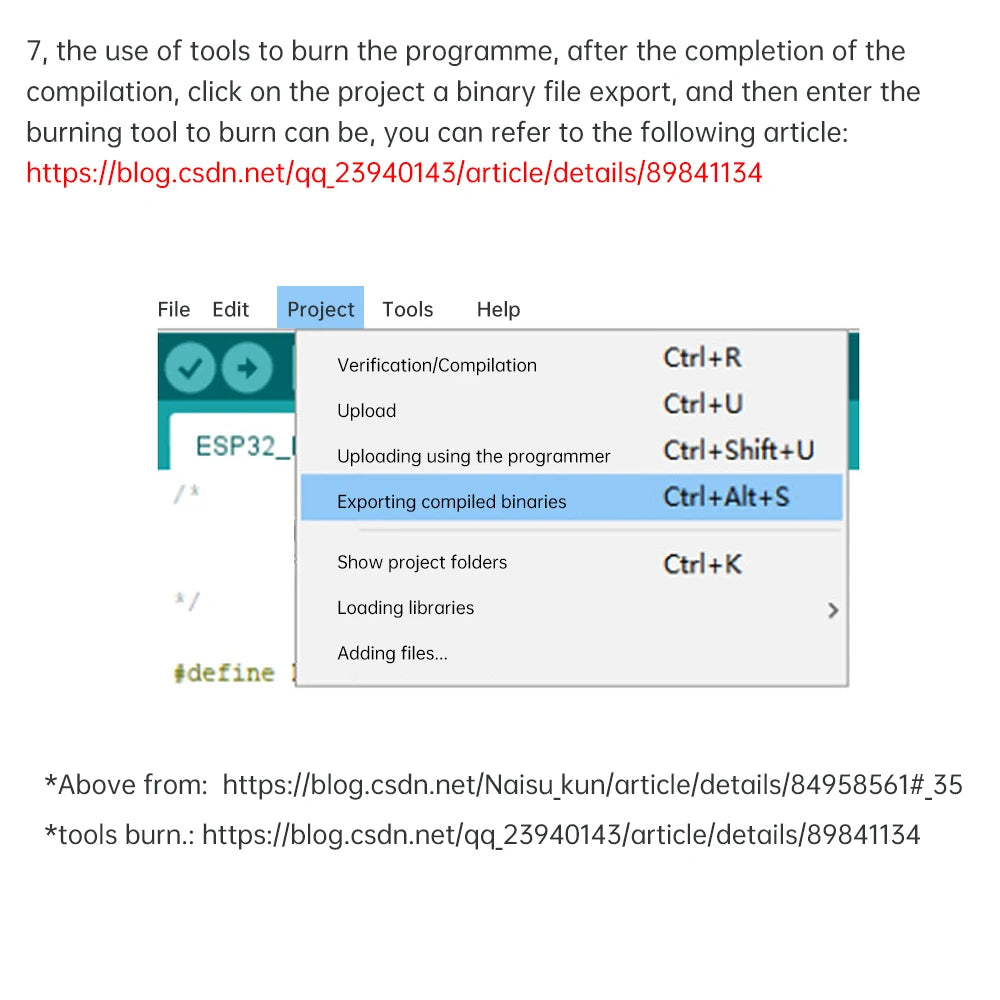

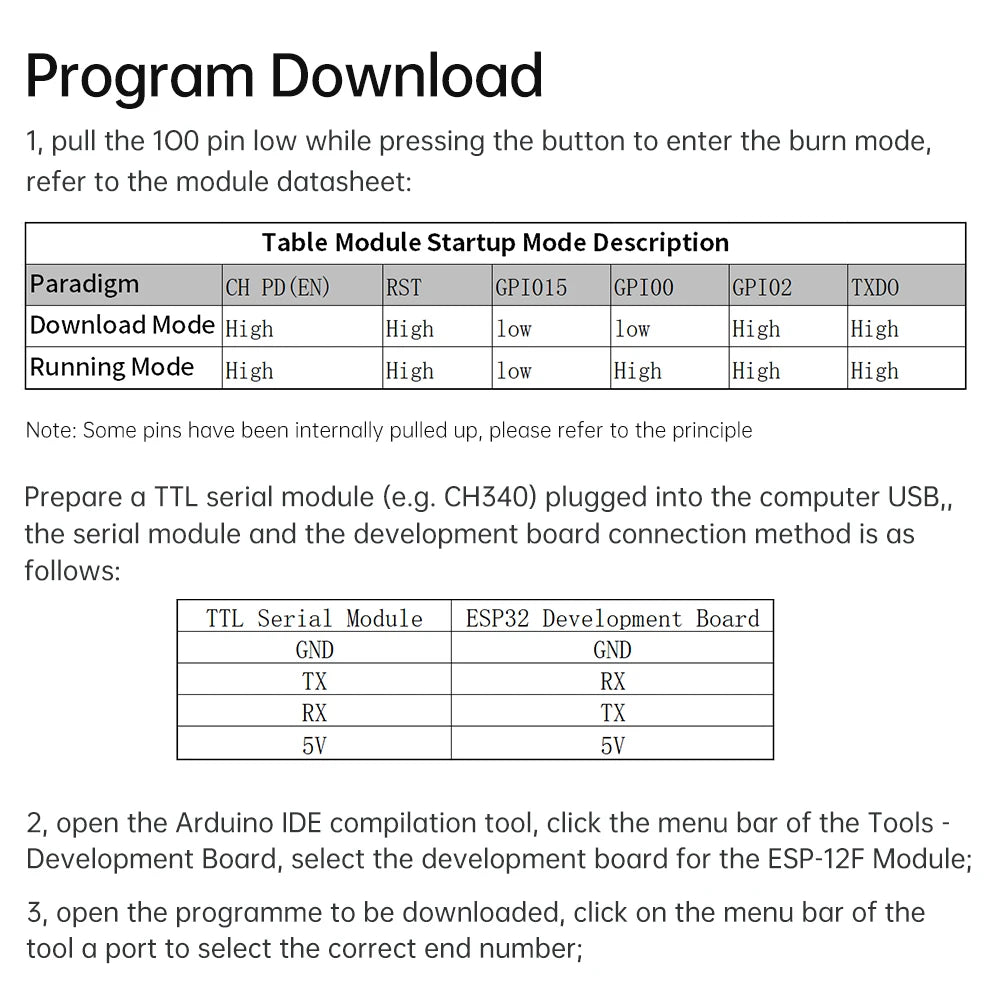

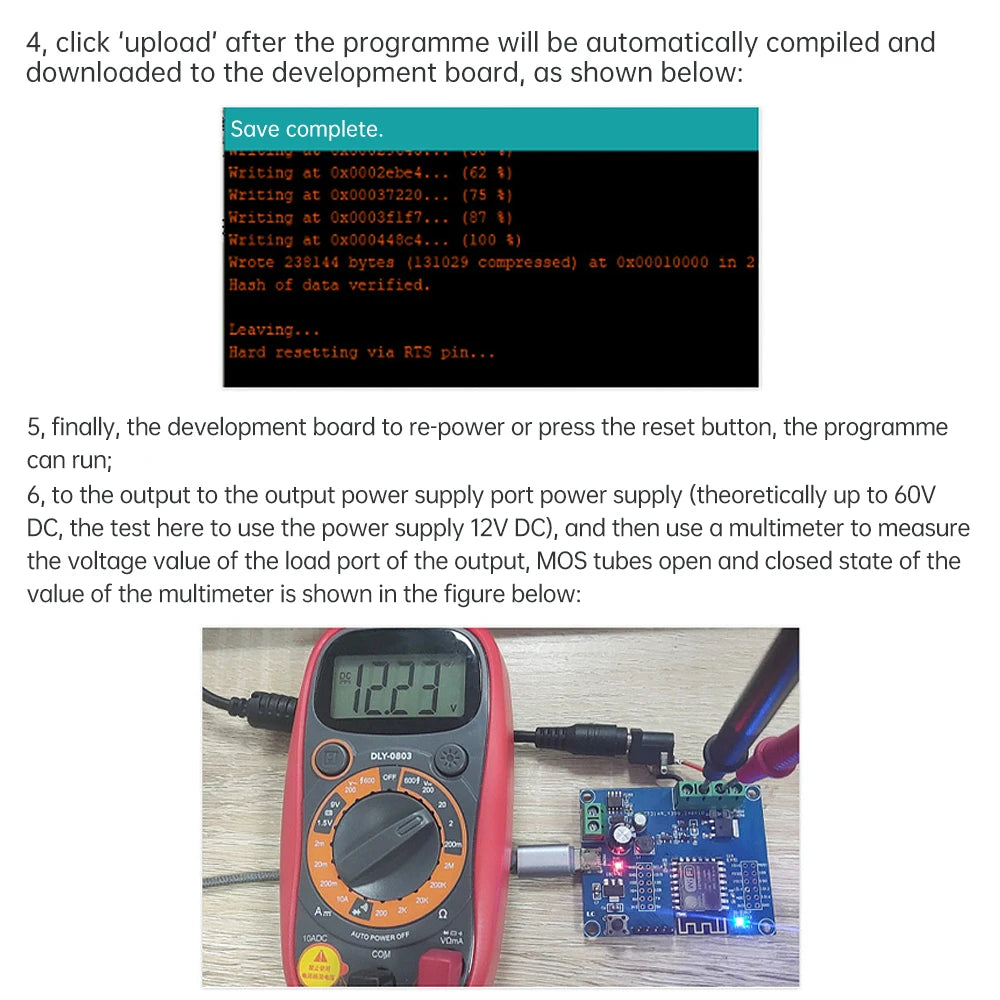

4. The ESP-12F supports the Arduino IDE compilation tool and provides reference programs in the Arduino development environment.
5. An N-channel MOS tube with a drain-source voltage of 60V is on the board, which is suitable for controlling loads with a "control working voltage" within DC60V.

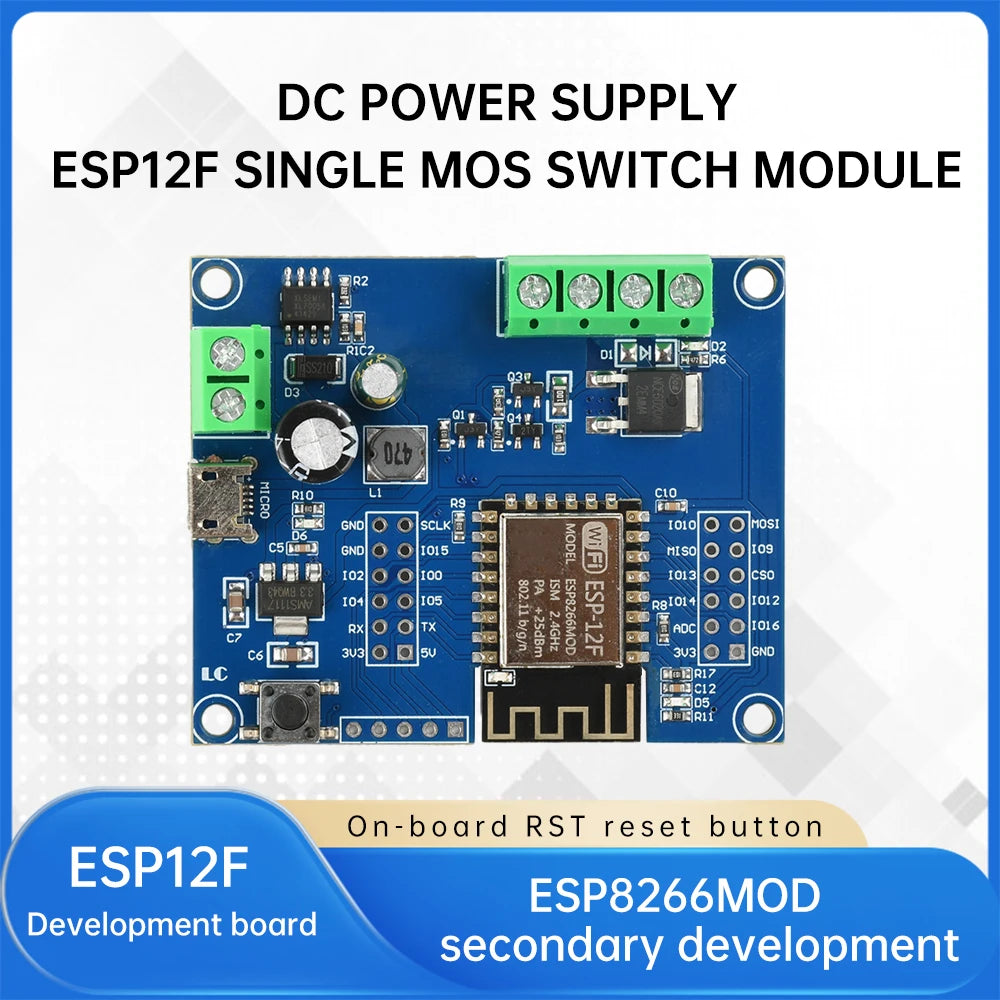

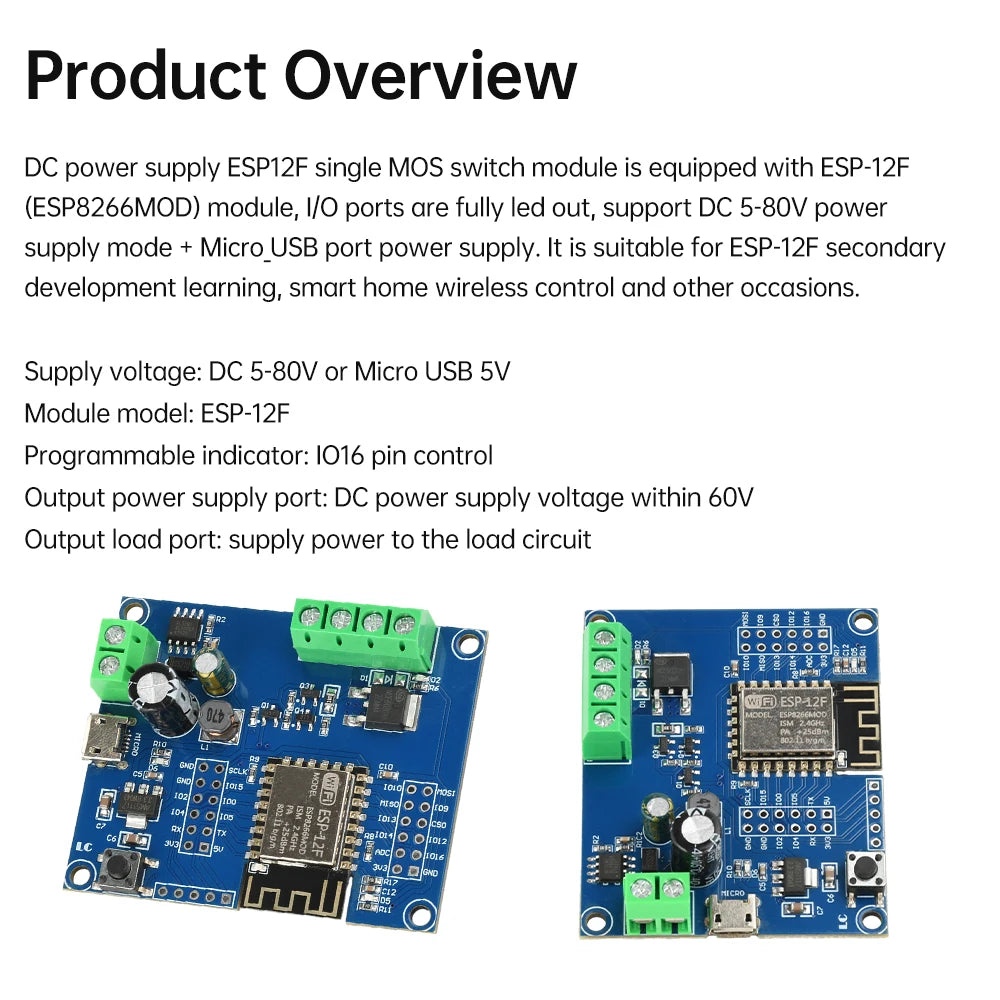

Overview:

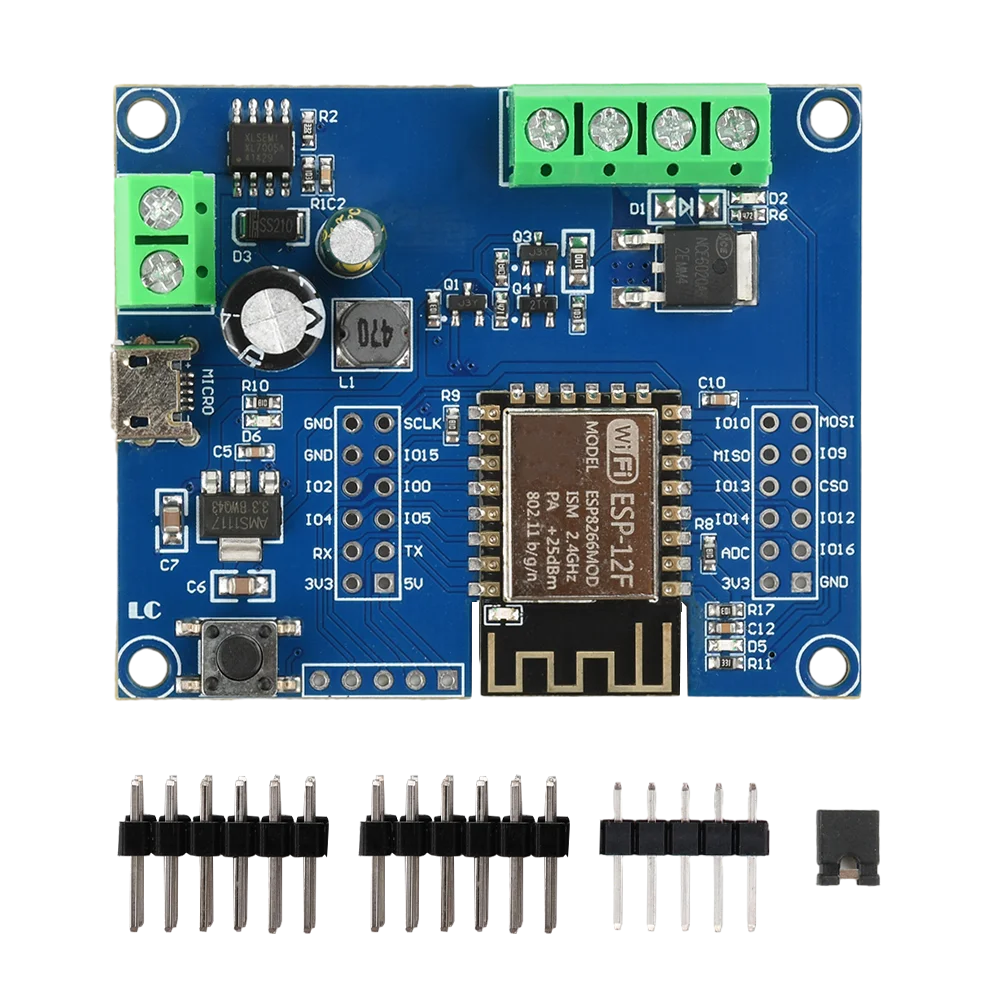

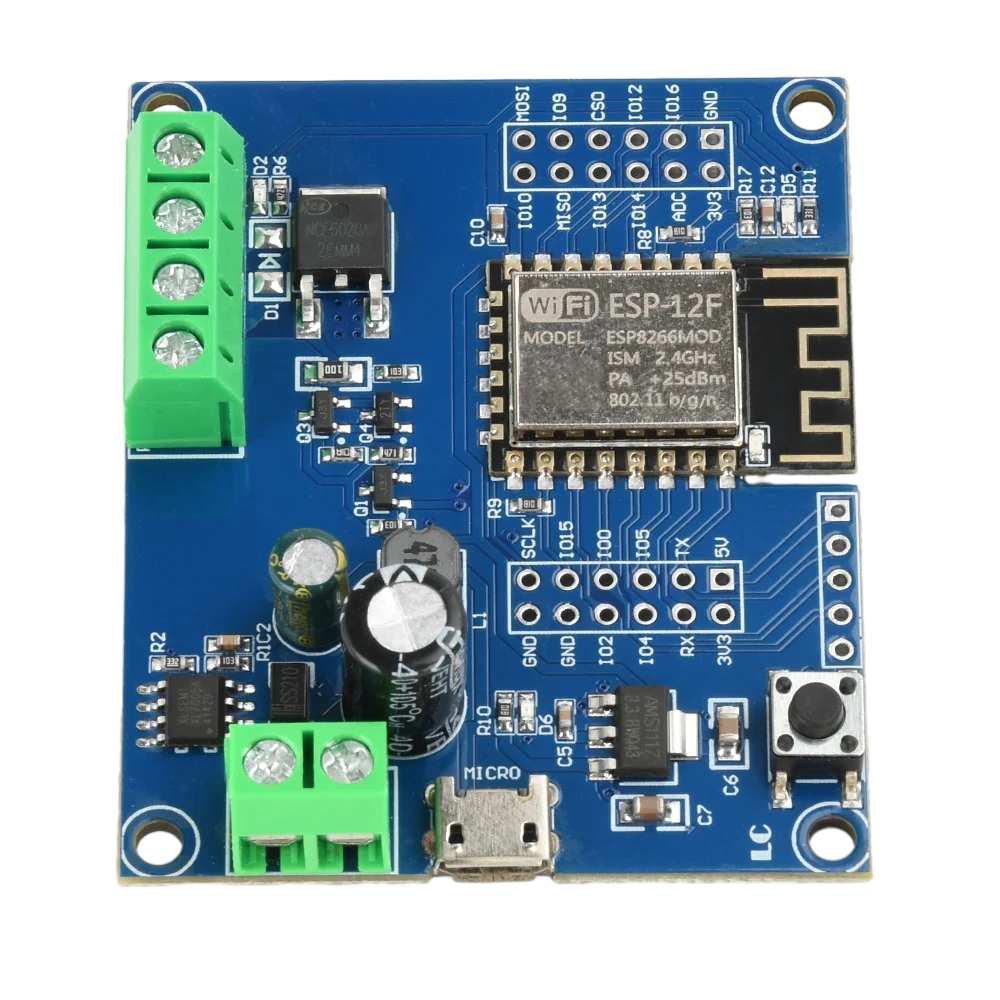

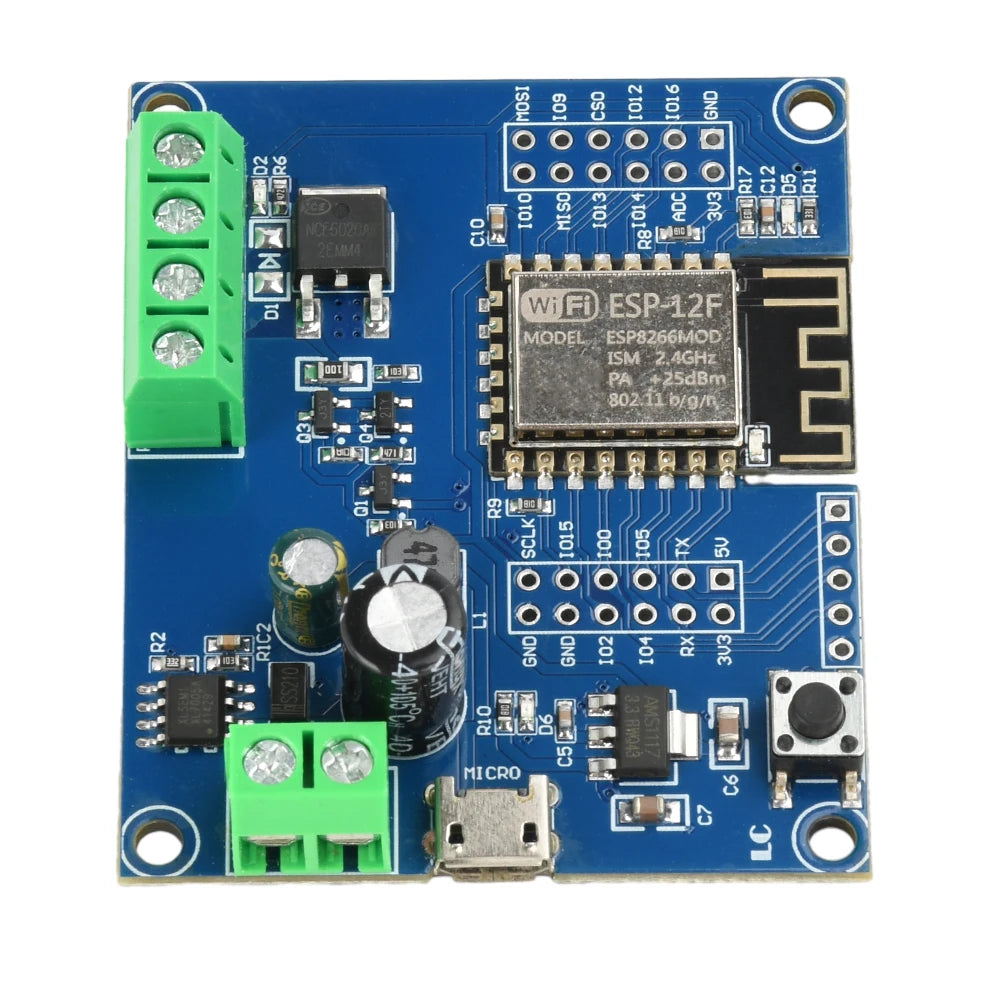

The DC-powered ESP12F single-channel MOS switch module is equipped with an ESP-12F (ESP8266MOD) module. All I/O ports are led out, and it supports the power supply methods of DC 5-80V and Micro_USB port power supply. It is suitable for secondary development and learning of ESP-12F, wireless control of smart homes and other occasions.

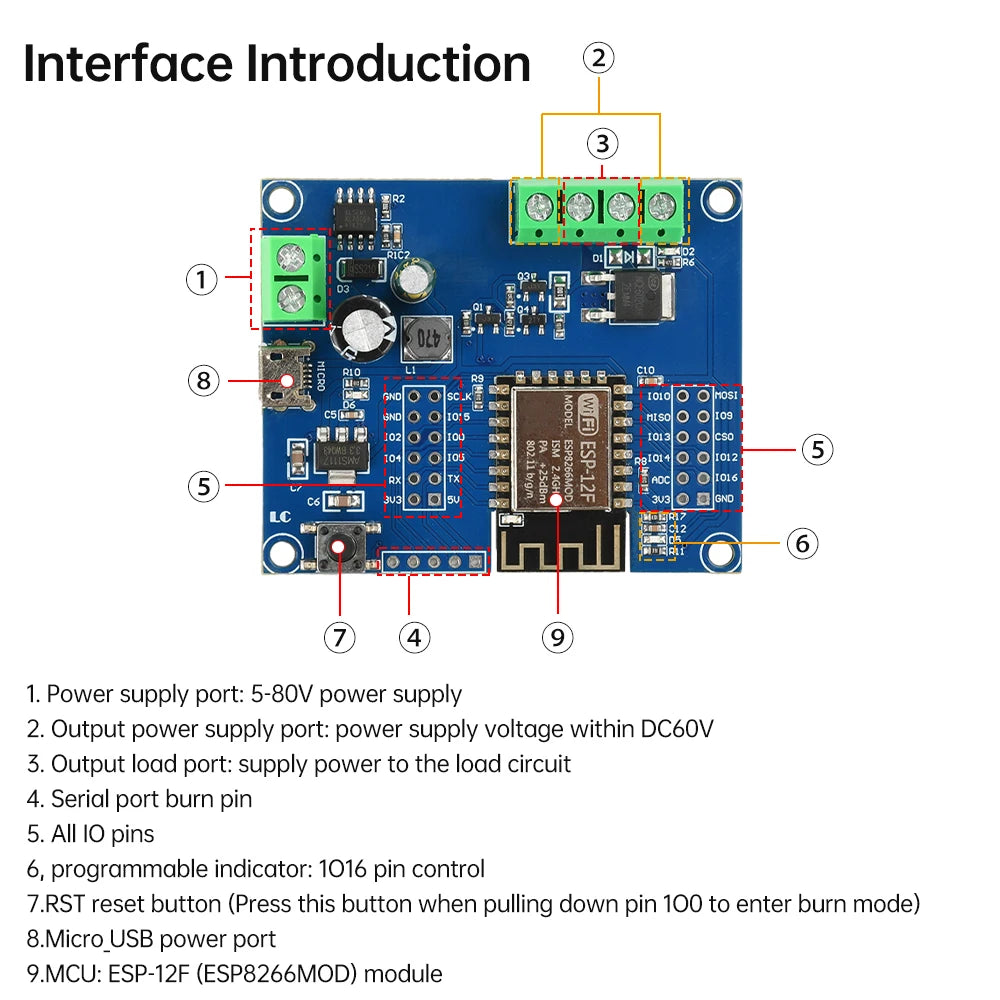

Product Parameters:
Power Supply Voltage: DC 5-80V or Micro USB 5V
Module Model: ESP-12F
Programmable Indicator Light: Controlled by the IO16 pin
Output Power Supply Port: Within DC 60V power supply voltage
Output Load Port: Supply power to the load circuit

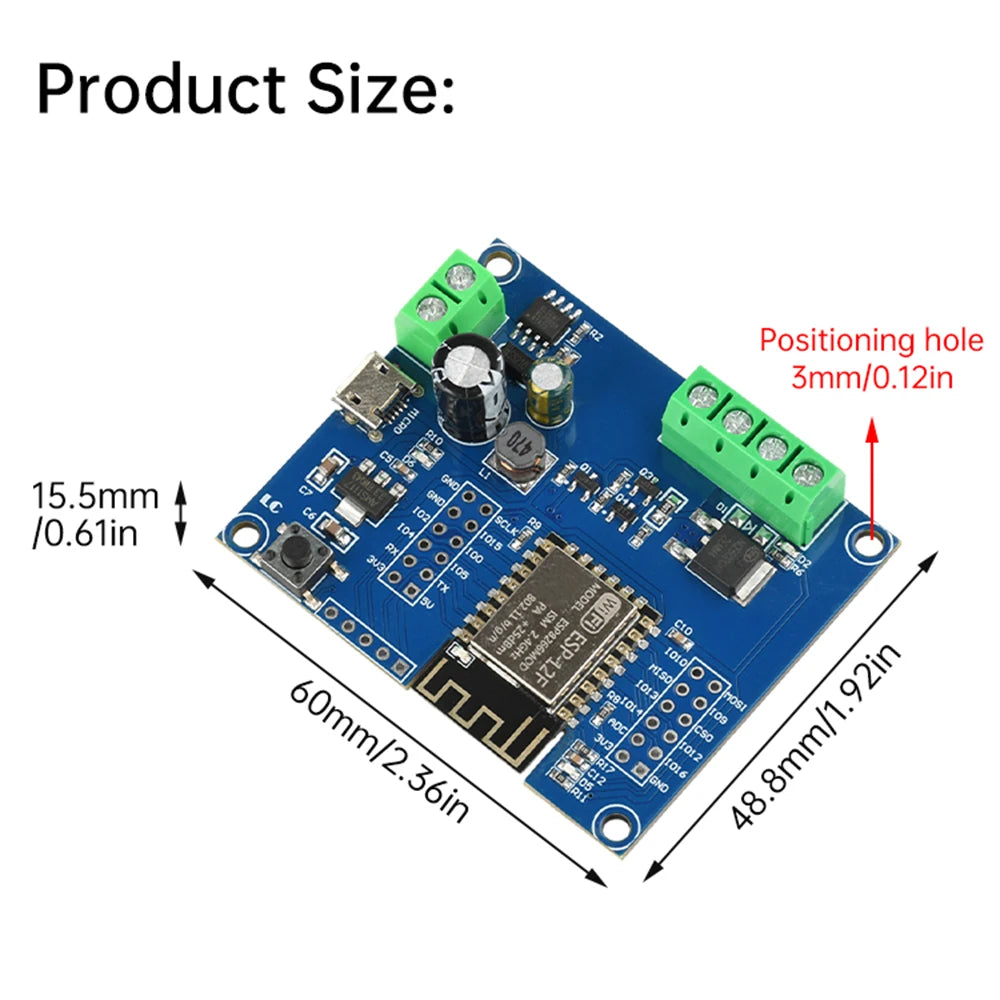

Product Size: 59*48mm (Positioning hole: 3mm)

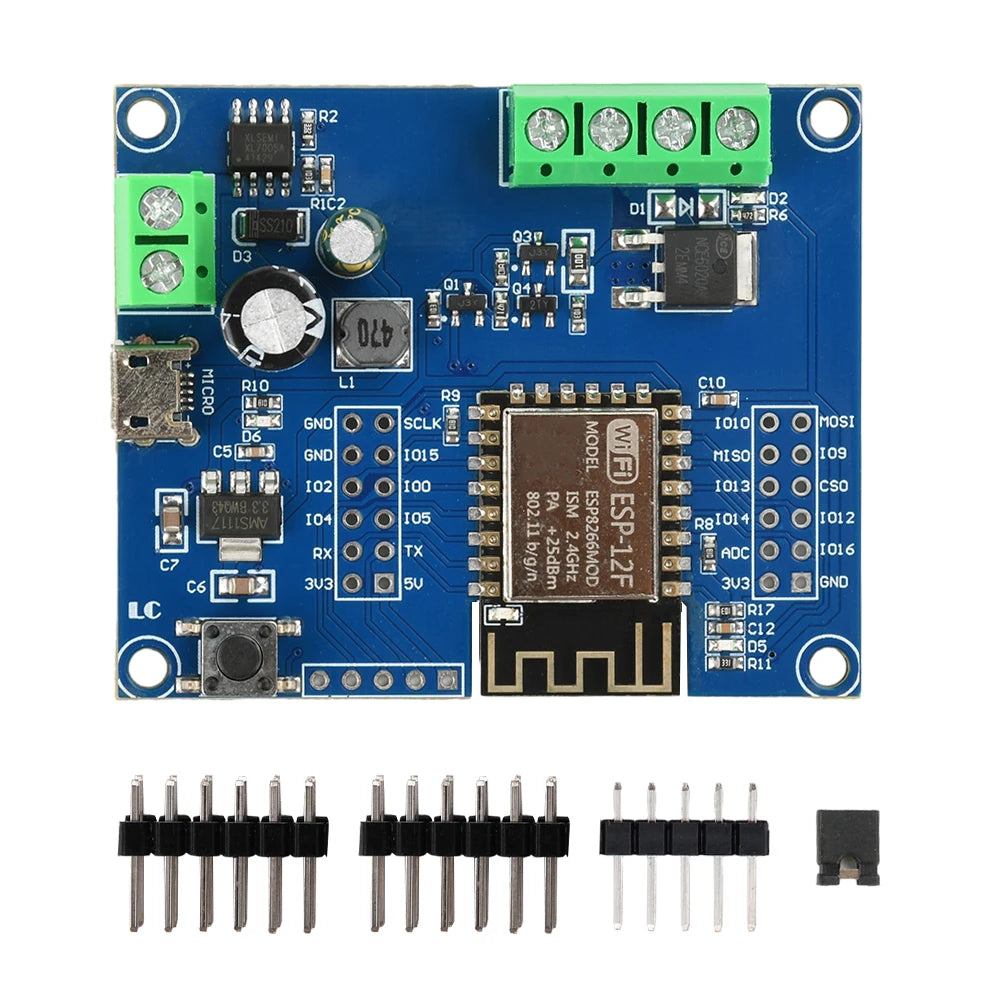

Packaging List:
1*Module
2*16P Double-row Pins
1*5P Single-row Pin
1*Short-circuit Cap
