Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature: DC 5A 3-32V 5A Solid State Relay

Feature 1: Relay

Feature 2: Solid State Relay Board

High-concerned chemical: none

Model Number: Solid State Relay

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Solid State Relay

Use: General Purpose

Voltage: 5V

is_customized: no

semi_Choice: yes

DC 5A 3-32V 5A Solid State Relay 1 Channel SSR Module High Low Level Trigger Switching Solid State Relay Board For Arduino



100% brand new and high quality
Using FR-4 double-sided circuit boards;
Using high-quality solid-state relays 5A;
The input and output are using KF128-3.81 Terminal Block, wiring more convenient;
Use SS8050 1.5A high current transistor for switching transistor, quality is more stable;
The board has four screw holes.

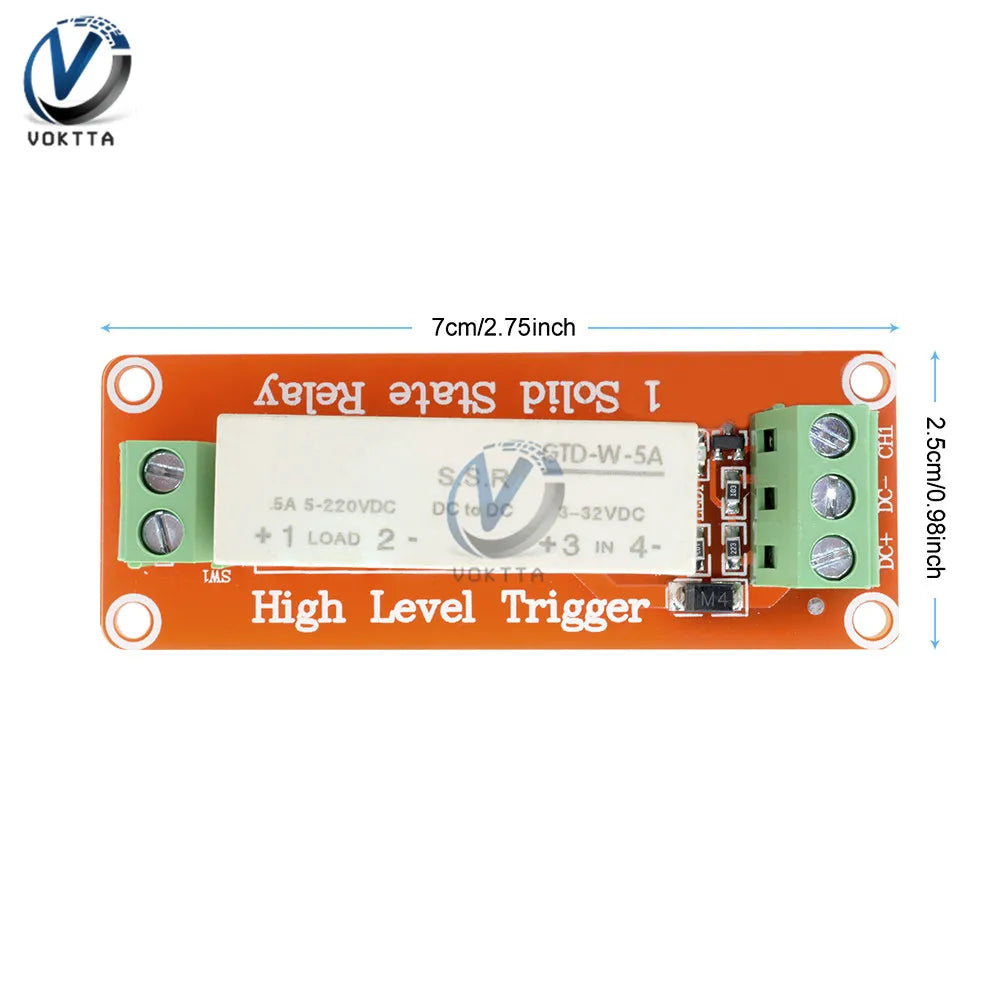

Size:(L*W*H)6.89*7.10*2.28cm/2.71"*2.80"0.90"
Quantity:1Pc


Performance parameters:
Power supply: 3-32VDC (wide voltage power supply)
Trigger: high level trigger, 3-32VDC relay switches on (ON), 0-0.5V relay is switched off (OFF) 0.5-2.5 volts unknown state
Load current: 5-220VDC 5A (DC only)

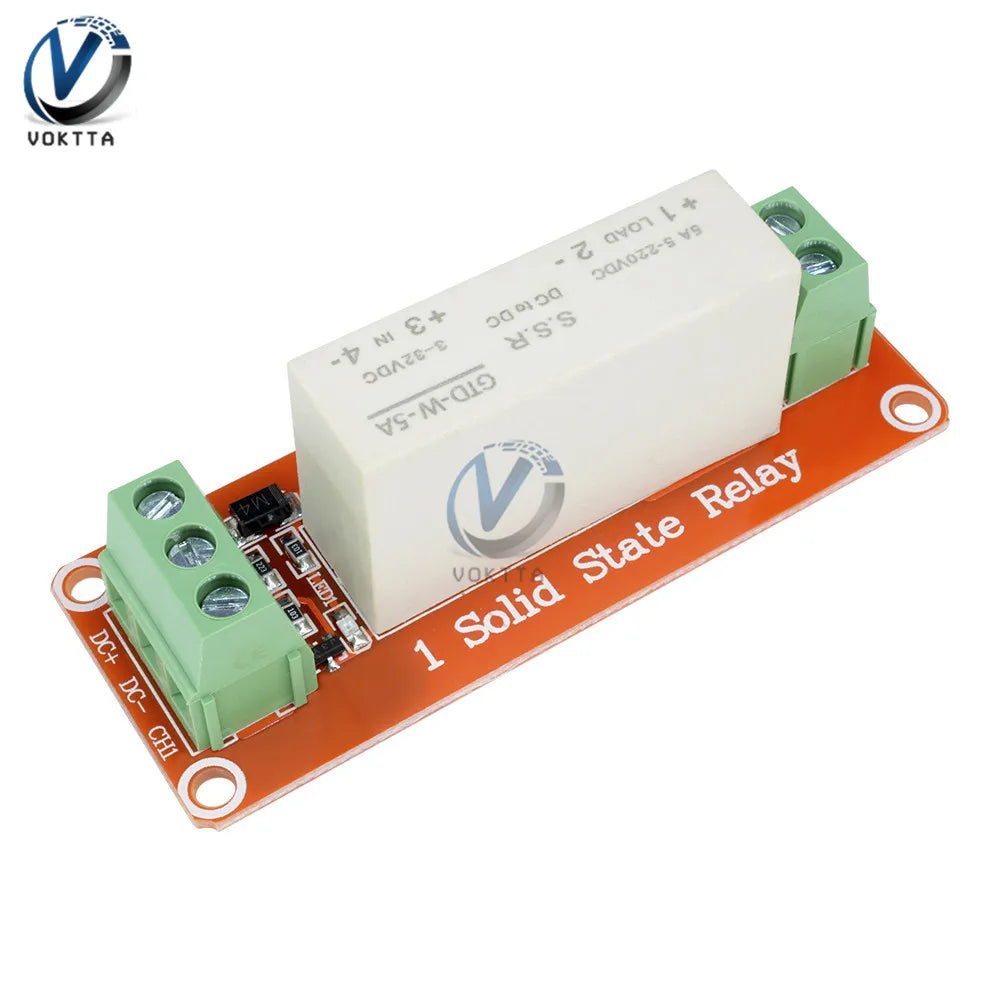

Wiring Port Description:
DC +: positive power supply (3-32VDC)
DC-: negative
CH1: trigger terminal (3-32VDC high level trigger active)
Note:
Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!


Package Included:
1 x SSR Solid State Relay
