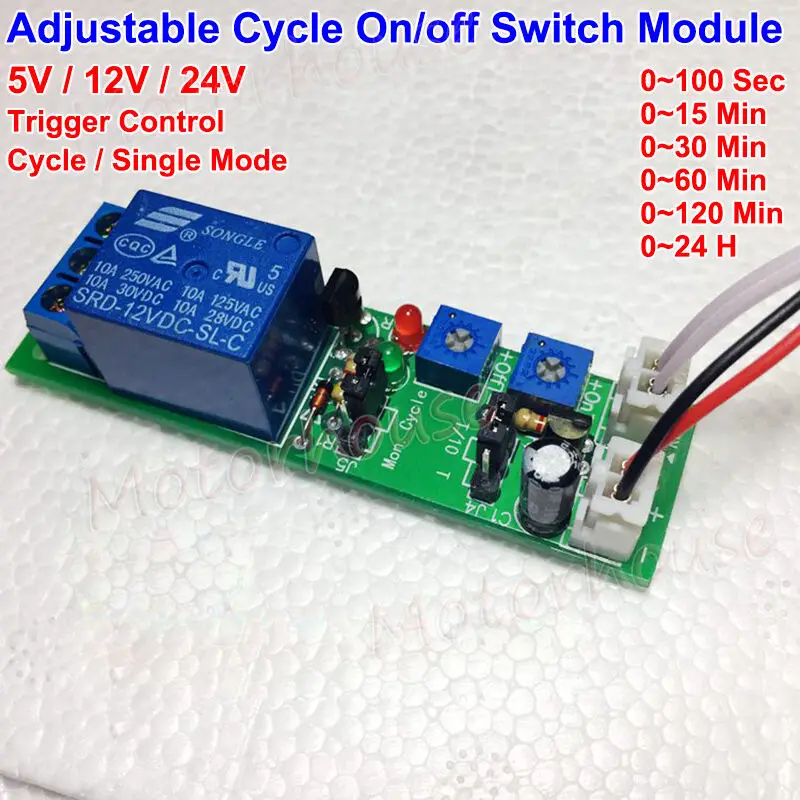

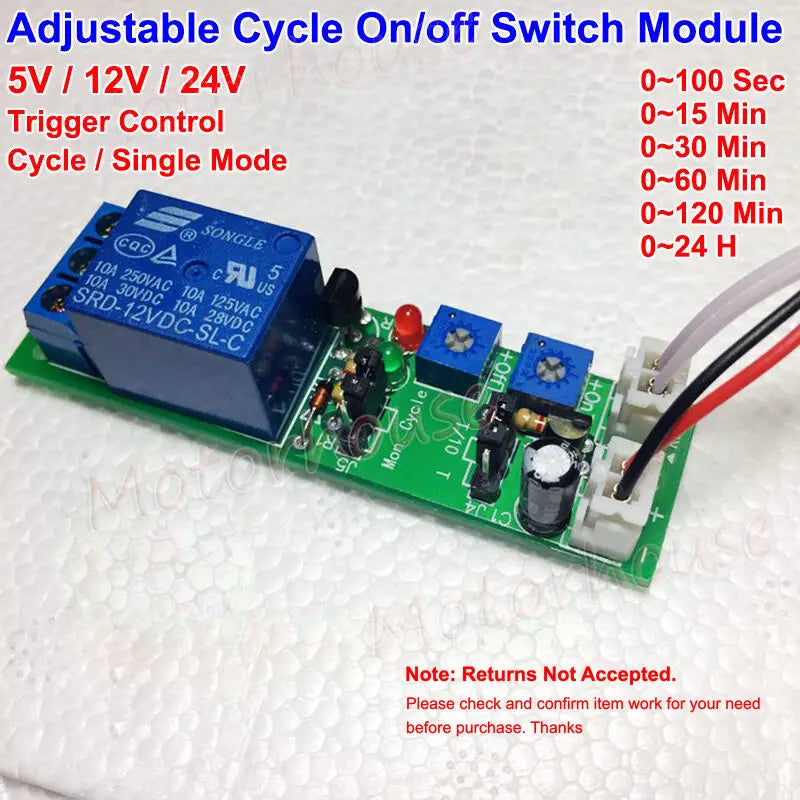

DC 5V 12V 24V 1S-24H Adjustable Delay Time Timer Relay Control Cycle turn ON OFF Switch Infinite Repeat Loop Module
DC5V 0-120Min
$22.95
Sale price
$22.95
Regular price
$0.00
Skip to product information
DC 5V 12V 24V 1S-24H Adjustable Delay Time Timer Relay Control Cycle turn ON OFF Switch Infinite Repeat Loop Module
$22.95
Sale price
$22.95
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Choice: yes
Contact Load: High Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Origin: Mainland China
Power Source: DC
Theory: Time Relay
Use: General Purpose
is_customized: Yes
semi_Choice: yes
Tips: We can provide wholesale, discount and customize serivce,
if you need large quantity, please contact us. Thanks.
if you need large quantity, please contact us. Thanks.
Features:
This module uses MCU as the main chip.
Use upgrade and high timer precision.
MCU watchdog circuit and special reset chip.
Stable and reliable work.
Input Power:DC5V / DC12V / DC24V
Load Power:AC250V 10A
Specification:
Once mode
1. The module Power-on, When triggered the relay is switched on, timer delay off.
2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.
Cycle mode
1. The module Power-on, When triggered the relay is switched on, (T1) timer delay off.

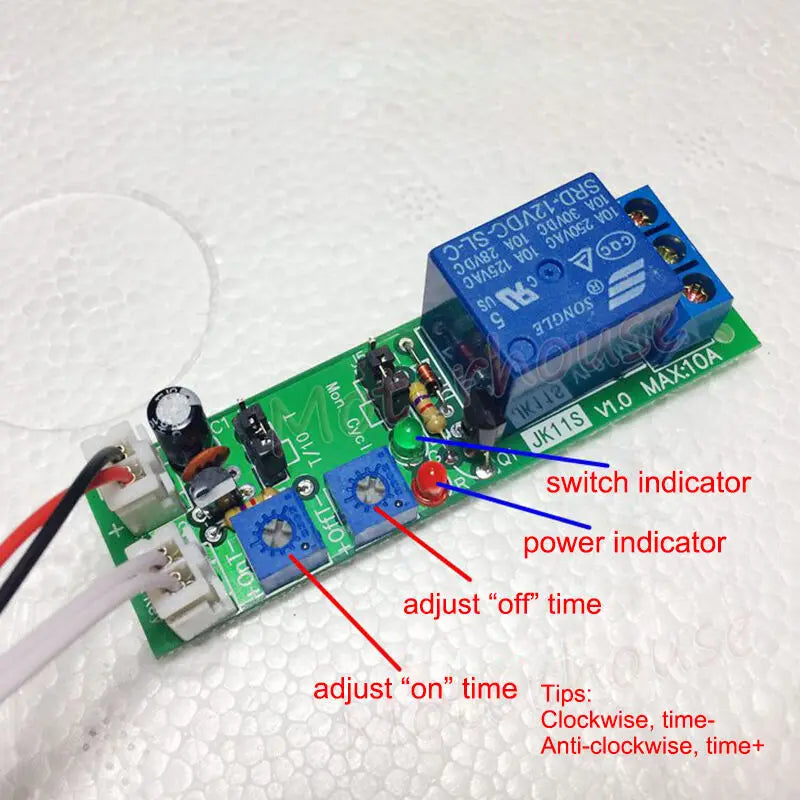

(T2) timer delay on. Such cycle. T1 and T2 are set by two adjustable resistors, respectively.
(T2) timer delay on. Such cycle. T1 and T2 are set by two adjustable resistors, respectively.
2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.
Typical application reference
1. timer operating equipment, such as each press key trigger,when reach 5 minutes the automatic power off.
2. machine repeat test circuits, such as power 1 minutes on and then power off 1 minutes of ,such a cycle
of testing.
3. fish tank pump intermittent pumping oxygen.
4. other timer control equipment.
Performance

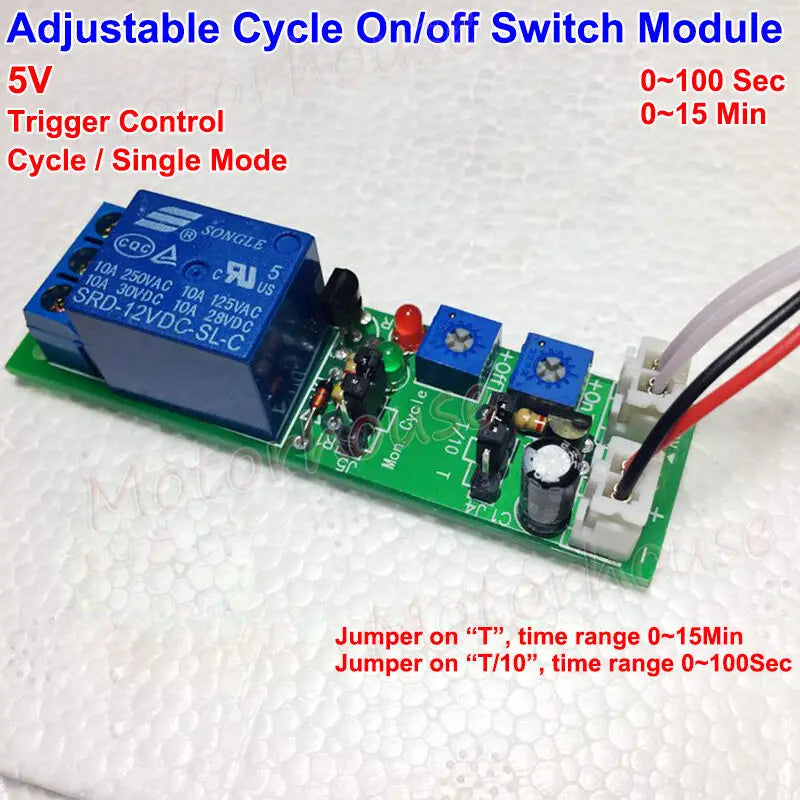

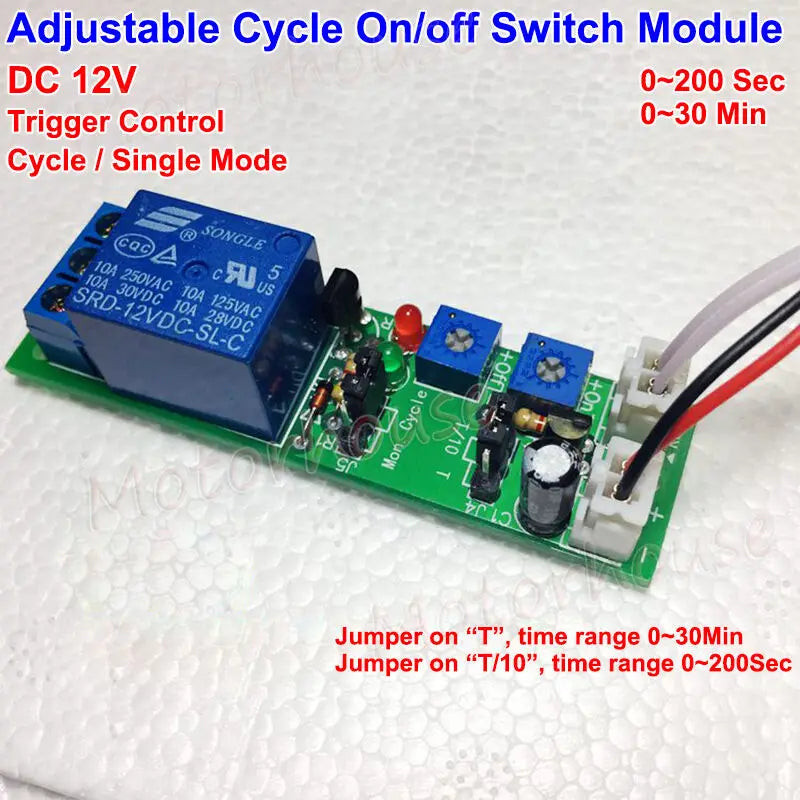

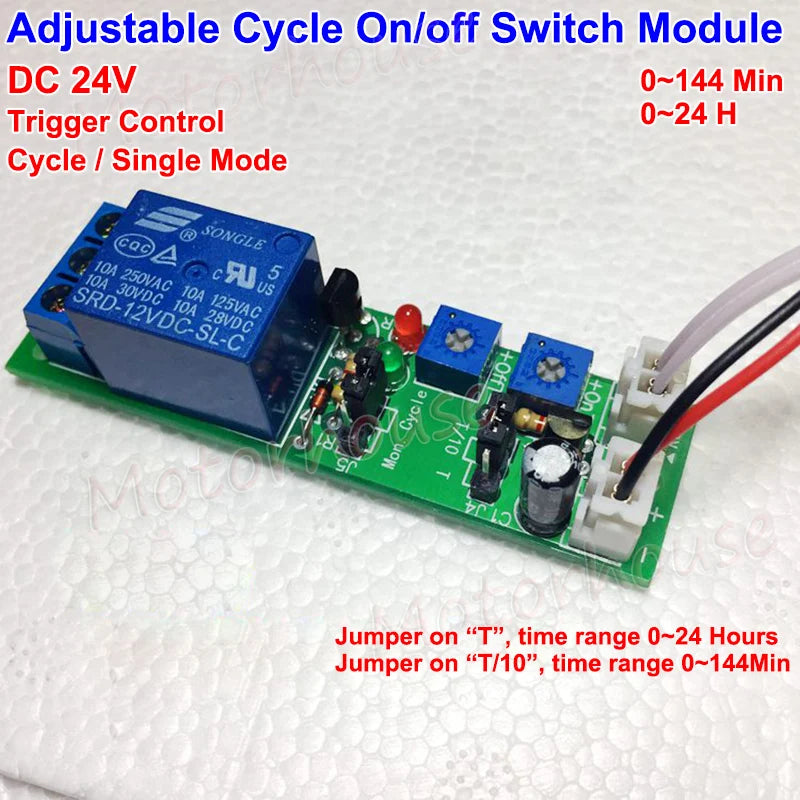

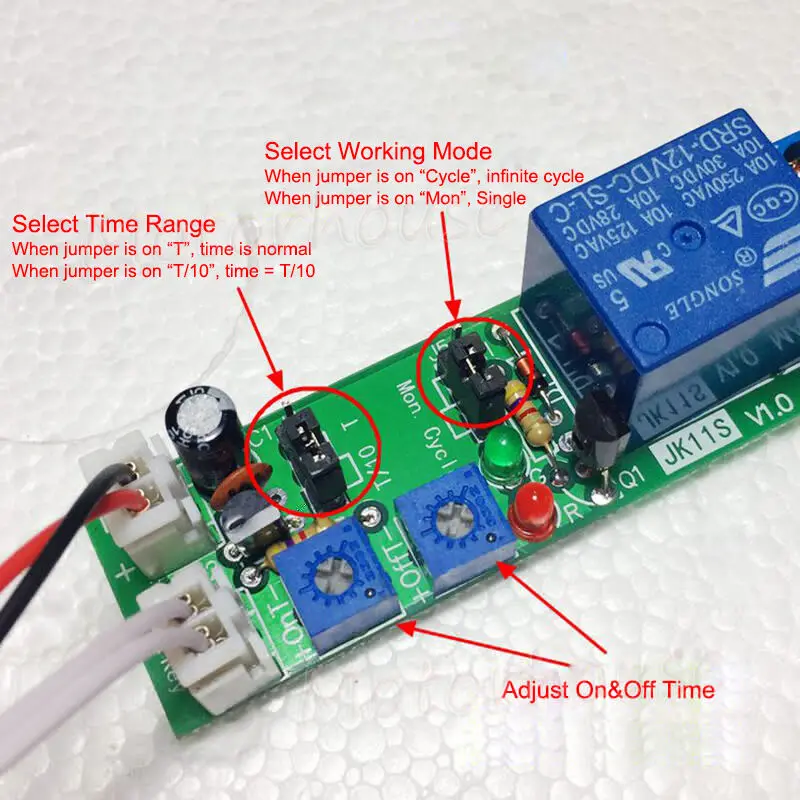

Jumper OP1: 10 times shorter time range
Jumper OP2: normal time range
The time delay error of all kinds of temperature and humidity is not more than 2%
Package Include:
Timer Relay ON OFF Cycle Module x 1
