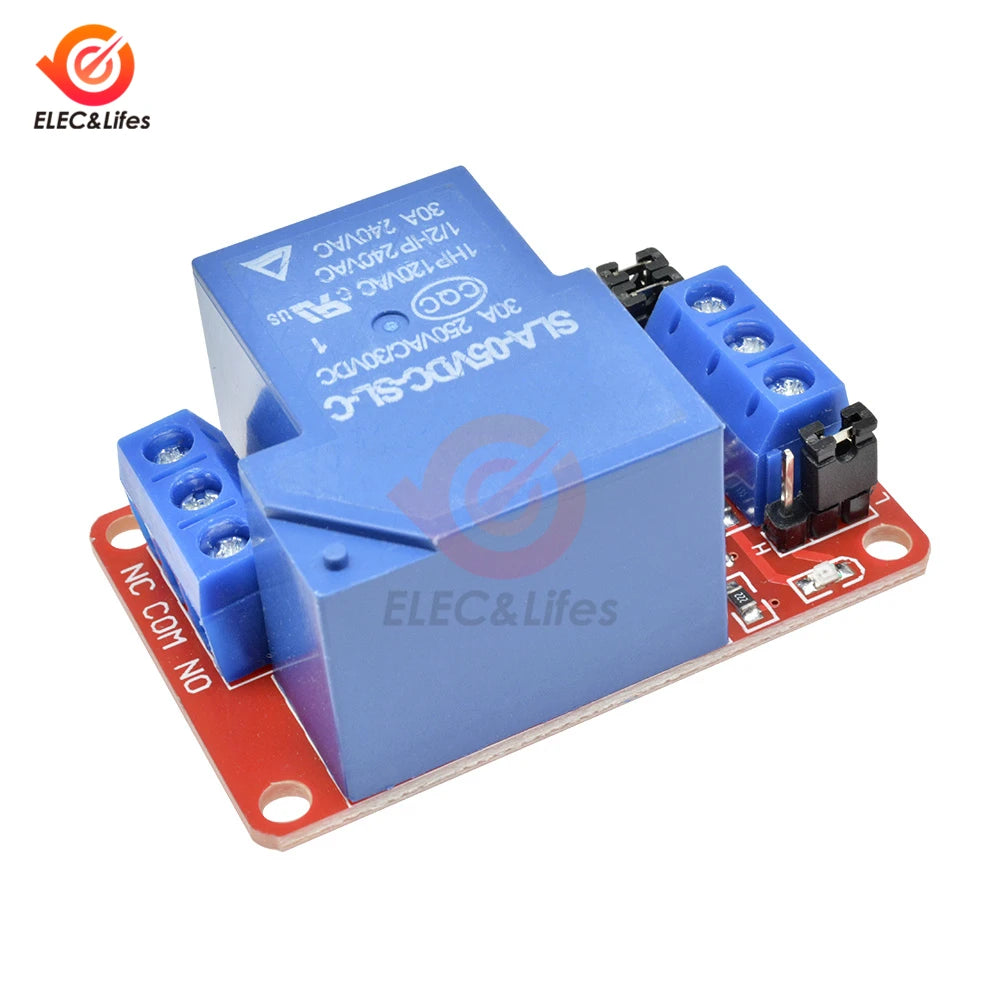

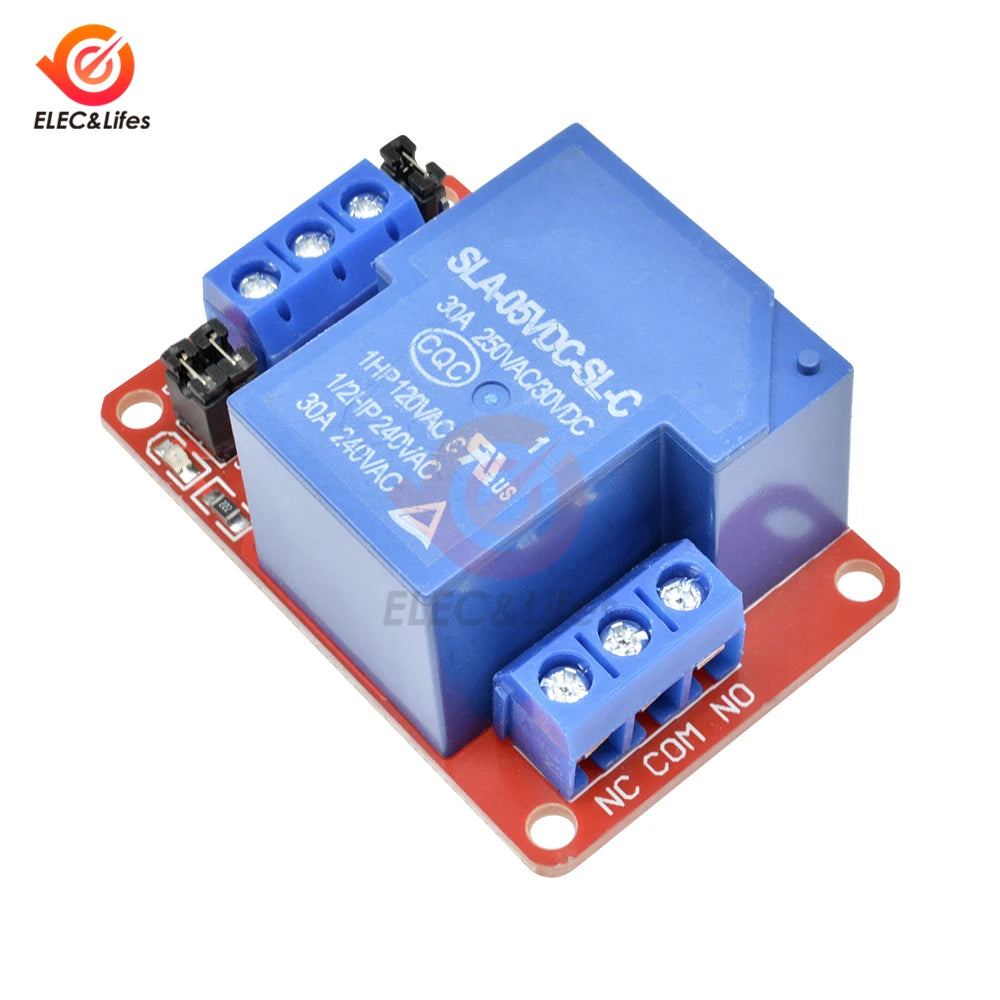

DC 5V 12V 24V 30A High Power 1 Channel Relay Module With Optocoupler Isolation board High Low Level Trigger Relay for Arduino

DC 5V 12V 24V 30A High Power 1 Channel Relay Module With Optocoupler Isolation board High Low Level Trigger Relay for Arduino

$16.52

$16.52 $0.00

Description

SPECIFICATIONS

Brand Name: Aideepen

Certification: NONE

Choice: yes

Contact Load: Low Power

High-concerned chemical: none

Mdoel2: SLA-12VDC-SL-C

Model Number: DC 5V 12V 24V Relay Module

Model1: SLA-5VDC-SL-C

Model3: SLA-24VDC-SL-C

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Voltage relay

Use: General Purpose

Voltage: 12V

is_customized: Yes

semi_Choice: yes

Description:

5V 30A 1-Channel Relay Module with Optocoupler H/L Level Triger

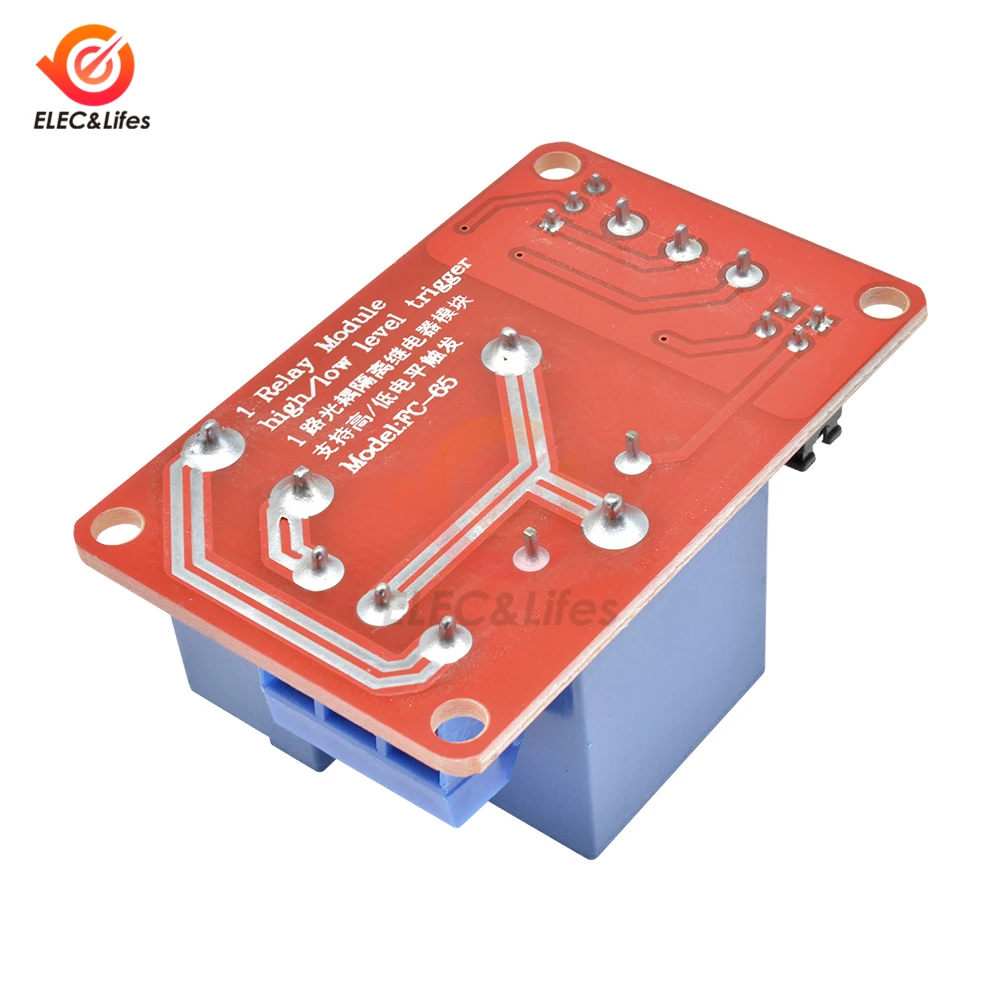

Module description:

30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A

Optical coupling isolation, driving ability is strong, stable performance;Trigger current is 5mA

Module can be set high level or low level trigger by the jumper

Power indicator light (green), relay status indicator light (red)

Module Size:50mm*33mm*24mm

Technical parameters:

Voltage version:5V

The static current:5mA

Working current:190mA

Trigger current:2-4mA

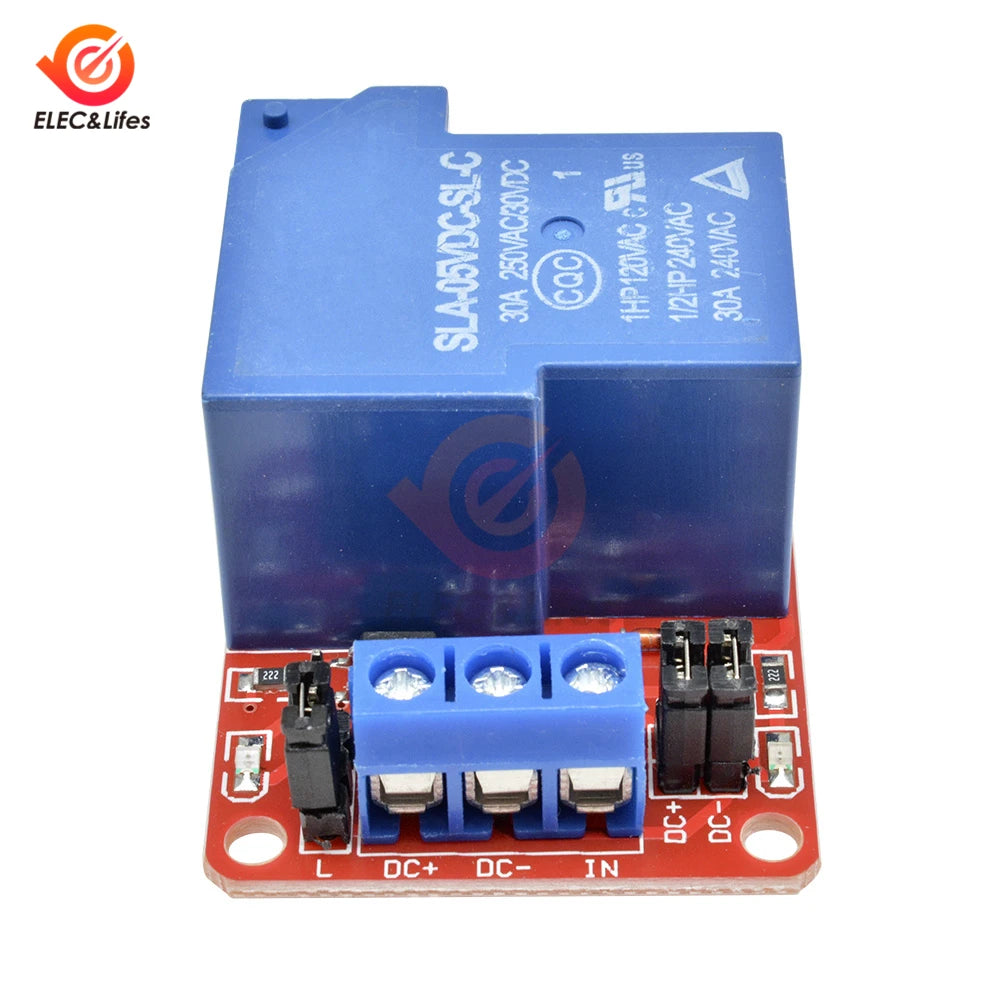

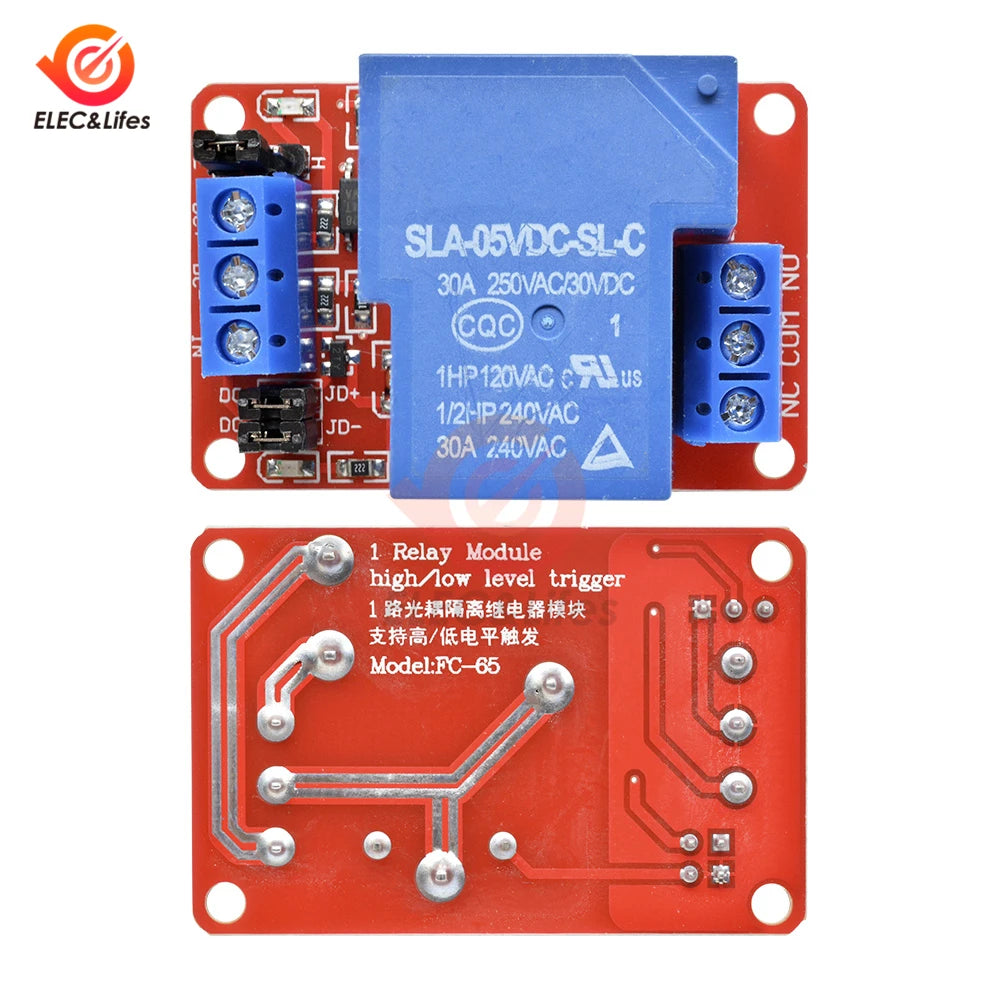

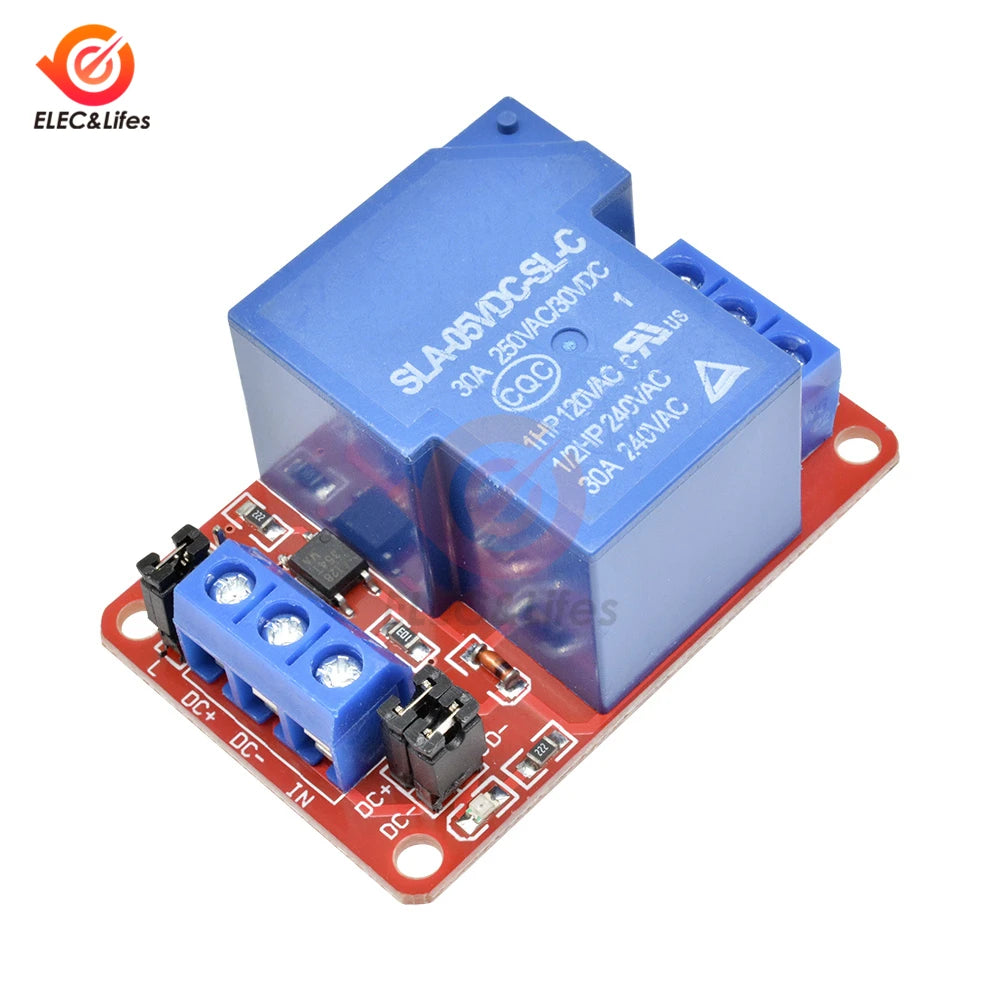

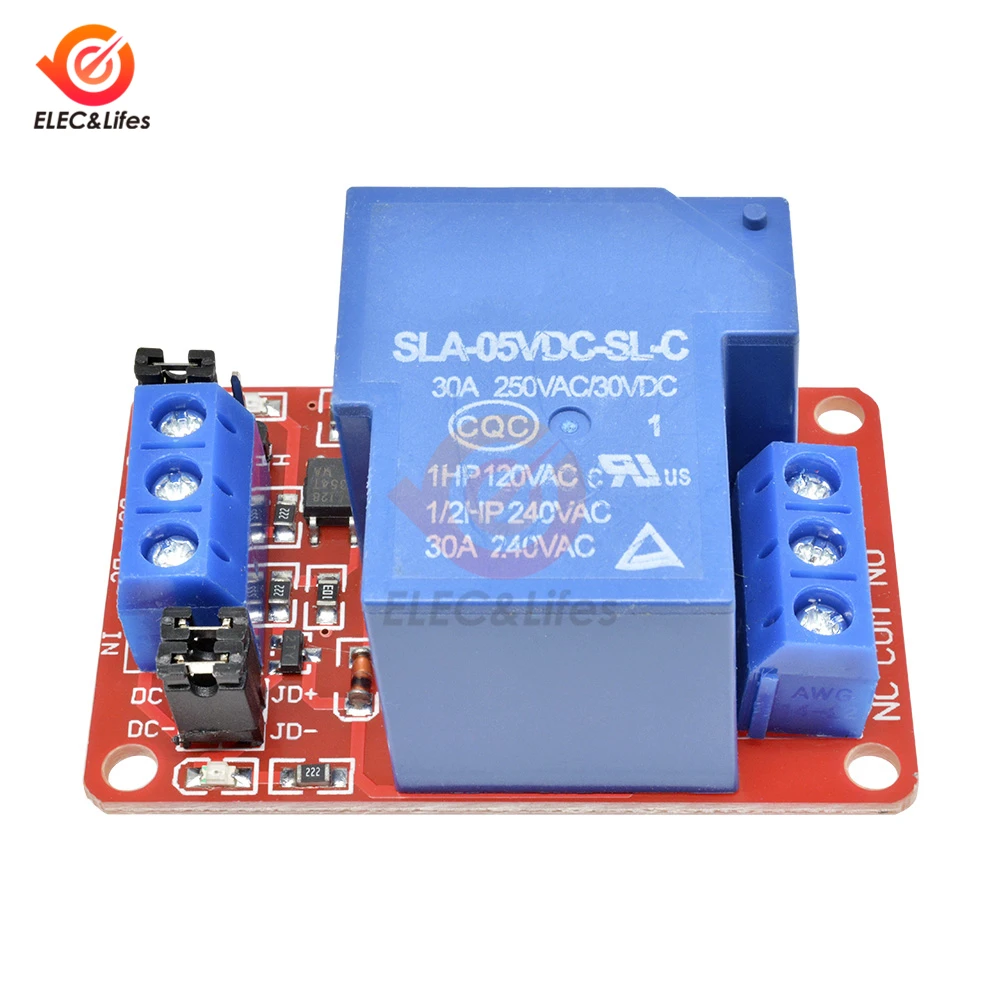

Module interface specifications:

DC+ : DC power supply positive pole

DC- :DC power supply negative pole

IN : signal triggering pin

JD+ : relay control voltage positive

JD- : relay control voltage negative

DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal

High and low level trigger mode selection.Jumper and L pin connection, IN pin is low level triggerJumper and H pin connection, IN pin is high level trigger

Normally closed pin (NC) : relay normally closed pin

Common pin (COM) : relay common pin

Normally opened pin (NO) : relay normally opened pin

Rated current of the interface is 16A

12V 30A 1-Channel Relay Module with Optocoupler H/L Level Triger:

30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A

Optical coupling isolation, driving ability is strong, stable performance;Trigger current is 5mA

Module can be set high level or low level trigger by the jumper

Power indicator light (green), relay status indicator light (red)

Module Size:50mm*33mm*24mm

Technical parameters:

Voltage version:12V

The static current:5mA

Working current:80mA

Trigger current:2-4mA

Module interface specifications:

DC+ : DC power supply positive pole

DC- :DC power supply negative pole

IN : signal triggering pin

JD+ : relay control voltage positive

JD- : relay control voltage negative

DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal

High and low level trigger mode selection.Jumper and L pin connection, IN pin is low level triggerJumper and H pin connection, IN pin is high level trigger

Normally closed pin (NC) : relay normally closed pin

Common pin (COM) : relay common pin

Normally opened pin (NO) : relay normally opened pin

24V 30A 1-Channel Relay Module with Optocoupler H/L Level Triger

30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A

Optical coupling isolation, driving ability is strong, stable performance;Trigger current is 5mA

Module can be set high level or low level trigger by the jumper

Power indicator light (green), relay status indicator light (red)

Module Size:50mm*33mm*24mm

Technical parameters:

Voltage version:24V

The static current:5mA

Working current:50mA

Trigger current:2-4mA

Module interface specifications:

DC+ : DC power supply positive pole

DC- :DC power supply negative pole

IN : signal triggering pin

JD+ : relay control voltage positive

JD- : relay control voltage negative

DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal

High and low level trigger mode selection.Jumper and L pin connection, IN pin is low level triggerJumper and H pin connection, IN pin is high level trigger

Normally closed pin (NC) : relay normally closed pin

Common pin (COM) : relay common pin

Normally opened pin (NO) : relay normally opened pin

Package Included:

1 x 5V/12V/24V Relay Module
