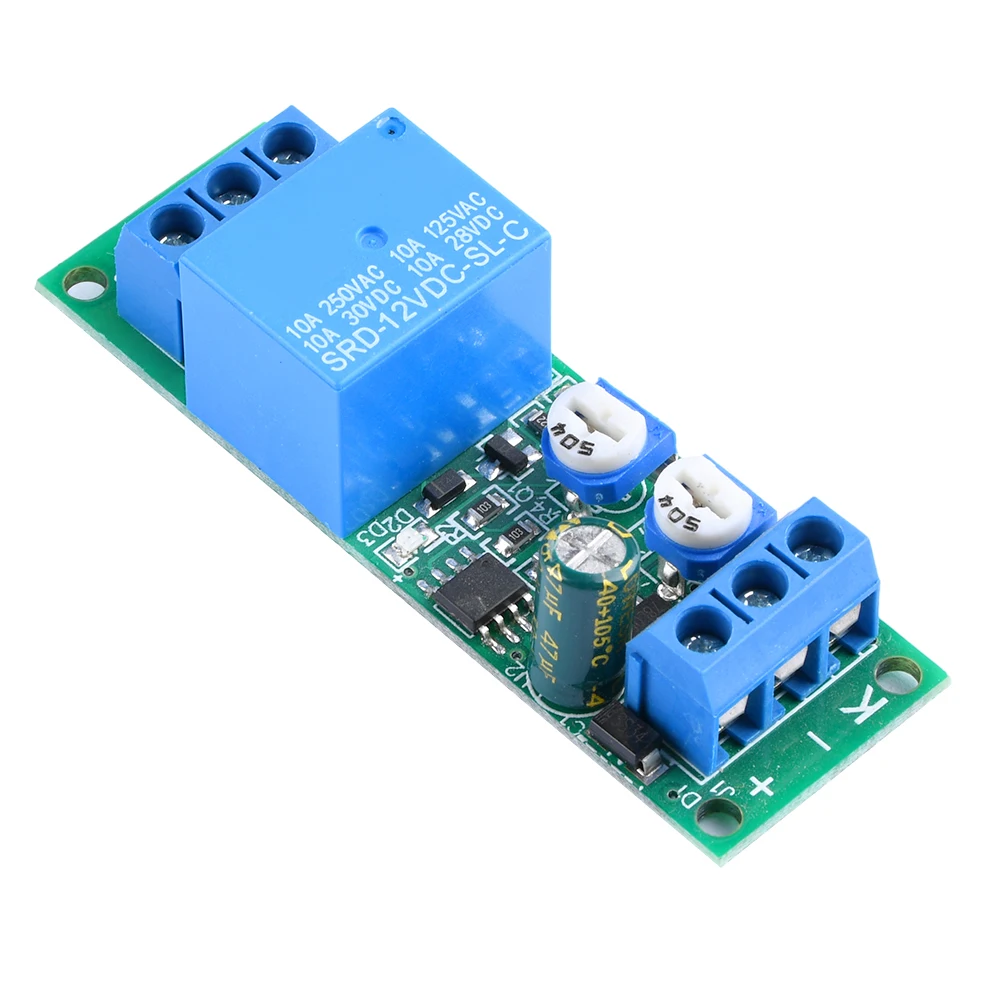

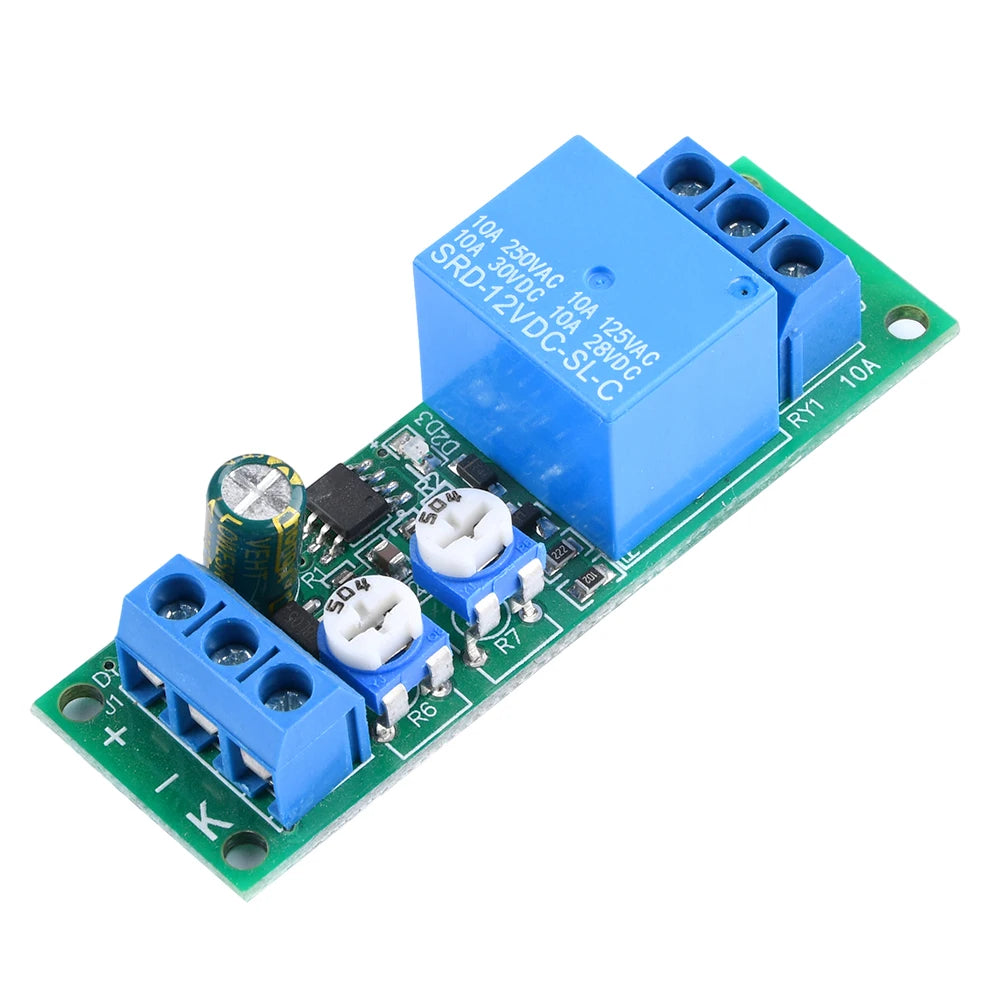

DC 5V 12V 24V Dual Adjustable Cycle Timer Dual Delay On/Off Switch 0-100 Seconds 0-15 Minutes Timer Control Delay Relay Module

DC 5V 12V 24V Dual Adjustable Cycle Timer Dual Delay On/Off Switch 0-100 Seconds 0-15 Minutes Timer Control Delay Relay Module

$17.91

$17.91 $0.00

Description

SPECIFICATIONS

Brand Name: Aideepen

Certification: NONE

Choice: yes

Contact Load: Low Power

Delay time: 0-100 seconds, 0-15 minutes

High-concerned chemical: none

Model Number: Timer Control Delay Relay Module

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Time Relay

Use: General Purpose

Voltage: DC 5V 12V 24V,24V

is_customized: Yes

semi_Choice: yes

Feature:

1.DC5V /12V /24V 3 voltage options, can be selected according to the requirements of the appropriate DC voltage.

2. Easy to operate, with power back protection function, when the power supply is connected to the wrong module will not work.

3.2 Kinds of delay time can be adjusted, can be set 0-100 seconds, 0-15 minutes two.

4.2 Kinds of on-time can be adjusted, can be set 0-10 seconds, 0-100 seconds two.

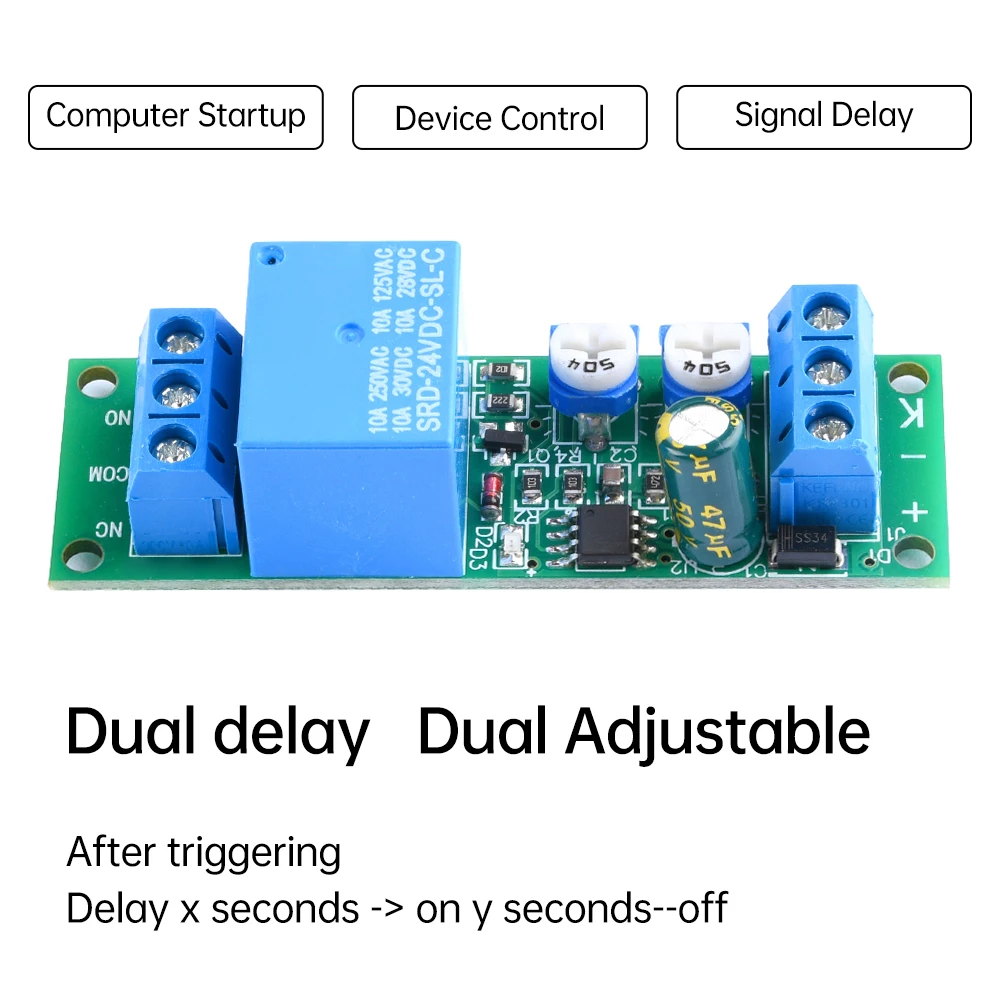

5. Widely used, can be used for computer startup, equipment control, signal delay and other scenes.

Product parameters:

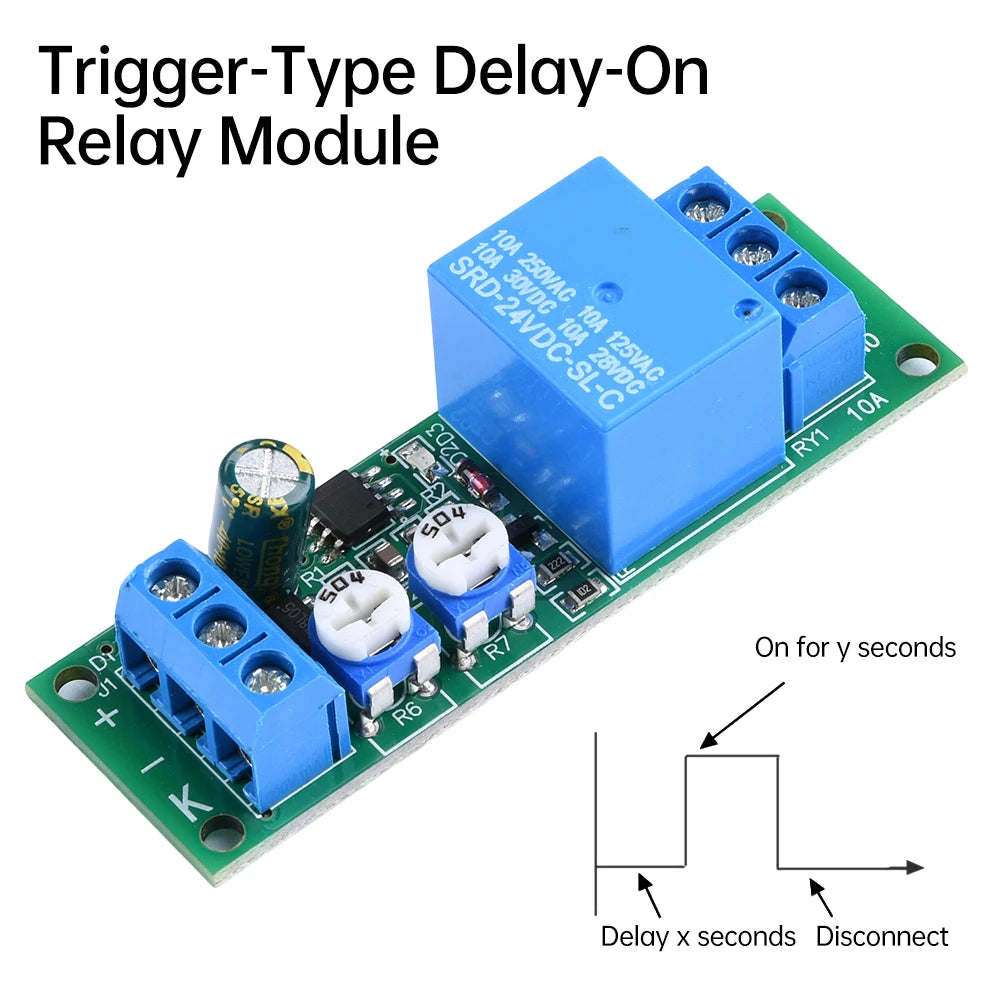

[Name] Trigger type delay relay module (delay on + delay off)

[Function] No power-on action. After triggering, delay T1, connect T2, and disconnect.

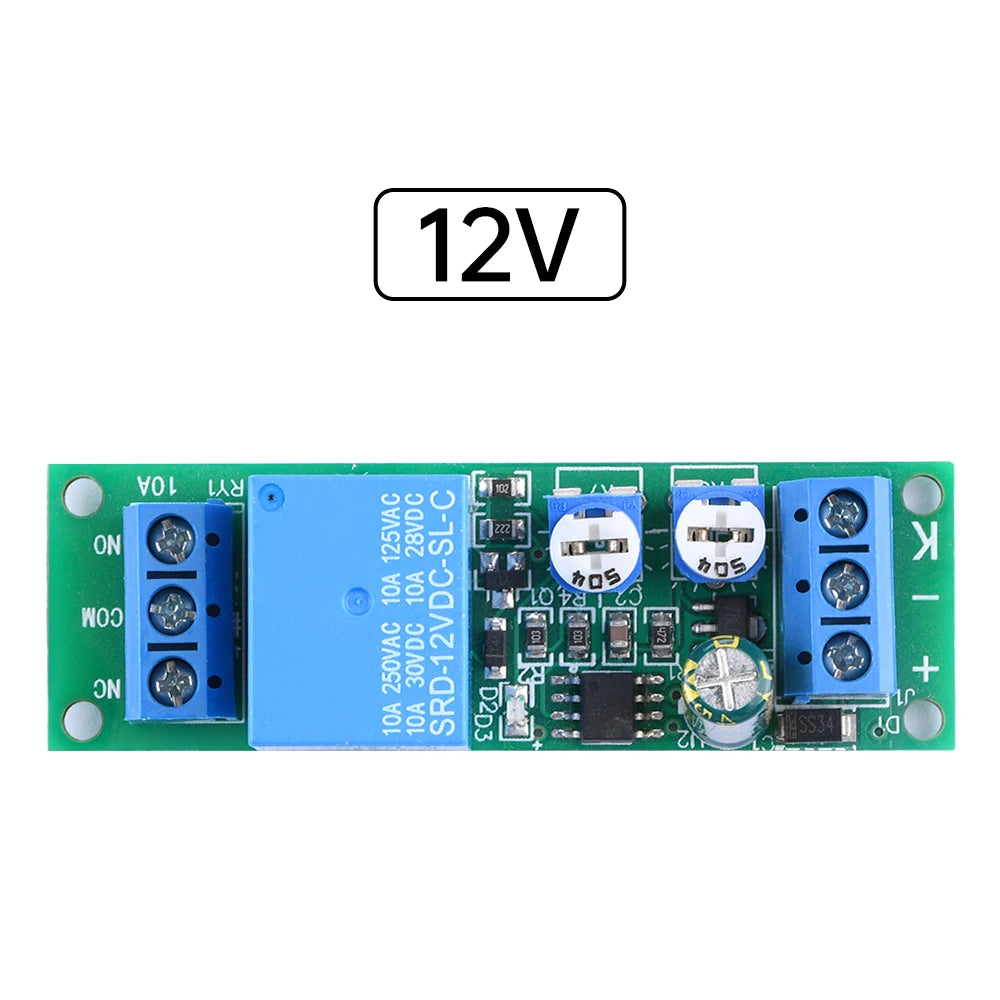

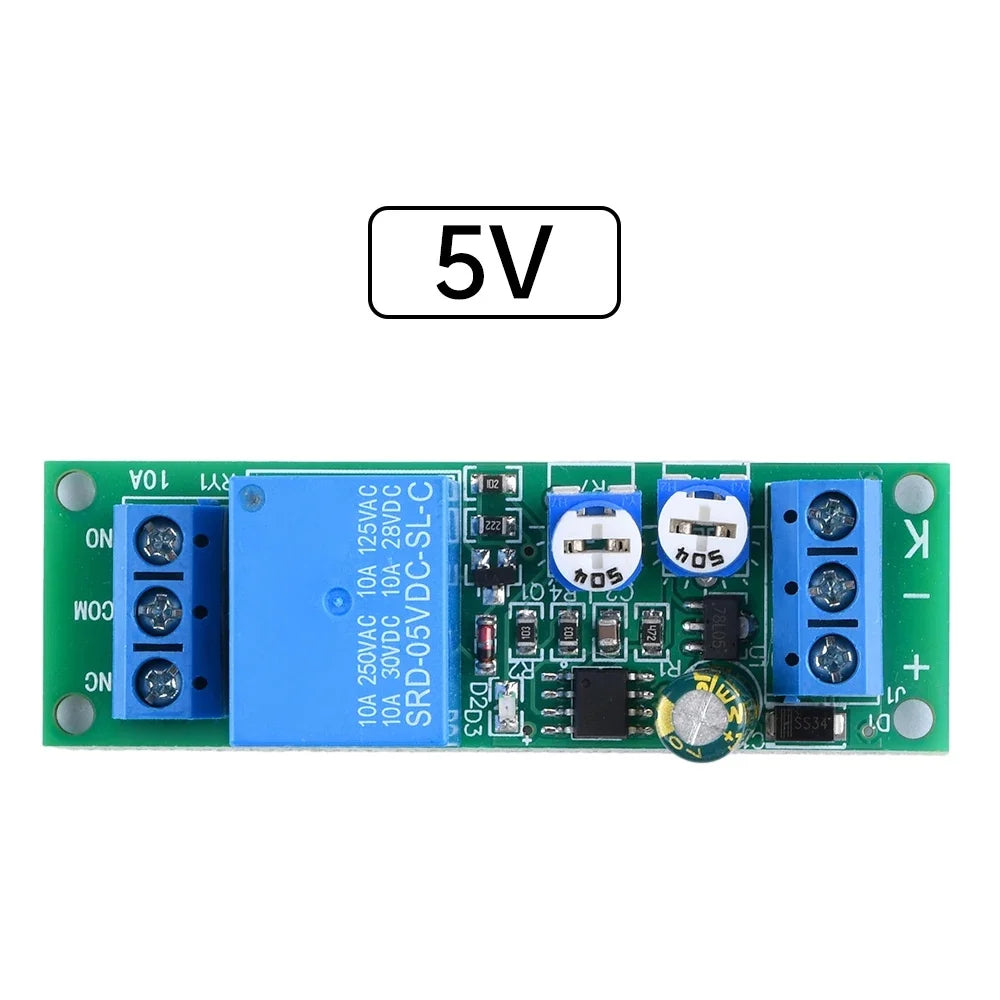

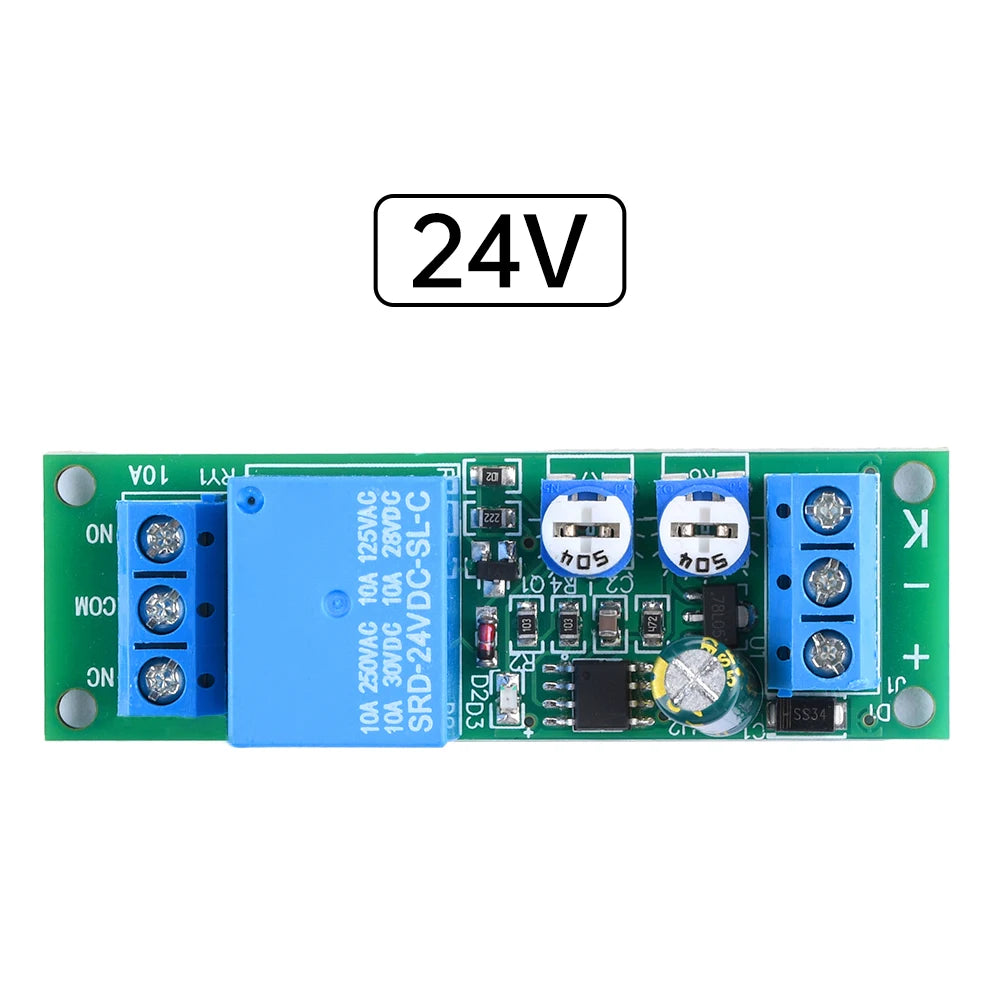

[Voltage] (DC)5V, 12V, 24V three specifications

【 Working current 】90mA (5V), 40mA(12V), 30mA(24V)

[Standby current] 6mA (measured value at 12V)

【 Delay range 】

T1 (Delay time):0-100 seconds, 0-15 minutes

T2(on-time) : 0-10 seconds, 0-100 seconds

[Adjustment accuracy] 0.1 seconds

[Output mode] Switching type, a set of relays normally open + normally closed, passive output (that is, the contact and the power supply of this module are isolated)

[Output capacity] Normally open point 15A, normally closed point 10A, can control DC 0-30V or AC 0-250V.

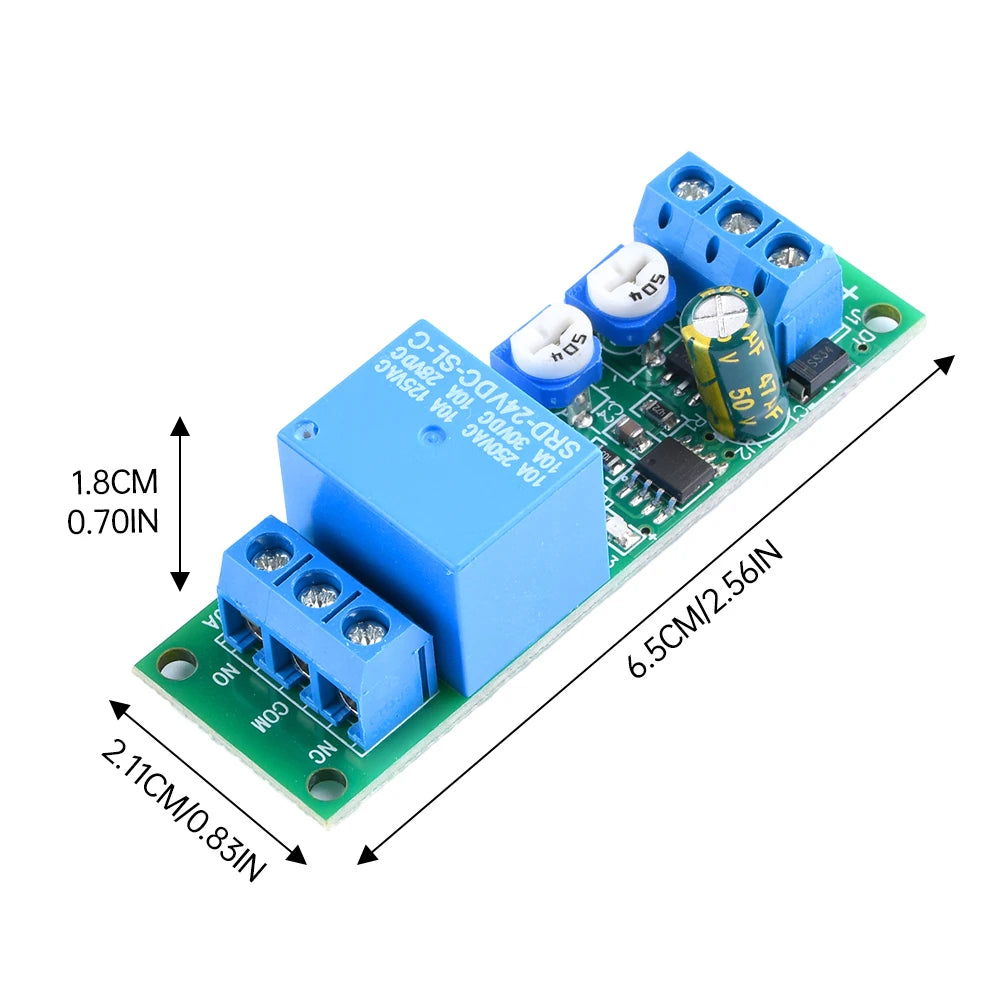

【 Size 】65*21*19 (mm)

[Operating temperature] -40~+85C

[Working humidity] 0~90%RH no condensation

[Reverse connection protection] This module has the function of power connection reverse protection. When the power supply is connected incorrectly, the module will not work.

[voltage tolerance]

5V modules allow between 4.6V and 6V;

The 12V module allows between 10V and 16V, and the relay should not work at high temperature for a long time;

24V modules are allowed to operate between 20V and 30V.

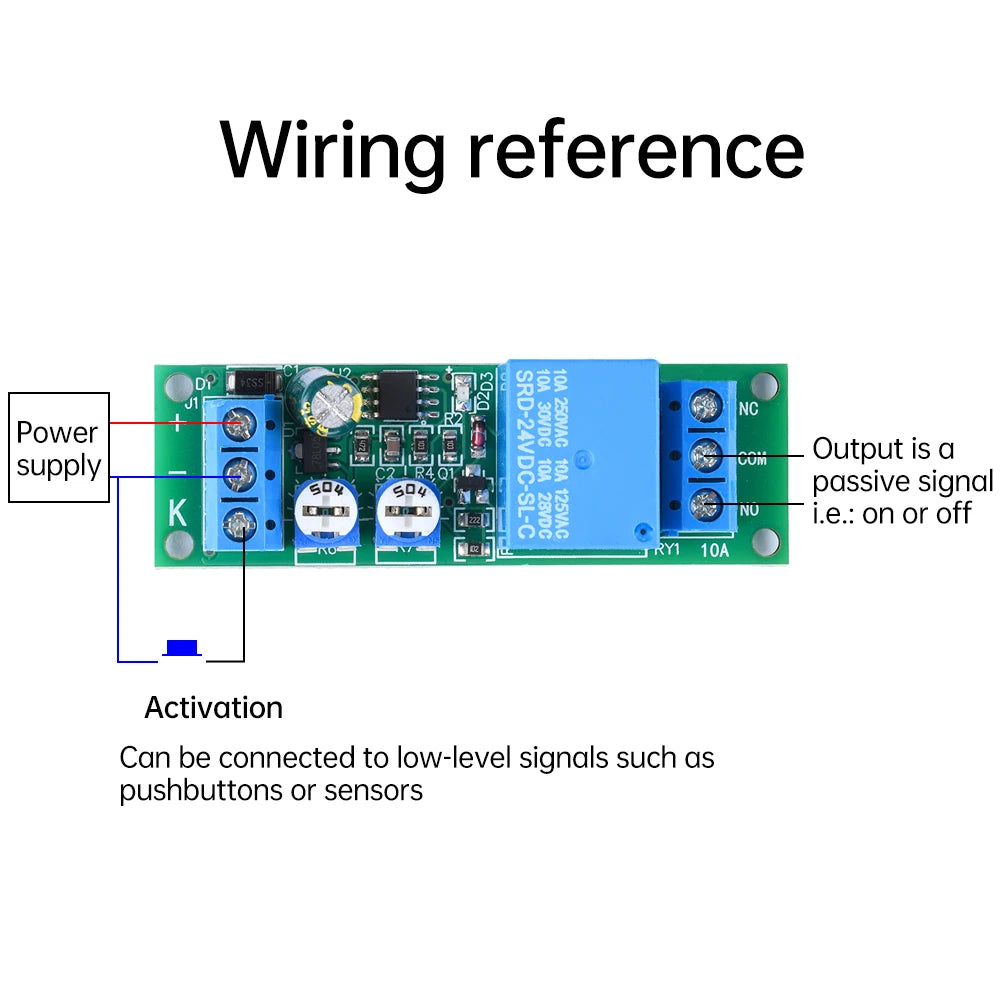

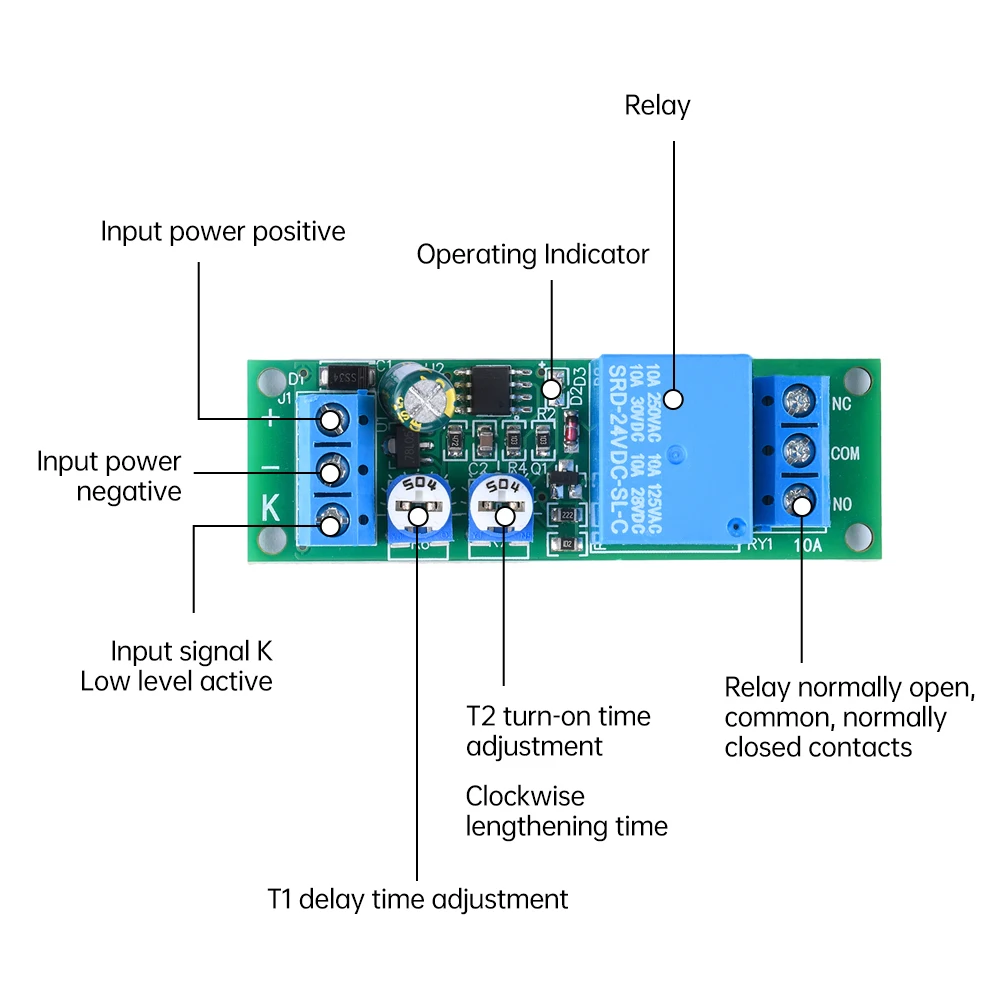

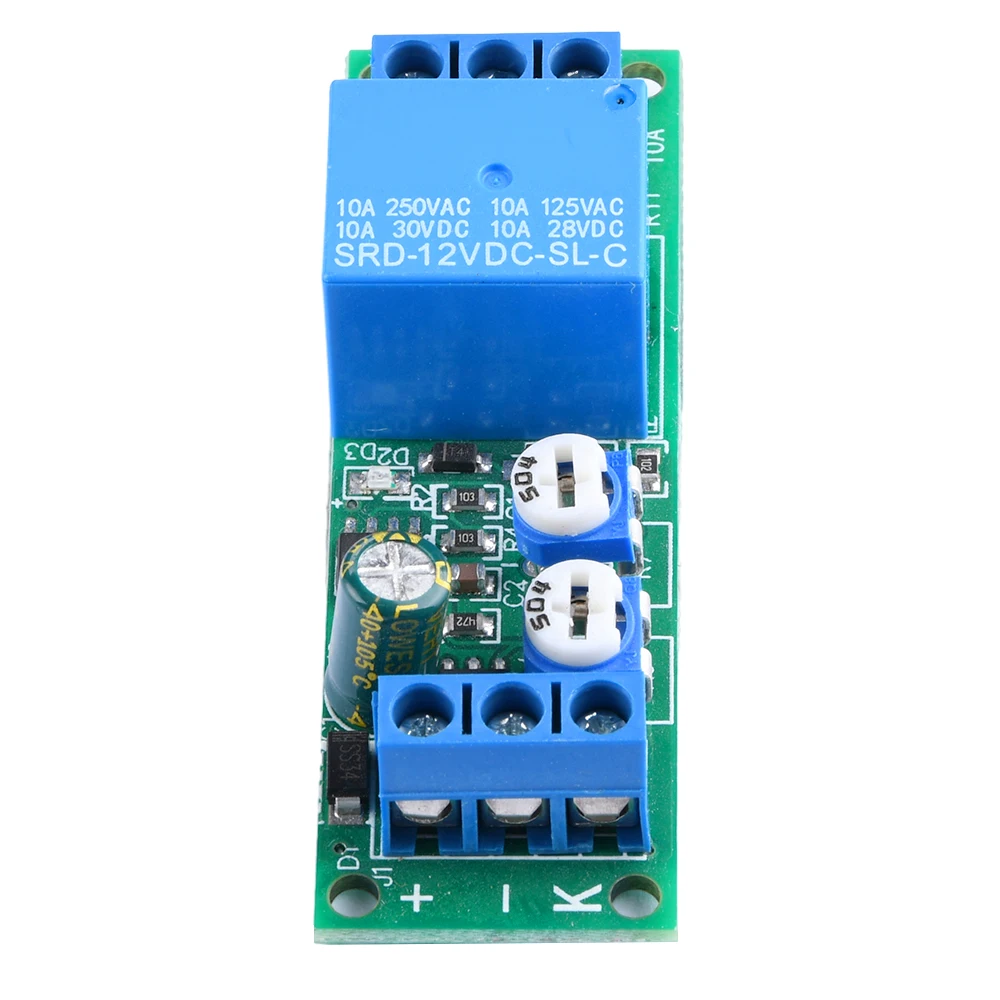

【 How to wire?】

"+" and "" connect to the corresponding positive and negative terminals of the power supply

"K" is the trigger input, the external switch to" - ", when K and - are connected, a trigger will be generated

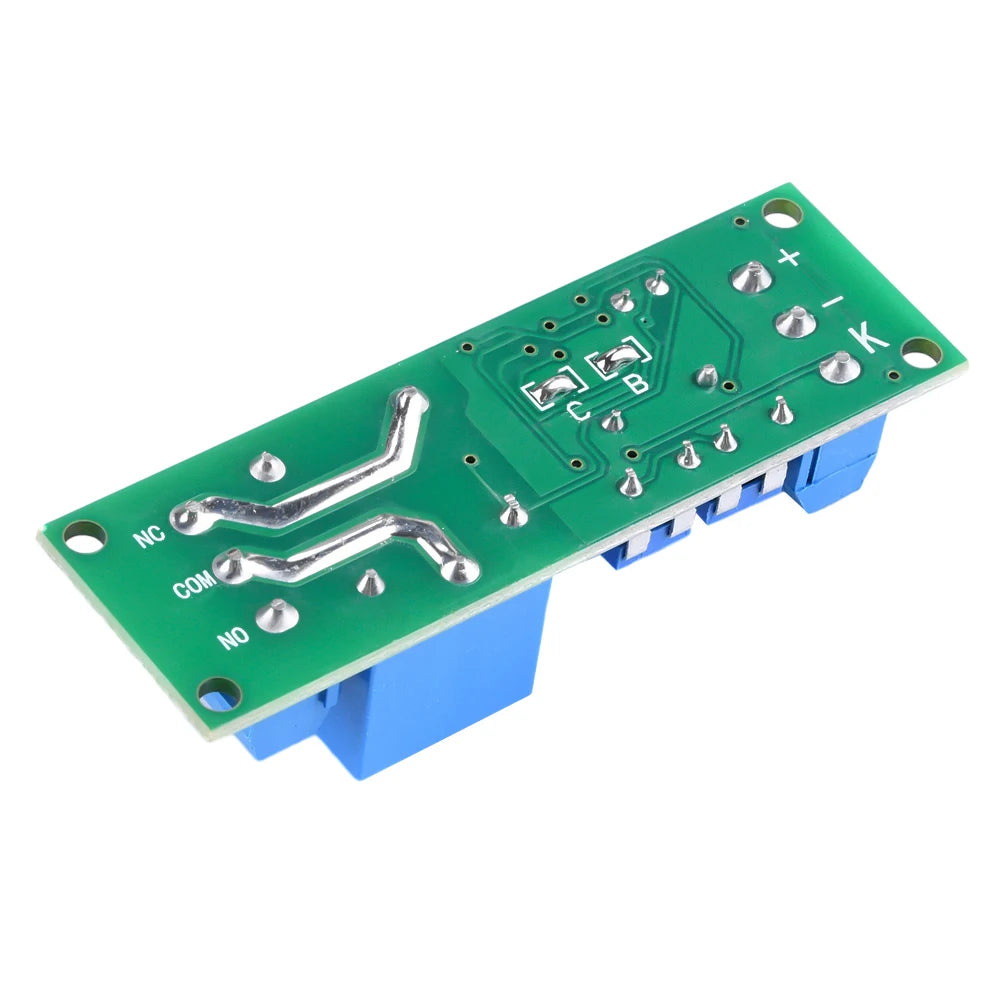

NC COM NO is the normally closed, common and normally open point of the relay respectively

Package included:

1 x DC 5V 12V 24V Dual Adjustable Cycle Timer Dual Delay On/Off Switch 0-100 Seconds 0-15 Minutes Timer Control Delay Relay Module
