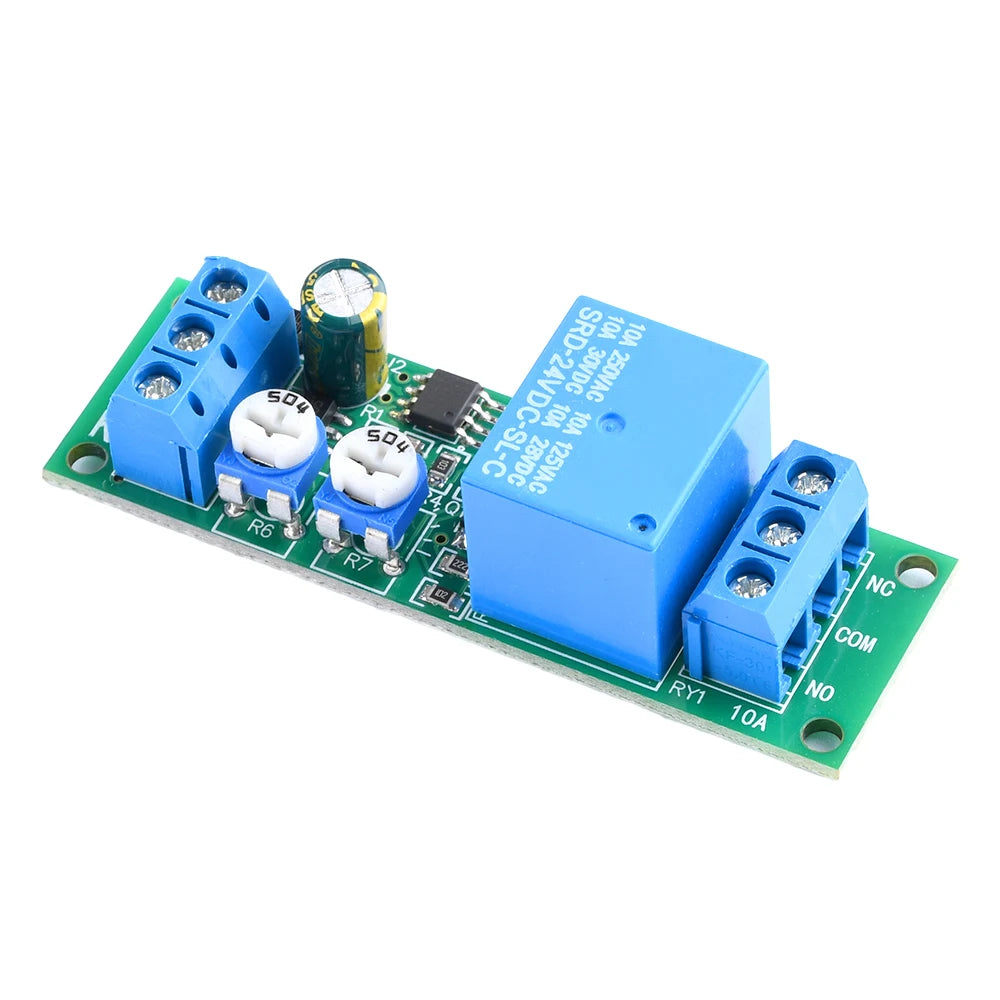

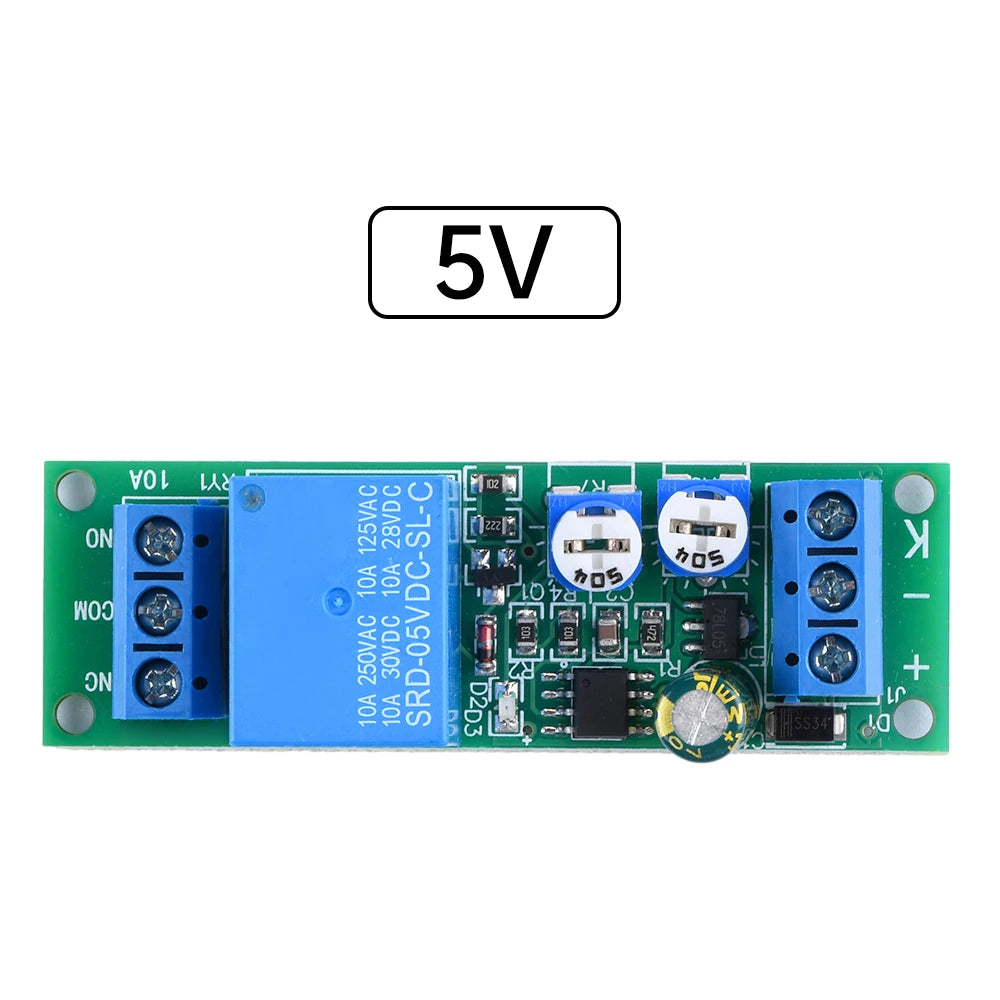

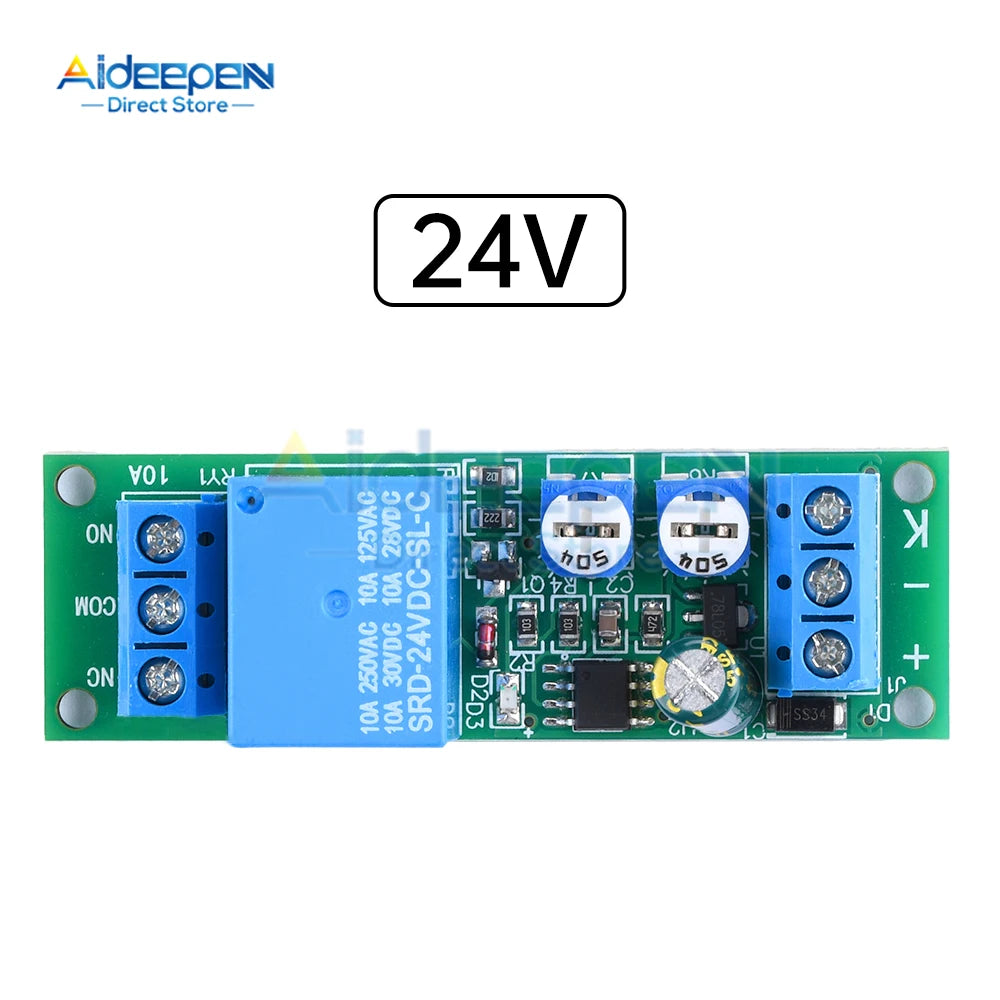

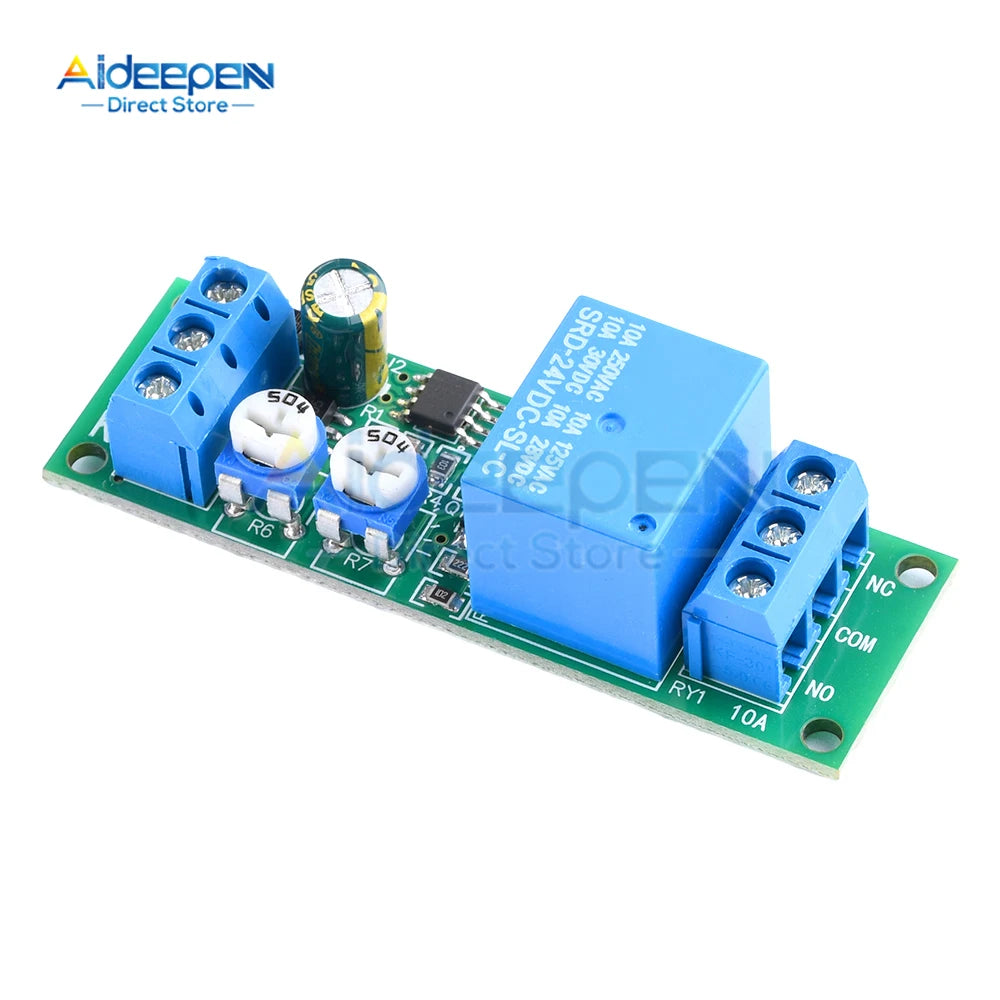

DC 5V 12V 24V Dual Relay Module Adjustable Time 0-100 Second 0-15 Minute 2 Speed Adjustable Trigger Control Relay Module Switch

DC 5V 12V 24V Dual Relay Module Adjustable Time 0-100 Second 0-15 Minute 2 Speed Adjustable Trigger Control Relay Module Switch

$18.27

$18.27 $0.00

Description

SPECIFICATIONS

Brand Name: Aideepen

Certification: CE

Choice: yes

Contact Load: High Power

Model Number: Dual Relay Module

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Time Relay

Use: General Purpose

Voltage: 24V

is_customized: Yes

semi_Choice: yes

Features:
1. There are three voltage options available: DC5V/12V/24V, and the appropriate DC voltage can be selected according to the needs.
2. Easy to operate, with power supply reverse protection function, the module will not work when the positive and negative connections of the power supply are wrong.
3.2 adjustable delay duration, can be set to two levels: 0-100 seconds and 0-15 minutes.
4.2 adjustable connection times, with two settings: 0-10 seconds and 0-100 seconds.
5. Widely used, it can be used in scenarios such as computer startup, device control, signal delay, etc.

Parameter:
[Name] Trigger type delay relay module (delay on+delay off)

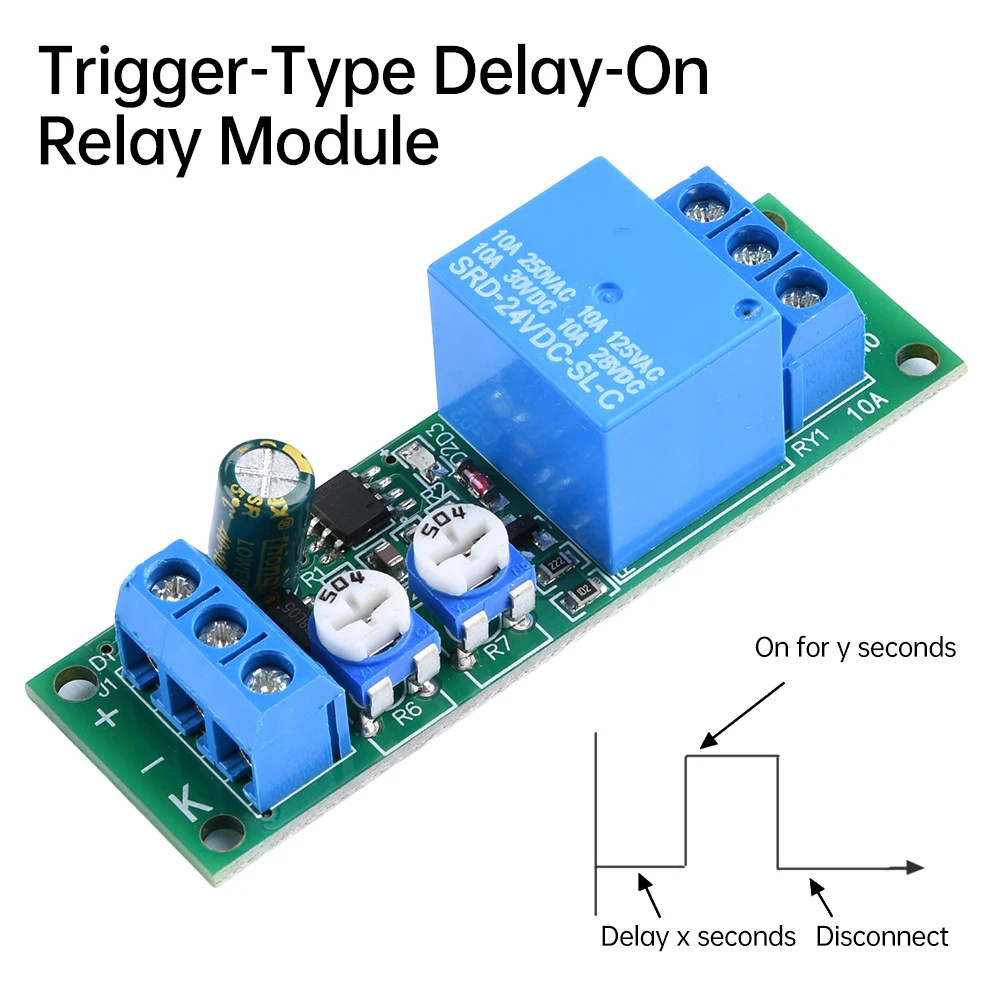

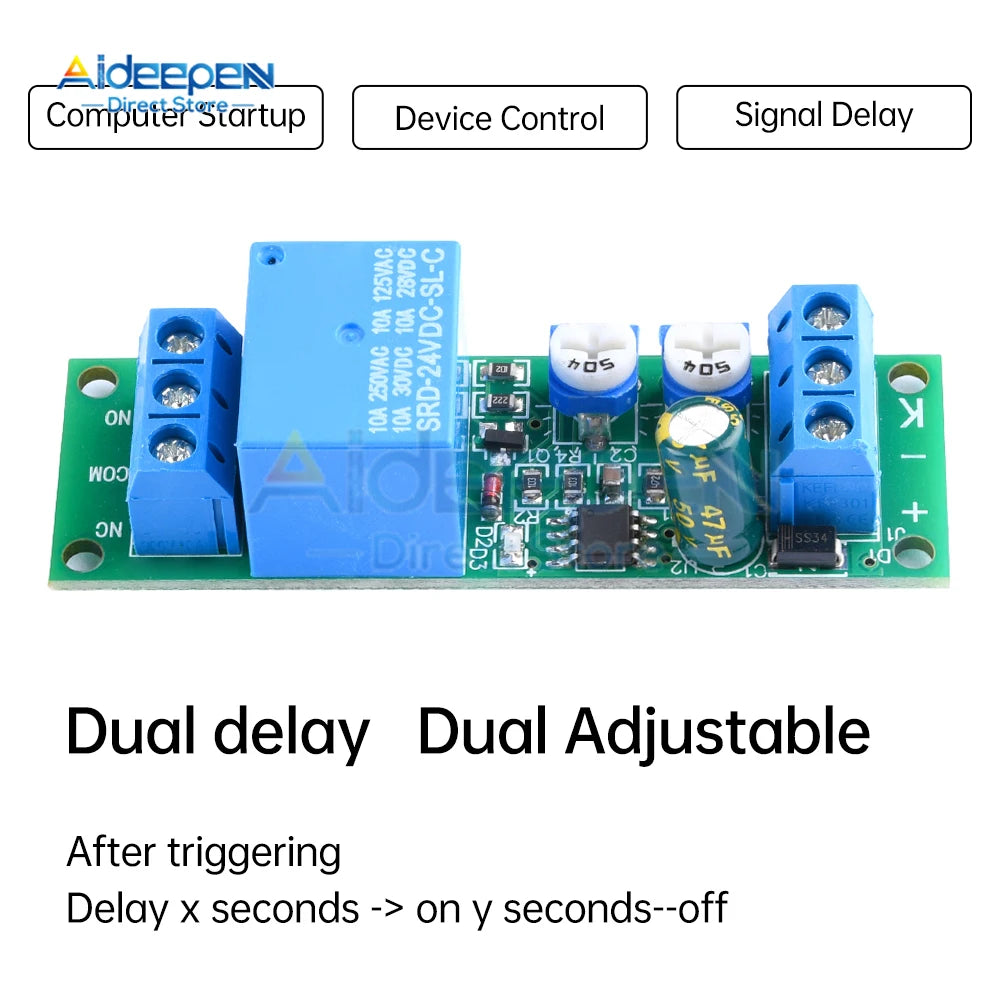

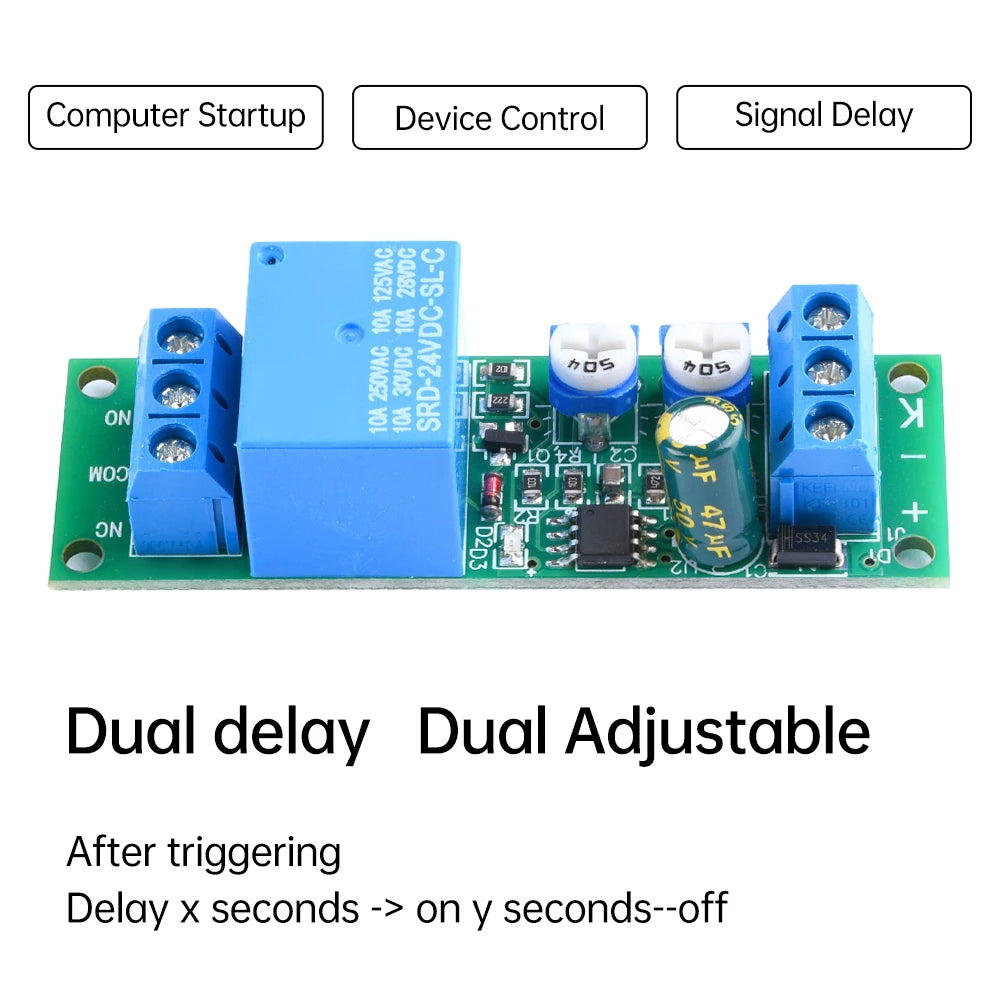

[Function] There is no action when powered on. After triggering, delay T1 and connect T2 before disconnecting.
[Voltage] (DC) 5V, 12V, 24V three specifications
[Working current] 90mA (5V), 40mA (12V), 30mA (24V)
[standby current] 6mA (measured value at 12V)
[Delay Range]
T1 (delay duration): Two levels of 0-100 seconds and 0-15 minutes
T2 (connection time): Two levels of 0-10 seconds and 0-100 seconds
[Adjustment accuracy]0.1 seconds
[Output Method] Switching type, with a set of relays normally open and normally closed, passive output (i.e. the contact and power supply to this module are isolated)
[Output capability] Normally open point 15A, normally closed point 10A, can control DC 0-30V or AC 0-250V.

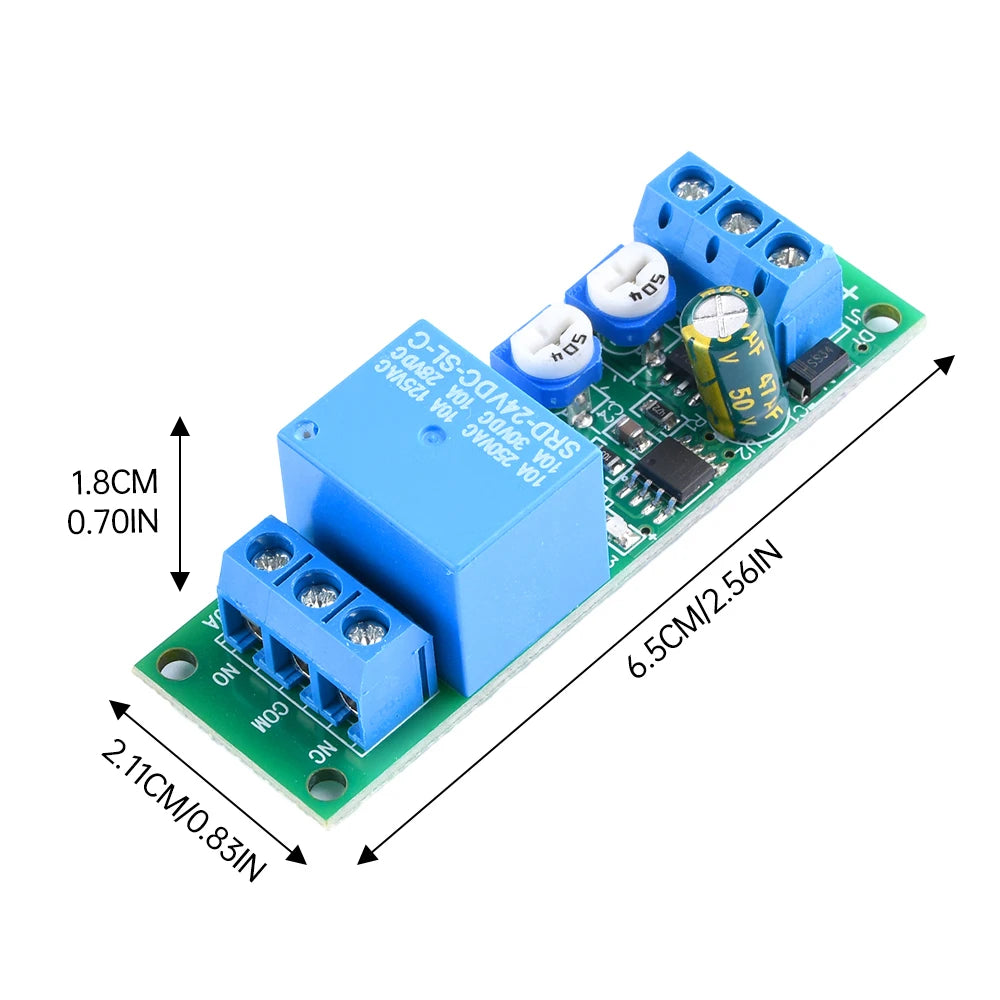

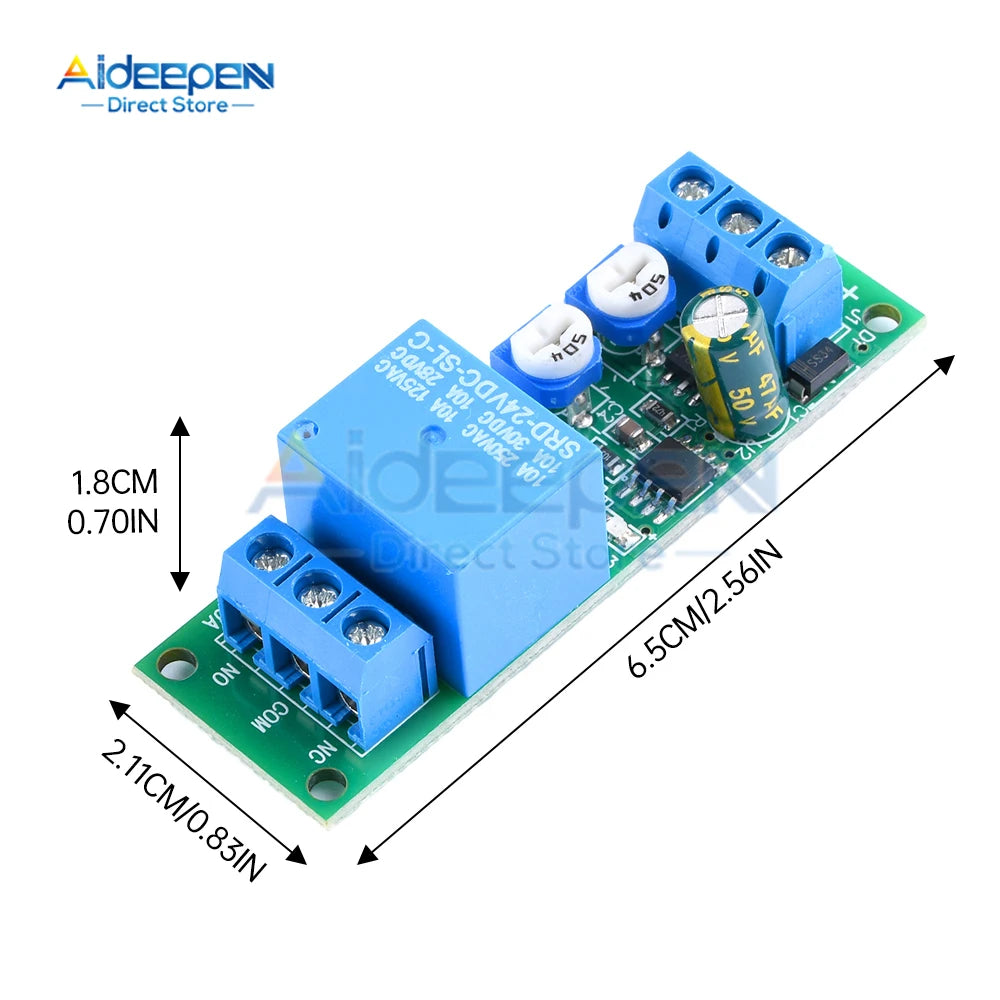

[Size] 65 * 21 * 19 (mm)
[Working temperature] -40~+85C
[Working humidity] 0~90% RH without condensation
This module has a power supply reverse protection function, and it will not work when the positive and negative connections of the power supply are wrong.
[Voltage allowable deviation]

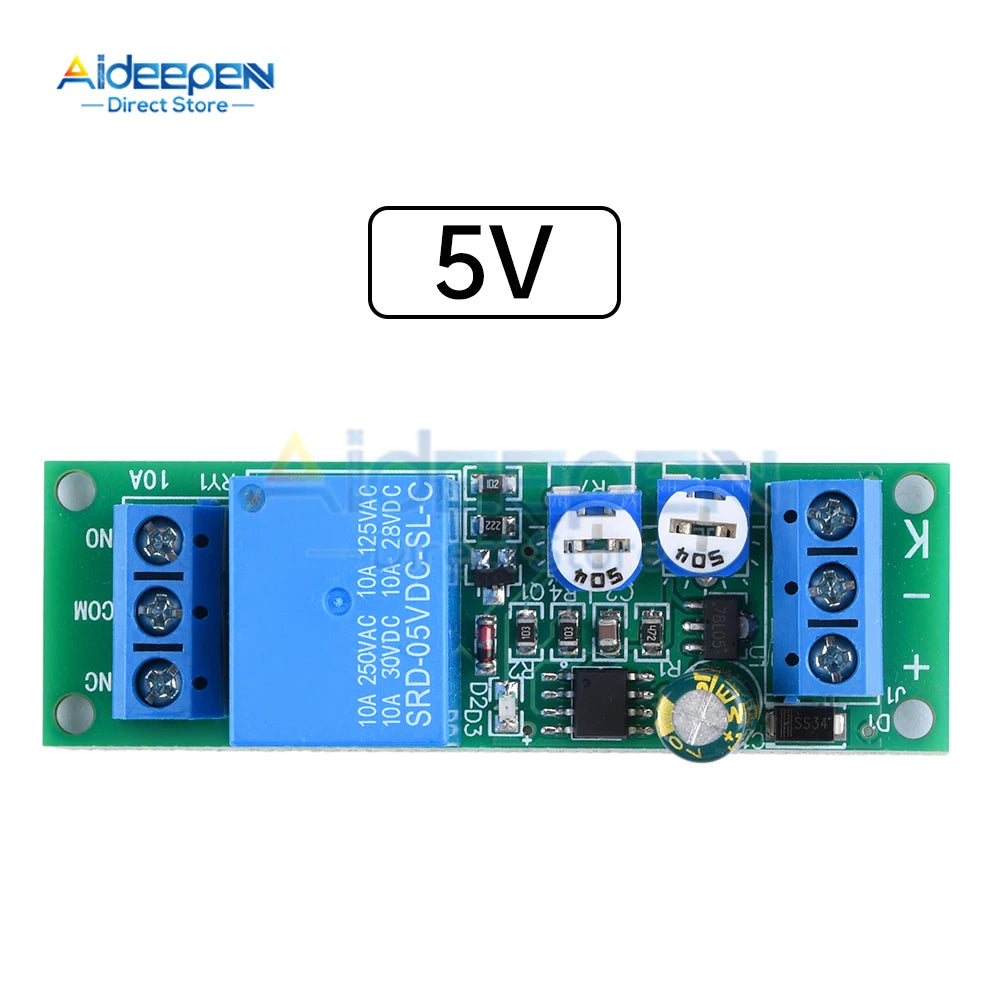

The 5V module is allowed to operate between 4.6V and 6V;

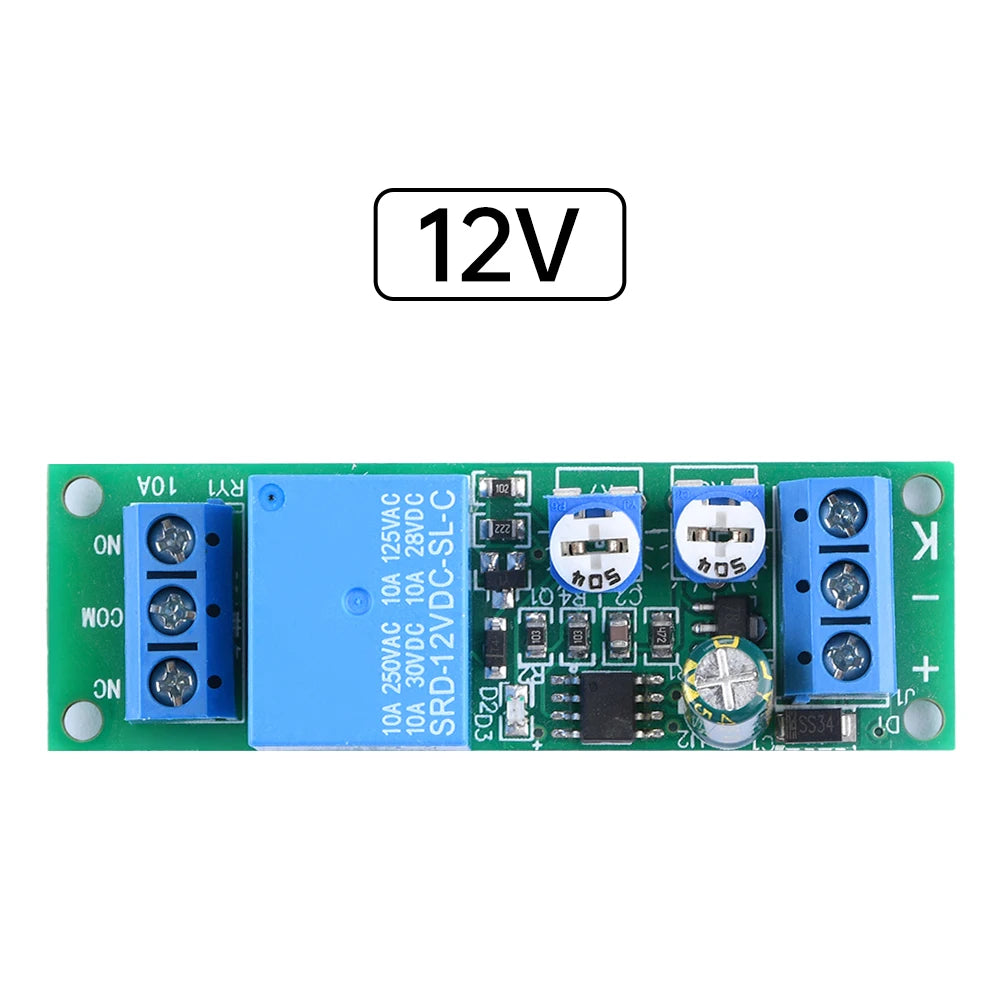

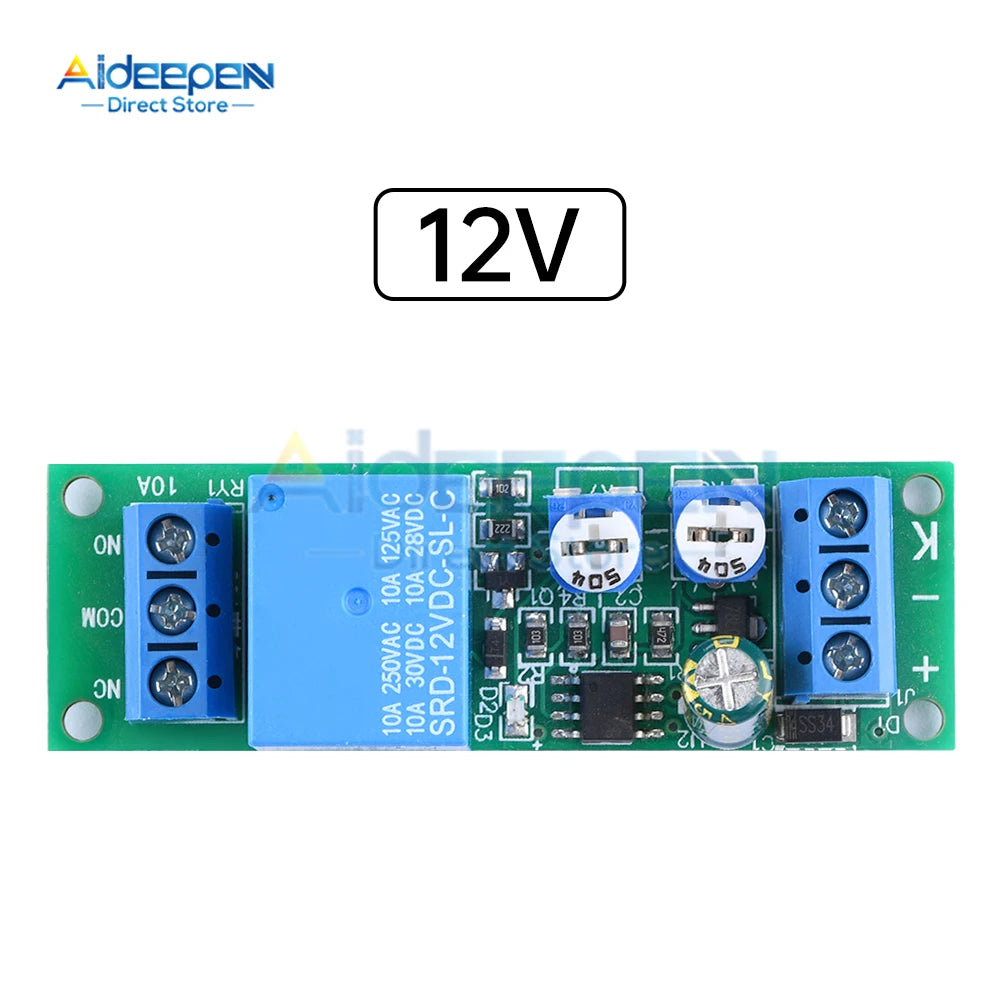

12V modules are allowed to operate between 10V and 16V, and relays should not work under high temperatures for a long time;

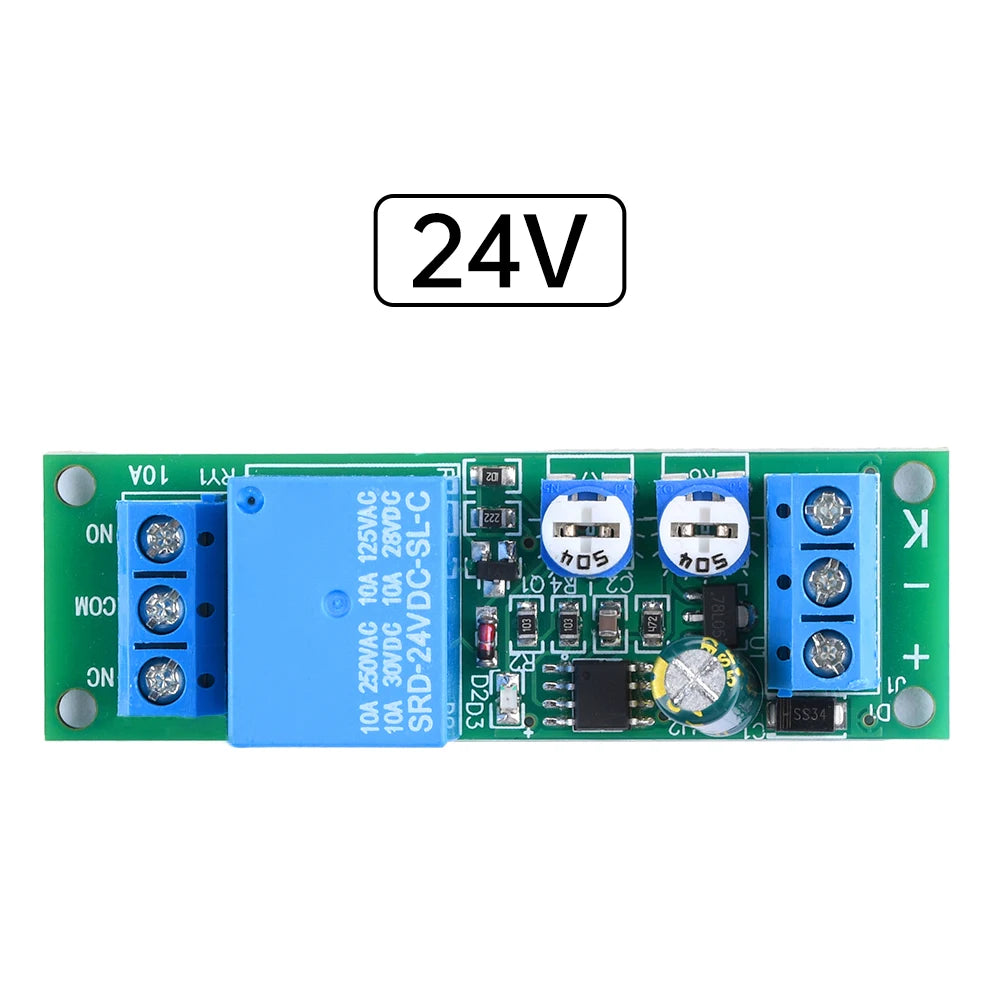

The 24V module allows operation between 20V and 30V.

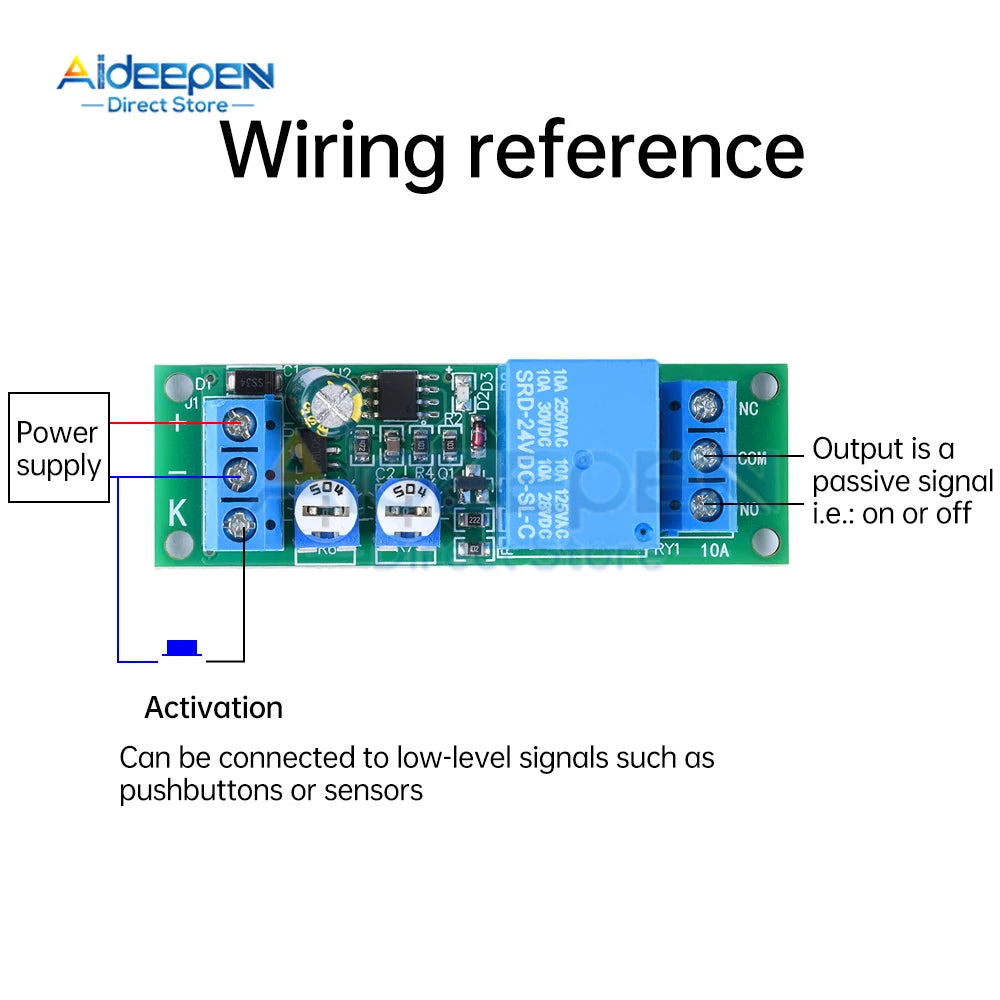

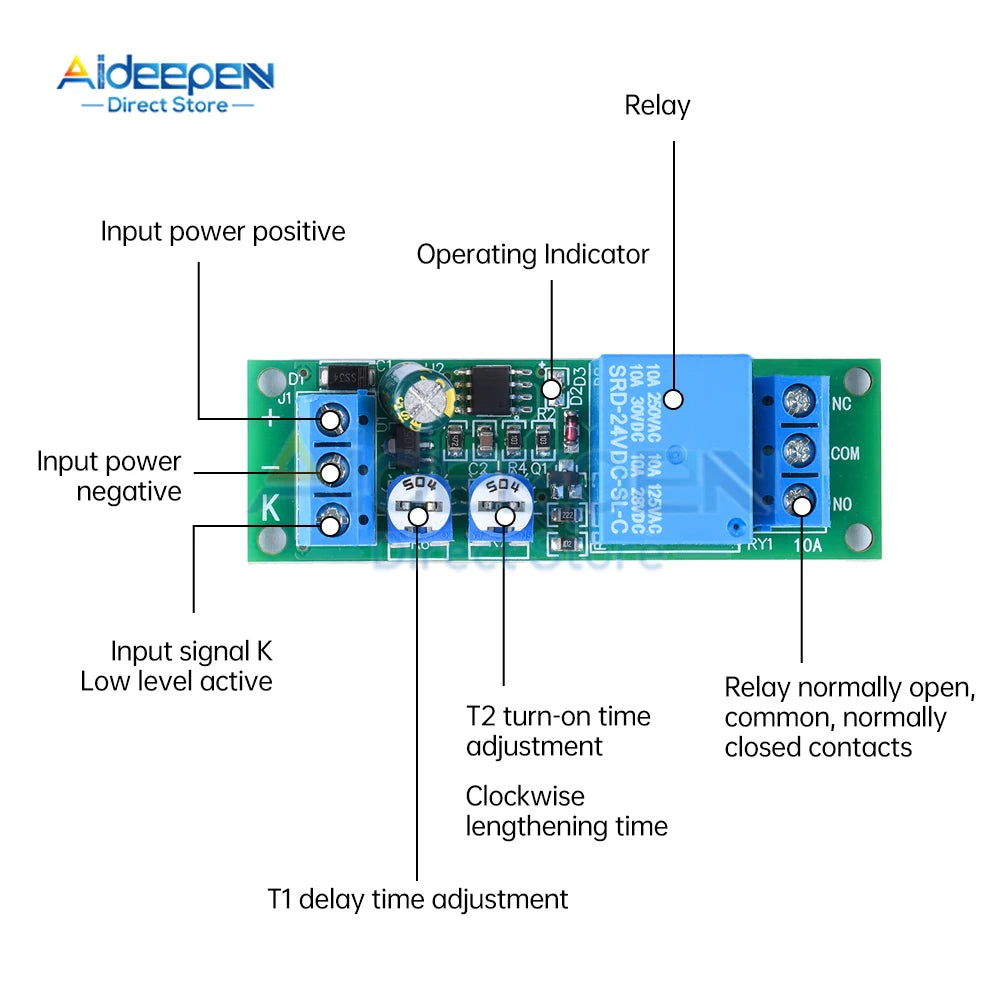

How to connect the wires

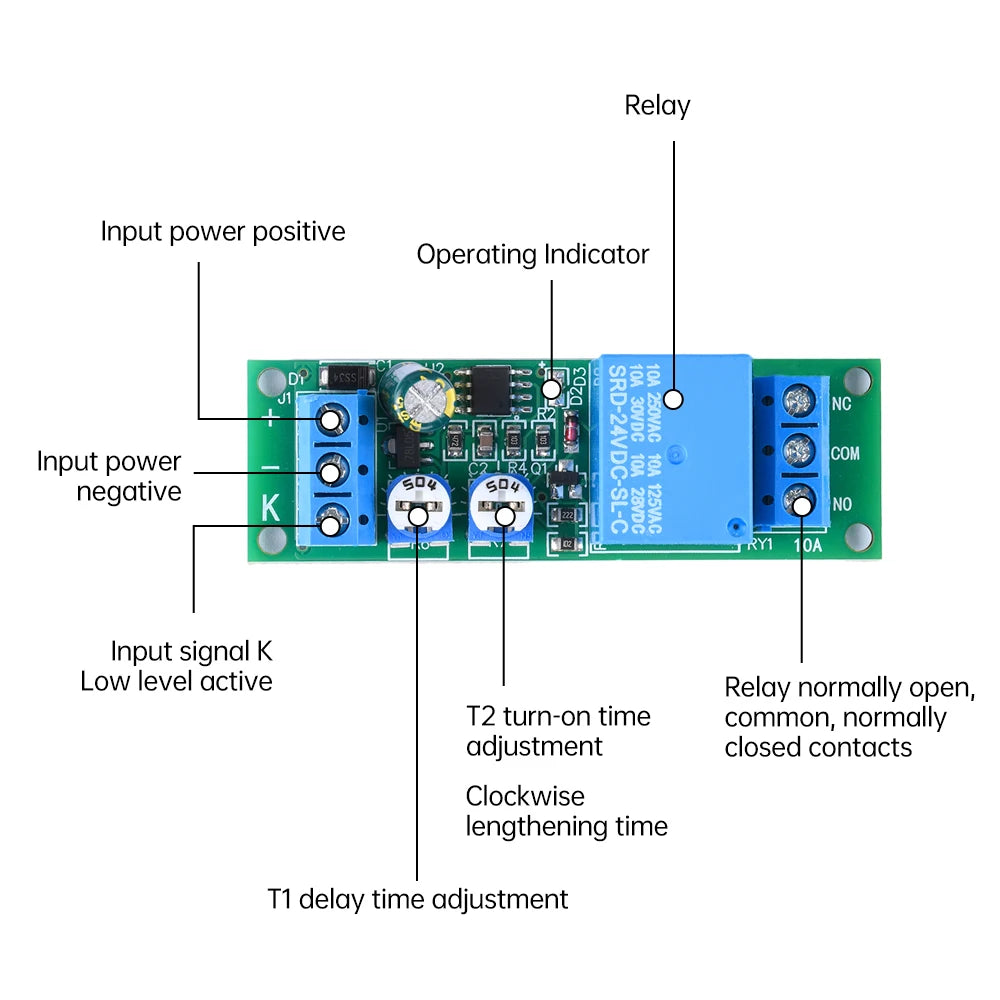

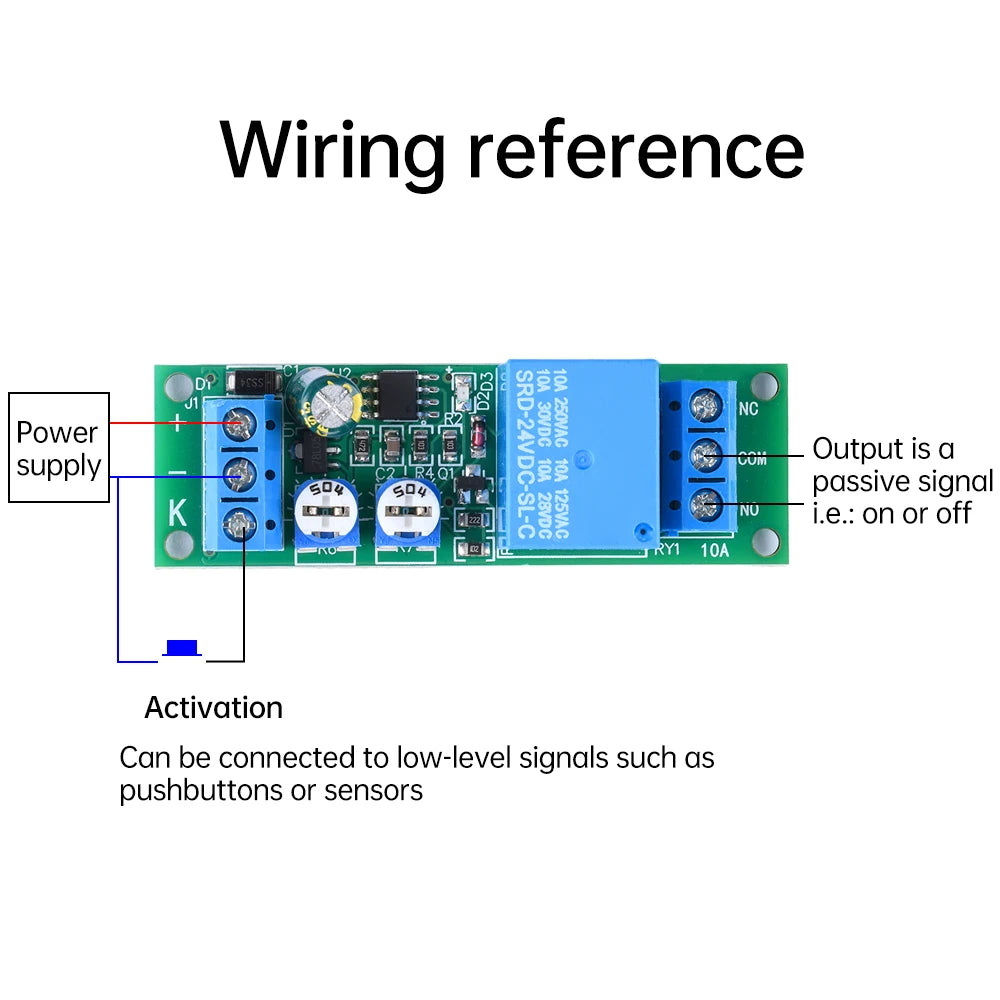

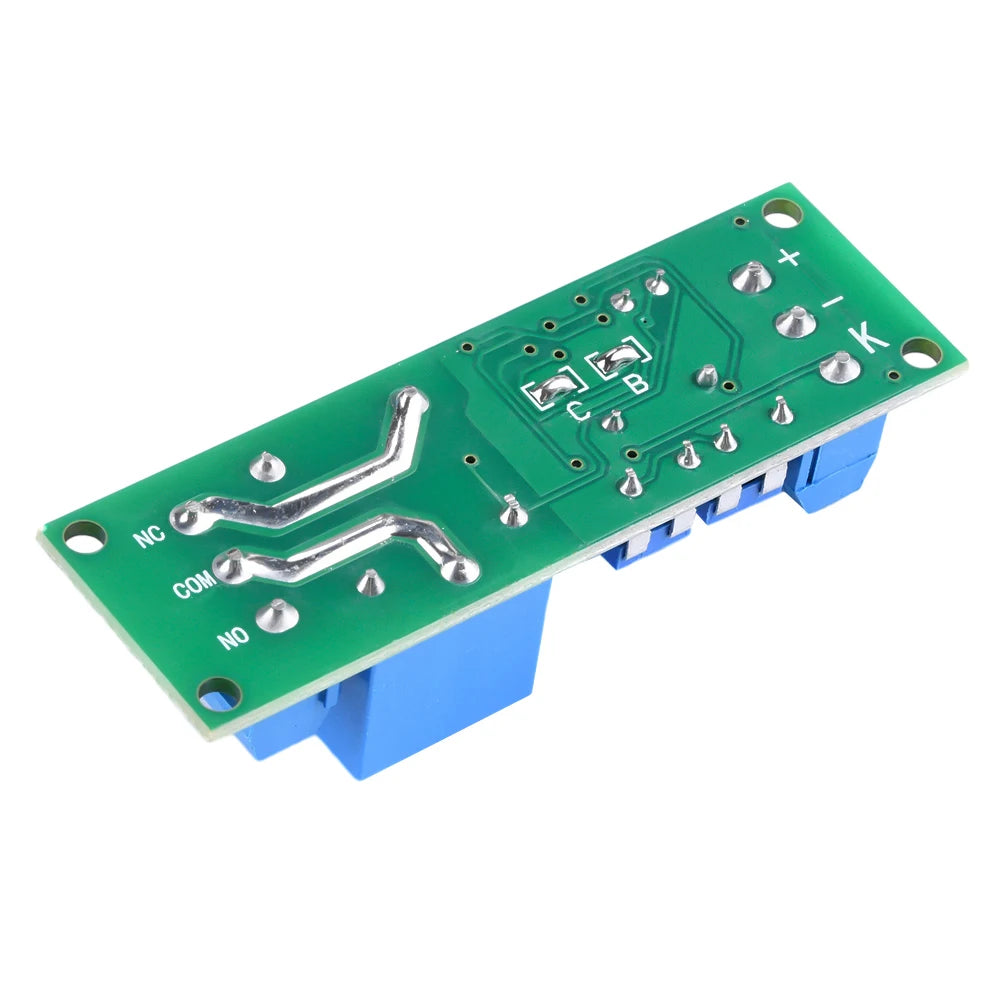

Connect "+" and "" to the corresponding positive and negative poles of the power supply
"K" is the trigger input, and the external switch is connected to "-". When K and - are turned on, a trigger will be generated
NC COM NO represents the normally closed, common, and normally open endpoints of the relay
