SPECIFICATIONS

Brand Name: eletechsup

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Voltage Regulator

is_customized: Yes

Download instruction manual link:
https://1drv.ms/u/s!Av4PLxH_z8f1pnVD-6B0yjRdfaGT?e=7ojEj5
Product Name : DC 5-28V RS485 Modbus RTU 0.36 0.56 inch 4-6 Bit Arabic Numerals English Characters Display Module Digital Tube LED Board

Packing list:

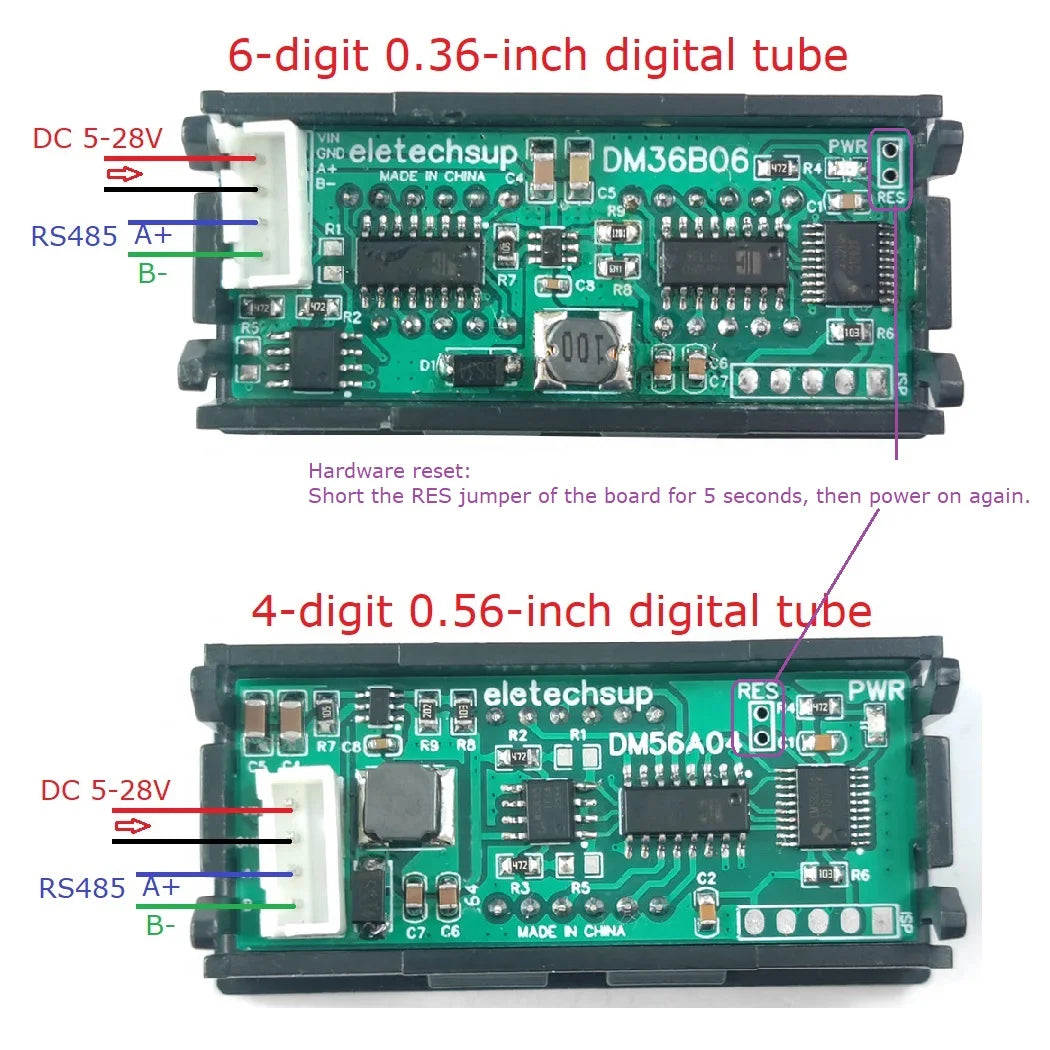

1PCS DM36B06 DM56A04 6-digit 0.36-inch /4-digit 0.56-inch RS485 digital tube Module

Description:

Working voltage: DC 5~28V

Working current: 4.3~42mA (related to the brightness of the digital tube)

MODBUS RTU protocol, 03 read command, 06 or 16 write command.

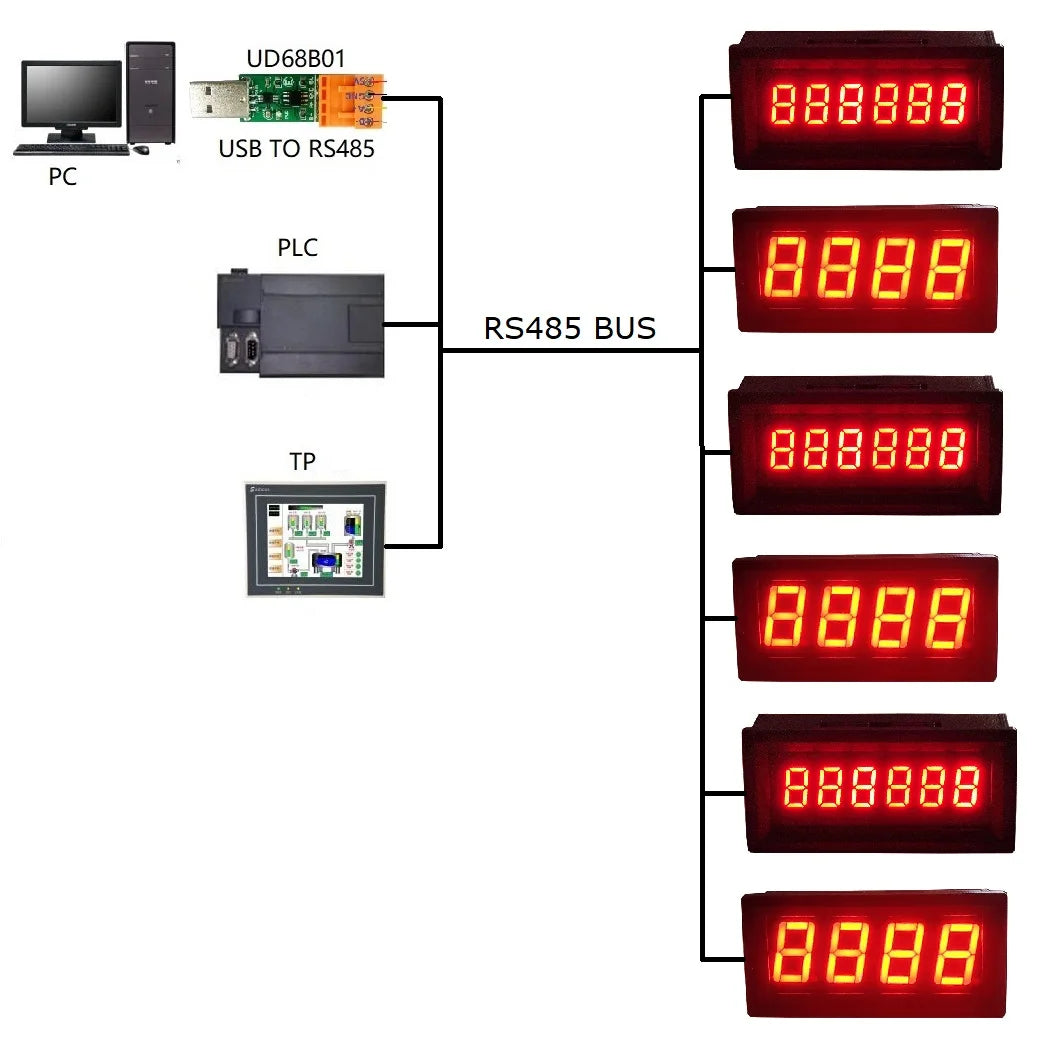

Device address: 1~247, default 1, by modifying the 485 address, up to 247 modules can be used in cascade (more than 32, please use RS485 repeater)

Digital tube color: red

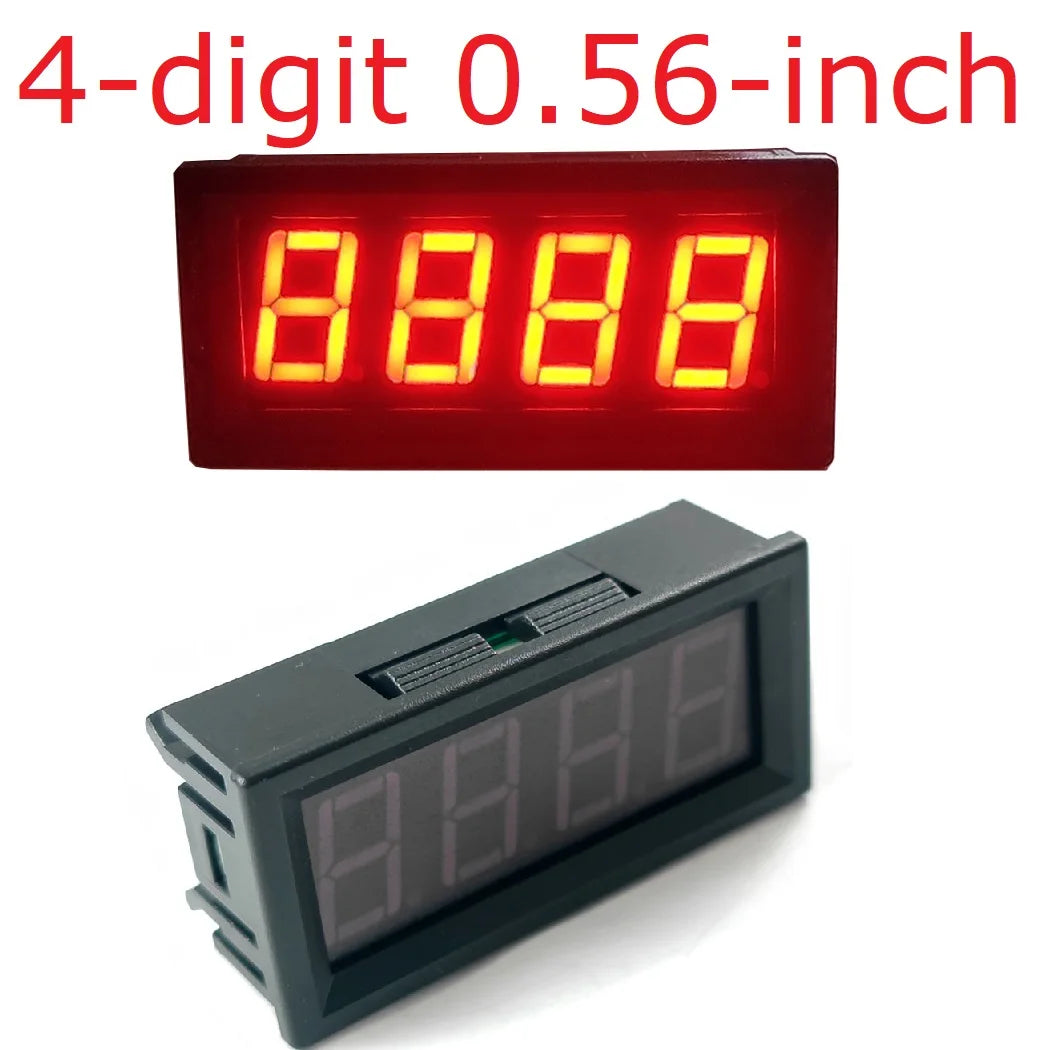

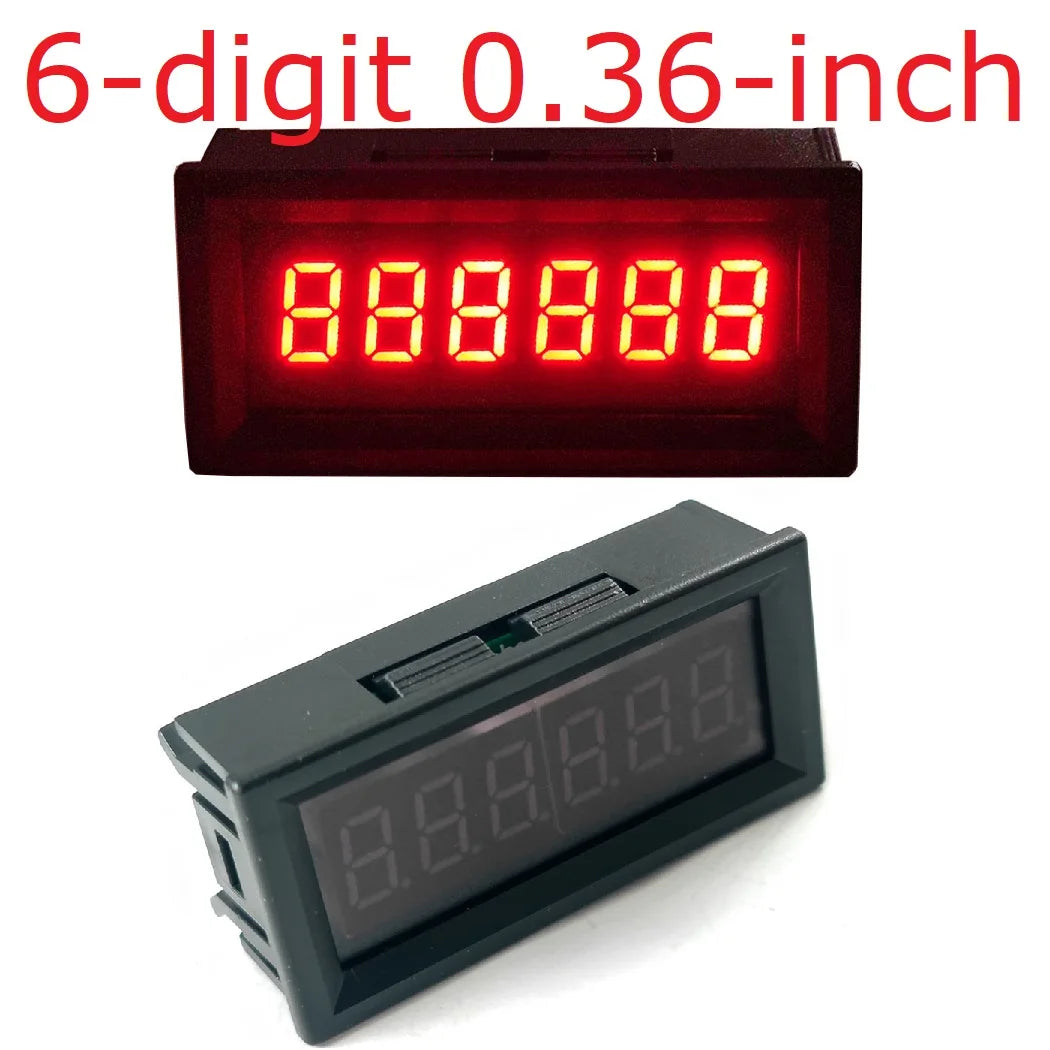

Digital tube tube digits: 6 digits 0.36 inches / 4 digits 0.56 inches

Communication interface: RS485

Function: It can display numbers, ASCII characters, letters, floating-point numbers, negative numbers, etc., and the brightness can be adjusted; it supports electronic label function, and the initial display content can be set after power-on;

Supported baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200

Parity: No parity Even parity Odd parity

Size : 60.2 X 28.7 X 21.7MM

Weight:
6 digits 0.36 inches: 16.5g

4 digits 0.56 inches :20g

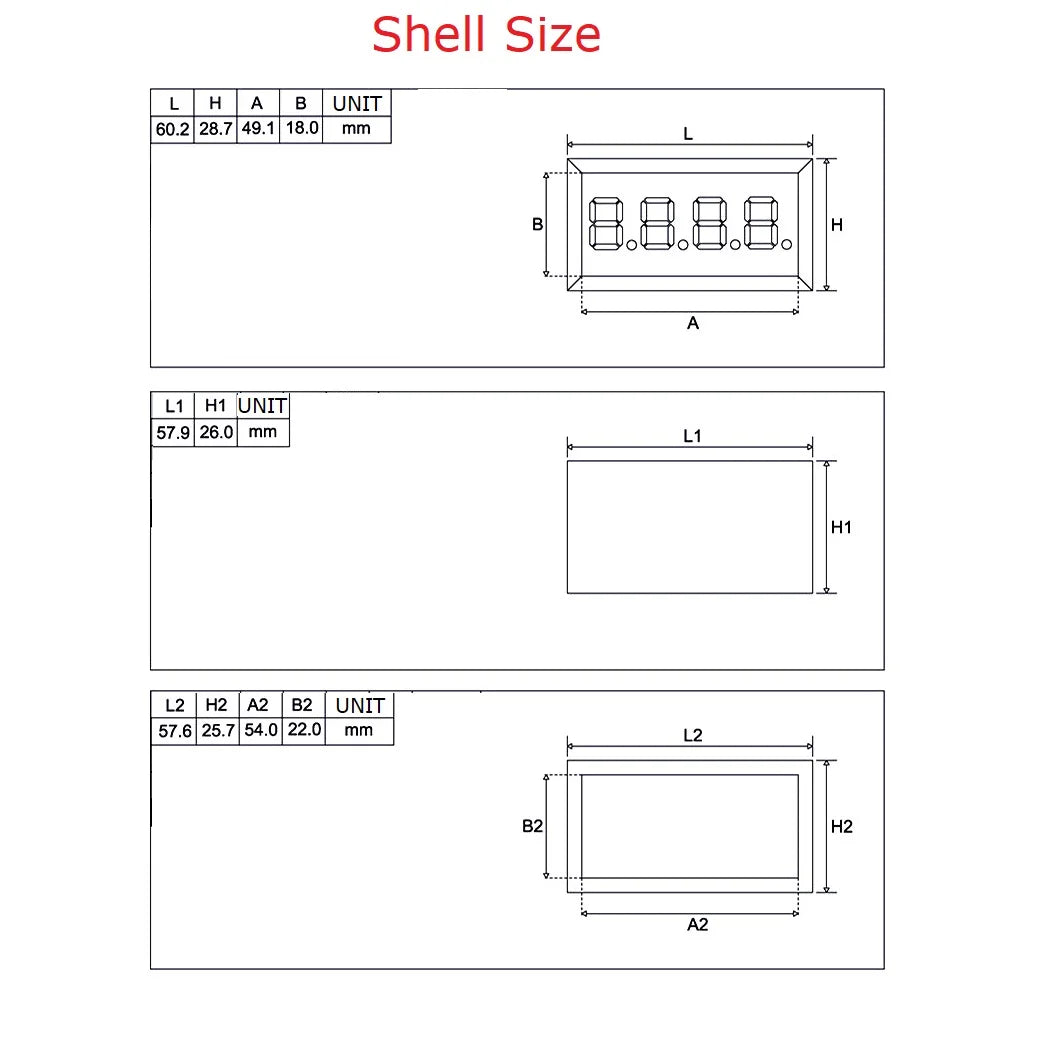

Shell Dimensions:

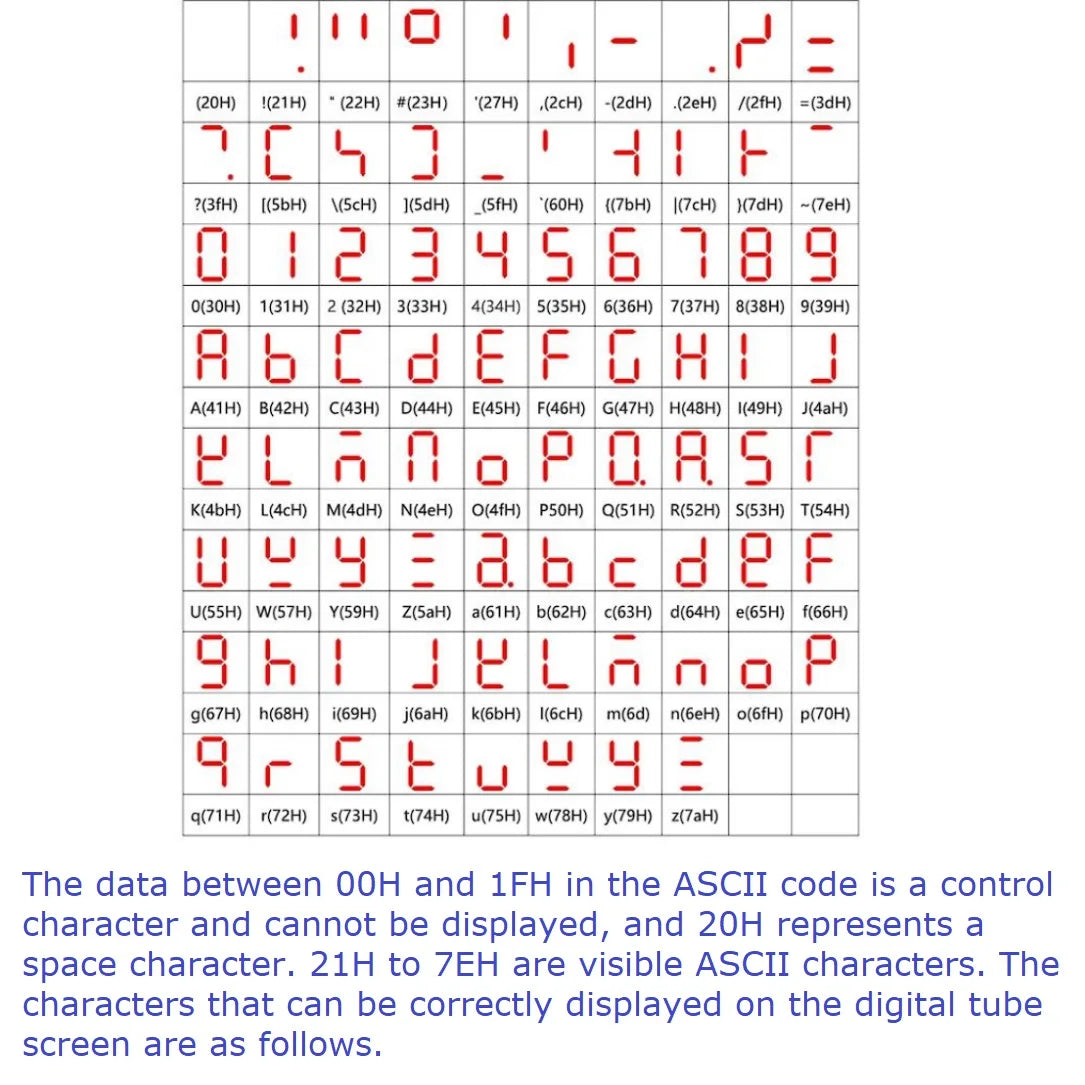

Characters that can be displayed:
