SPECIFICATIONS

Brand Name: Aideepen

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

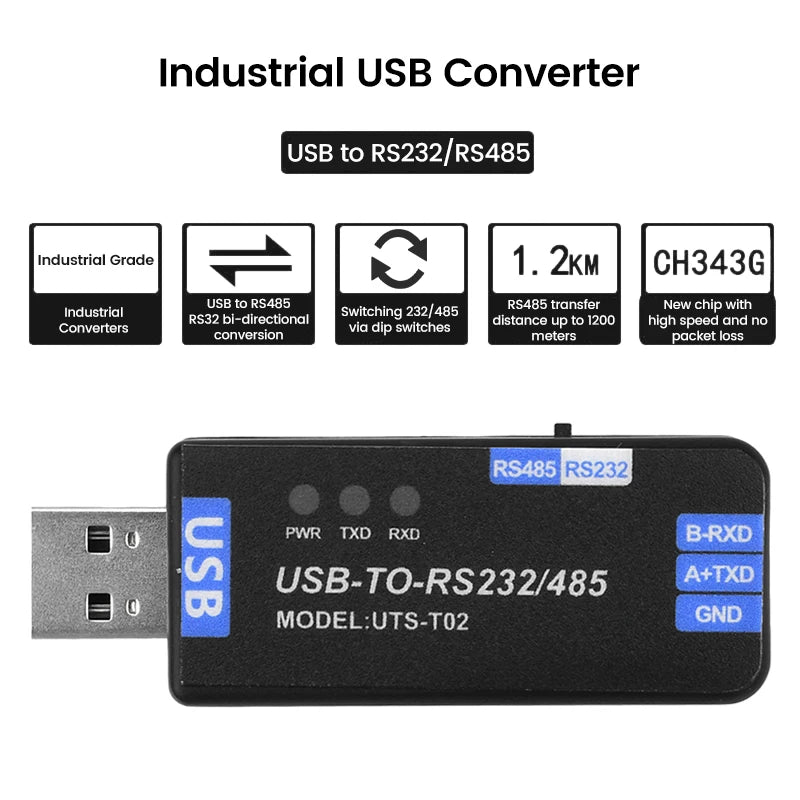

Features:

1. Supports USB to RS485/RS232 communication (switchable via DIP switch).

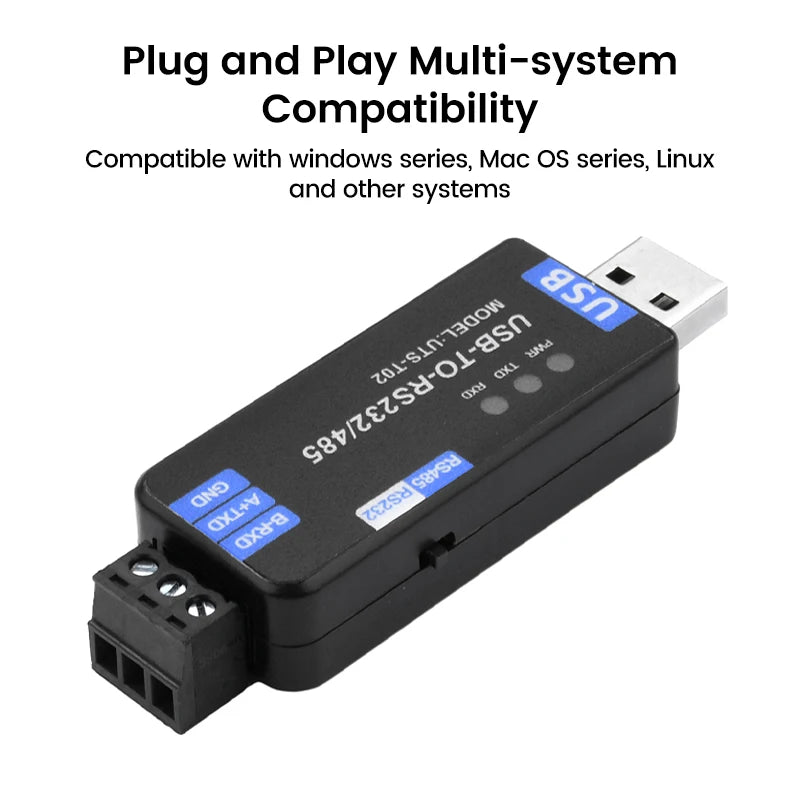

2. Utilizes the new CH343G chip for plug-and-play operation, compatible with Windows, macOS, Linux, and other systems.

3. On-board TVS (Transient Voltage Suppressor) effectively suppresses surge voltages and transient spikes in the circuit, providing lightning and static protection.

4. Onboard self-resetting fuse and protection diode ensure stable current and voltage output, prevent overcurrent/overvoltage, and enhance surge resistance.

5. Three onboard LED indicators facilitate monitoring of power and signal transmission status.

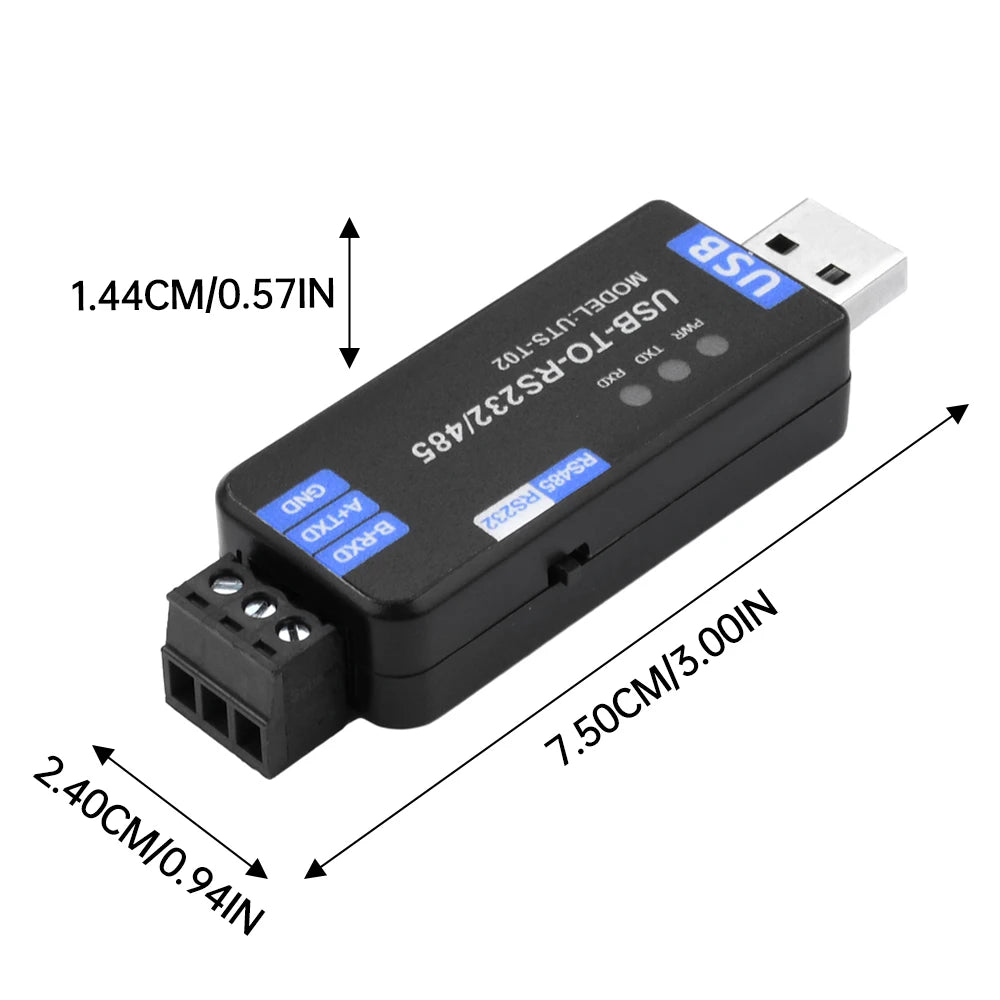

Product Specifications:

Product Type: Industrial-grade USB to RS485/232 Converter

Communication Rate: 50bps~1000000bps

Host Interface: USB

Device Interface: RS485/RS232 (switchable via DIP switch)

USB Interface:

Operating Voltage: 5V

Interface Type: USB Type-A

Interface Protection: 200mA resettable fuse, ESD protection

Transmission Distance: Approx. 5 meters

RS485/RS232 Interface:

Interface Type: Terminal blocks

Pinout: GND, A+ (TXD), B- (RXD)

Direction Control: Hardware auto-detection and control of data transmission direction

Interface Protection: Provides 600W lightning protection, surge protection, and 15KV ESD protection (on-board 120Ω balanced resistor)

Transmission Distance: RS485 (approx. 1200 meters), RS232 (approx. 10 meters) at low data rates

Transmission Mode: Point-to-multipoint (up to 32 nodes; repeater recommended for 16+ nodes). RS232 (point-to-point; one device per port; repeater required for multiple connections).

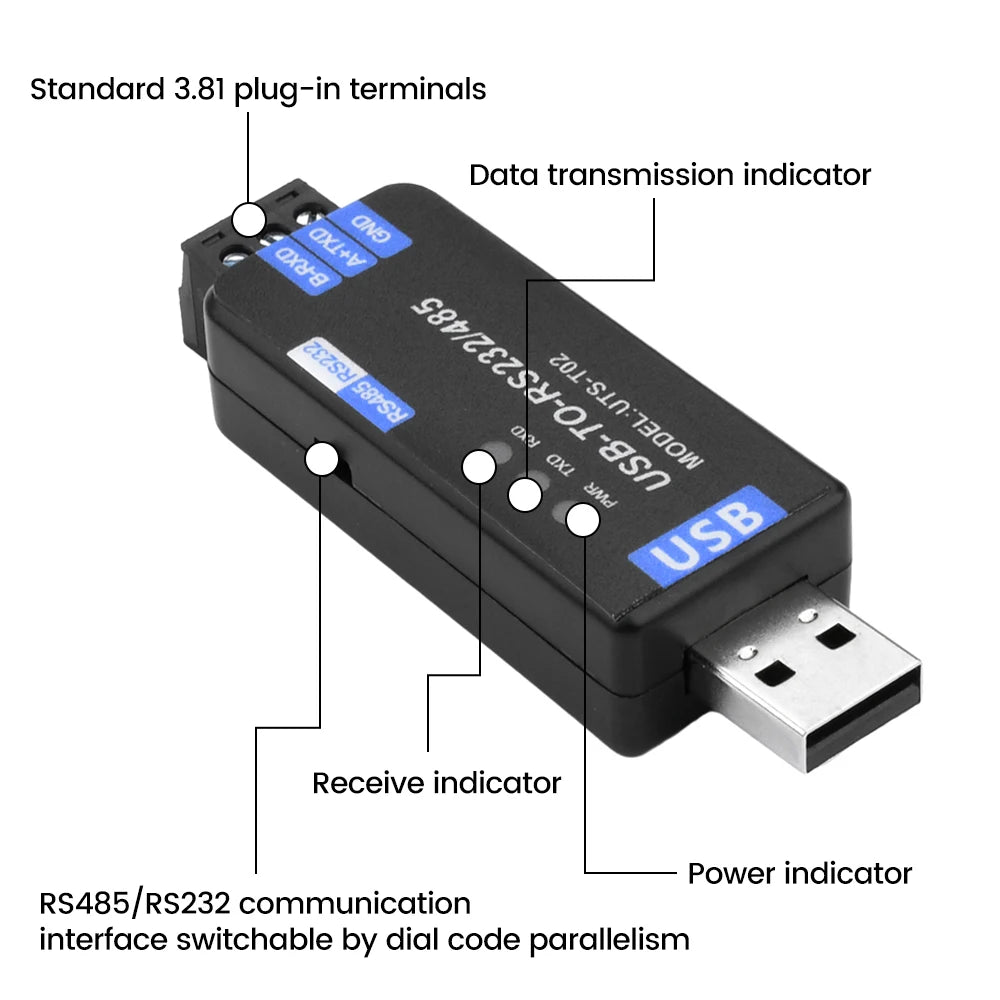

Indicator Lights:

PWR: Power indicator. Lights up when USB connection detects voltage.

TXD: Transmission indicator. Lights up when data is sent from USB port.

RXD: Receive indicator, illuminates when data is received via USB

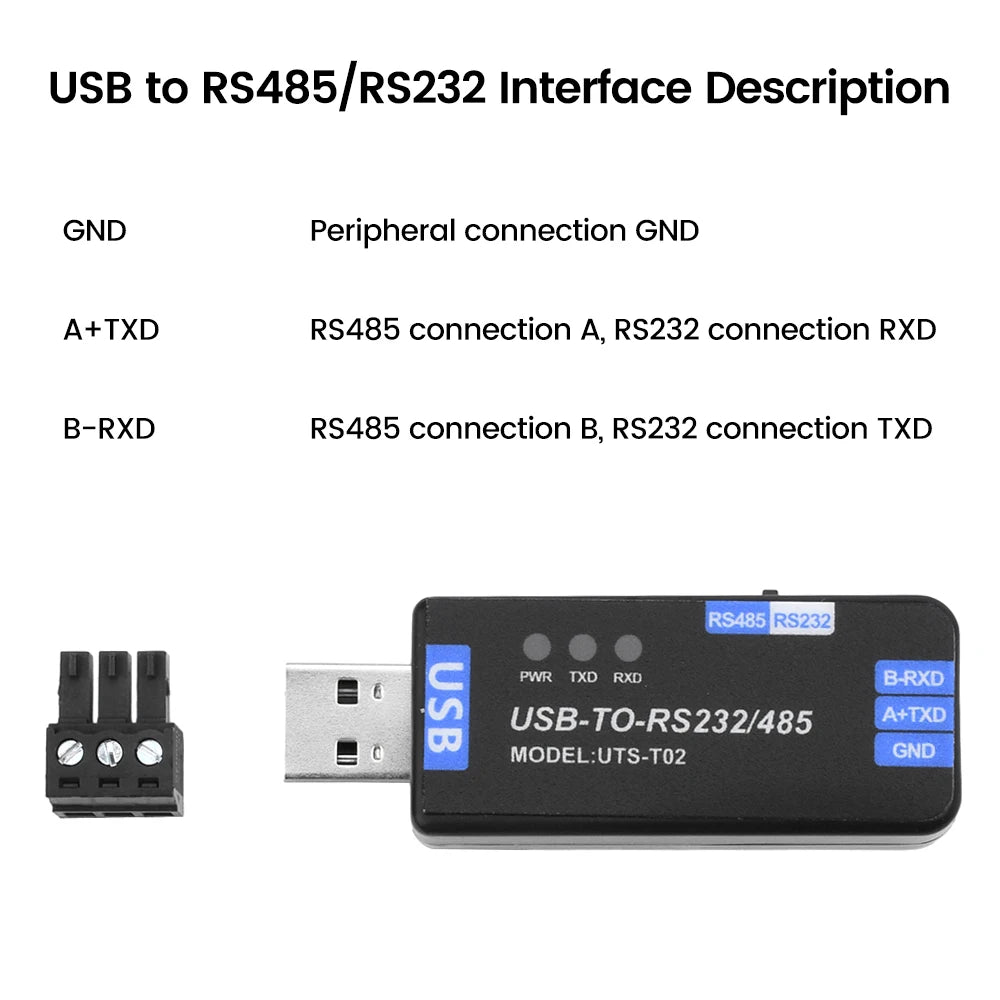

USB to RS485/RS232 Interface Description:

GND: Peripheral connection ground

A+TXD: Connects to RS485 Line A or RS232 Line RXD

B-RXD: Connects to RS485 Line B or RS232 Line TXD

Product Listing:

1X Module
