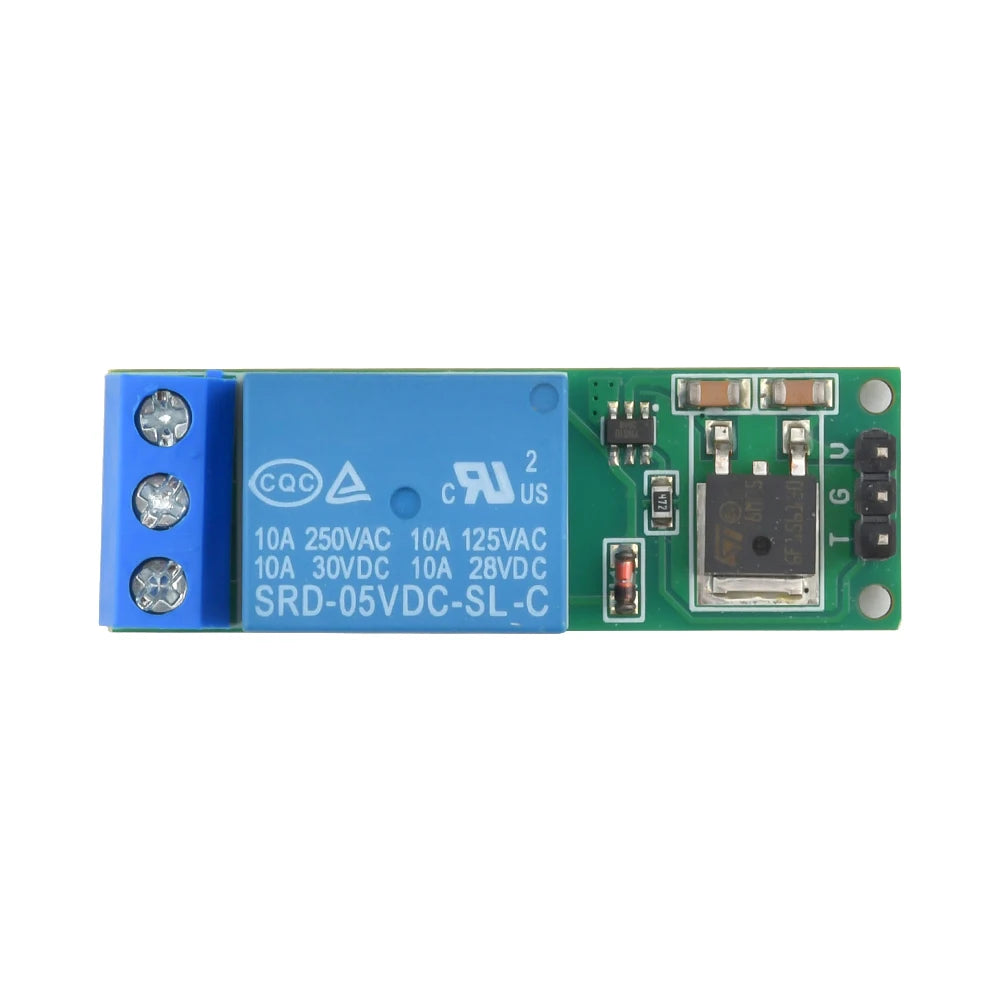

DC 6V 9V 12V 24V Flip-Flop Latch Relay Module 1 Channel Bistable Self-locking Switch Low Pulse Trigger Board for Arduino

DC 6V 9V 12V 24V Flip-Flop Latch Relay Module 1 Channel Bistable Self-locking Switch Low Pulse Trigger Board for Arduino

$11.84

$11.84 $0.00

Description

SPECIFICATIONS

Brand Name: Gaqqee

Certification: CE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

GND: Negative power supply (GND)

High-concerned chemical: none

Load current: AC 250V/10A, DC 30V/10A

Model Number: IO25B01 1 Channel Self-locking Relay

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Standby current: 1UA

T: low pulse trigger

Theory: Electromagnetic Relay

Trigger Mode: Low Pulse Trigger

Use: AUTO

VCC: positive power supply (VCC)

Voltage: 24V

Working current: 60-70MA

Working voltage: DC 6-24V

is_customized: no

semi_Choice: yes

DC 6V 9V 12V 24V Flip-Flop Latch Relay Module 1 Channel Bistable Self-locking Switch Low Pulse Trigger Board for Arduino

Features:
1. Exquisite and compact appearance
2. Application scenarios: automotive electronic equipment, industrial equipment, engine, light-emitting diode, smart home, emergency lighting, MCU development board, toy car, etc.
3. Using high-quality materials, the quality is guaranteed
4. Simple and easy to use

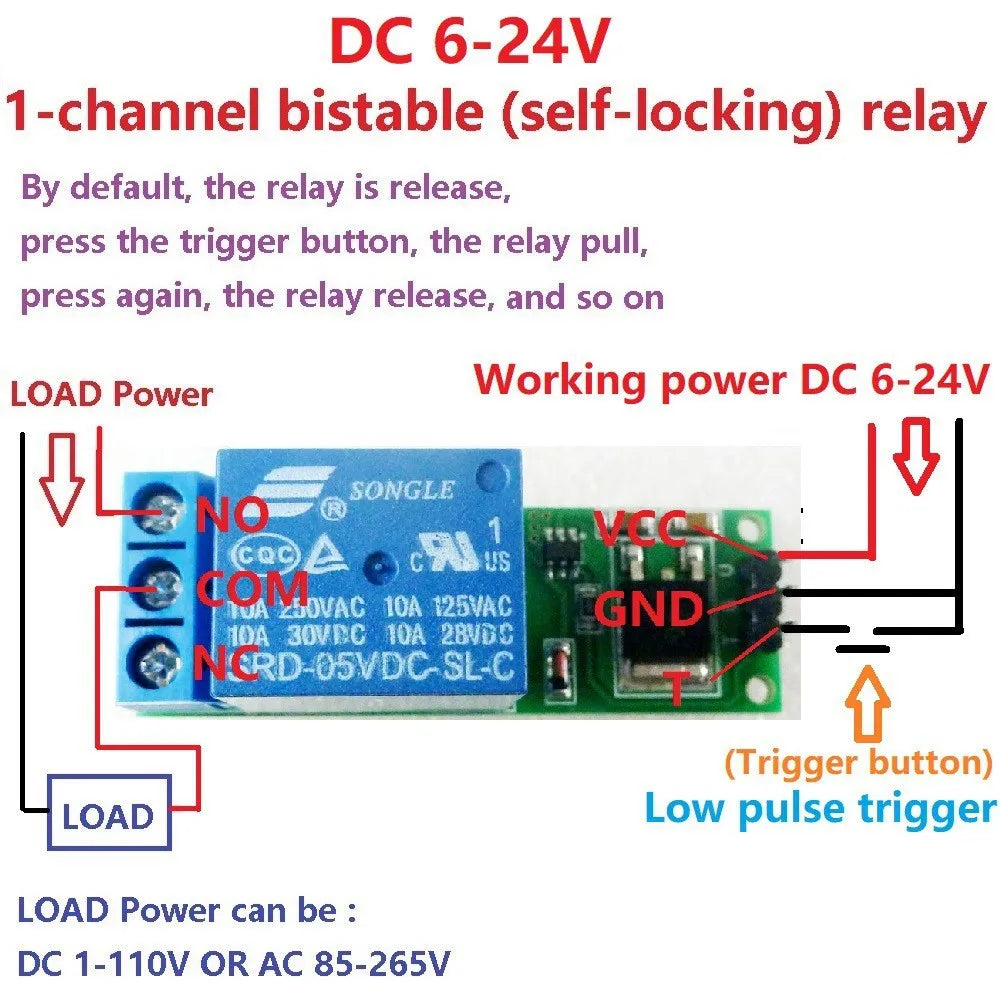

5. This is a bistable (self-locking) relay module

Specifications:
Working voltage: DC 6-24V
Working current: 60-70MA
Standby current: 1UA
Load current: AC 250V/10A, DC 30V/10A
Trigger Mode: Low Pulse Trigger
VCC: positive power supply (VCC)
GND: Negative power supply (GND)
T: low pulse trigger

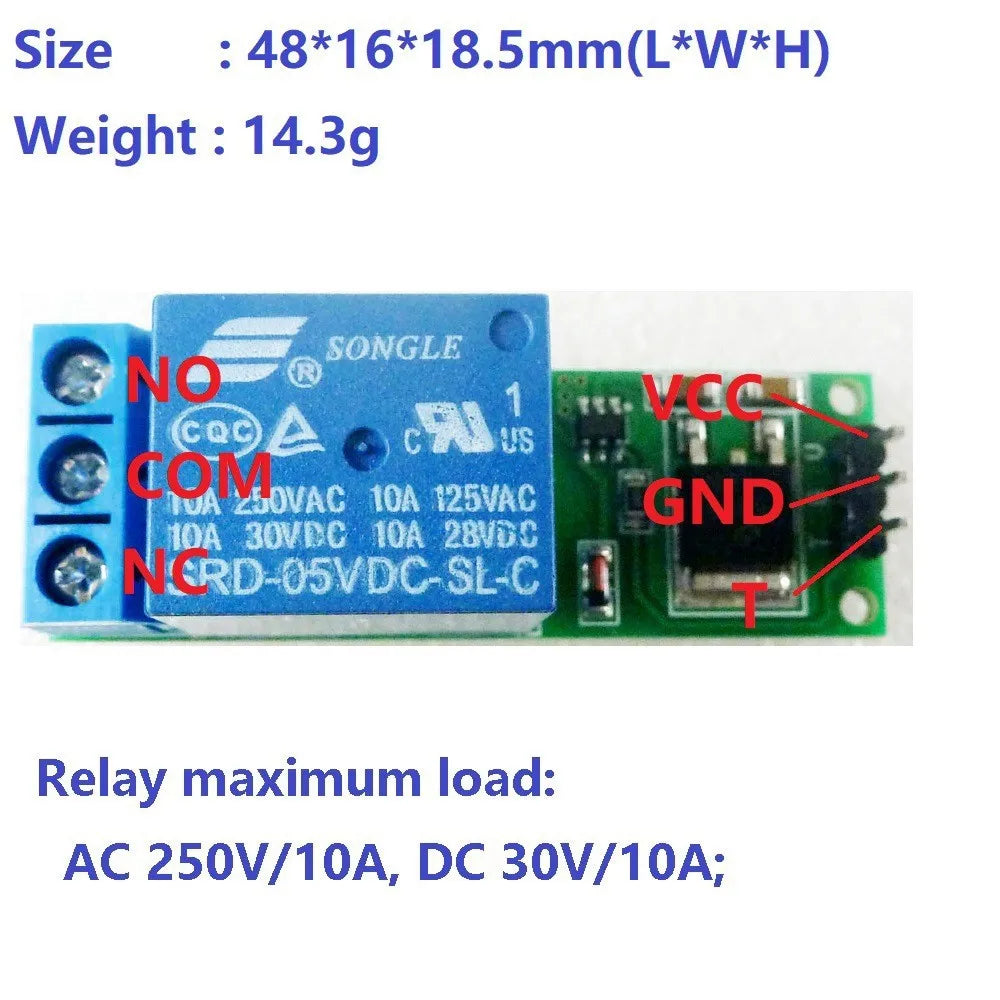

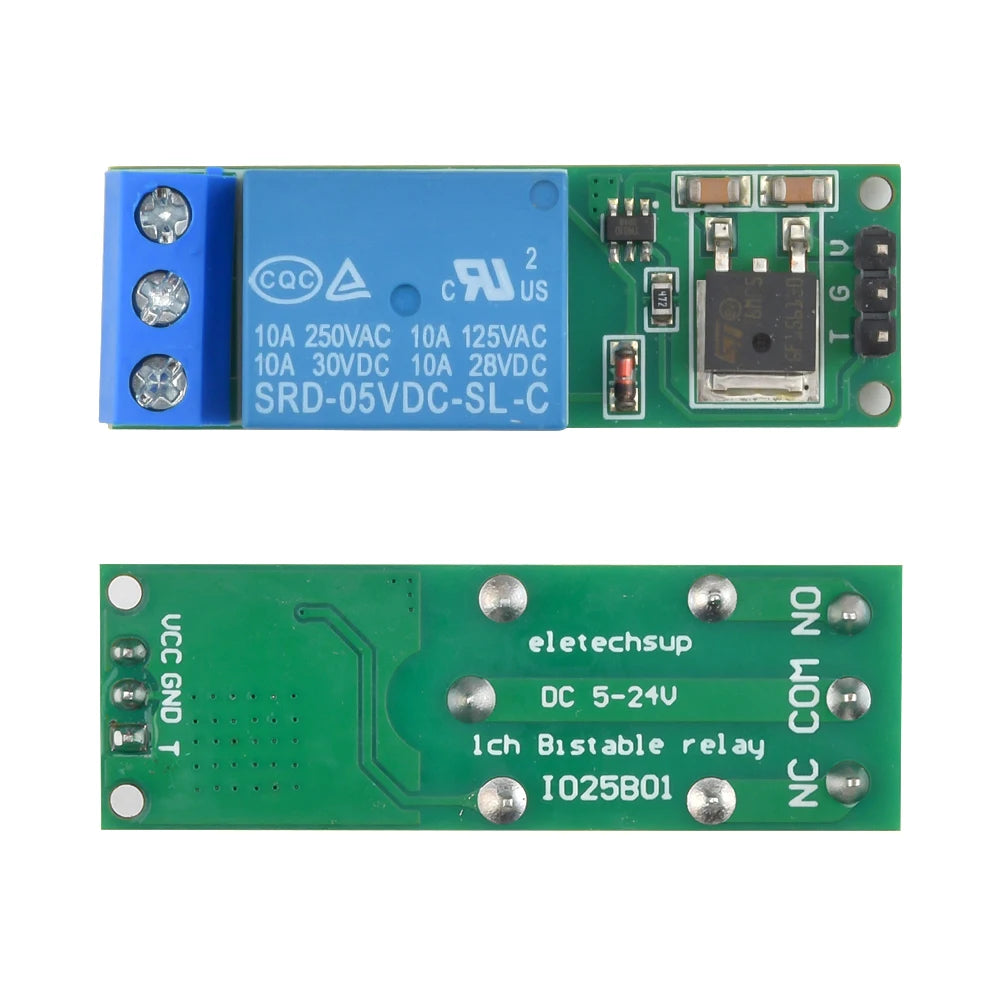

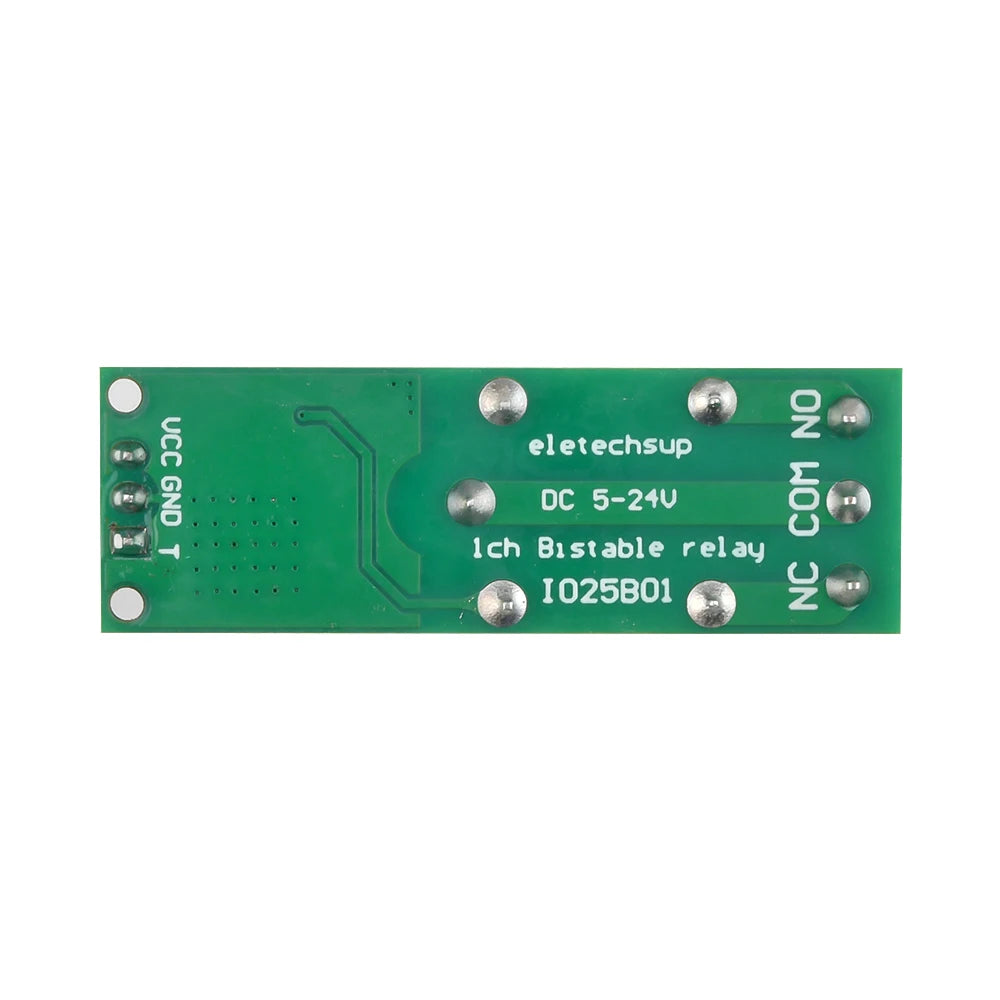

Module Interface:
VCC: positive power supply (VCC)
GND: Negative power supply (GND)
T: low pulse trigger
Relay output:
No: normally open relay interface
COM: Common Interface Relay
NC: normally closed relay interface

Package Included:
Latching Relay Module X1
