SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: IO25B01

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Electromagnetic Relay

Use: General Purpose

is_customized: Yes

semi_Choice: yes

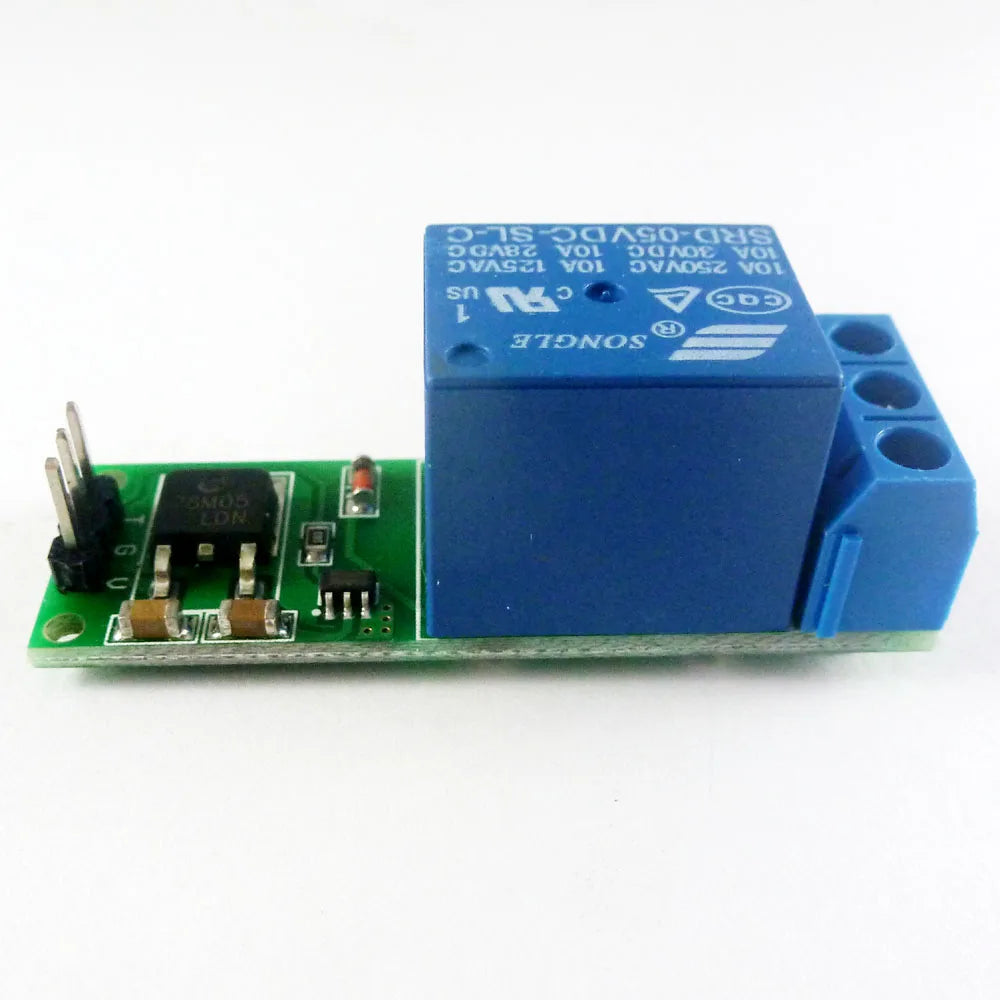

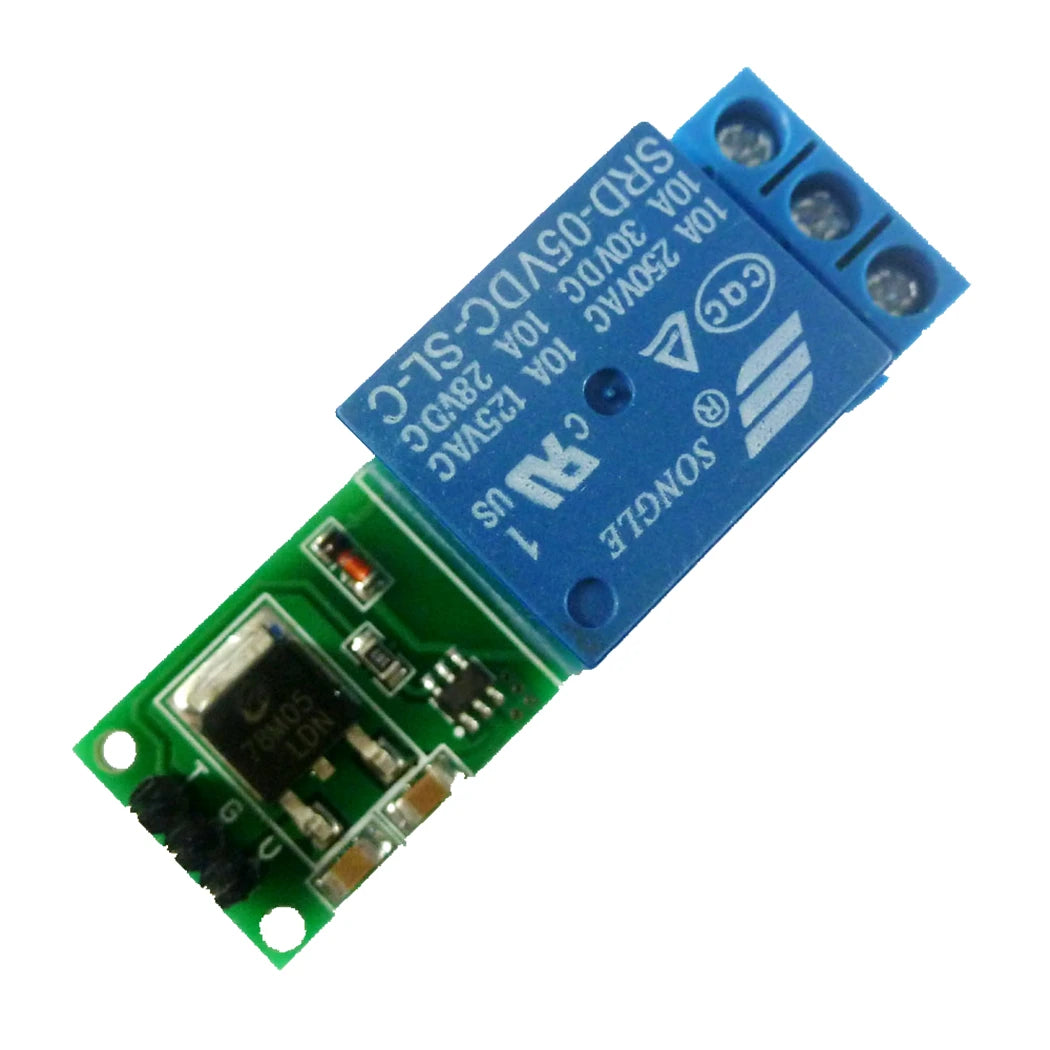

Product Name : 1PCS / 4PCSDC 6V 9V 12V 24V Flip-Flop Latch Relay Module Bistable Self-locking Switch Low pulse trigger Board for Arduiuo Smart home LED

Packing list:

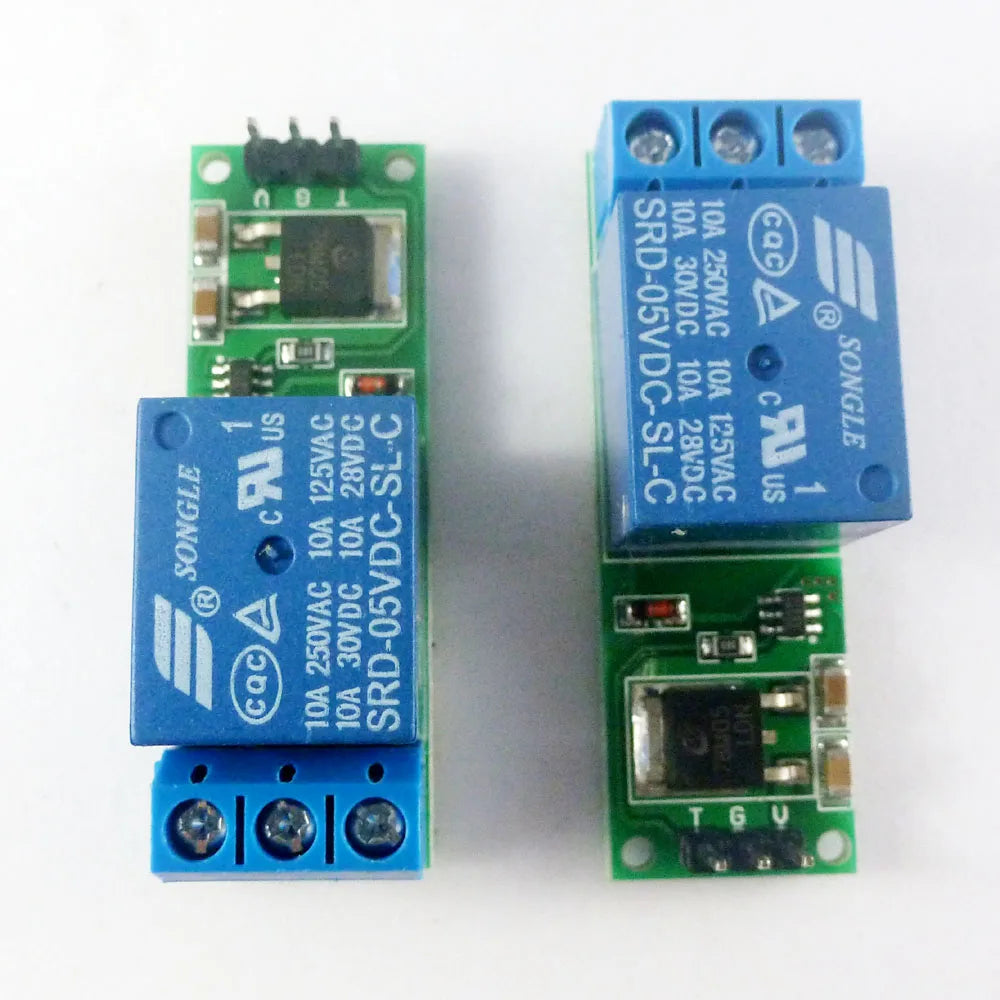

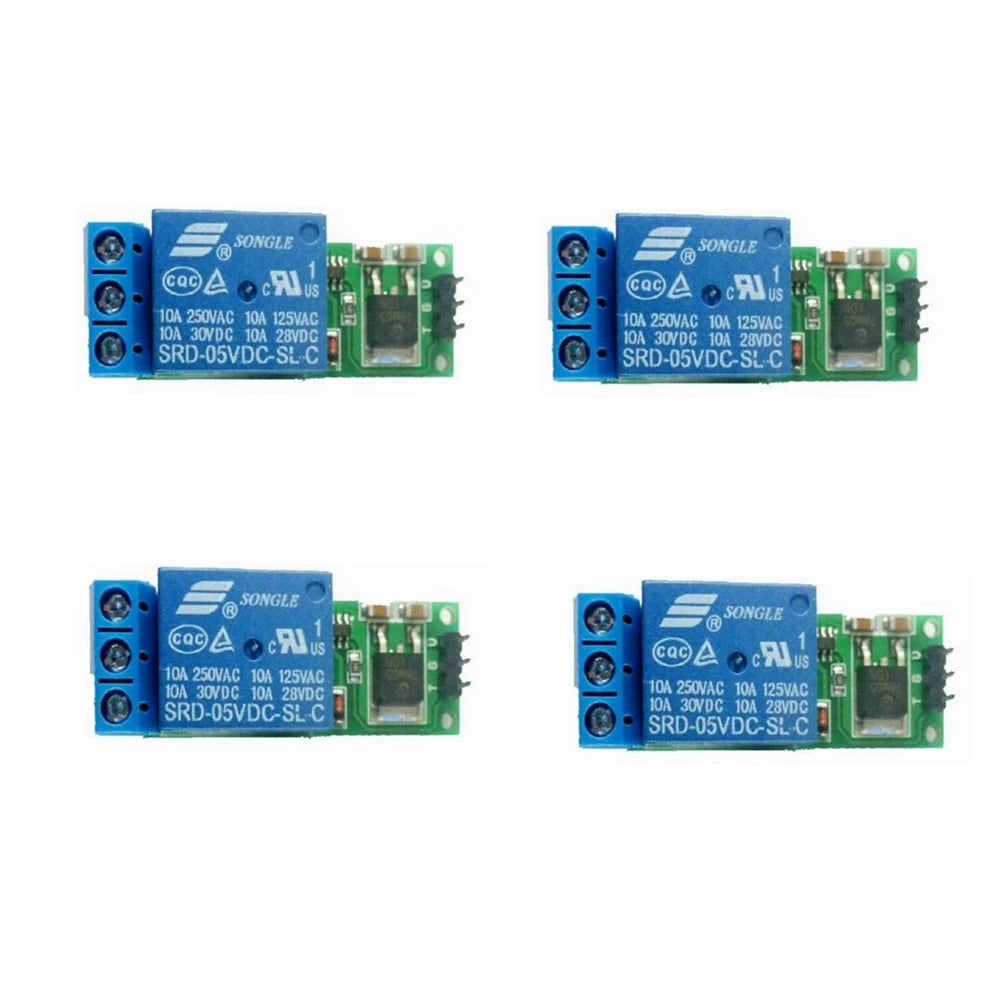

1PCS / 4PCS 1 Channel DC 6V 9V 12V 24V Self-locking Relay Module
(Specific according to the version and quantity you choose)

If you need 5V version, click here

Description:



Working voltage: DC 6-24V

Working current: 60-71MA

Standby current: 2UA

Load current : AC 250V/10A, DC 30V/10A

Trigger mode: Low pulse trigger

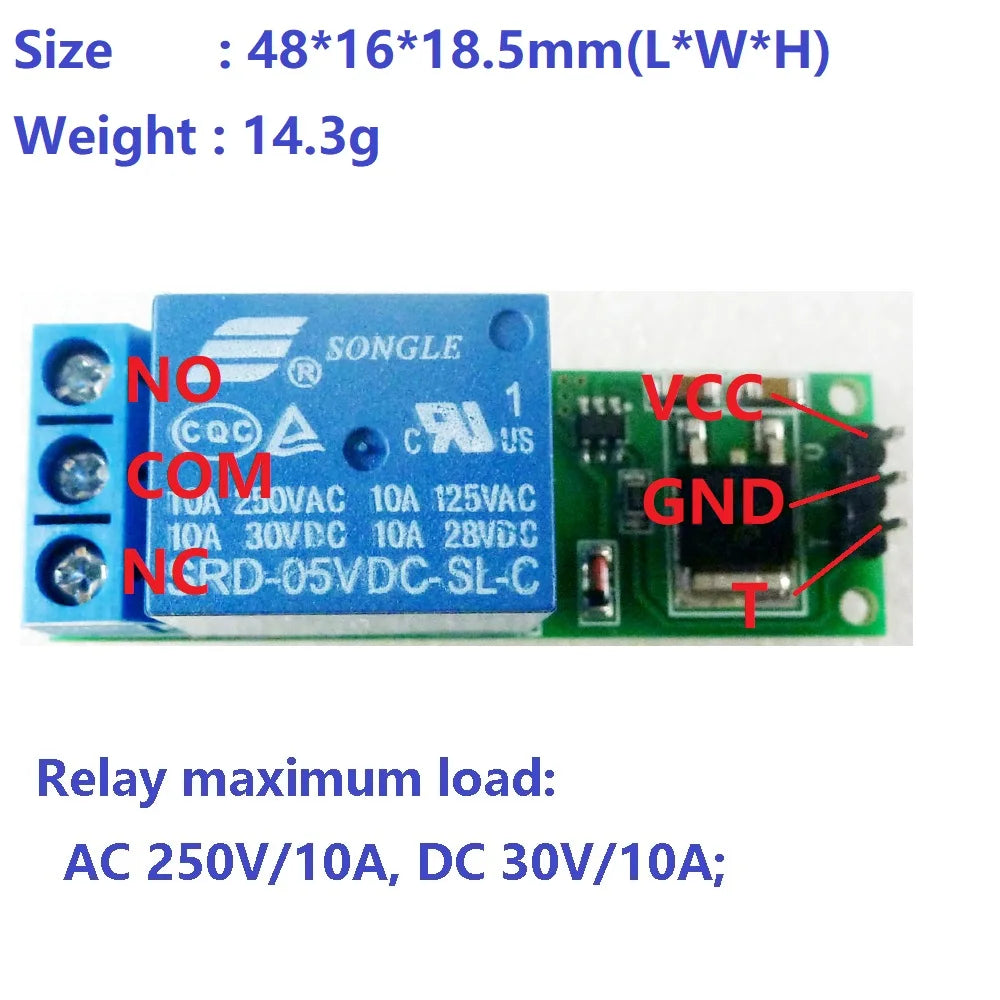

Size: 48mm * 16mm * 18.5mm (L * W * H), Very small size

Weight: 14.3 g



This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

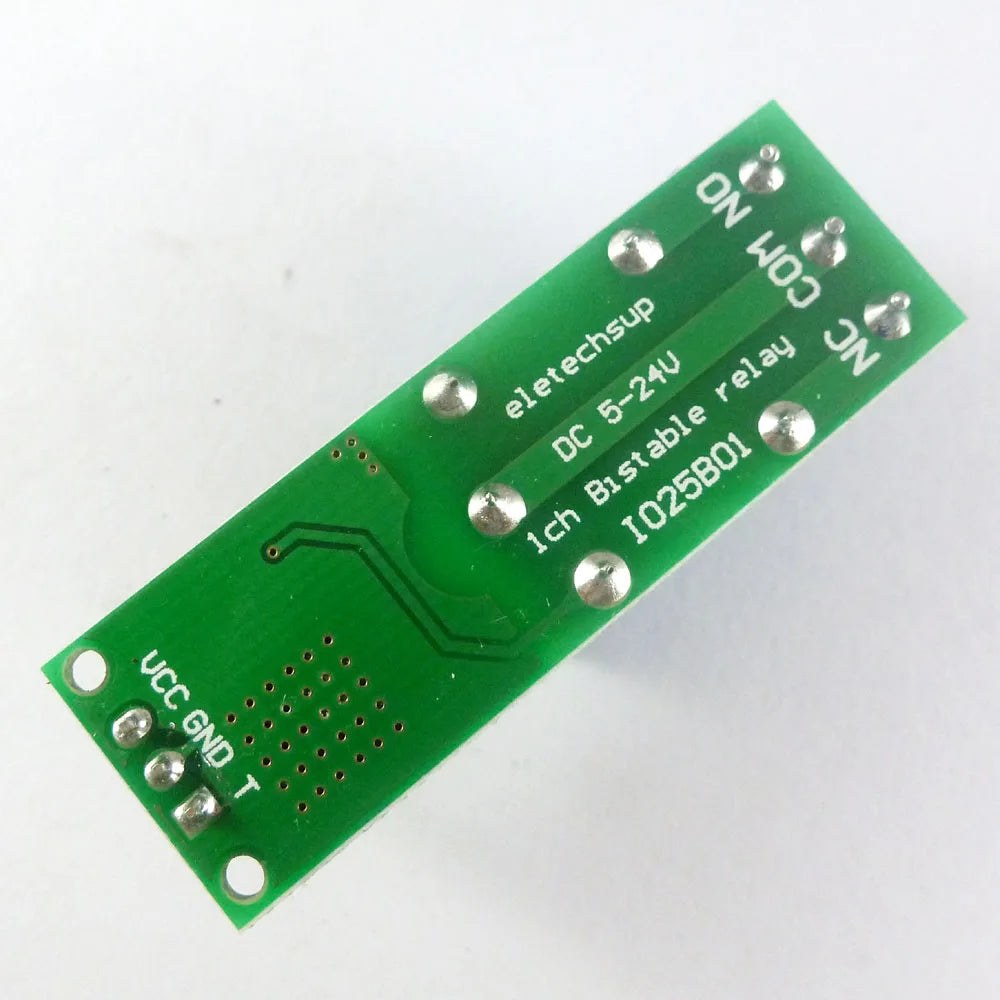

Module interface:

1. VCC: positive power supply (VCC)

2. GND: negative power supply (GND)

3. T : Low pulse trigger



Relay outputs:

1. NO: normally open relay interface

2. COM: Common Interface Relays

3. NC: normally closed relay interface

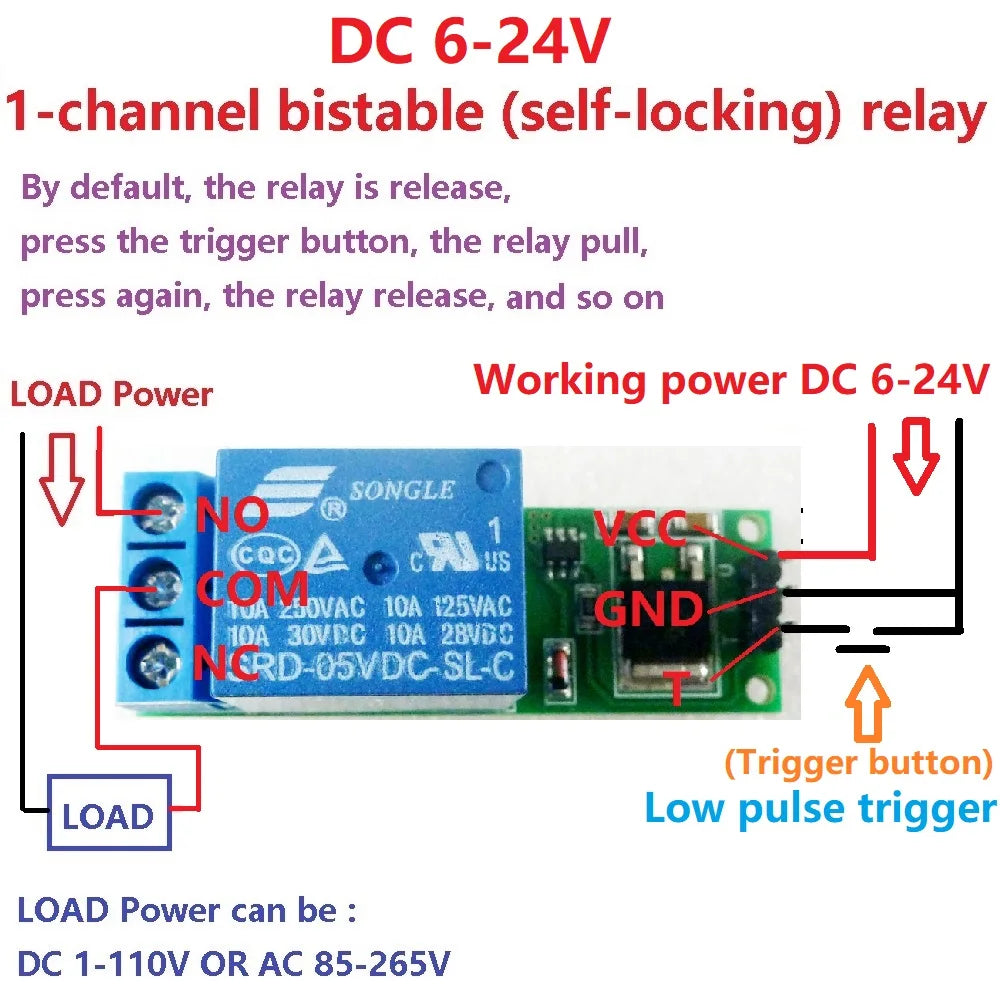

USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on



Typical applications:

Automotive electronics

Industrial equipment

Motor

LED

Smart Home

Emergency lighting

MCU development board

Toy car
