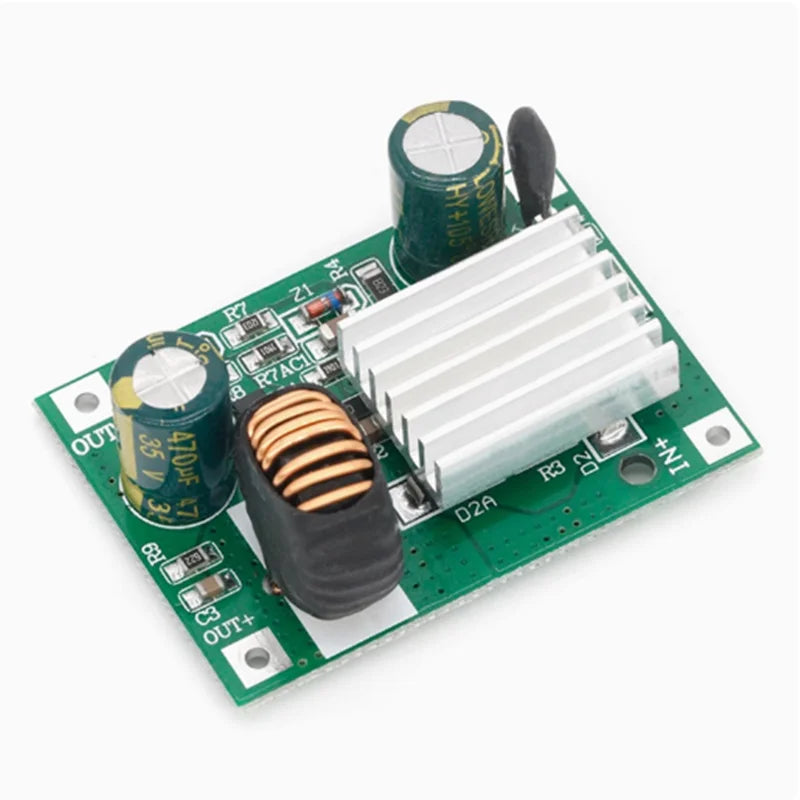

DC 9-120V 100V 96V 84V 72V 24V to 5V 12V 3A Step Down Module Power Supply DC DC Converter Buck Converter Step Up Converter
12V
$12.48
Sale price
$12.48
Regular price
$0.00
Skip to product information
DC 9-120V 100V 96V 84V 72V 24V to 5V 12V 3A Step Down Module Power Supply DC DC Converter Buck Converter Step Up Converter
$12.48
Sale price
$12.48
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
High-concerned chemical: none
Origin: Mainland China
Output Current: 3A
Output Type: SINGLE
Type: DC/DC Converters
semi_Choice: yes
Description :
Wide input voltage: 9v-120v
The minimum voltage difference between the input voltage and the output voltage is 4V (the input voltage is dc9v-120v when the output voltage is 5V, and the input voltage is dc16v-120v when the output voltage is 12V)
Output voltage 12v/5v is optional (please contact the customer for other voltages)
The maximum output current is 3A (that is, the constant current value is 3a. When the customized voltage is greater than 12V, the output current is less than 3a, and the power is not recommended to exceed 30W)
Typical working frequency: 140khz
High efficiency: up to 95% (the smaller the differential pressure, the higher the efficiency)
Reduce the frequency of light load and improve the efficiency of light load
Low standby current
Built in over temperature, over-current and output short-circuit protection
Built in soft start
Constant voltage and constant current output
Working temperature: industrial grade (-40 ℃ to +85 ℃)
Module volume: 40*30*19mm
