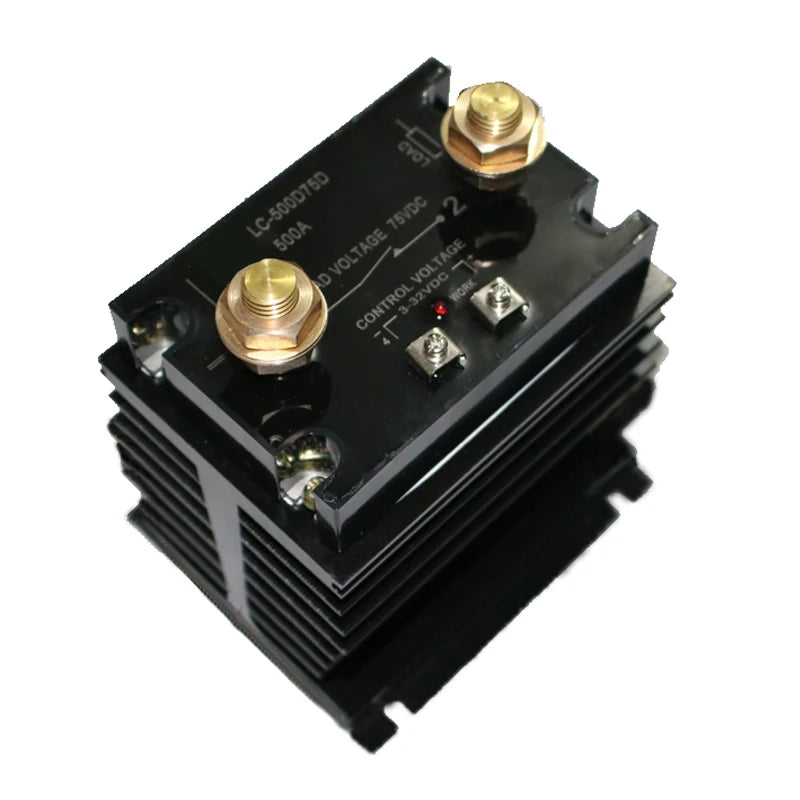

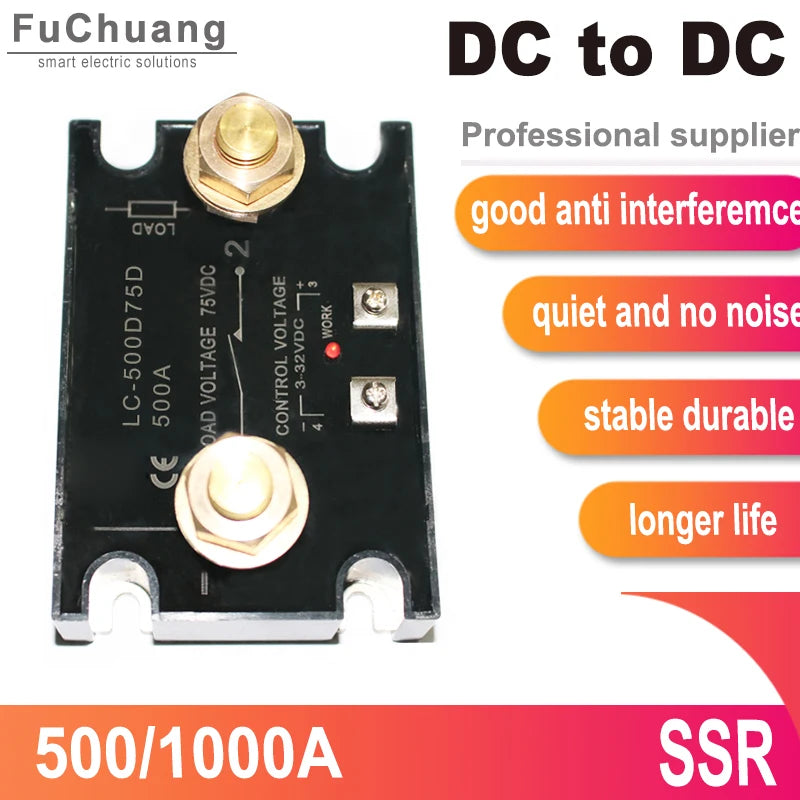

DC Control DC Solid State Relay 3-32VDC Control 75VDC Load Voltage High Current 500A 1000A with Heat Sink Raditor High Power SSR

DC Control DC Solid State Relay 3-32VDC Control 75VDC Load Voltage High Current 500A 1000A with Heat Sink Raditor High Power SSR

$576.09

$576.09 $0.00

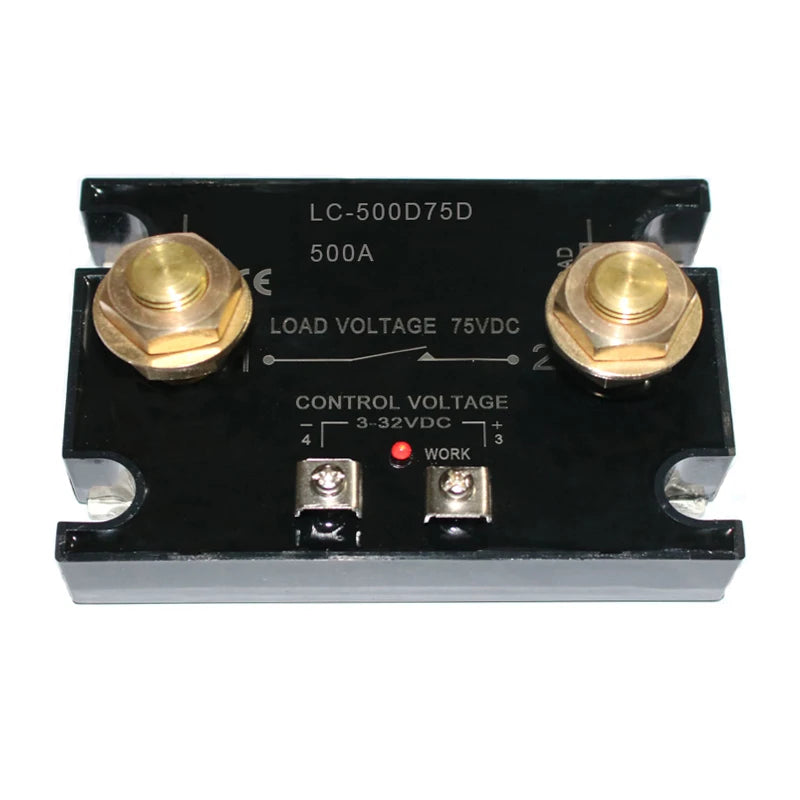

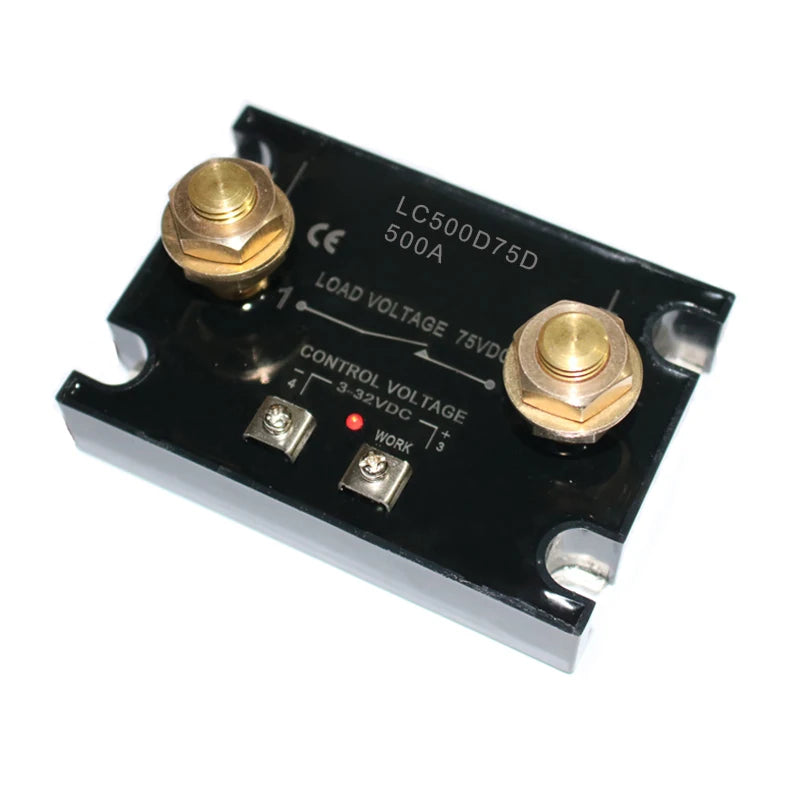

Description

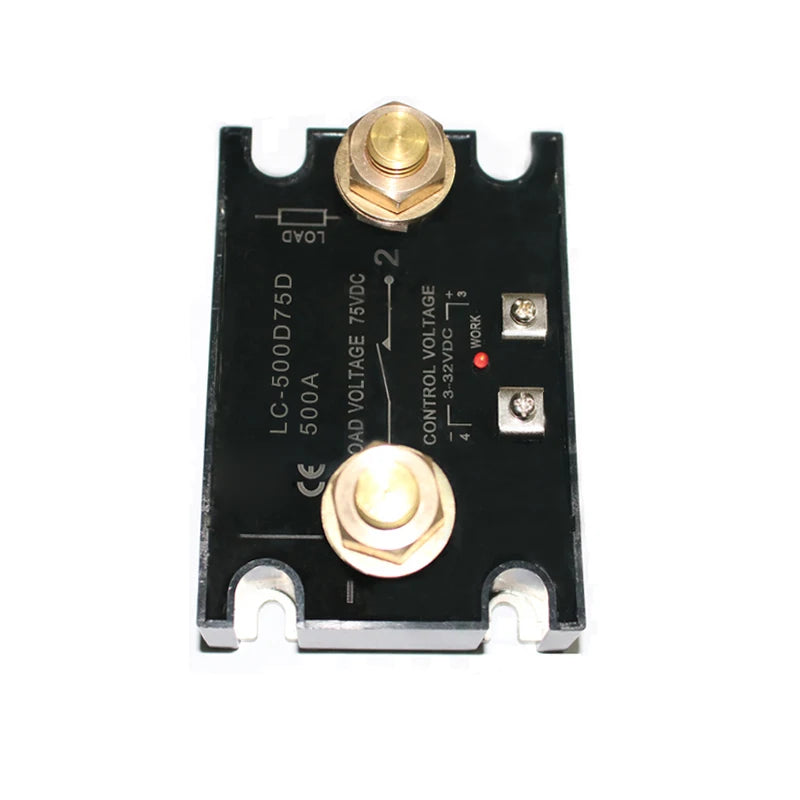

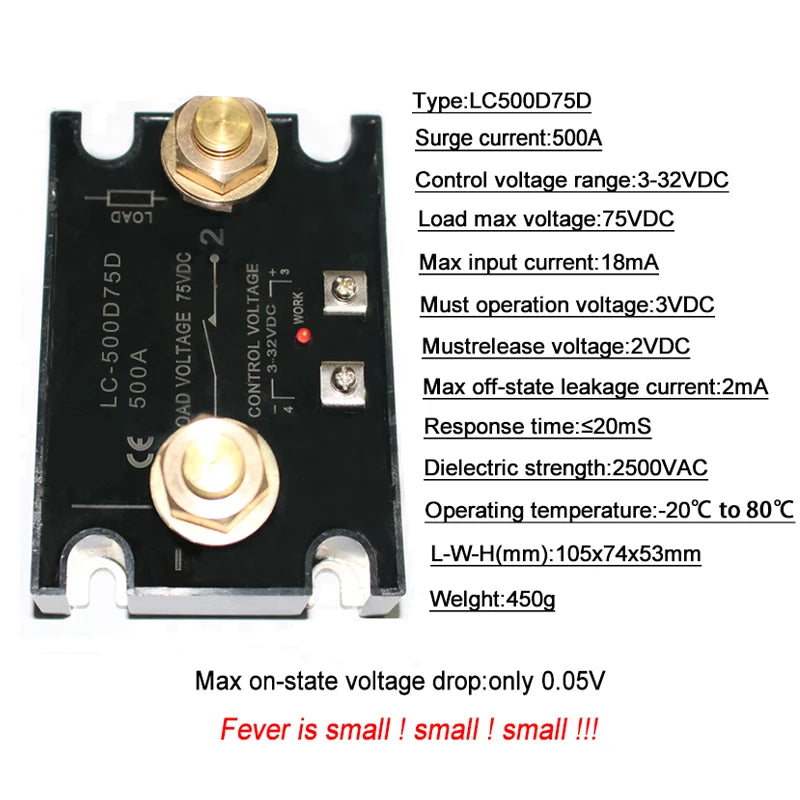

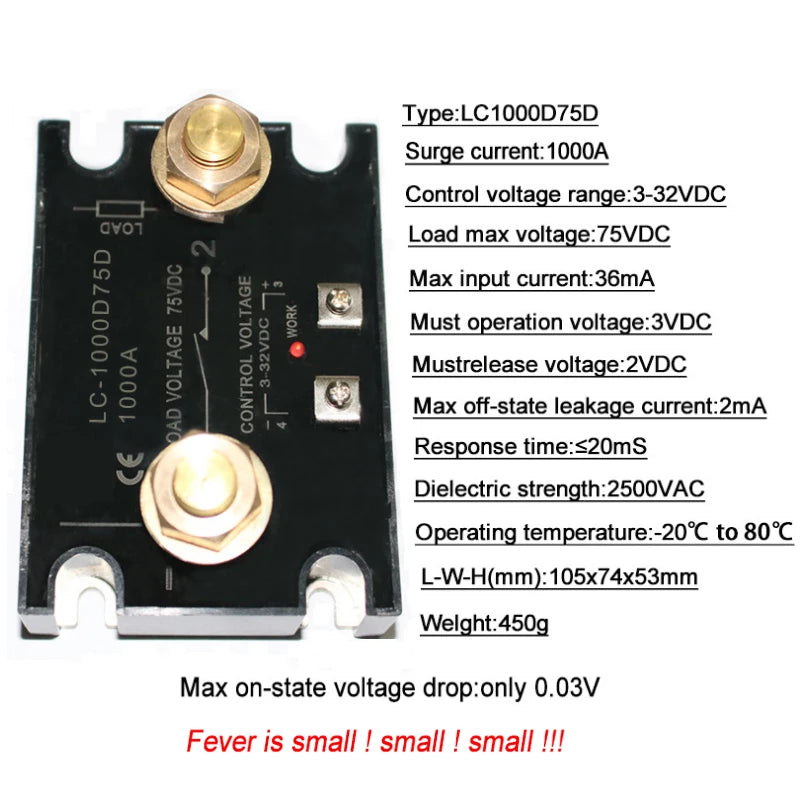

SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Contact Load: Low Power

Control Voltage: 3-32VDC

Dielectric strength: 2500VAC

Dimensions: 105*74*53mm

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Input current (max): 18mA

Load Voltage (max): 75VDC

Model Number: LCxxAD75D

Must operation voltage: 3VDC

Mustrelease voltage: 2VDC

Operating temperature: -20C to +80C

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Response time: less than 20mS

Surge Current: 500A , 1000A

Theory: Solid State Relay

Use: Protective

is_customized: Yes

off-state leakage current (max): 2mA

Electrical parameters:
1) Control: DC to DC
2) Load Current: 500A/1000A
3) Control Voltage: 3-32VDC
4) Max Input Current: 18mA
5) Must Operation Voltage: 3VDC
6) Must Release Voltage: 2VDC
7) Load Voltage: 75VDC
8) Operation Temperature: -30℃ to 80℃
9) Max off-state leakage current: 2mA
10) Max on-state voltage drop: ≤0.05V
11) Dielectric strength: 2500V
12) Certificates: CE
13) Dimensions(mm): 105L x 74W x 53H

Features:
1.MOSFET output.
2.With LED indicator.
3.Low on-state resistance.
4.Photo isoation.

Precautions:
1.Must add suppression circuit for inductive load.
2.Apply heat-radiation silicon grease of a heat conductive sheet between the SSR and heat sink.
3.Tighten the ssr terminal screws properly.
4.Please do not use the relay beyond the descriptions in the data sheet.

STEP 1: Choose a correct control Mode.
DA: DC Control AC
AA: AC Control AC
DD: DC Control DC
VA: Resistance Regulator(Controlled By Potentiometer)
LA: Current Input 4-20mA
VD: Voltage Input 0-10V

STEP 2: Choose a correct type.
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :60%, Inductive load:30%

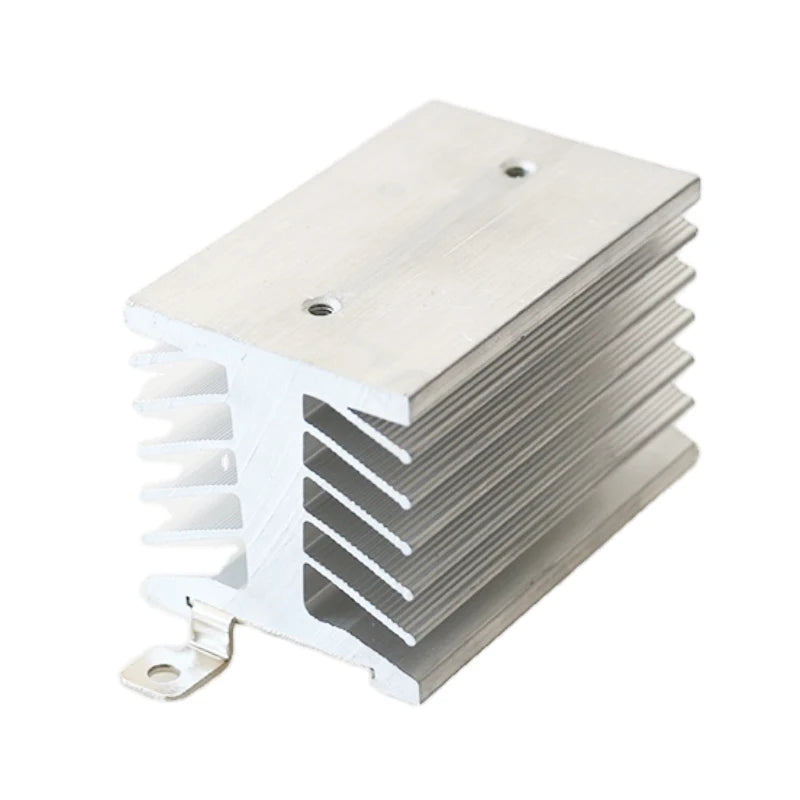

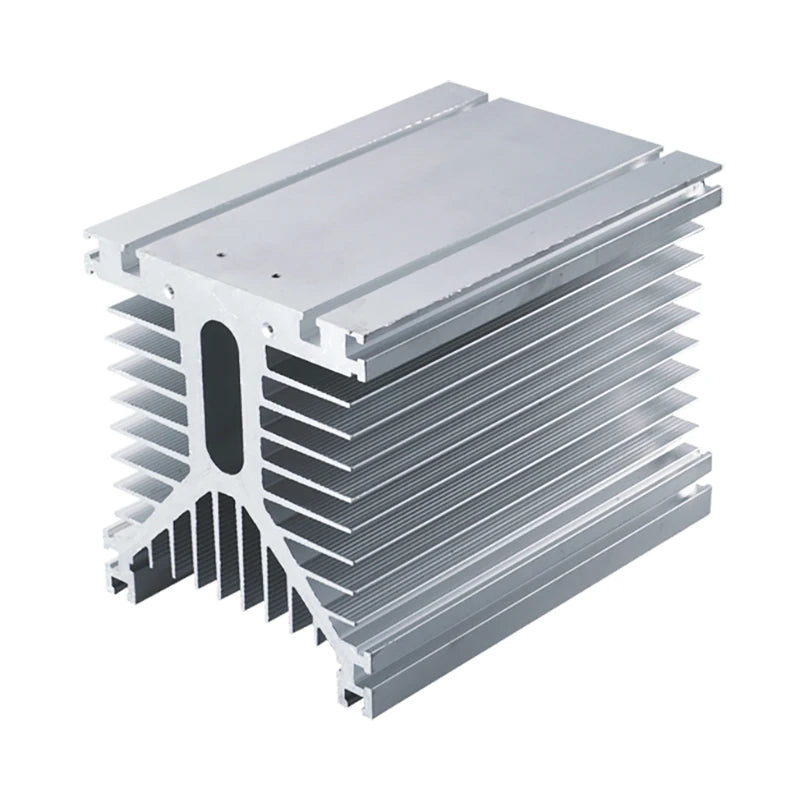

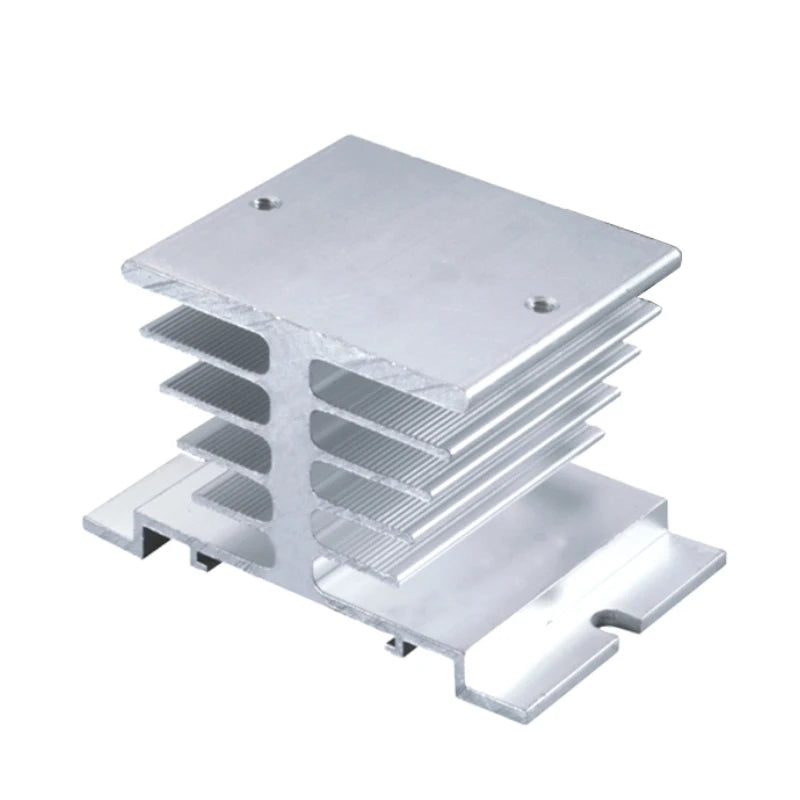

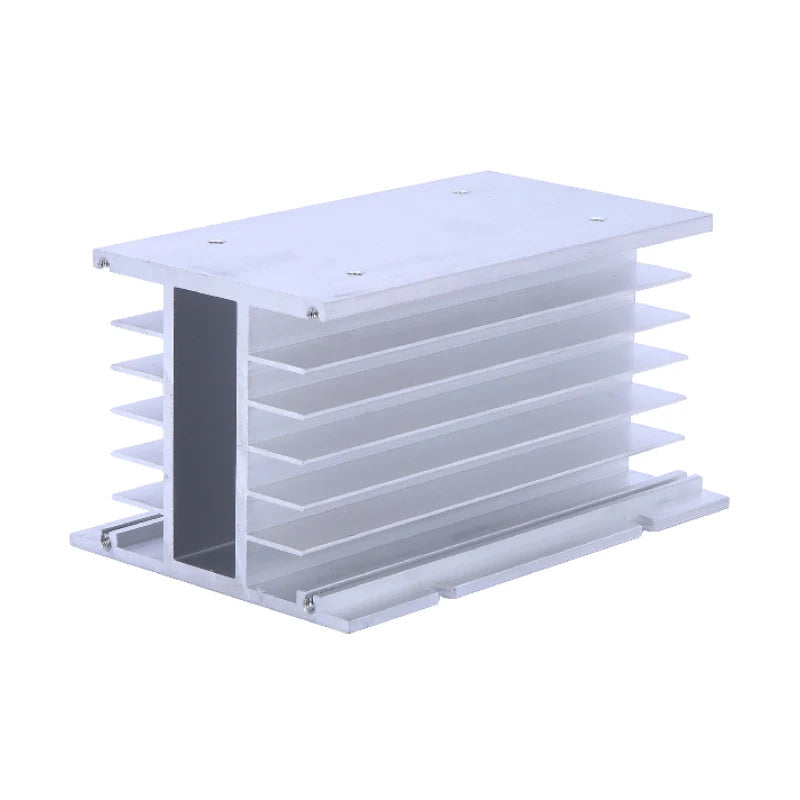

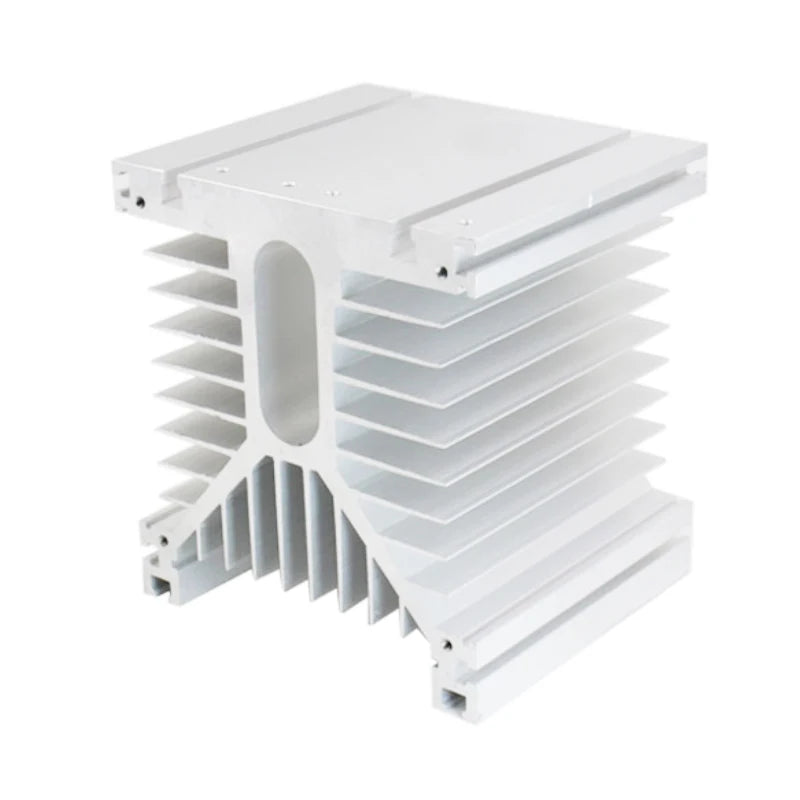

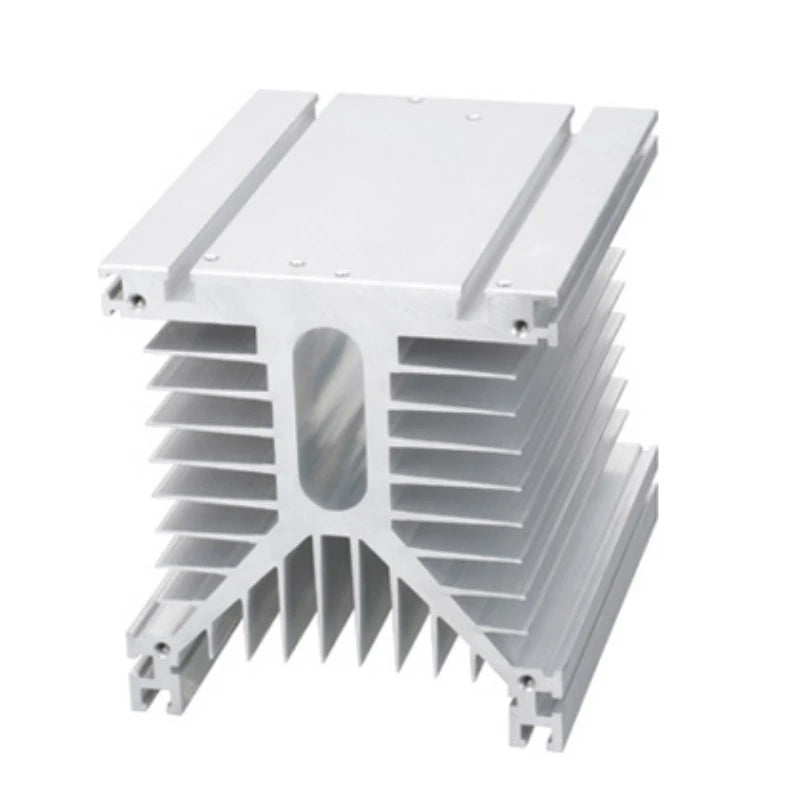

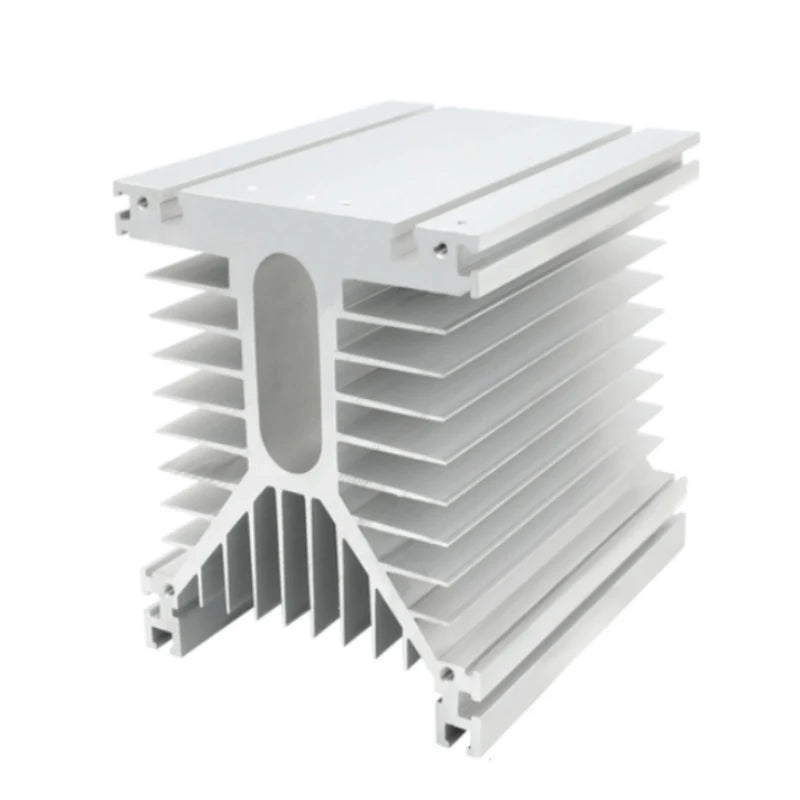

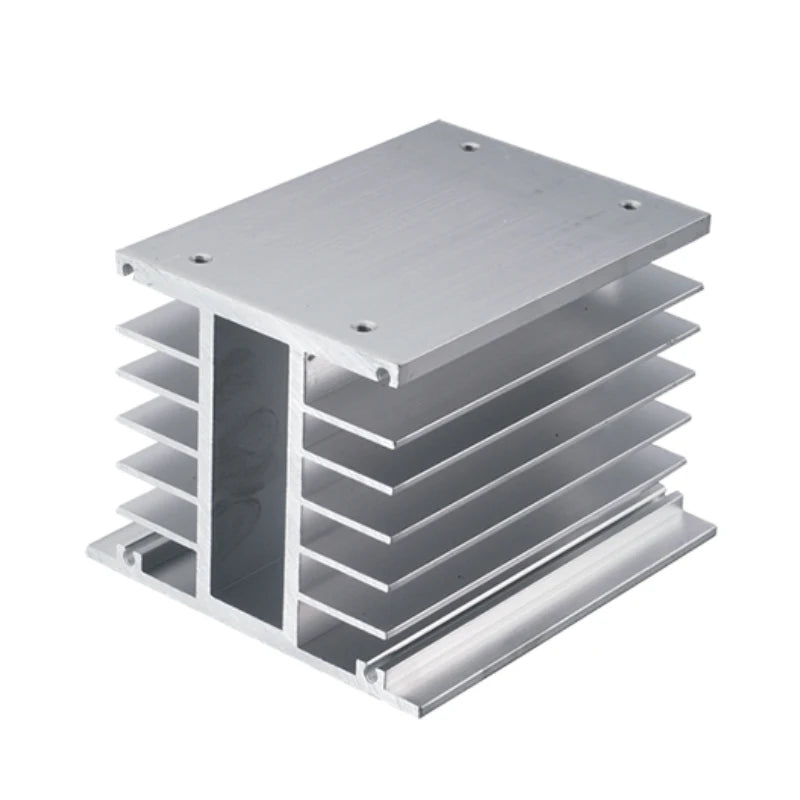

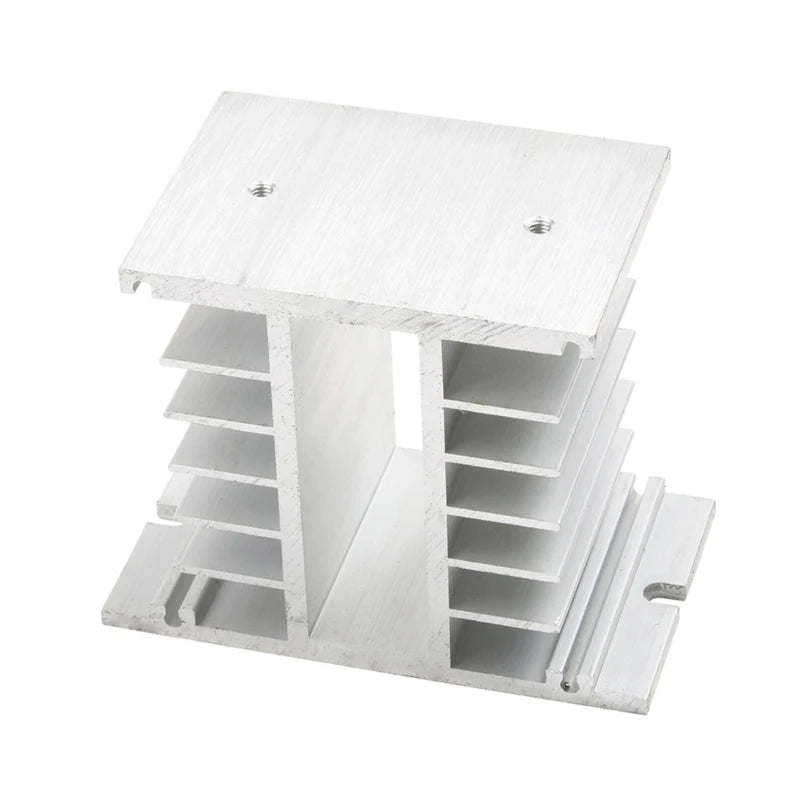

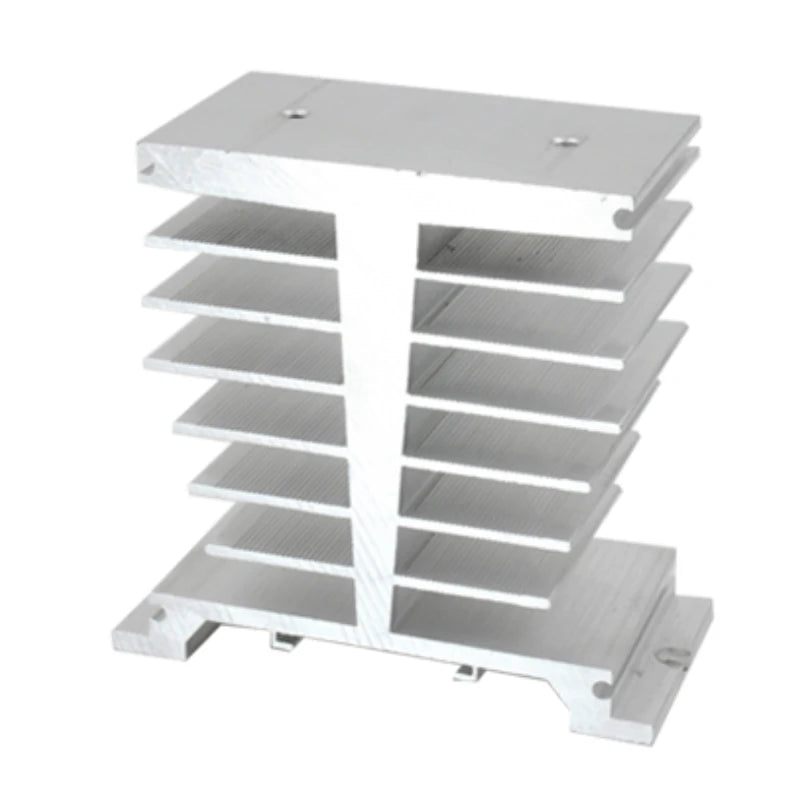

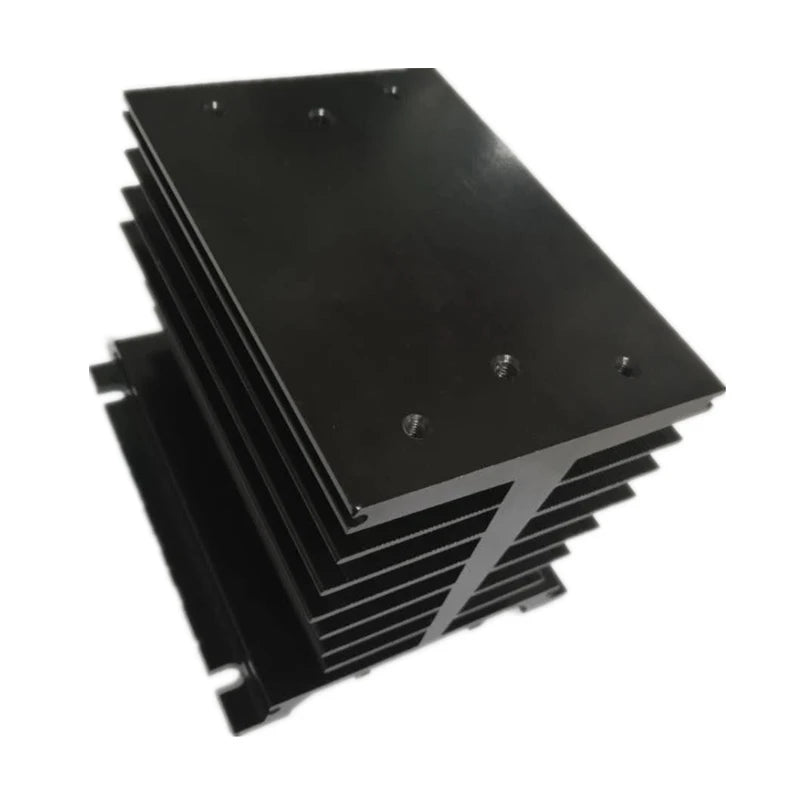

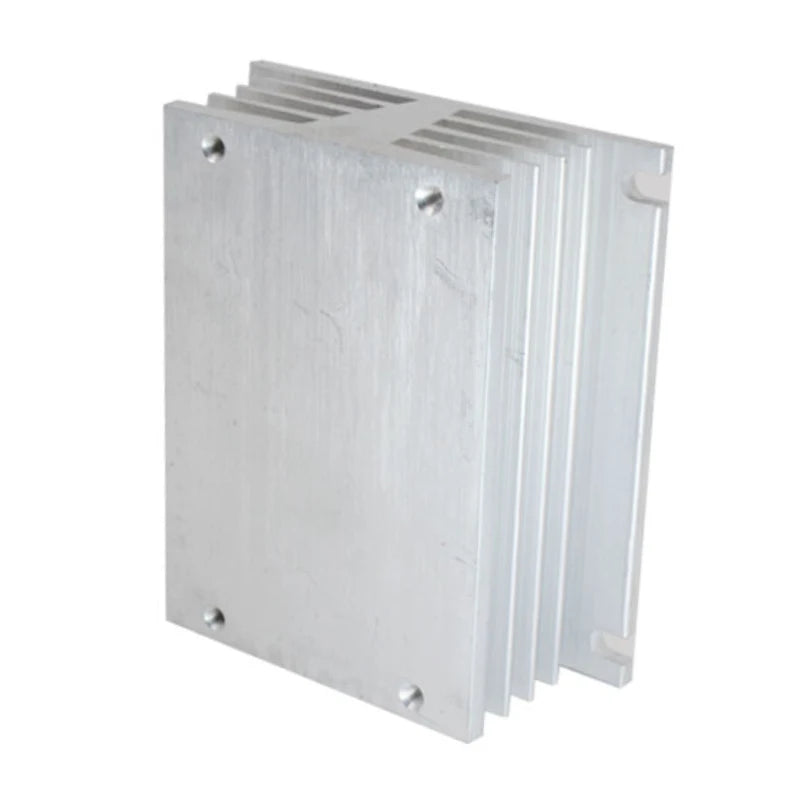

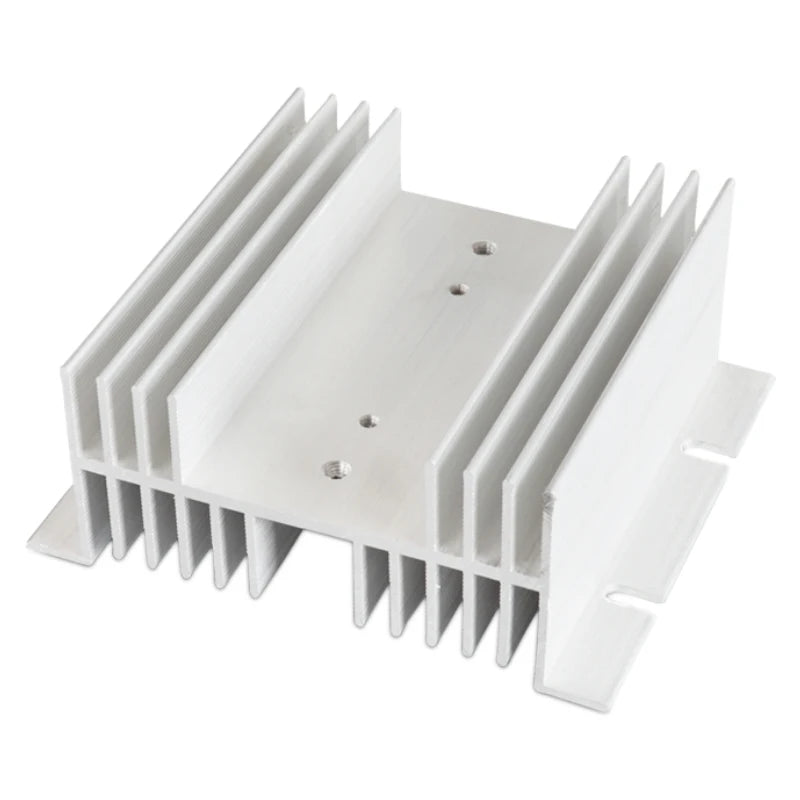

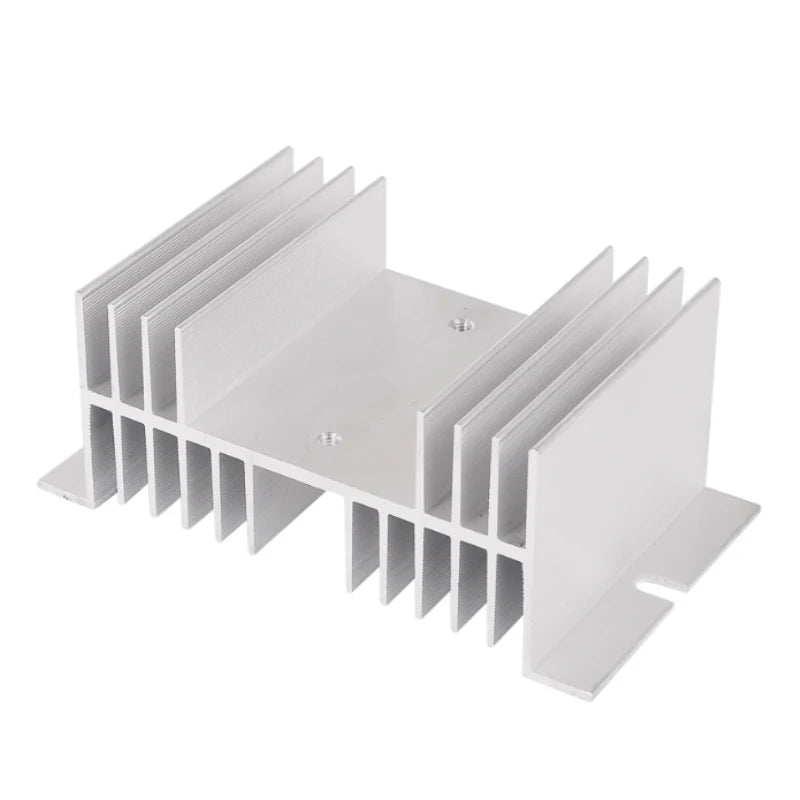

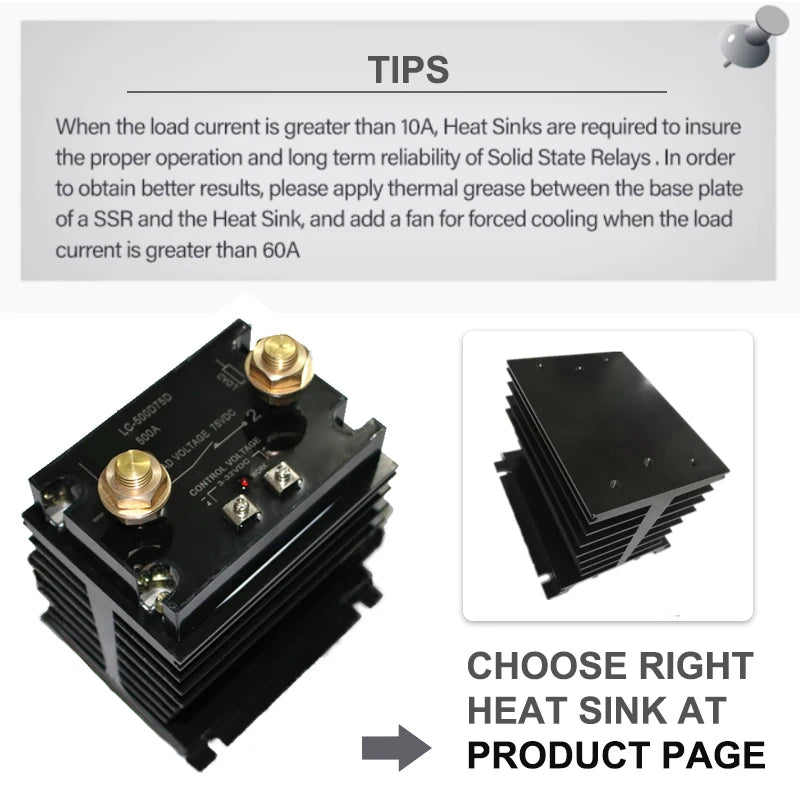

STEP 3: Choose a suitable heat sink.

currently, only heatsink for relay 500A at most.

Type	Image	Feature	Control Mode
Type	Image	Feature	DC control AC	AC control AC	DC control DC	Resistance Regulator	Current Input 4-20mA	Voltage Input 0-10V

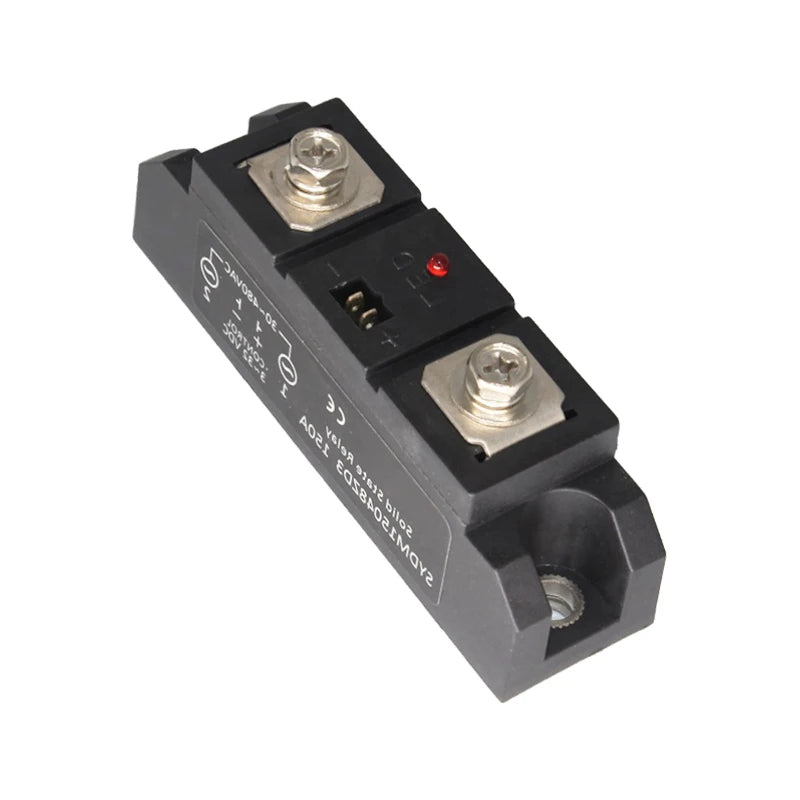

Single Phase		Cost-effective	Press	Press	Press	Press	/	/
		Better heat dissipation	Press	Press	Press	Press	Press	Press
		Flip cover design for easy wiring	Press	Press	Press	Press	Press	Press

Type	Image	Feature	Control Mode
Type	Image	Feature	DC control AC	AC control AC	DC control DC	Resistance Regulator	Current Input 4-20mA	Voltage Input 0-10V

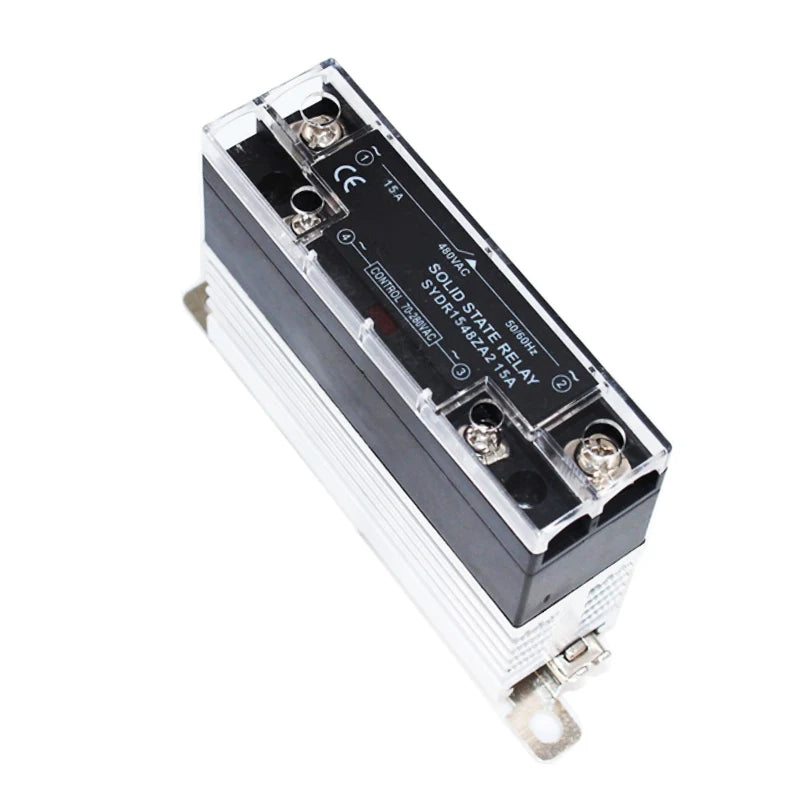

Single Phase		Slim, combined with heatsink, for 10-25A	Press	Press	/	/	/	/
Single Phase		Slim, combined with heatsink, for 25-40A	Press	Press	/	/	/	/

Type	Image	Feature	Control Mode
Type	Image	Feature	DC control AC	AC control AC	DC control DC	Resistance Regulator	Current Input 4-20mA	Voltage Input 0-10V

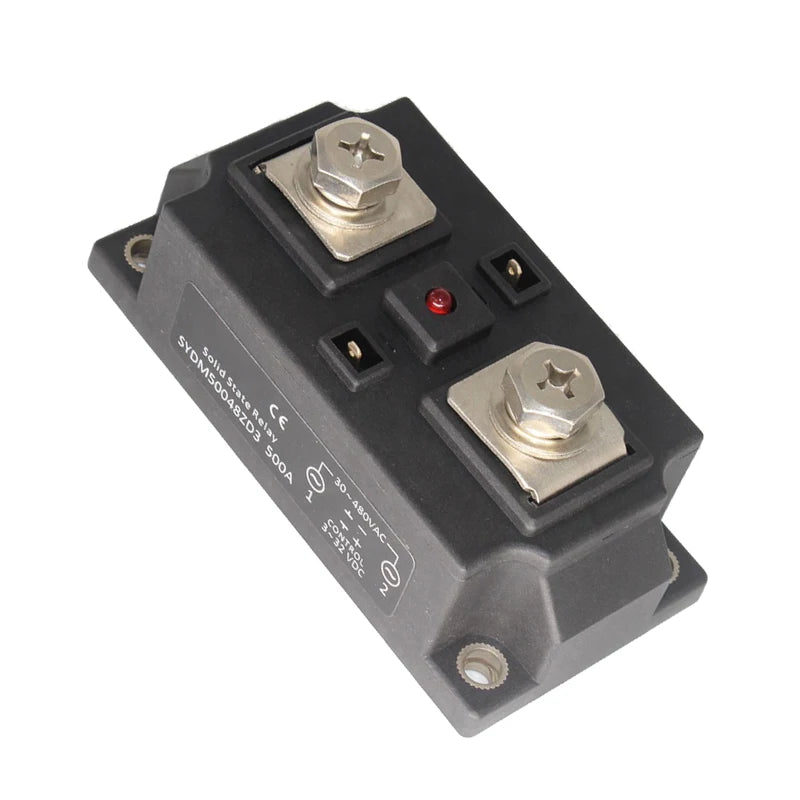

Single Phase		Industrial SSR, for 60-120A	Press	Press	/	/	/	/
		Industrial SSR, for 200-400A	Press	Press	/	/	/	/
		Industrial SSR, for 400-500A	Press	Press	/	/	/	/

Type	Image	Feature	Control Mode
Type	Image	Feature	DC control AC	AC control AC	DC control DC	Resistance Regulator	Current Input 4-20mA	Voltage Input 0-10V

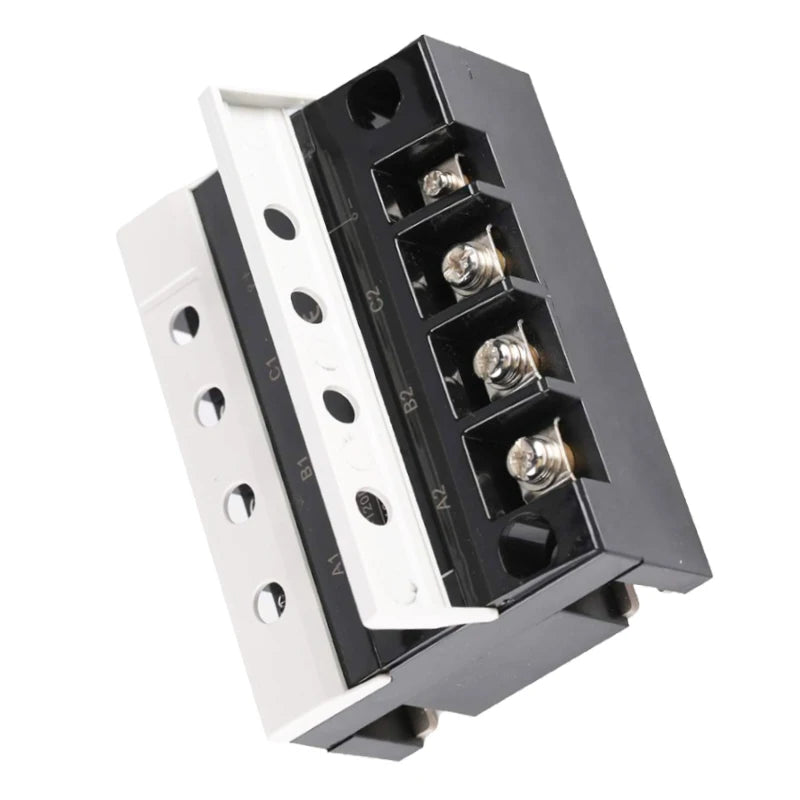

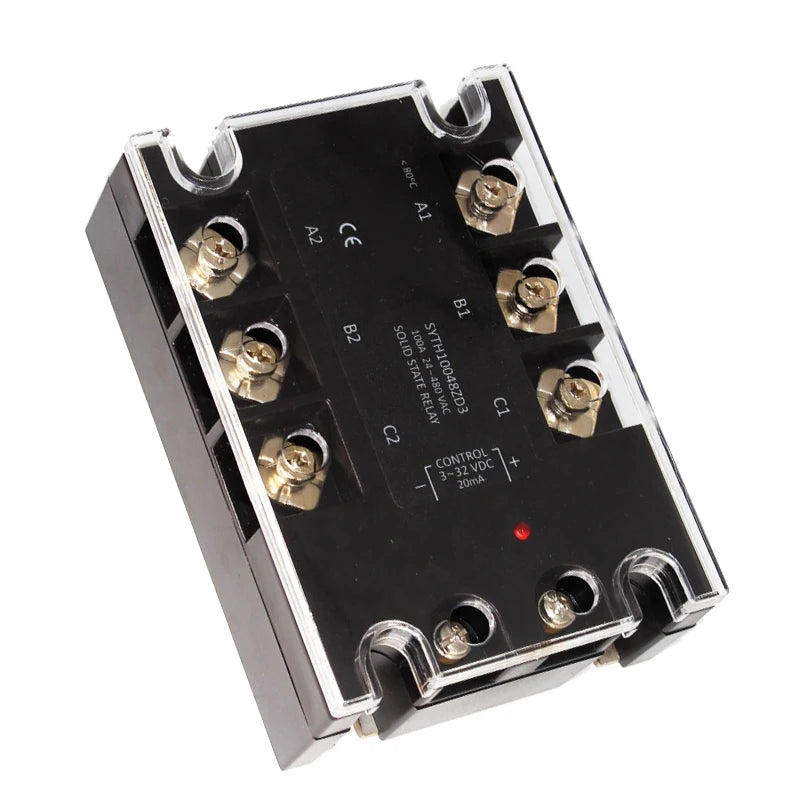

Three Phase		Universal	Press	Press	/	/	/	/
Three Phase		Flip cover design for easy wiring	Press	Press	/	/	/	/

Product	Image	Function	Matched relay	Link

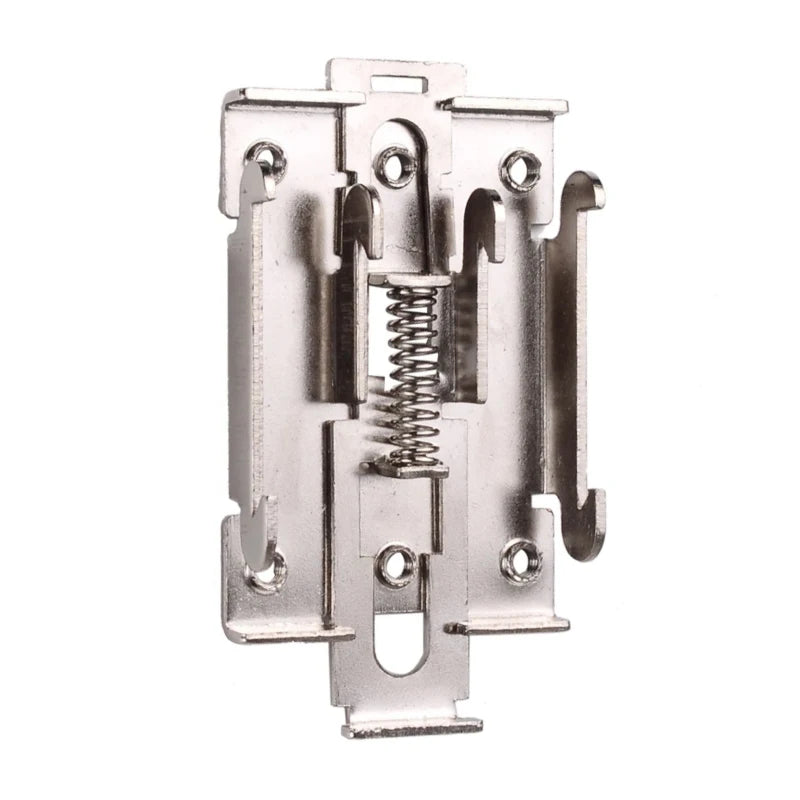

Relay Buckle		35mm Rail Mounting Fixed	Single Phasee SSR, 1 piece	Press

Model	Image	Matched relay	Link
I-50		Single Phase SSR, 1 piece, 10-25A	Press
W-70		Single Phase SSR, 1 piece, 10-40A	Press
D-74		Single Phase SSR, 1 piece, 10-40A	Press
H-50		Single Phase SSR, 1 piece, 10-60A	Press
W-100		Single Phase SSR, 1 piece, 10-80A	Press
I-96		Single Phase SSR, 1 piece, 10-120A	Press
Y-80		Industrial SSR, 1 piece, 60-100A	Press
Y-110		Industrial SSR, 1 piece, 60-200A	Press
Y-150		Industrial SSR, 1 piece, 60-400A	Press
Y-150		Three phase SSR, 1 piece, 10-120A	Press
Y-200		Industrial SSR, 1 piece, 60-500A	Press
F-100		Three phase SSR, 1 piece, 10-25A	Press
H-110		Three phase SSR, 1 piece, 10-60A	Press
H-150		Three phase SSR, 1 piece, 10-80A	Press
