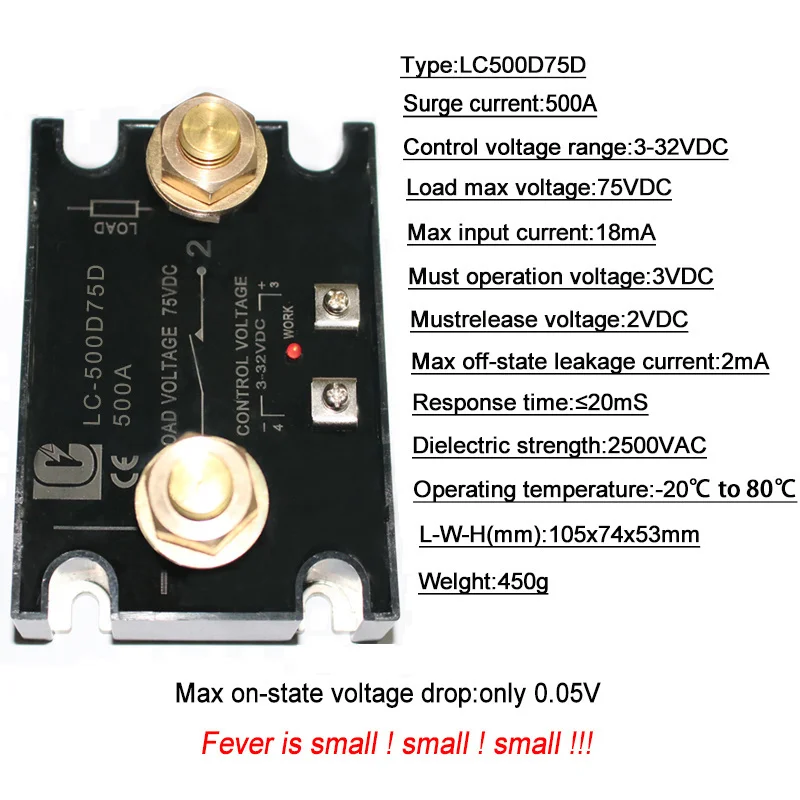

SPECIFICATIONS

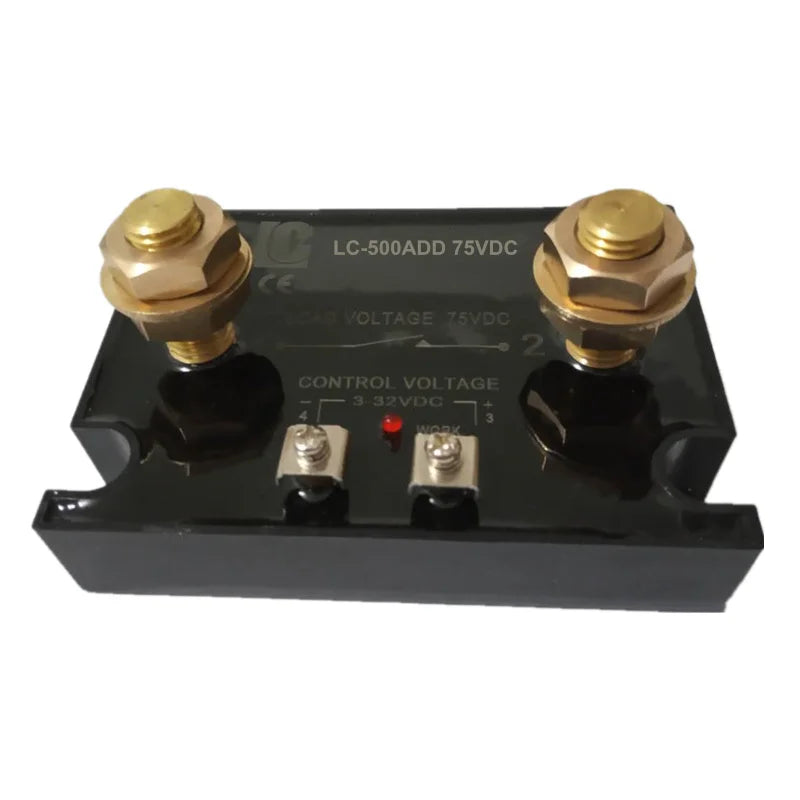

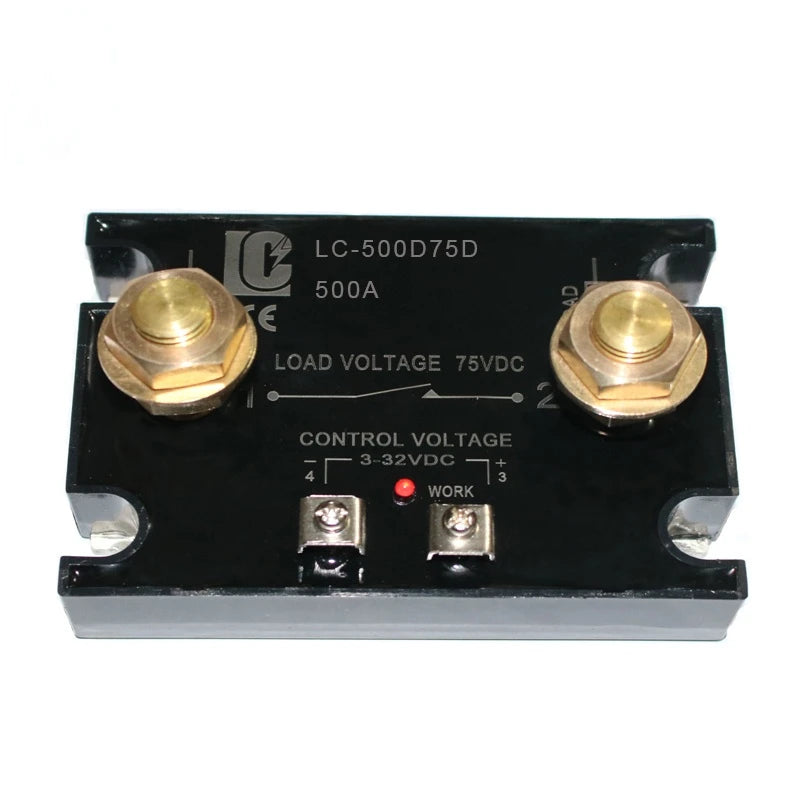

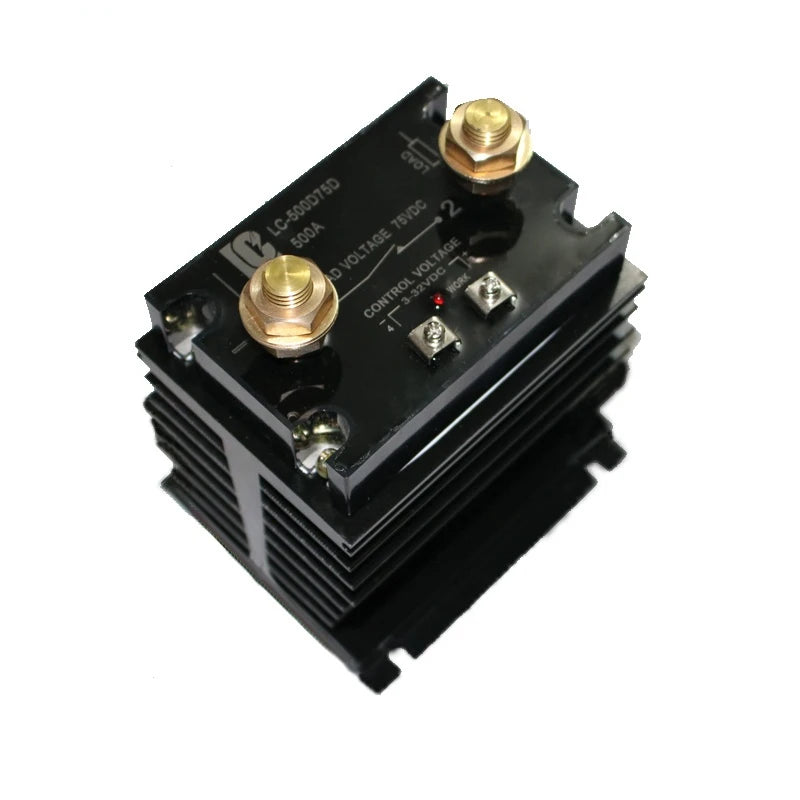

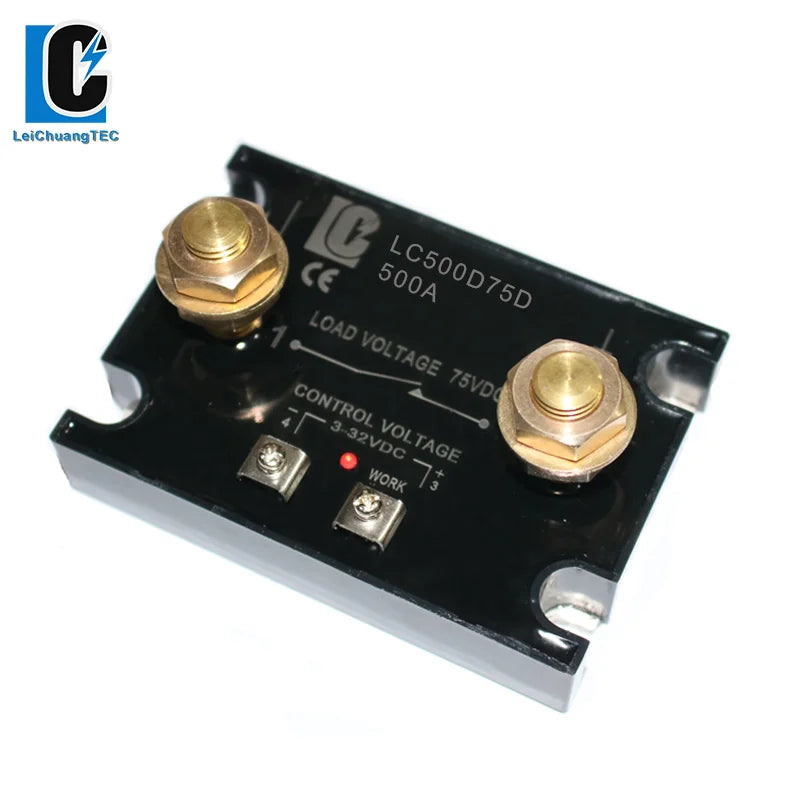

Model                                       LC-500D75D

Control                                       DC to DC
Load Current                               500A
Control Voltage                             3-32VDC
Max Input Current                         18mA
Must Operation Voltage               3VDC
Must Release Voltage                   2VDC
Load Voltage                                 75VDC
Operation Temperature               -30℃ to 80℃
Max off-state leakage current 2mA
Max on-state voltage drop          ≤0.05V
Dielectric strength                        2500V
Certificates                                 CE
Dimensions(mm)                          105L x 74W x 53H

Features

1.MOSFET output.

2.With LED indicator.

3.Low on-state resistance.

4.Photo isoation.

Precautions

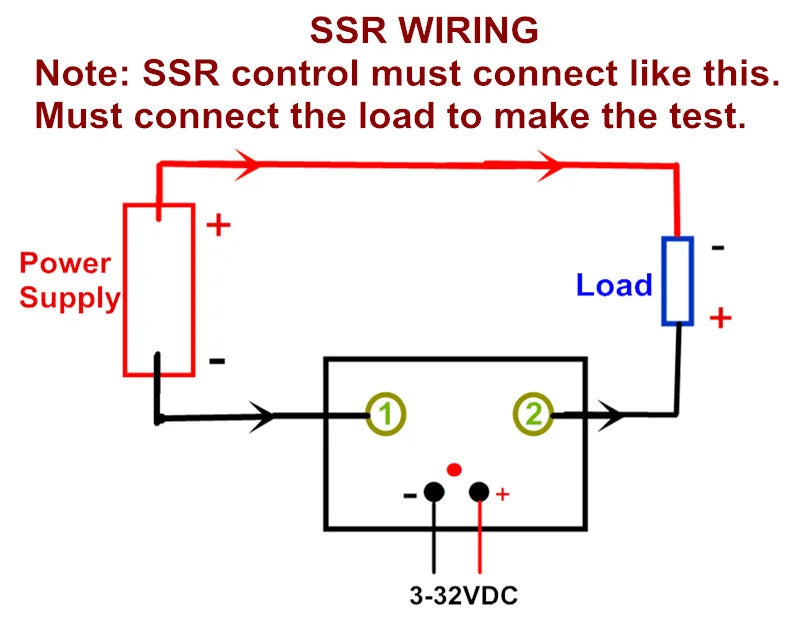

1.Must add suppression circuit for inductive load.

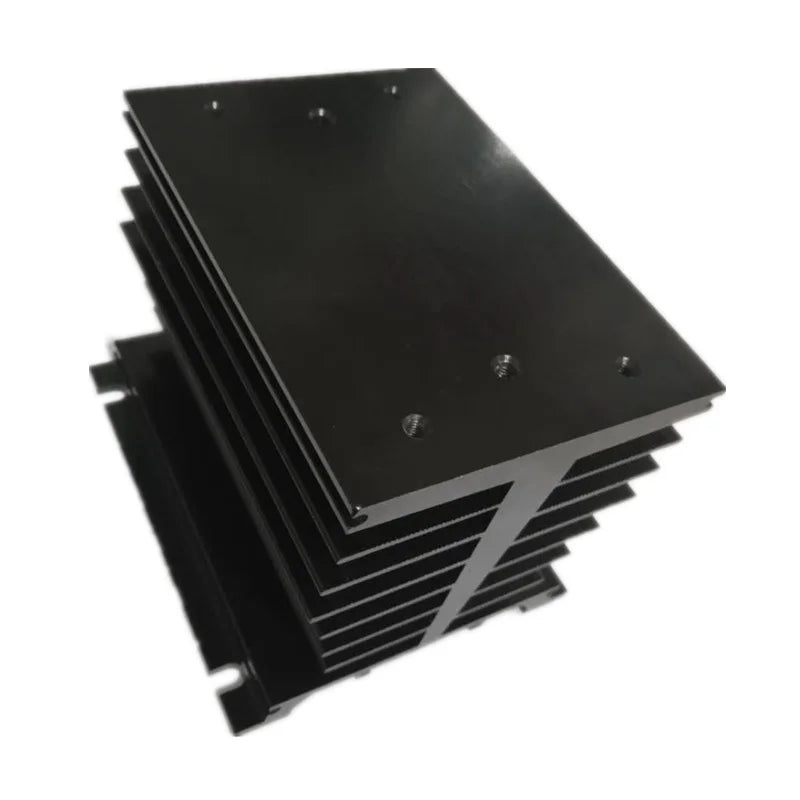

2.Apply heat-radiation silicon grease of a heat conductive sheet between the SSR and heat   sink.

3.Tighten the ssr terminal screws properly.

4.Please do not use the relay beyond the descriptions in the data sheet.
