SPECIFICATIONS

1: ac current transmitter

10: ac current transmitter

11: ac dc current transmitter

12: current transducer 0 to 10v

13: ac current transducer

14: 0-10v current transmitter

15: 0-5v current transmitter

16: 4-20ma ac current transmitter

17: 4-20ma current transmitter

18: ac current transmitter rs485

2: dc current transmitter

3: ac/dc current transmitter

4: current transmitter

5: 4-20ma current sensor

6: dc current sensor 4-20ma

7: current transmitter dc

8: current transducer 4 20ma

9: dc current transducer

Accuracy Class: 0.5%

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE,FCC,RoHS

Choice: yes

DIY Supplies: Electrical

Dimensions: 22mm

Display Type: Analog Only

High-concerned chemical: none

Model Number: JXK-10

Operating Temperature: -10~+70 Celsius

Origin: Mainland China

Semi-finishedproduct: No

Supply Voltage: DC12V,DC24V,DC15V

semi_Choice: yes

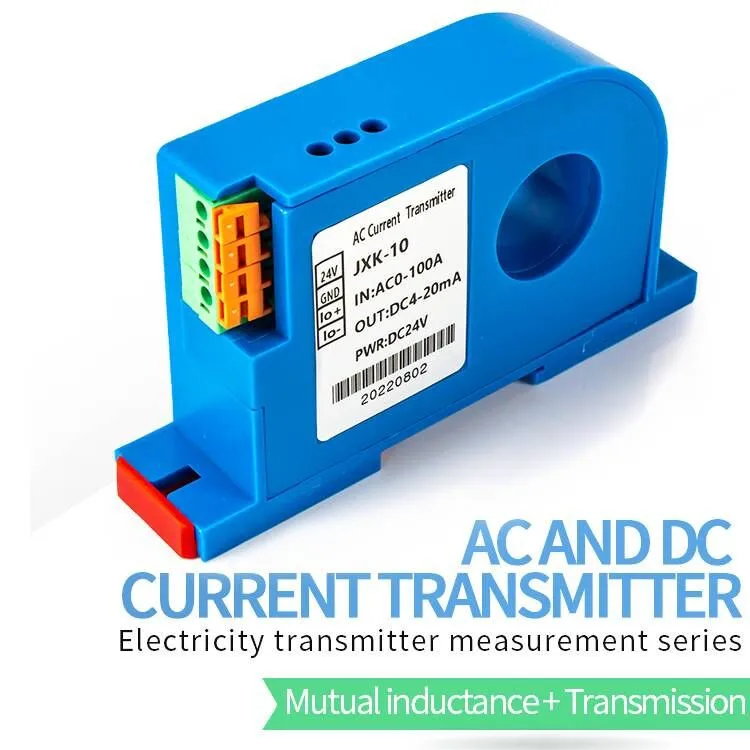

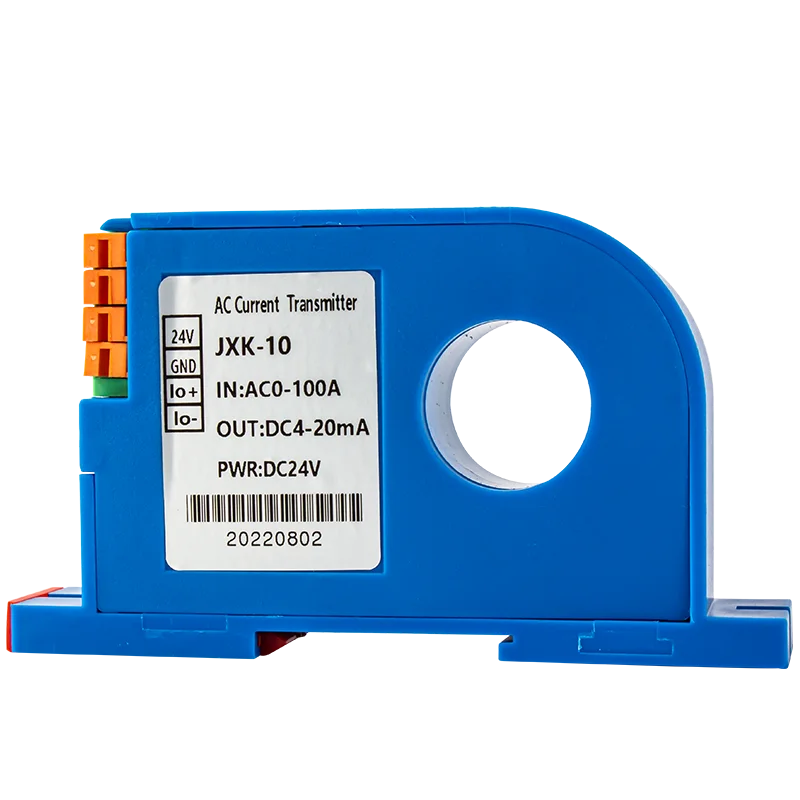

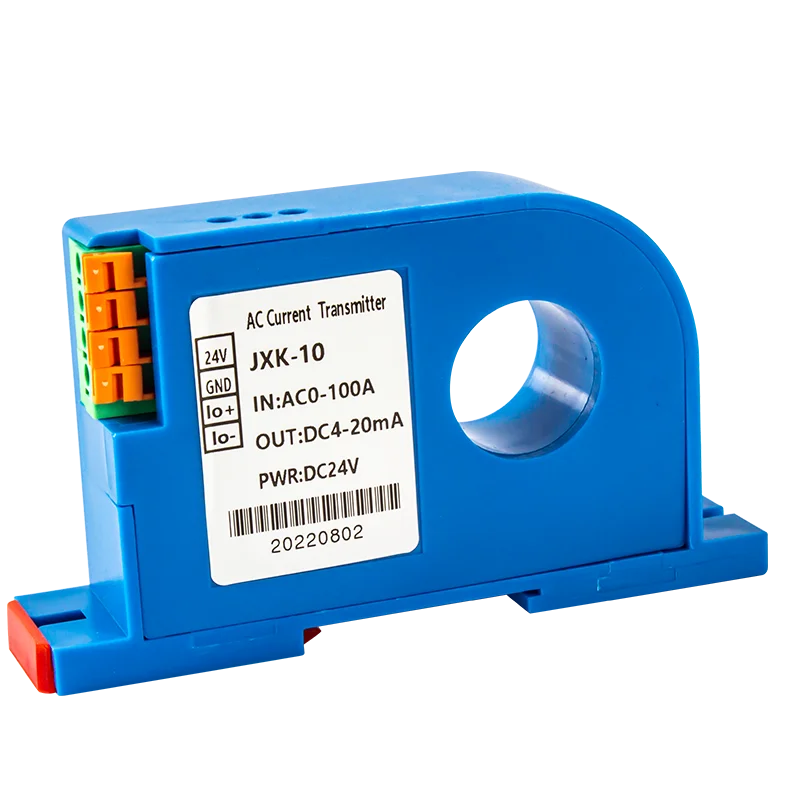

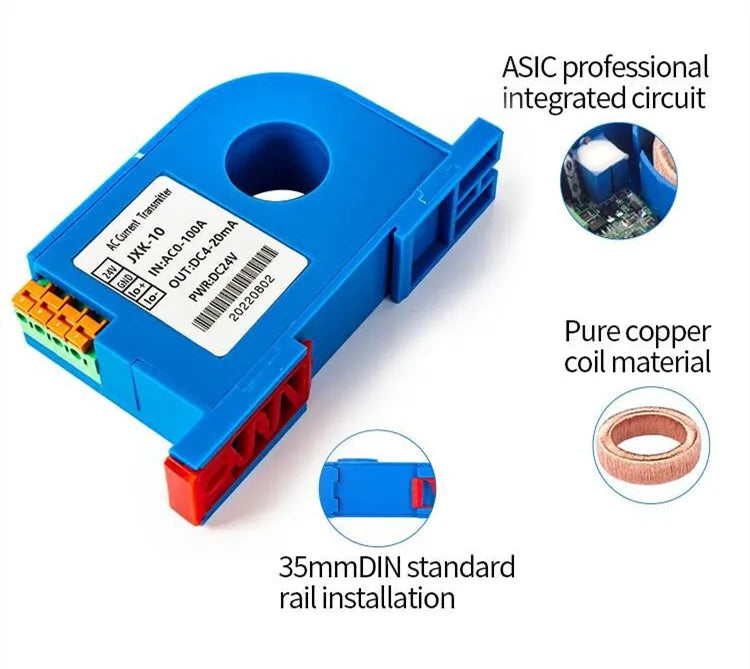

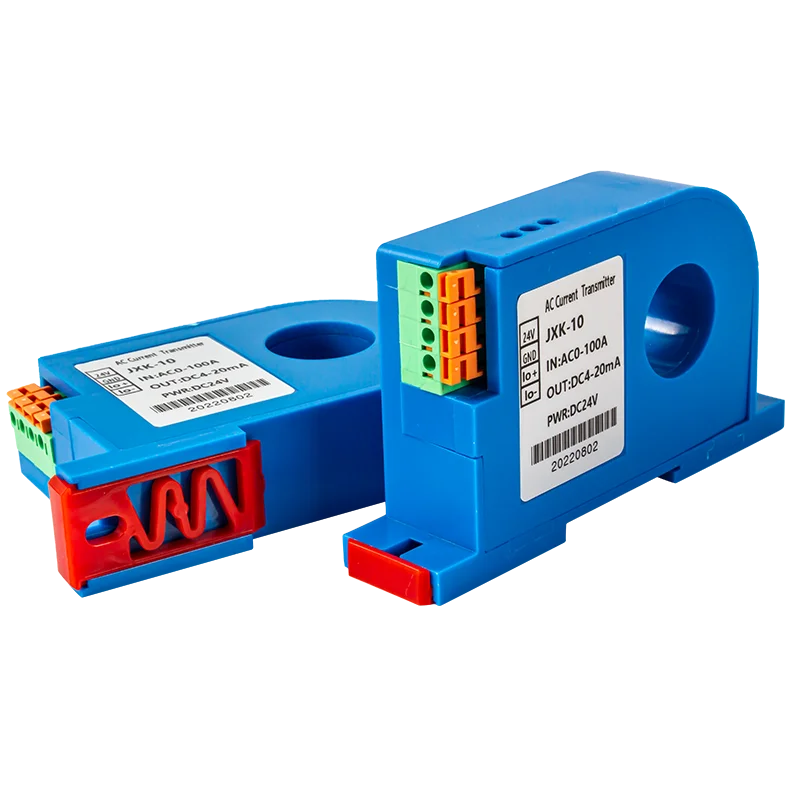

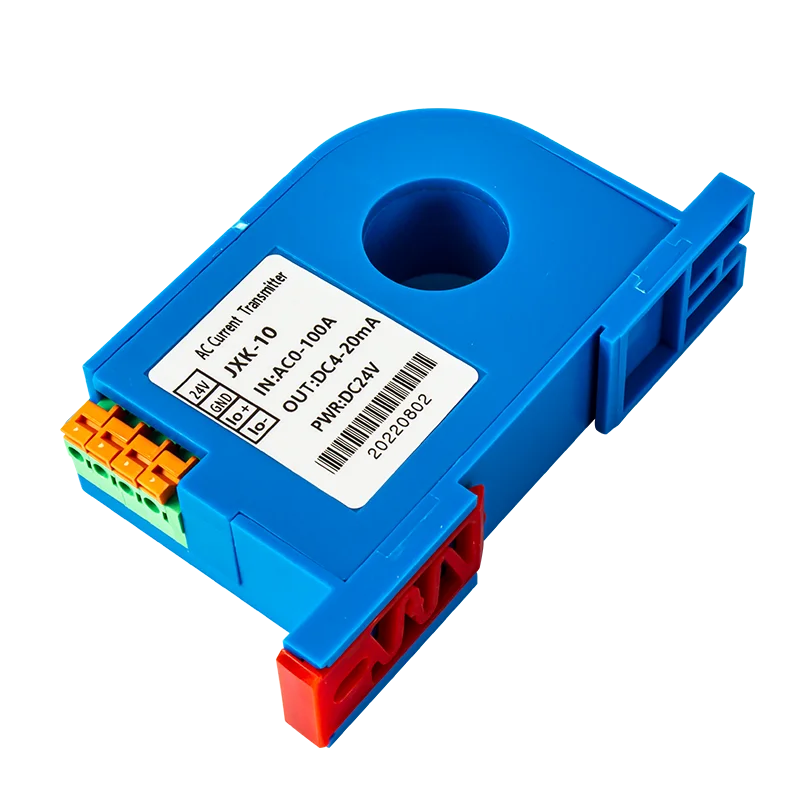

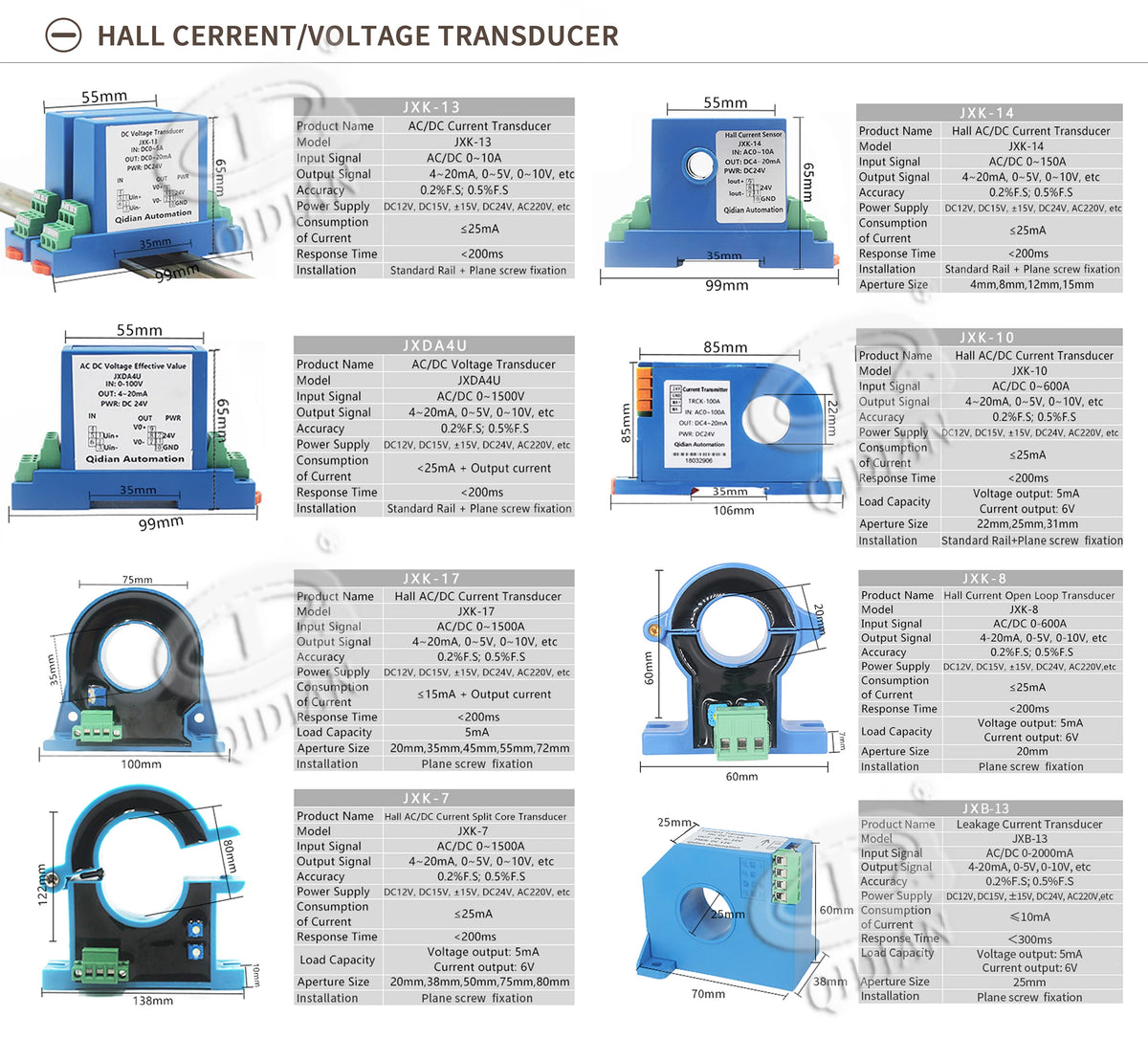

JXK-10 Current Transducer Current Measurement Transmitter Segregated Hall Effect Current Sensor DC0-600A Current Transmitter

Introduction

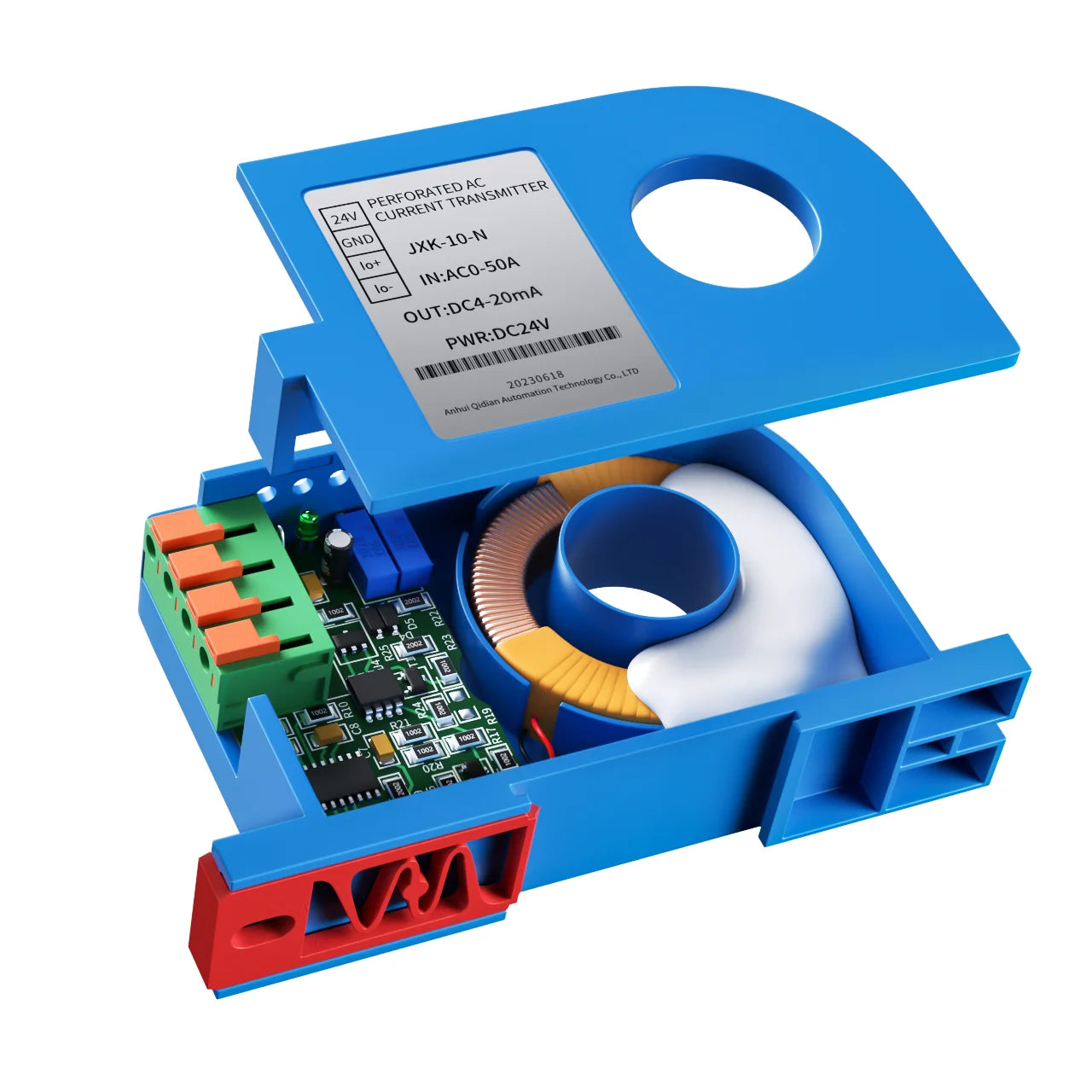

<1>. Working principle: open loop direct measurement.

<2>. Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.

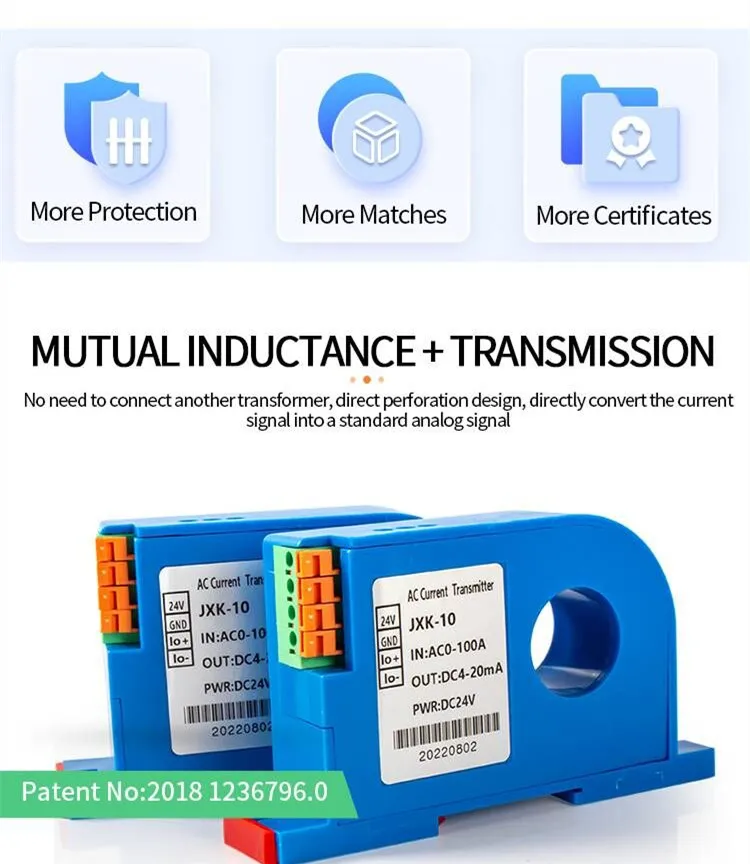

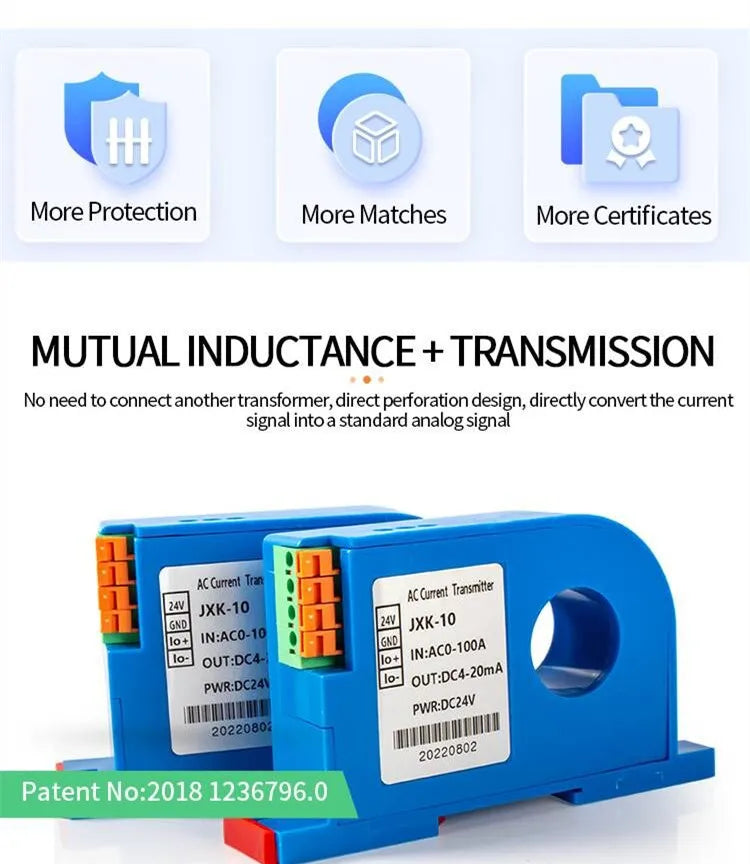

<3>. Advantages: Better cost performance, low power consumption, small volume, light weight, easy installation, perforation input and no insertion loss.
<4>. Application: Frequency conversion speed control system, electric welding machine, electrochemistry, power supply monitoring, electric locomotive, low level starting protection.

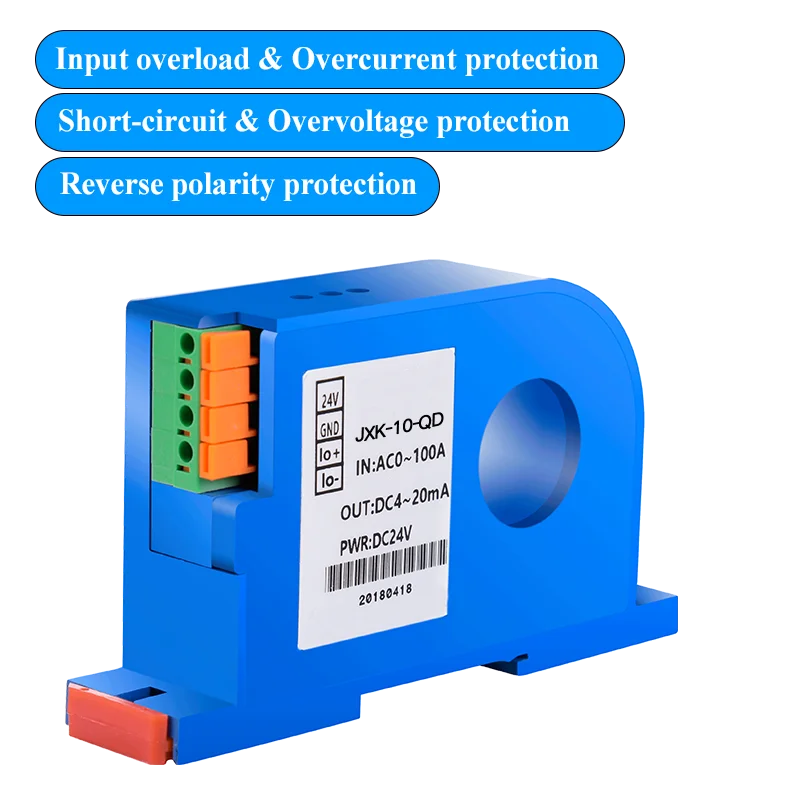

<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<6>. Full channel configuration,Parameter customizable.
