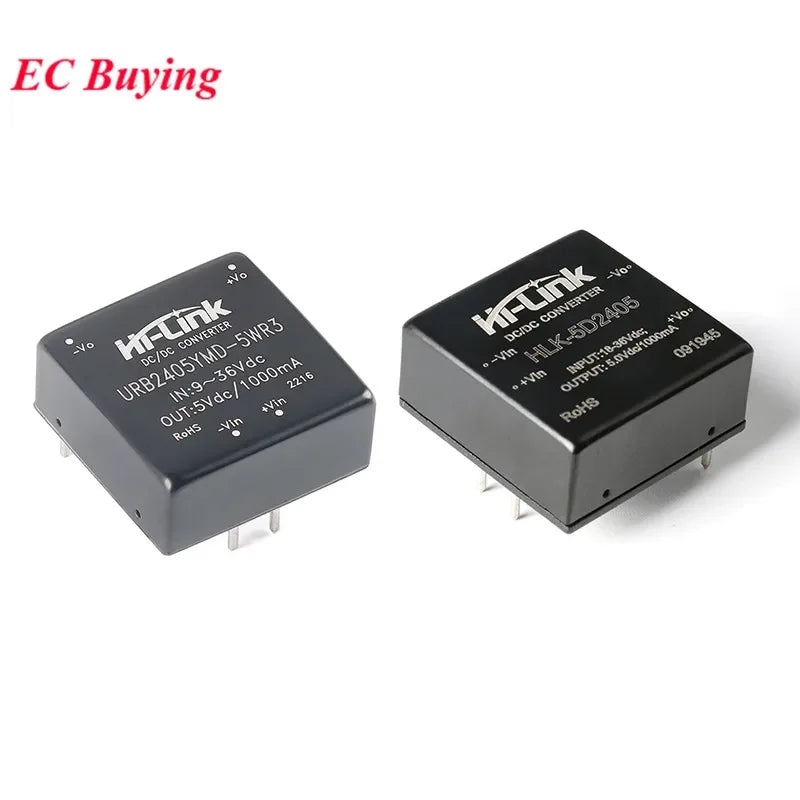

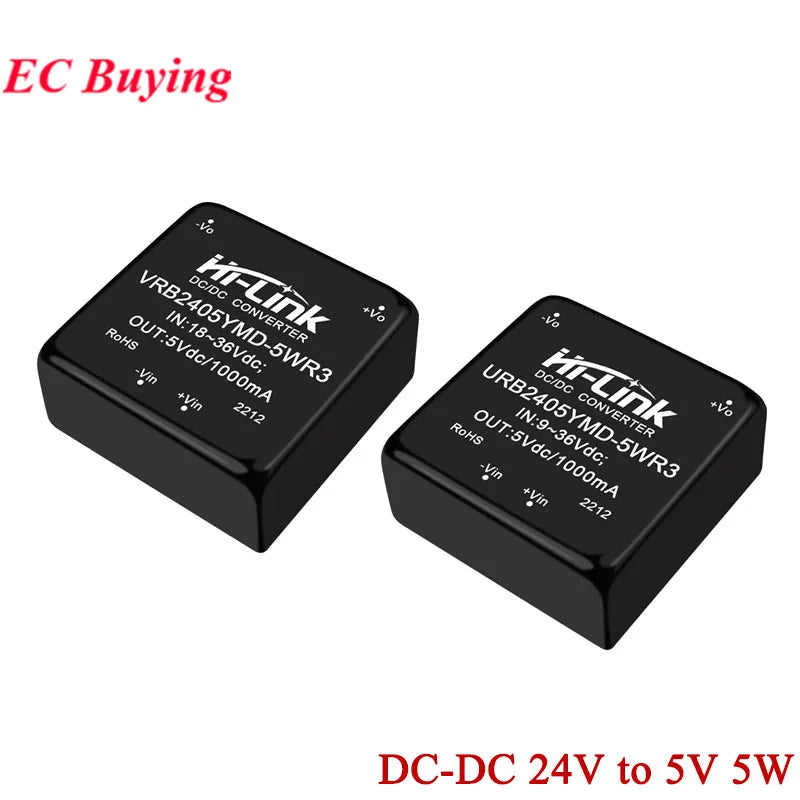

DC-DC 24V to 5V 5W Isolated Converter Power Supply Module DC DC HLK-5D2405 HLK-5D2405A Step-down Buck Ultra Wide Voltage Module

DC-DC 24V to 5V 5W Isolated Converter Power Supply Module DC DC HLK-5D2405 HLK-5D2405A Step-down Buck Ultra Wide Voltage Module

$24.88

$24.88 $0.00

Description

SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: low

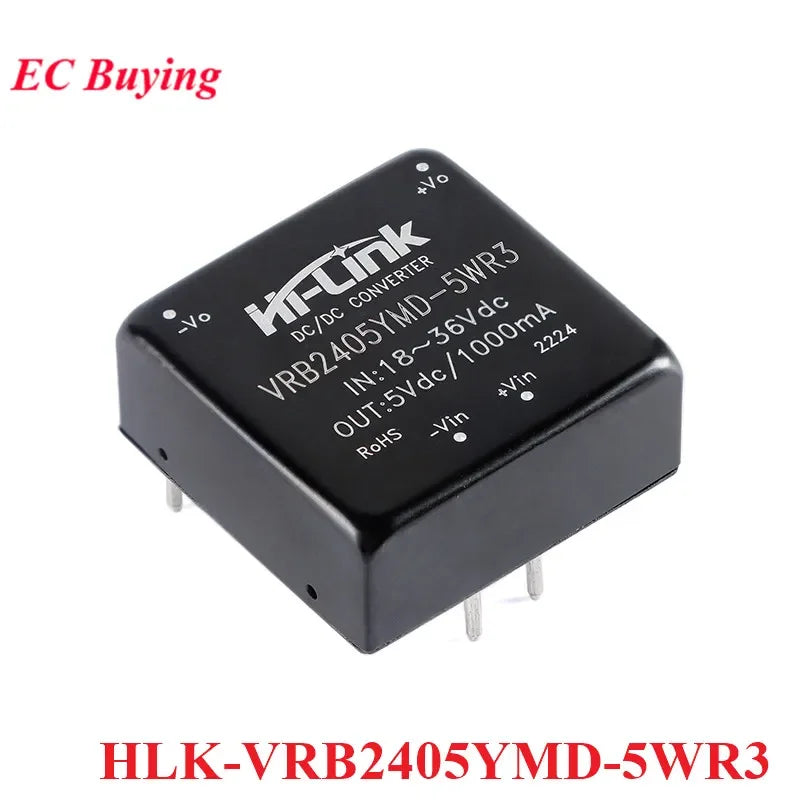

HLK-5D2405: HLK-VRB2405YMD-5WR3

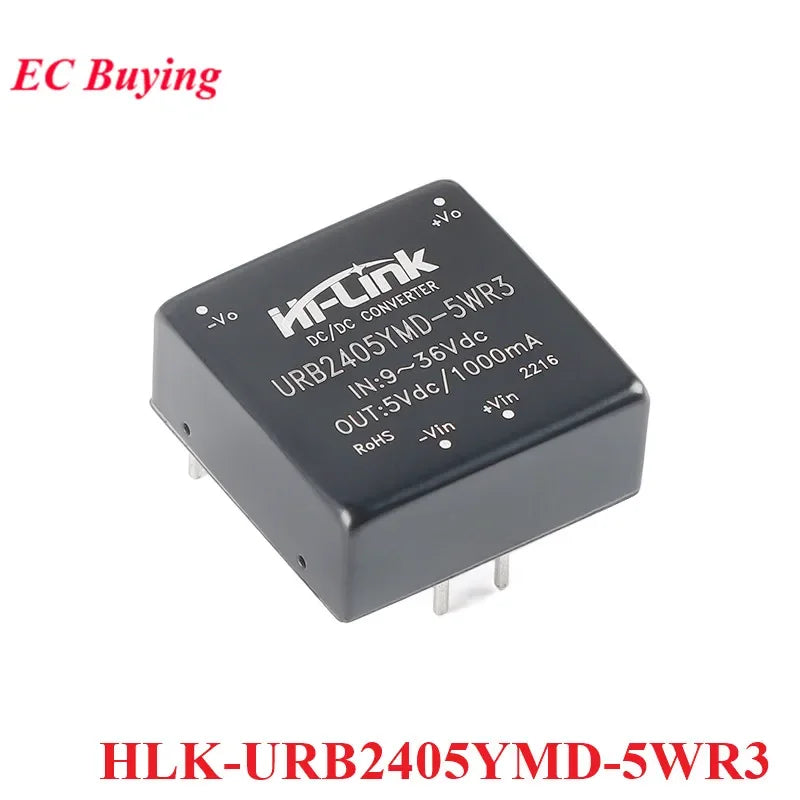

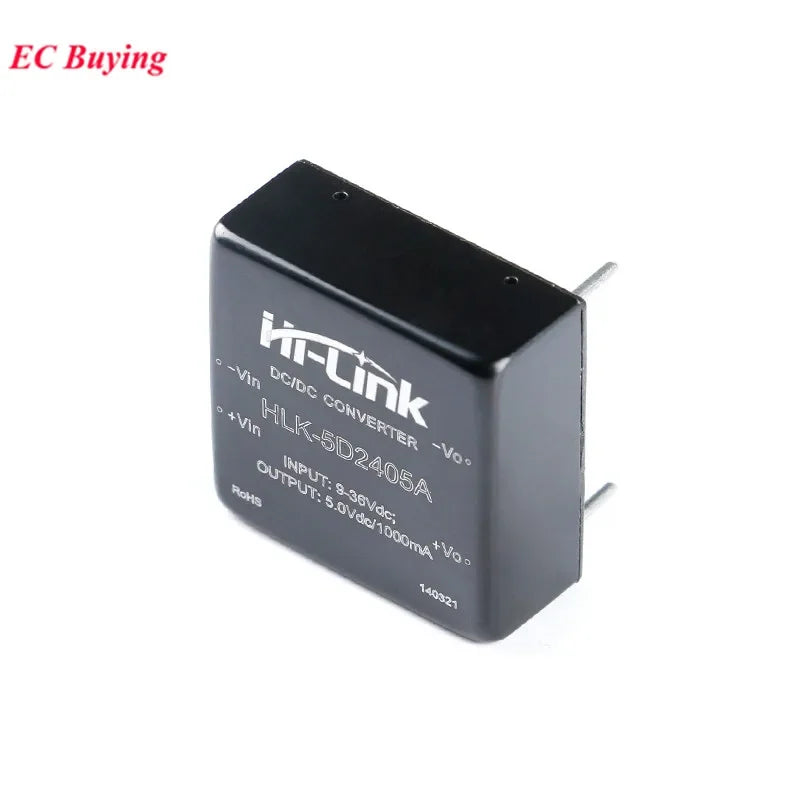

Hi-Link HLK-5D2405A: HLK-URB2405YMD-5WR3

High-concerned chemical: none

Origin: Mainland China

Package: module

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Supply Voltage: 24V to 5V 5W Voltage Regulators/Stabilizers

Type: Voltage Regulator

is_customized: Yes

Product features:

HLK-5D2405

Wide range input (2:1) voltage: 18~36VDC

Low power consumption, environmental protection, standby power consumption is only 0.3W (typical value)

Input and output isolation withstand voltage 1500VDC

Super fast start: 100ms (typical value)

High efficiency, conversion efficiency up to 84% (Typ)

Operating temperature range: -40°C~+85°C

Good output short circuit and over current protection and self-recovery

High reliability, long life design, continuous work over 100,000H

It is potted with high-quality environmentally friendly waterproof and thermal conductive glue, which is dust-proof, moisture-proof, shock-proof and flame-retardant

Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields

HLK-URB2405YMD-5WR3

Wide range input (4:1) voltage: 9~36VDC

Low power consumption, environmental protection, standby power consumption is only 0.036W (typical value)

Input and output isolation withstand voltage 1500VDC

Ultra-fast start: 1ms (typical value)

High efficiency, 90% conversion efficiency (Typ)

Operating temperature range: -40°C~+85°C

Good output short circuit and over current protection and self-recovery

High reliability, long life design, continuous work over 100,000H

It is potted with high-quality environmentally friendly waterproof and thermal conductive glue, which is moisture-proof and vibration-proof, and meets the waterproof and dust-proof IP65 standard

Can be used in medical, industrial control, electric power, instrumentation, communication, railway and other fields.

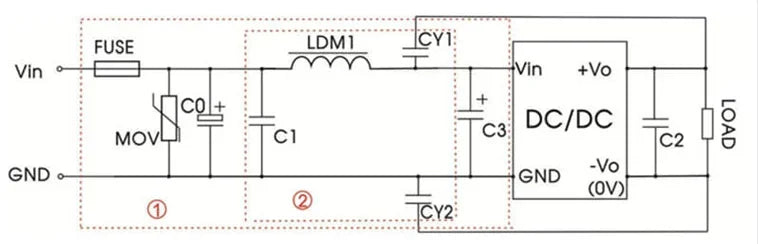

Recommended test circuit: Cin 100uF, Cout 10UF. All DC/DC converters of this series are as shown in the figure below before leaving the factory.

If it is required to further reduce the input and output ripple, the input and output capacitors Cin and Cout can be increased or a capacitor with a small equivalent impedance in series can be selected, but the capacitance value cannot be greater than the maximum capacitive load of the product.
