SPECIFICATIONS

Brand Name: Aideepen

Choice: yes

Condition: new

Continuous maximum operating power: 500W

Conversion efficiency: Up to 95%

EAN Code: Buck Regulator Adjustable Power Module

Feature: Voltage Regulator Buck Converter Constant Current Power Supply Module

High-concerned chemical: none

Maximum output power: 600W

Model Number: SZ-8025CCCV

Operating frequency: 80KHz

Origin: Mainland China,Mainland China

Output Current: 1-25A

Output Frequency: 80KHz

Output Type: SINGLE

Product Name1: Step Down Module

Product Name2: 600W step-down constant voltage constant current adjustable power module

Product model: SZ-8025CCCV

Size: 100mm*60mm*35mm

Type: DC/DC Converters

Type1: DC-DC Step Down Volt Regulator

Type2: Adjustable Buck Converter

Type3: DC12-75V 600W 25A DC-DC Buck Constant Voltage Constant Current Converter Buck Regulator Adjustable Power Module

Type4: DC-DC Buck Constant Voltage Constant Current Converter

Weight: DC-DC Buck Constant Voltage Constant Current Converter

Wiring: IN is the input,OUT is the output

Work Indicator Light: YES

Working temperature: -10~65℃

feature1: Continuous adjustable output voltage and current

feature2: Easy to use,Easy to operate

feature3: Stable performance, with an input voltage of up to 75 volts

is_customized: Yes

size: 100mm*60mm*35mm

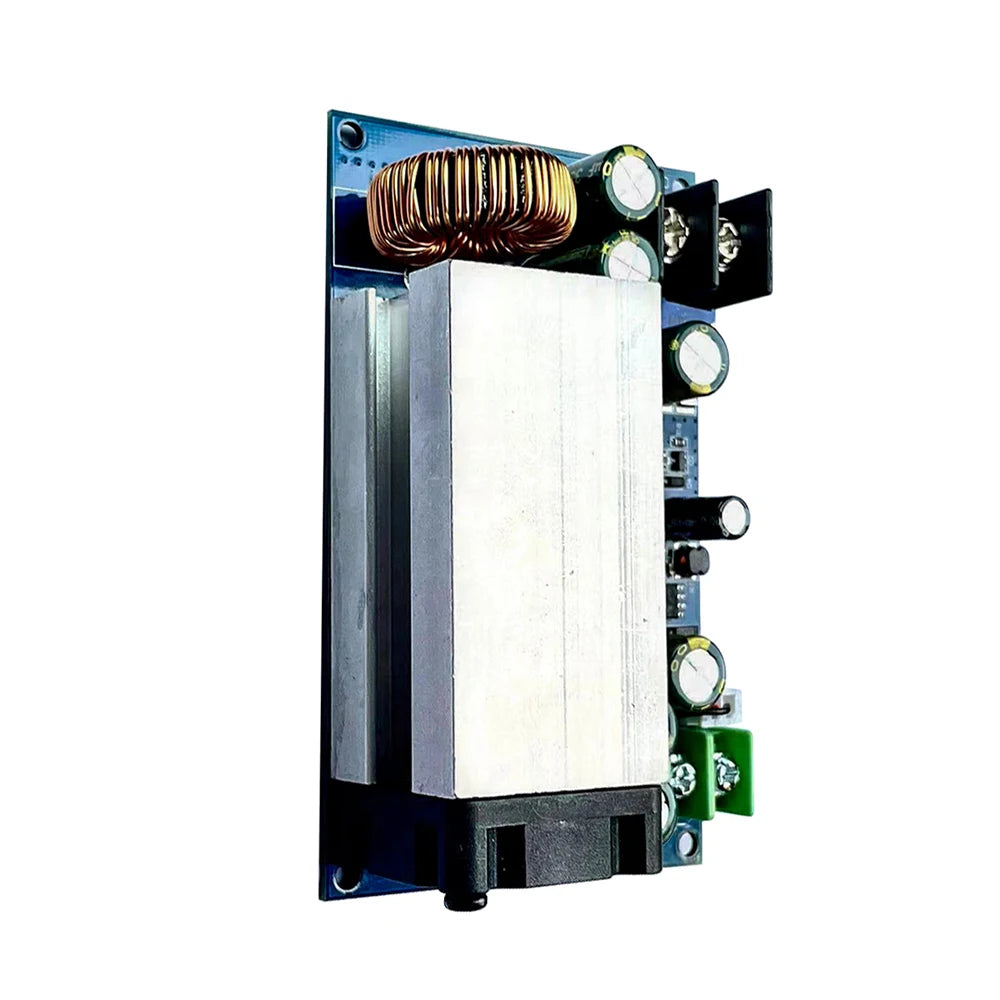

600W DC-DC step-down constant voltage constant current adjustable power module

Features:

1. Continuously adjustable output voltage and current

2. User-friendly operation

3. Simple handling

4. Stable performance with maximum input voltage up to 75 volts

5. Exceptionally high efficiency

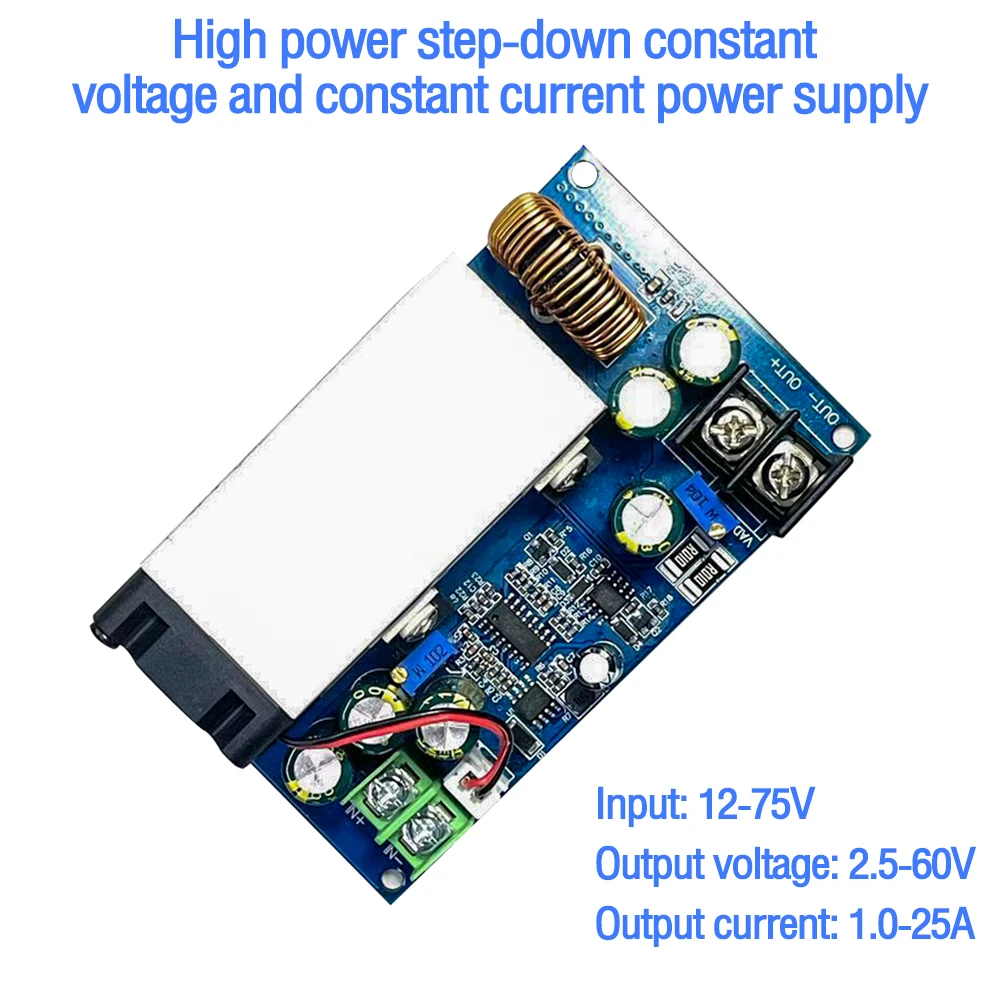

Power Module Key Features:

* Step-down rectification design delivers peak efficiency of 95%

* Continuously adjustable output voltage and current

* Input voltage up to 75V, maximum output voltage 60V (at 75V input), maximum current 25A.

Specifications:

Model: SZ-8025CCCV

Module Name: 600W Buck Constant Voltage Constant Current Adjustable Power Module

Module Type: Non-isolated Buck Module

Input Voltage: DC 12-75V

Output Voltage Range: DC 2.5-60V (Must satisfy buck condition: IN input multiplied by 0.8)

Minimum Output Voltage: 2.5V

Maximum Output Voltage: Approx. Input Voltage * 0.8 (e.g., Input 40V → 40V*0.8 = 32V max output)

Output Constant Current: 1-25A (continuously adjustable)

Maximum Output Power: 600W (requires well-ventilated operating environment)

Maximum Continuous Power: 500W (in ventilated environment)

Maximum Continuous Current: 25A (in ventilated environment)

Cooling Method: Air-cooled

Input Undervoltage Protection: None

Input Overvoltage Protection: None (overvoltage prohibited)

Operating Temperature: -10°C to +65°C

Operating Frequency: 80KHz

Conversion Efficiency: Up to 95% (Efficiency varies with input/output voltage, current, and voltage difference)

Short-Circuit Protection: Yes (Constant current protection)

Input Reverse Polarity Protection: No

Output Backflow Protection: No (When charging batteries or connecting inductive loads like motors, a backflow protection diode must be added)

Operating Indicator: Yes (Blue LED for output voltage)

Wiring Method: Built-in solderless terminals

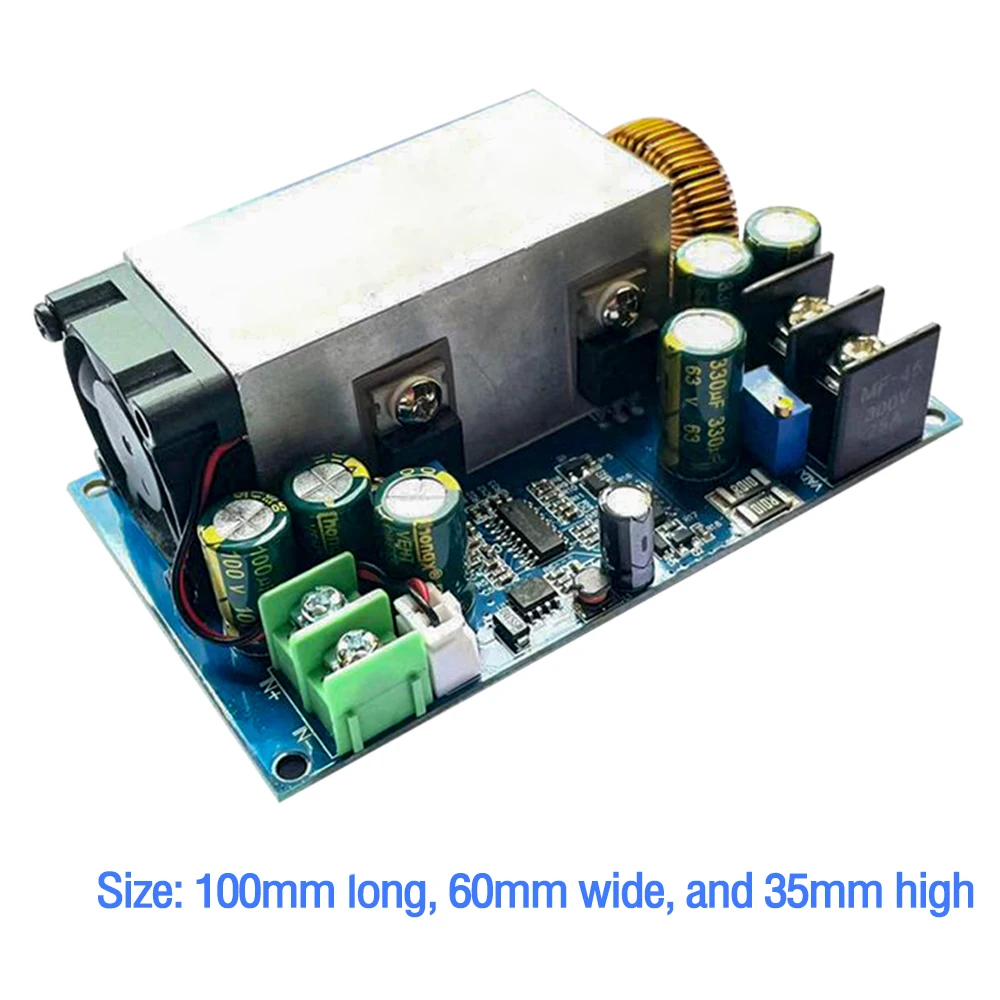

Module Dimensions: Approx. 100mm (L) × 60mm (W) × 35mm (H)

Net Weight: Approx. 140g

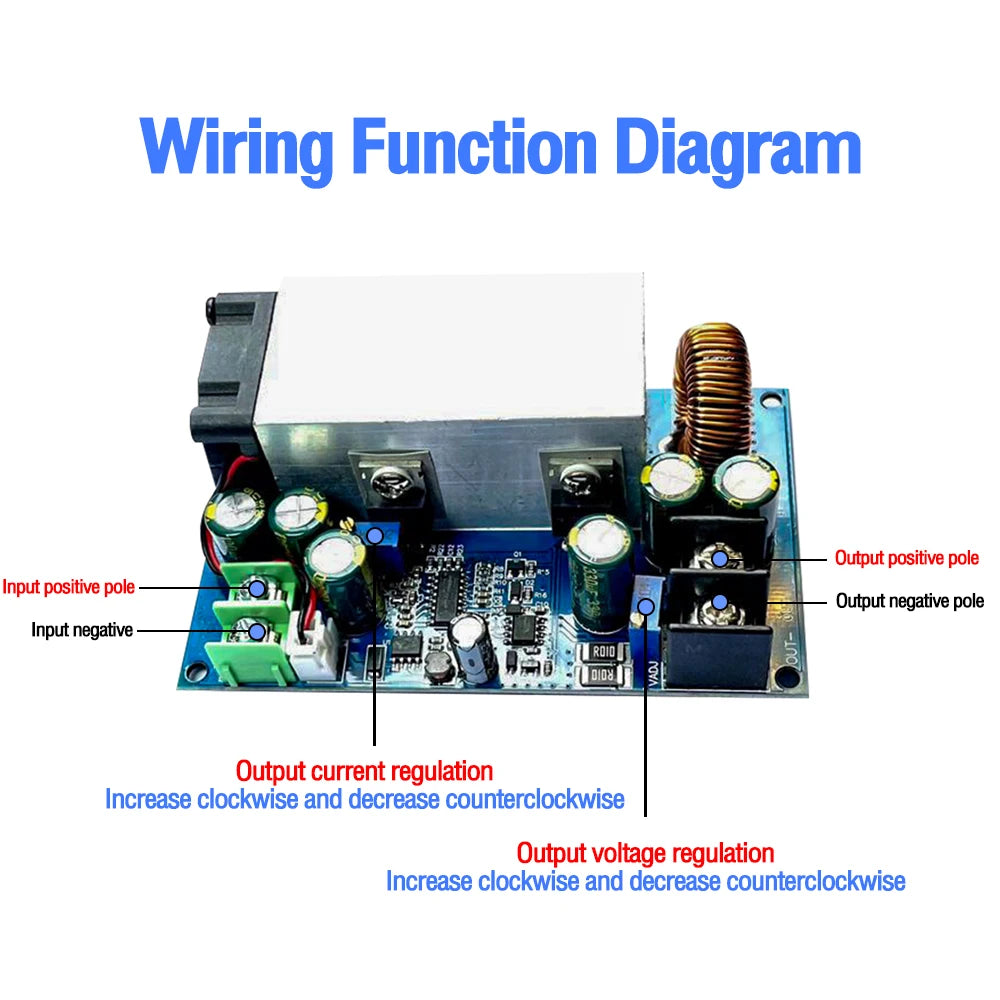

Wiring: “IN” is input.

“OUT” is output.

Product List:

1*Power Module
