SPECIFICATIONS

Brand Name: Aideepen

Certification: CE

Choice: yes

High-concerned chemical: none

Model Number: DC-DC Step Down Power Supply Module

Origin: Mainland China

Output Current: 4A Max

Output Frequency: DC9V 12V 19V 24V

Output Power: 1 - 50W

Output Type: SINGLE

Size: 88*53*22mm

Type: DC/DC Converters

Weight: 86g

is_customized: Yes

semi_Choice: yes

Product selling point:

1: The power supply adopts an isolated design, and the biggest advantage of the isolated power supply is high safety and reliability

2: Input reverse connection protection

3: stable performance

4: Output short circuit protection

5: Solder-free wire terminals, easy to use

Features:

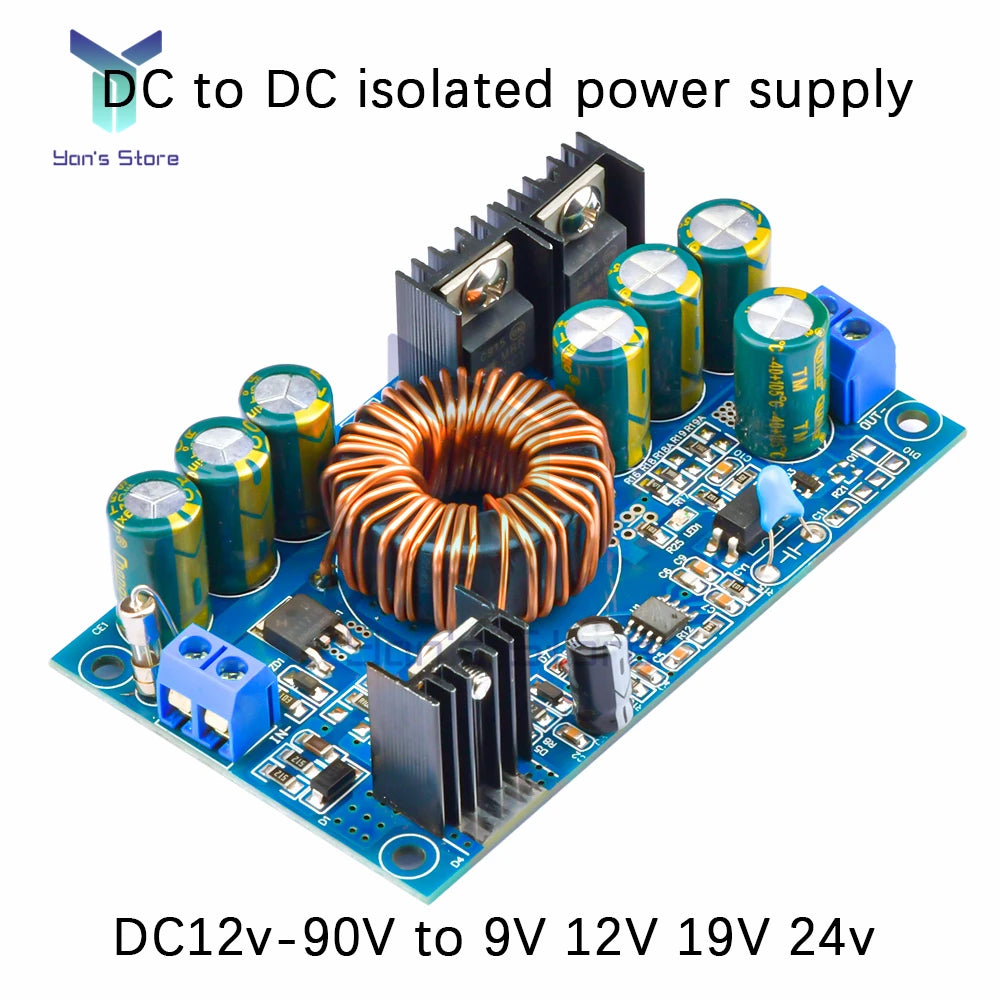

The power supply adopts an isolated design, and the biggest advantage of the isolated power supply is high safety and reliability, because there is no direct current loop between the input and output. Even if the power supply is abnormal, the damage to the load is very small. For example, after the switch tube breaks down, the input voltage will not be added to the output end to cause damage to the load. At the same time, the power supply has MOS tube input anti-reverse connection protection, and the output has short-circuit protection. It is suitable for power supply of products that require relatively high power reliability.

Parameters:

Power supply properties: isolated step-down constant voltage switching power supply

Input voltage: DC12-90V

Output voltage: DC9V 12V 19V 24V

Output current: 9V 12V 19V maximum 4A, continuous operation 3A. 24V max 3A, continuous 2.5A.

Output ripple: 100mv (measured at 12v2a)

Input anti-reverse: yes (mos anti-reverse)

Output short-circuit protection: yes (can not be short-circuited for a long time)

Conversion efficiency: about 88%, measured at 48 rpm at 12V 2A

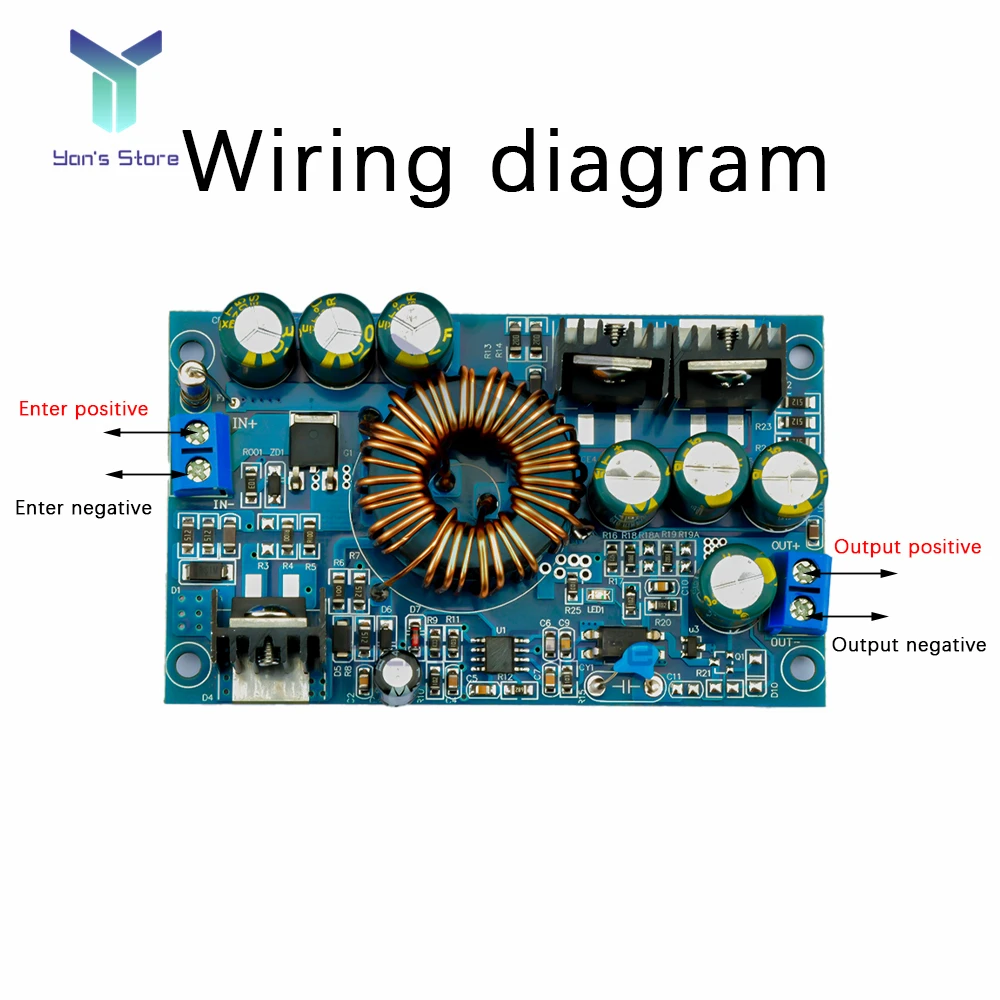

Wiring method: solderless wire terminal

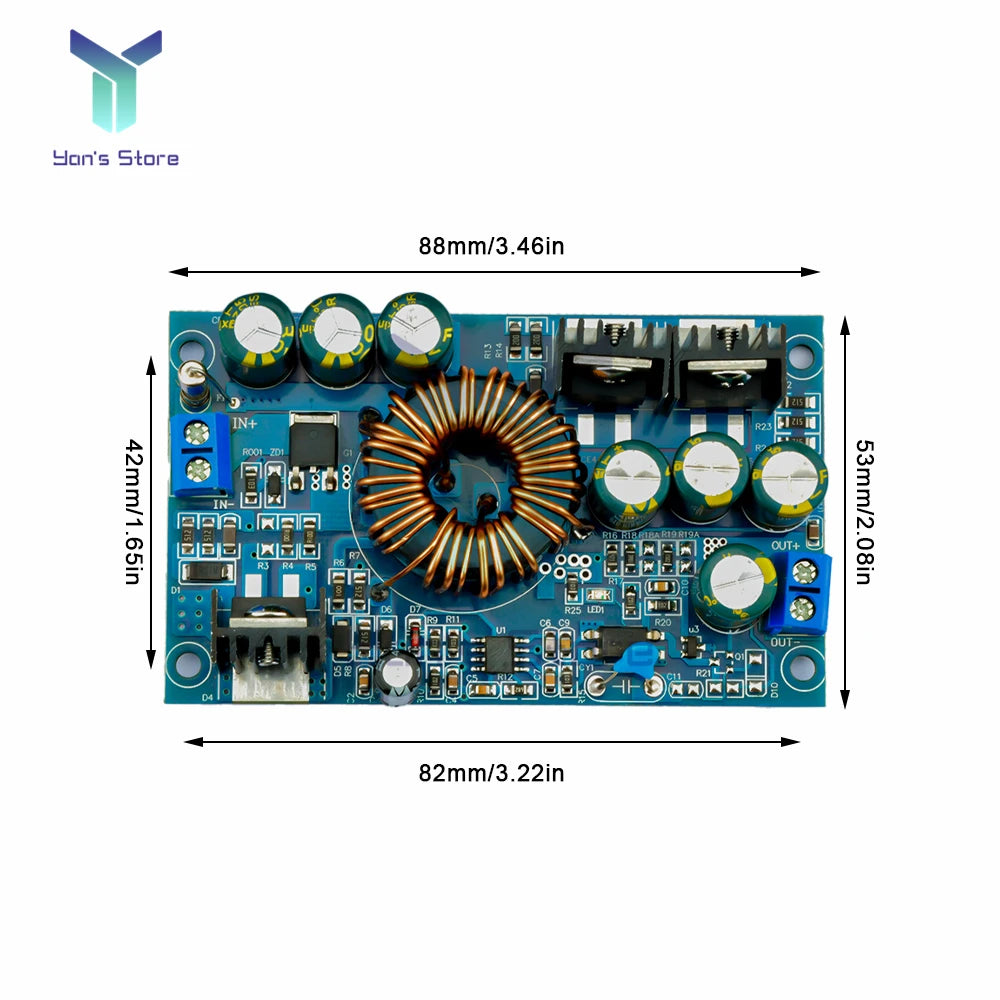

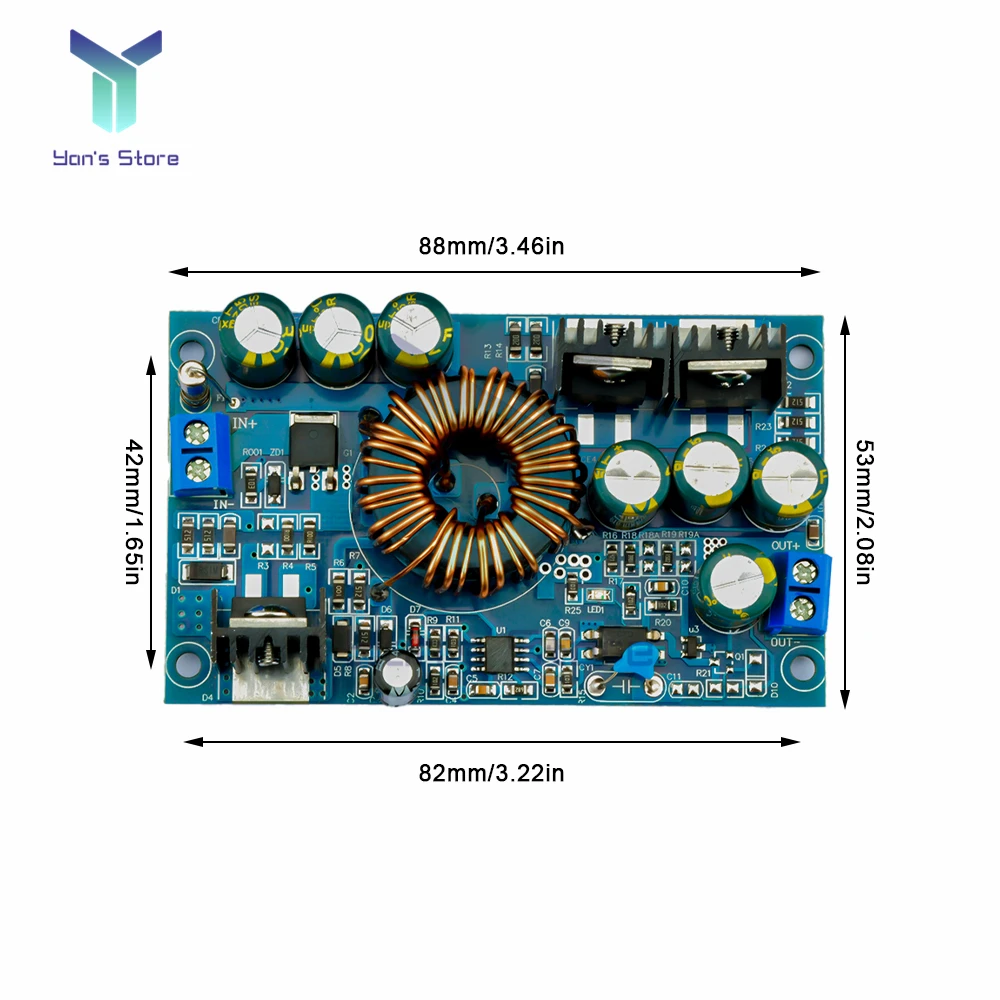

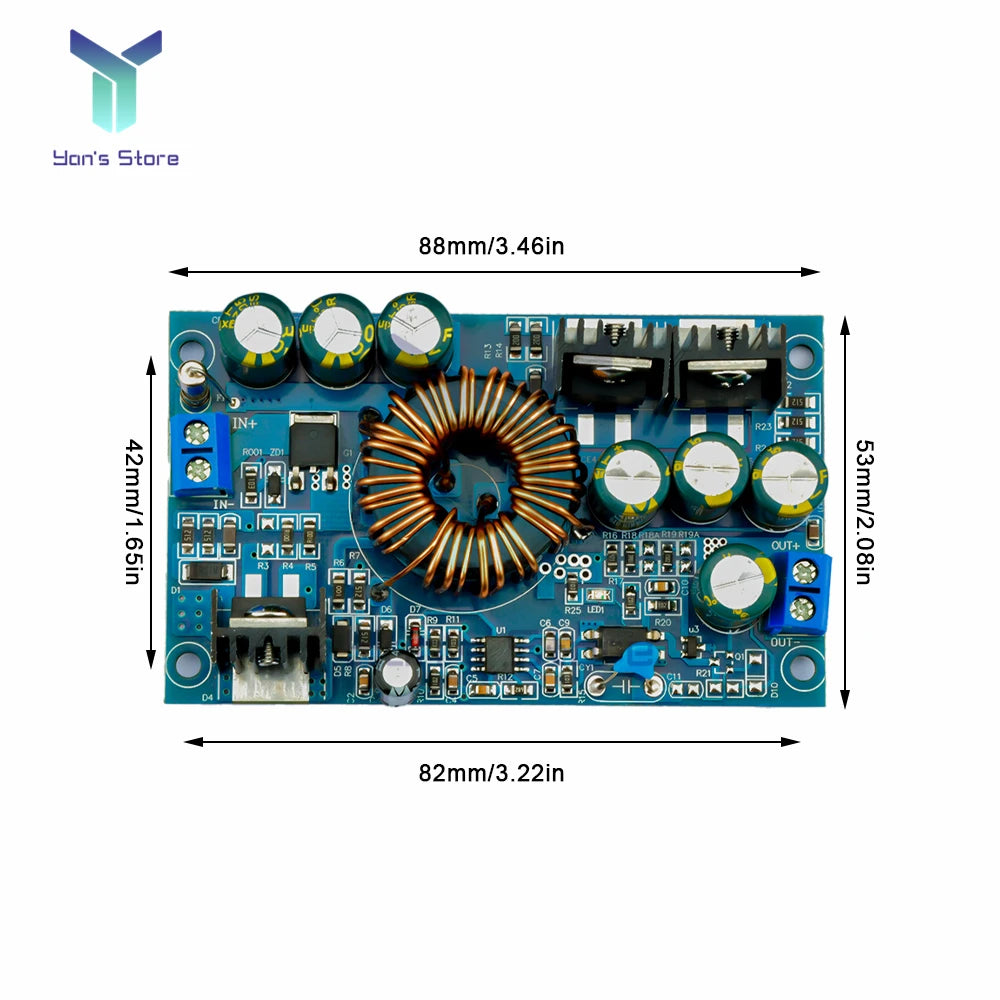

Product size: length 88* width 53* height 22mm

Packing method: electrostatic bag packing

Note: 1. This product is a constant voltage power supply and cannot be used in products that require constant current, such as charging batteries or driving LED lights with constant current. . . .

2. The power supply can be buck and regulated, and can also be boosted and regulated. For example, the output is 19 volts, and the input 12 volts-90 volts can be stable at 19V output. under boost conditions. The load capacity will be reduced by half.

Package List:

1*DC-DC isolated step-down power supply module
