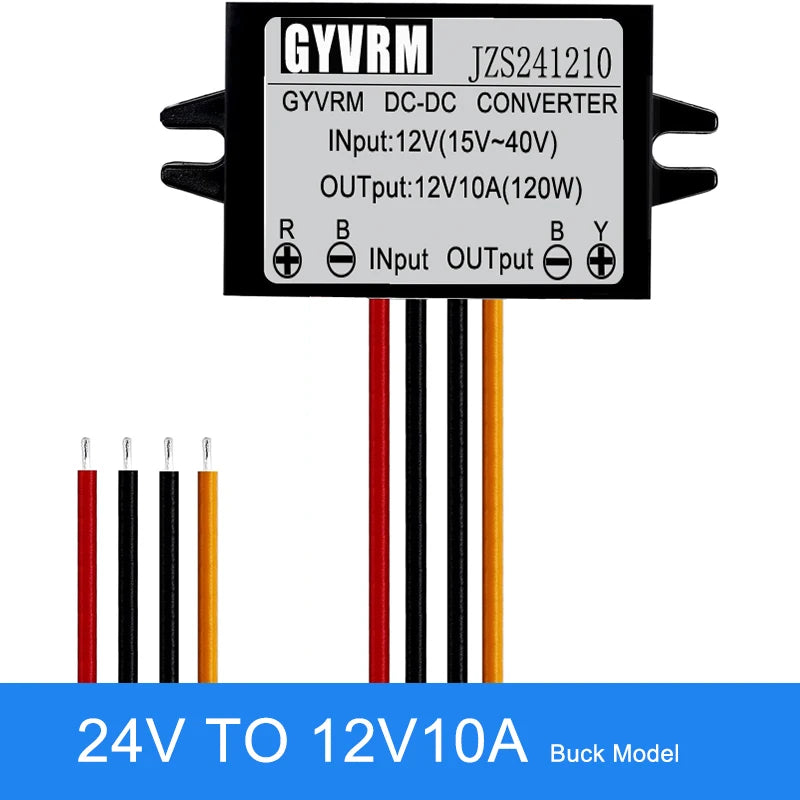

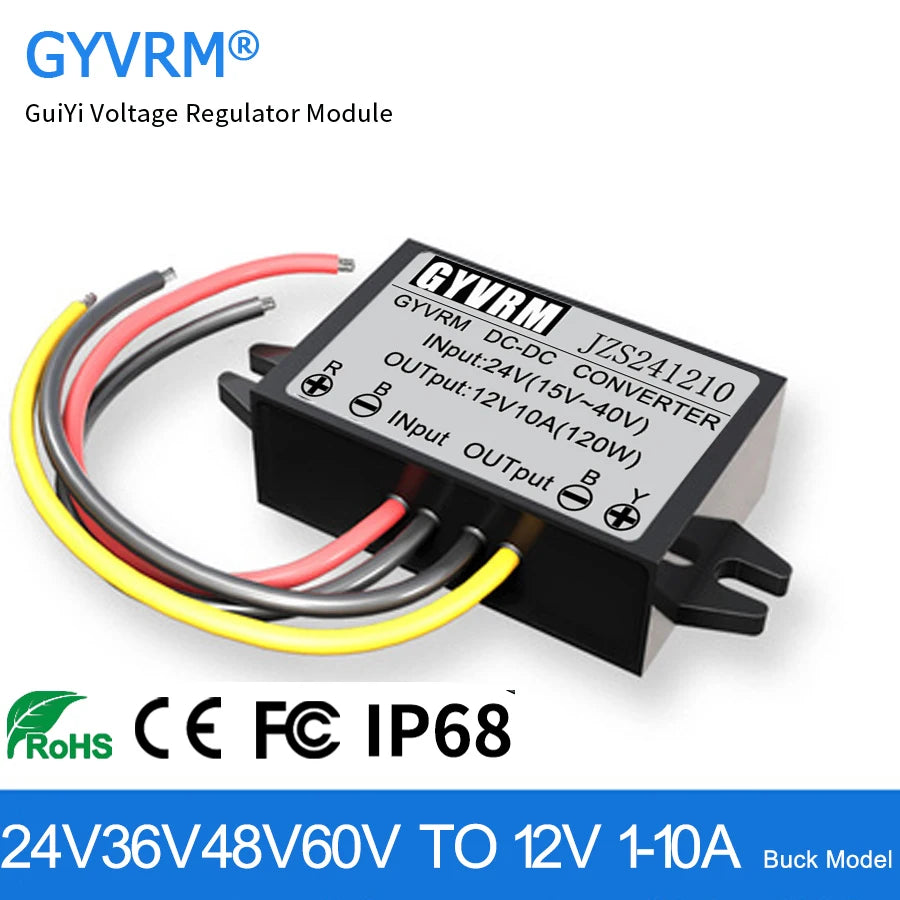

DC-DC Power Conventer 24V to 12V 1A 2A 3A 5A 6A 8A 10A Voltage Regulator Buck 24V 36V 48V 60V to 12V DC to DC Converter

36V48V to 12V5A / Other / 12V

$83.56

Sale price $83.56 Regular price $0.00

Skip to product information

DC-DC Power Conventer 24V to 12V 1A 2A 3A 5A 6A 8A 10A Voltage Regulator Buck 24V 36V 48V 60V to 12V DC to DC Converter

DC-DC Power Conventer 24V to 12V 1A 2A 3A 5A 6A 8A 10A Voltage Regulator Buck 24V 36V 48V 60V to 12V DC to DC Converter

$83.56

Sale price $83.56 Regular price $0.00

Color 36V48V to 12V5A 24V to 12V1A 24V to 12V2A 24V to 12V6A 24V to 12V8A 24V to 12V3A 24V to 12V5A 36V48V to 12V2A 36V48V to 12V3A 24V to 12V10A 36V48V to 12V1A

Input VoltageOther

Output Voltage12V

Description

SPECIFICATIONS

Brand Name: GYVRM

Certification: CE,FCC,UL

Choice: yes

High-concerned chemical: none

Model Number: GYVRM-JZS241201-10,GYVRM-JZS481201-05

Origin: Mainland China

Output Current: 1-10A

Output Frequency: 50HZ

Output Power: 1 - 50W

Output Type: SINGLE

Performance: Waterproof/Dustproof/Moistureproof/Shockproof

Protection: Over voltage protection/ over current protection/high temperature protection/short circuit protection

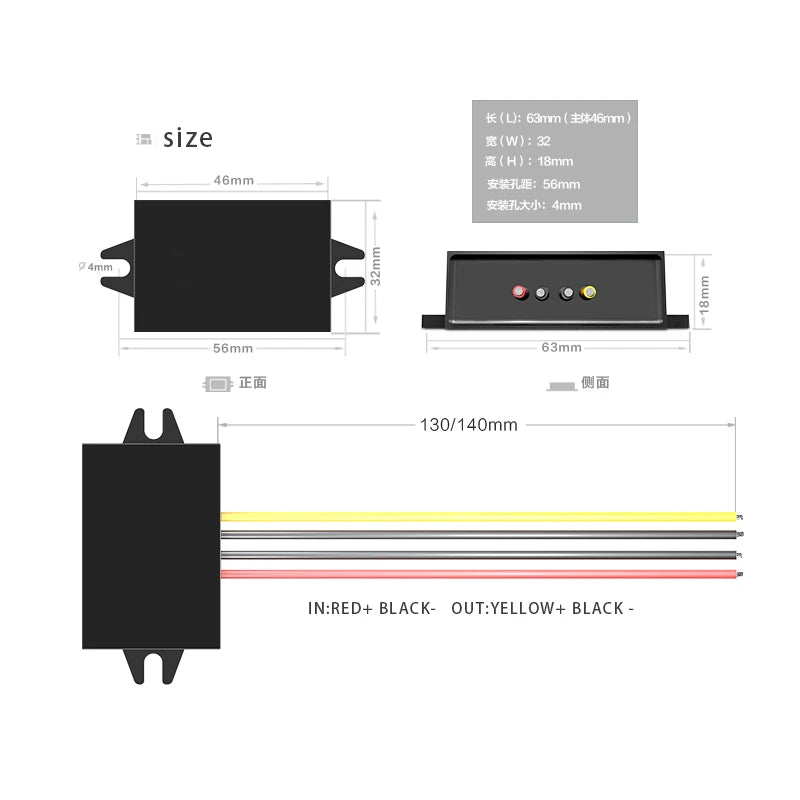

Size: 60*32*18mm

Type: DC/DC Converters

Waterproof Rating: IP68

Weight: 60g

is_customized: None

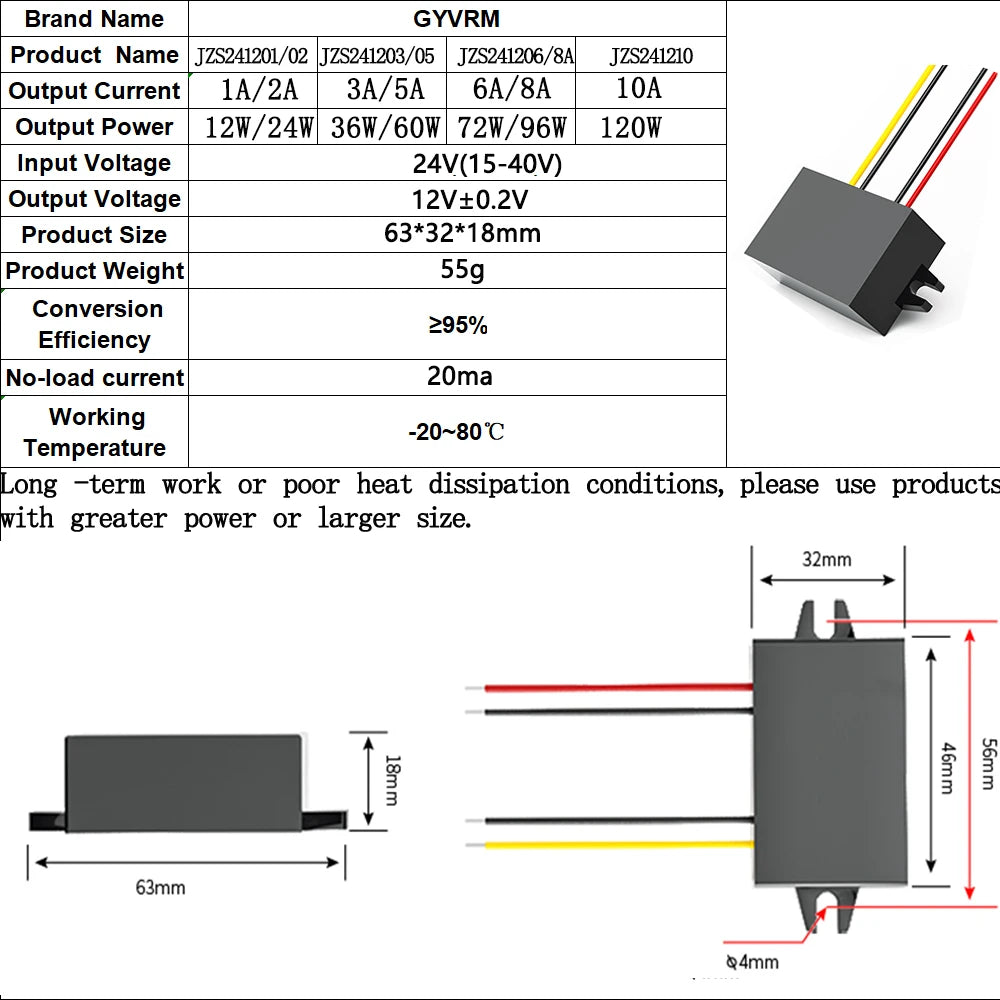

Product parameters

DC-DC 24V TO 12V 1-10A

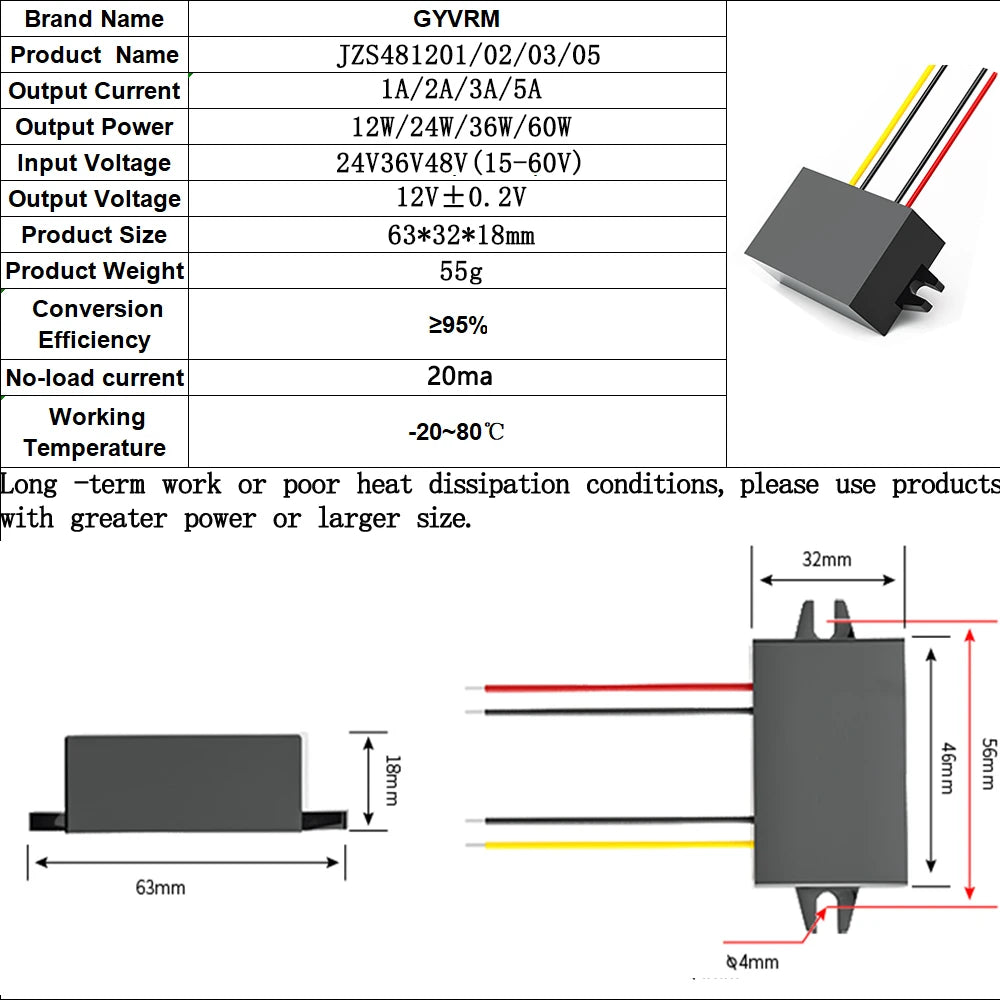

DC-DC 36V48V TO 12V 1-5A

Instructions

Applications

Wide range of applications: Industrial automation control. Research equipment, LED lighting, industrial control equipment, car equipment, power equipment, instrumentation equipment, medical equipment, refrigeration empty purifier,Electronic refrigerator, liquid crystal display, LED display, audiovisual product, security imported computer chassis, digital products and various instruments and other fields。

User's Manual

The 24V,36V,48V,60V battery voltage is converted to a 12V DC voltage.

Precautions (Uncertain installations, please contact our company before installation)

！！！Long-term use cannot be fully loaded, please reduce power or choose more powerful products, best 50% of maximum power.

1. Make sure that all the polarity is correct, and the anti-negative conversion converter (except for input tape reverse protection)

2. Make sure the cable is pure copper wire, the input and output cables cannot exceed 2 meters, and the output will be removed by more than 2 meters. The voltage will be reflected. If the line is extended, you need to increase the line diameter according to the corresponding multiple.

3. The cable needs to be connected to the thread, please refer to the wire diameter size and securely connected.

4. The input terminal is required to connect the fuse or air switch, and you need to select the corresponding fuse or switch] (except the input belt fuse)

5. Make sure the battery capacity is large enough to provide sufficient energy. If the input energy is not enough, the voltage will be reduced.

6. Make sure the installation environment is well ventilated, so as not to protect over temperature protection, limit current output

7. Cannot connect directly to solar panels or wind wind turbines

8. Non-charged models cannot be charged battery and lithium batteries

9. When connecting the input test with DC power supply, the input should not exceed the voltage range of the battery, and no overvoltage protection (can be customized).

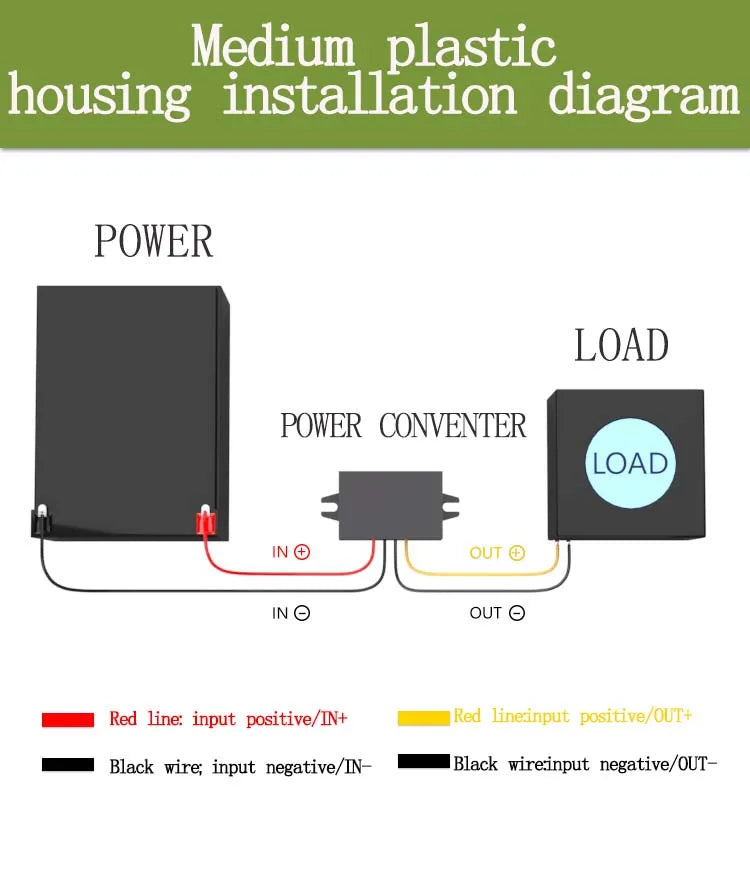

Installation step (four lines or four / five terminals)

1. Turn off all power supplies and load switches

2. Before the wiring, pay attention to all positive and negative poles

3. Connection (OUTPUT-) to load negative, connection (OUTPUT +) to load positive

4. Connect the fuse or air switch to (Input +) input the positive cable, then connect (Input +) to the battery positive, connect (Input-) to the battery negative electrode

5. Make sure all positive and negative connections are correct (do not reverse, reverse the burnback converter), turn on the power and load switch

(Note: If the ACC port is connected, connect the ACC to the ignition switch: If you do not need to use the ACC function, connect the ACC to the (Input +) battery "positive.)

troubleshooting

1. Output no voltage, please check if all lines are connected firm, the battery is enough, whether the fuse is burning.

2. Output the voltage, check if the load start current is too large, the ventilation is good, whether the outer casing is heated, whether the cable and the thread are selected and installed, whether it is less than 2 meters, and the input battery has sufficient energy.
