ColorWMT1060
Input Voltage10-60V
Output Voltage2.5-35V adjustable 1
Description

SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Model Number: WMT1060

Origin: Mainland China

Type: DC/DC Converters

Welcome to our store! 🛍️
Thank you for visiting. We hope you enjoy shopping with us!

Product Details:

Name   Description: DC-DC adjustable step-down module

Loss  Input: 10V-60V

Loss  Output: 2.5-35V adjustable

Effective  Rate: 96% (MAX)

Keep  Protection: Short-circuit protection, reverse connection protection (does not damage the board when connected incorrectly)

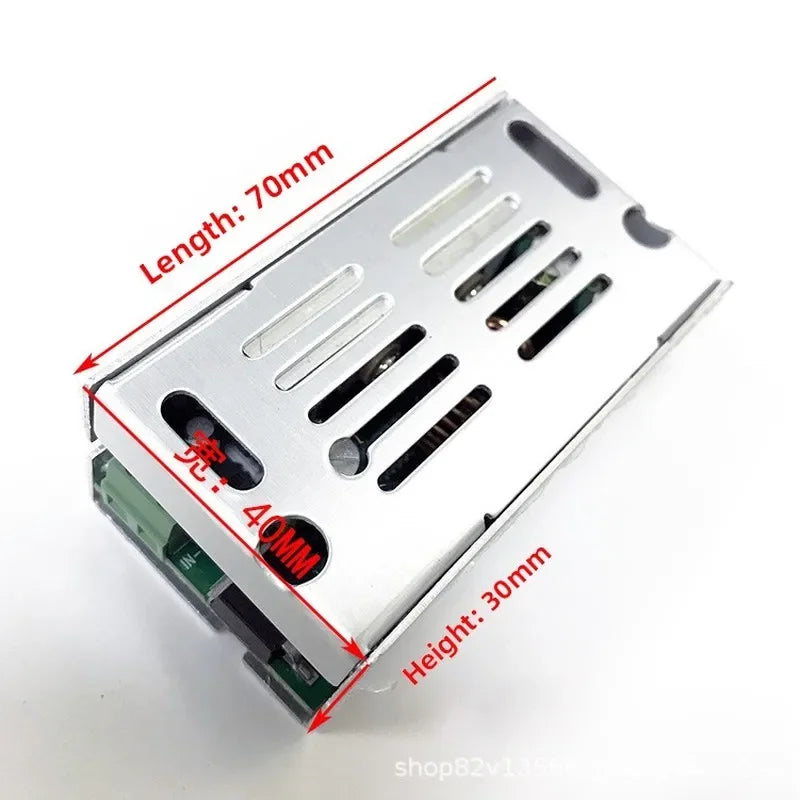

Module dimensions: L70mm*W40mm*H30mm

Module weight: 75g

Operating temperature: -40℃-85℃

Load capacity: 15A (MAX)

Output power: Natural cooling 100W, enhanced cooling 120W.

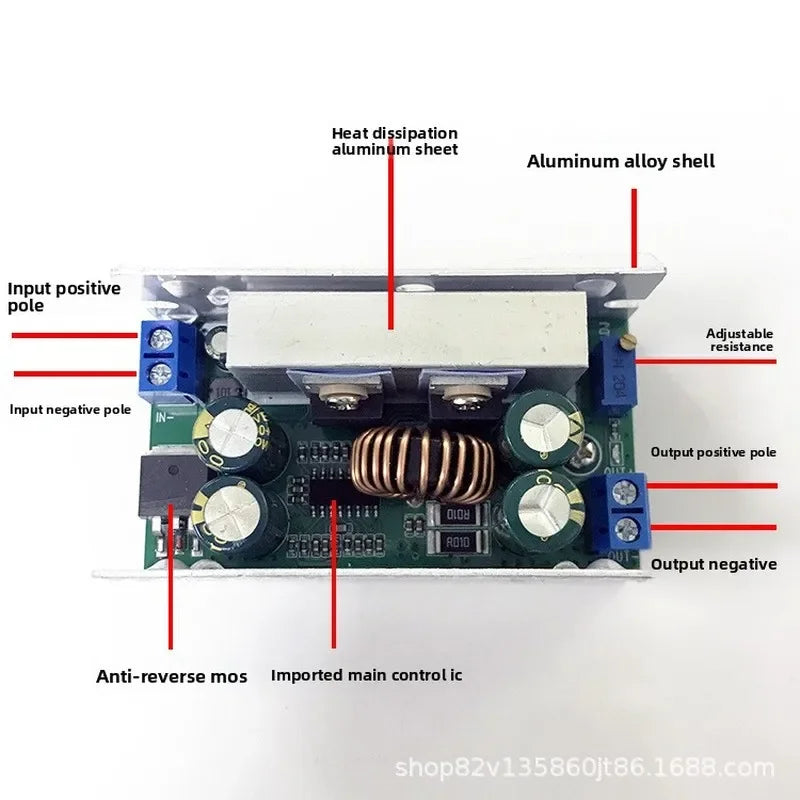

Wiring method: The terminal block does not require soldering, IN is the input and OUT is the output

Special note: The greater the input-output voltage difference of the module, the more heat is generated, the lower the efficiency, and the load capacity becomes weaker.
