SPECIFICATIONS

Features:

1. The product uses industrial-grade chip with multiple built-in intelligent protection functions

2. The power supply life is related to the use temperature, the lower the temperature, the longer the life; The module adopts aluminum base plate, the heat dissipation performance is far better than ordinary composite board, and the corresponding life is also greatly improved

3. Product performance is stable and cost-effective, used at the same power, higher efficiency, lower heat

4. Light appearance, high sensitivity, long service life

5. The products can be widely used in industrial power supply, control system, solar power supply equipment, electric vehicle converter, lighting circuit and other safety applications

Product parameters:

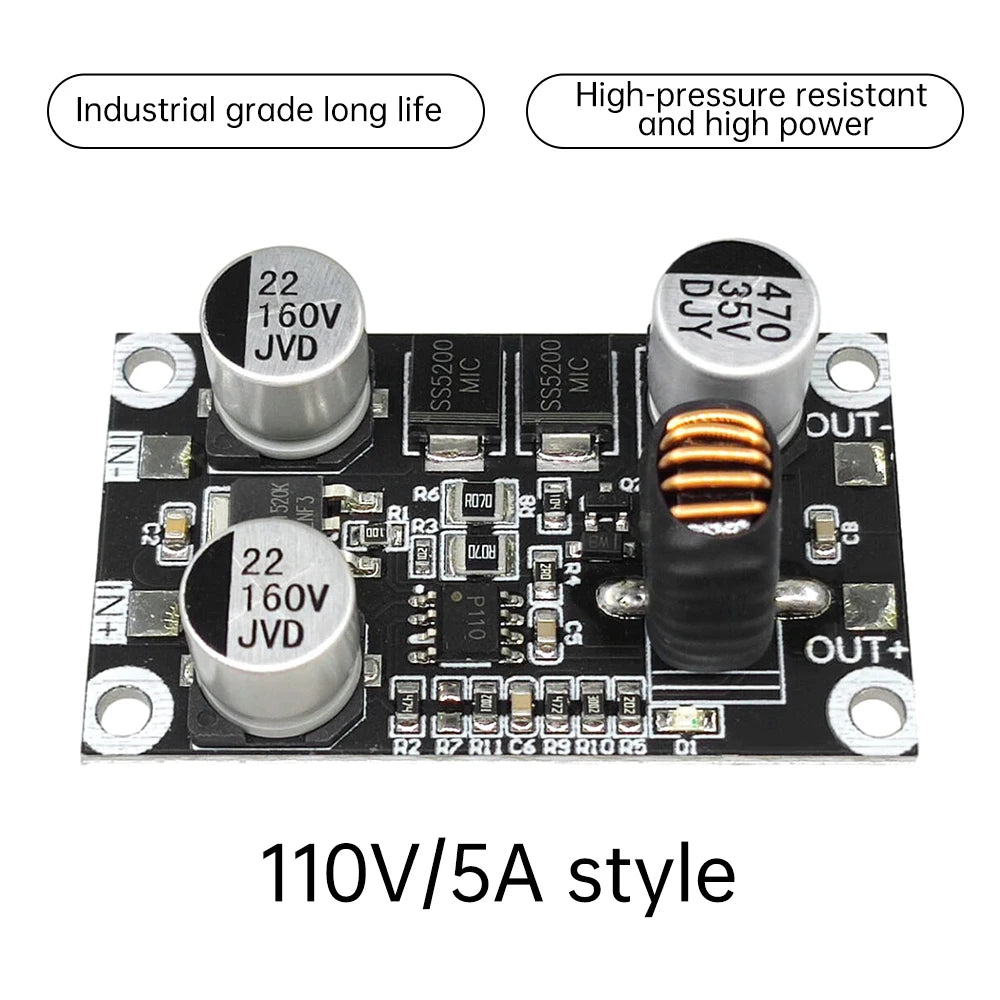

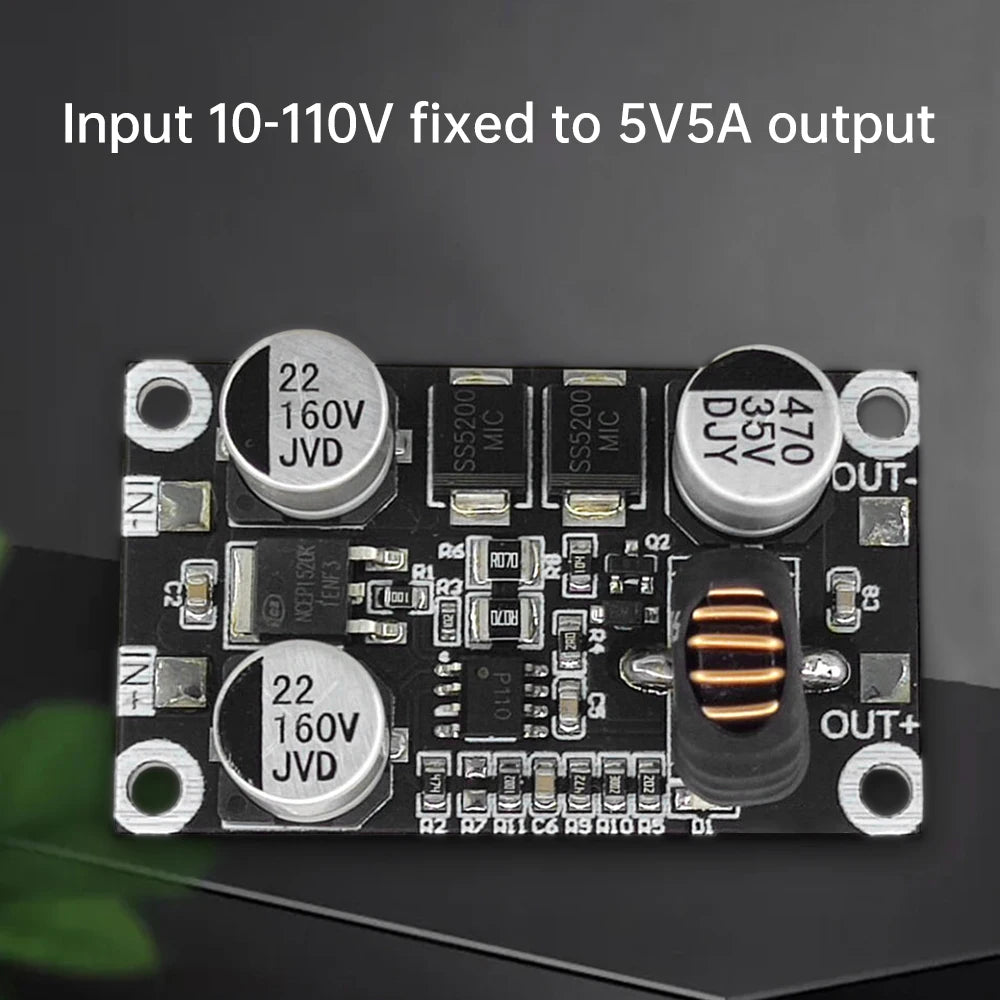

Input voltage: 10V-110V (step-down type)

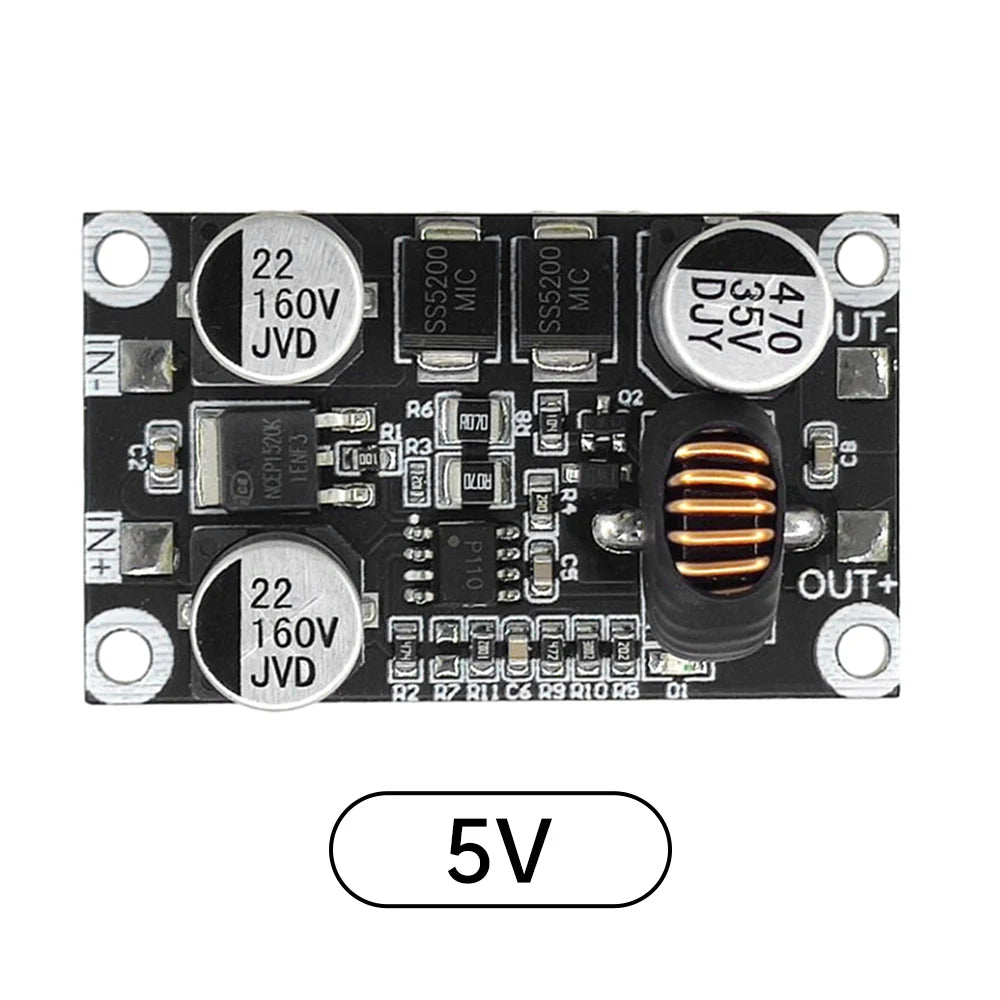

Output voltage: 5V/9V/12V/24V

Output current: ≤5A

Maximum output power: ≤60W (current ≤5A)

Conversion efficiency: ≤95% The smaller the pressure difference, the higher the efficiency

Input/output pressure difference: ≥25V (need attention)

Operating temperature: -40℃~+85℃

No-load current: 5-10mA

Overcurrent protection: YES

Overvoltage protection: YES

Short-circuit protection: YES

Undervoltage protection: YES

Heat dissipation mode: aluminum plate natural heat dissipation

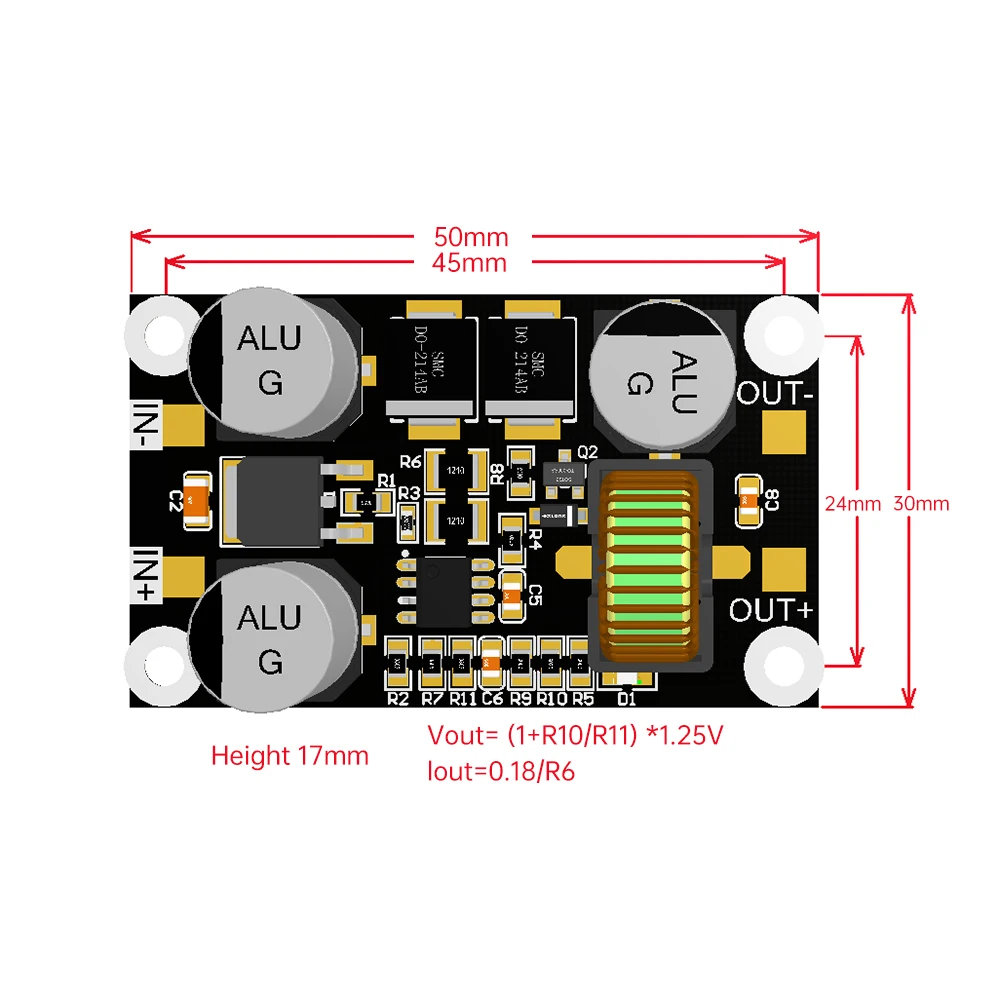

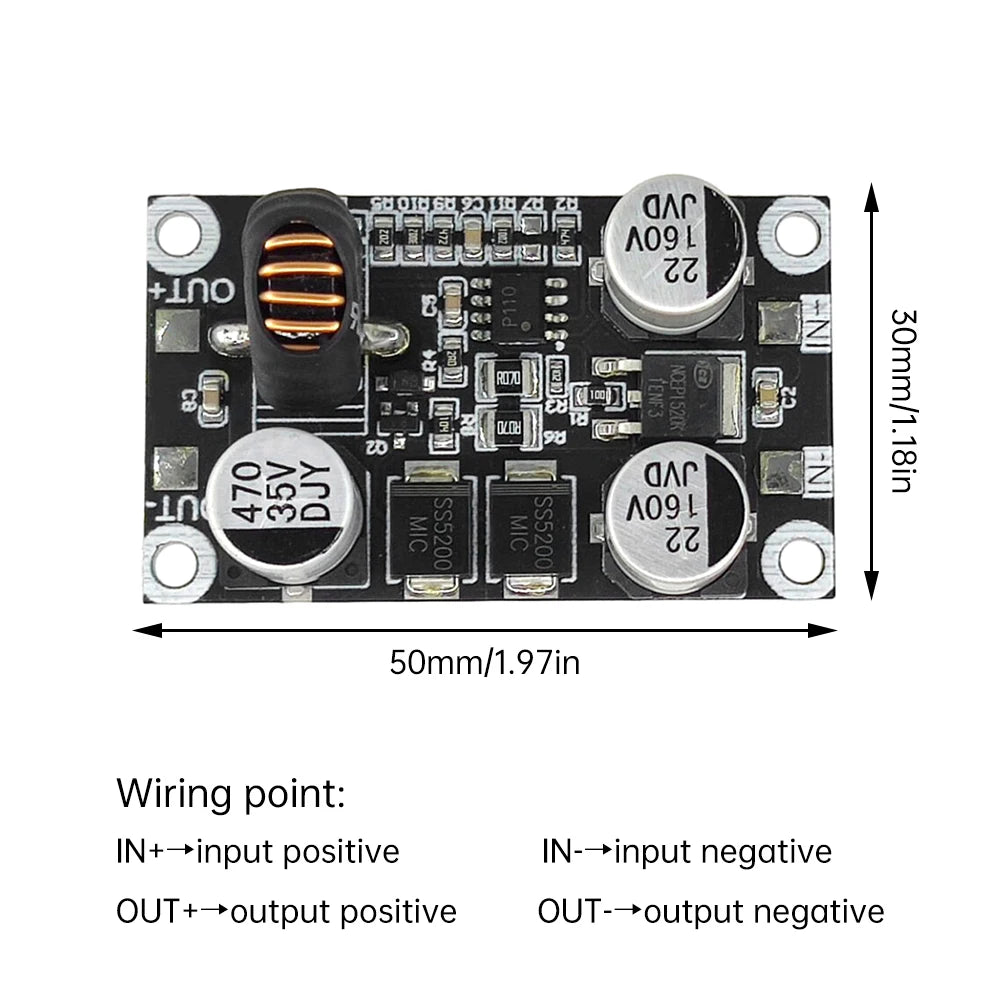

Dimensions: 50*30*17MM

Attention:

The more power you can achieve, the better the design heat dissipation and component efficiency selection, that is, if you use 2A current, you choose 3A power supply and 5A power supply can be used, but 3A power supply temperature is higher than 5A power supply, life will be greatly shortened. Considering the service life, it is recommended to choose a larger current.

Package included:

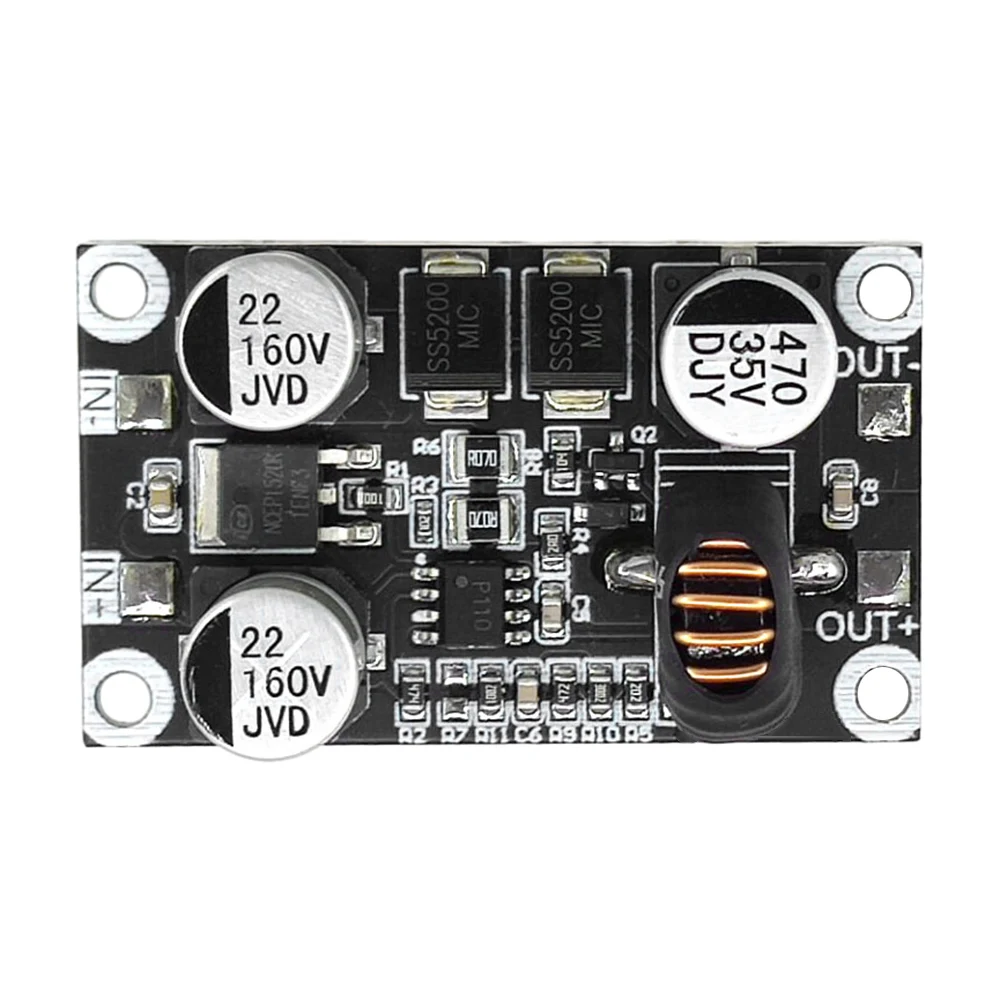

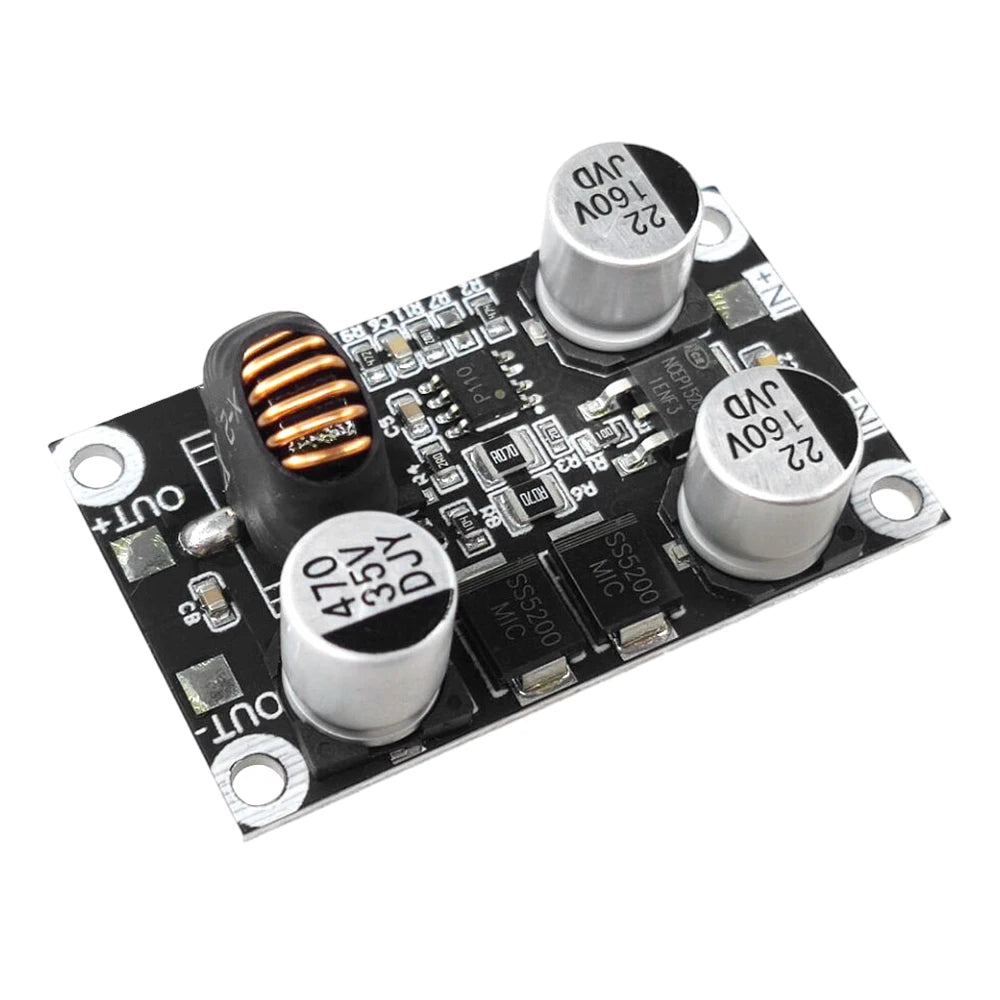

1 x DC-DC Step Down Module Power Supply Buck Converter Non-isolated Stabilizer 9V 12V 24V 36V 48V 72V 110V to 5V 9V 12V 24V
