SPECIFICATIONS

Brand Name: DYKBmetered

Choice: yes

DC EMI Filter: High Frequency Power Filtering

DC LC Low Pass Power Filter: EMI Anti-electromagnetic Interference EMC

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Model Number: DC EMI Filter

Origin: Mainland China

Output Voltage: 2A 4A 10A 20A

Semi-finishedproduct: Yes

Size: High Frequency Power Filtering

Style: EMI Anti-electromagnetic Interference EMC

Type: DC LC Low Pass Power Filter

DC LC Low Pass Power Filter EMI Anti-electromagnetic Interference EMC High Frequency Power Filtering 2A/4A/10A/20A

Description:

This module is suitable for eliminating the use of DC power supply with electromagnetic interference, and can be used in automobiles, motorcycles, and DC circuits with relatively strong electromagnetic interference.

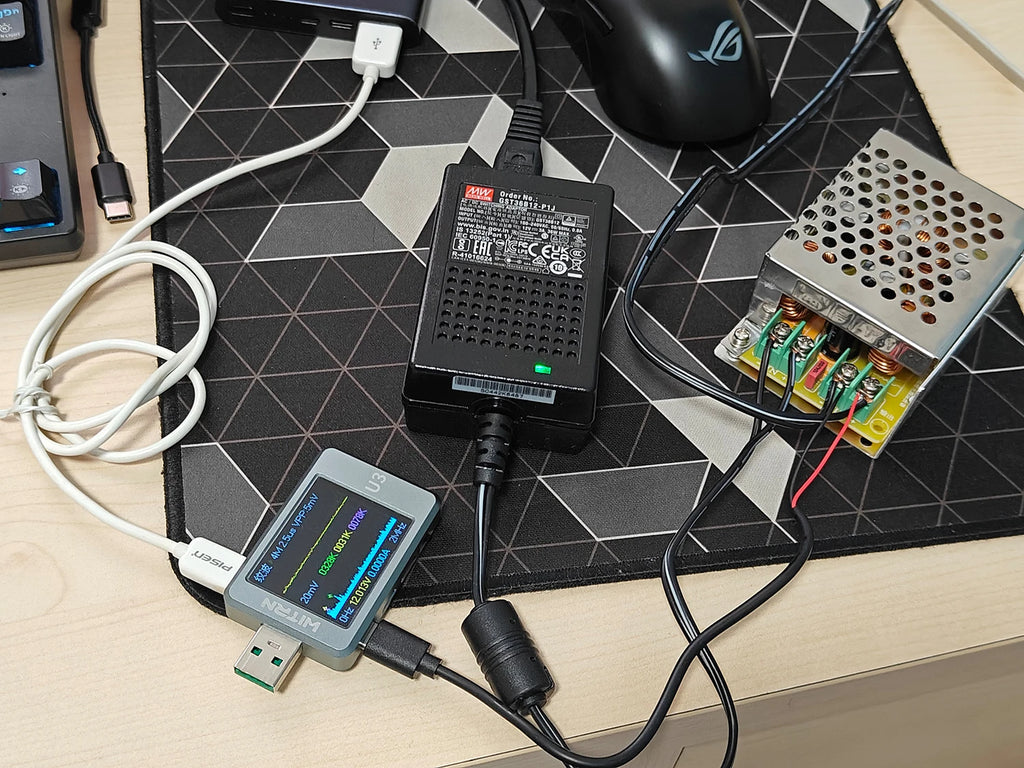

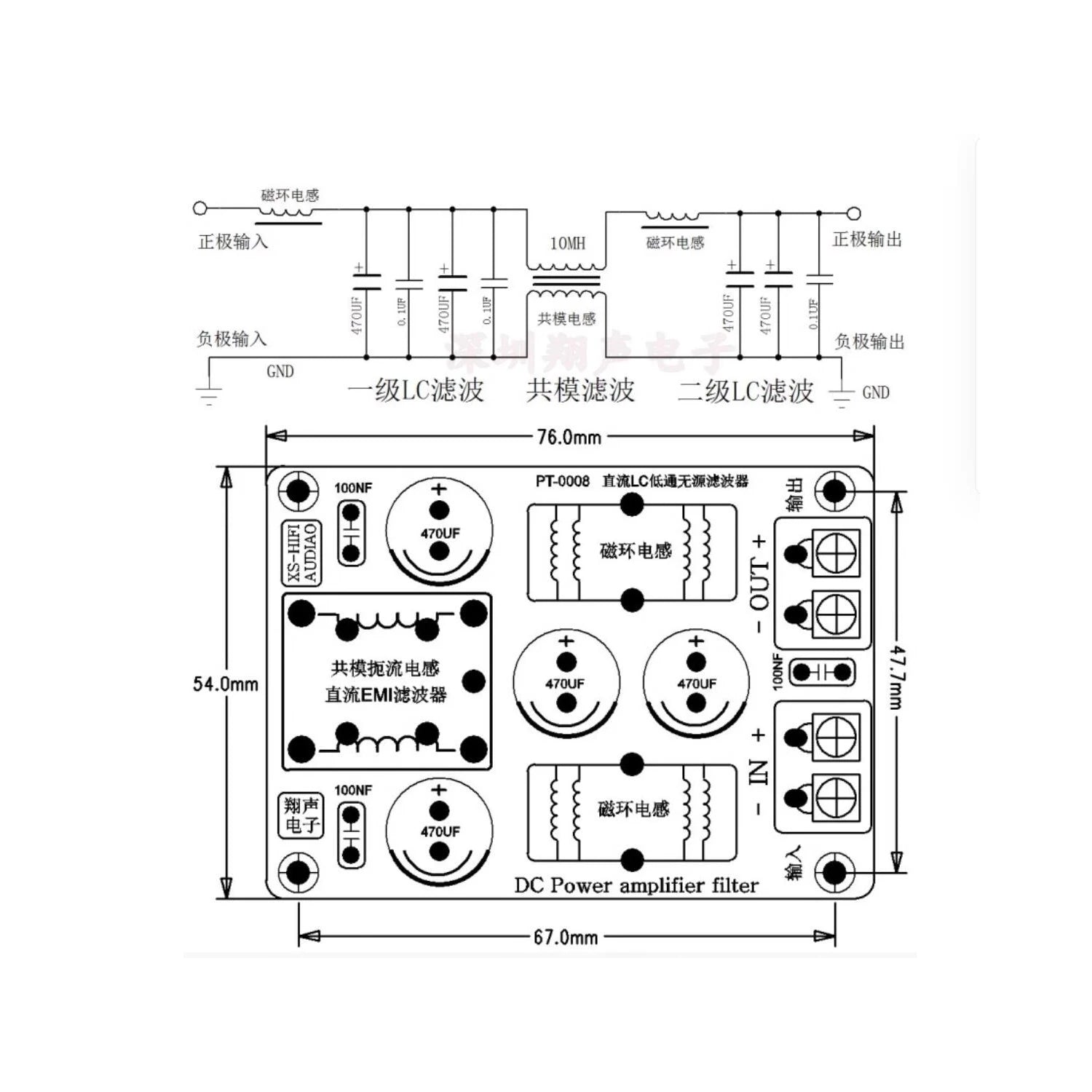

The circuit is composed of three parts, the first part is the first-level LC filter circuit, the second part is the common mode EMI filter, and the third part is the second-level LC filter circuit.

Generally LC filter is called passive filter. It is a traditional DC power harmonic compensation device composed of inductors and capacitors. It can filter out harmonics in the power supply single or multiple times to purify the DC power supply.

Common mode filtering can suppress the problem of fast transient group pulse interference with a repetition frequency of several kilohertz in some user sites.

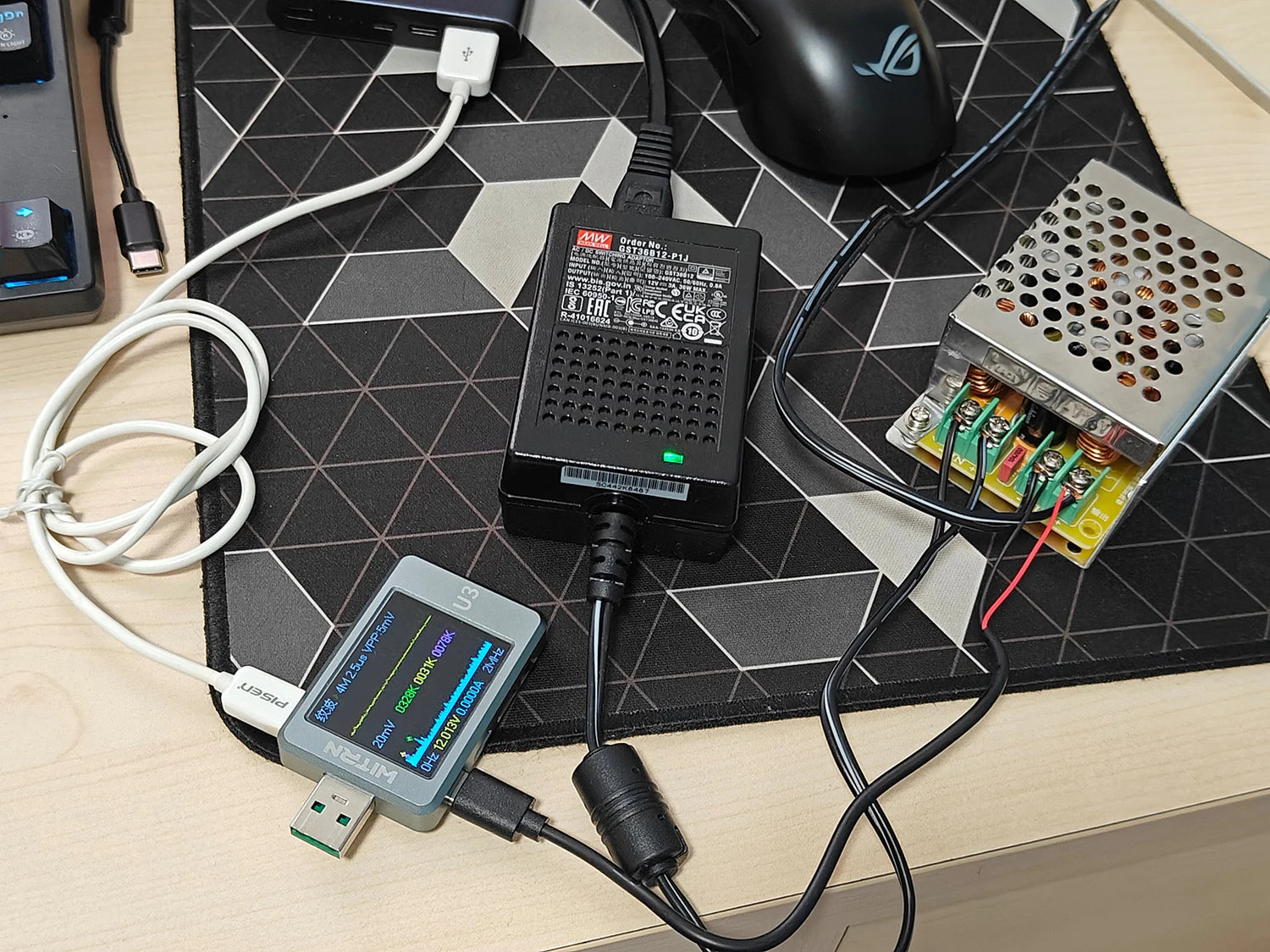

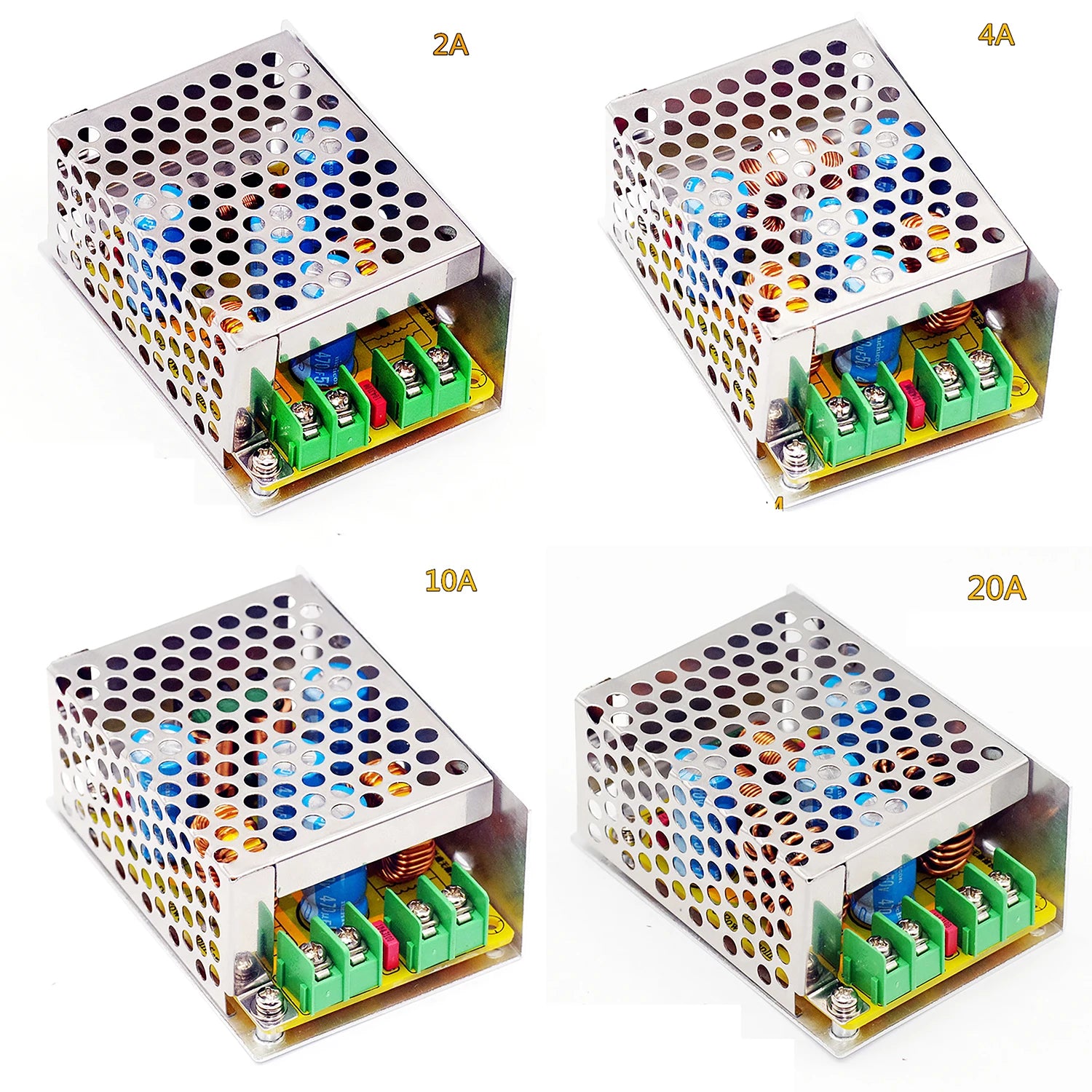

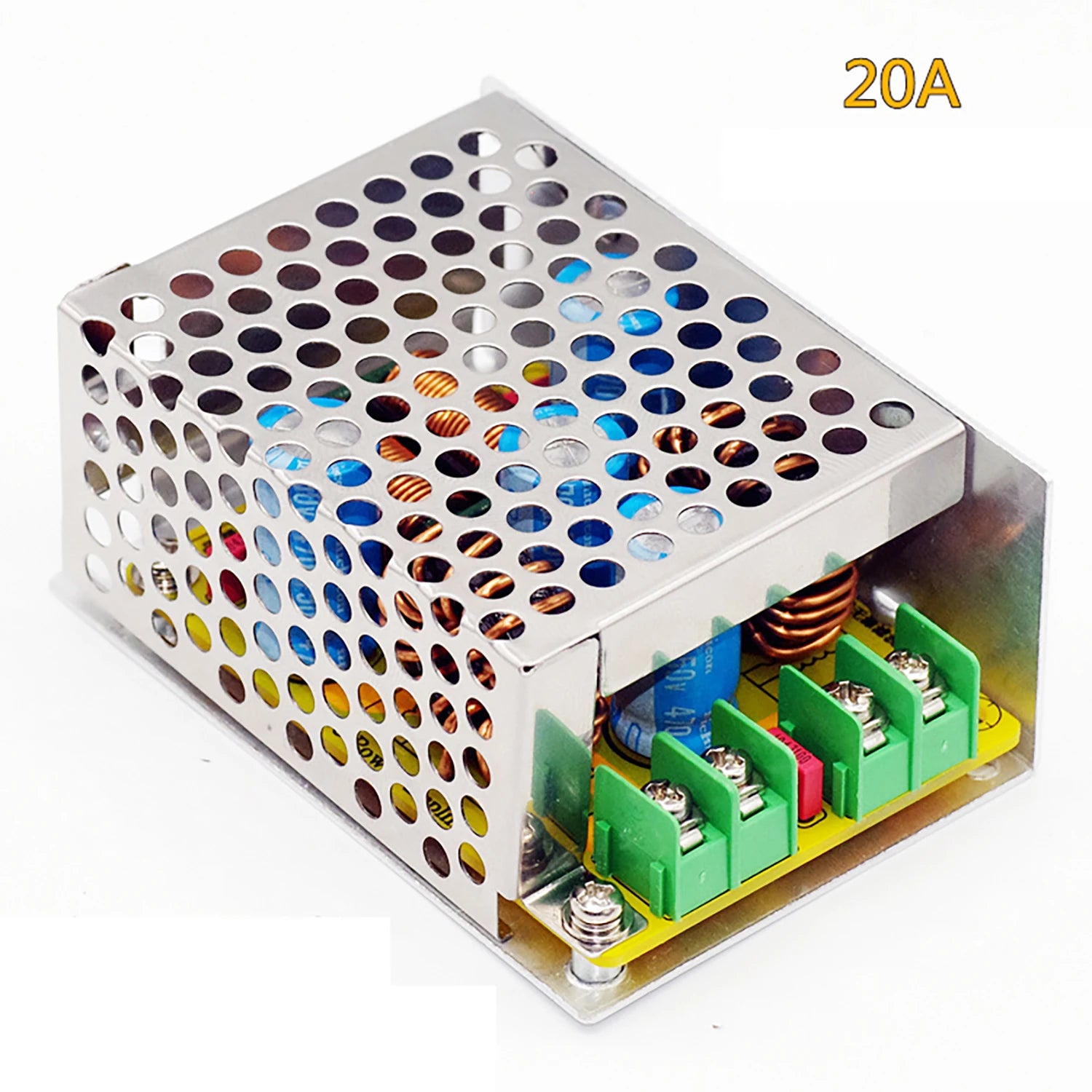

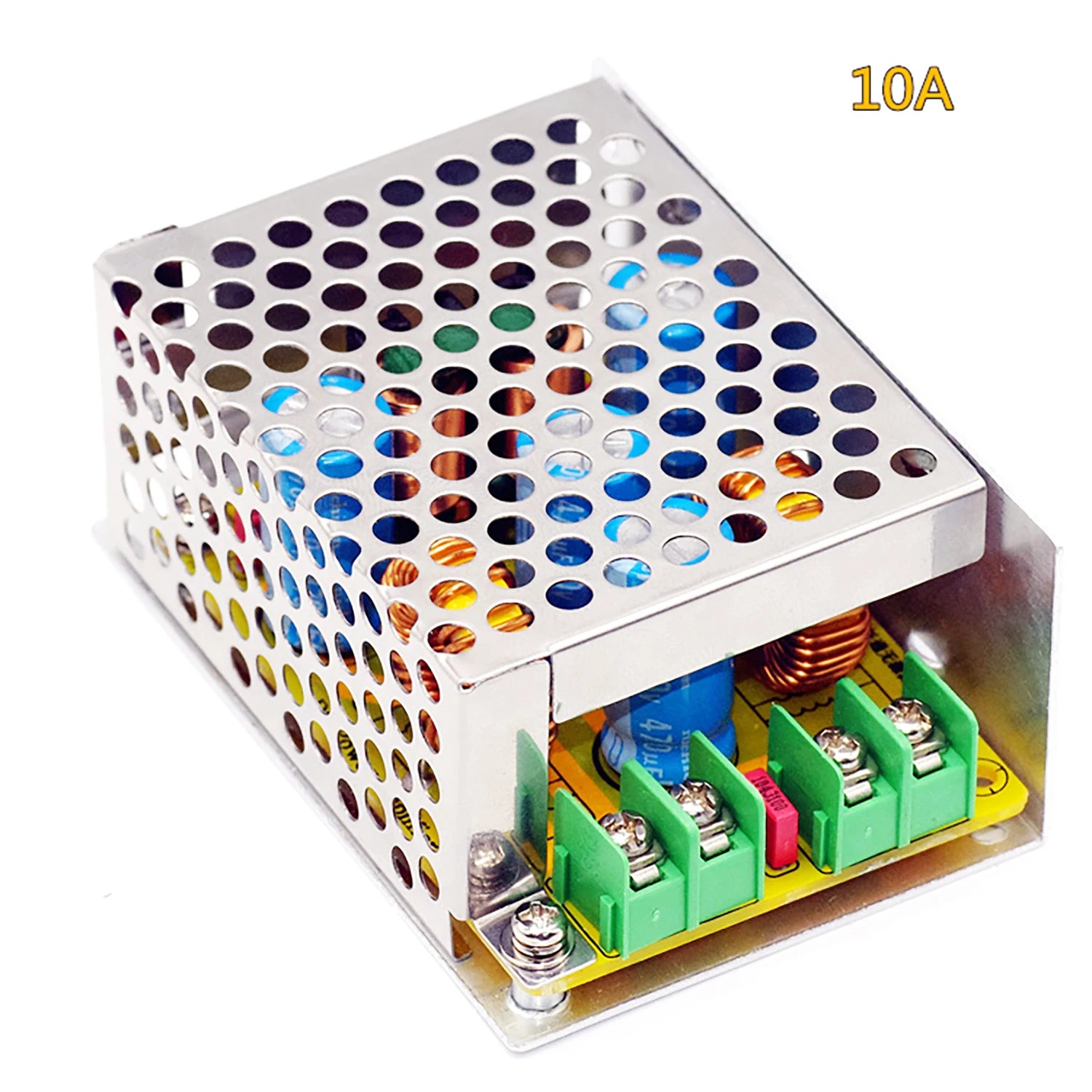

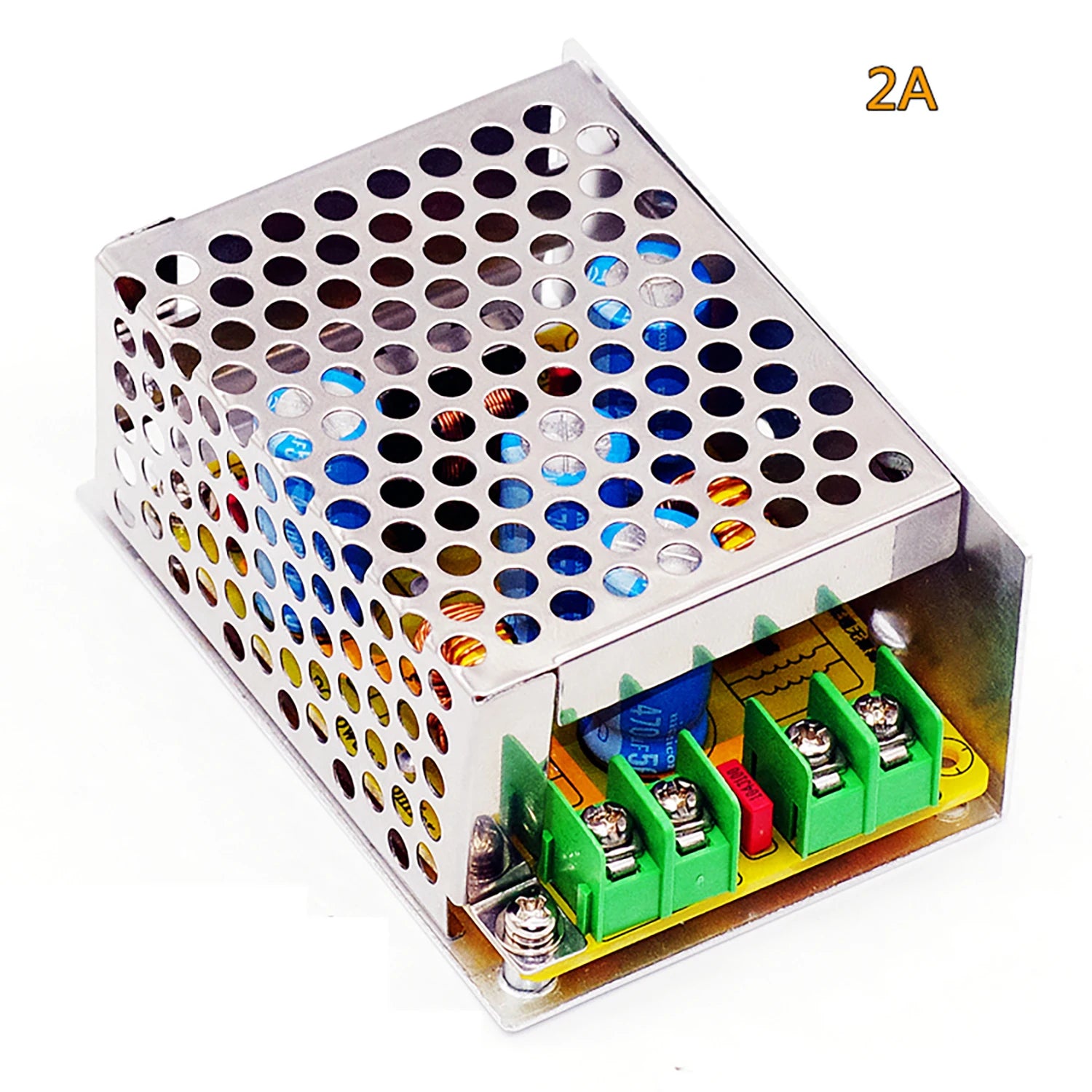

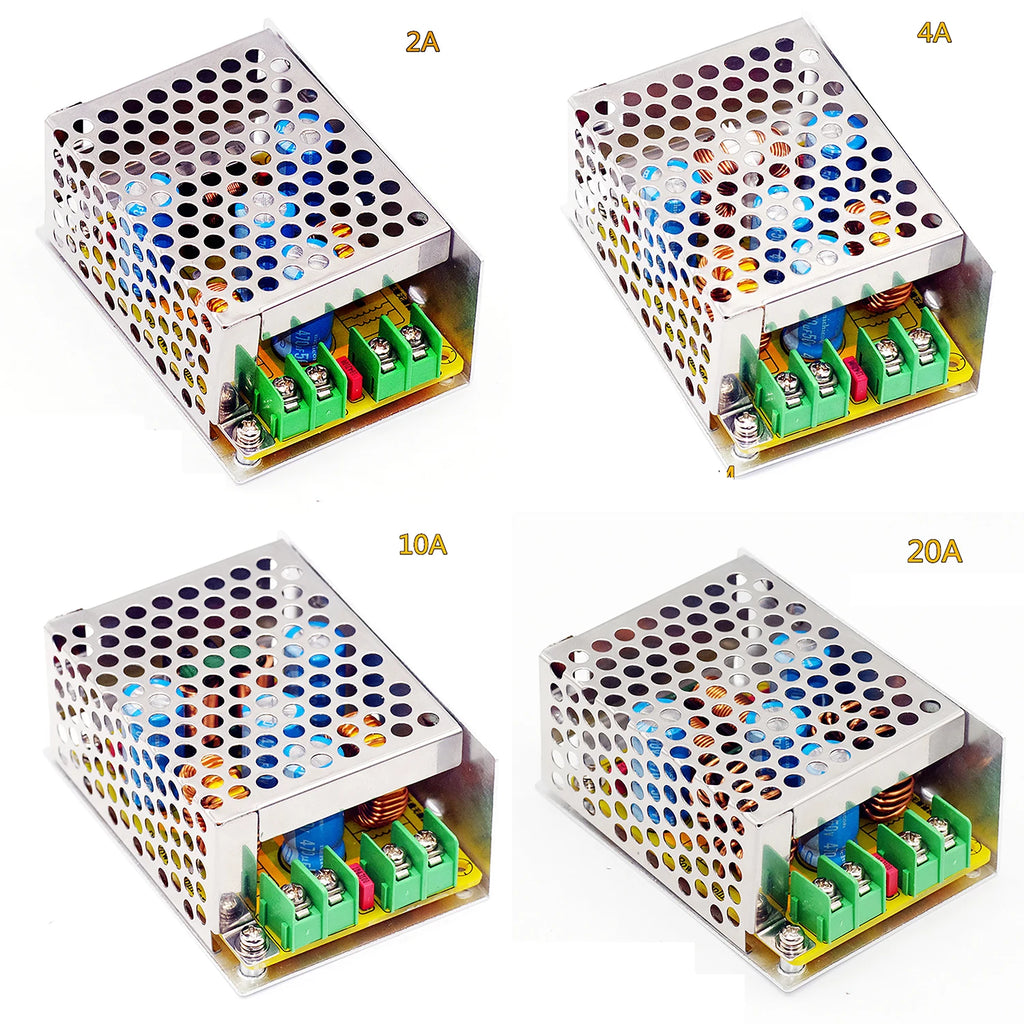

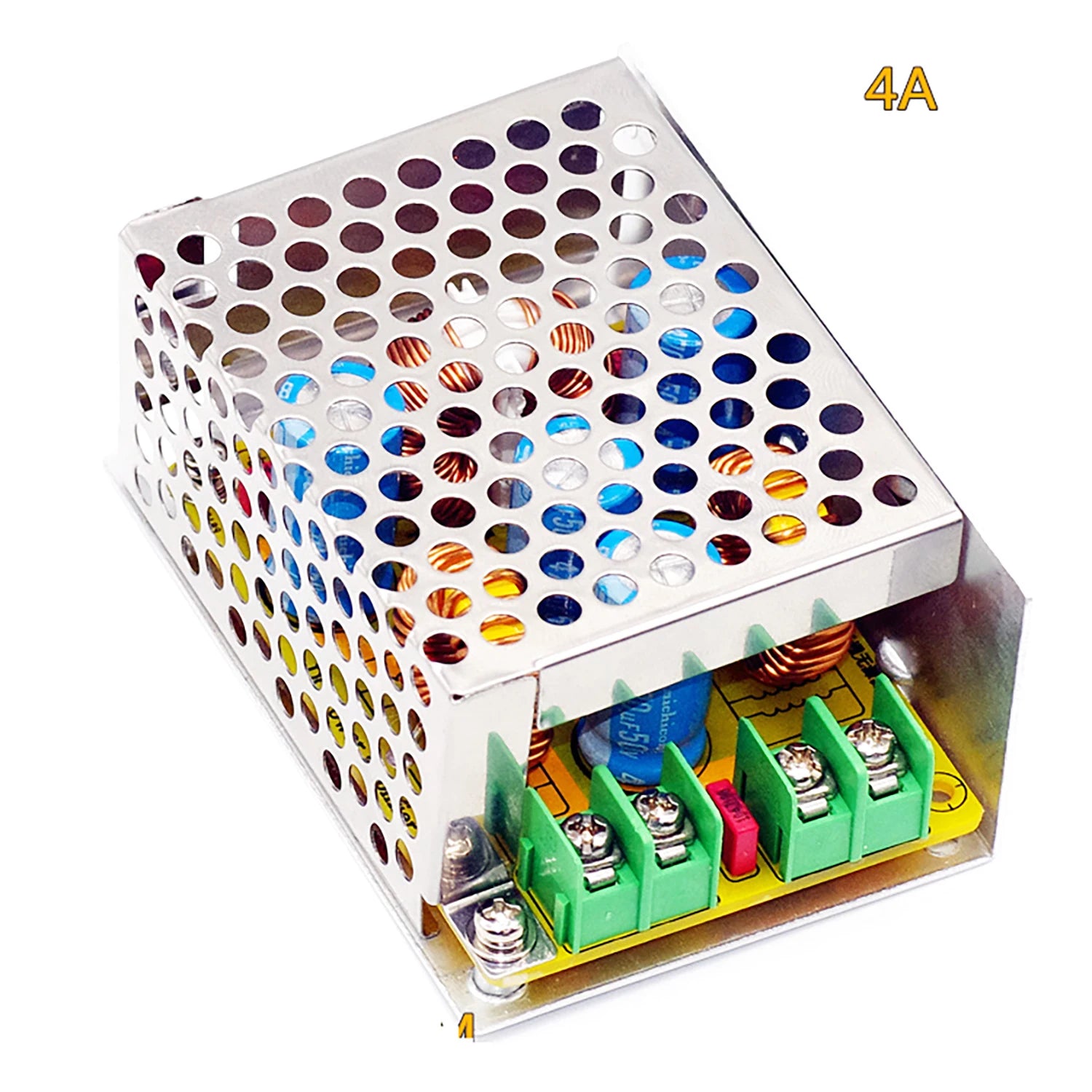

The shortest design of the high-current line, the short path, can withstand larger current, and has less interference to the outside world. The inductors are available in four specifications: 2A, 4A, 10A, and 20A.

Features:

Input Voltage: Less than DC 50V

Output Voltage: DC

Working Current: 2A/4A/10A/20A For Choice

Board Size: 86x58x38mm (L*W*H)

Packing List:

1pcs x DC LC Low Pass Power Filter
