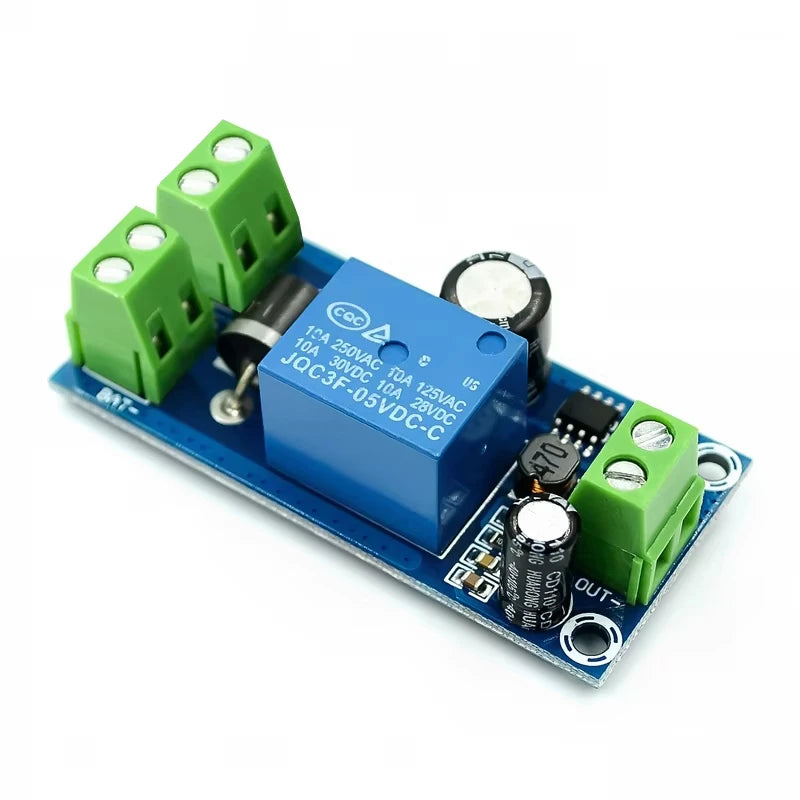

DC UPS Backup Power Module YX850 Automatic Switching Board for 5-48V Lithium Battery Emergency Power for WiFi ,Solar System
YX850-1PCS
$11.96
Sale price
$11.96
Regular price
$0.00
Skip to product information
DC UPS Backup Power Module YX850 Automatic Switching Board for 5-48V Lithium Battery Emergency Power for WiFi ,Solar System
$11.96
Sale price
$11.96
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Condition: New,New
High-concerned chemical: none
Hign-concerned Chemical: None
Origin: Mainland China,Mainland China
Type: Voltage Regulator,Voltage Regulator
semi_Choice: yes
Description
Product Parameters
Product Name: power failure automatic switching module
Product model: YX850
Scope of application: DC5V-48V
Product load: 10A
Product size: 61*30*18mm (length * width * height)
Mounting hole size: 3mm
Installation hole spacing: 23mm
Product weight: about 22g
Connect the DC terminal to the battery for charging when there is power
The charging parameters have nothing to do with this module, but depend on your DC terminal, battery and load.

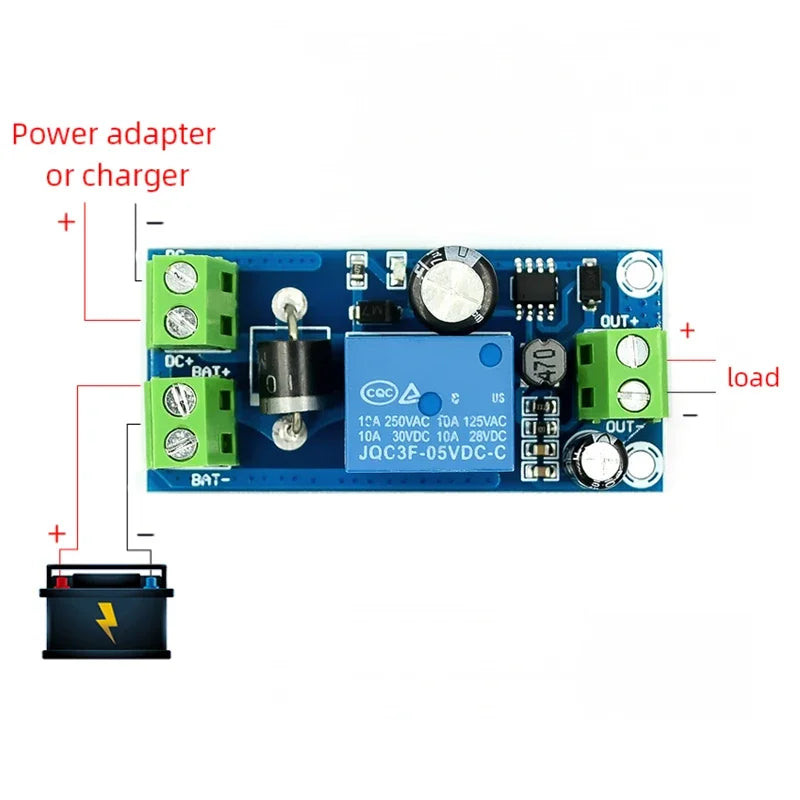

Product Wiring Example
Be Careful
1. power off for a few tenths of a second during switching.
2. the power supply, battery and load shall have the same voltage.
3. when there is power at the DC end, it is preferred to supply power to the load.
When the DC terminal is powered on, connect the battery for charging (the specific parameters confirmed by yourself have nothing to do with this module)
4. when there is no power at the DC end, the automatic battery will supply power to the load.
