SPECIFICATIONS

Brand Name: Gaqqee

Certification: CE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: PS58F01

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Use: General Purpose

Working voltage: DC 8-28V

is_customized: no

semi_Choice: yes

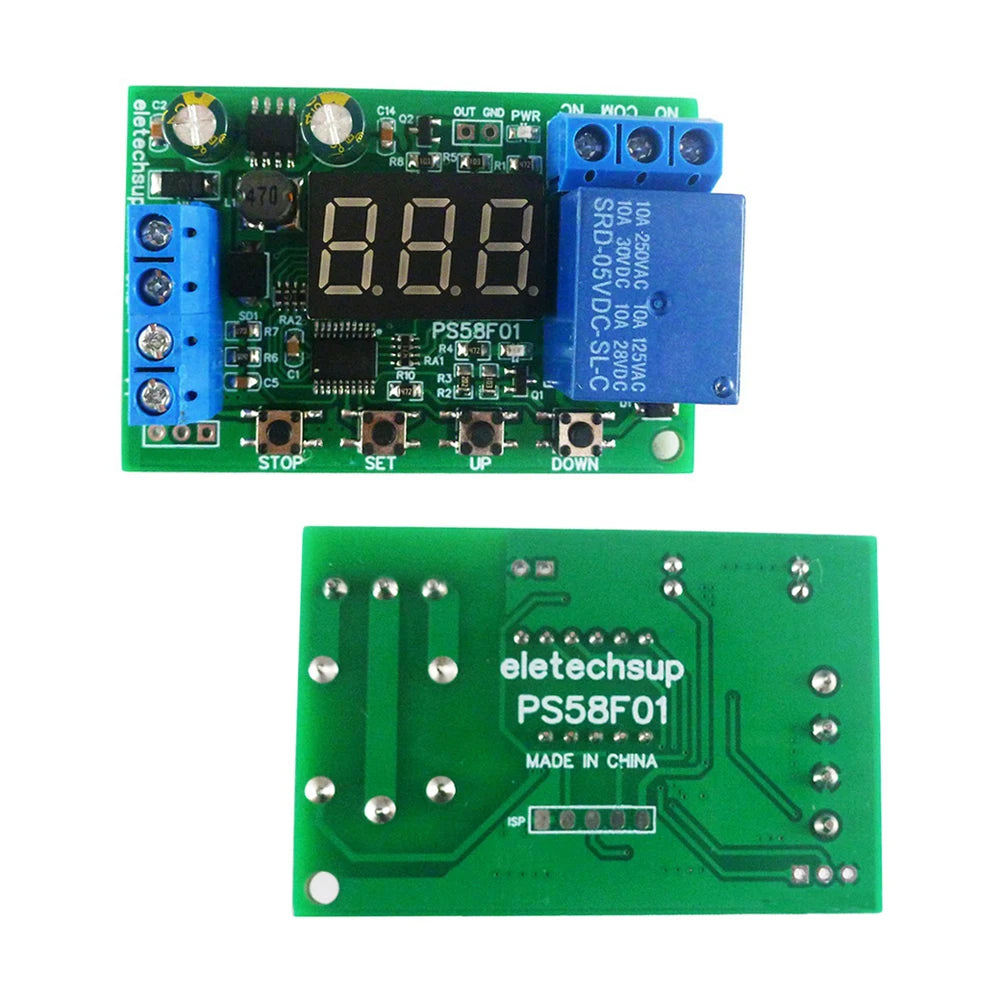

DC0-60V Battery Charger Discharger Control Relay Switch Auto Cut Off Undervoltage Overvoltage Protection Board For UPS Lead-Acid

Features:
1.Using high-quality materials and ensuring product quality
2.There are 6 working modes that can be set, U-1~U-6, to meet different needs
3.Compact appearance and easy to use
4.Low energy consumption, efficient and stable extension of battery life
5.Wide application range, suitable for various industrial occasions, DIY production

Specifications:
Working voltage: DC 8-28V
Working current (DC 12V): Nixie tube display (standard mode), standby current 12mA, current 67mA when the relay is connected; Nixie tube does not display (Sleep Power), the standby current is 3mA, and the current is 60mA when the relay is connected

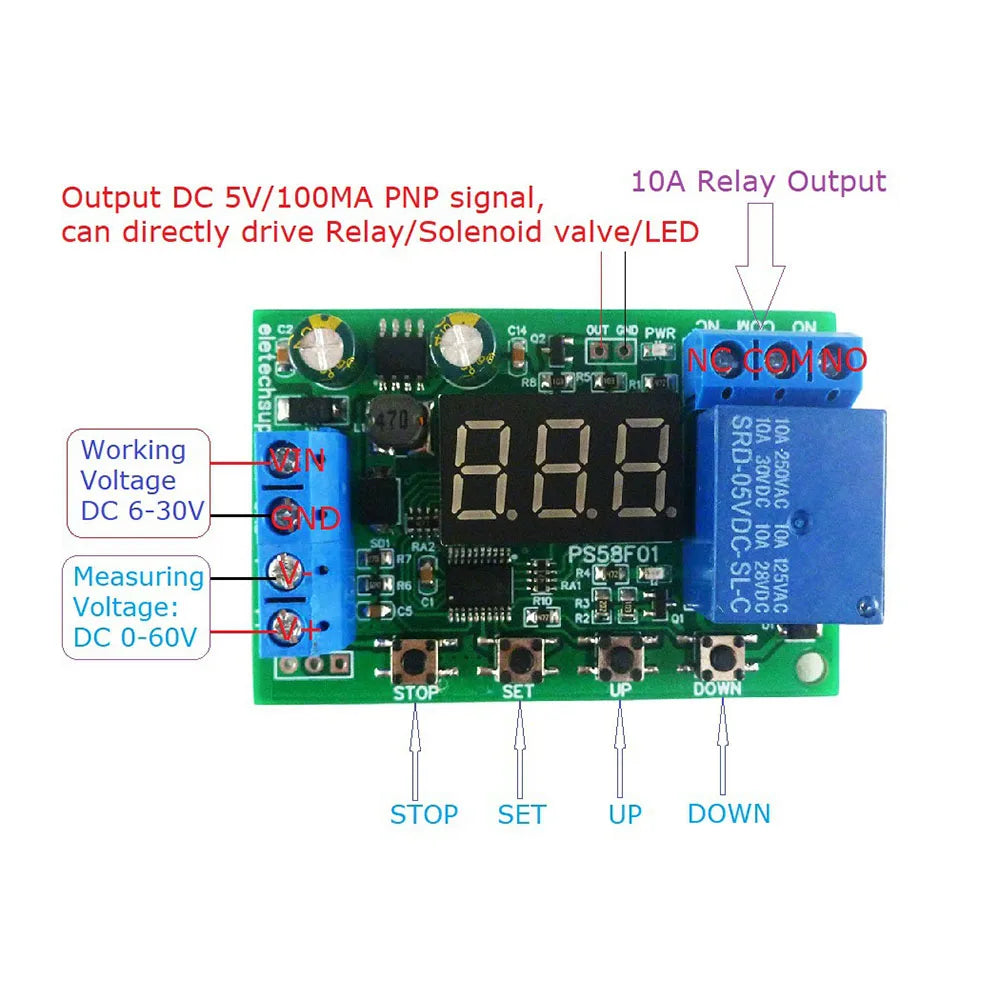

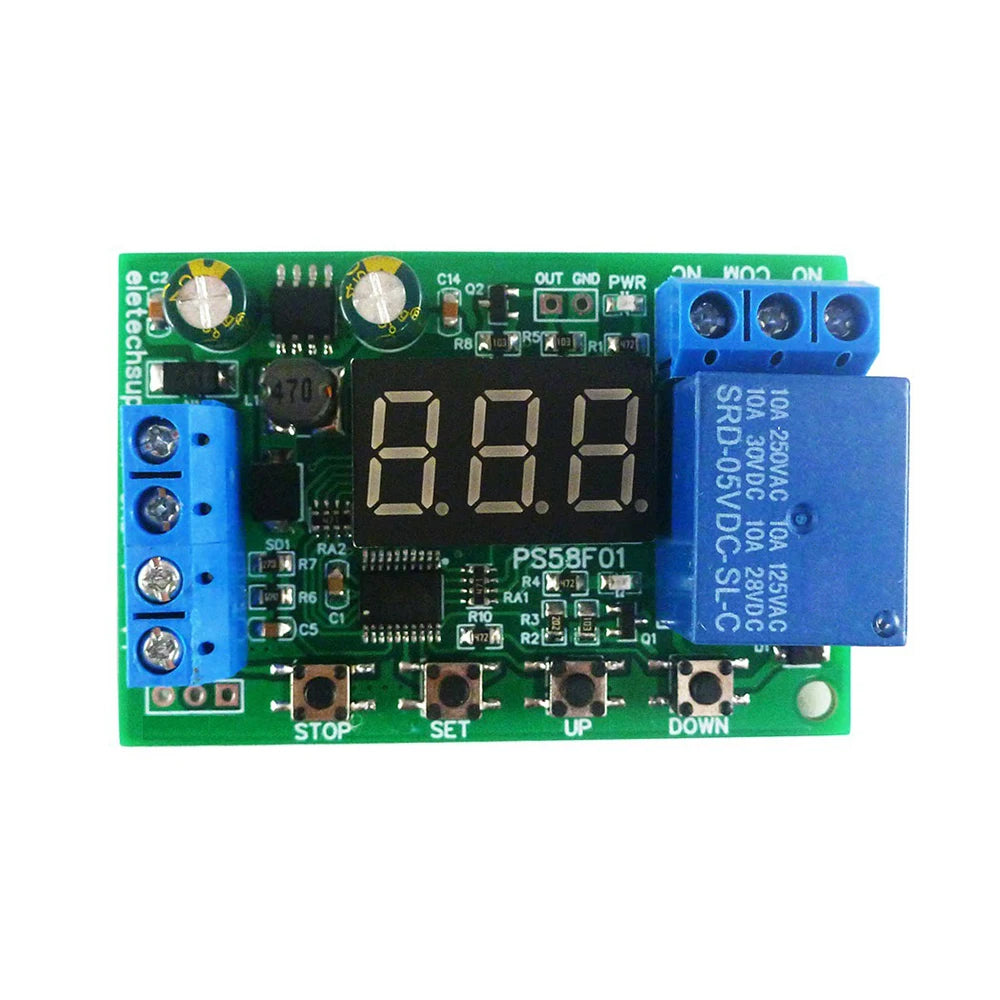

On board resources: 4 control buttons, 3 Nixie tube displays, 1 LED power indicator, 1 LED relay indicator

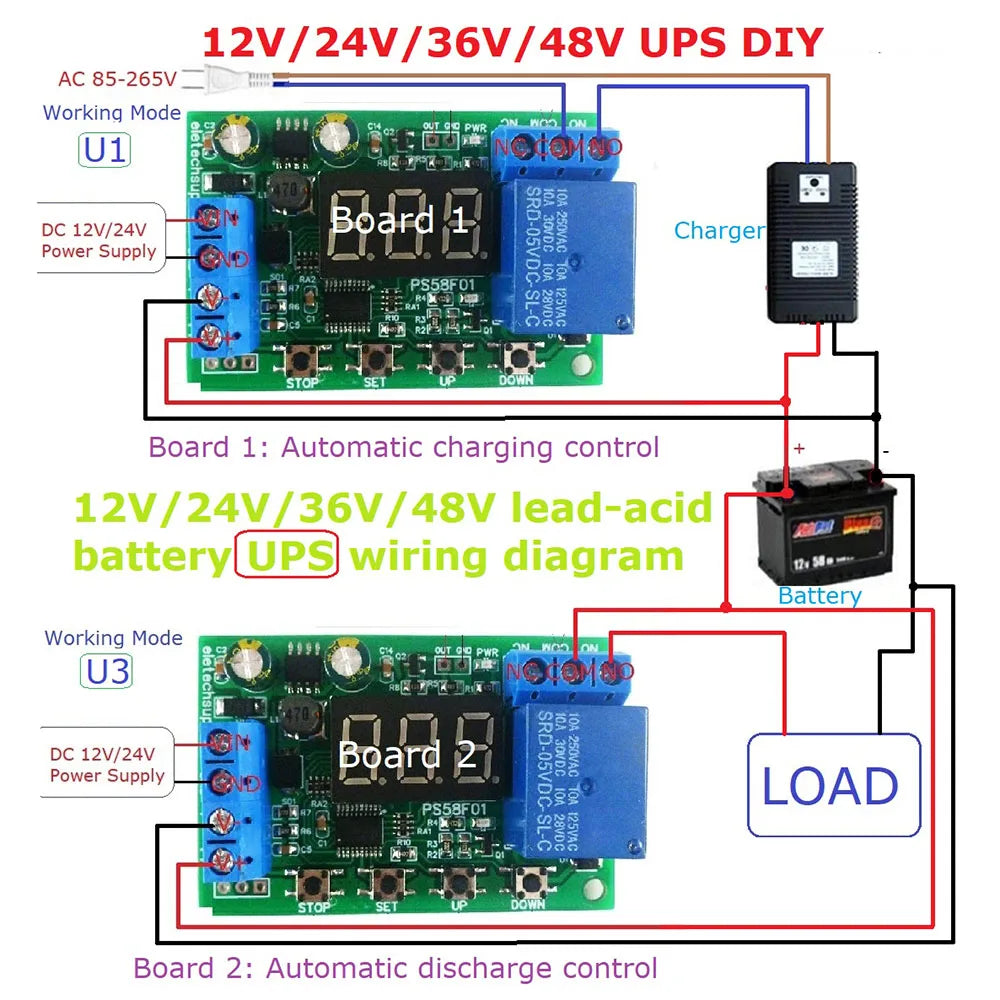

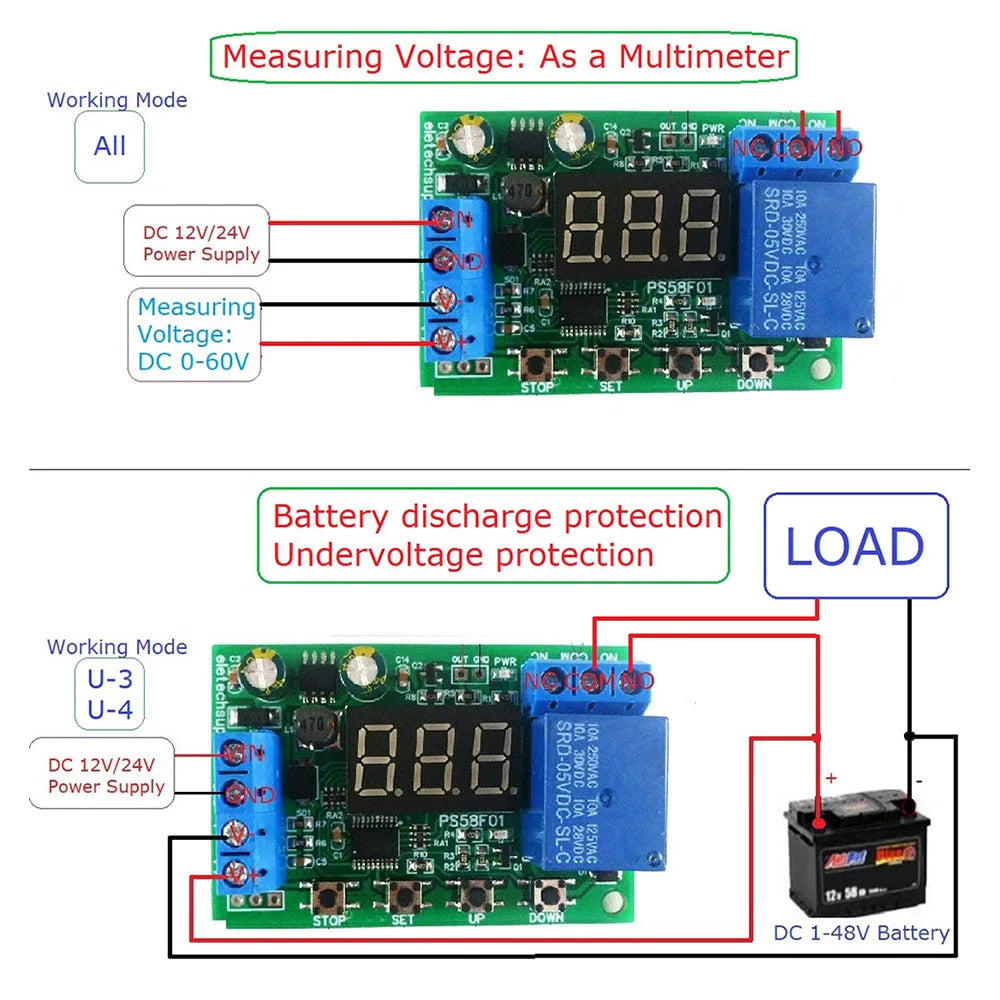

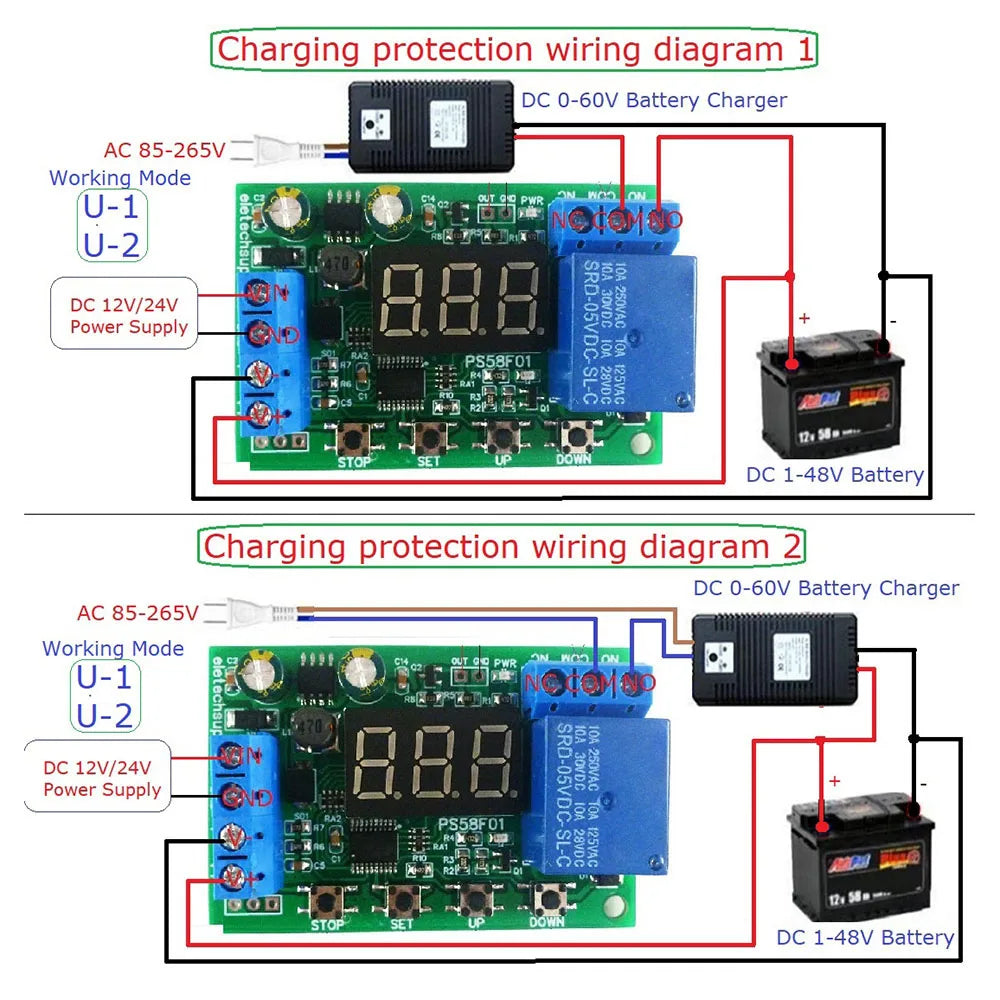

Electrical parameters: It can provide charge and discharge protection for 0~60V lead-acid/lithium batteries, with a charger voltage range of 0~65V DC and a voltage measurement error of plus or minus 0.1V
Default settings: lower limit voltage (nL1): 12.0V, upper limit voltage (UL1): 14.8V, charging and discharging time (OP): 0 minutes, Nixie tube standard mode display, allowing the relay to be on
Maximum load current of relay: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC

Package Included:
Protection module * 1
