SPECIFICATIONS

Alarm mode: Infrared detection

Brand Name: occkic

Certification: NONE

Choice: yes

Communication method: infrared

Detection distance: 20 (m)

Emission distance: 30 (m)

Frequency: 1.92KHz

High-concerned chemical: none

Input current: Receiver 15mA, projector 30mA

Maximum load: A1 36V

Model Number: DC12-24V Infrared Sensor Kit

Origin: Mainland China

Quiescent current: 10 (uA)

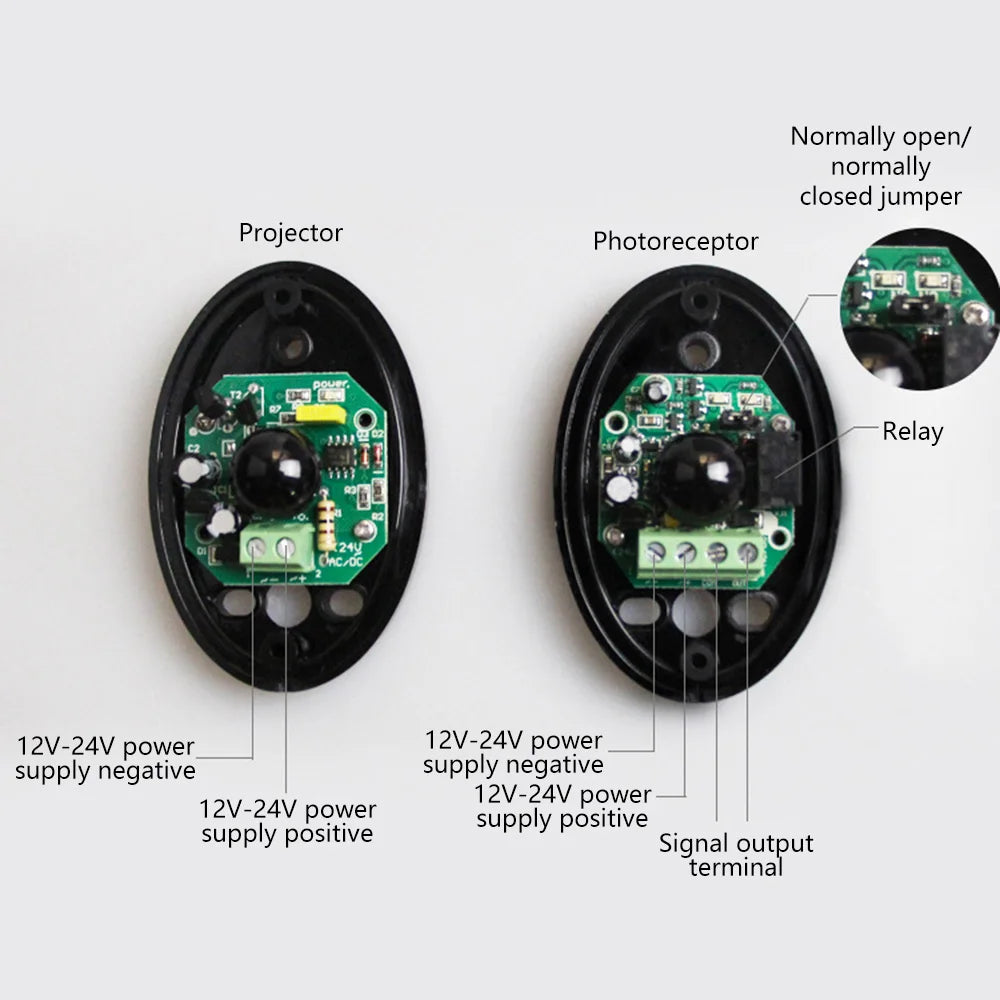

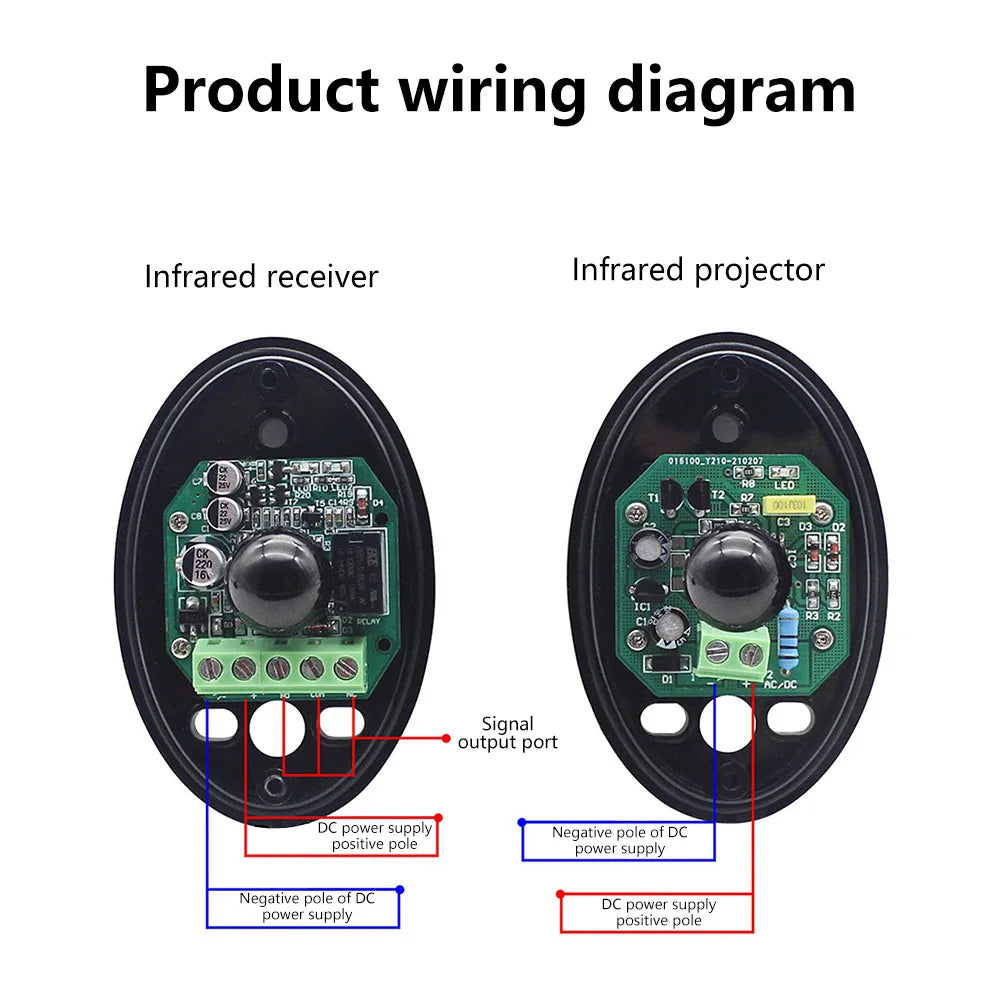

Signal output: Normally Closed/Normally Open Adjustable

Smart home platform: Other

Wavelength: 940nm

Working temperature: -25-55 ℃

Working voltage: DC12/24 (V)

semi_Choice: yes

Features:
1.Long detection distance, normally closed and normally open adjustable

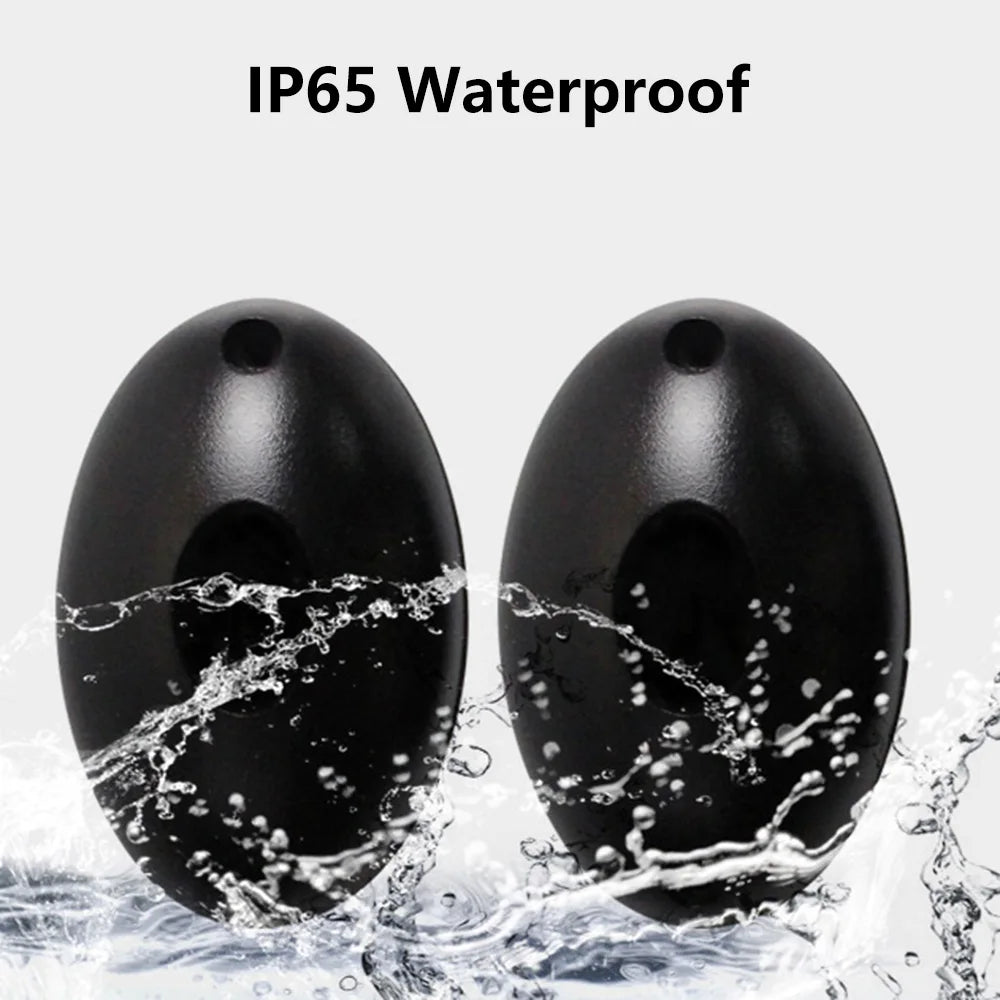

2.Adopting a sealed and waterproof design, it has waterproof, moisture-proof and other functions, suitable for installation and use in indoor and outdoor areas as well as in damp areas
3.Adopting hemispherical optical lenses for beam concentration, precise non scattering matching, and automatic strong light adjustment system with strong anti-interference ability

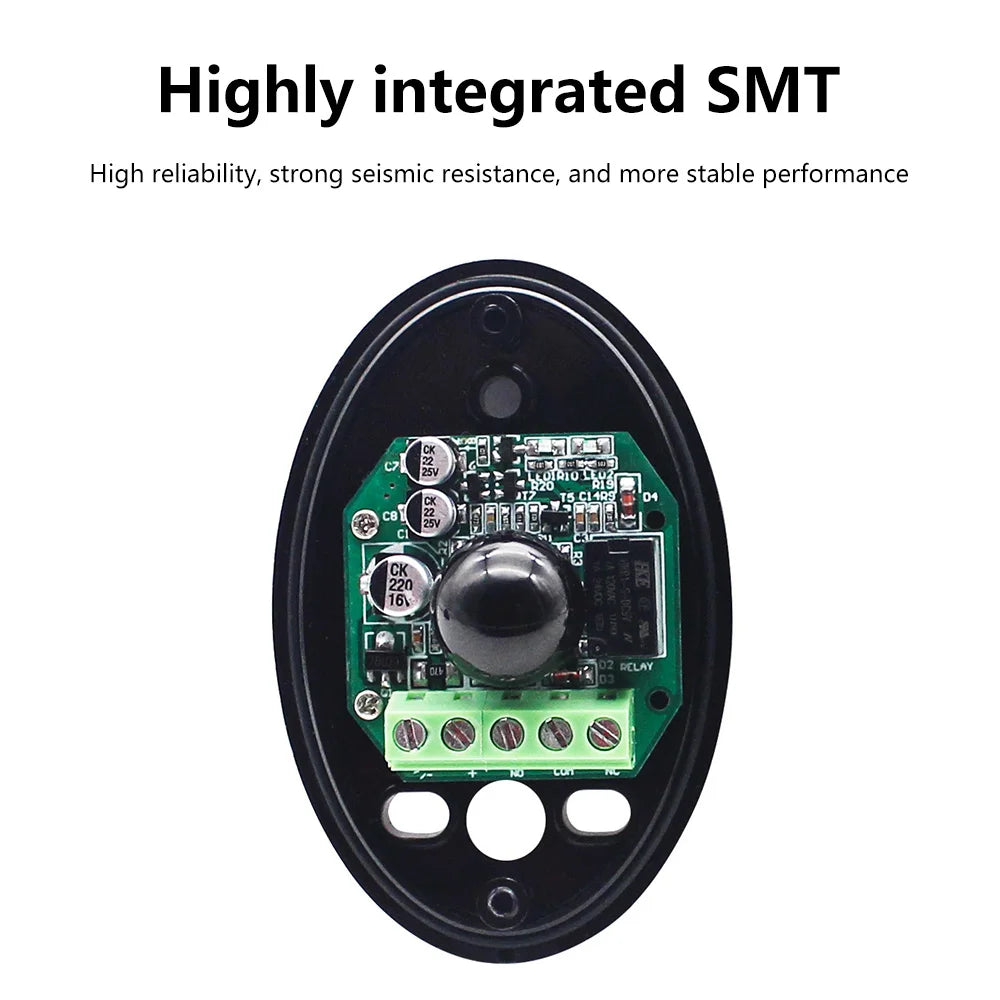

4.Highly integrated SMT patch technology, high reliability, strong seismic resistance, and more stable performance

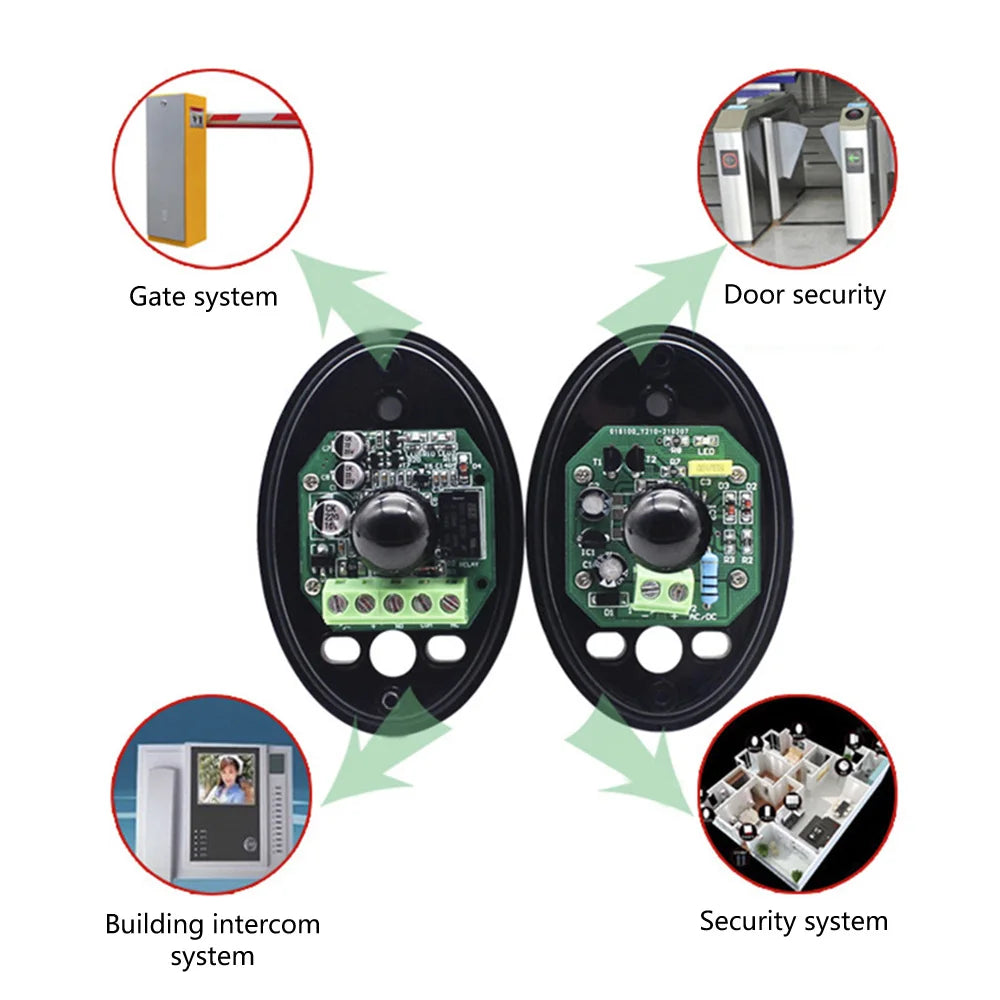

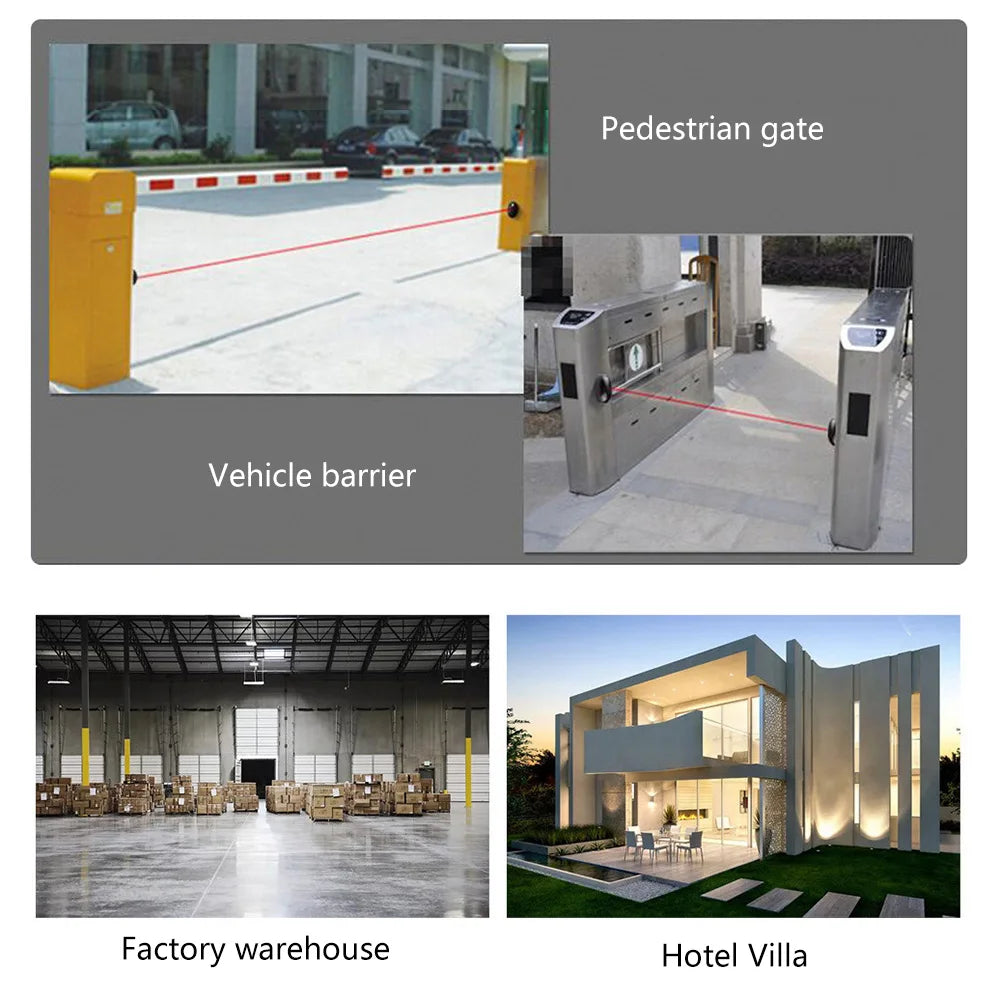

5.Widely used, suitable for gate systems, access control systems, intercom systems, security systems, etc

Parameters:
Product name: Active single beam infrared radiation detector
Communication method: infrared
Alarm method: infrared detection
Working voltage: DC12/24 (V)
Input current: 15mA for the receiver and 30mA for the projector
Wavelength: 940nm
Frequency: 1.92KHz
Maximum load: A1 36V
Signal output: Normally closed/normally open adjustable
Quiescent current: 10 (uA)
Detection distance: 20 (m)
Launch distance: 30 (m)
Working temperature: -25-55 ℃

Package include:
Detector * 1
