SPECIFICATIONS

Application: .

Brand Name: HUISHENGYUFA

Choice: yes

Condition: New

Continuous maximum operating current: 25A

Continuous maximum operating power: 500W

Conversion efficiency: Up to 95 per cent

Dissipation Power: .

High-concerned chemical: none

Input Voltage: 12-75V

Maximum output power: 600W

Operating Temperature: .

Operating frequency: 80KHz

Operating temperature: -10~65℃

Origin: Mainland China

Output Voltage Range: 2.5-60V

Output constant current: 1-25A

Package: SMD

Short circuit protection: YES

Supply Voltage: Input voltage: 12-75V

Type: Module

Work Indicator Light: YES

semi_Choice: yes

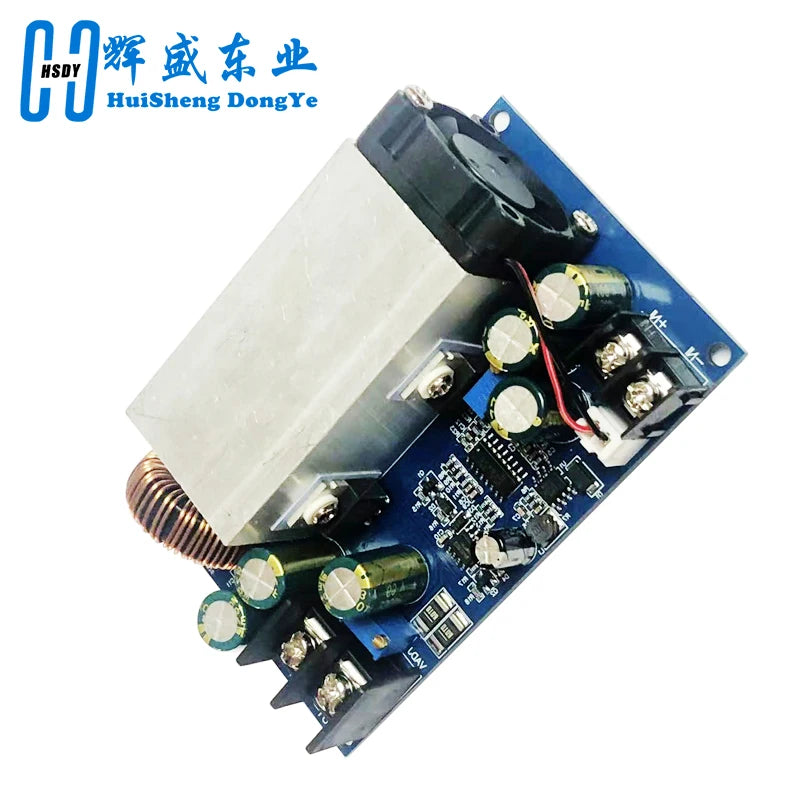

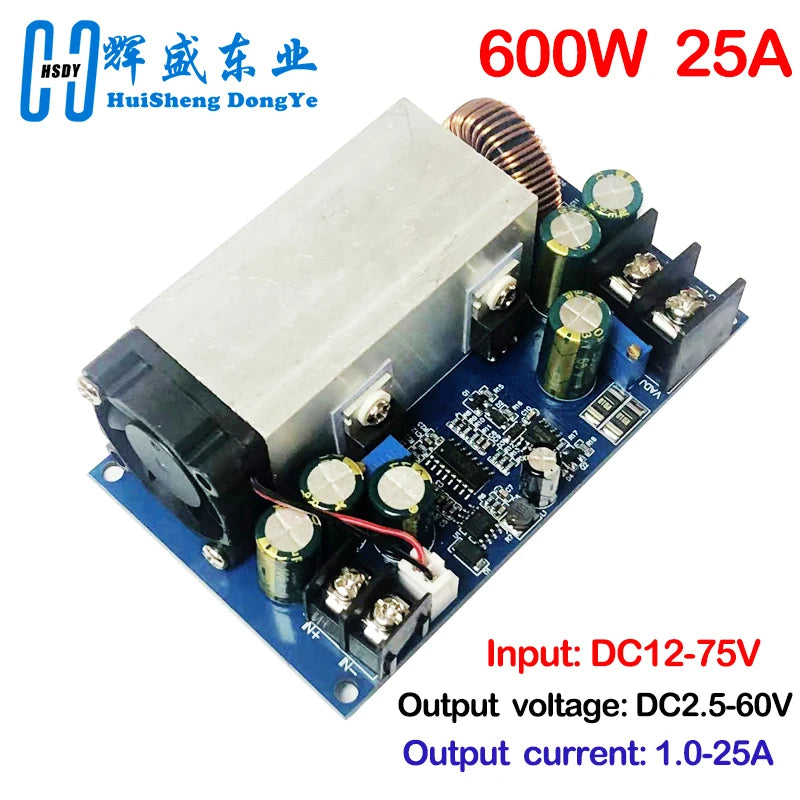

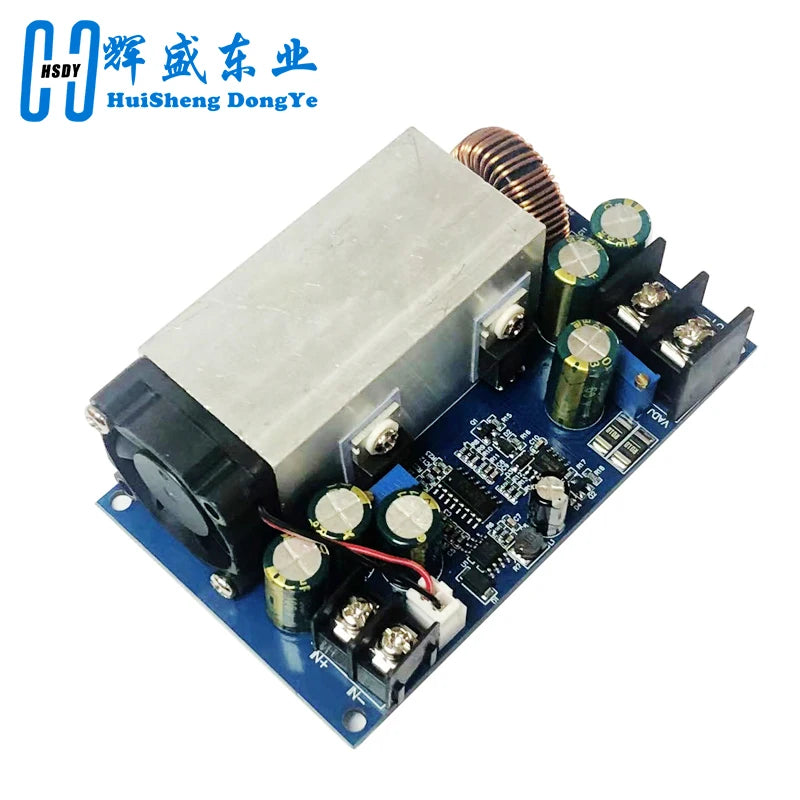

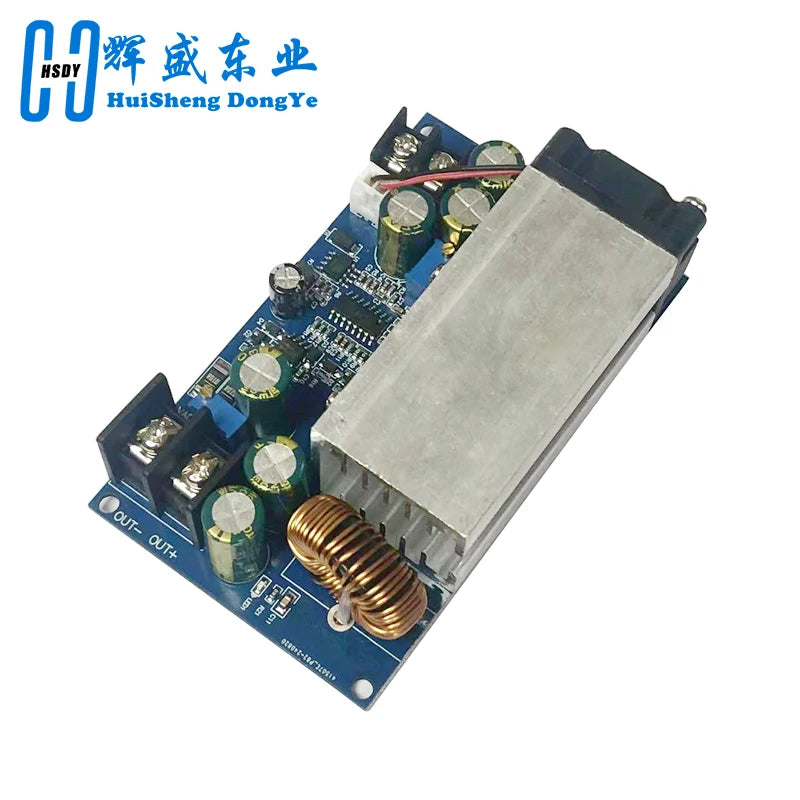

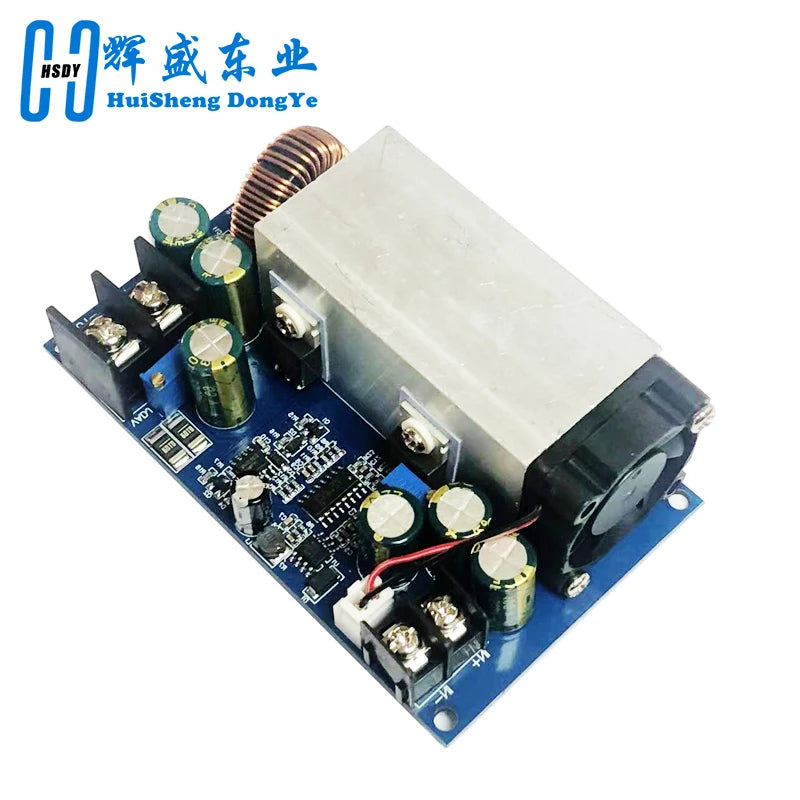

600W High Power CC CV Adjustable Step-down Power Supply Module With Fan DC-DC 12-75V To 2.5-60V Buck Converter

Features:
1.Continuous adjustable output voltage and current
2.Easy to use
3.Easy to operate
4.Stable performance, with an input voltage of up to 75 volts
5.Extremely efficient
6.Main features of the power module:
7.*The module adopts a step rectification scheme, with extremely high efficiency, with a maximum efficiency of up to 95%
8.*Continuous adjustable output voltage and current
9.*The input voltage can reach up to 75 volts, and the output voltage can reach up to 60 volts (at 75 volts input) with a maximum current of 25 amperes.

Parameters:
Product model: SZ-8025CCCCV
Module name: 600W step-down constant voltage constant current adjustable power module
Module nature: Non isolated buck module (BUCK)
Input voltage: 12-75V
Output voltage range: 2.5-60V (must meet voltage reduction conditions, IN input multiplied by 0.8)
Minimum output voltage: 2.5V
Maximum output voltage: approximately equal to input voltage * 0.8 (for example, if the input is 40V, 40V * 0.8=32V, the maximum output voltage is 32V)
Output constant current: 1-25A (continuously adjustable)
Maximum output power: 600W (working environment must be well ventilated)
Continuous maximum working power: 500W (in a ventilated environment)
Continuous maximum working current: 25A (in a ventilated environment)
Heat dissipation method: air-cooled heat dissipation
Input undervoltage protection: None
Input overvoltage protection: None (overpressure prohibited)
Working temperature: -10~+65 degrees Celsius
Working frequency: 80KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current, and voltage difference)
Short circuit protection: Yes (constant current protection)
Input reverse protection: None
Output anti backflow: None (charging the battery, connecting the output to an inductive load, such as adding anti backflow diodes when connecting to the motor)
Work indicator light: Yes (output voltage blue LED light)
Wiring method: Equipped with solderless terminal blocks
Module size approximately: 100mm long, 60mm wide, and 35mm high
Net weight: approximately 140 grams

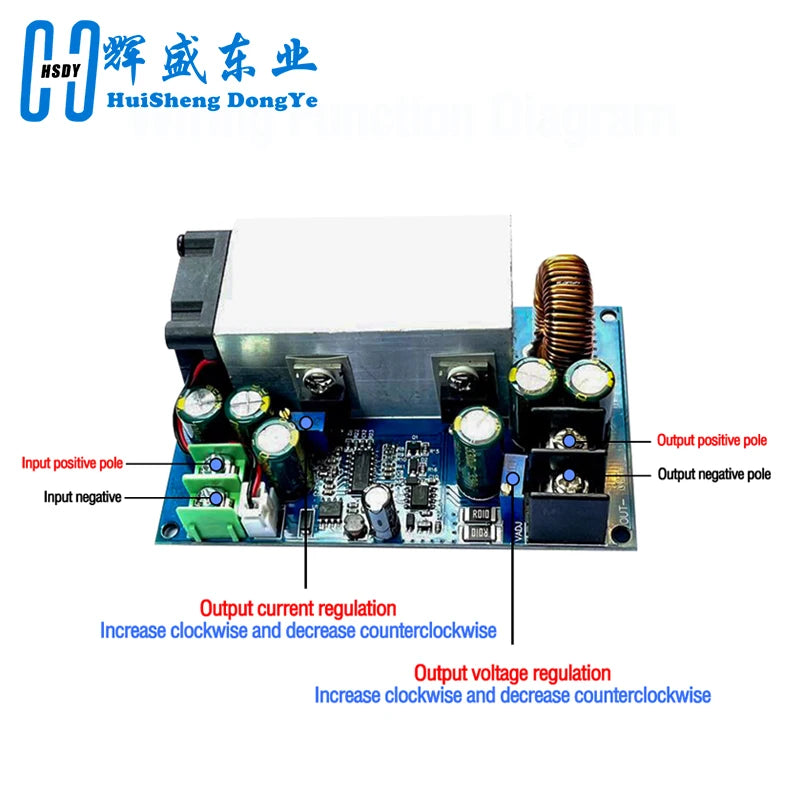

Wiring: "IN" is the input.
'OUT' is the output
