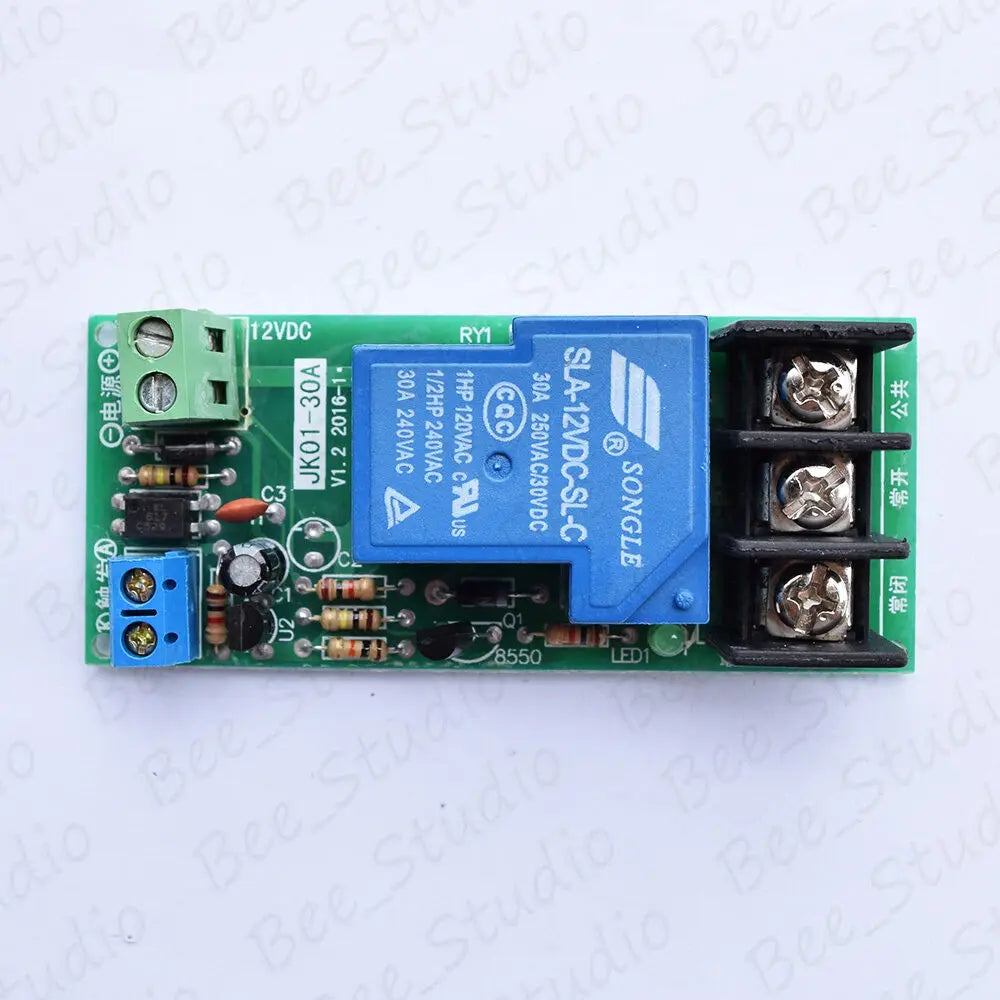

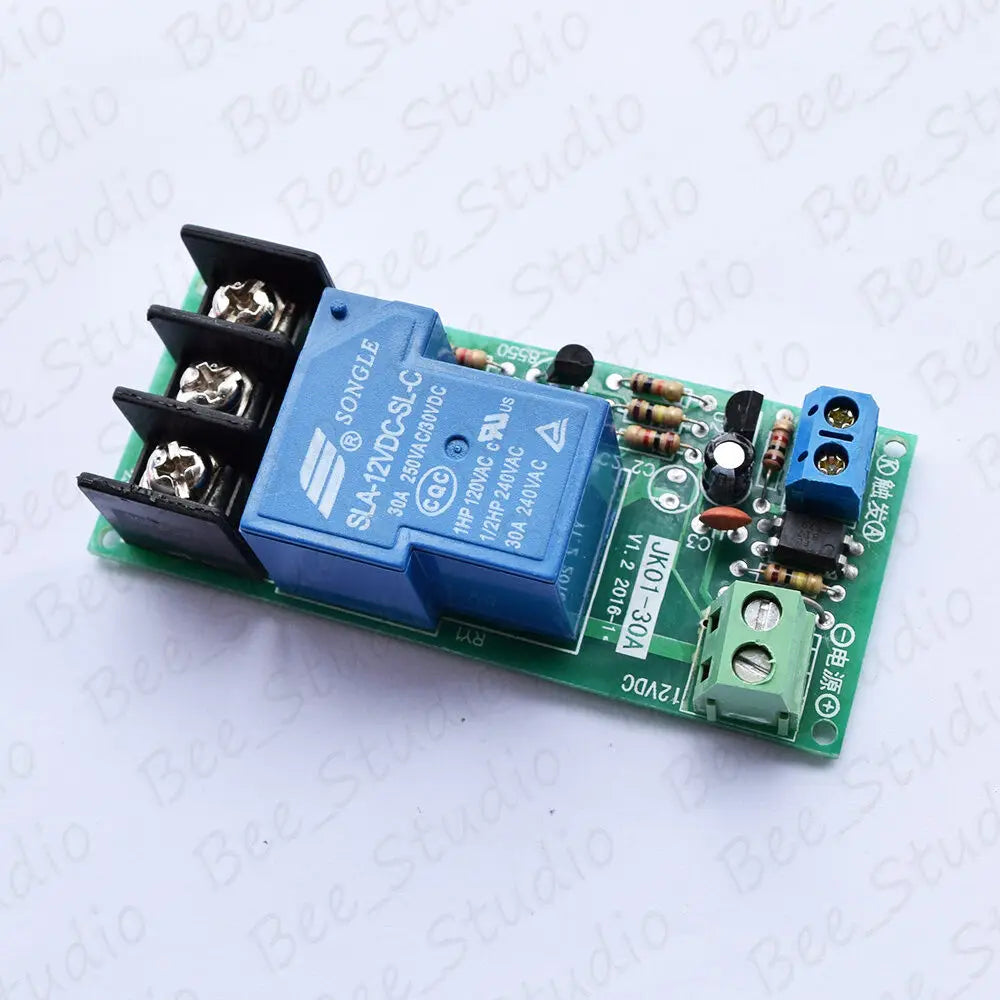

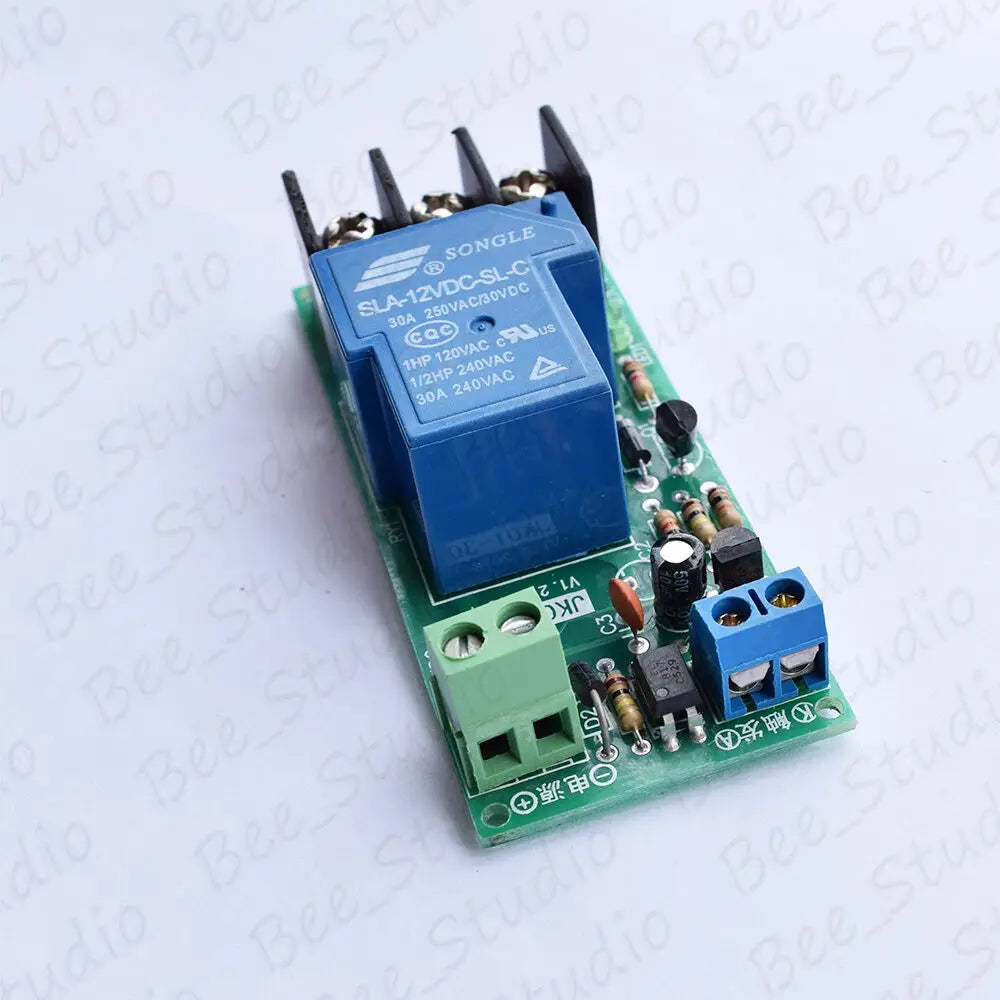

DC12V Multifunction Delay Timing on/off Optocouple Relay Module 30A Switch Timer
$21.51
Sale price
$21.51
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Contact Load: Low Power
Country/Region of Manufacture: China
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model: DC 12v Delay timer relay switch
Origin: Mainland China
Power Source: DC
Protect Feature: Other
Relay: 30A
Theory: Time Relay
Type: Delay switch module
Use: General Purpose
Voltage: 12V
Working voltage: DC 12v
is_customized: no
Feature:

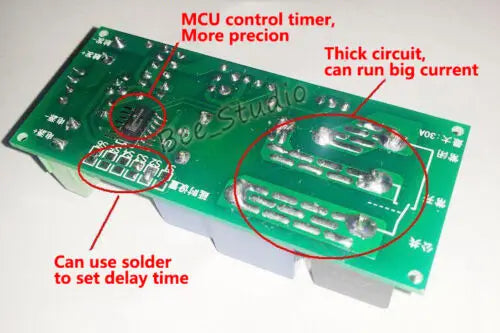

1) MCU control and count time, more precision.
2) Two type working module, delay on, or delay off.( by change the S6)
3) Wide Range timer, 1 second to 1 hours
4) High Capacity Relay, 30A
5) Board size: 82mm x 35mm
6) This module has the reverse connection protection
7) With trigger function, can use a button, or extra signal control ( Optocoupler trigger )

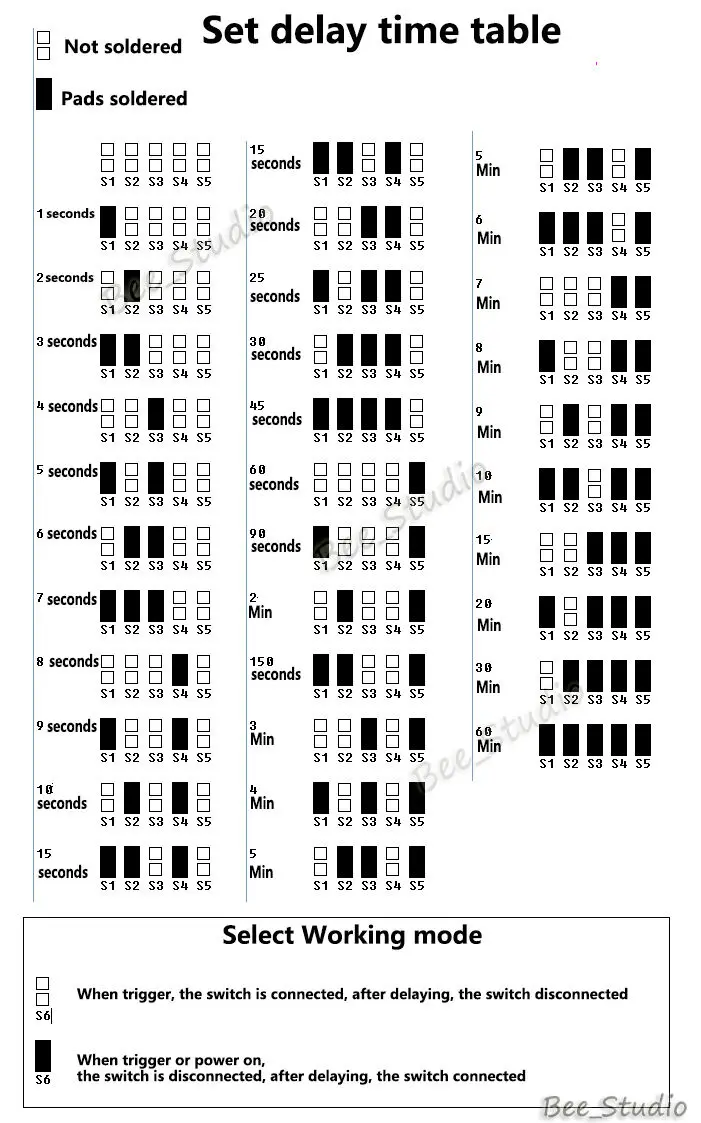

Set time table:
Use the Iron solder to set it.
( If S1~S5 are all not solder, the trigger is double-stable, when trigger, the switch on, trigger again, switch off)

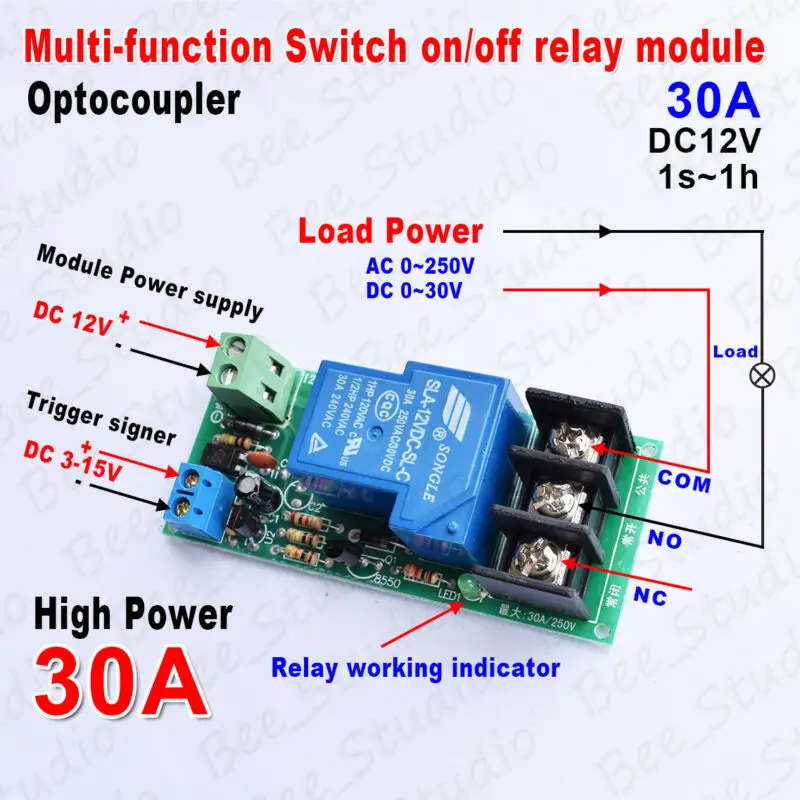

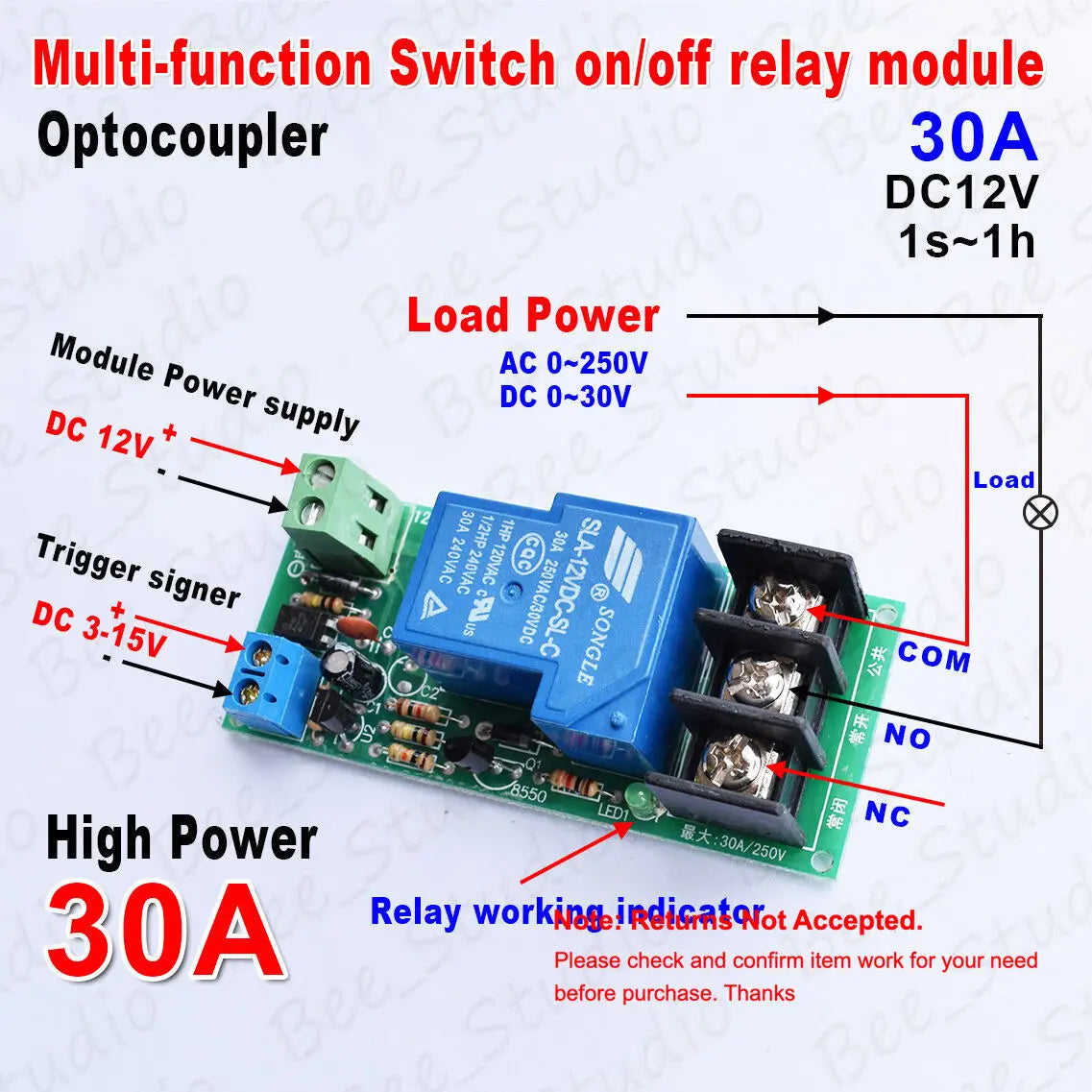

Wiring reference:
Package Include:
Relay Switch on/off Module x1
