SPECIFICATIONS

Average Life (hrs): More than 50000Hours

Brand Name: Xnbada

Certification: CCC,ce,EMC,ROHS,UL,CE,RoHs

Choice: yes

Color Temp(K): 3000-6500K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/74/96/144

Luminous Flux: 249-2000

Model Number: WS2815 WS2812B

Nominal Voltage: 12V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30/60/74/96/144

Strip type: SMD

Voltage: 12 V

Waterproof: Yes

semi_Choice: yes

Packing list：

1X Led Strip(Without DC12V LED Power or WS2815 Led Controller)

Pay Attention

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！

2. WS2812B Led strip can be cut buy every "one" led chip!

3.

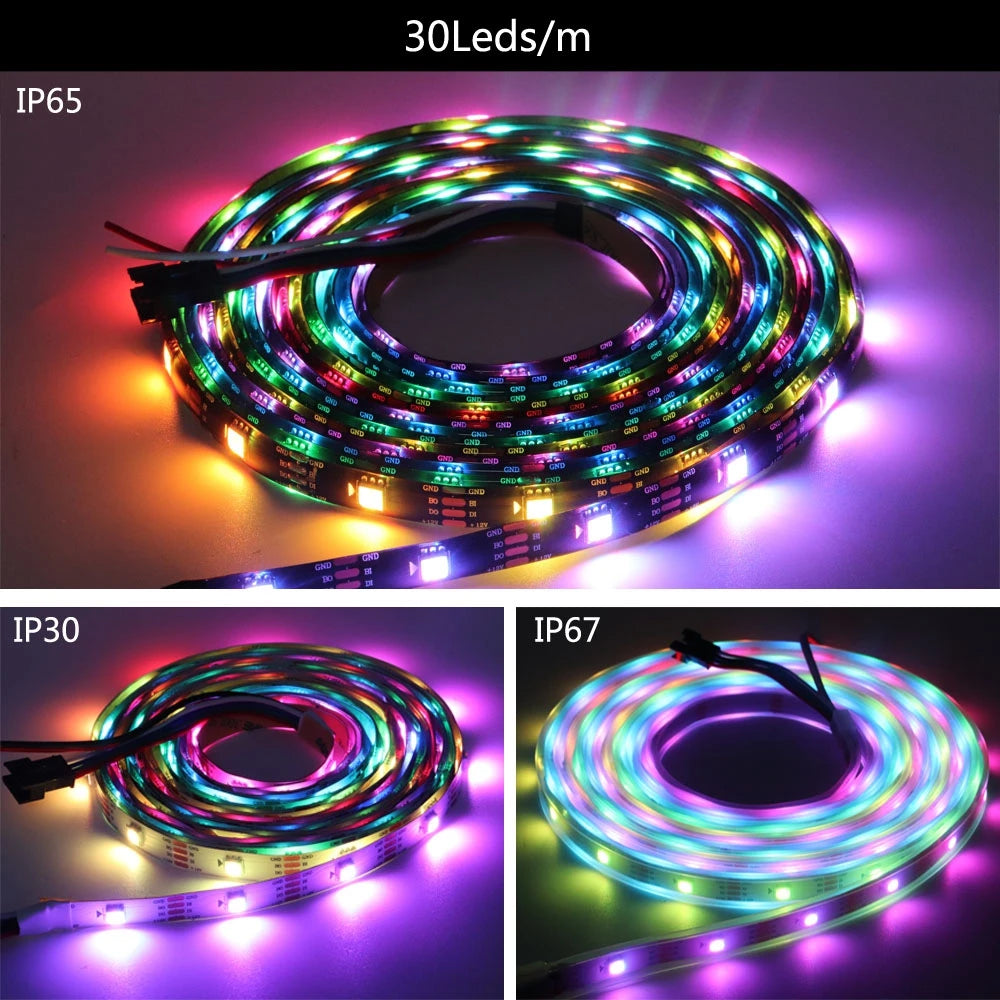

IP30: Non- Waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube

Input voltage:DC12V;

Power:

30leds/m----9watt/meter

60leds/m----18watt/meter

74leds/m----22.2watt/meter

96leds/m----28.8watt/meter

144leds/m----34watt/meter

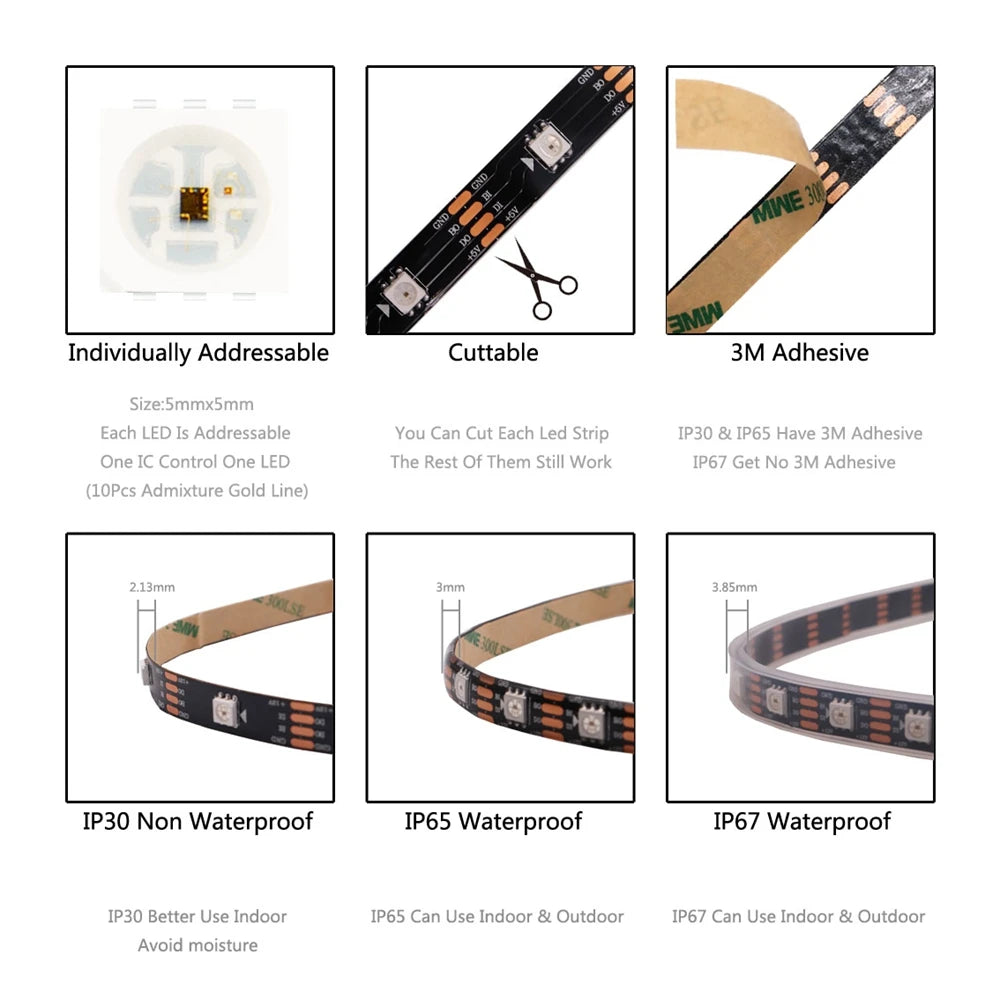

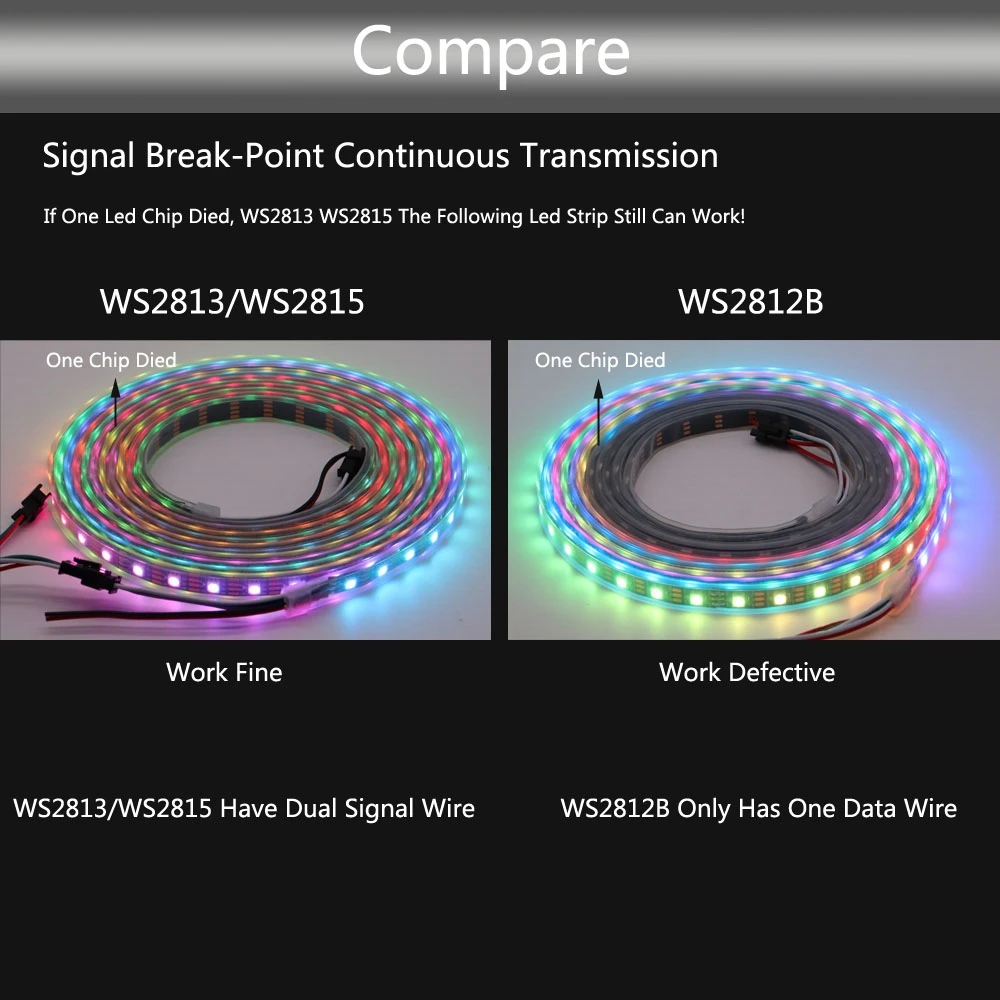

LED resource: WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: Each LED is separately controlled

IC Type: Improved Version WS2815 IC(built inside the 5050 smd rgb led)

of IC: (1 IC drives 1 led chip);

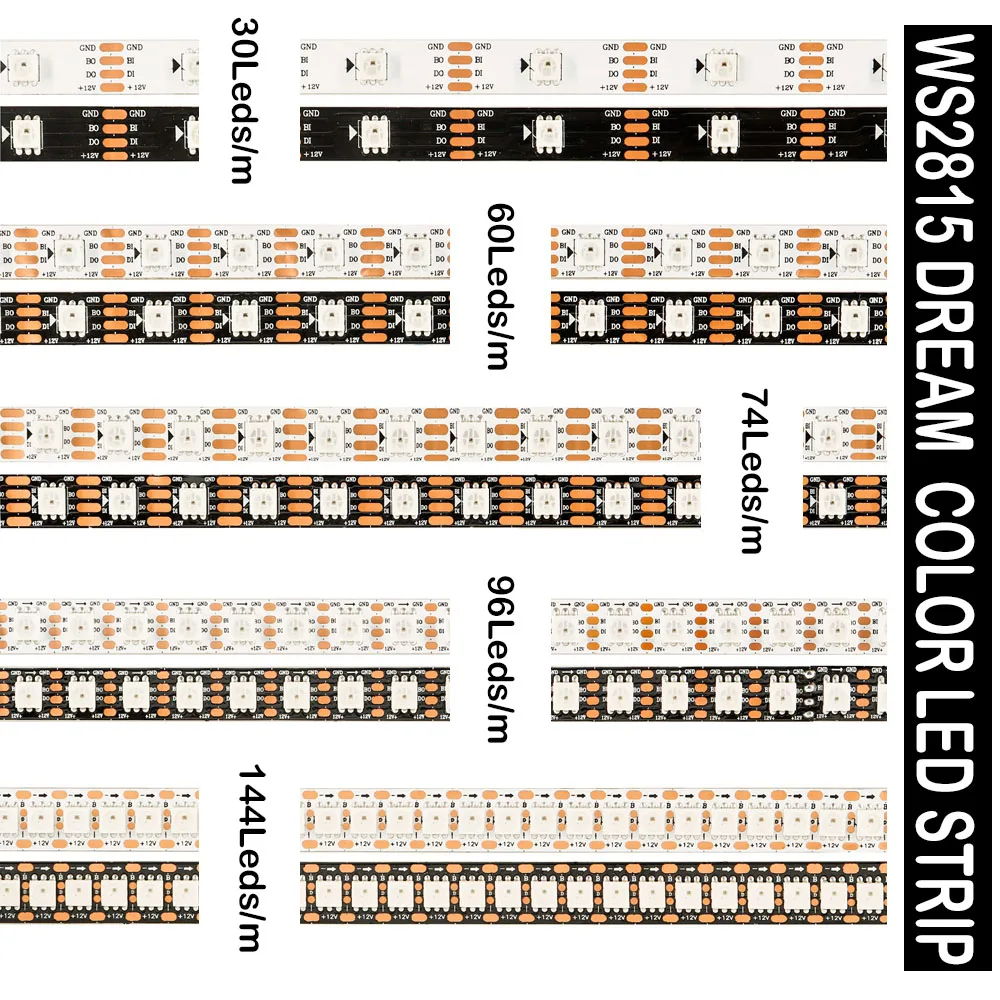

Pixels: 30/60/74/96/144/meter;

Pitch: 16.6mm(1000/64);

Grey scale: 256;

Bits/color: 8-bits/color;

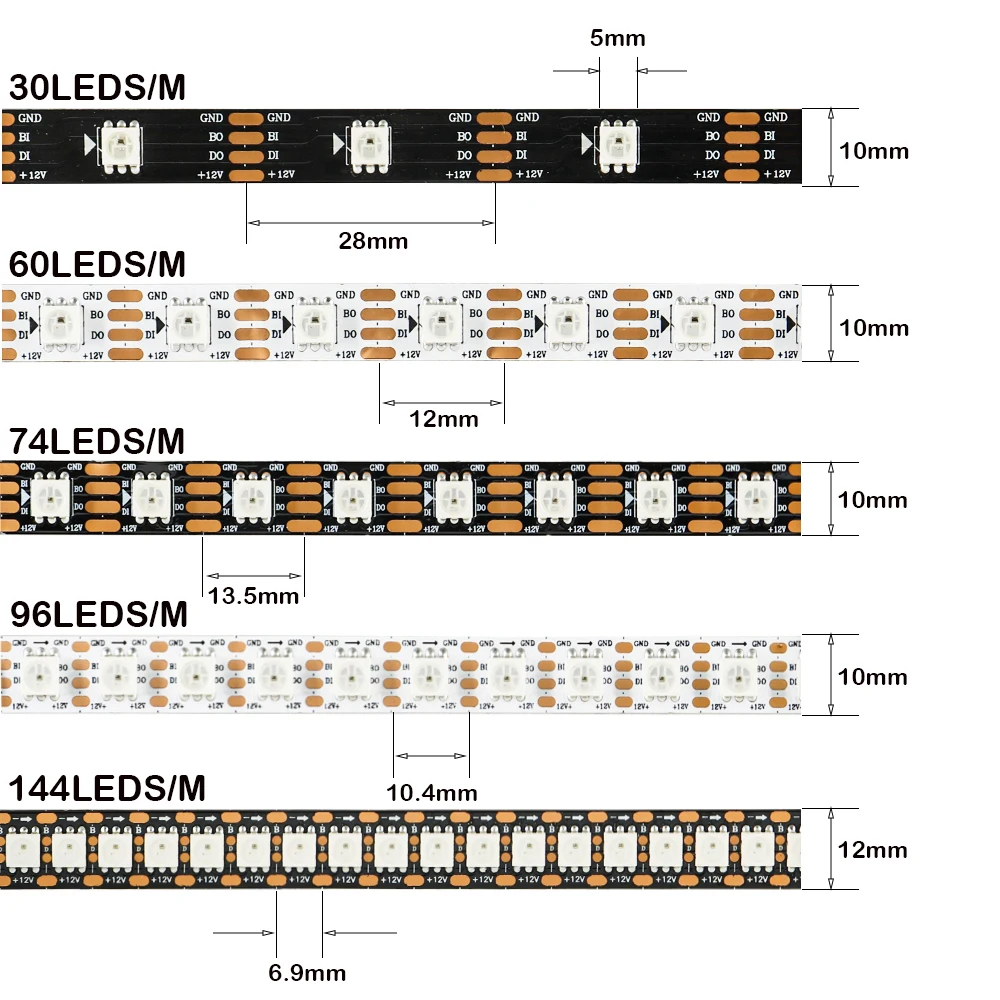

FPC Width: :

30leds/m----10mm

60leds/m----10mm

74leds/m----10mm

96leds/m----10mm

144leds/m----12mm

FPC color: White/Black PCB

Protection rate: IP30/ IP65 /IP67

Colors: Full color RGB, dream color changing;

Cuttable: Every LED is cuttable;

Package: in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)

Working temperature: -40 ~ 70 °C

Storage temperature: -50 ~ 80 °C

Source life: 50,000 Hours

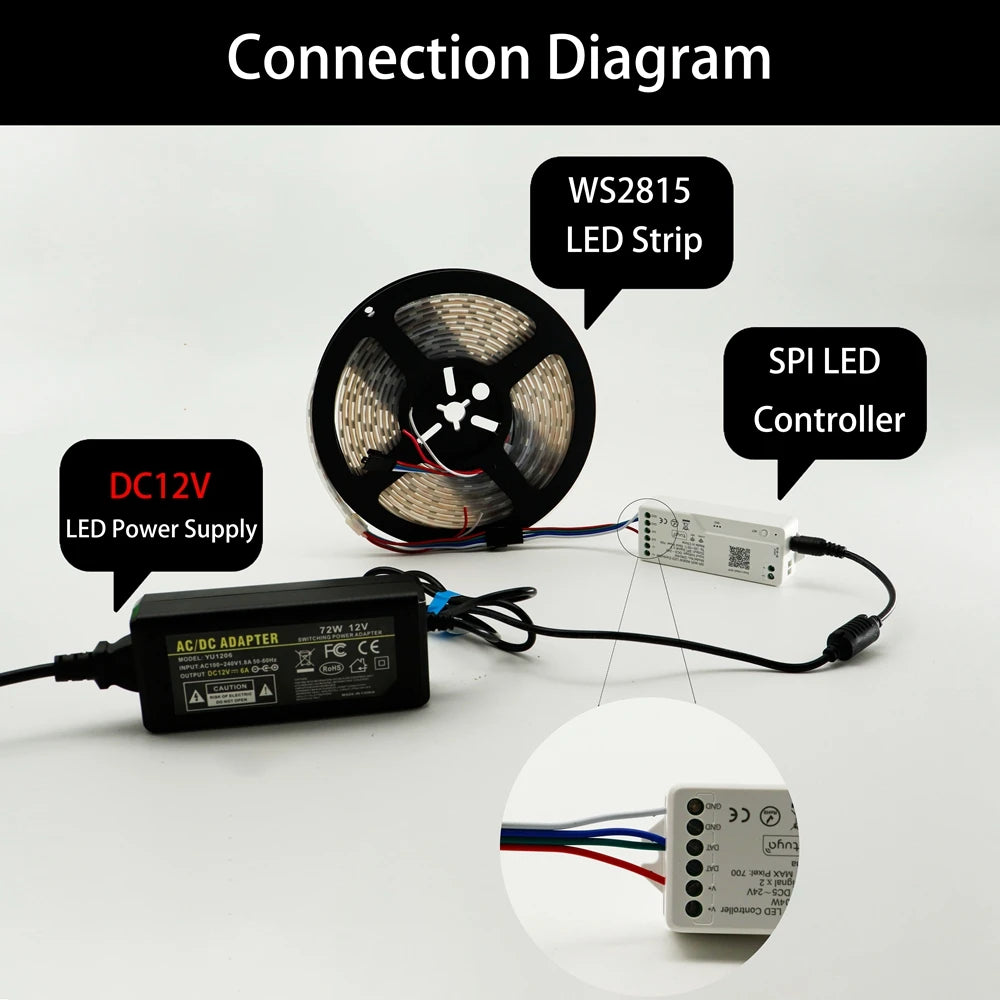

Connector: 4PIN Connector terminal pair

(Red: 12V power , Green: Date line, Blue: standby date line,Black: GND)
