SPECIFICATIONS

Average Life (hrs): More than 50000hours

Brand Name: Xnbada

Certification: ce,EMC,FCC,ROHS,UL,CE,RoHs

Color Temp(K): 3000-6500K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/74/96/144

Luminous Flux: 249-2000

Model Number: WS2812B WS2815

Nominal Voltage: 12V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30/60/74/96/144

Strip type: SMD

Voltage: DC5V/12V

Waterproof: Yes

Pay Attention：

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！

2.

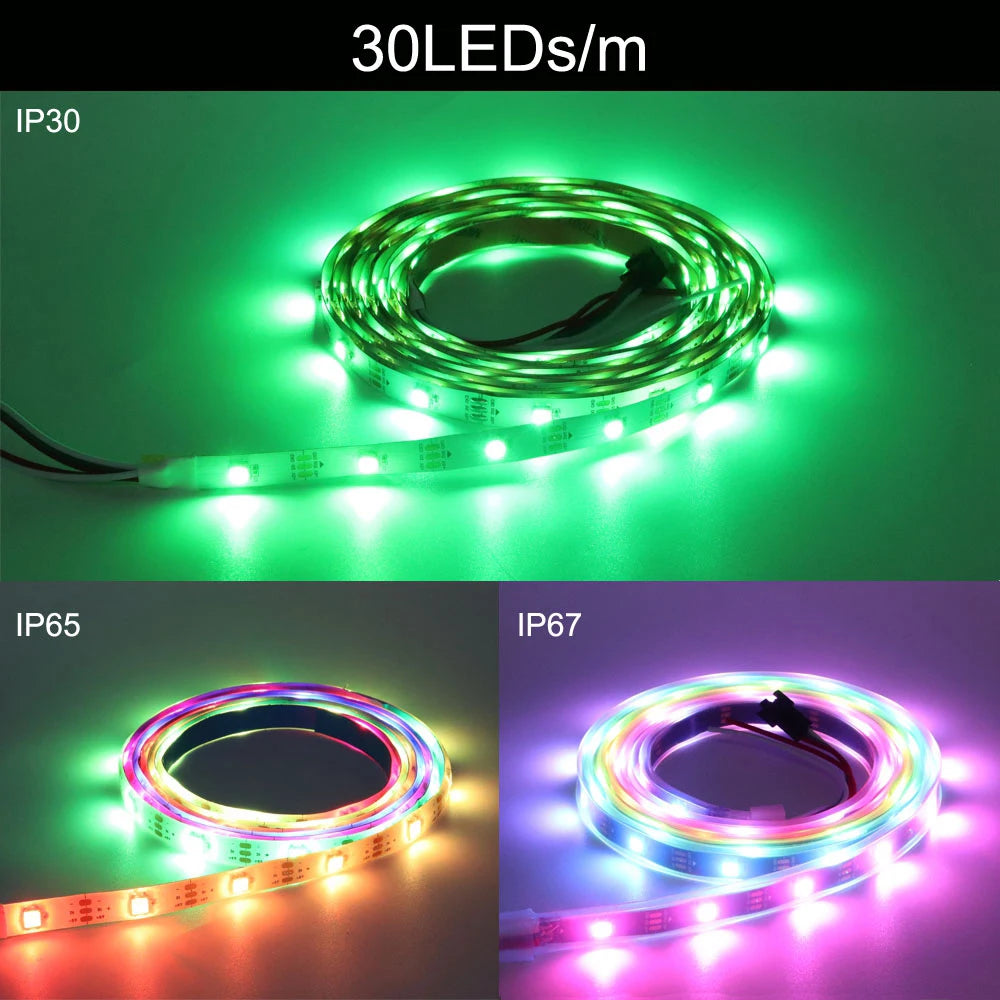

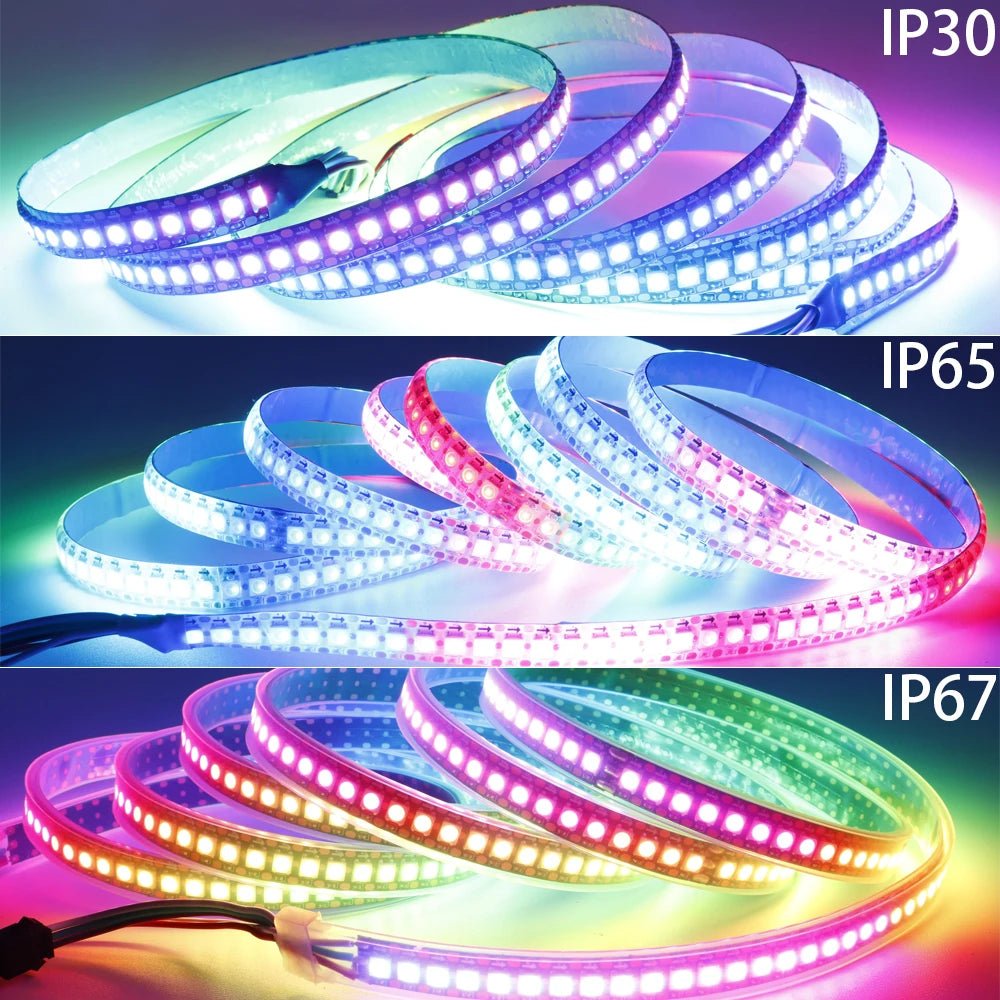

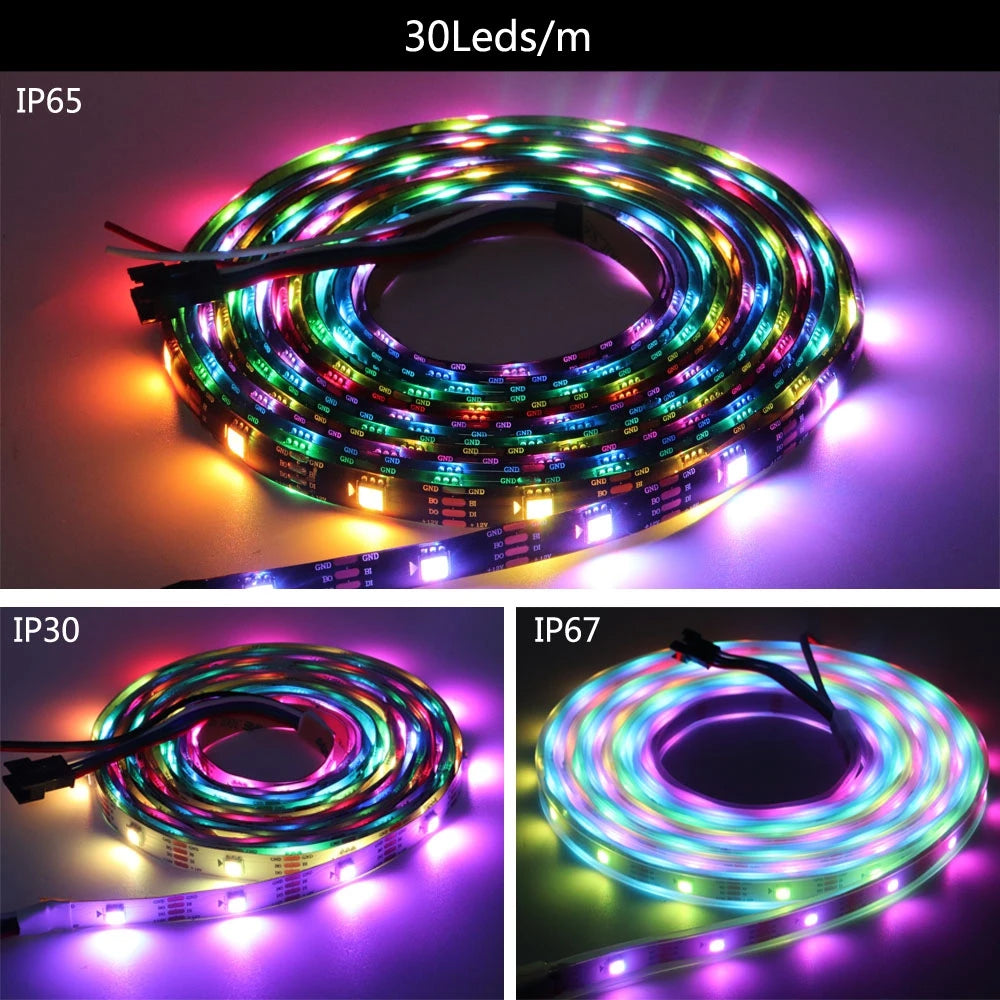

IP30: Non- Waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube (No Double-sided Adhesive)

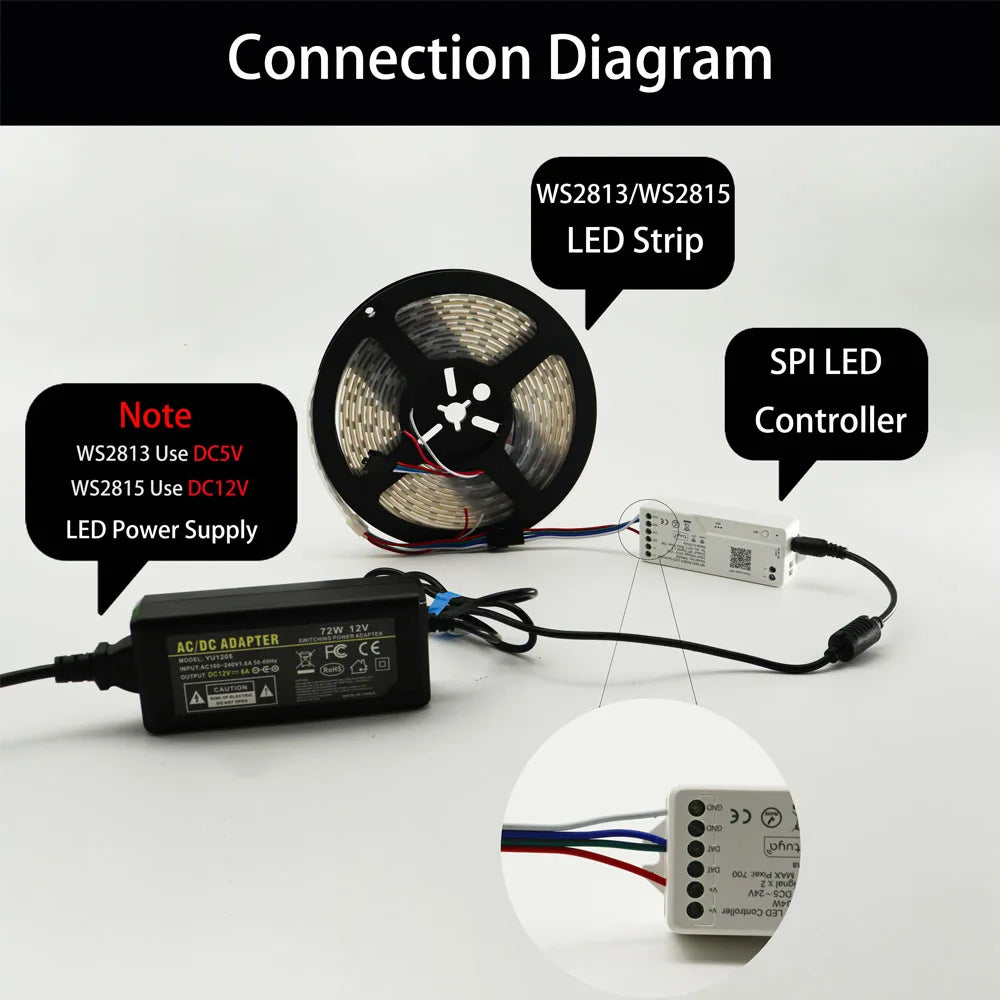

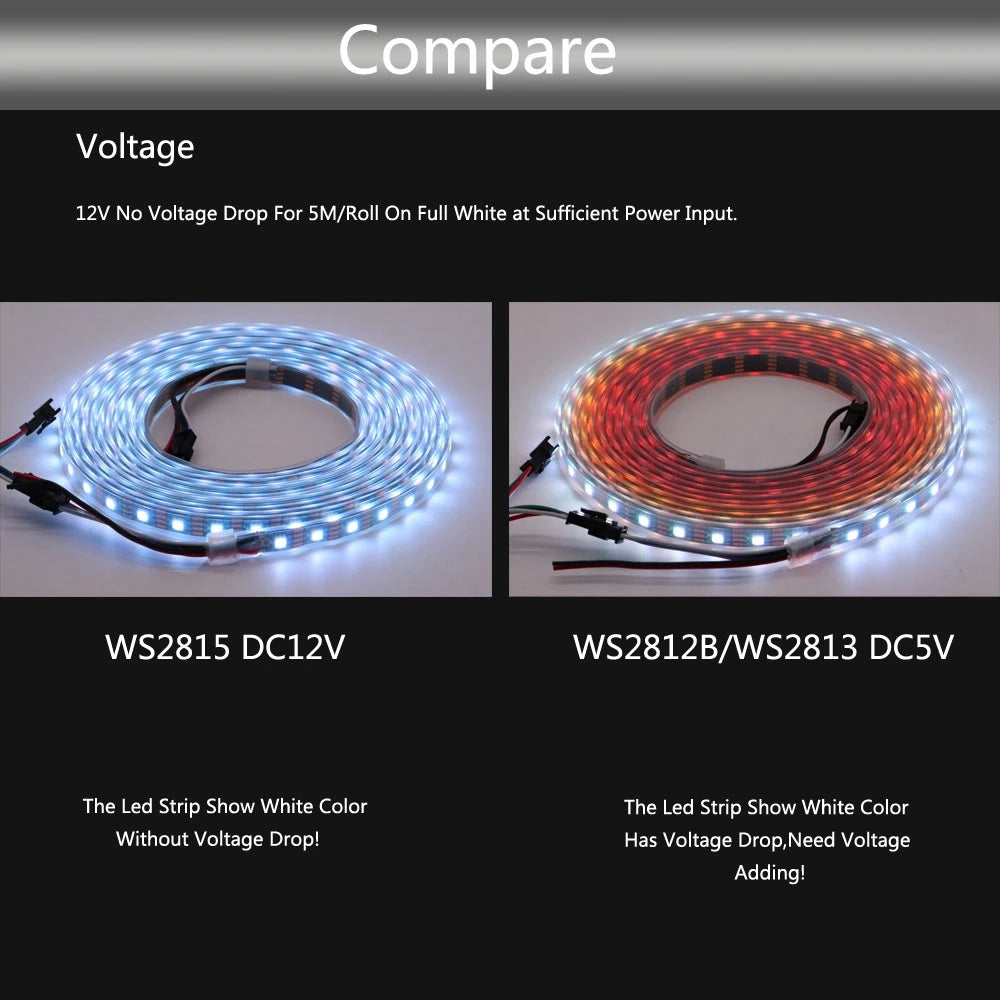

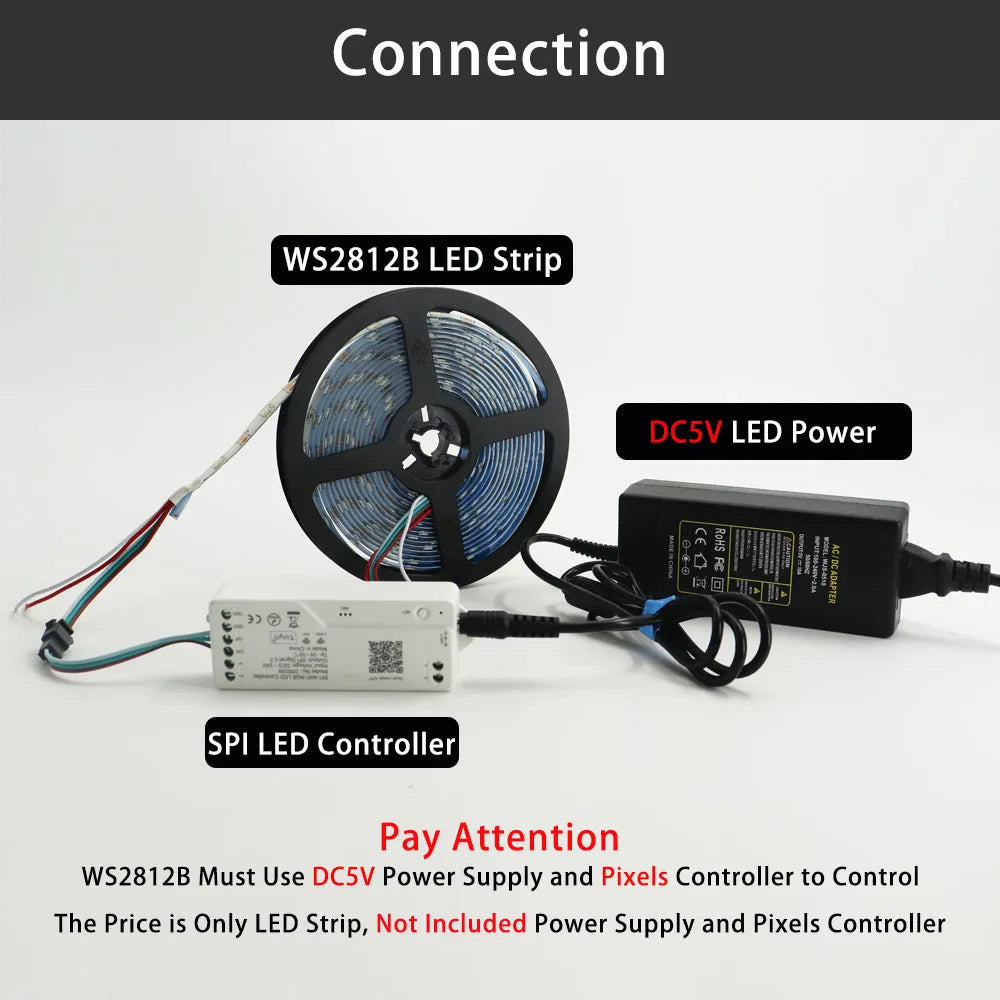

~WS2812B Must Use DC5V Led Power Supply

~WS2815 Must Use DC12V Led Power Supply

This link is not include power supply and not include led controller,please know it

WS2812B LED Strip:

Input Voltage: DC5V

Power:

30Leds/m----9Watt/meter

60Leds/m----18Watt/meter

74Leds/m----22.2Watt/meter

96Leds/m----28.8Watt/meter

144Leds/m----43.2Watt/meter

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip

Pixels: 30/60/74/96/144/Meters

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Bits/Color: 8-Bits/Color

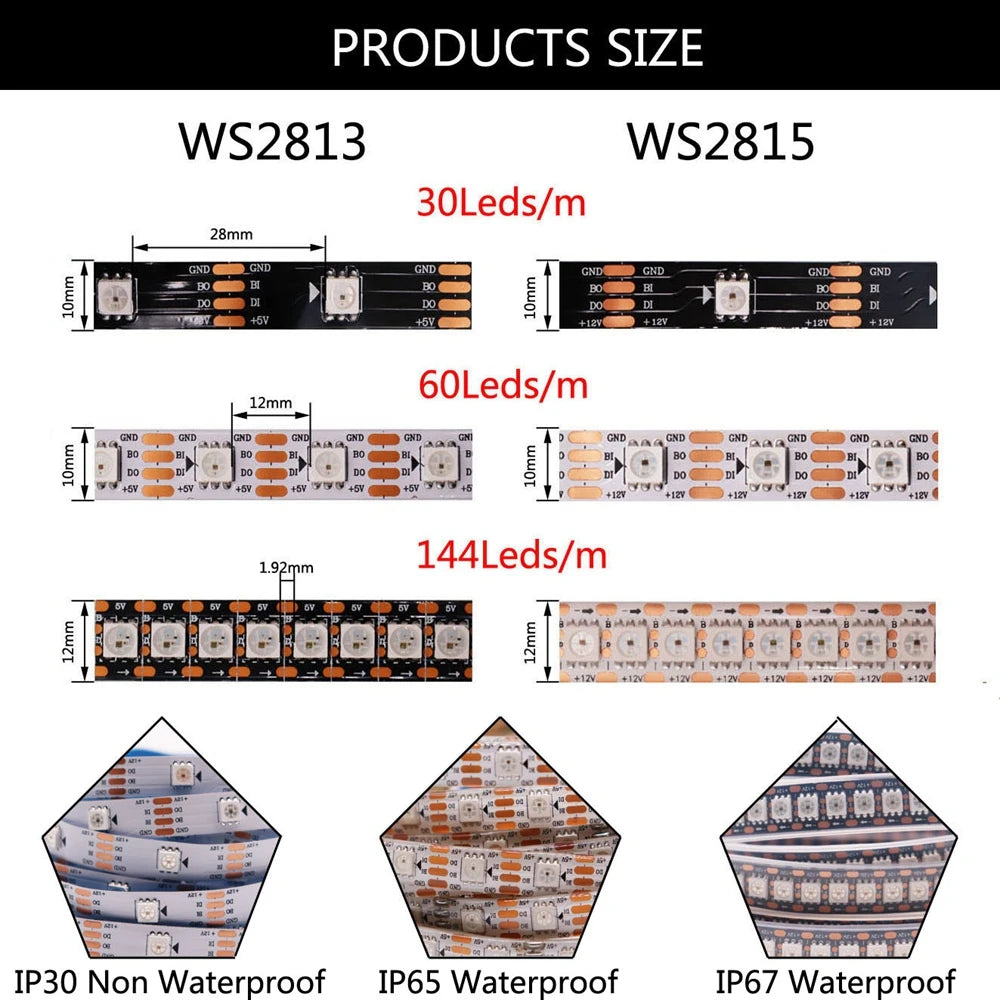

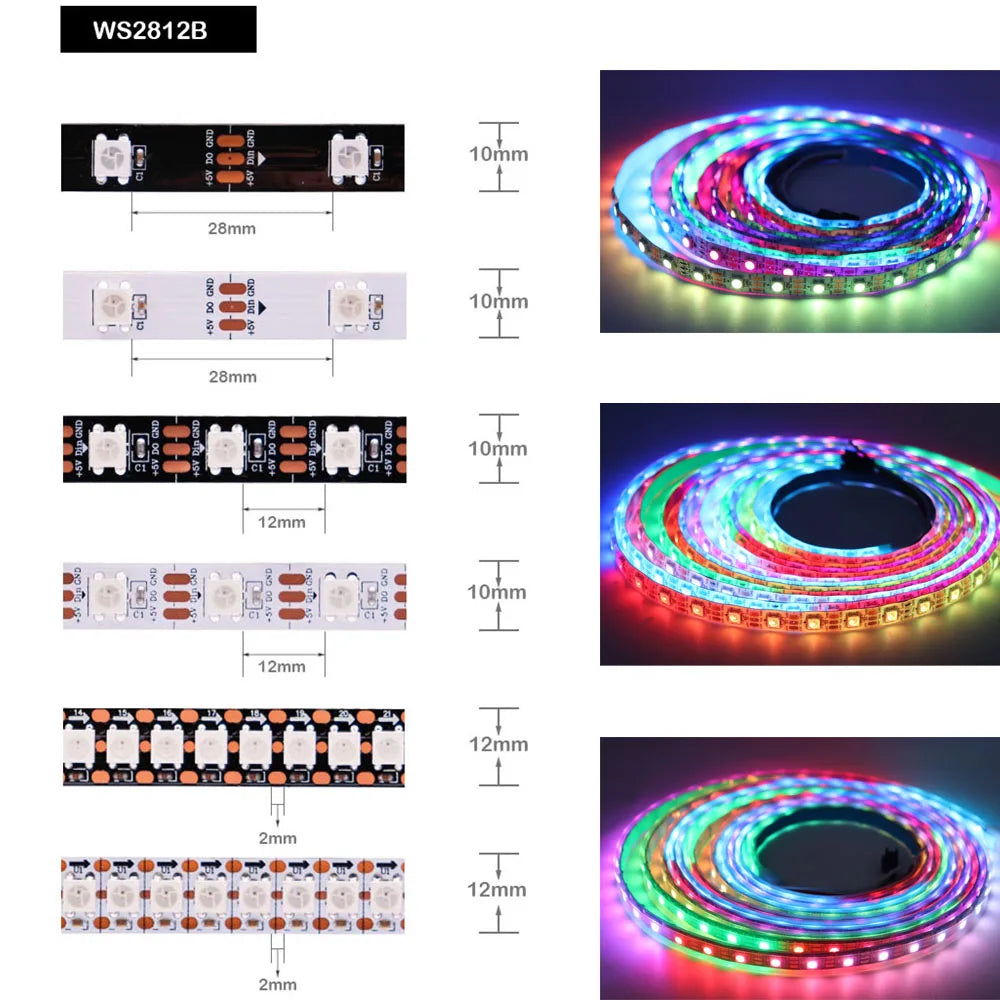

FPC Width:

30Leds/m----10mm

60Leds/m----10mm

74Leds/m----10mm

96Leds/m----10mm

144Leds/m----12mm

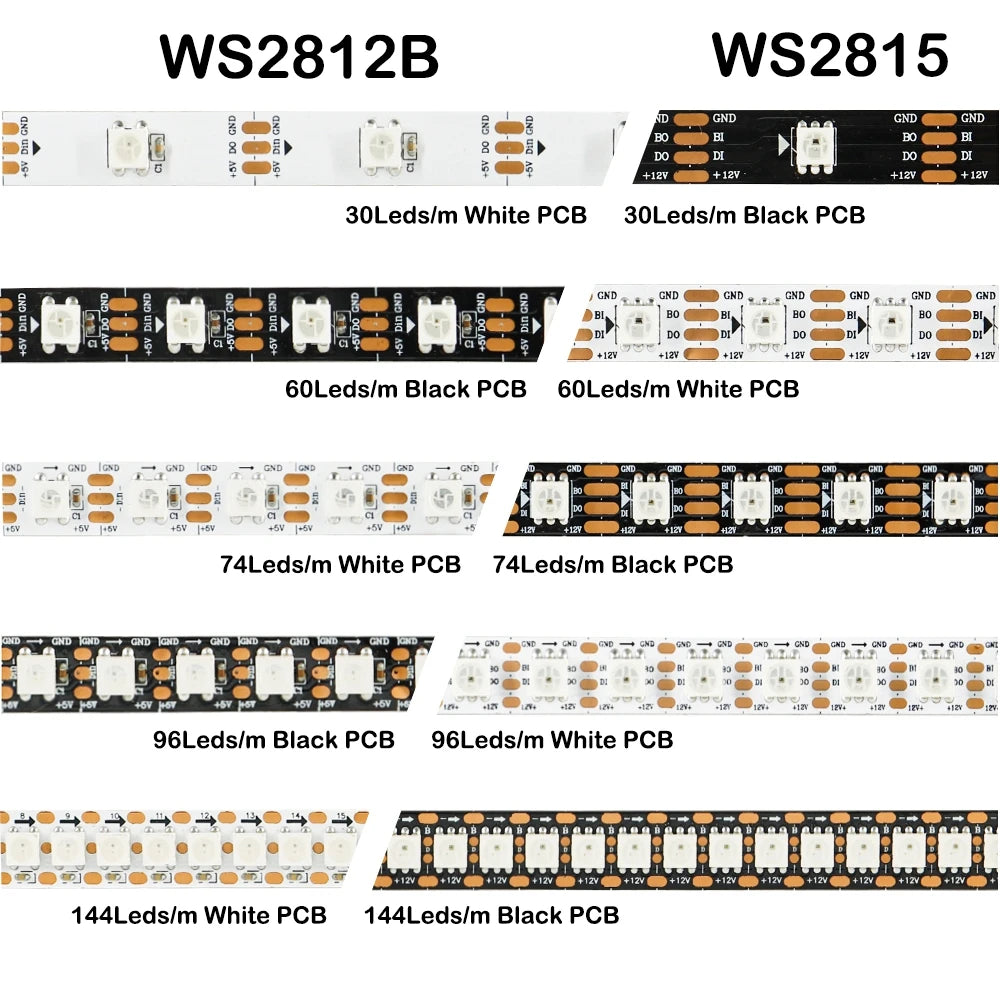

FPC color: Black/White

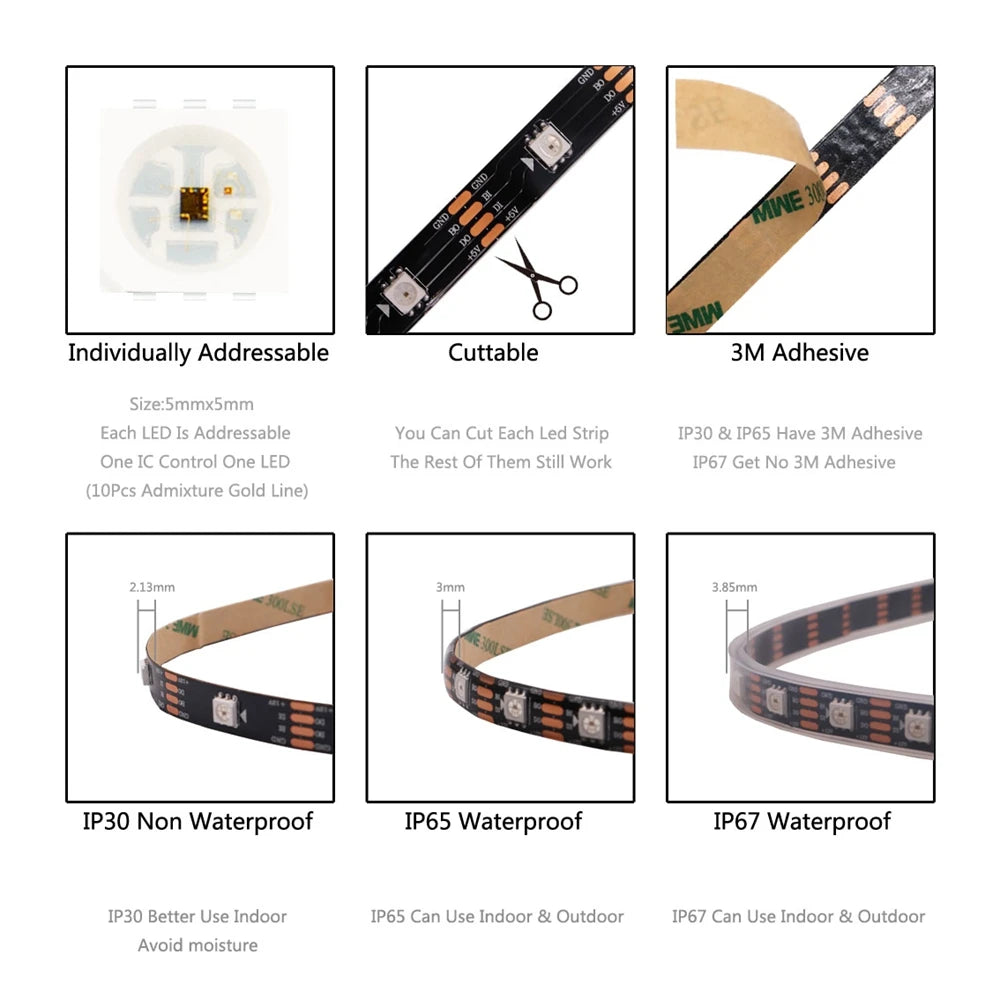

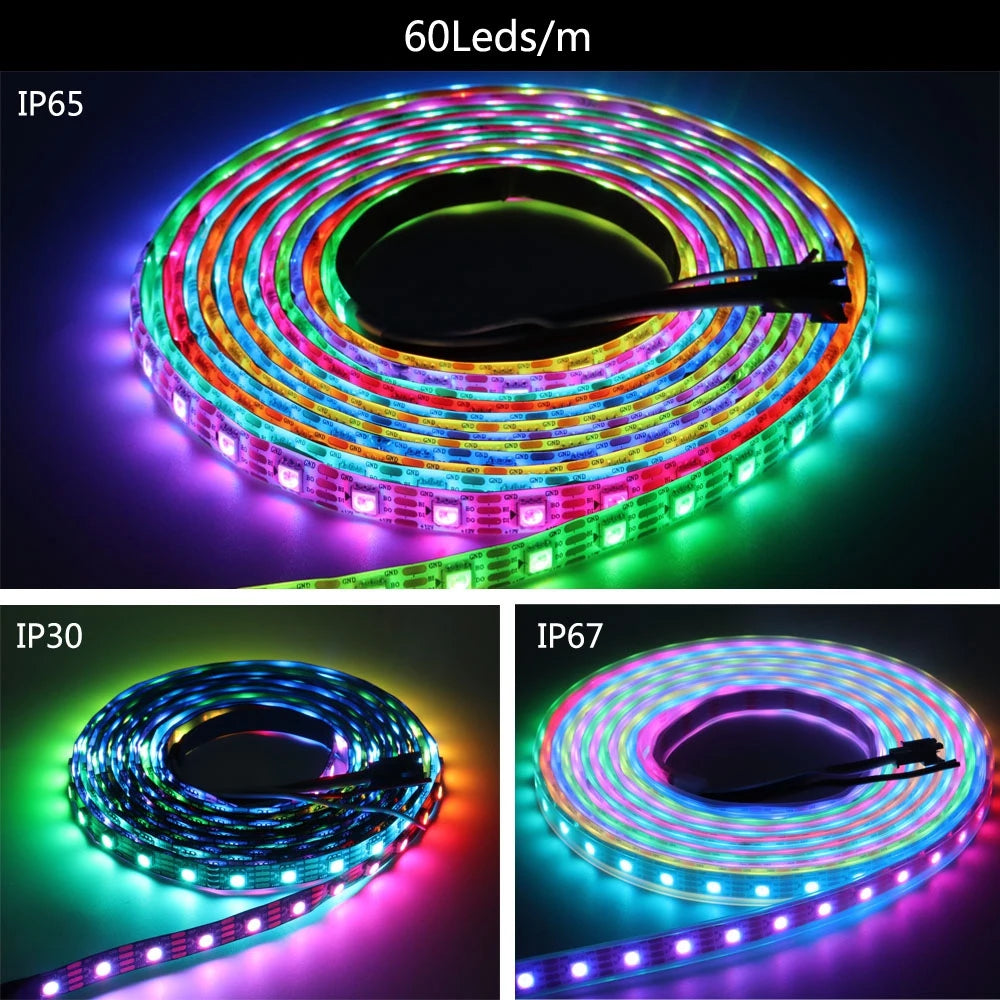

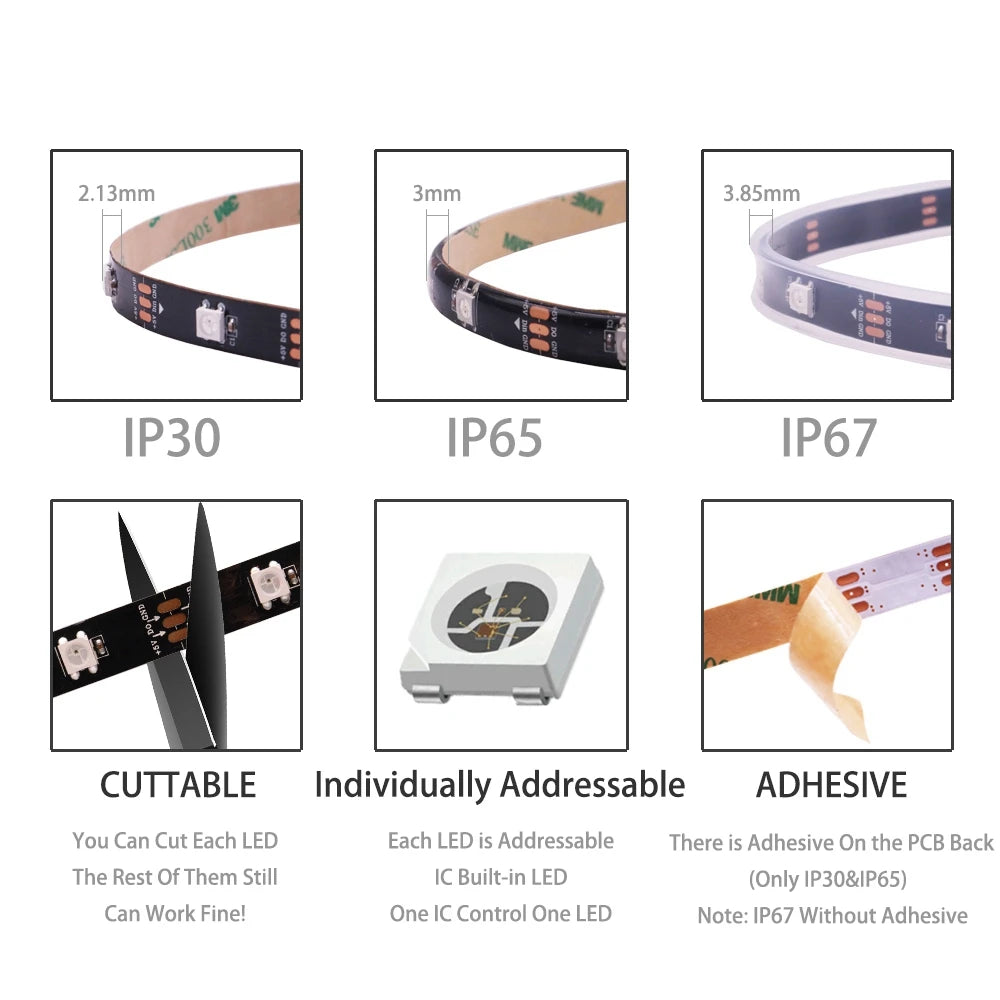

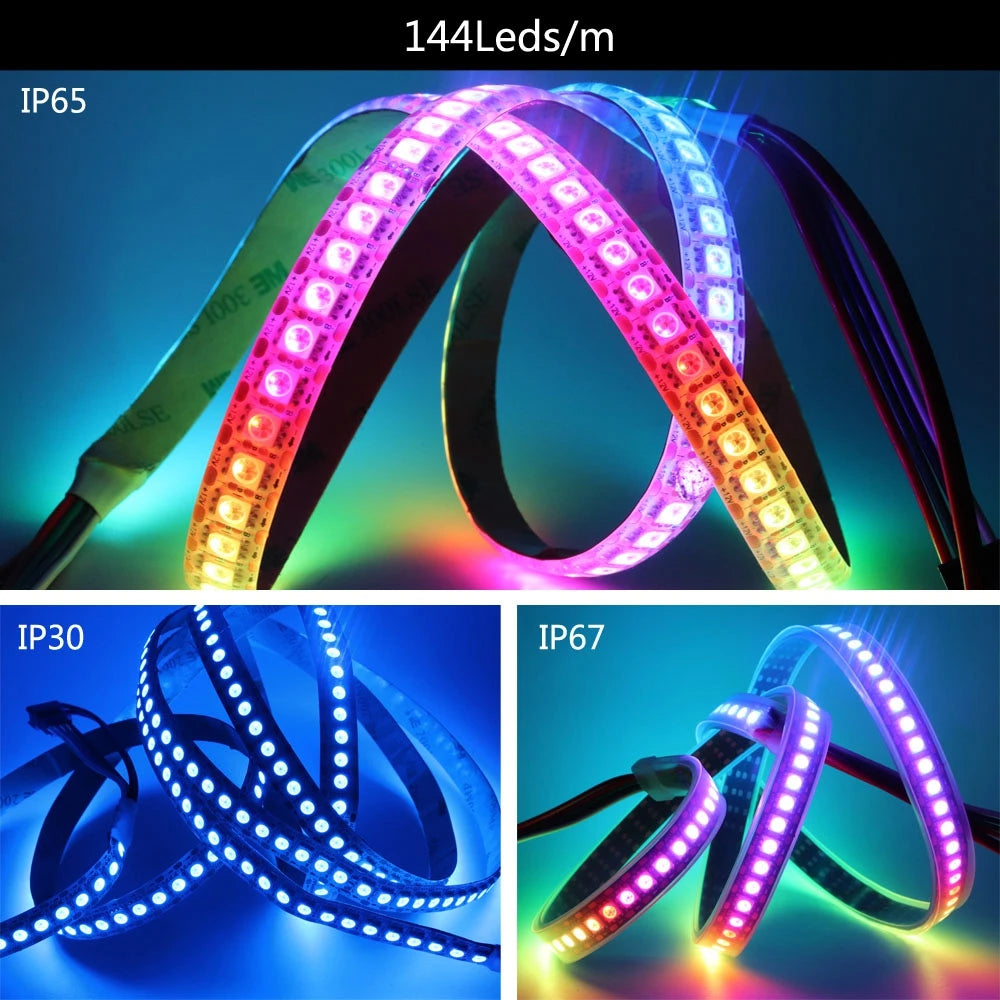

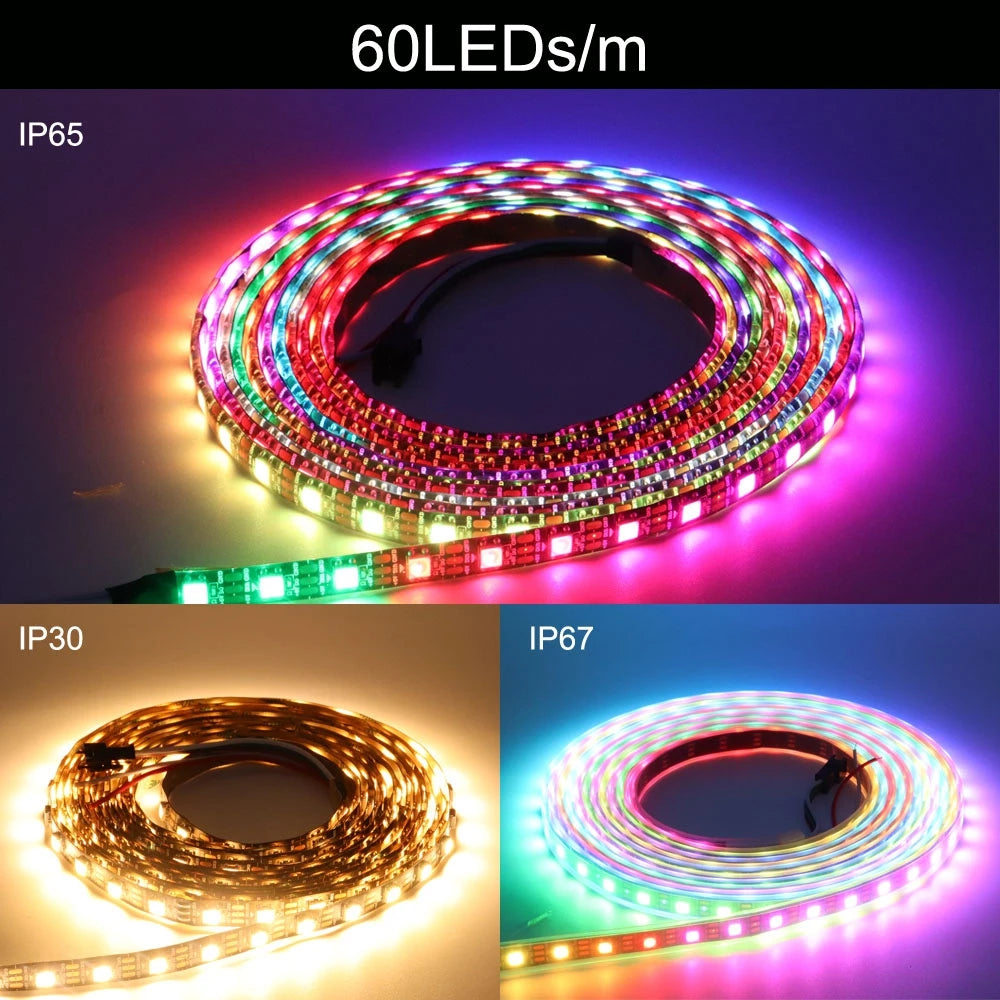

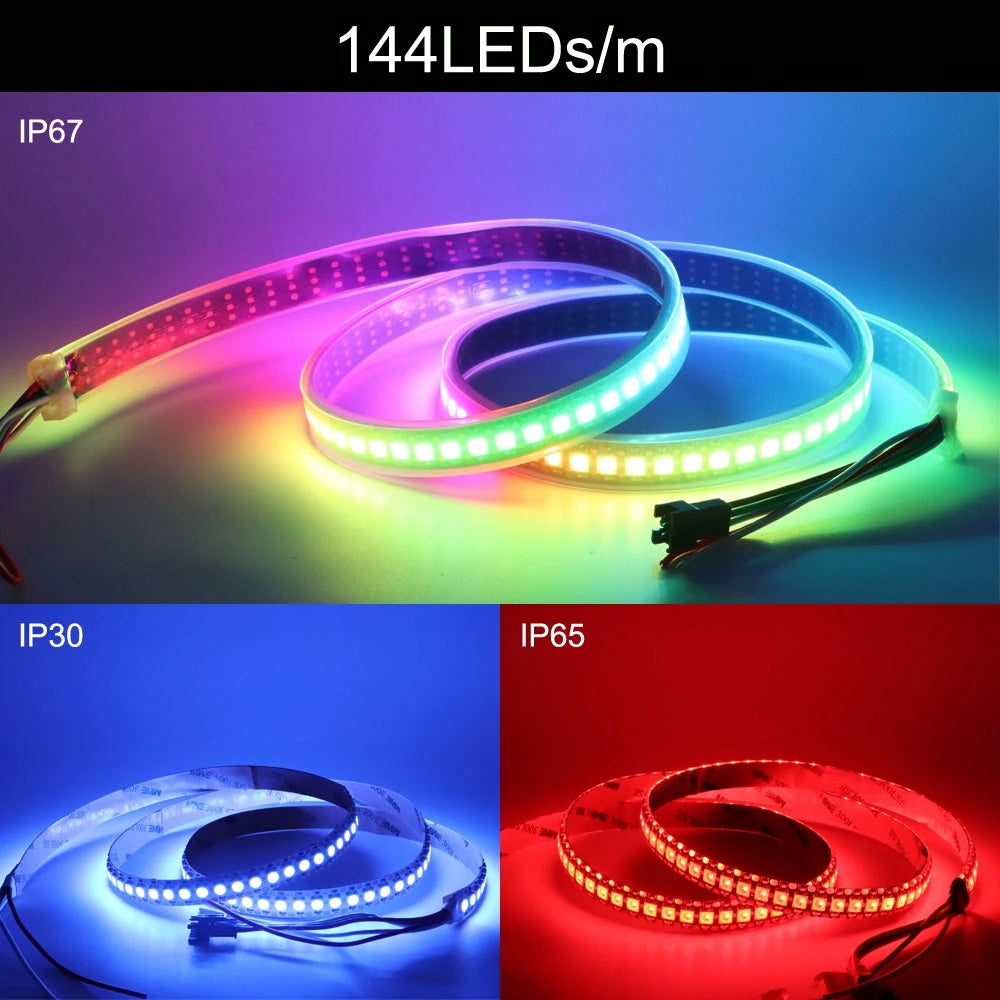

Protection Rate: IP30/ IP65 /IP67

Colors: Full Color RGB, Dream Color Changing

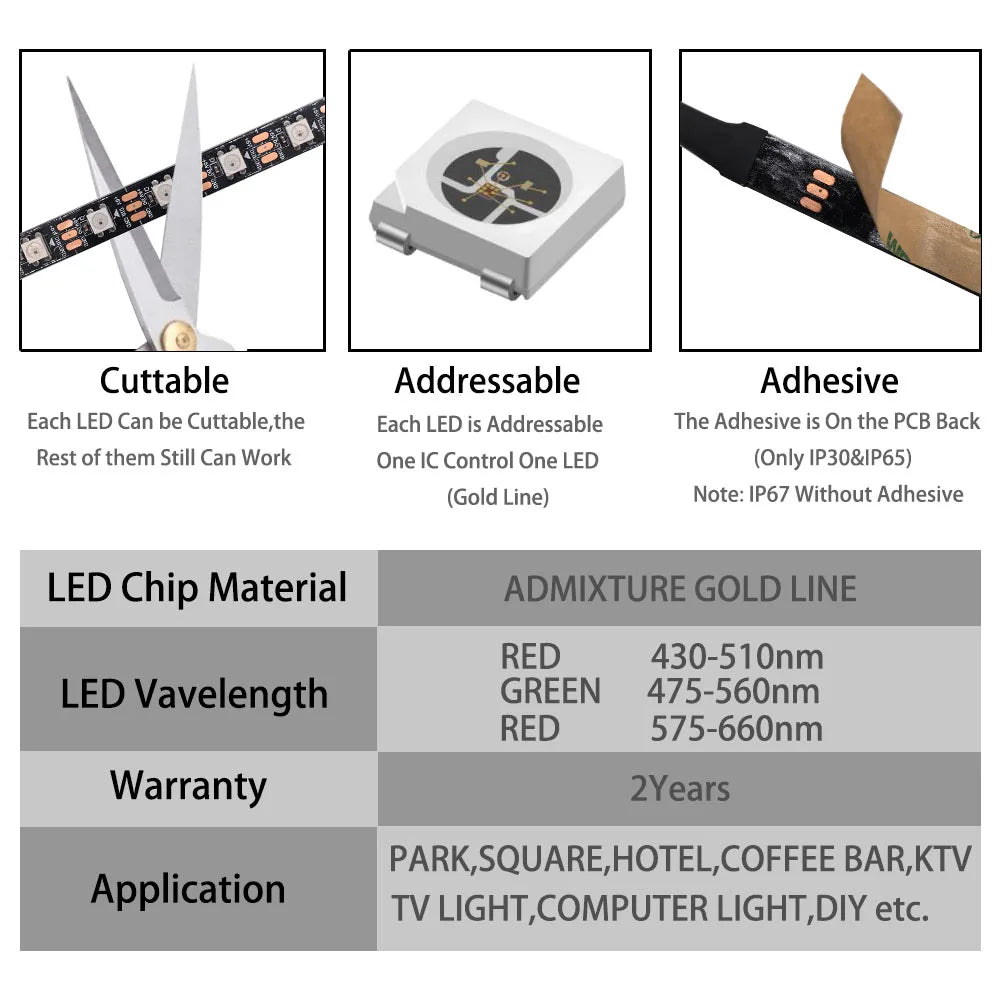

Cuttable: Every LED is Cuttable

Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)

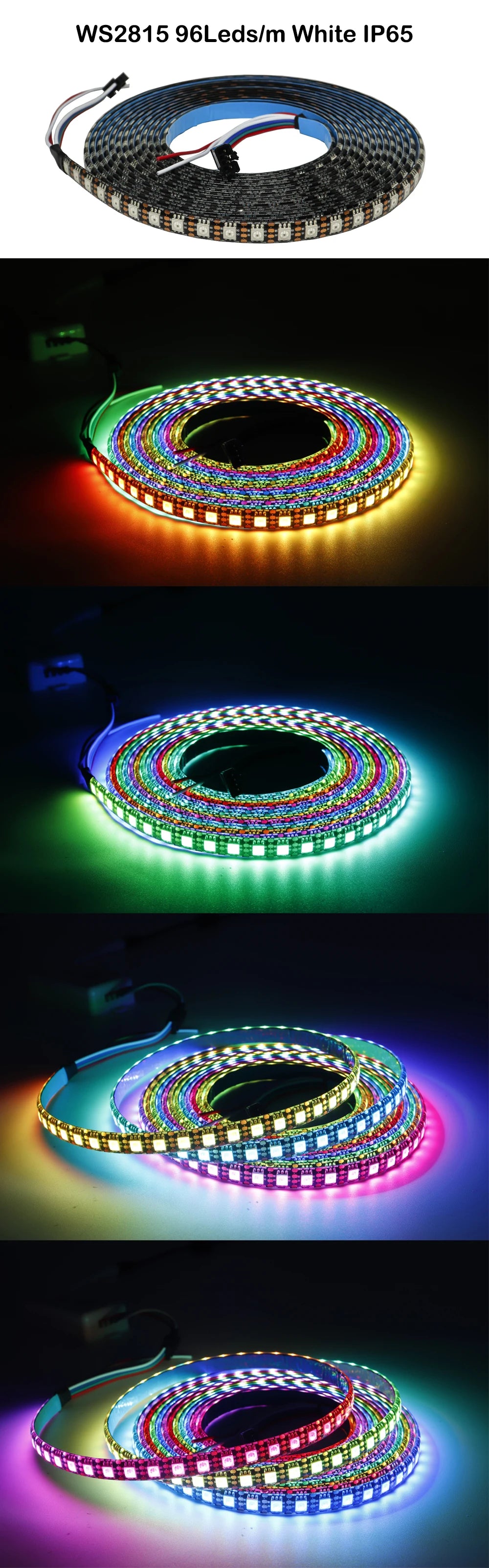

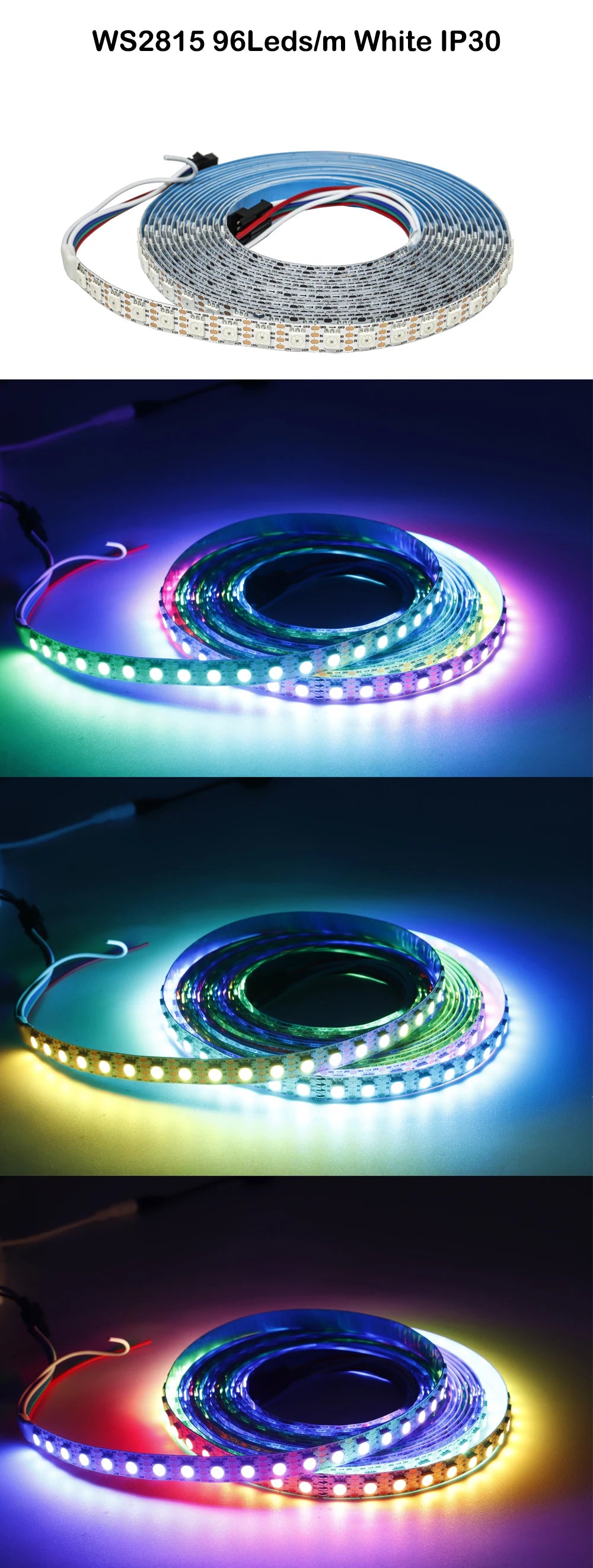

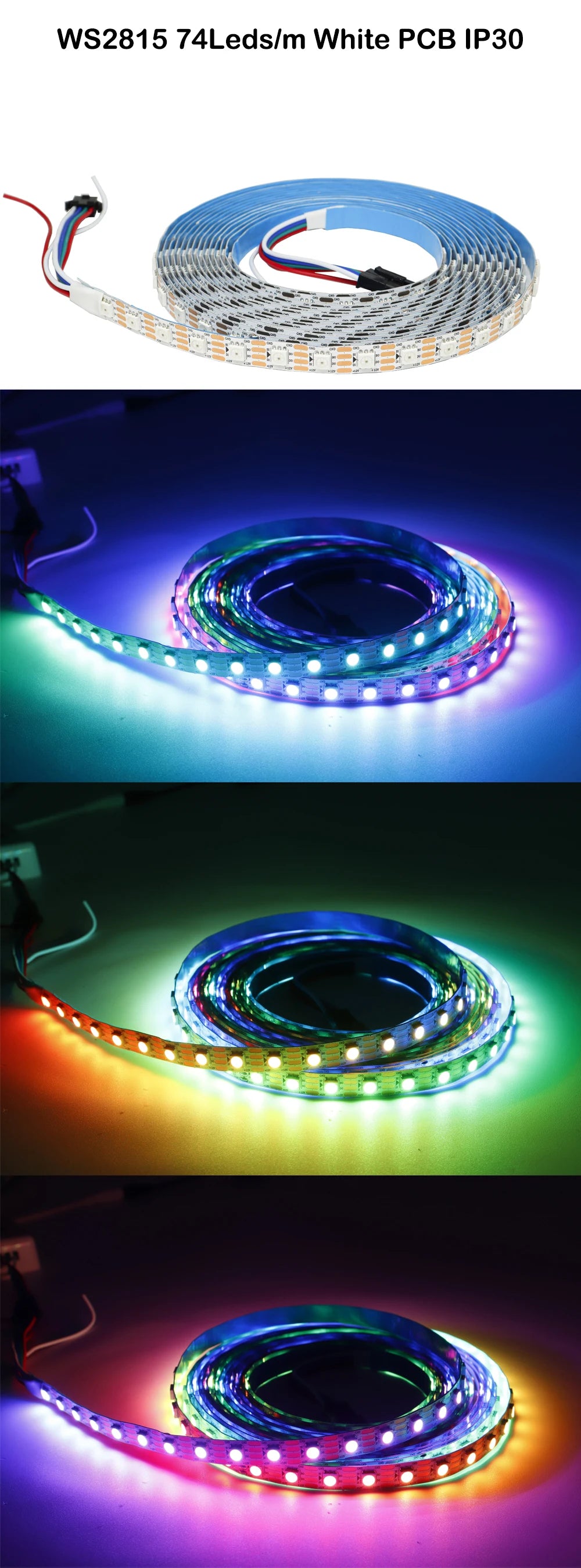

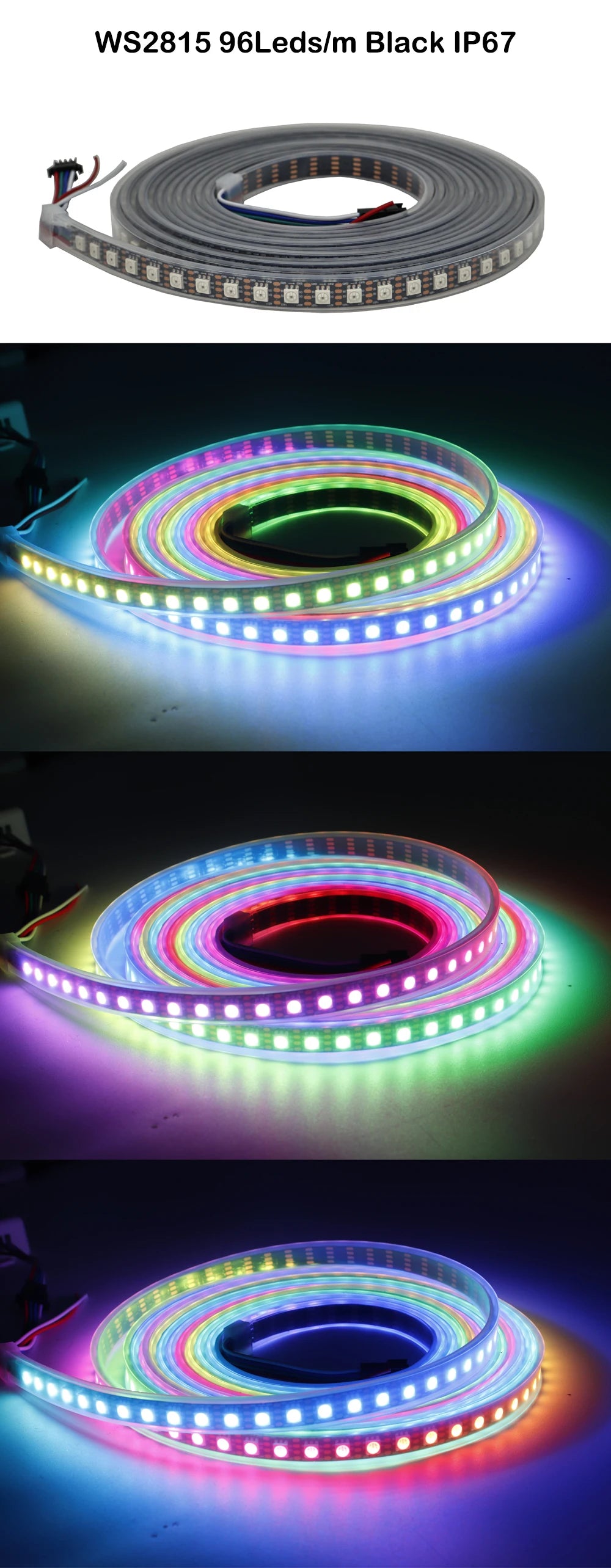

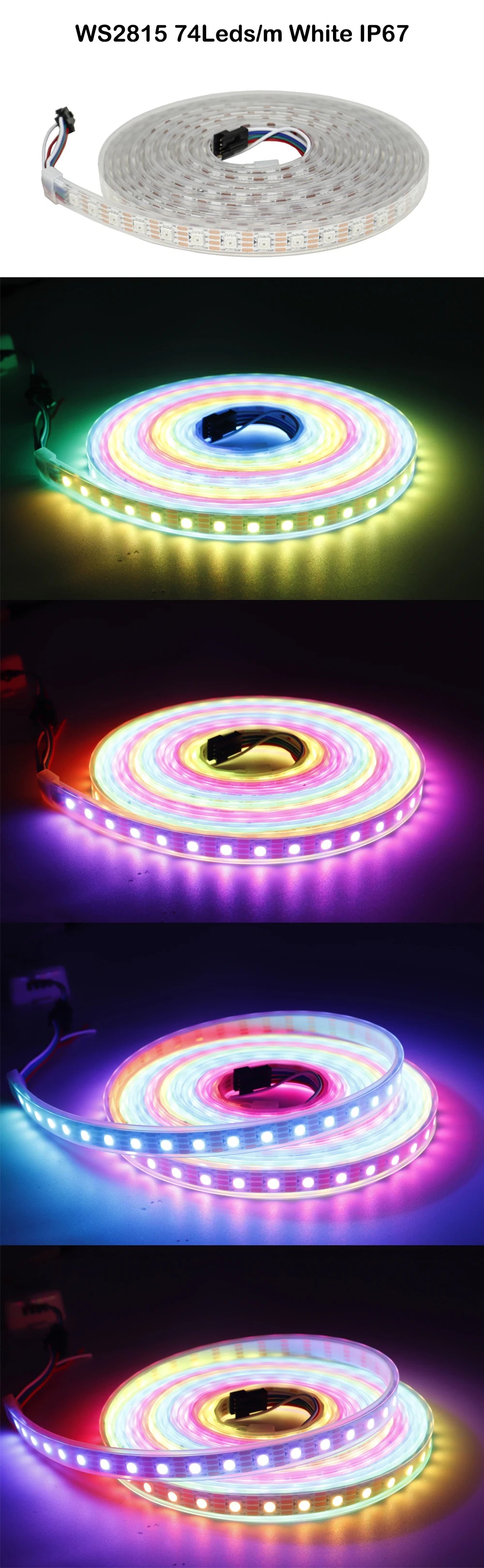

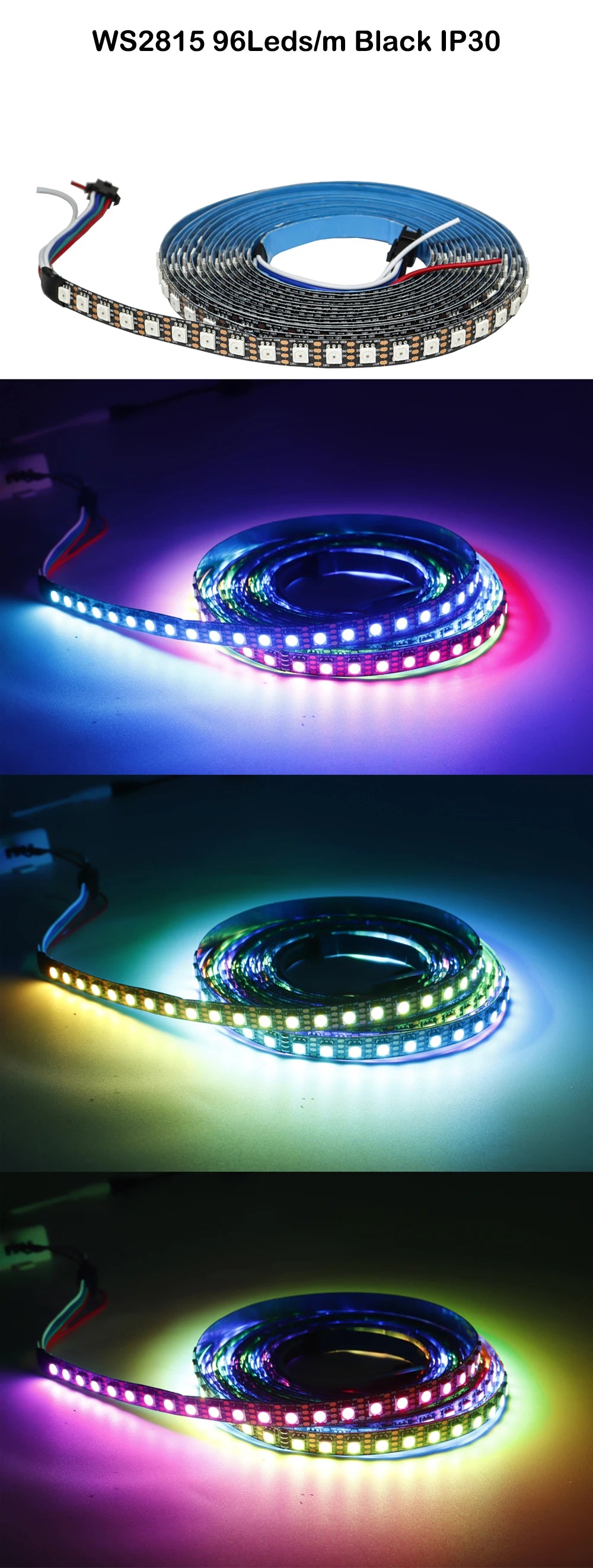

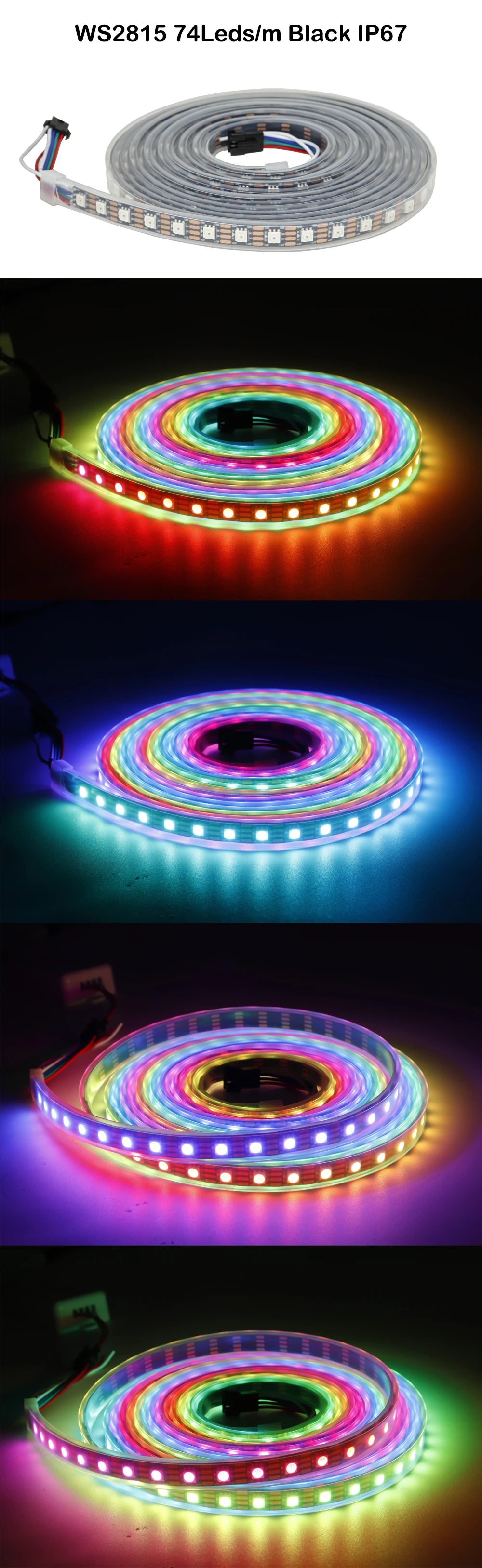

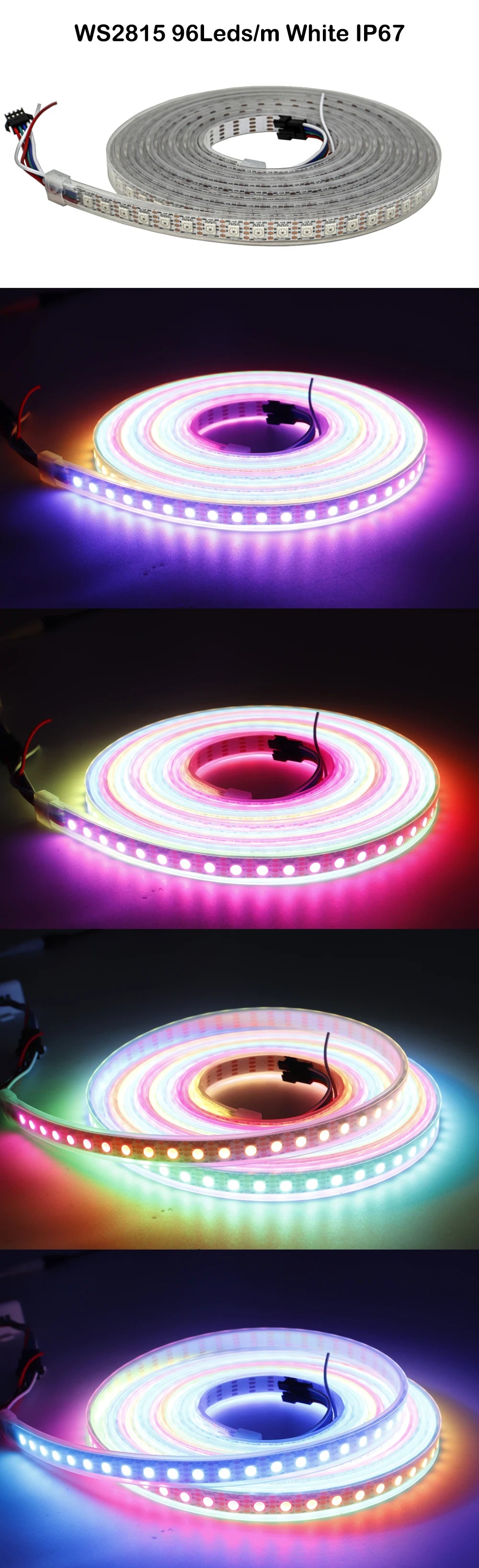

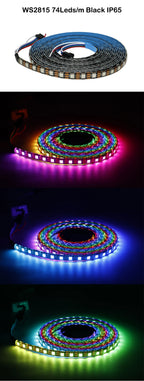

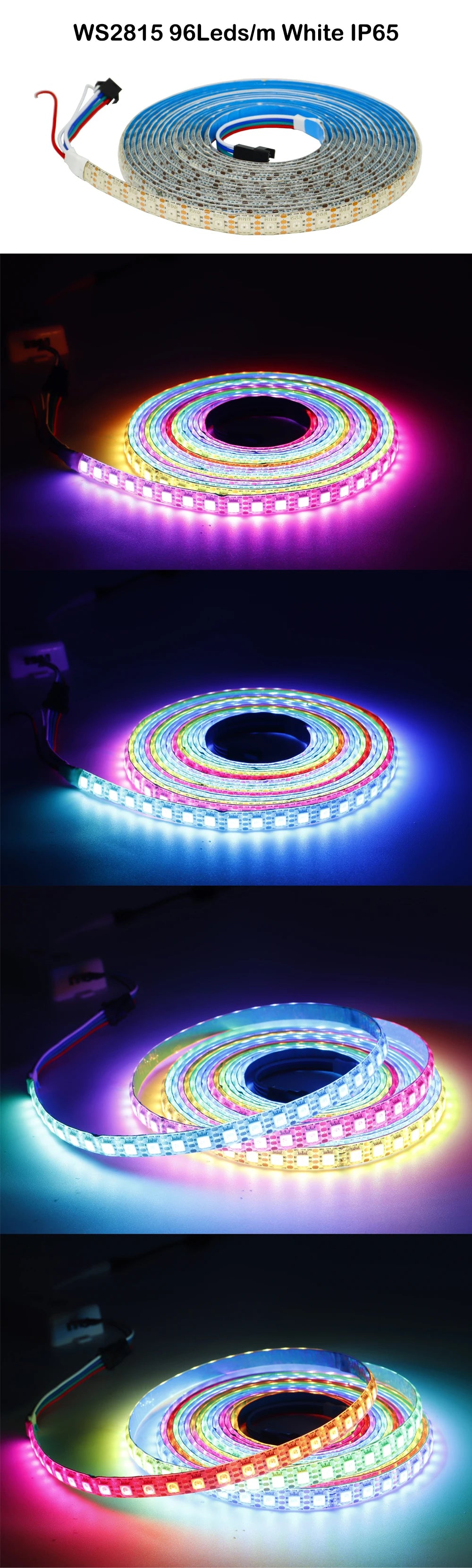

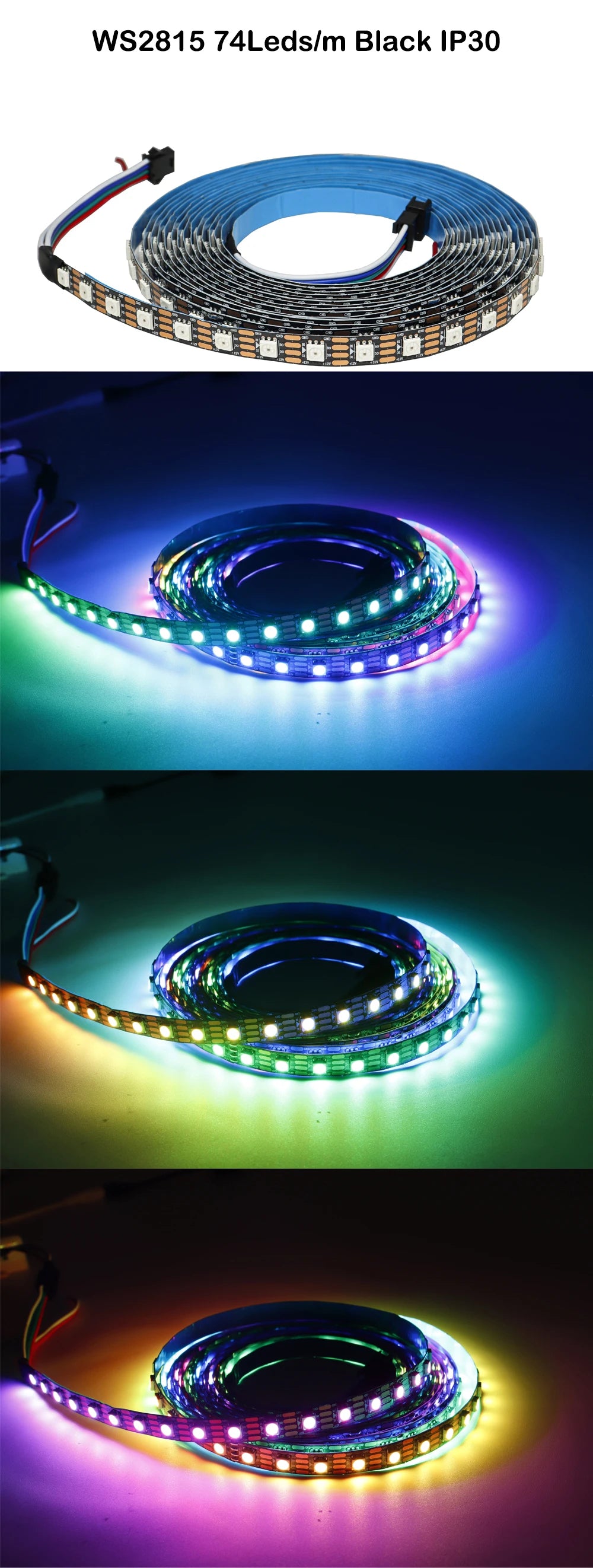

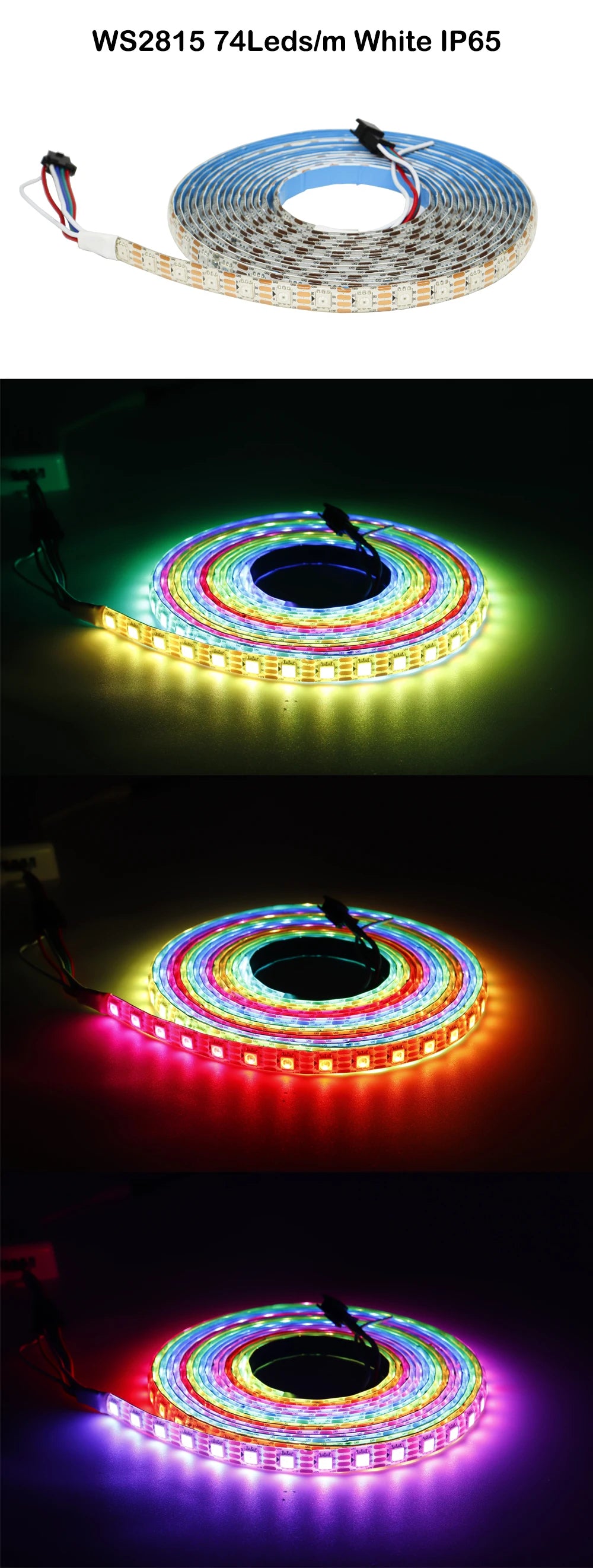

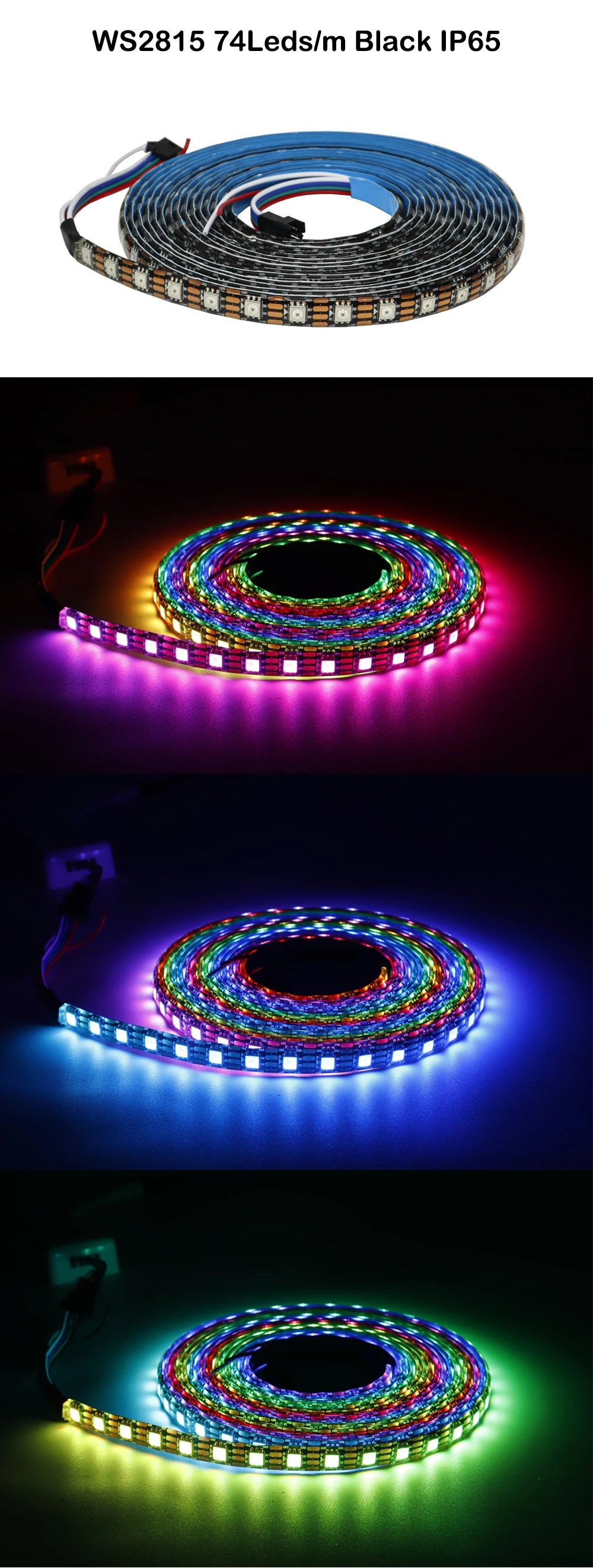

WS2815 LED Strip:

Input voltage:DC12V;

Power:

30leds/m----9watt/meter

60leds/m----18watt/meter

74leds/m----22.2watt/meter

96leds/m----28.8watt/meter

144leds/m----34watt/meter

LED resource: WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

LED: Each LED is separately controlled

IC Type: Improved Version WS2815 IC(built inside the 5050 smd rgb led)

of IC: (1 IC drives 1 led chip);

Pixels: 30/60/74/96/144/meter;

Pitch: 16.6mm(1000/64);

Grey scale: 256;

Bits/color: 8-bits/color;

FPC Width: :

30leds/m----10mm

60leds/m----10mm

74leds/m----10mm

96leds/m----10mm

144leds/m----12mm

FPC color: White/Black PCB

Protection rate: IP30/ IP65 /IP67

Colors: Full color RGB, dream color changing;

Cuttable: Every LED is cuttable;

Package: in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)

Working temperature: -40 ~ 70 °C

Storage temperature: -50 ~ 80 °C

Source life: 50,000 Hours

Connector: 4PIN Connector terminal pair

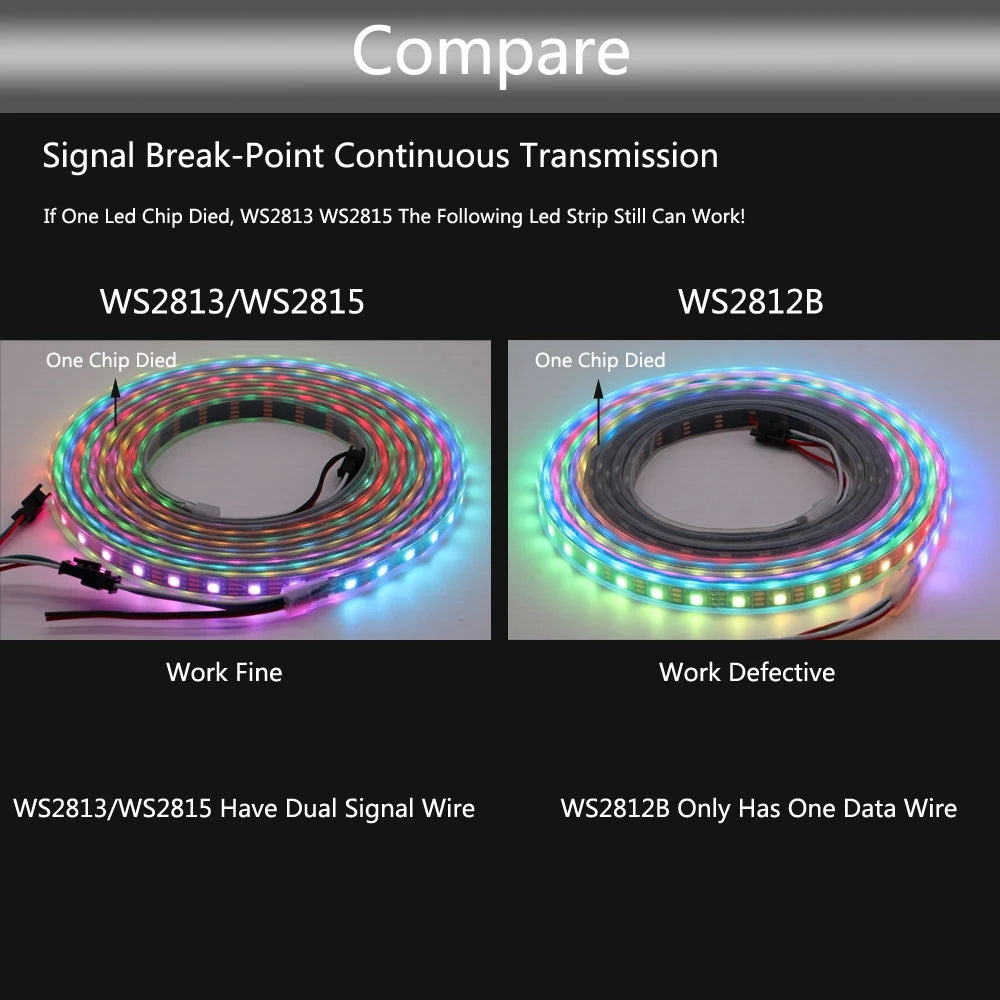

(Red: 12V power , Green: Date line, Blue: standby date line,Black: GND)
