Description

SPECIFICATIONS

Brand Name: YUN DUAN

Certification: CE

High-concerned chemical: none

Material: others

Origin: Mainland China

Dear friend, we will ship according to your selection.

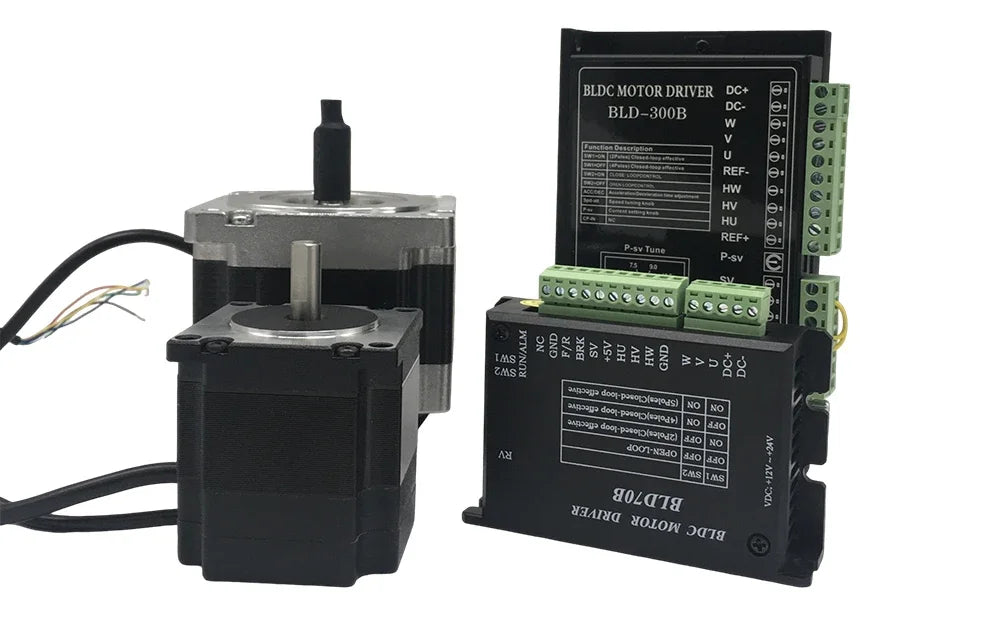

● Only Motor:

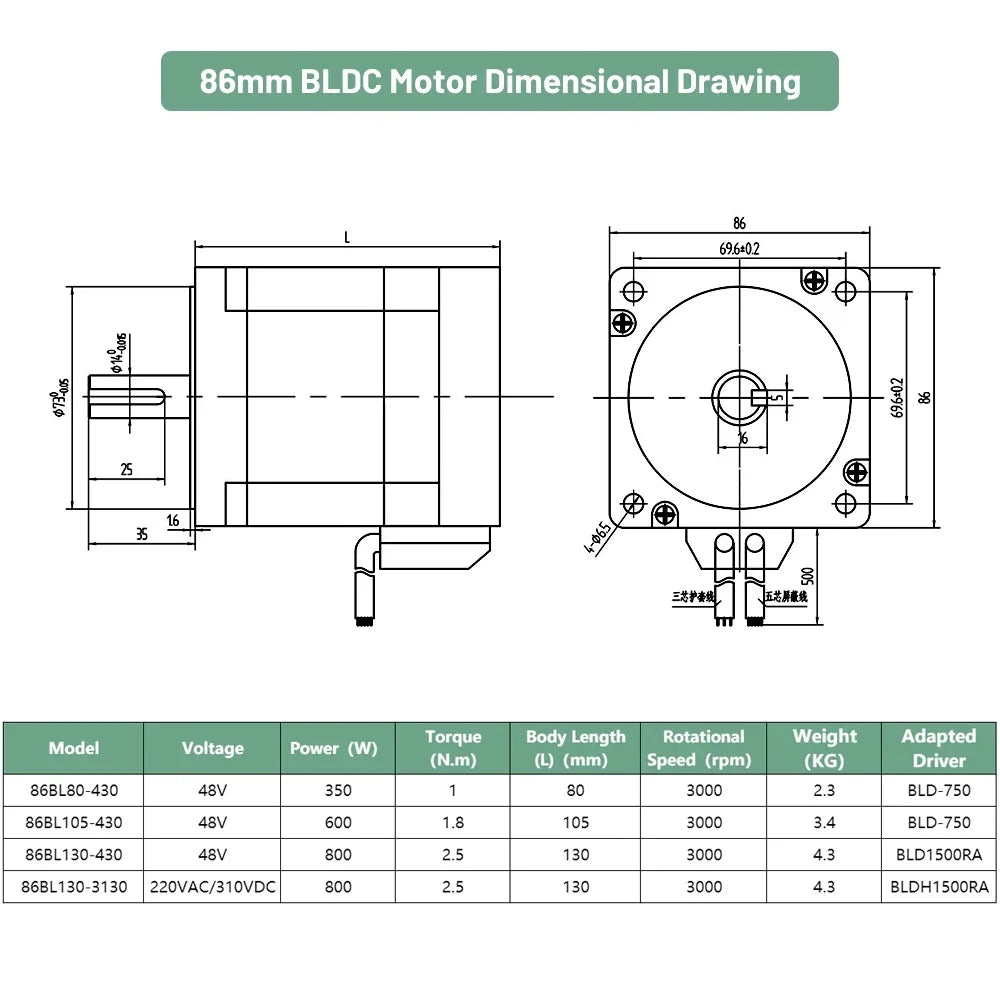

1*Nema23/Nema34 brushless motor

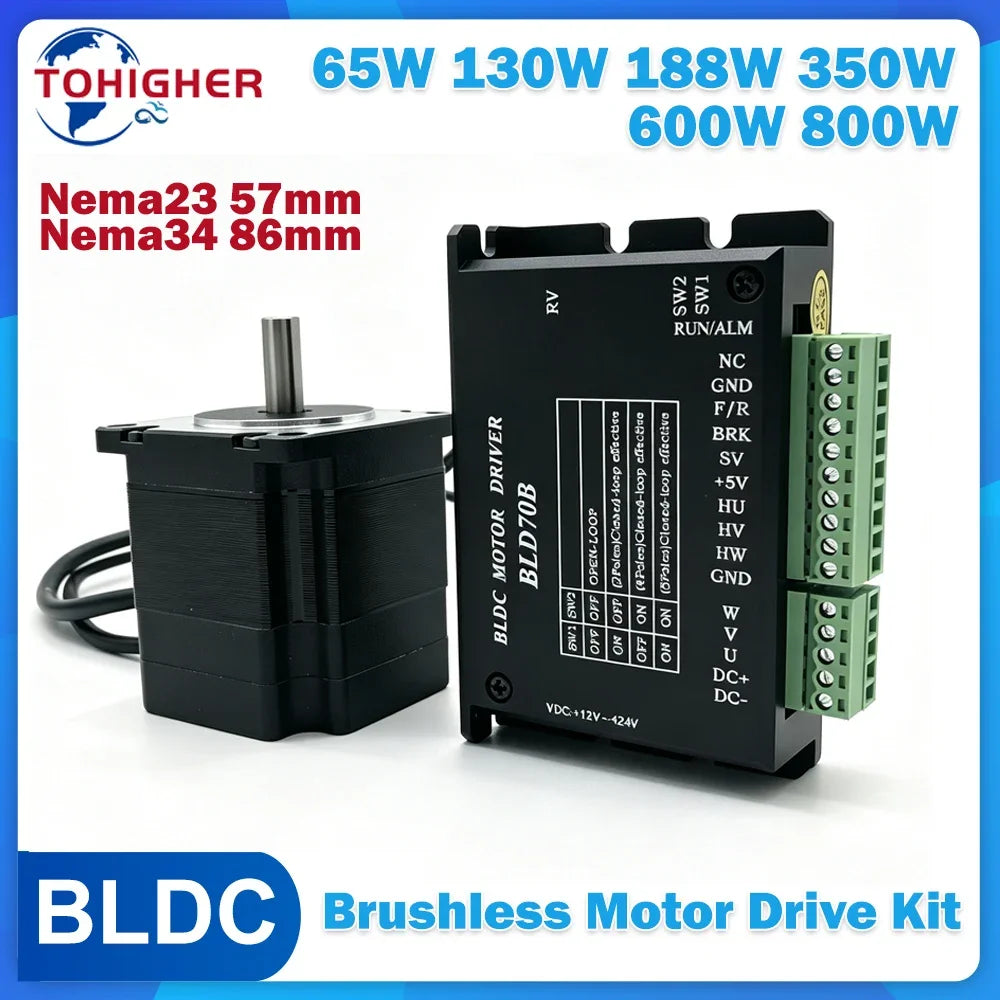

● Motor Driver kit:
1*Nema23/Nema34 brushless motor
1* Drive

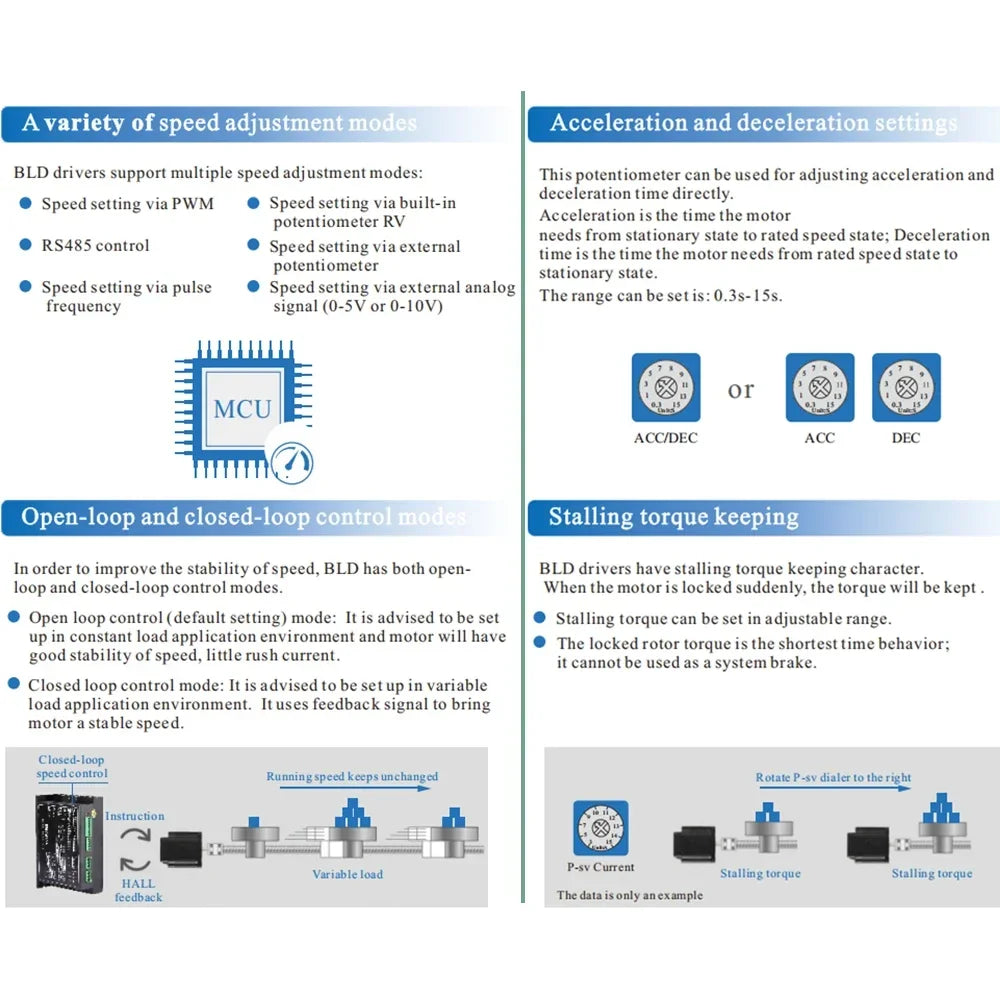

● 4 speed regulation modes
● Open loop and closed loop modes are optional
● Torque holding function when motor locked

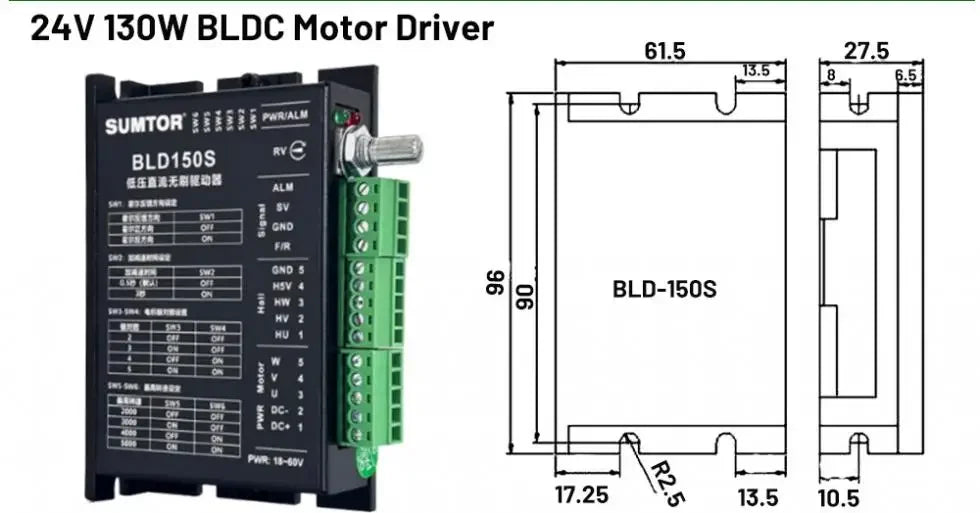

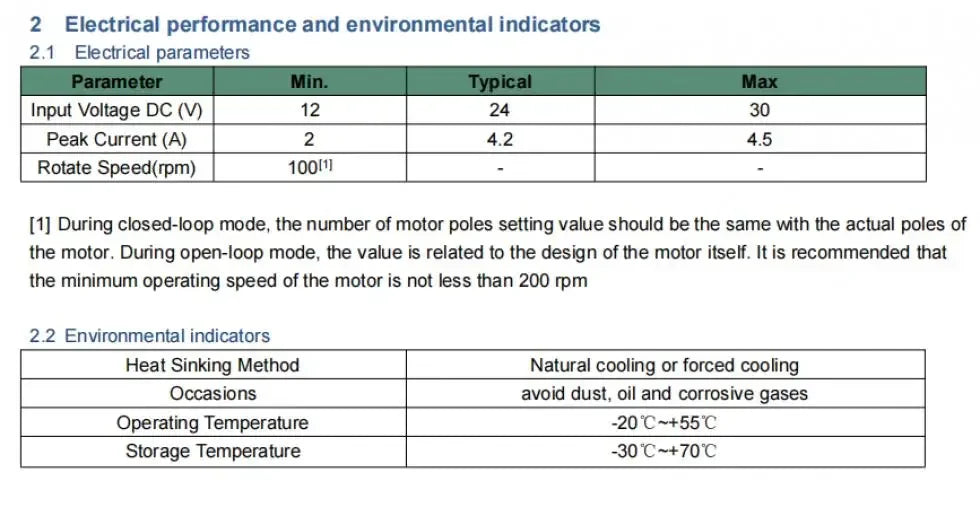

● Working voltage 12V~24V
● -20℃~+55℃operating temperature range
● Support output power adjustable(Standard version doesn't have this function, if needed, please contact us)

● Support Modbus communication protocol(Extended functionality)

●Utilizing Hall signals for speed closed-loop control, maximum torque can be achieved even at low speeds;

●Wide speed range, supporting a rotational speed range of 100rpm to 5000rpm;

●It provides a soft start-stop function, ensuring a smoother start and stop, and higher safety;

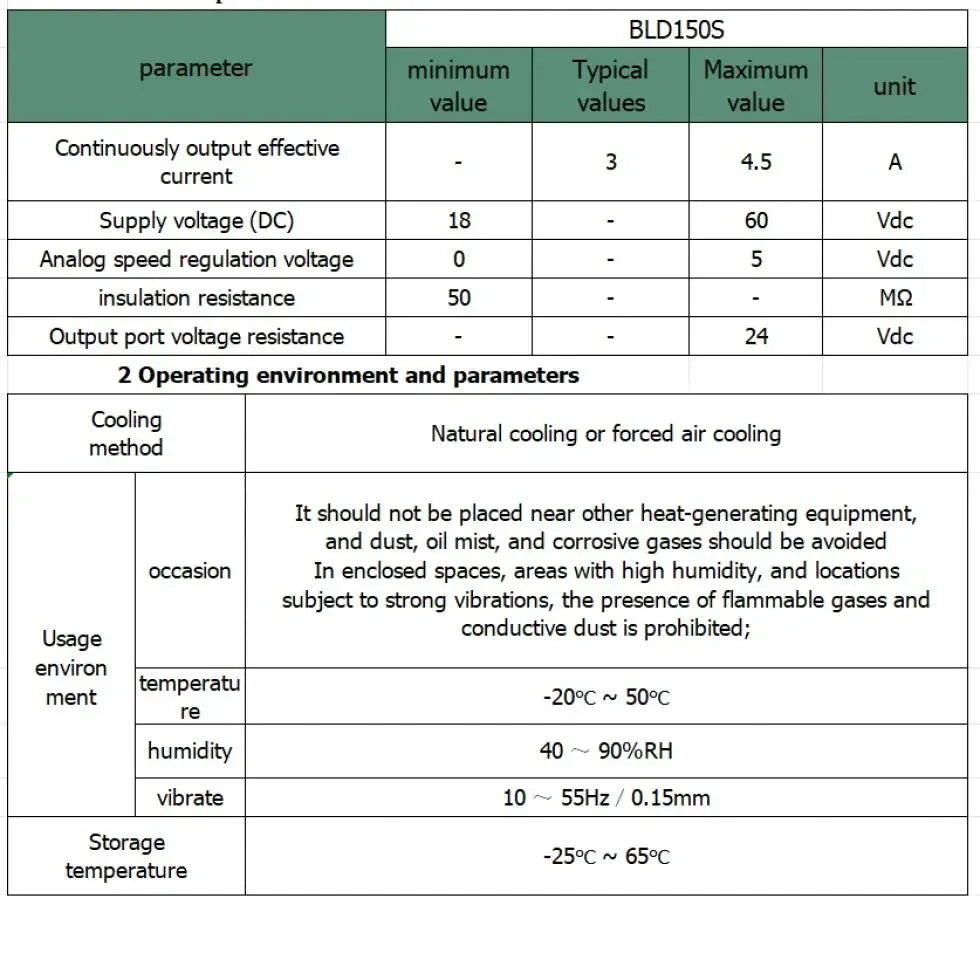

●Wide voltage input range, adaptable to 18~60VDC power supply;

●High current drive capability, with a continuous rated current of up to 3A and a peak current of up to 4.5A;

●Supports speed adjustment through potentiometer, external voltage, and external PWM signal;

●It provides protection and alarm functions against overvoltage, undervoltage, overcurrent,overtemperature, and Hall signal errors;

●The acceleration and deceleration time can be set through dialing;

●The number of pole pairs of the motor can be set through dialing;

●The maximum speed of the motor can be set through dialing;

● Support Modbus communication protocol which is suitable for users to use touch screen or PC control.

● Built-in RV speed setting.External analog signal speed setting.PWM speed setting.frequency speed setting

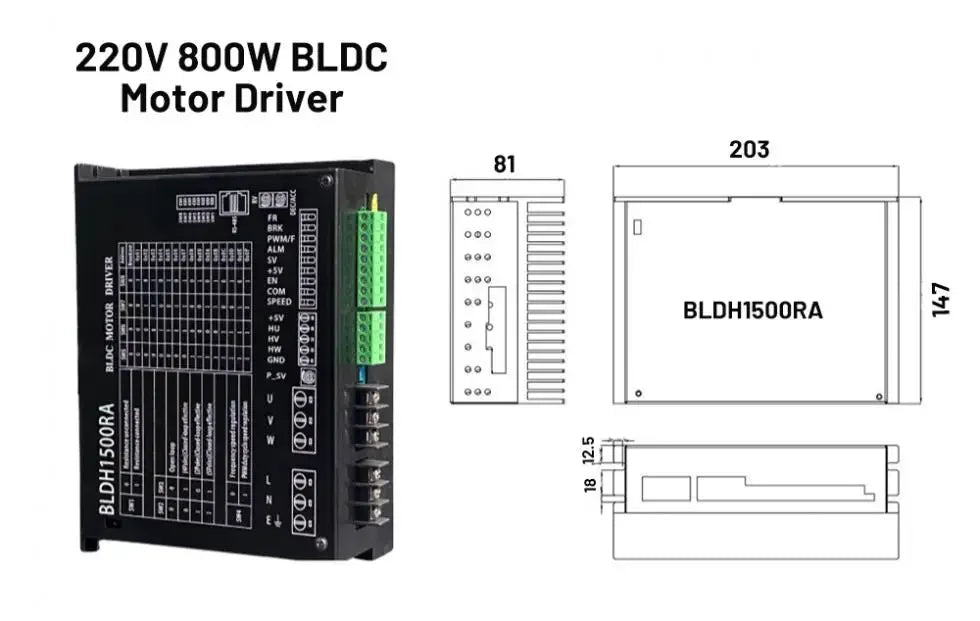

● Working voltage is ranged from 110V to 220VAC.

● Working temperature is ranged from -25℃~+50℃

● Open/closed loop control

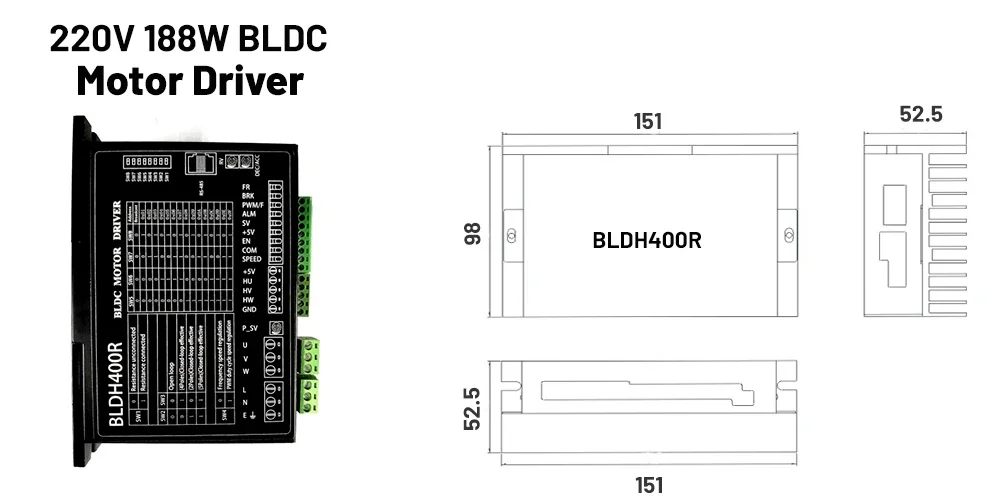

● Drive BLDC motor of rated power 400W

● 3 seconds for motor locked time

⚫ ACC/DEC time setting

⚫ Phase current limiting adjust

⚫ Motor speed setting/ close loop setting/pole pairs setting

⚫ Multiple speed control

⚫ Speed of revolution tolerance is ±0.01%

⚫ Alarm signal

⚫ Supporting Modbus communication and suitable for PC control by user.

⚫ Connecting Resistance braking

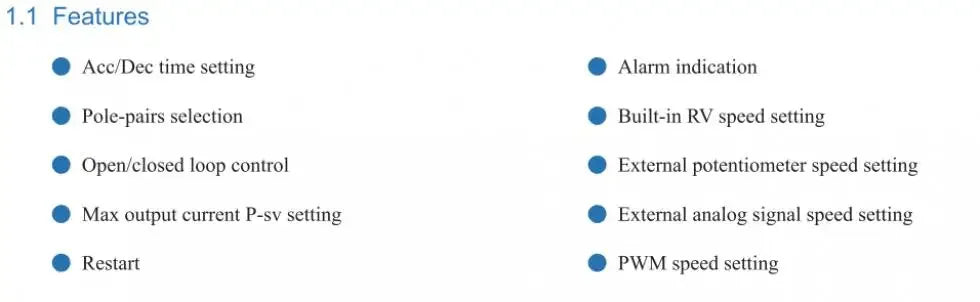

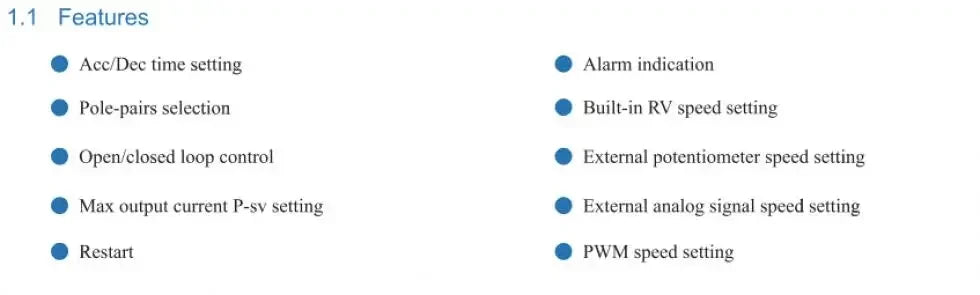

1.1 Features

●Support Modbus communication protocol,can be controlled by touch screen or PC

●Built-in RV speed setting

●External potentiometer speed setting

●External analog signal speed setting

●Pulse frequency and PWM speed setting

●Support 100V~220VAC voltage range

●Support -25℃~+50℃ temperature range of working environment

●Open / closed loop control

●Works for 1500W or lower power of BLDC motor

●5 seconds waiting time for locked-rotor
