Description

SPECIFICATIONS

Average Life (hrs): 50000

Brand Name: RnnTuu

Certification: CCC,ce,EMC,FCC,ROHS,UL

Choice: yes

Color Temp(K): 3000K/4000K/6000K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar(Epistar)

LEDs Number/M: 360LEDs/m

Luminous Flux: 2000-82000

Model Number: Flowing light strip

Nominal Voltage: 24V(24V)

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 5.76W/m

Power Generation: Always On

Power Source: DC

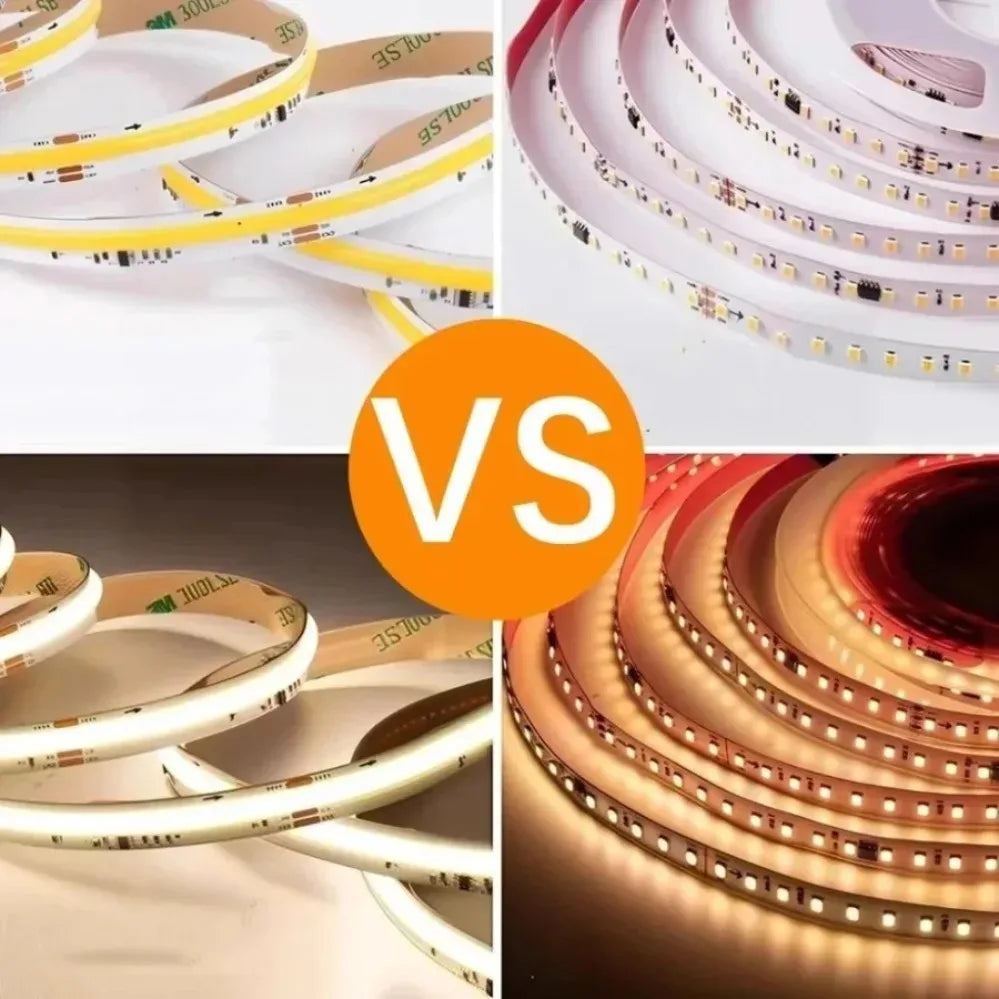

Strip type: COB

Voltage: 24v

Waterproof: No

semi_Choice: yes

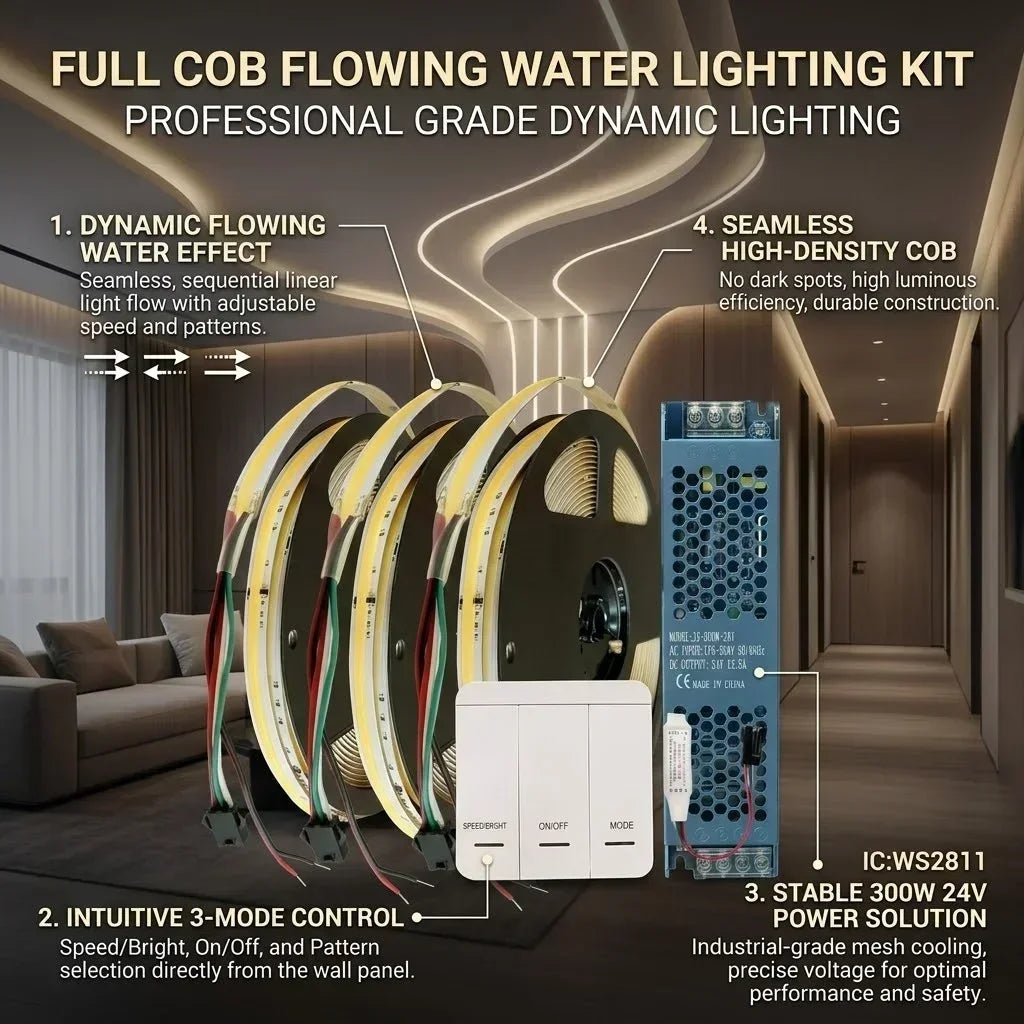

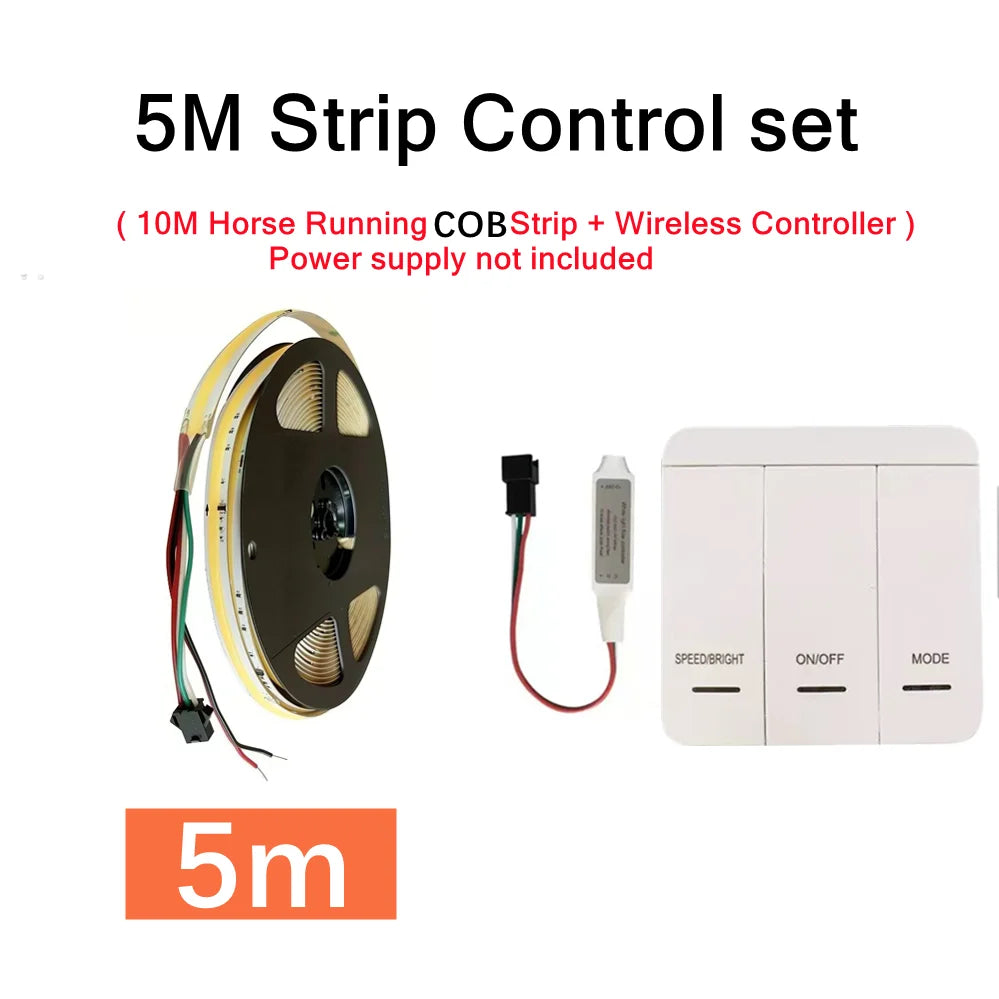

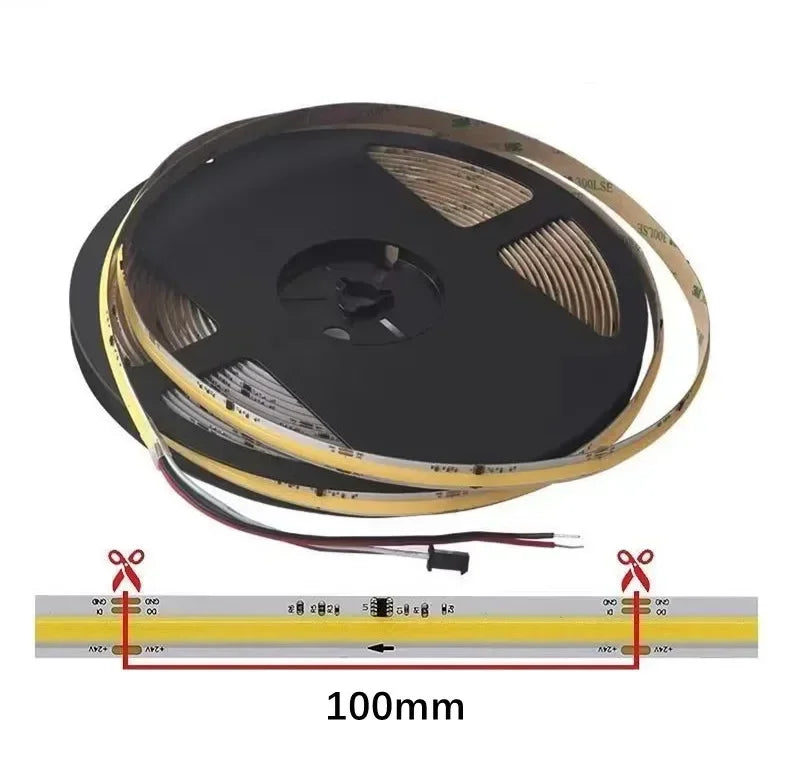

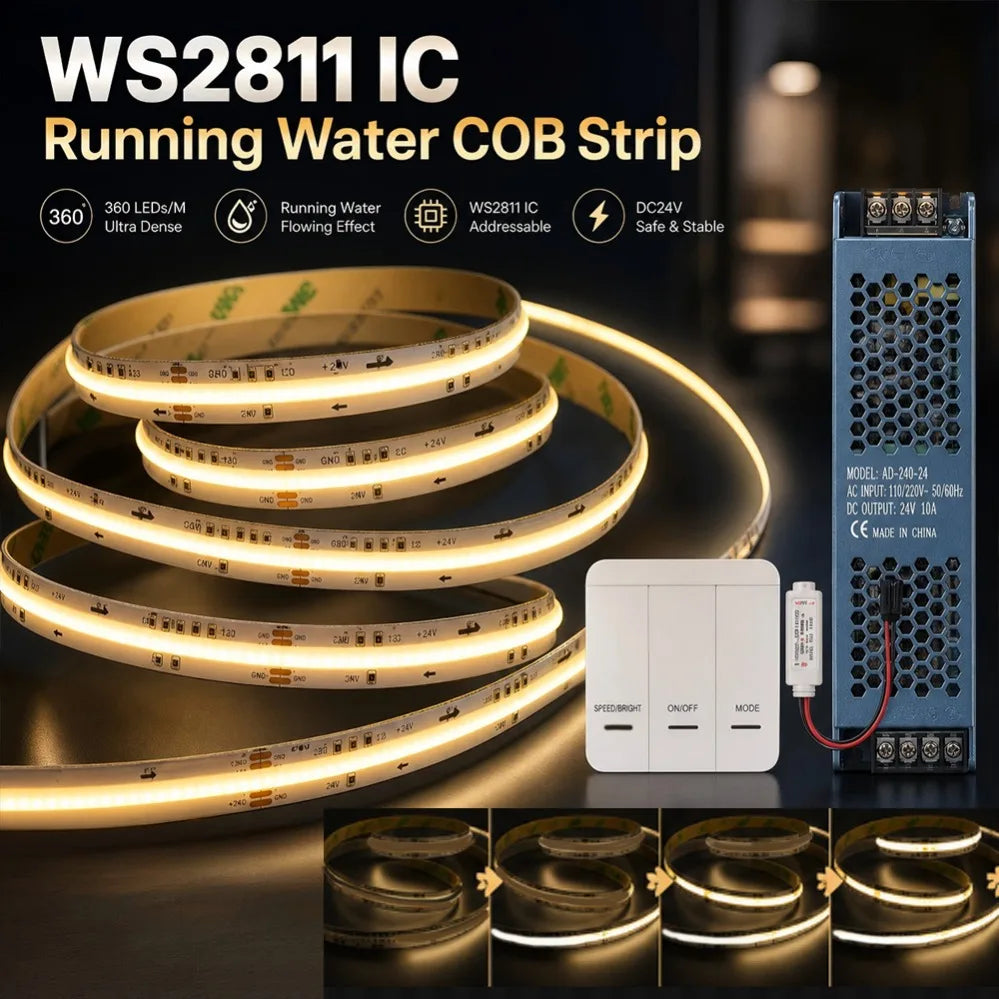

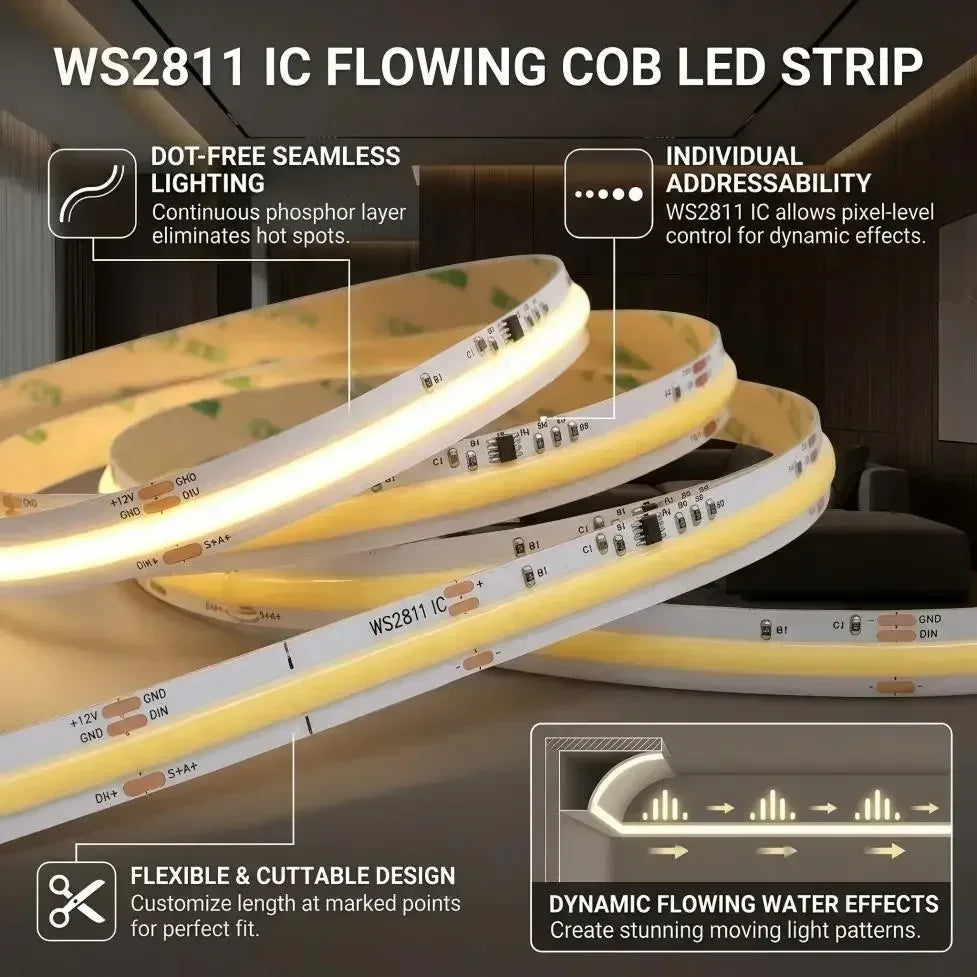

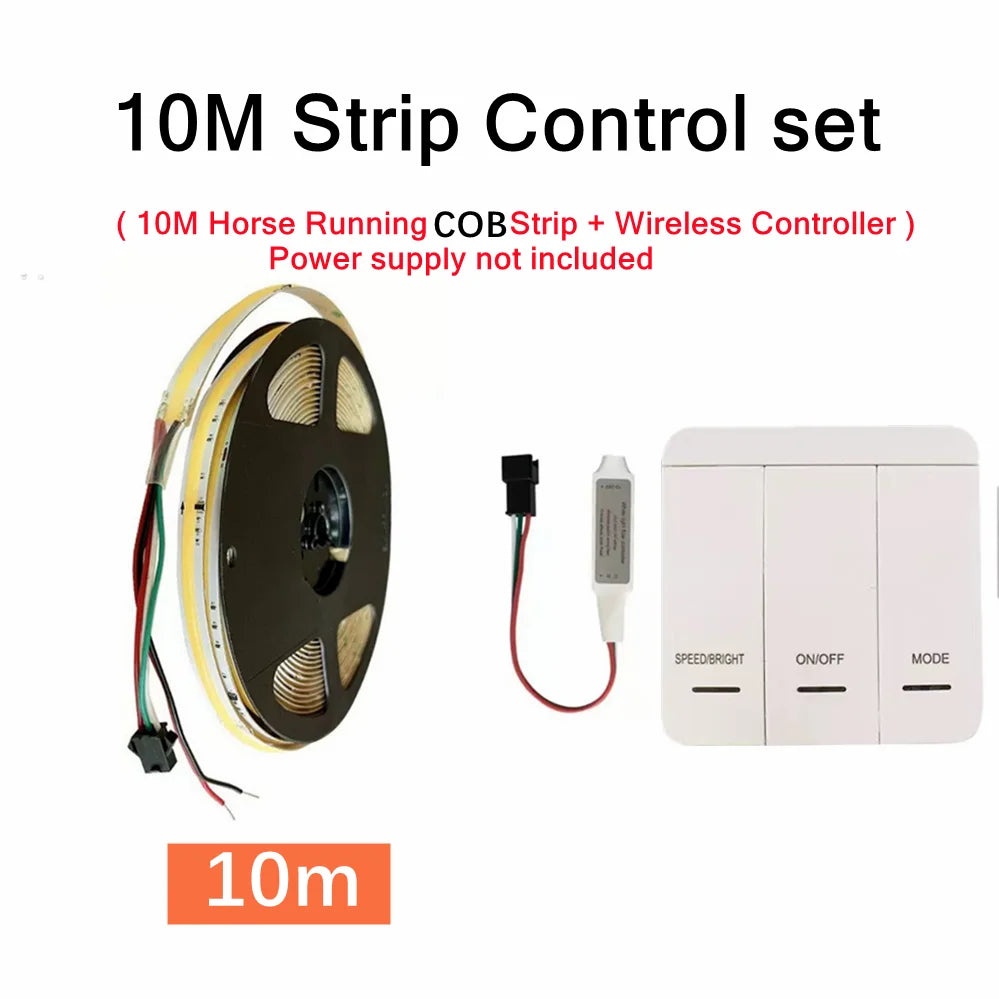

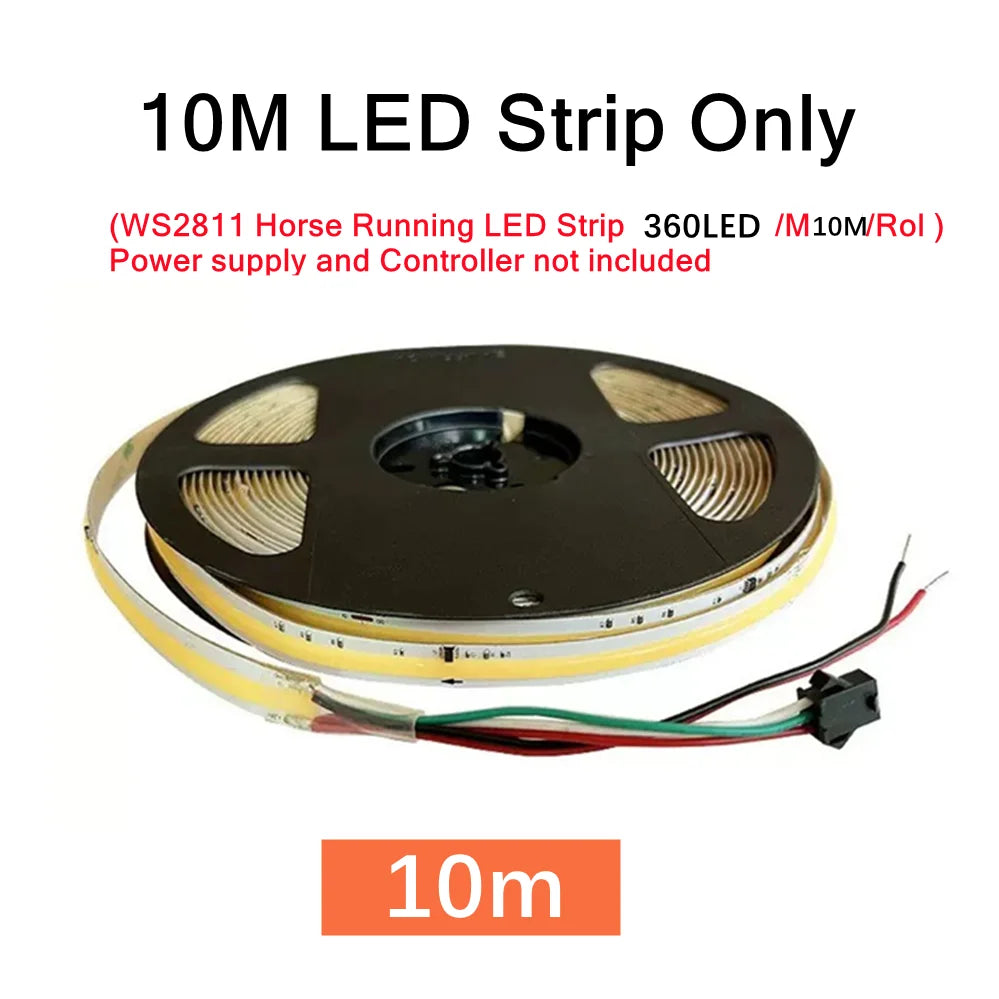

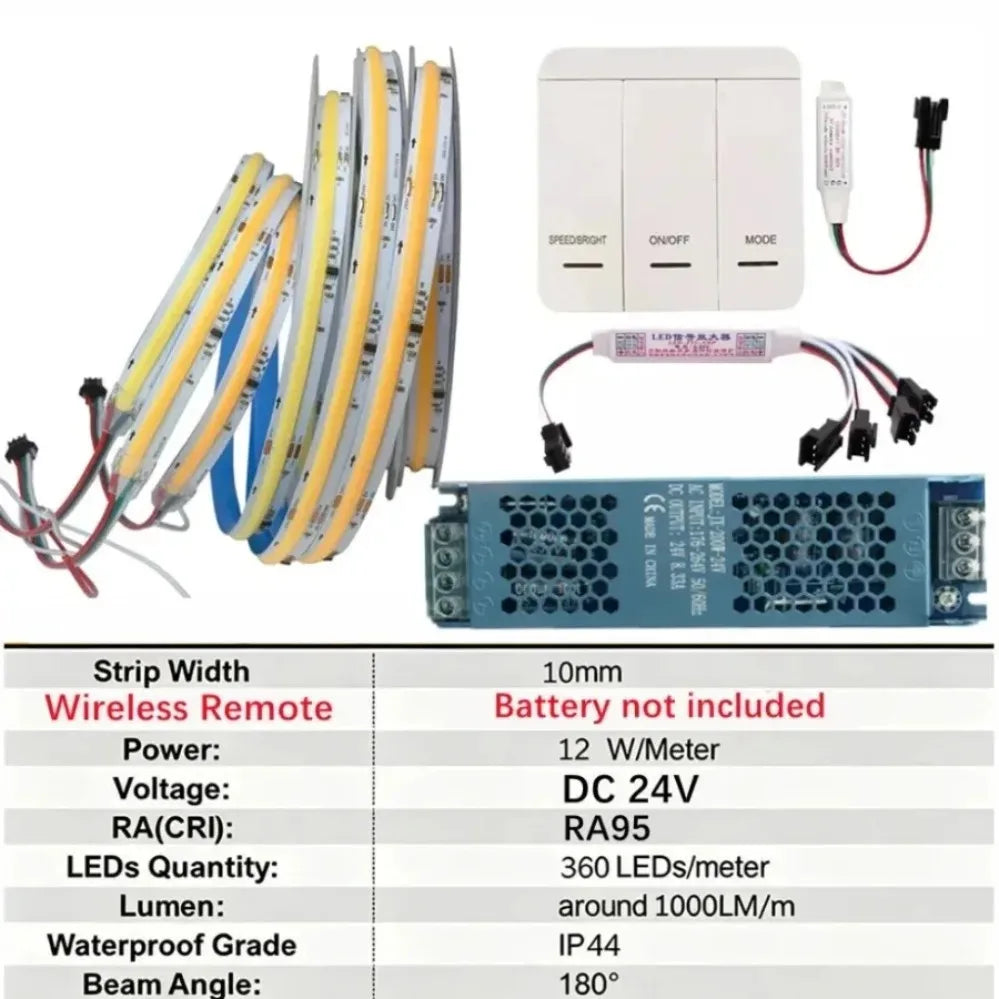

WS2811 IC Running Water Flowing Light COB LED Strip kit
LED Type: COB LED Diodes
LED Qty: 360LEDs/M

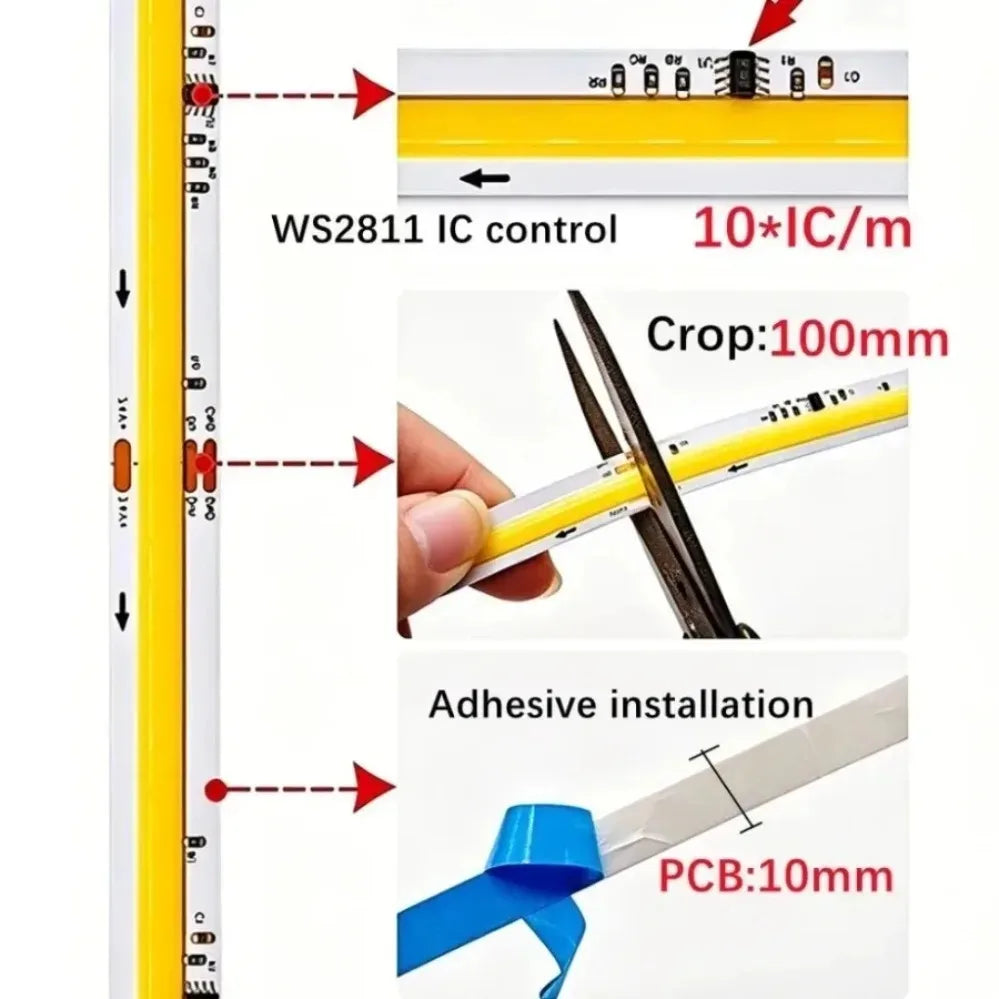

PCB width:10mm
Max Power: 10-12W/M
Working Voltage: DC 24V
Color: Cool White / Warm White / Natural White

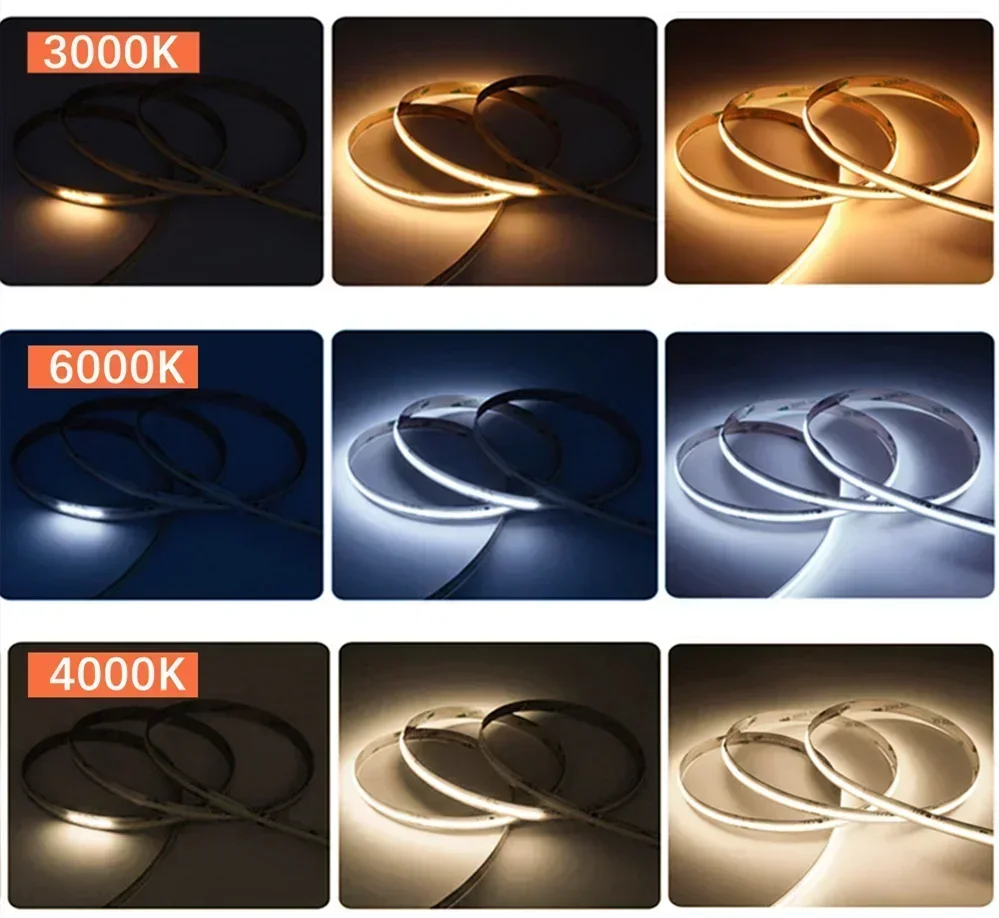

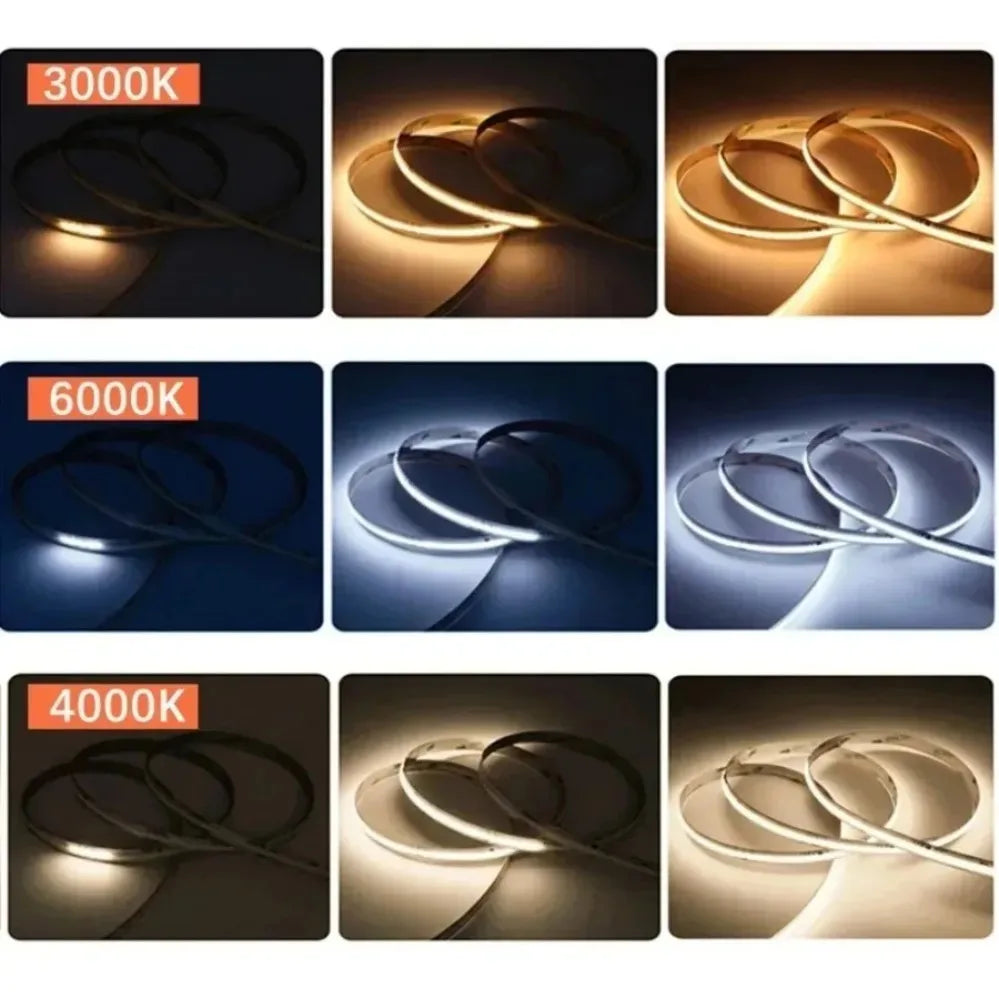

Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K
IP Rate: IP44 Non-waterproof

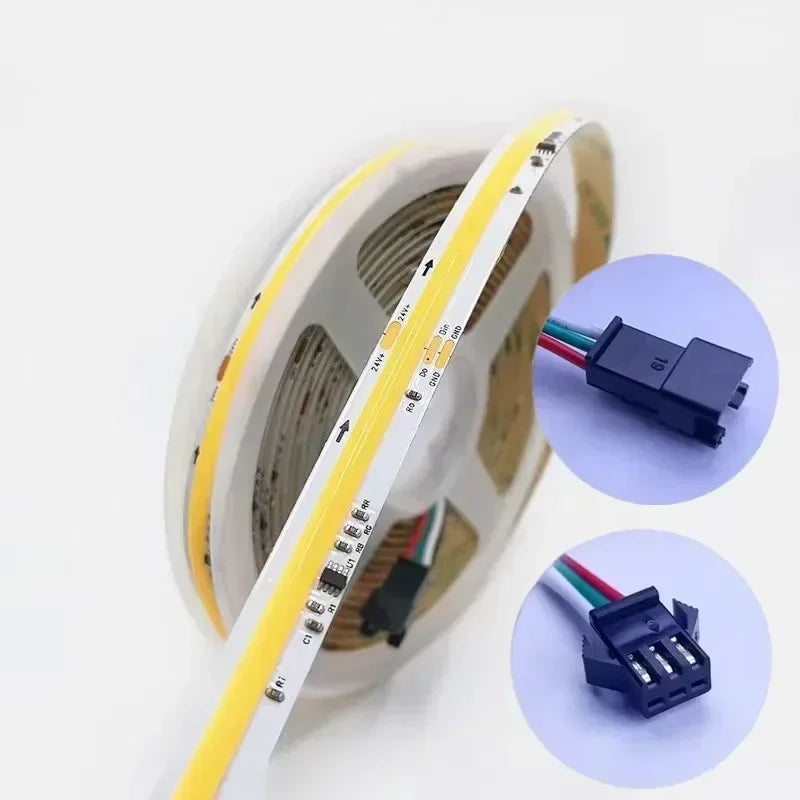

Connector: 3 Pin Male & Female Connector

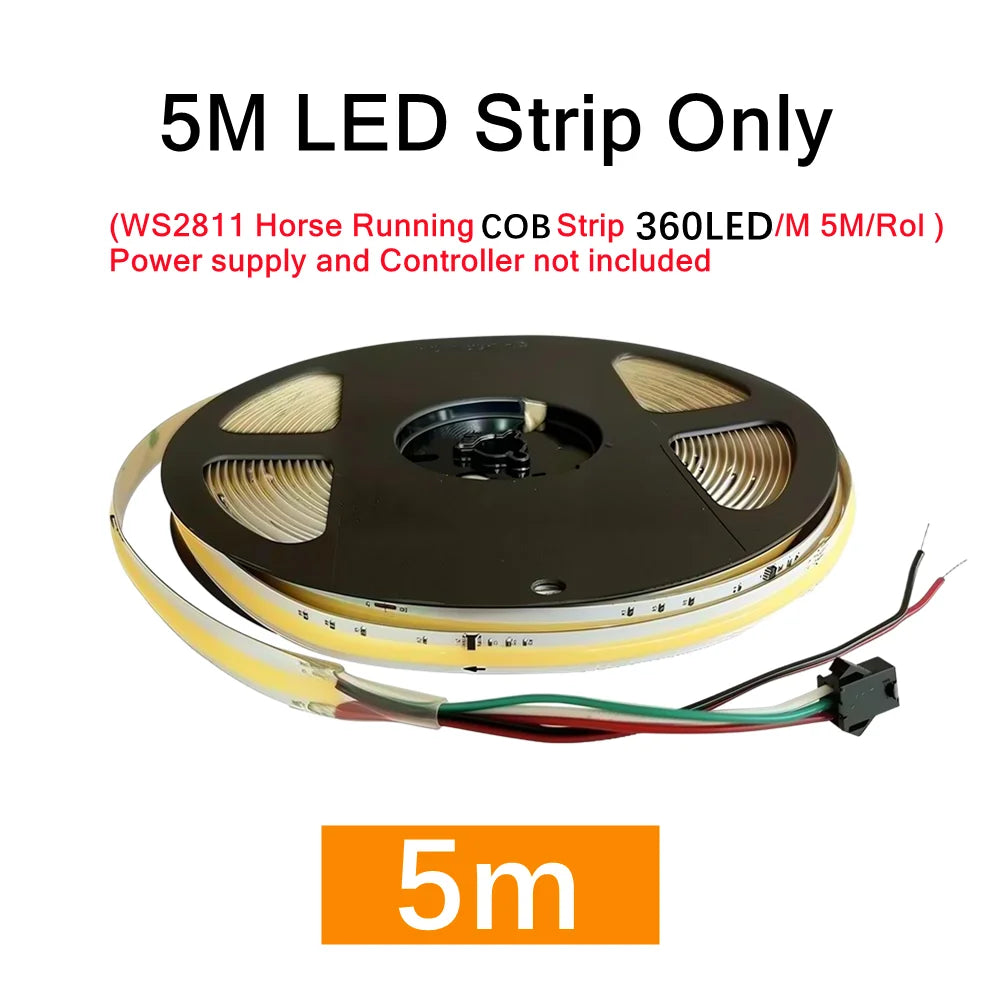

Package: 5M/Roll

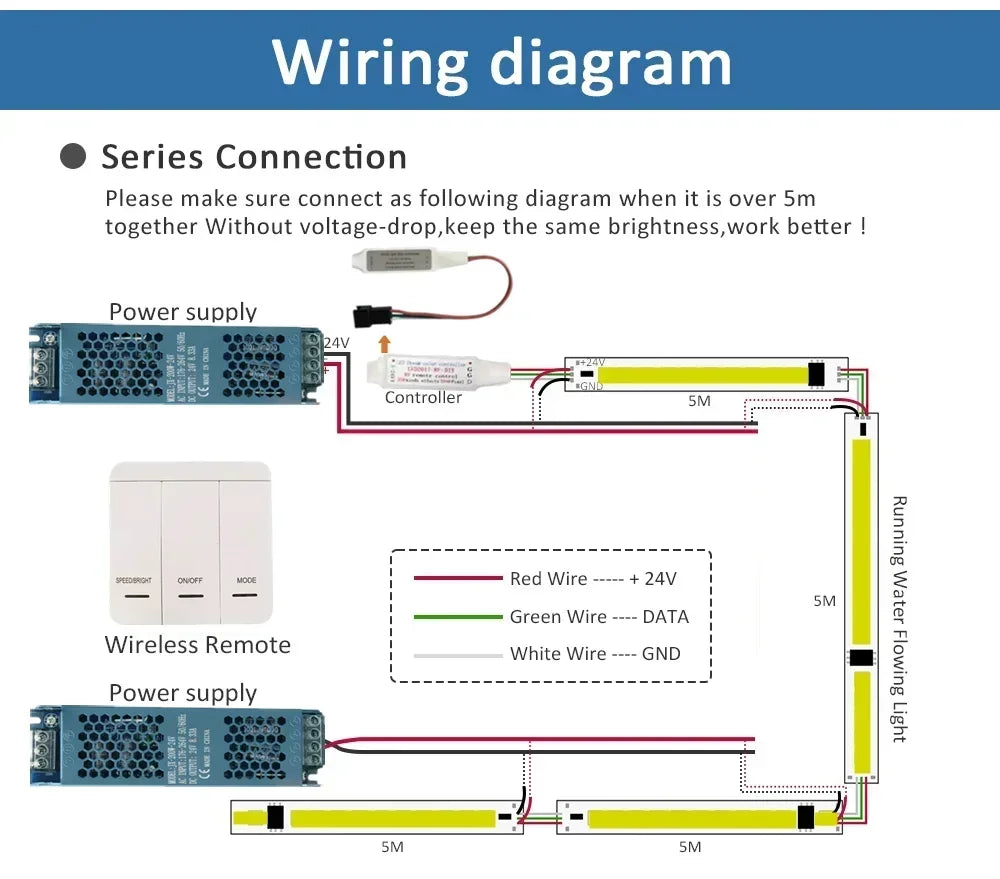

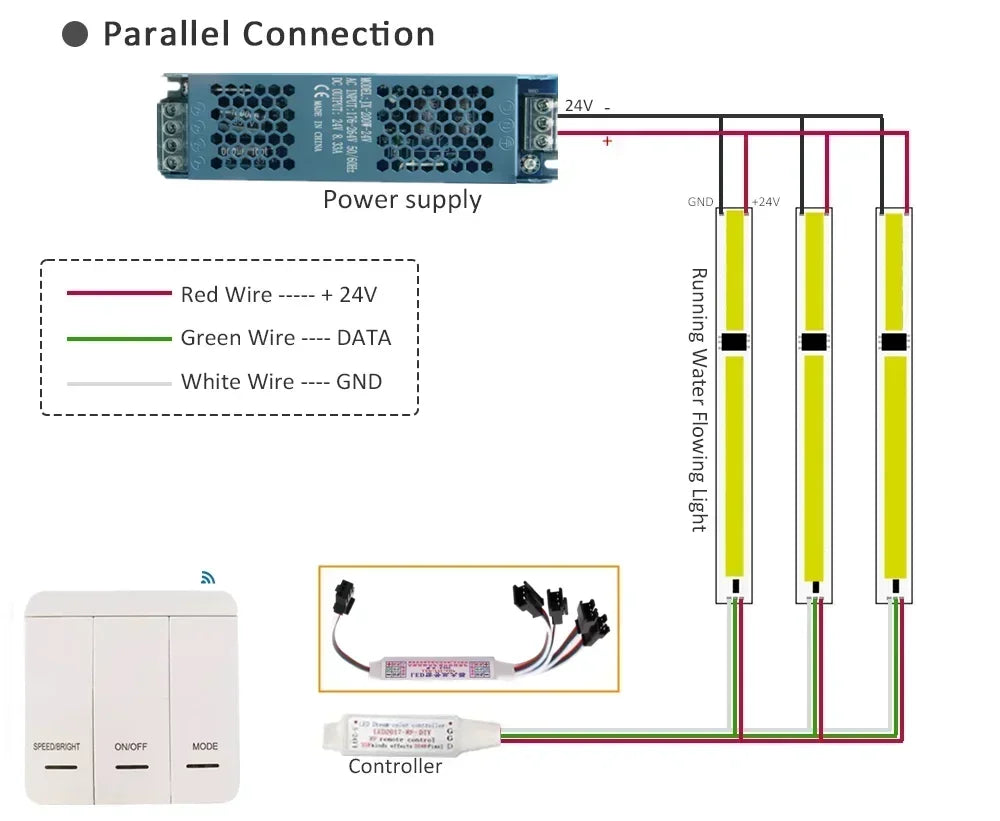

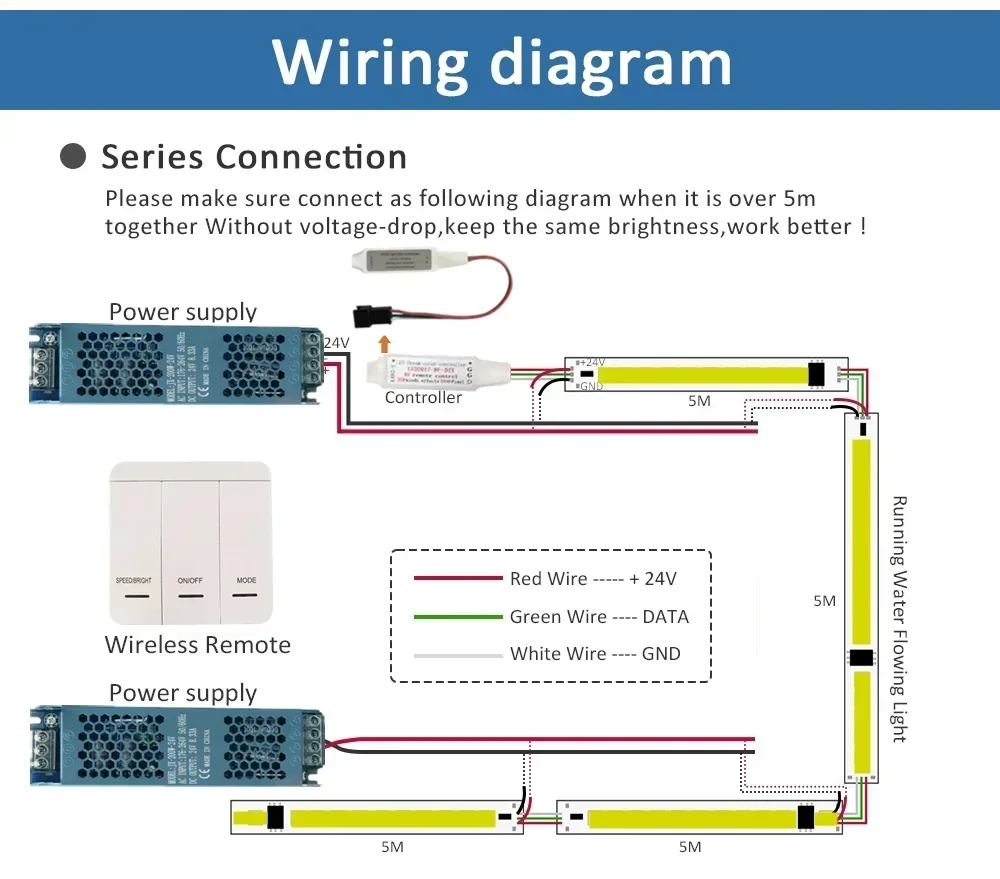

Connection:
Red Wire: +24V
Green Wire:DI/DATA
White/Black wire: GND / -24V

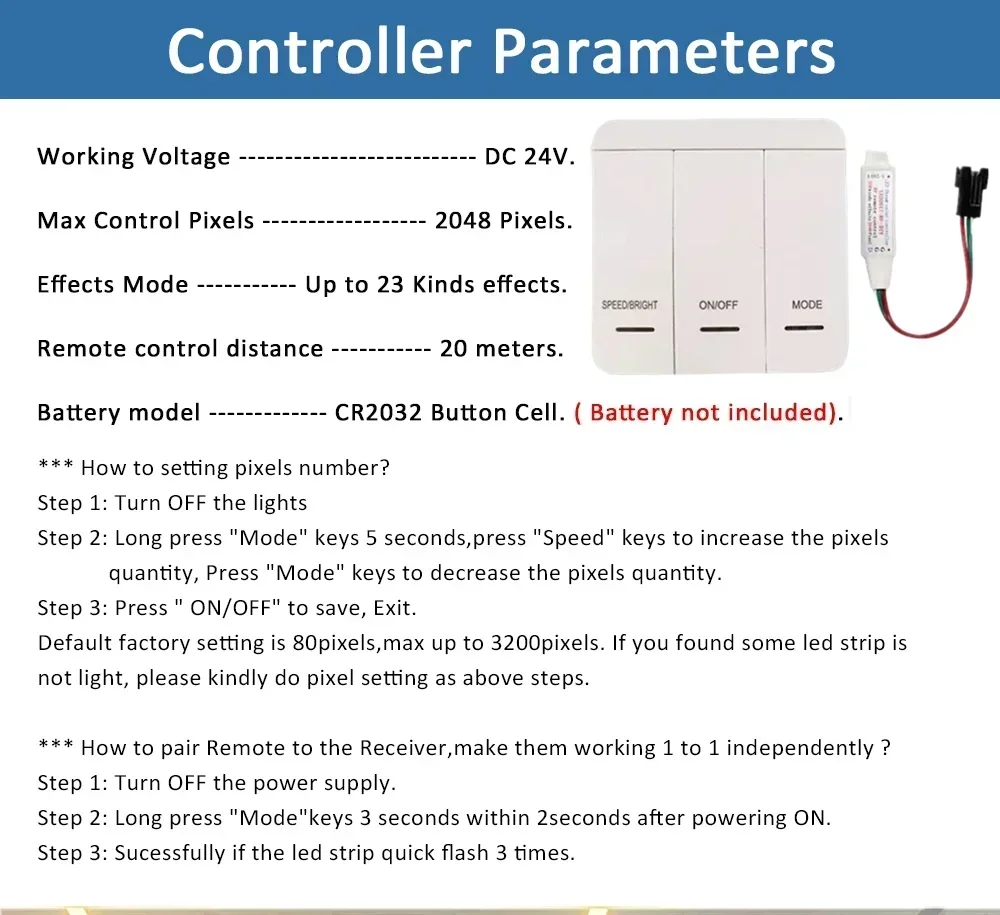

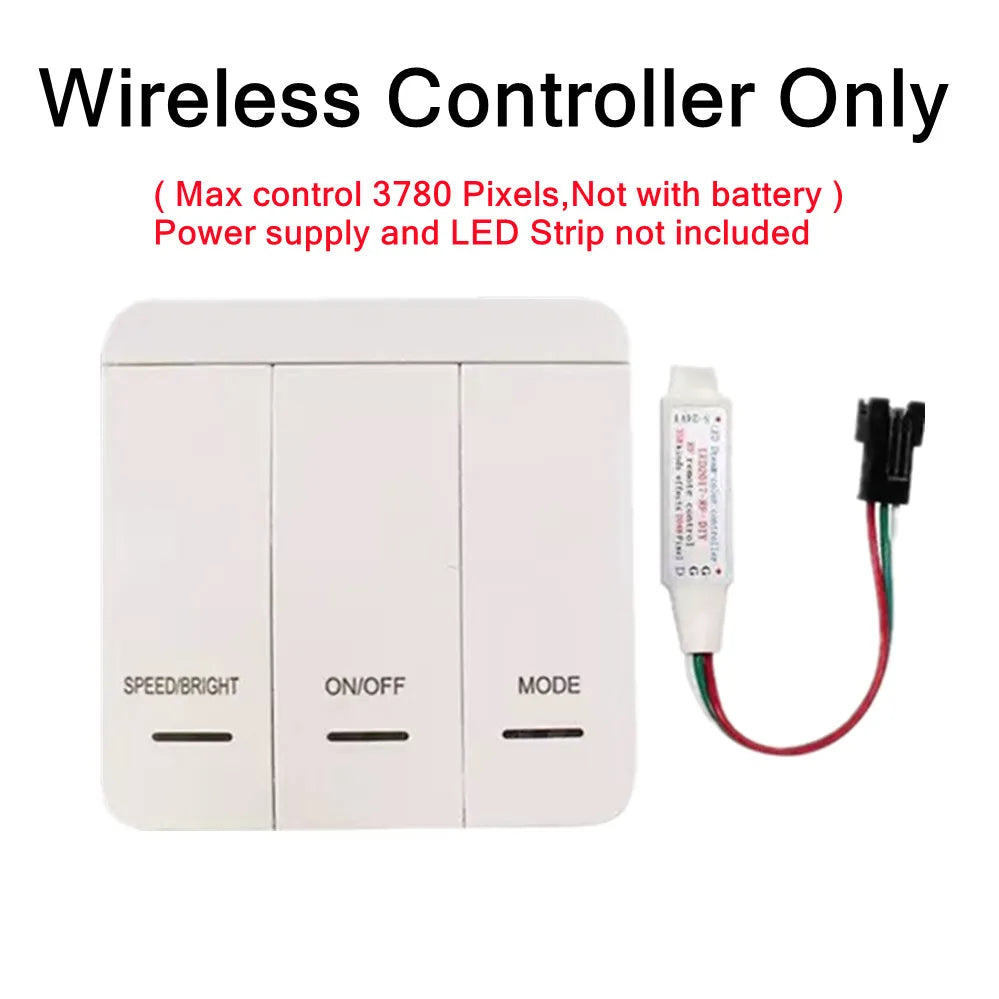

Wireless RF Controller with 3-Keys Panel Remote:
Working Voltage: DC 24V
Max Control Pixels: 3200 Pixels

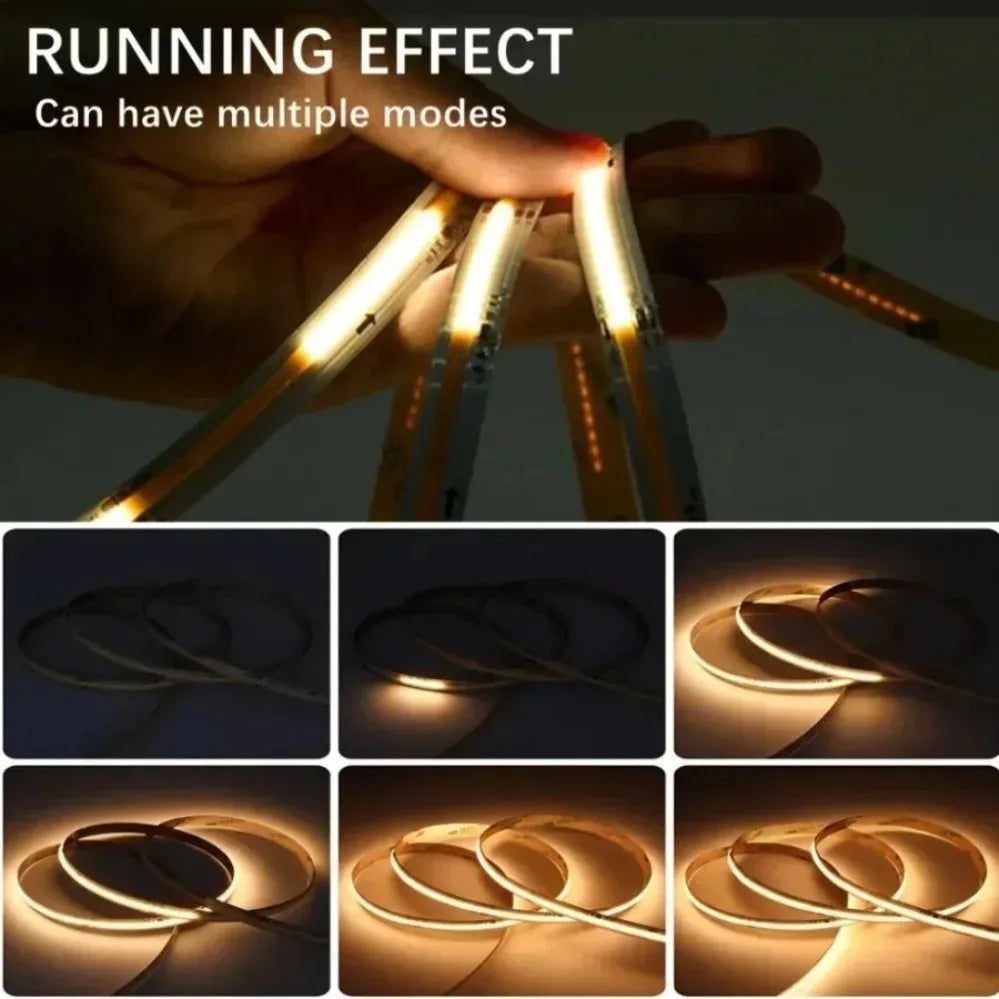

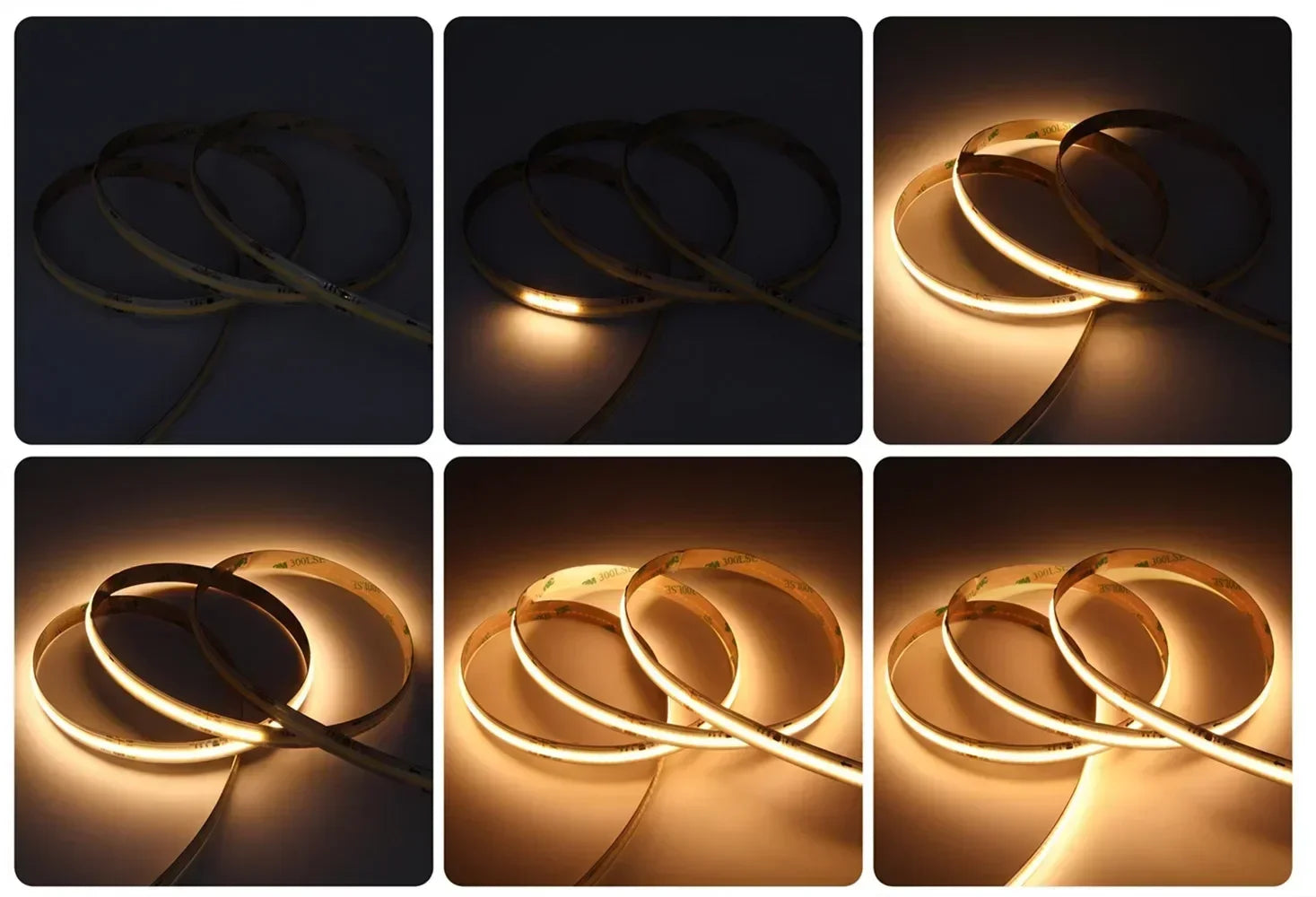

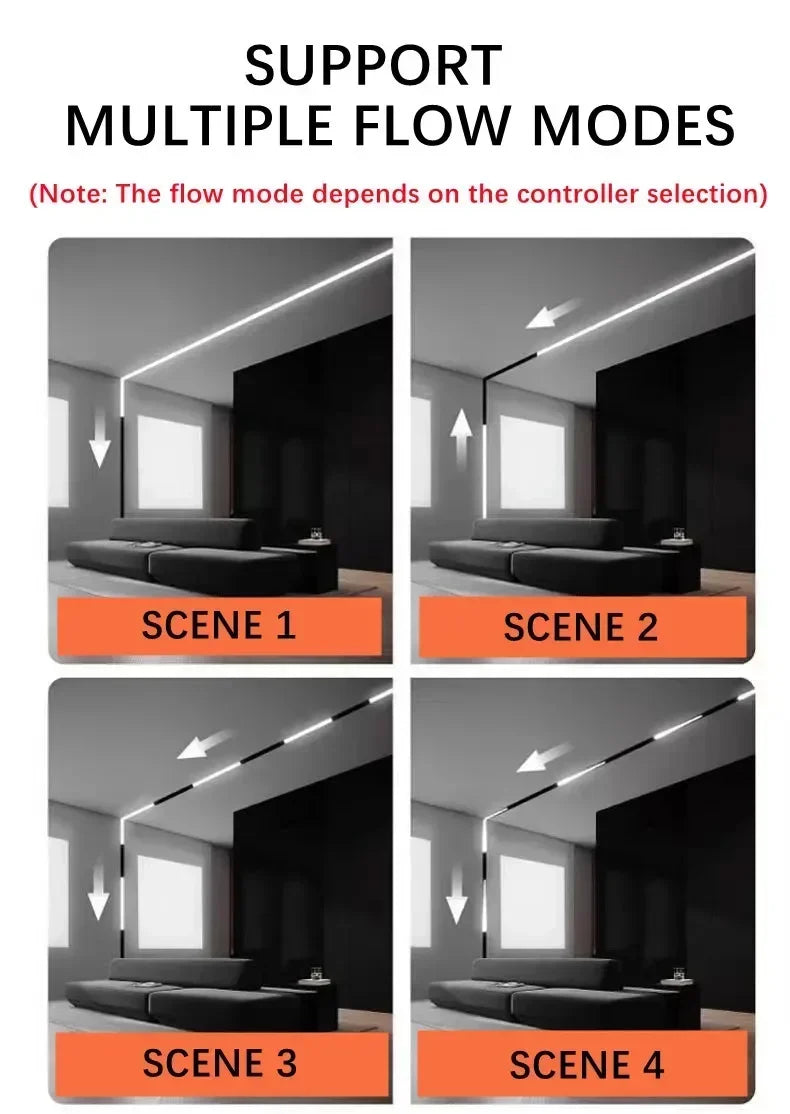

Effects Mode:Up to 23 Kinds effects. Speed and Brightness adjustable
Remote: 3 Buttons, Speed/Brightness - ON/OFF - MODE
Battery Powered by CR2032 Button Cell ( Battery not included)
Our controller has short-circuit protection function (Some others are easy to be burned out )

How to setting pixels number?
Step 1: Turn OFF the lights
Step 2: Long press "Mode" keys 5 seconds,press "Speed" keys to increase the pixels quantity, Press "Mode" keys to decrease the pixels quantity.
Step 3: Press " ON/OFF" to save, Exit.
Default factory setting is 80pixels,max up to 3200pixels. If you found some led strip is not light, please kindly do pixel setting as above steps.

How to pair Remote to the Receiver,make them working 1 to 1 independently ?
Step 1: Turn OFF the power supply.
Step 2: Long press "Mode"keys 3 seconds within 2 seconds after powering ON.
Step 3: Sucessfully if the led strip quick flash 3 times.
1pc receiver can be controlled by max 6pcs panel remote.

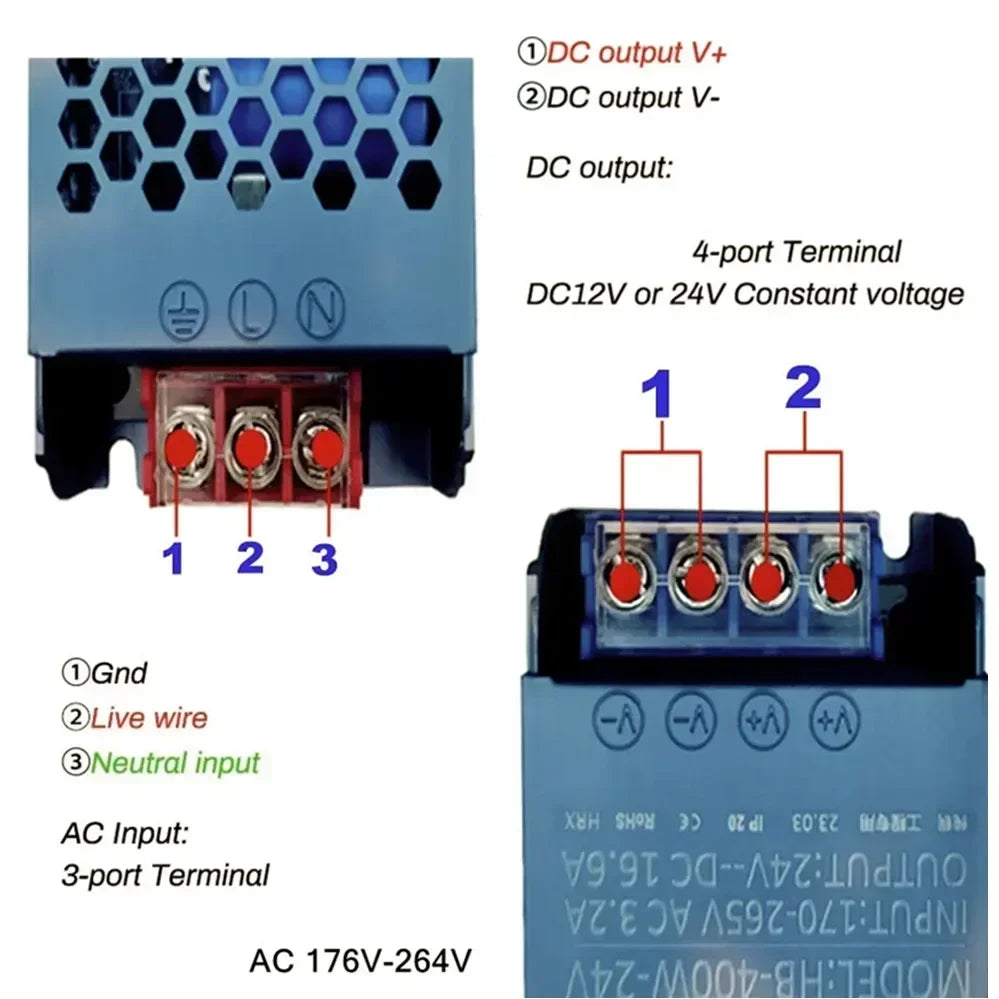

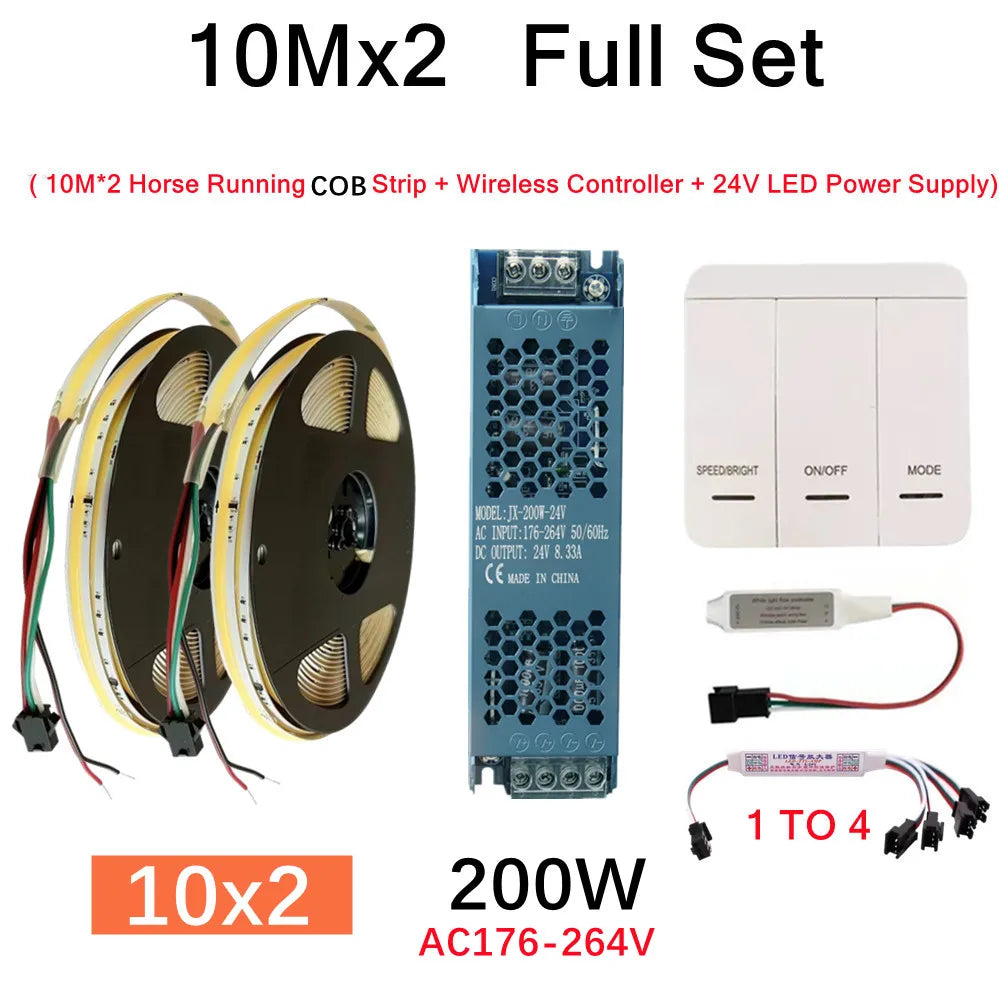

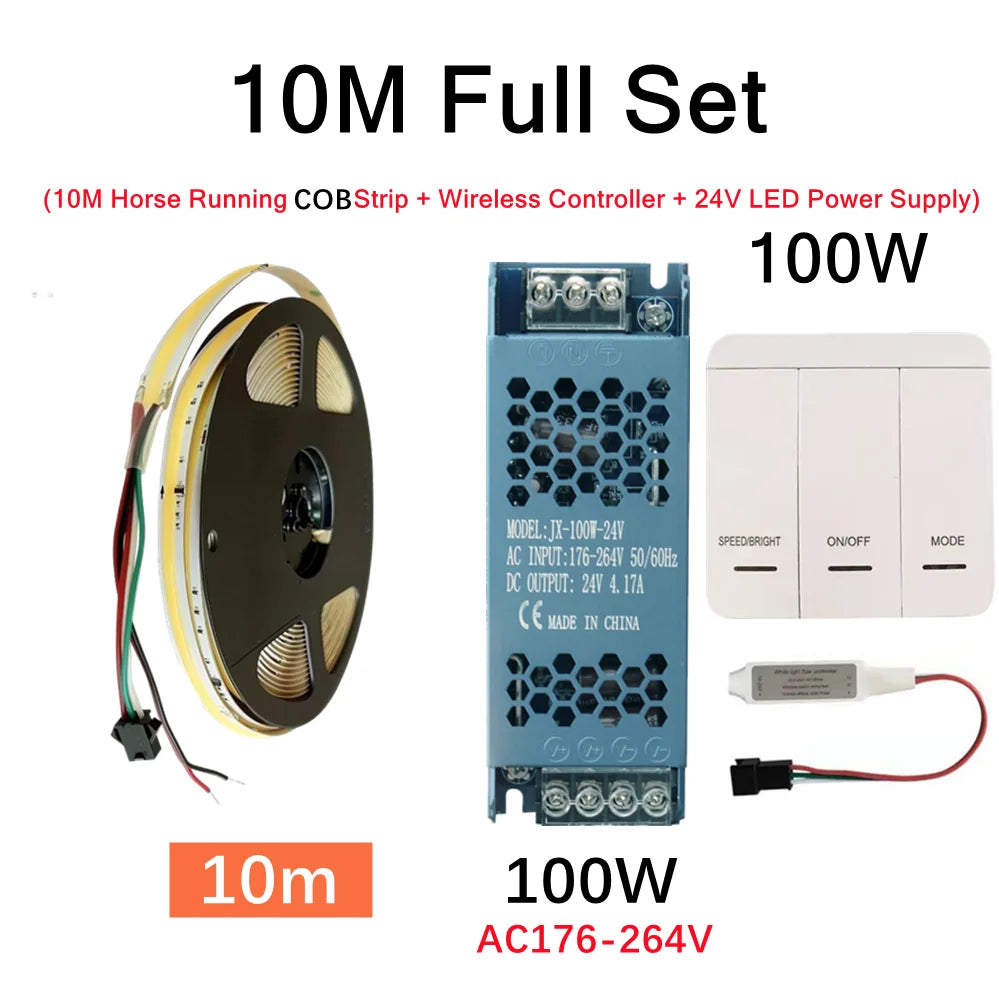

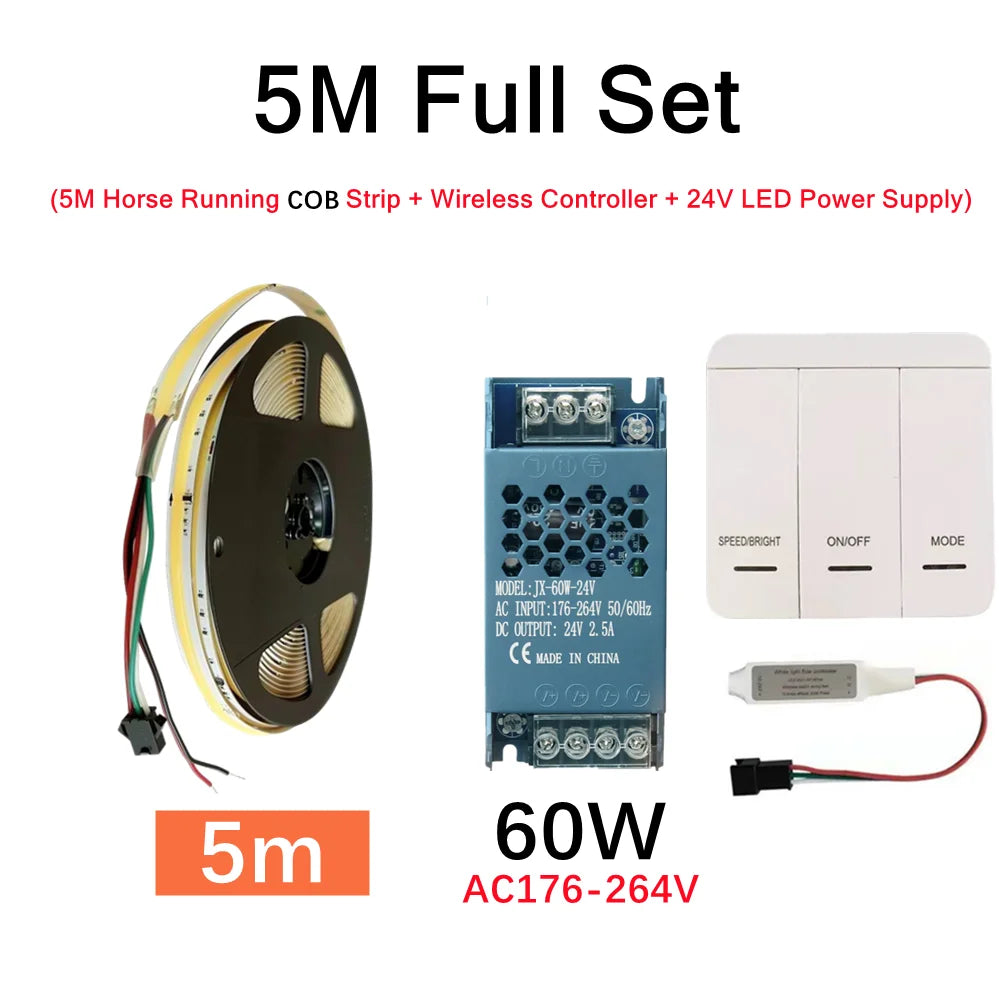

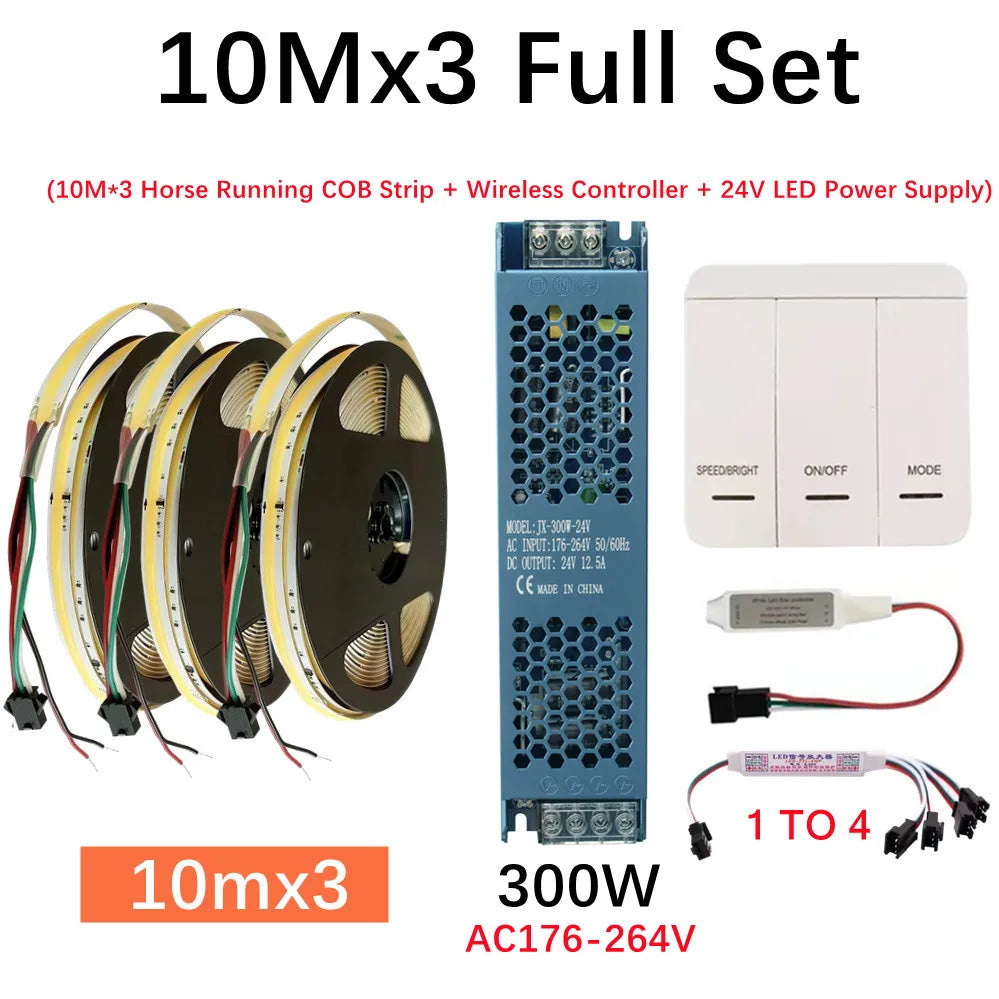

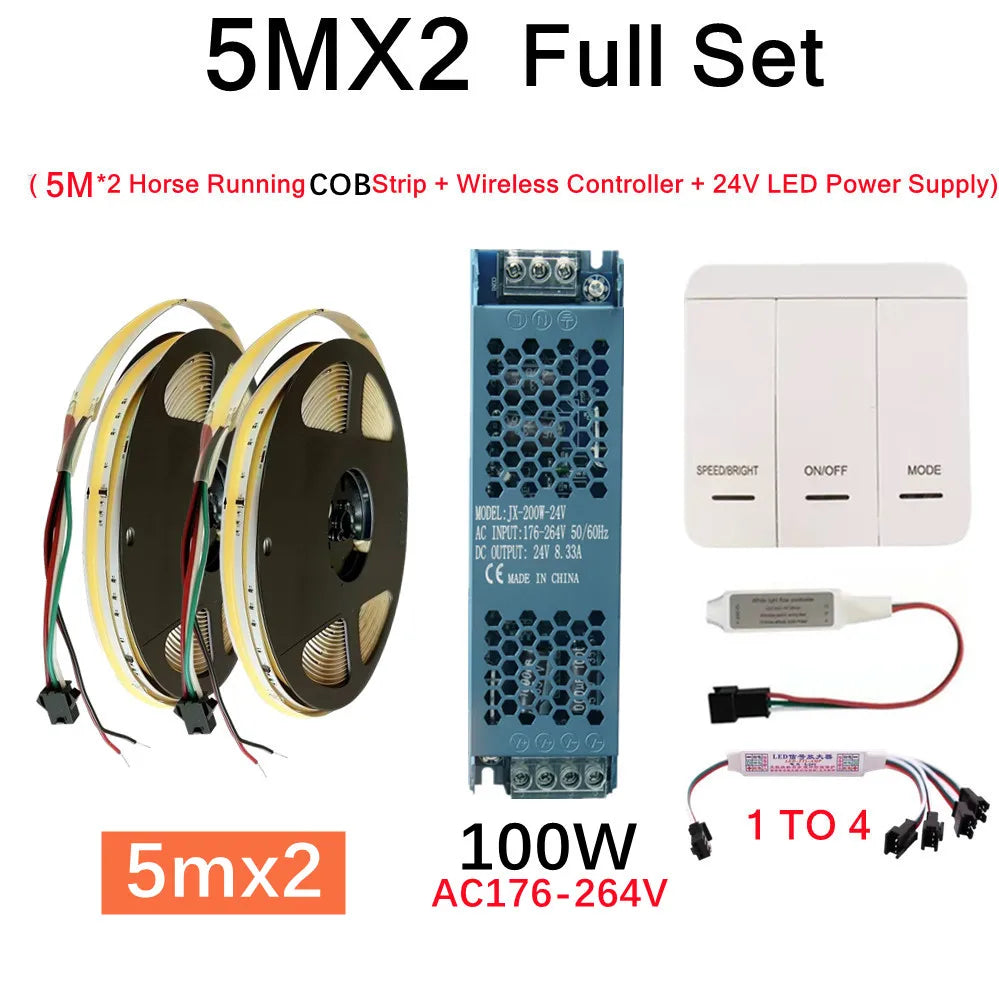

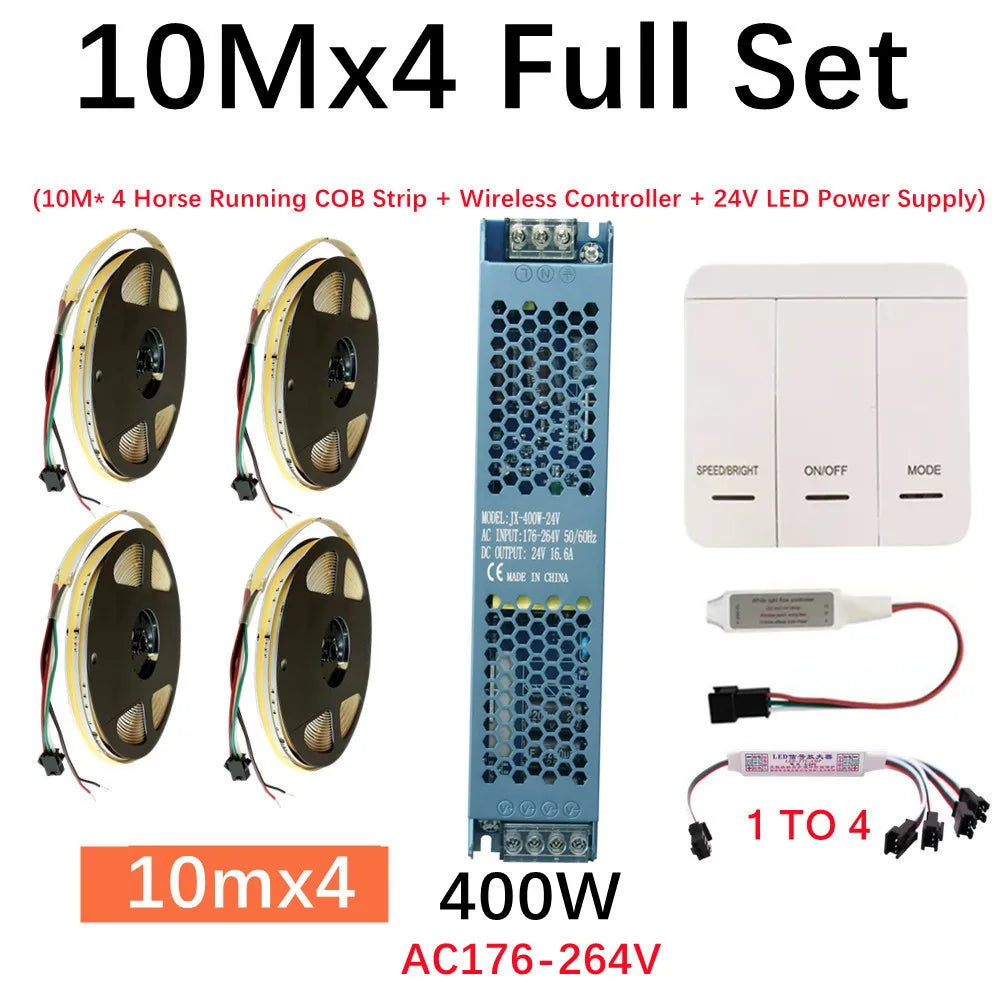

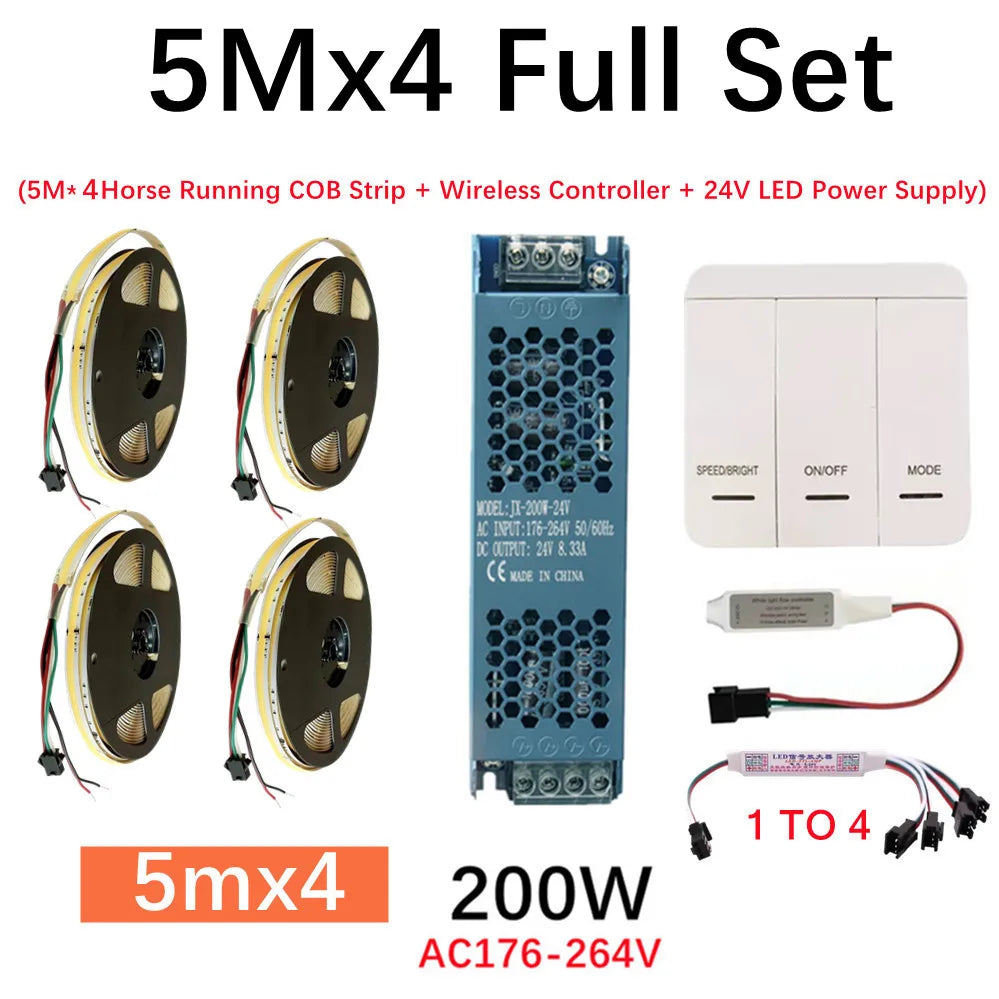

DC 24V Power Supply:
Input Voltage: 110V / 220V AC
Output Votage: 24V DC

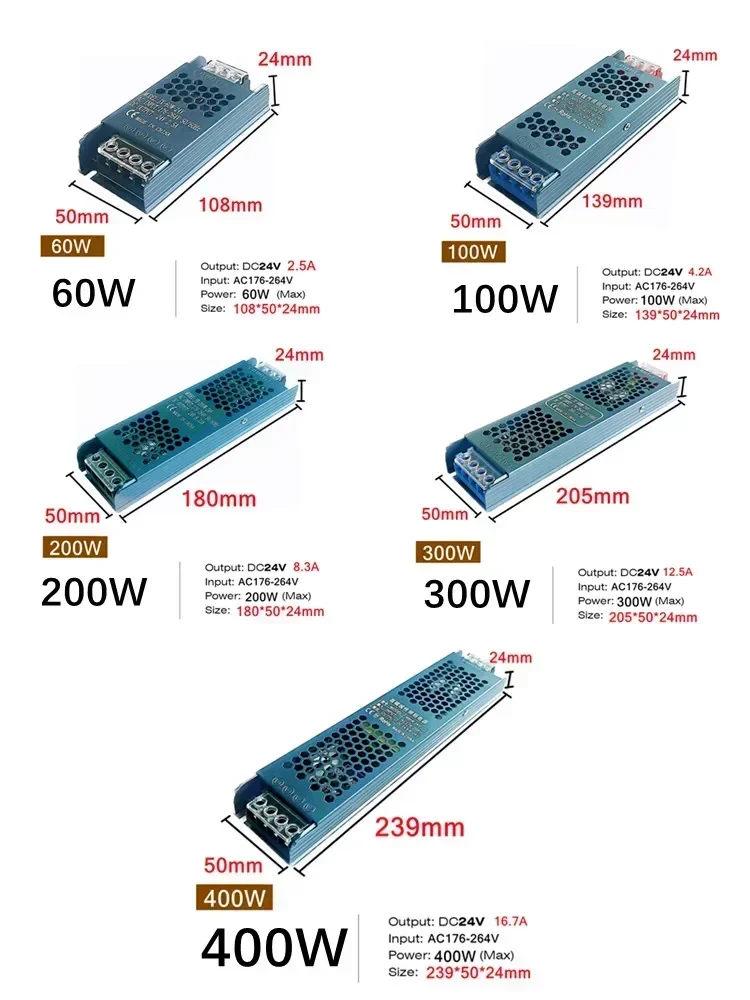

Output Power:400W/ 200W /100W / 300W
Features: No Noise, Real power output, long life-span.

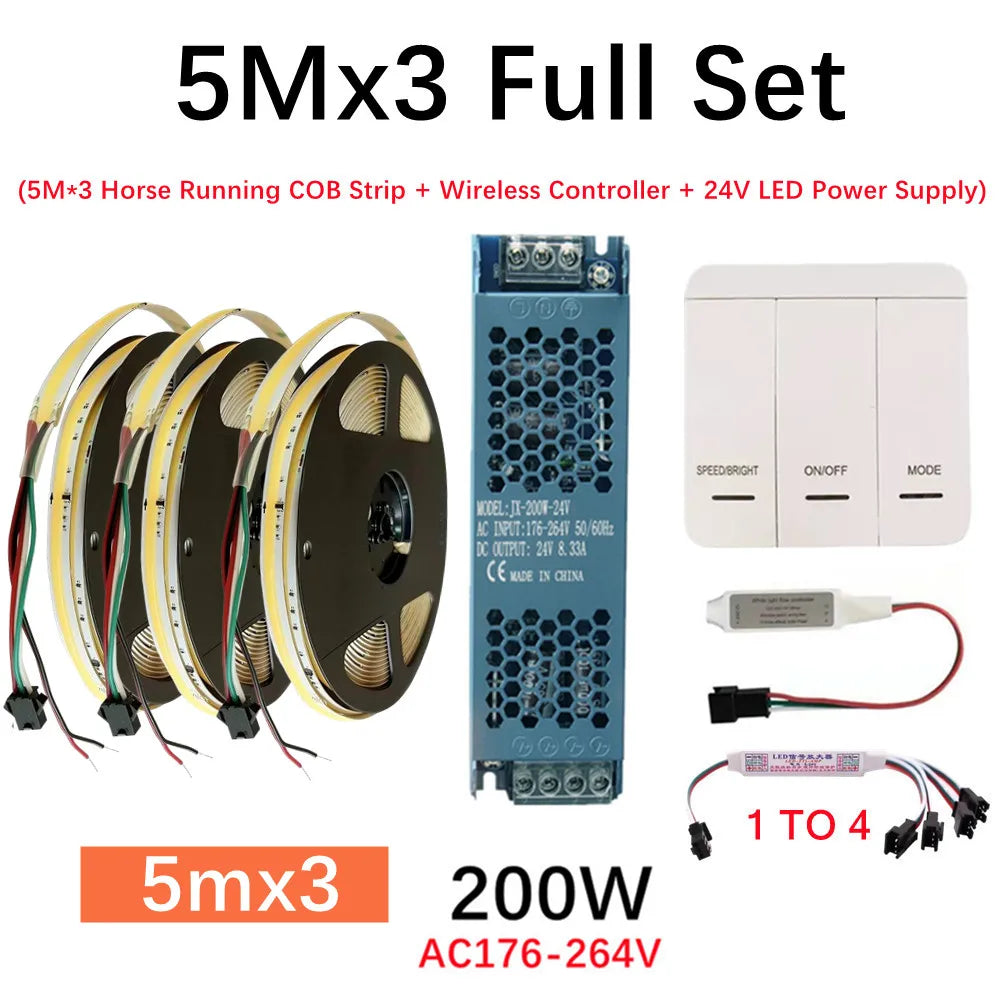

Advise: 1pc 24V 200W power supply to drive max 15m 24v COB 360leds/m running water light strips. if any big projects for longer strips, need add extra 24V 100W power supply each 5m.
