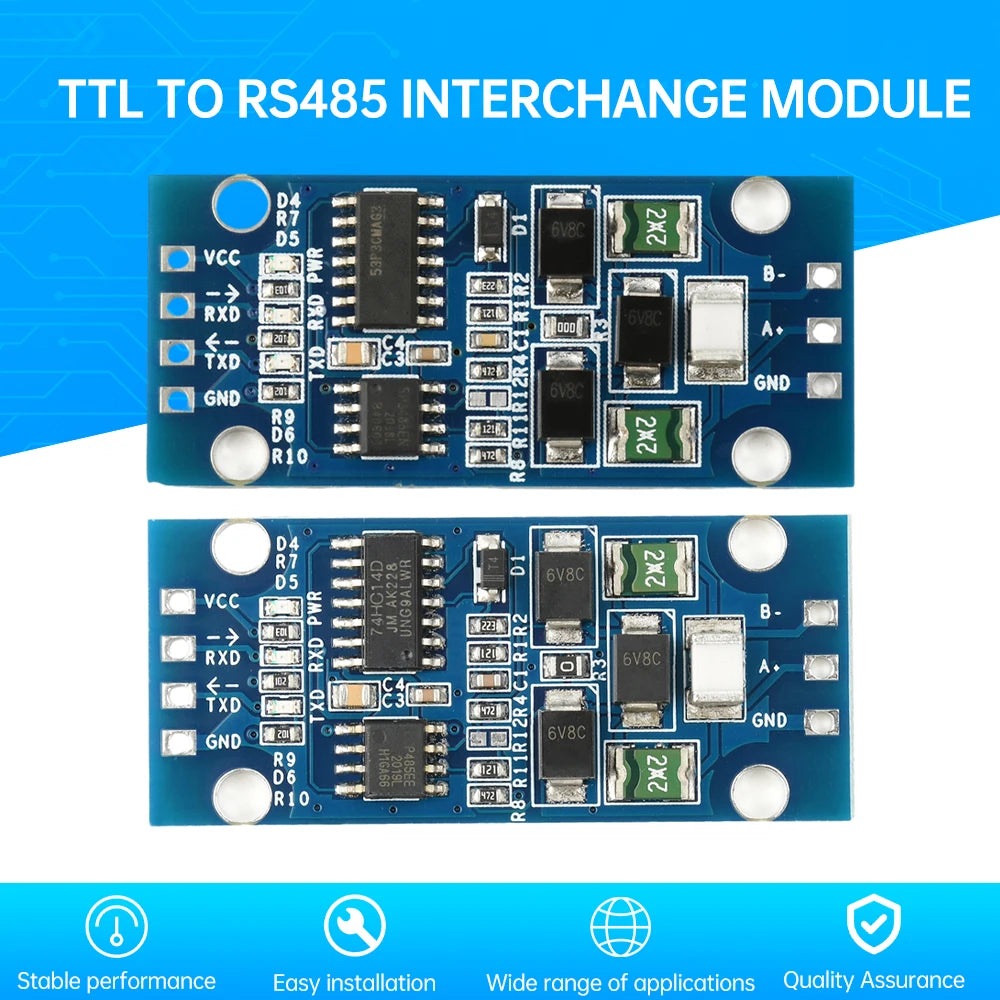

Features 1: Communication conversion module

Features 2: RS485 communication power controller

Features 3: TTL to RS485

Features 4: RS485 TTL

Features 5: RS485 communication power controller

Features 6: 74HC14 + SP485 chip

High-concerned chemical: none

Origin: Mainland China

Quantity: 1

Type: Module

Features:

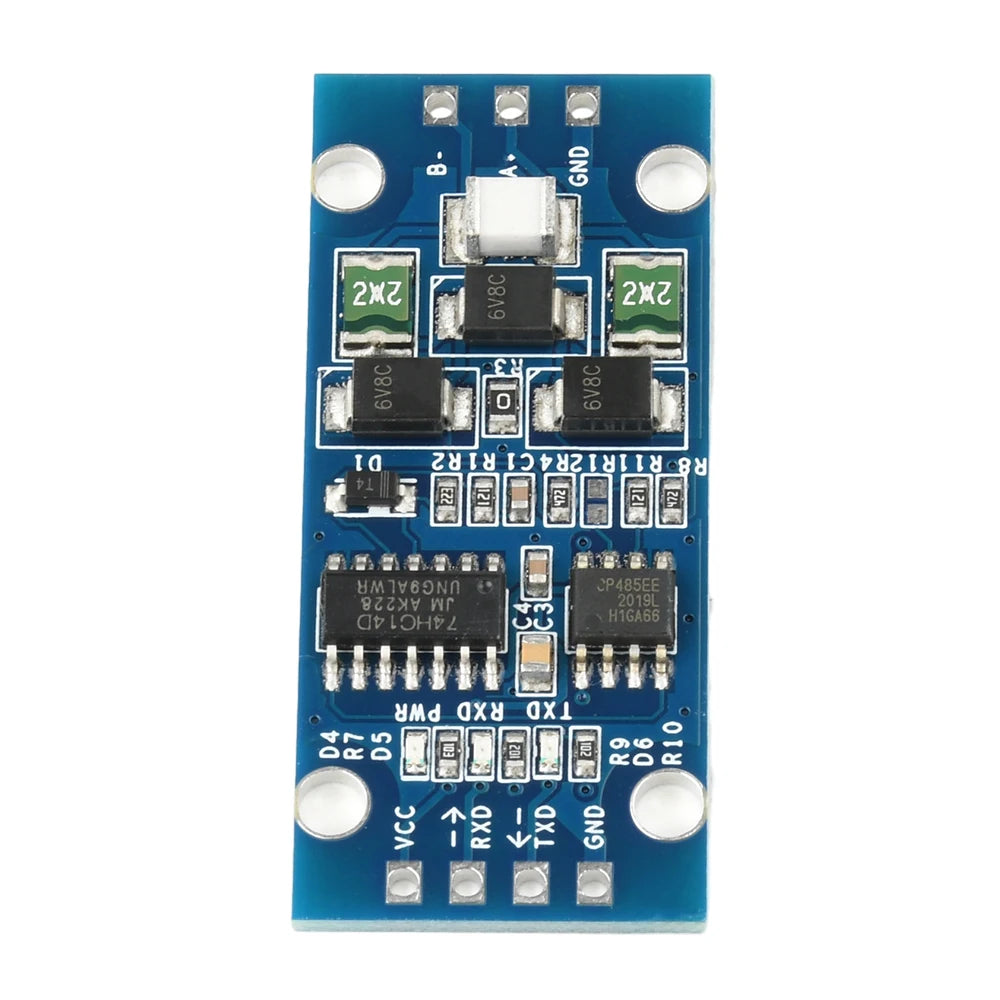

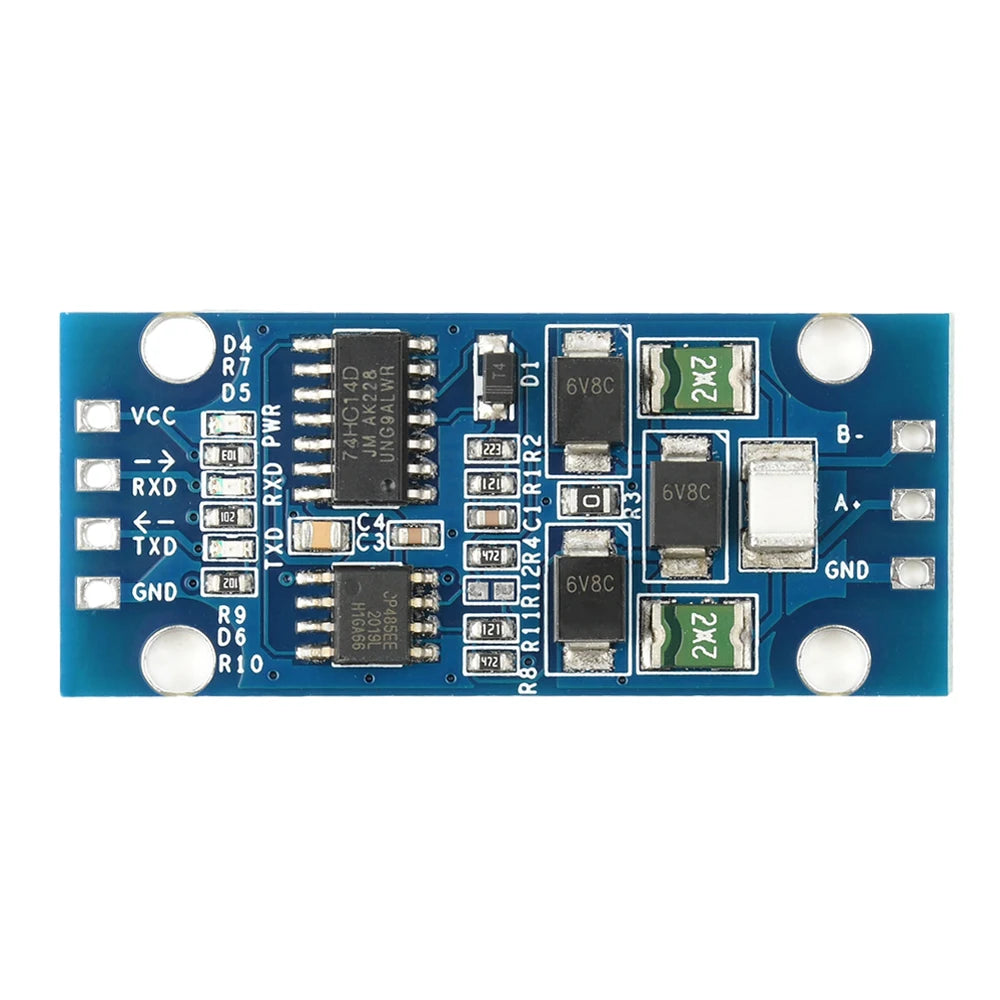

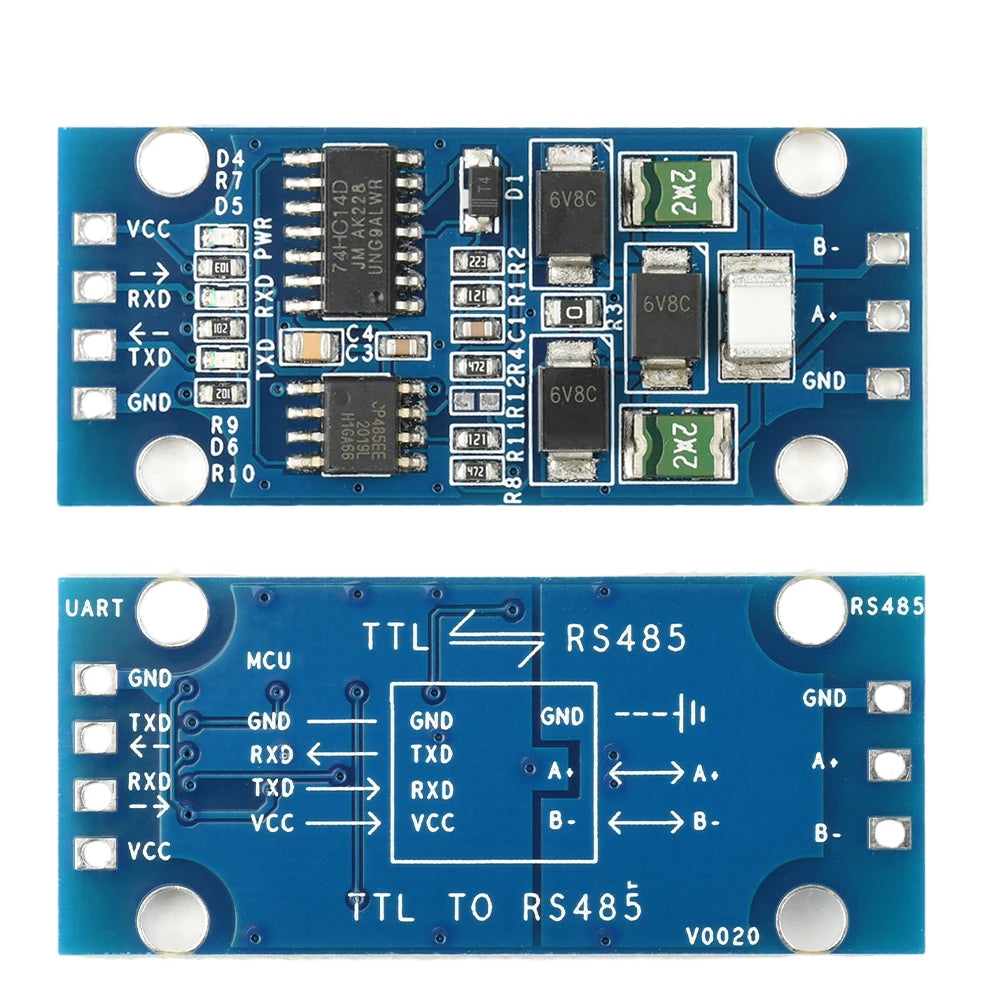

1. Original 74HC14 + SP485 chip to ensure stable transmission: the TTL to RS485 converter module uses a combination of high-quality 74HC14 and SP485 chips to provide excellent signal conversion performance
2. Lightning gas discharge tube, enhance anti-interference ability: built-in lightning gas discharge tube, can effectively absorb and discharge atmospheric overvoltage, to prevent lightning strikes and other emergencies on the equipment caused by the damage
3. Three transient suppression diodes TVS, comprehensive protection circuit: equipped with three sets of transient suppression diodes (TVS), used to prevent electrostatic discharge (ESD), induced lightning strikes and other transient overvoltage events on the circuit
4. Thermal fuse for overcurrent protection: Thermal fuse for overcurrent protection, when the current exceeds the safety threshold, the fuse will quickly blow, cutting off the power supply, to avoid fires and equipment damage due to short-circuits or overloads.
5.120Ω termination resistor, optimize signal integrity: Built-in 120Ω termination resistor, users only need to short R12 to easily access the resistor, effectively eliminating signal reflection and echo interference, enhance the signal integrity of the RS485 bus.

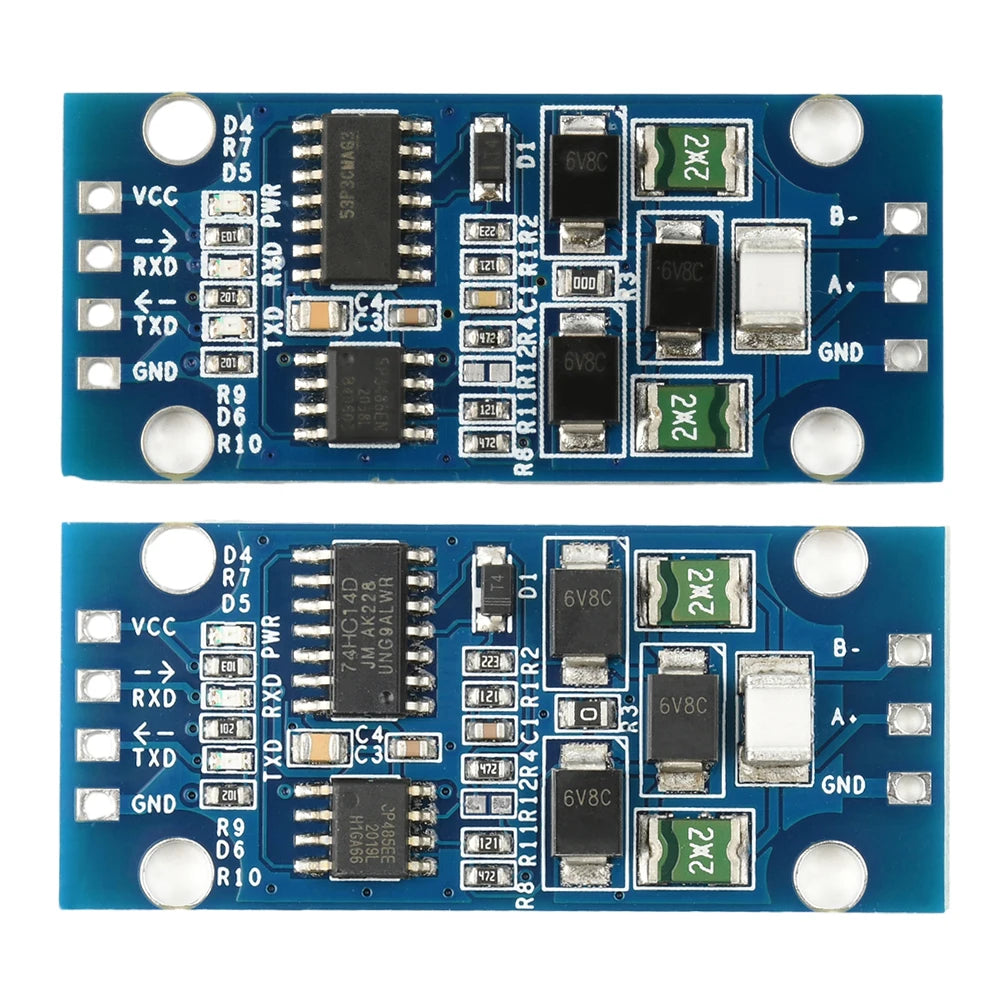

6. Power PWR and RXD, TXD signal indicator, status at a glance: the module is equipped with power (PWR) and receive (RXD), transmit (TXD) signal indicator, real-time display of the work status

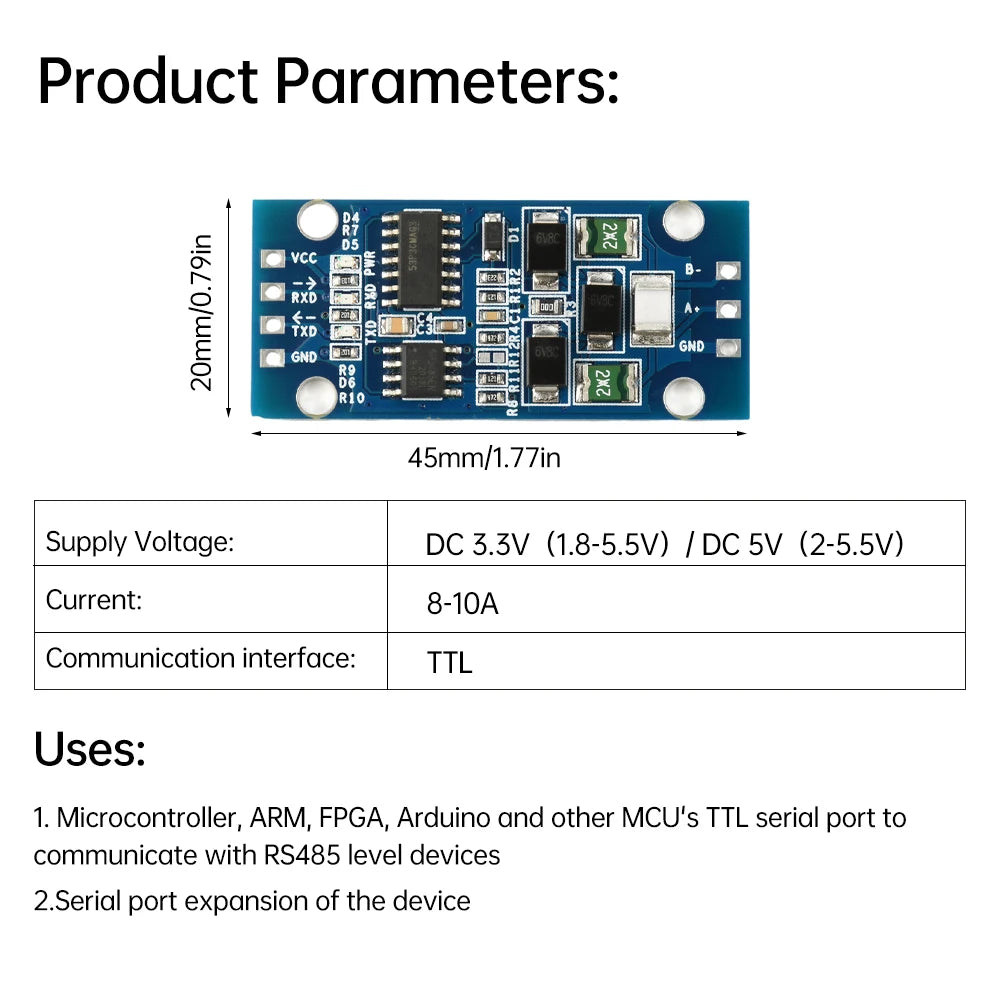

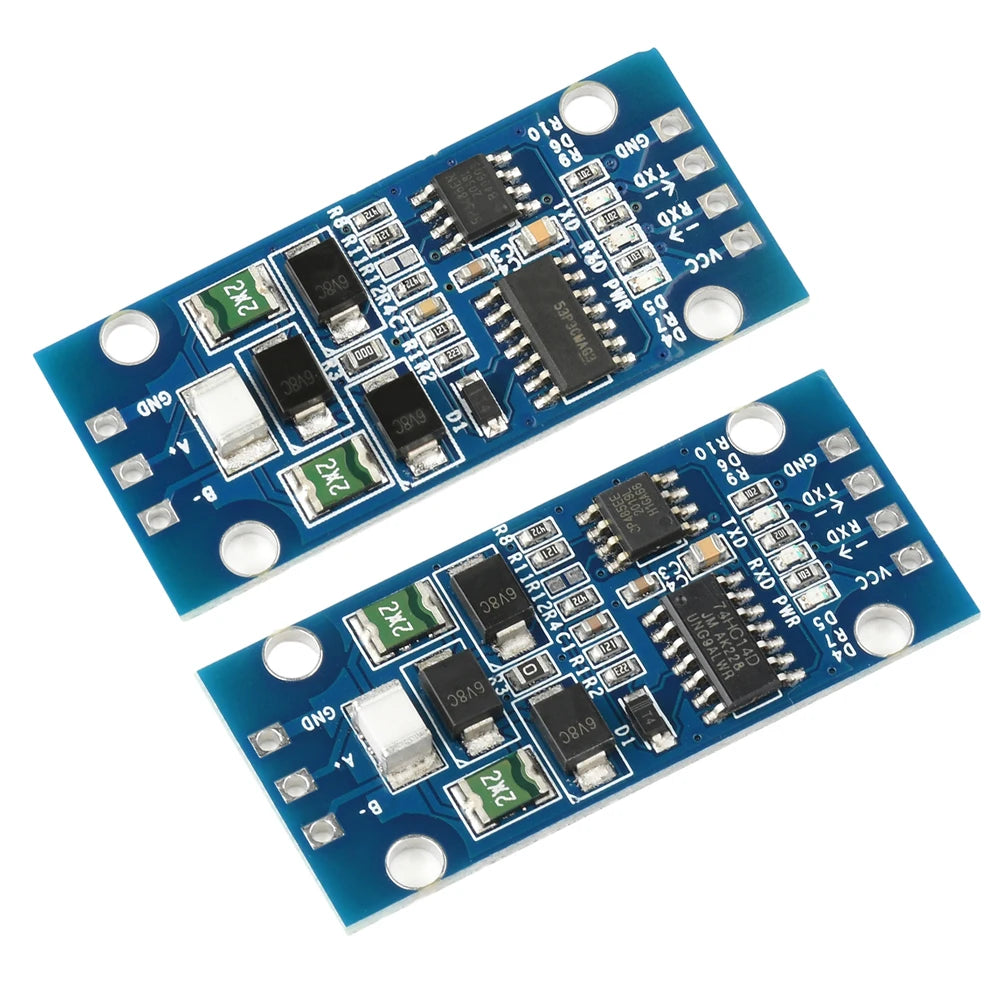

Parameter:

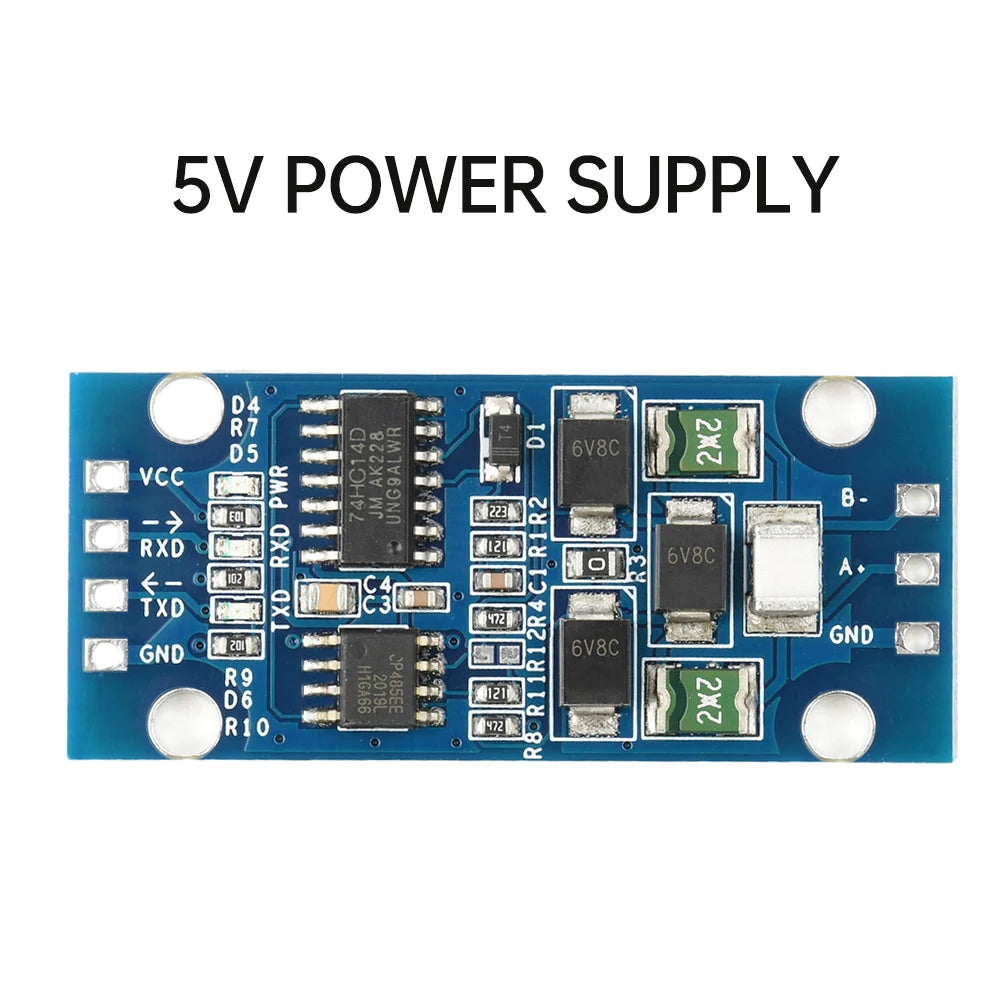

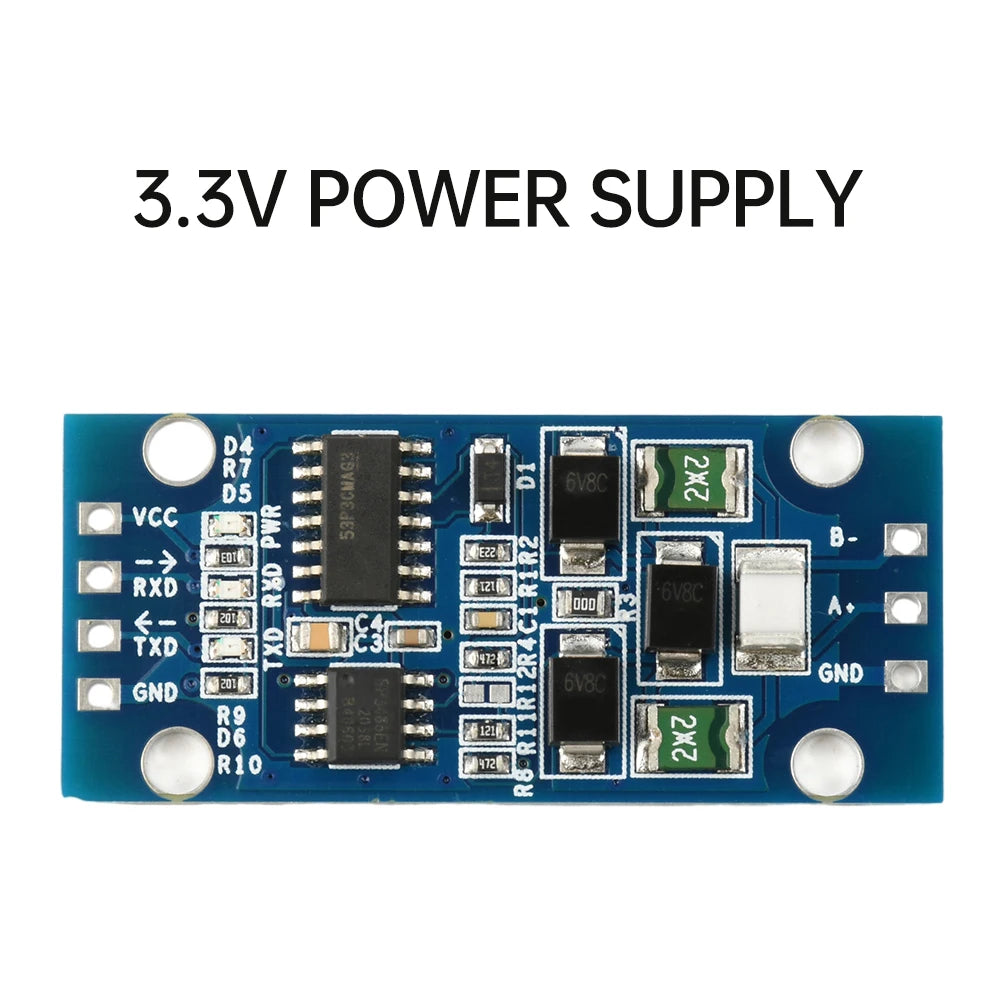

Supply voltage:
DC 3.3V (1.8-5.5V)
DC 5V (2-5.5V)
Current: 8-10A
Communication interface: TTL
Product size: 45*20mm

Uses:
1. MCUs such as microcontroller, ARM, FPGA, Arduino and other MCU's TTL serial port to communicate with RS485 level devices
2. Serial port expansion of the device

Instructions for use:

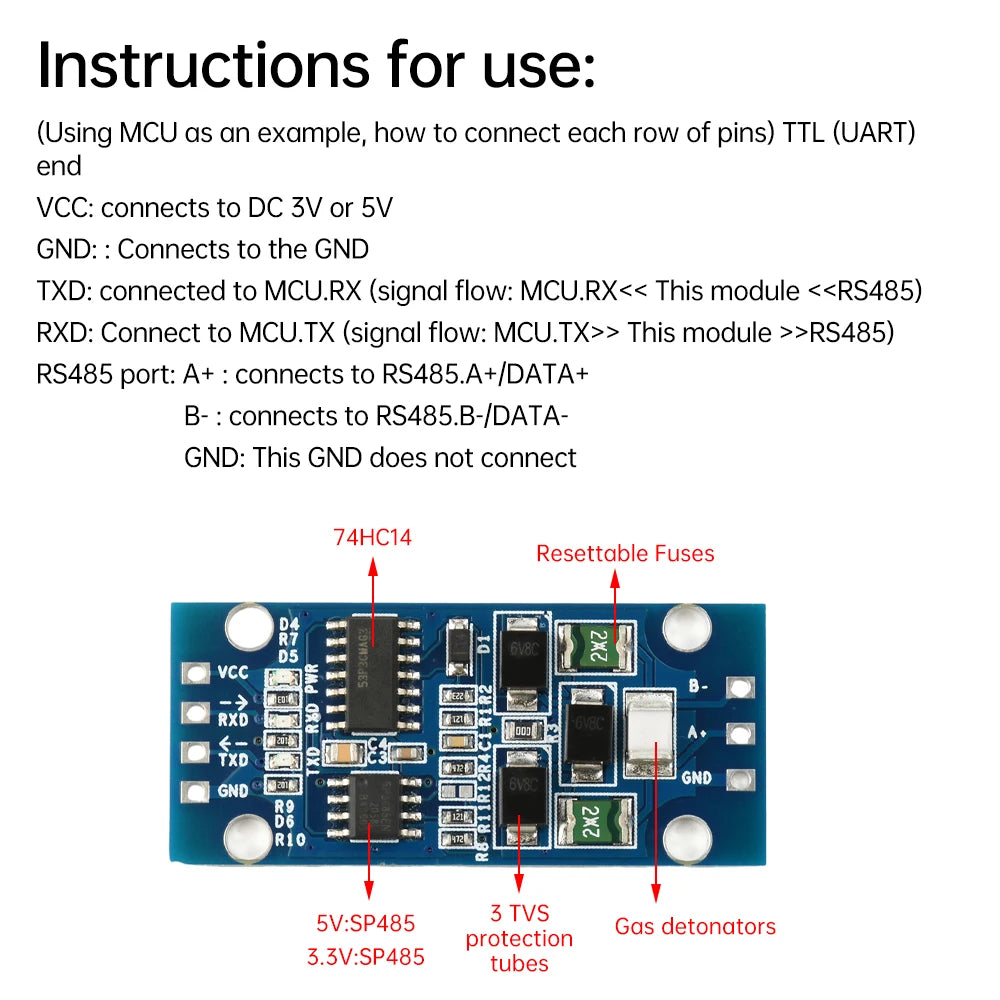

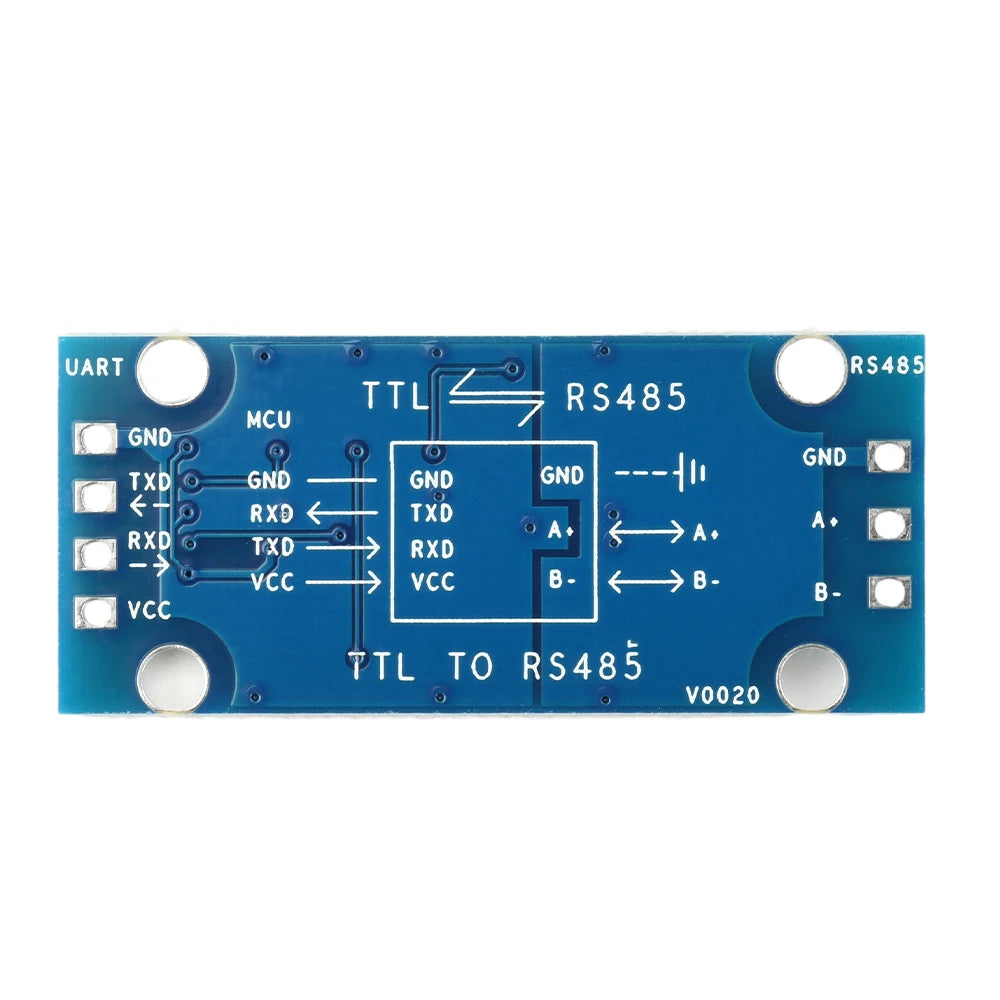

(Access to the MCU as an example, explaining how to connect each row of pins) TTL (UART) terminal
VCC: connect to DC 3V or 5V.
GND:: connect to GND
TXD: connect to MCU.RX (signal flow: MCU.RX << this module << RS485)
RXD: connect to MCU.TX (signal flow direction: MCU.TX>>this module>>RS485)
RS485 end:
A+: connect to RS485.
B-: connect to RS485.
GND: this GND can not be connected

Package include:
Module*1
