SPECIFICATIONS

Brand Name: Aideepen

Certification: NONE

Choice: yes

Condition: New

Contact Load: Low Power

Dropship: Support

High-concerned chemical: none

Key Word: Relay Module

Model Number: Relay

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Time Relay

Type: DC5-28V Latching Relay Module

Use: AUTO

is_customized: Yes

semi_Choice: yes

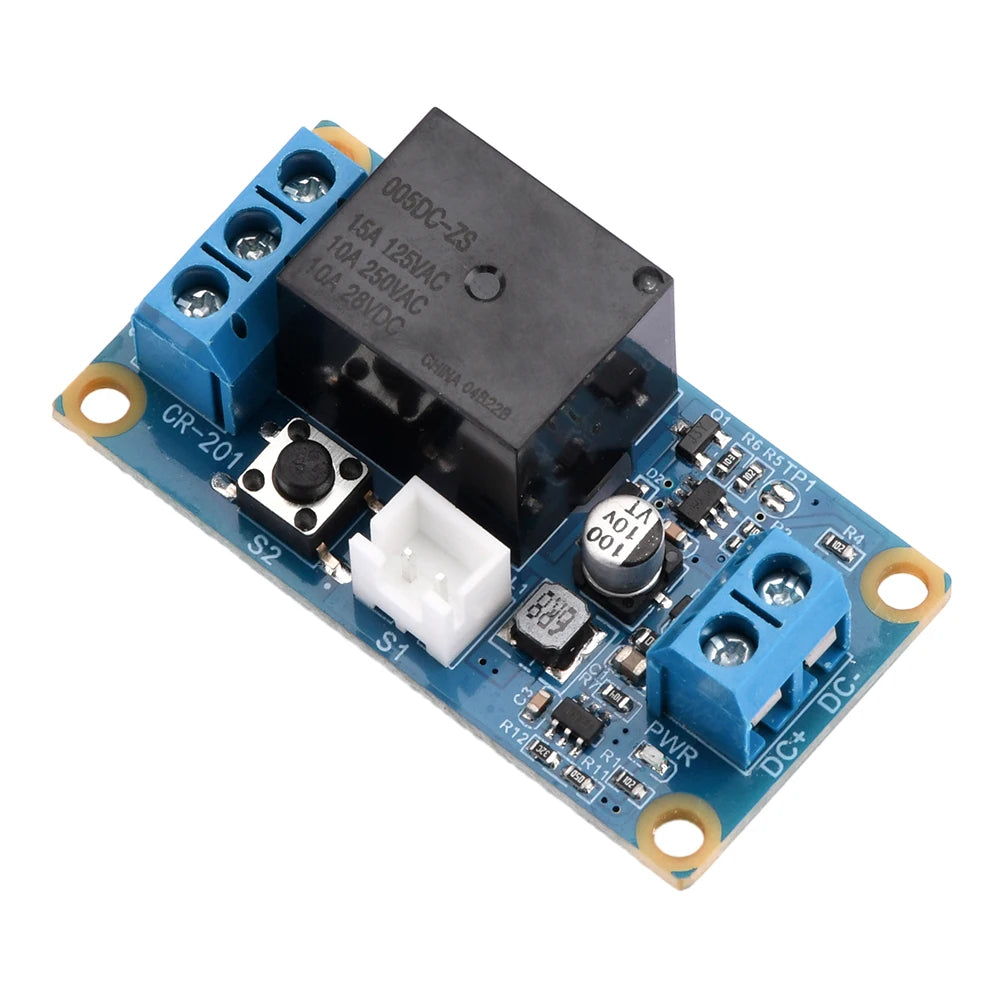

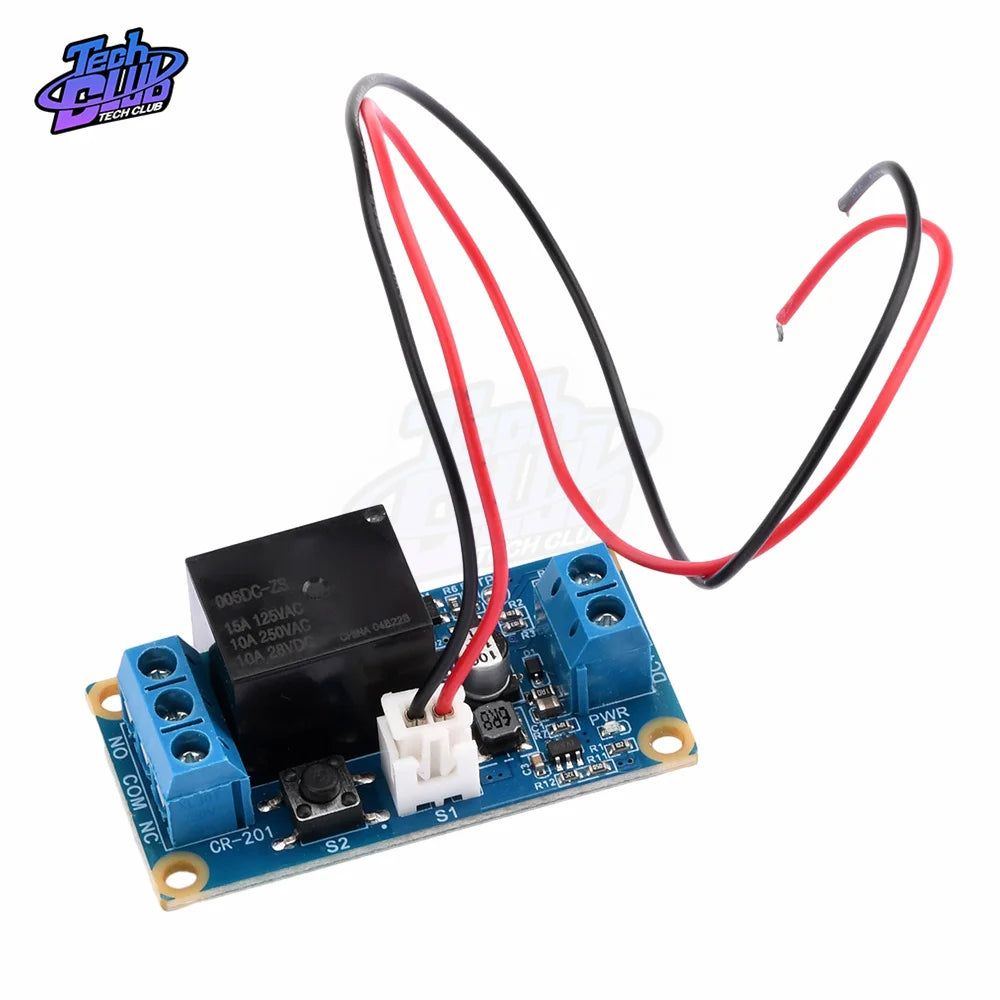

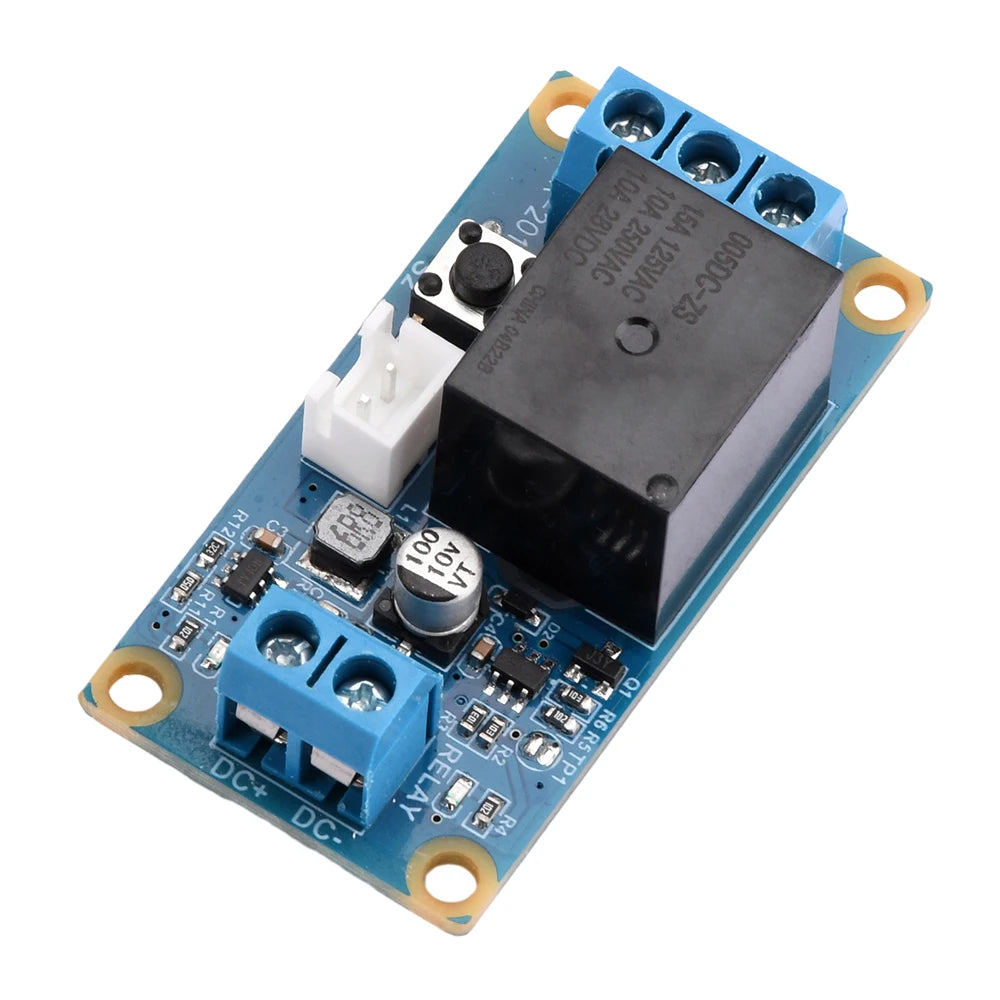

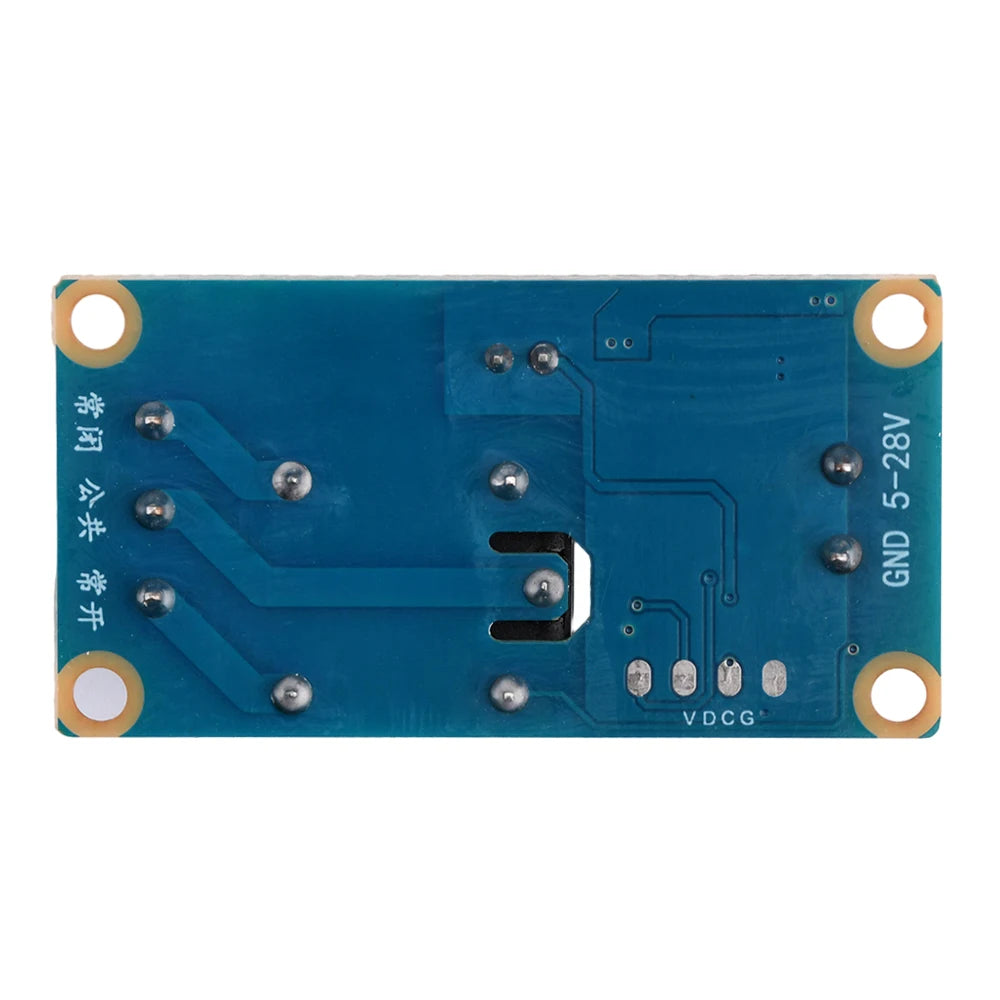

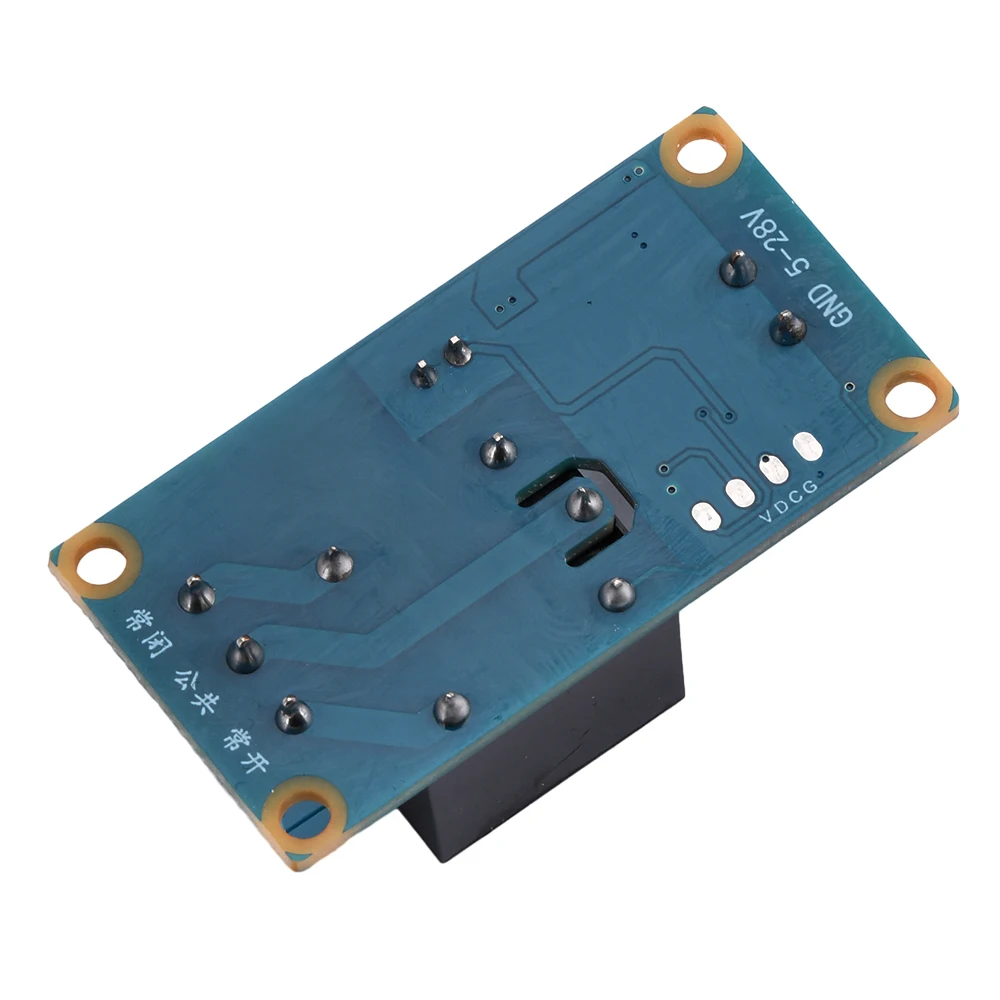

DC5-28V Latching Relay Module with Touch Bistable Switch MCU Control One Channel Relay Power Supply

Features:

1. Low power consumption, low power ripple, sufficient materials, high efficiency and stability, safe and secure

2. Single-chip microcomputer control, stable and reliable performance, strong anti-interference ability

3. Onboard DC-CD voltage stabilization, large input range, low power consumption

4. On-board touch switch test, which can directly check the stability, and can trigger the switch externally. It is equipped with a terminal block and leads, making it more convenient to use.

5. Wide range of uses, main uses: control of household appliances, control of various household lamps and various household appliances. Factory equipment control, used for the control of various small current control, high voltage and high power products.

Product parameters:

Power supply voltage: DC5-28V wide voltage

Supply current: greater than 100MA

Load: 250V 10A (AC) or 30V 10A (DC)

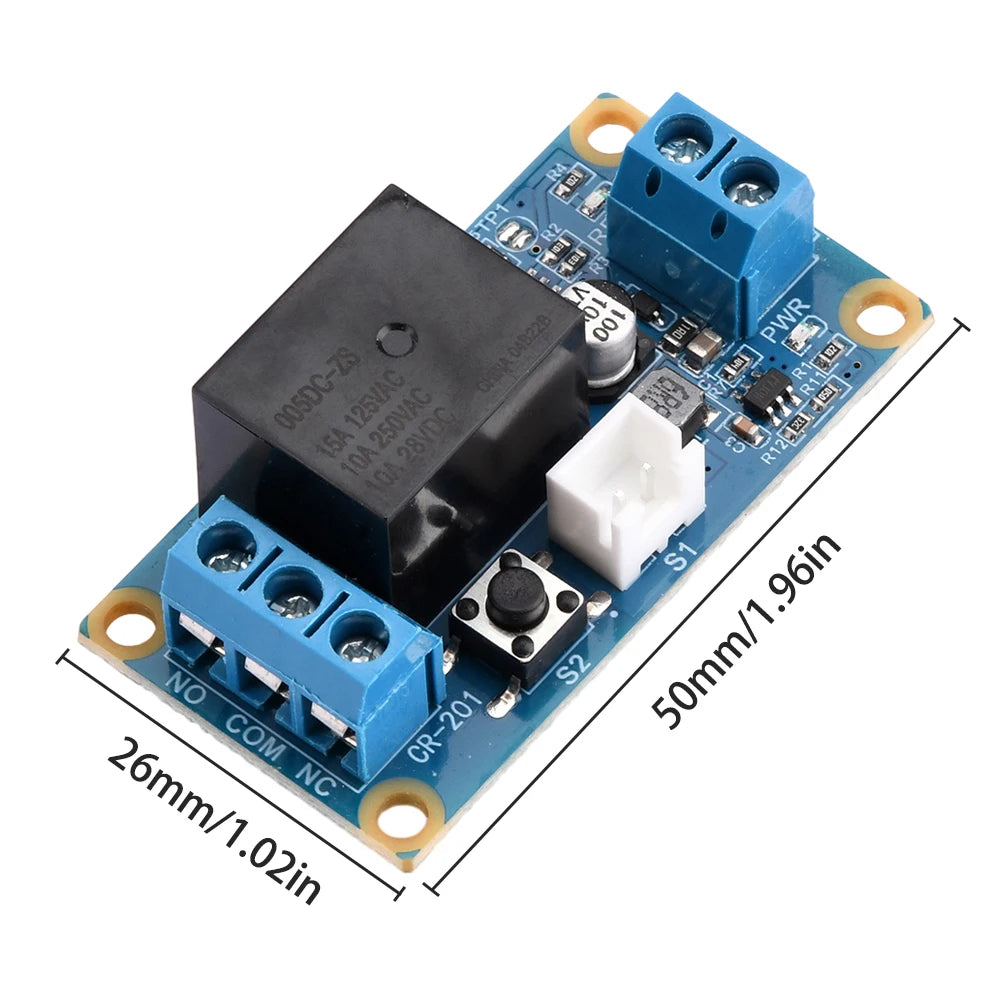

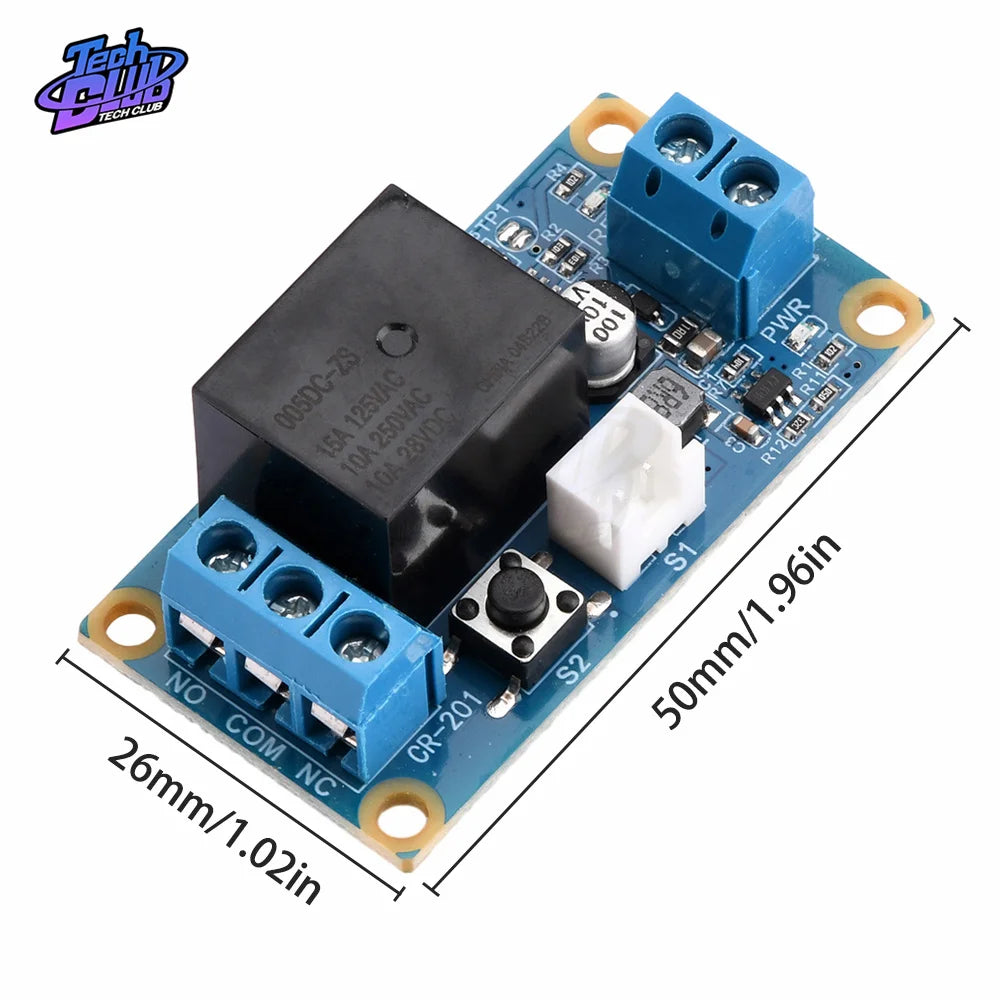

Size: 50mm*26mm

Aperture: 3MM

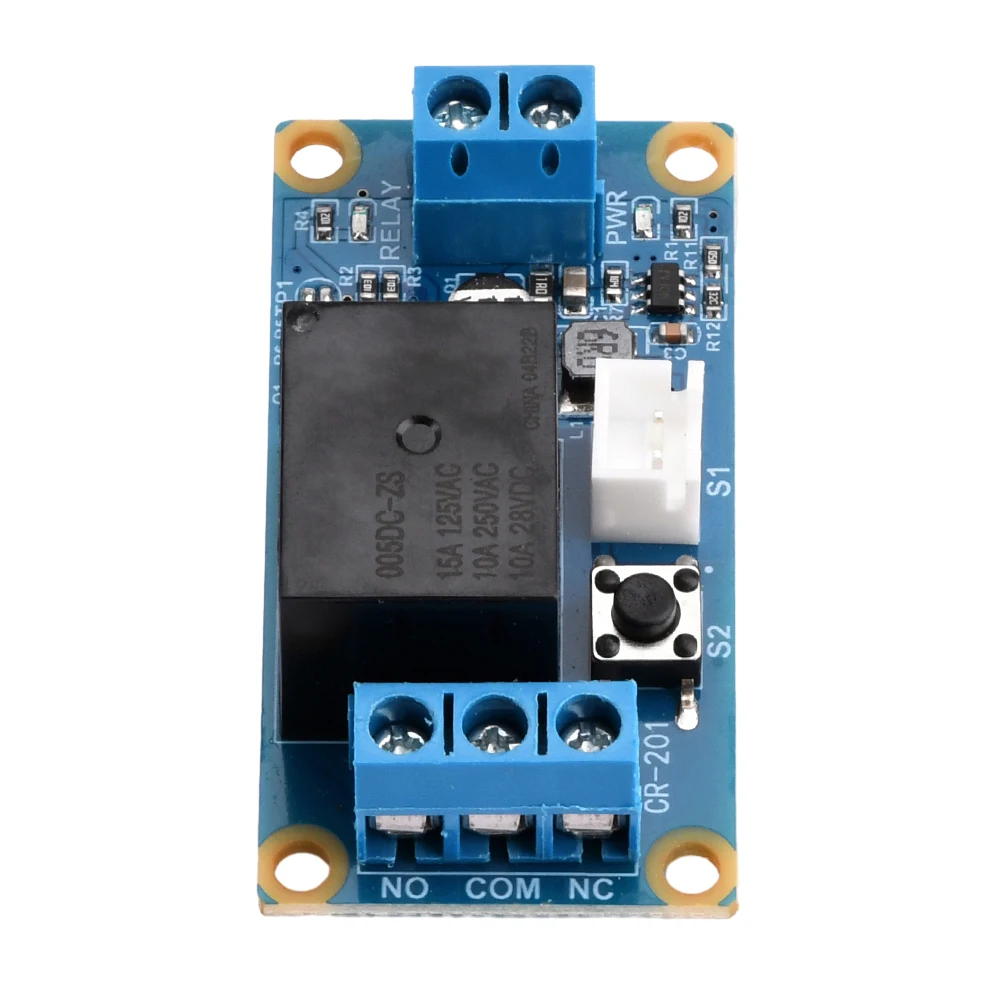

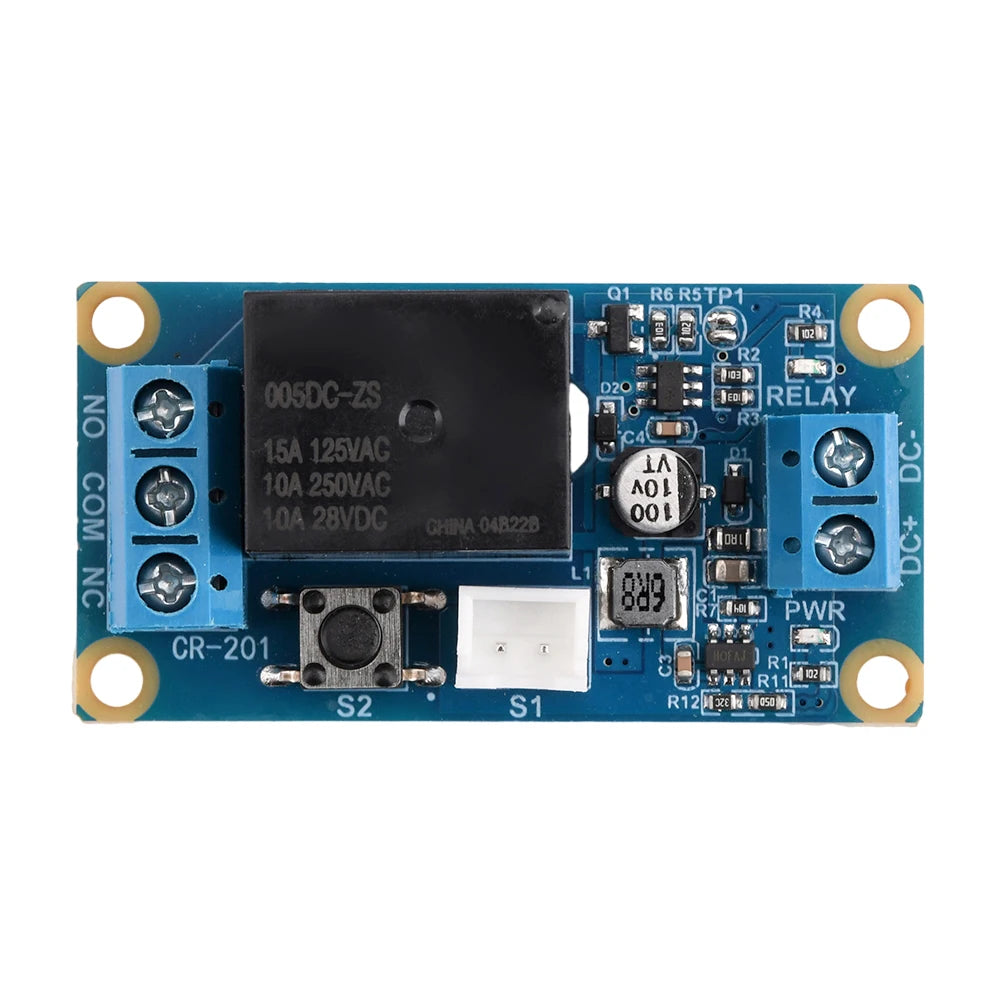

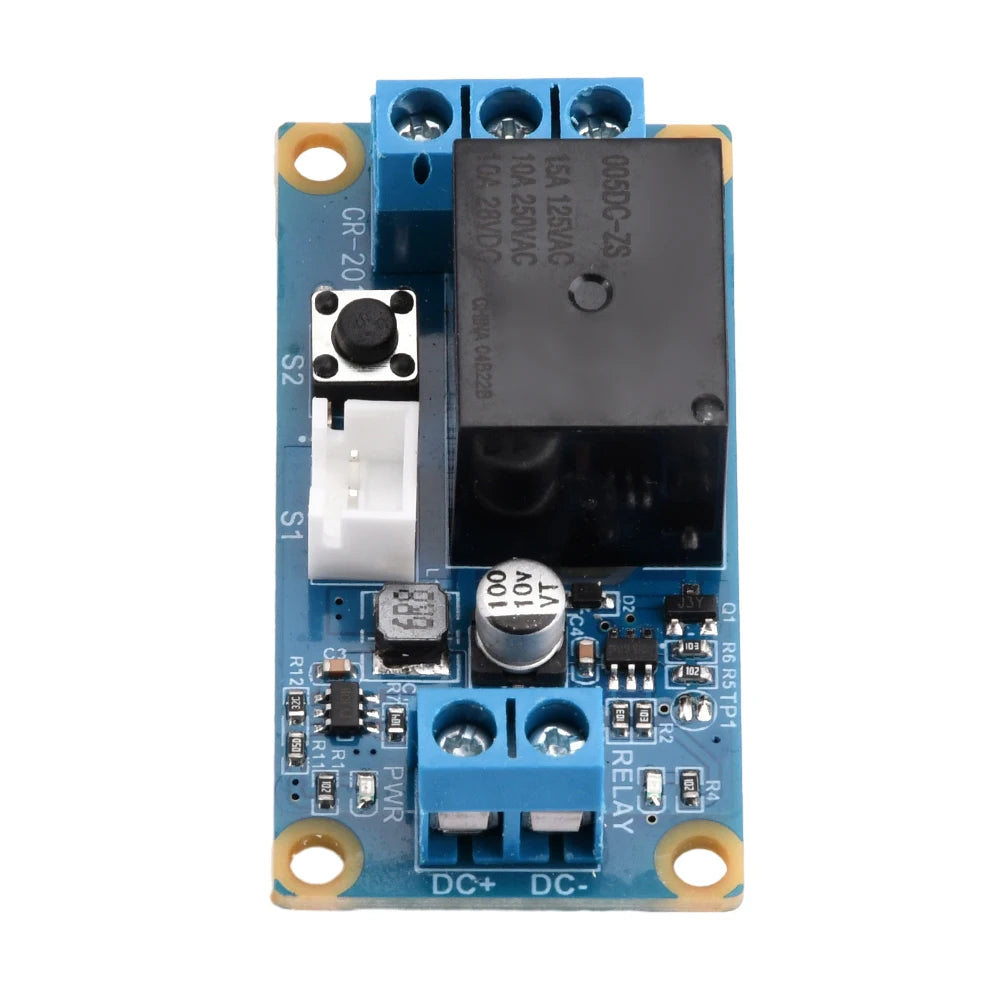

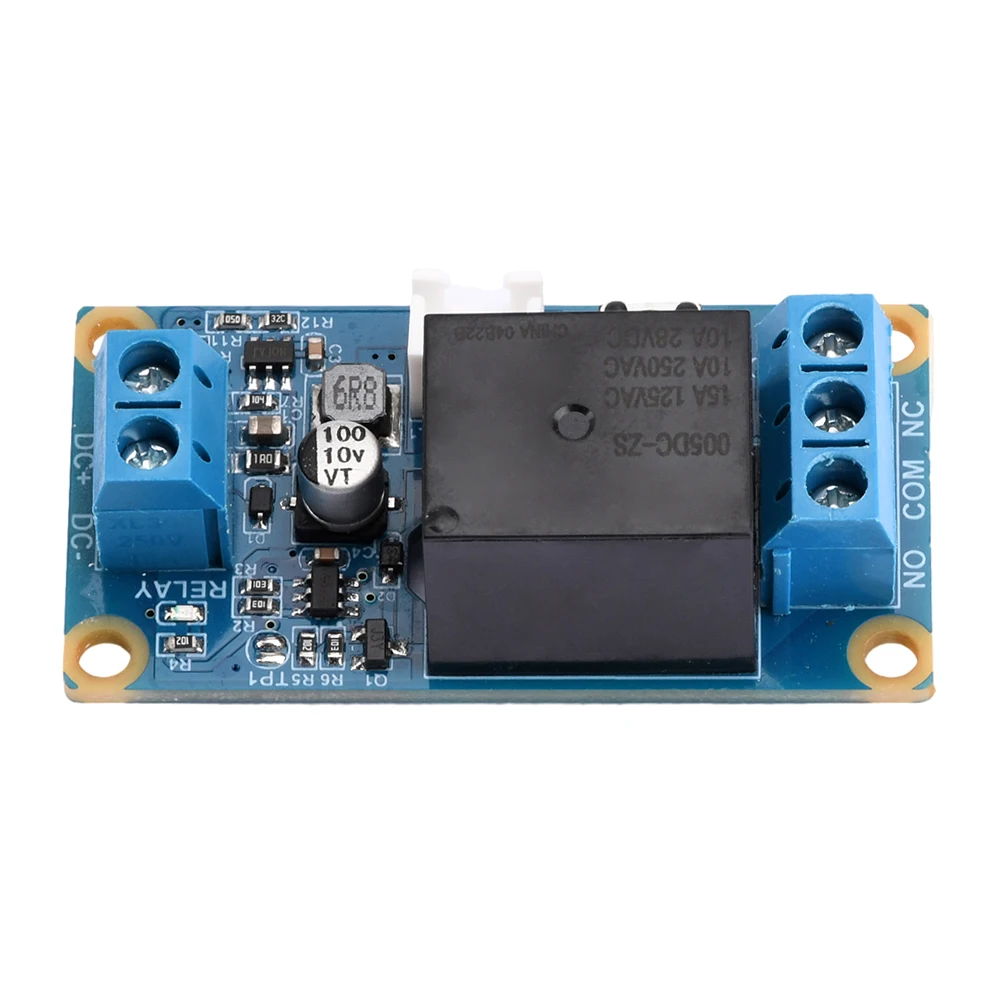

Module interface:

DC+: Connect to DC 5 to 28V positive pole

DC-: connect to the negative pole of DC

NC: Normally closed end

COM: public terminal

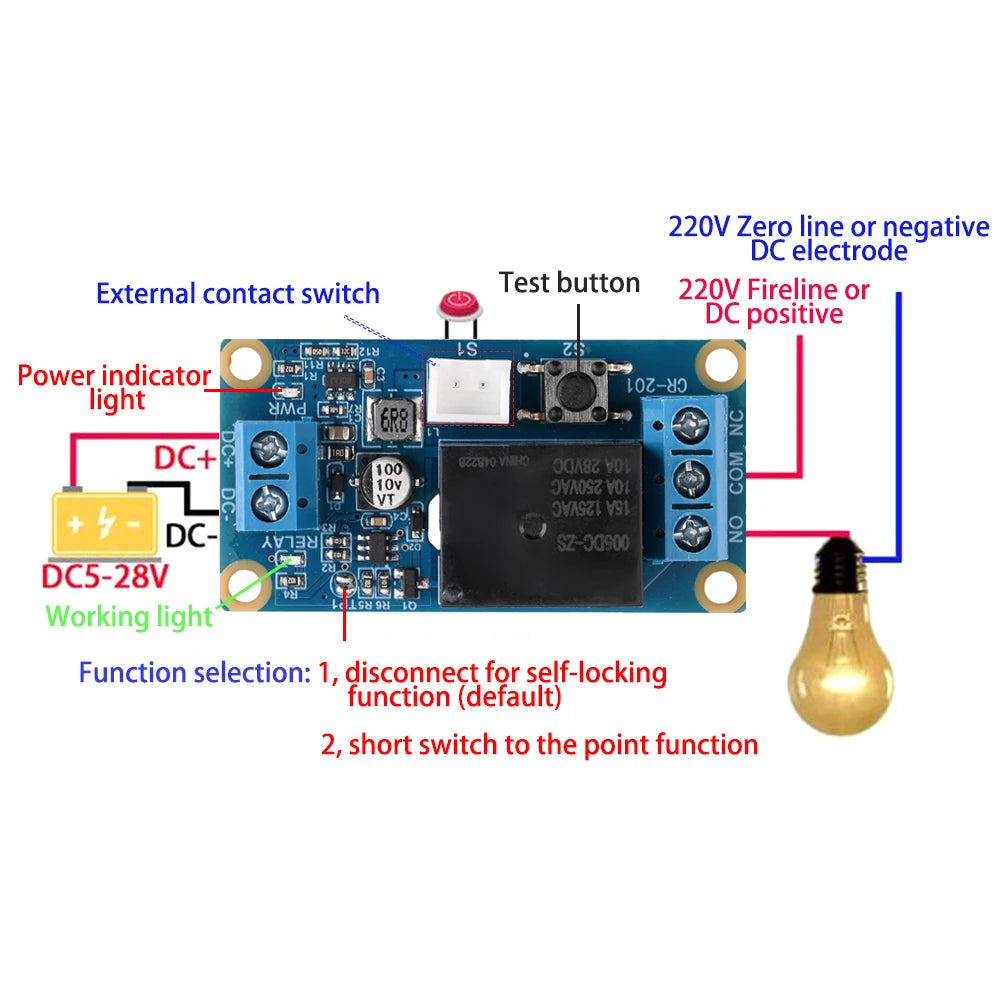

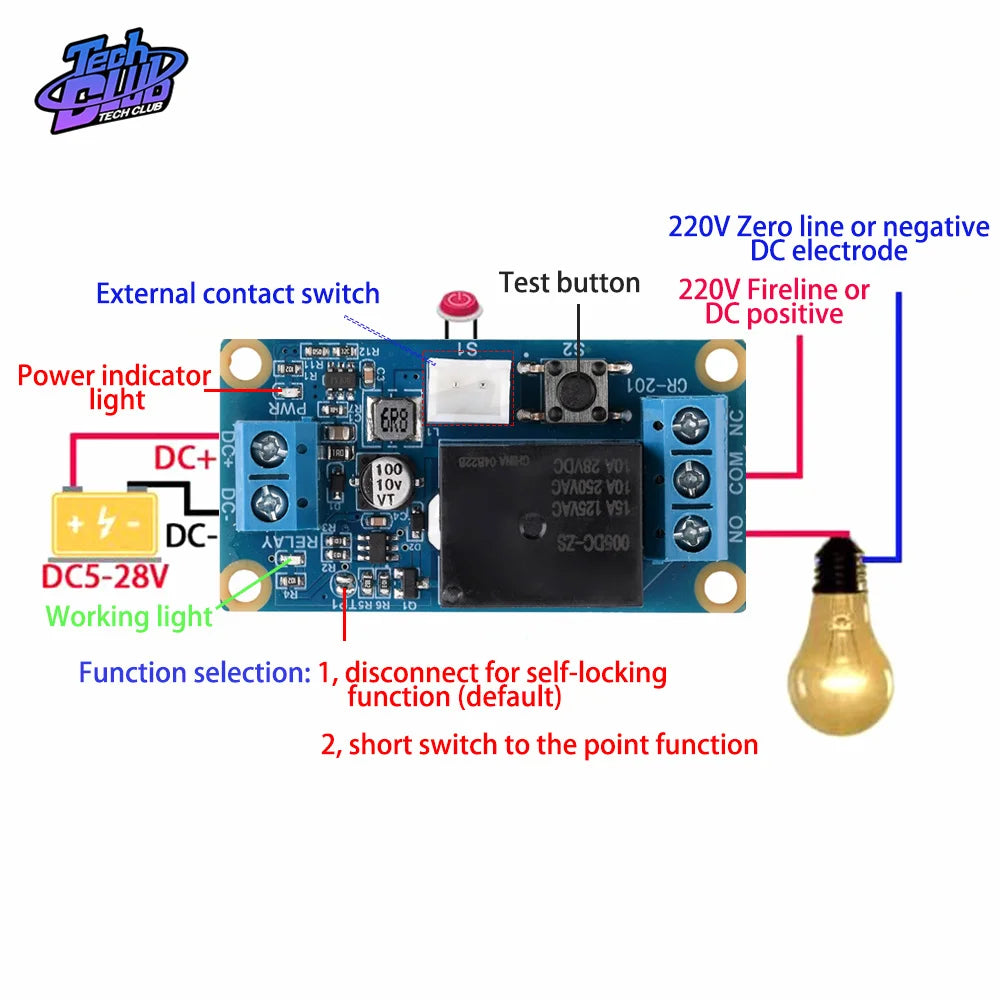

NO: Normally open (refer to wiring diagram)

Instructions:

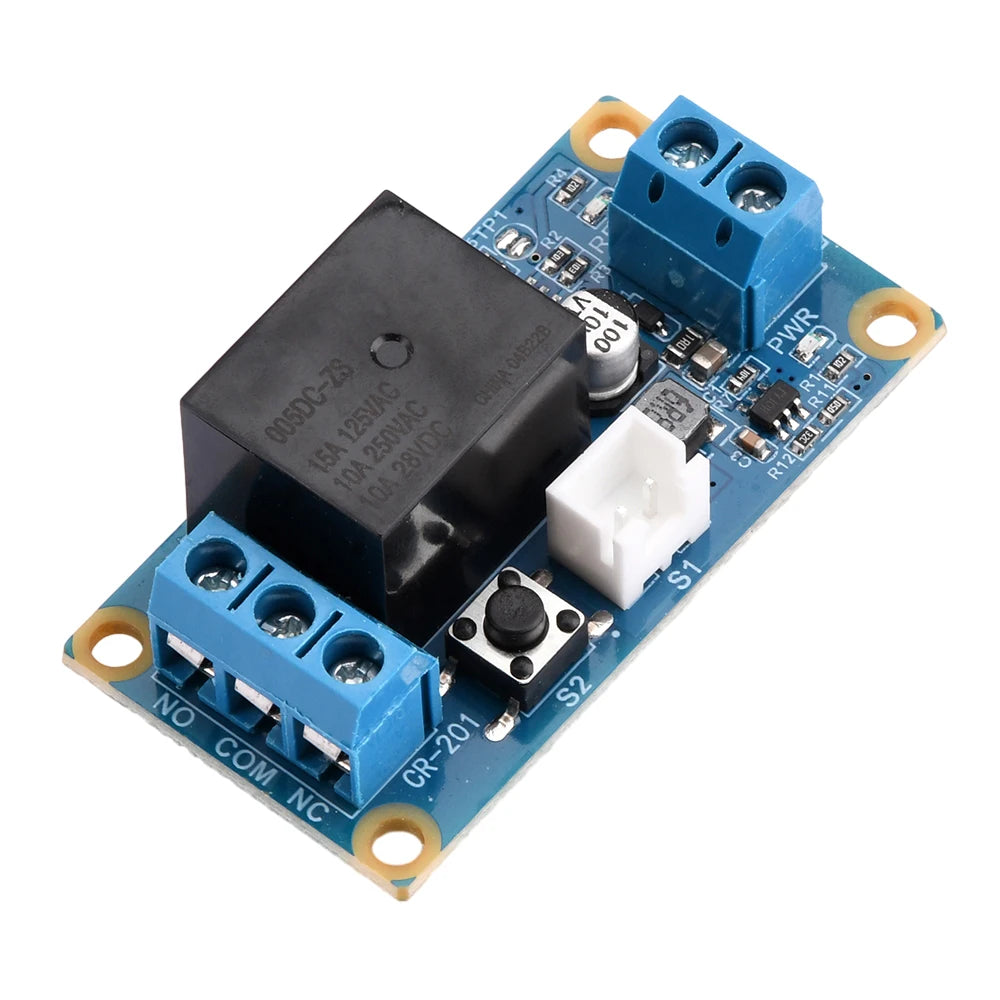

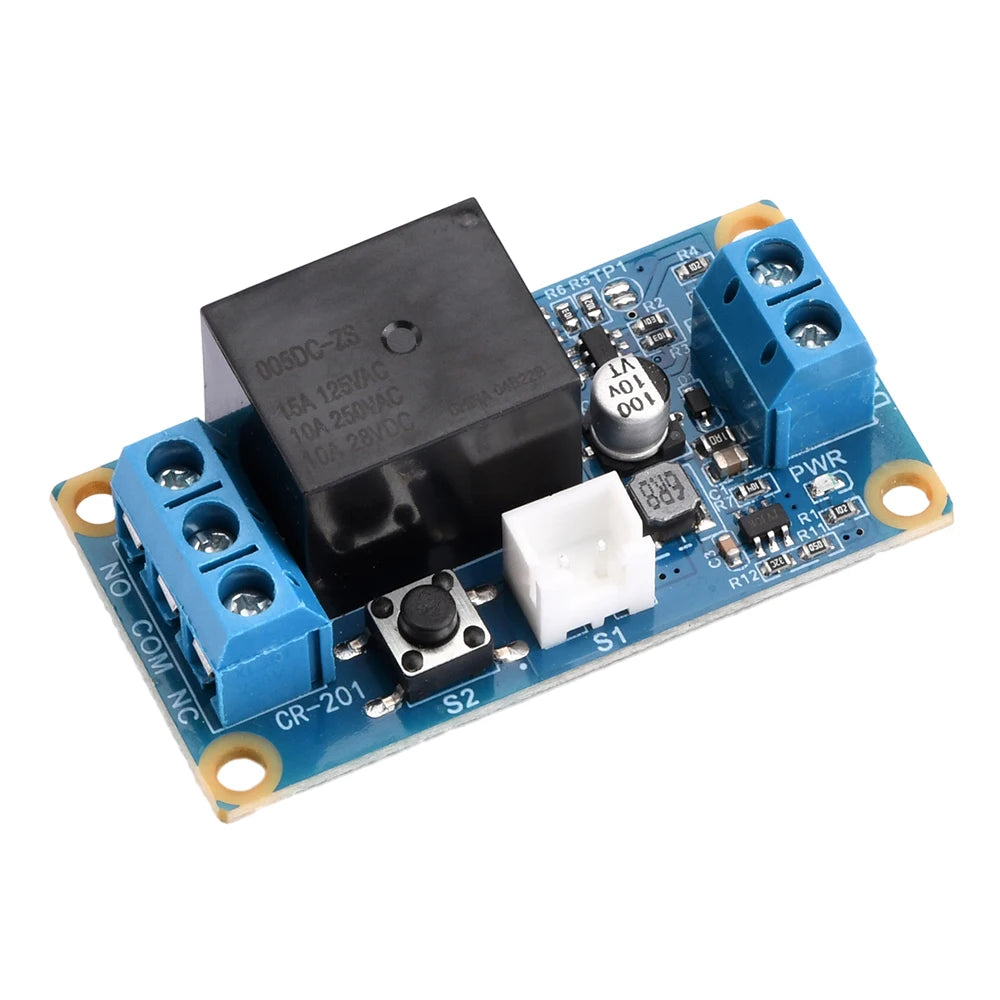

Press the S2 button and the relay will be locked. Press it again and the relay will be disconnected. You can also connect an external inching switch and trigger it with a low level.

Instructions for use:

1. According to the wiring diagram, connect the DC power supply first. The power supply cannot be connected reversely. Although there is a protection circuit, it cannot be connected reversely for a long time. During installation, the board can be fixed on an edge object according to the actual situation.

2. Connect the wires and connect to the 5-28V power supply. After the power is turned on, the red LED light turns on, indicating that the power is supplied normally. Press the test button, the relay is attracted and locked (you hear "tick"), and the green LED light turns on at the same time; press the relay again The disconnection is heard ("tick") and the green LED light goes out at the same time.

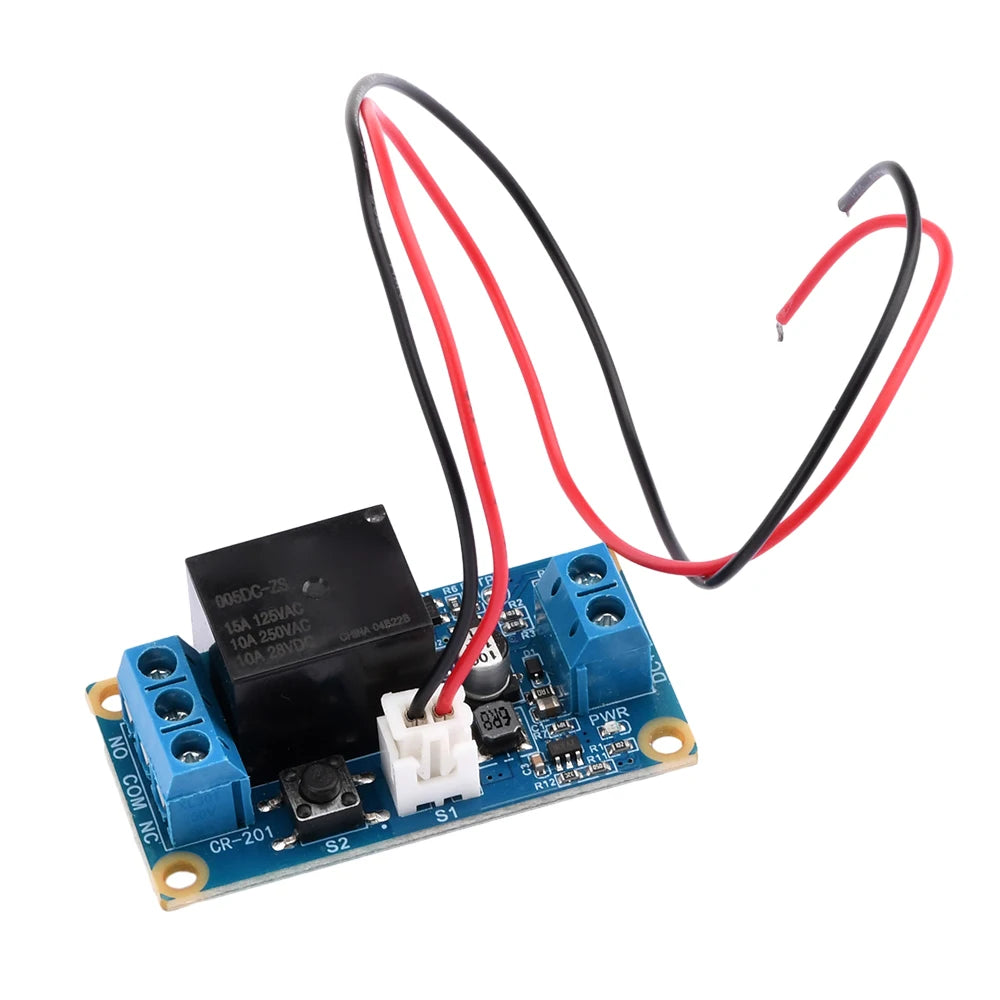

3. The trigger can also be connected to an external inching switch. This module is equipped with terminals and leads and can be directly connected to the inching switch.

4. You can also use other sensor modules for triggering. As long as it is a low-level trigger, it is valid and has more room for expansion.

5. The wiring should not be too thin to ensure that the wire can withstand the corresponding current.

6. This module uses a relay to control the load and can withstand loads under 250V 10A (AC) and 30V 10A (DC); the lifespan below 7A is 1 million.

7. Power supply voltage: 5-28V wide voltage.

8. Supply current: greater than 100MA.

9. This module uses DC-DC voltage stabilization, and a slight fever is normal. It is normal for the relay to generate heat even after working for a long time. The load power should leave a certain margin for the relay load, and avoid high power (2000W) and long-term operation.

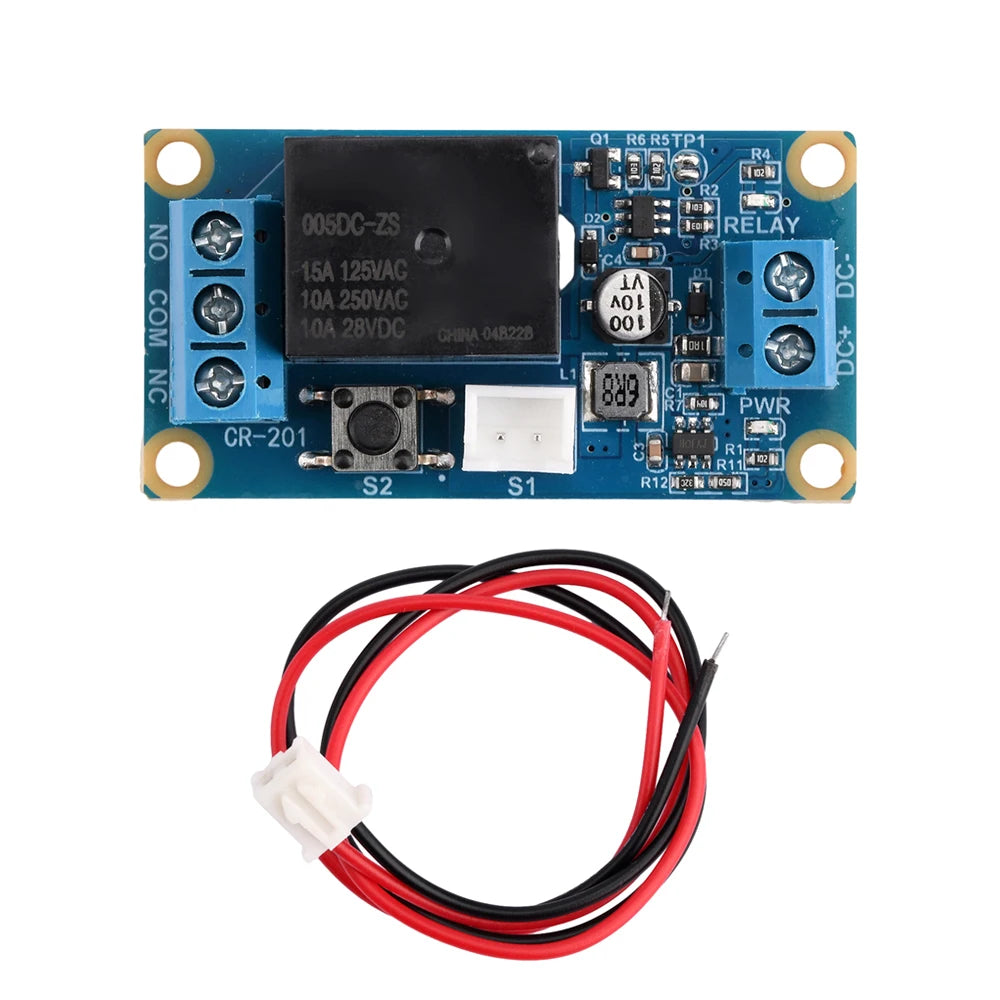

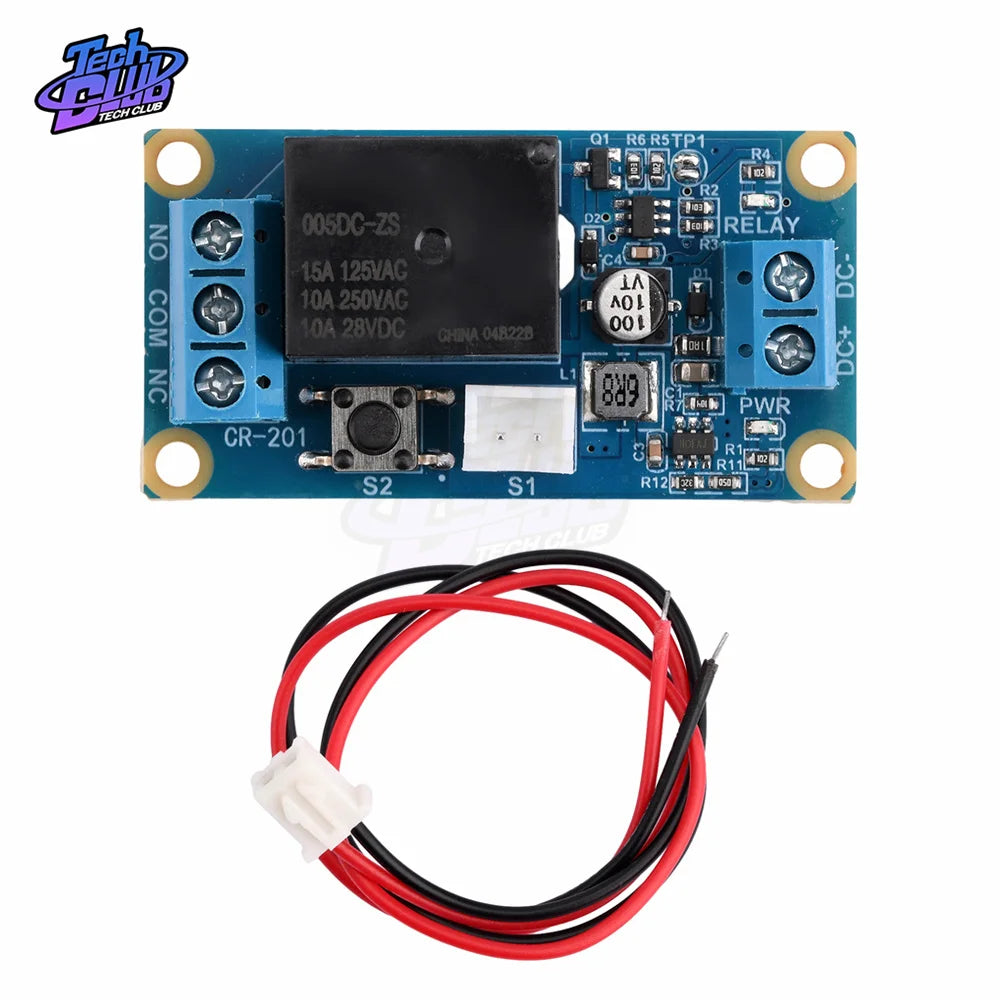

Product List:

1X relay

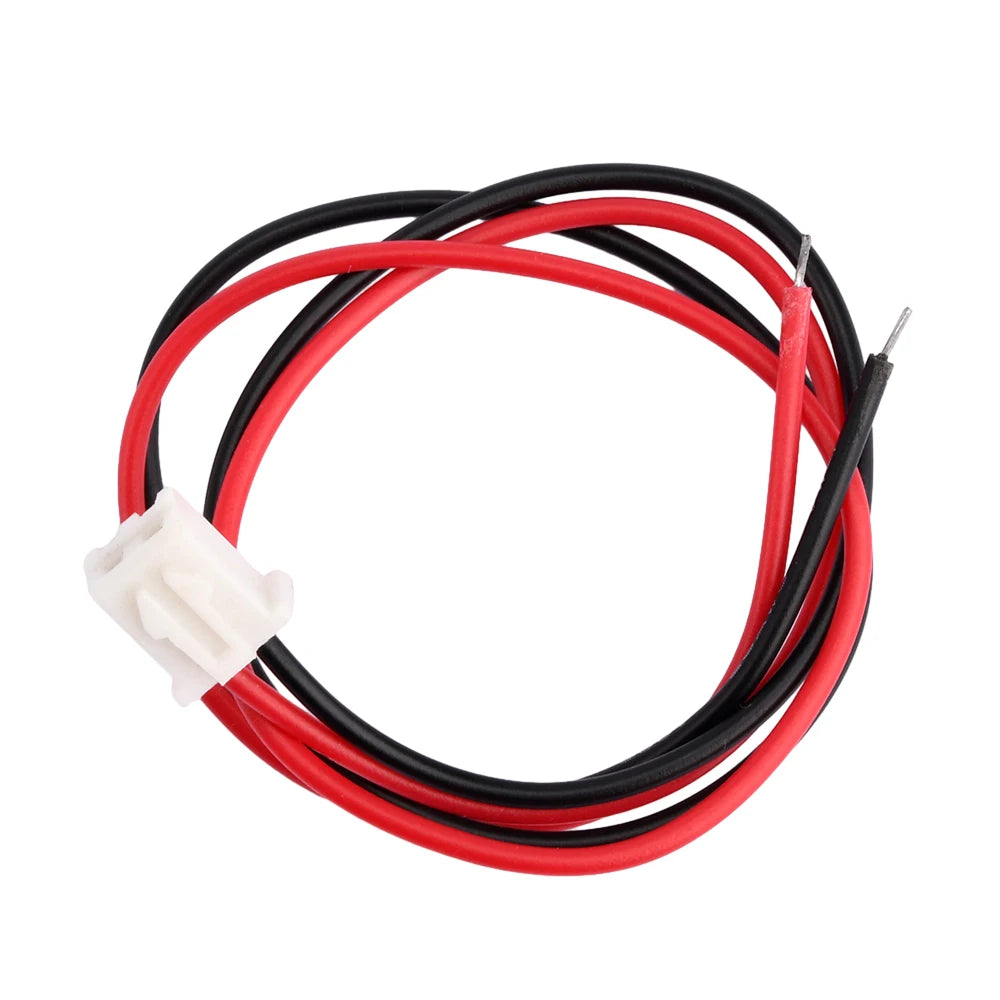

1X2P terminal cable
