SPECIFICATIONS

Features:
1.Adopting bidirectional optocoupler isolation, with strong driving ability and stable performance.
2.The module can be triggered at high or low levels through jumper settings.
3.Equipped with 4 fixing bolt holes.
4.With power indicator light (red).
5.The interface design is user-friendly, and all interfaces can be directly connected and led out through wiring terminals.

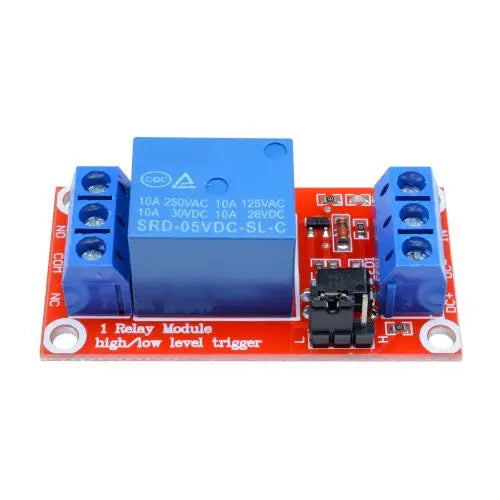

Parameters:

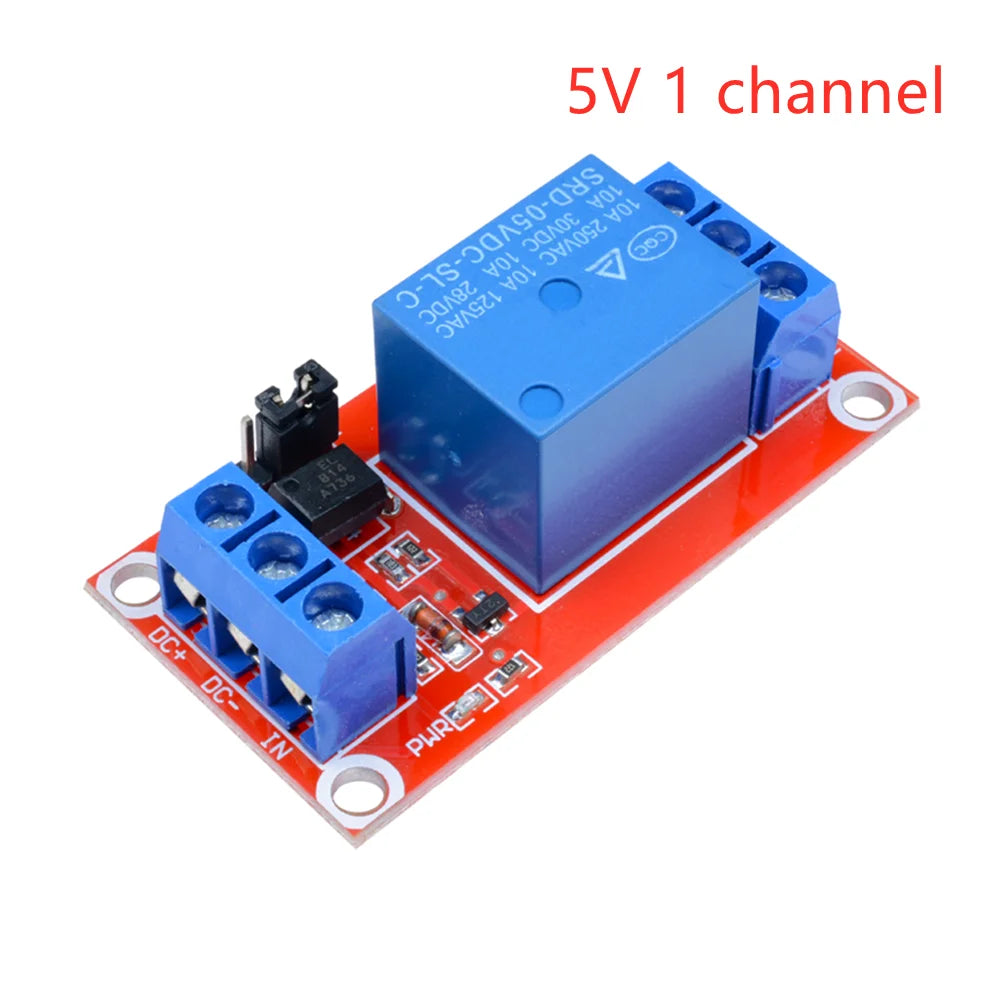

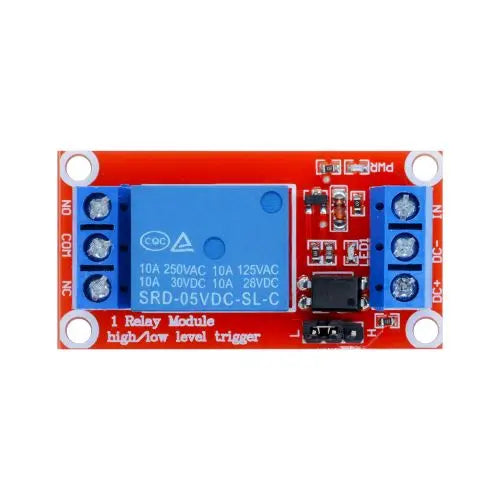

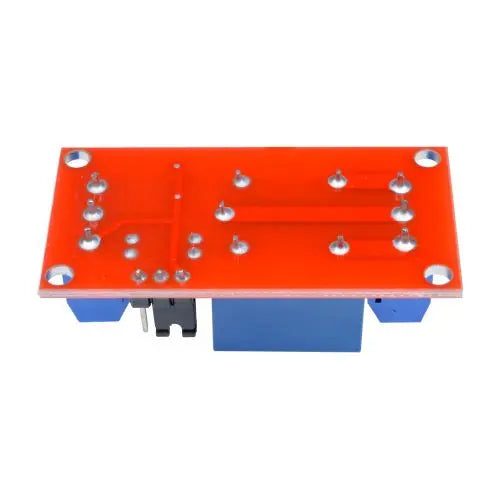

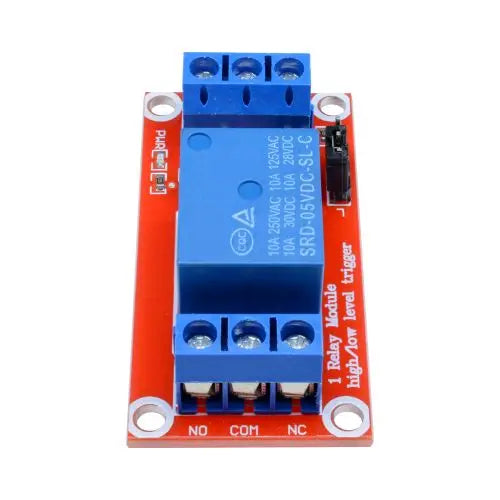

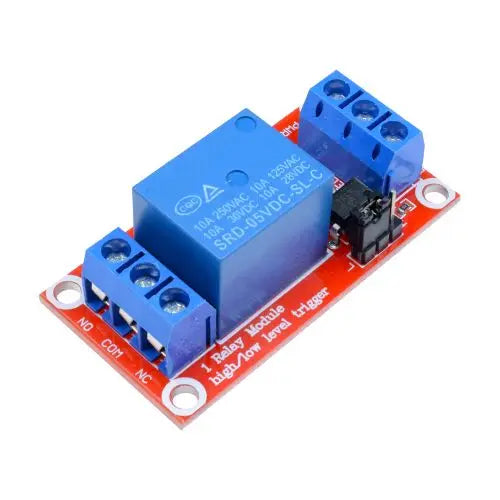

5V 1 channel
Working voltage: 5V
Maximum load: AC 250V/10A, DC 30V/10A

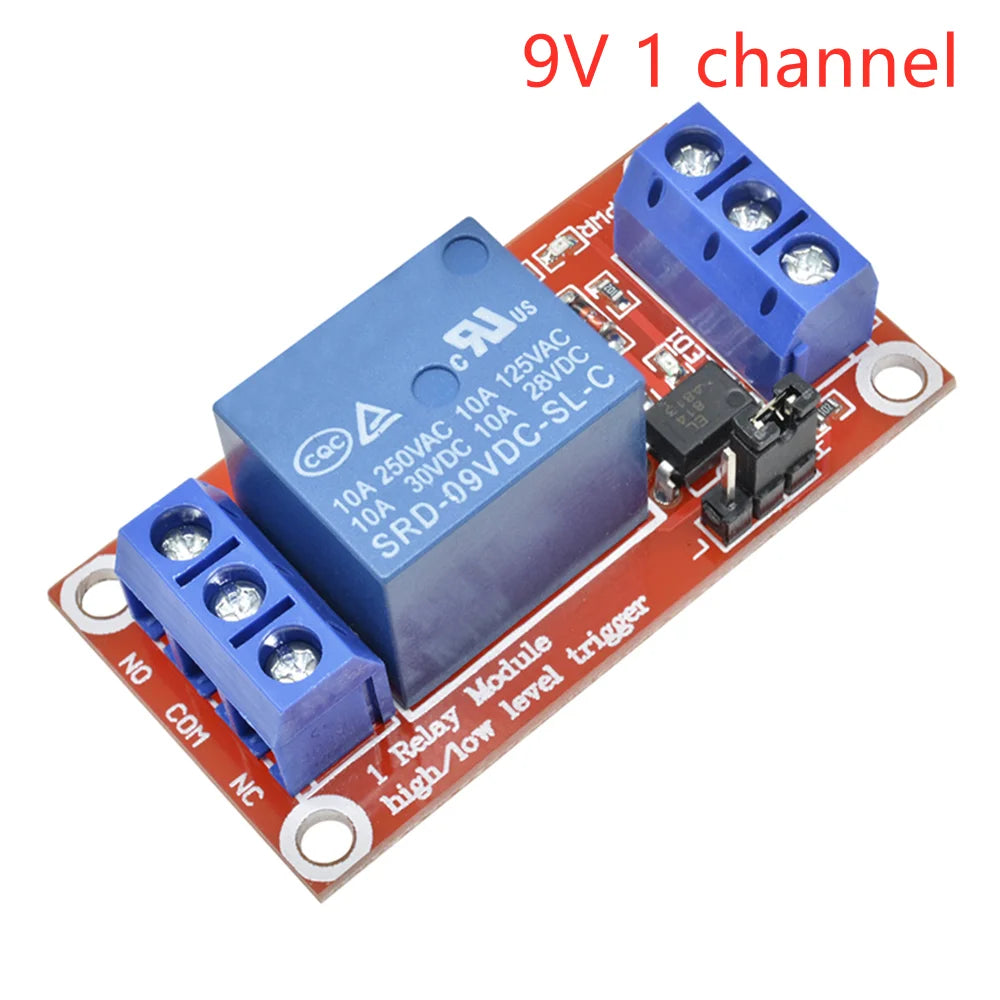

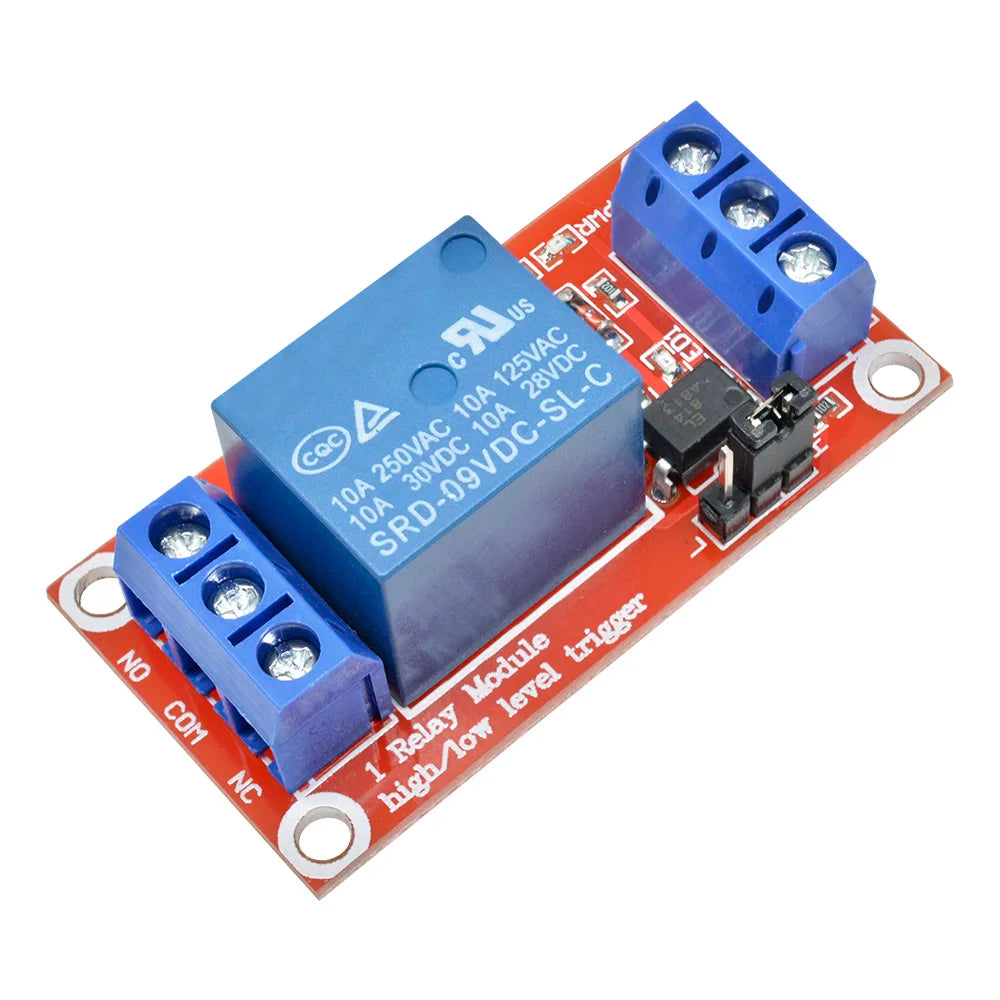

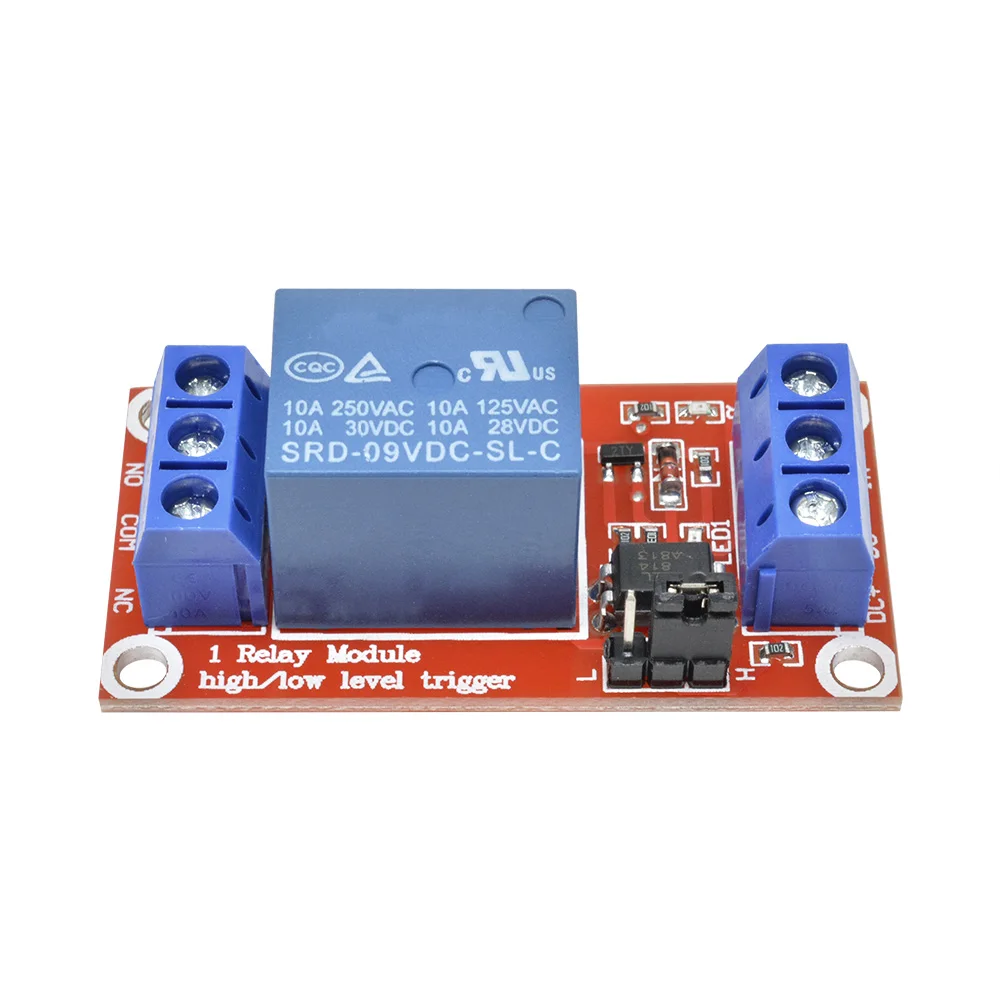

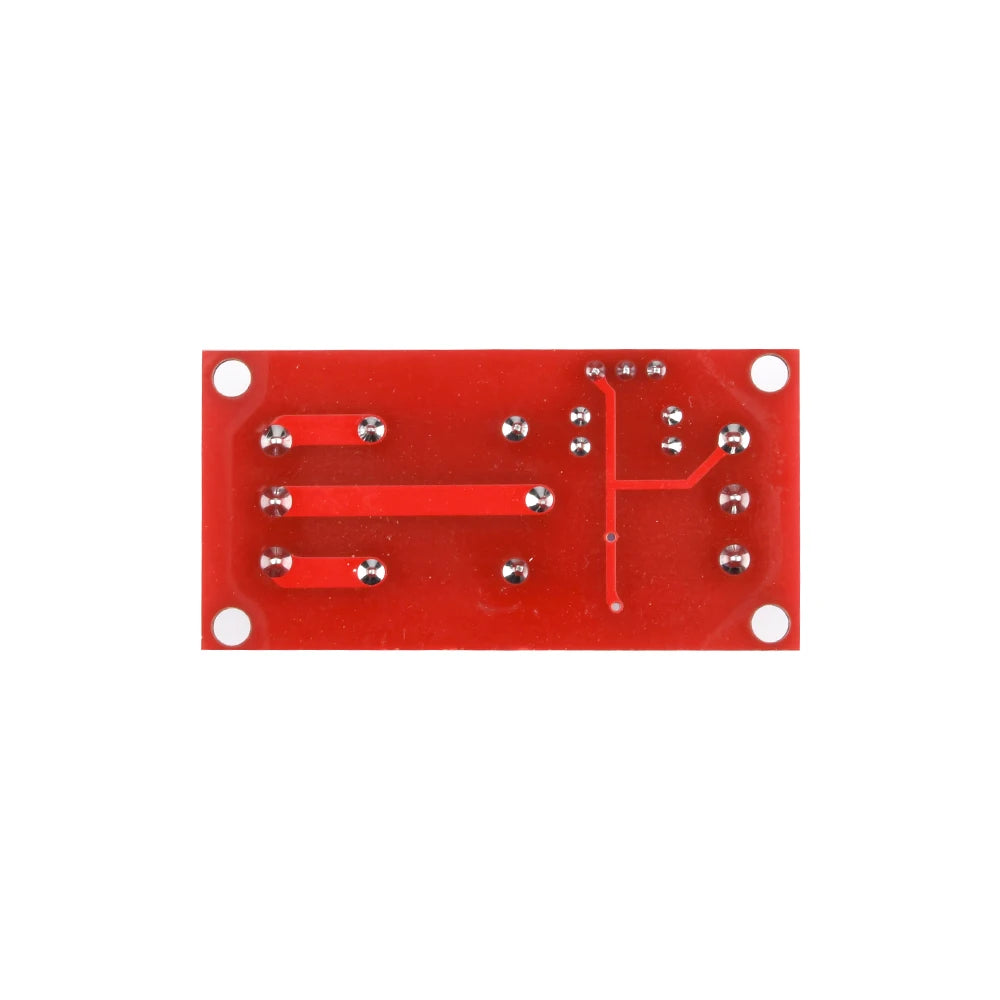

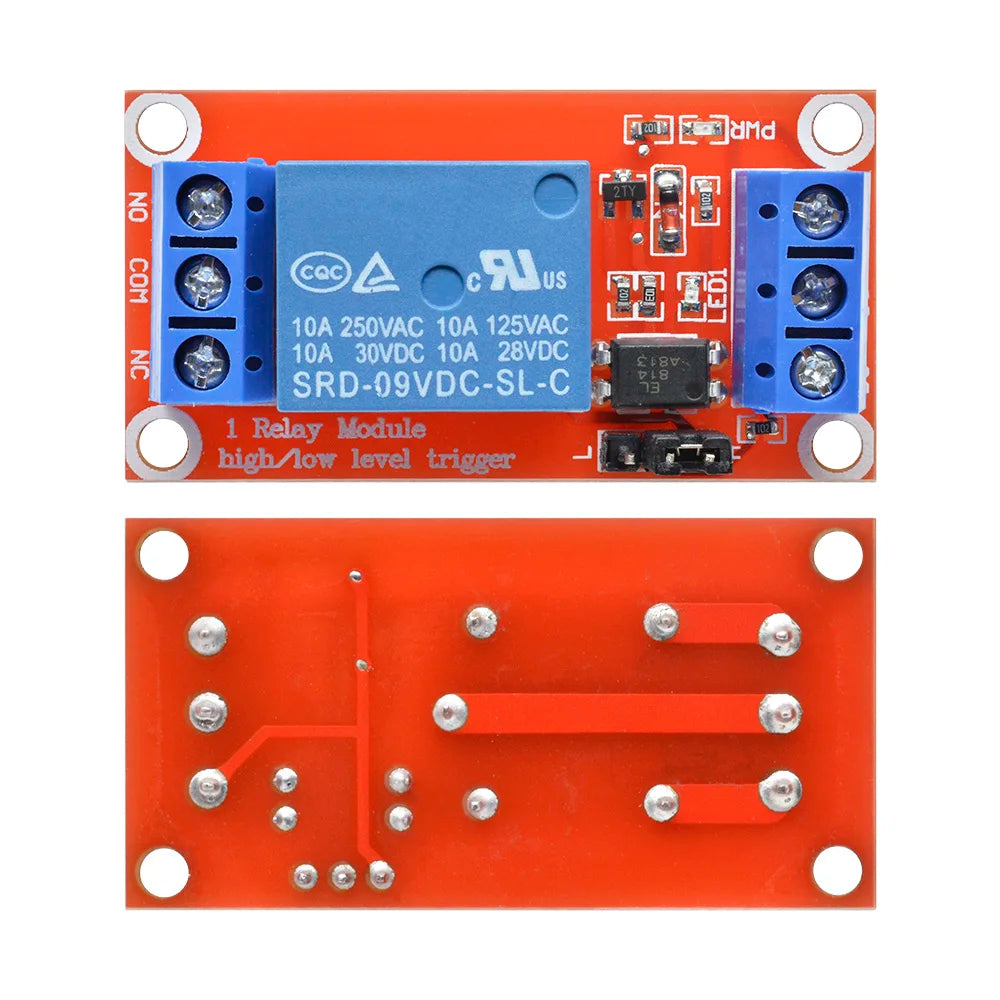

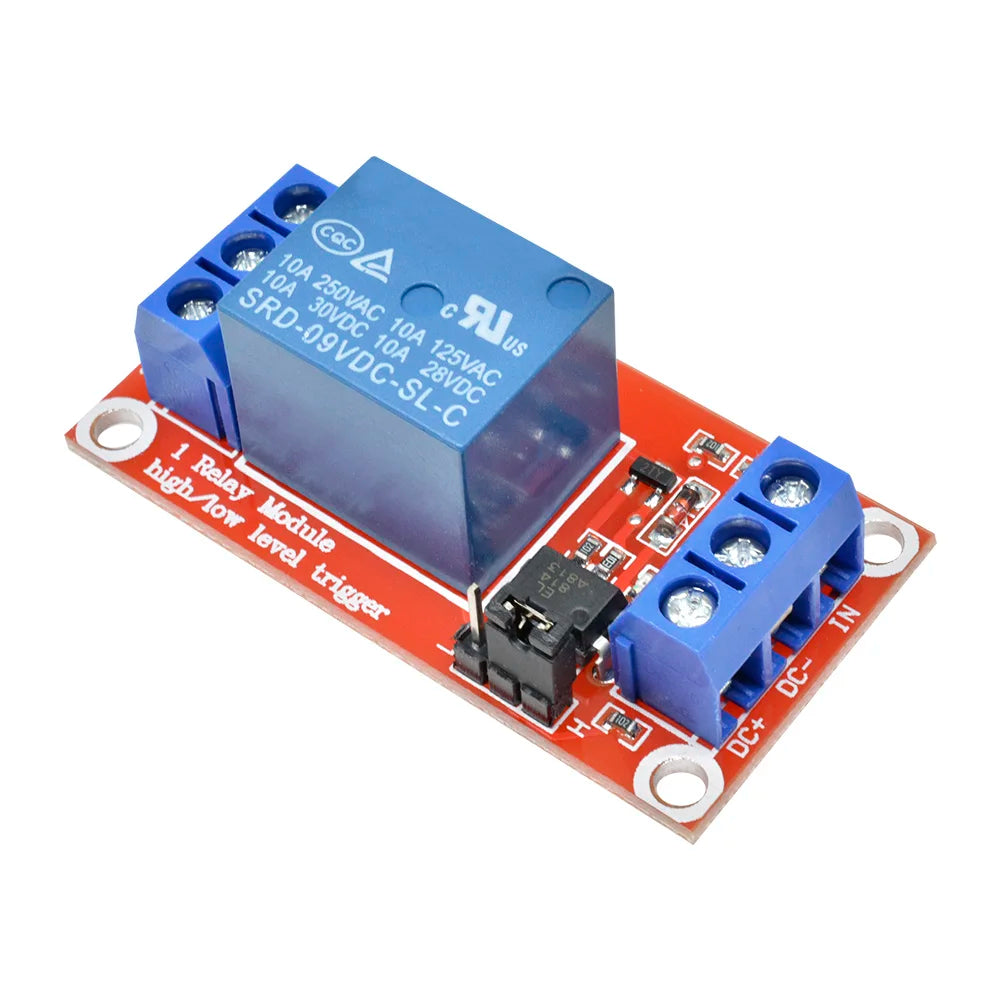

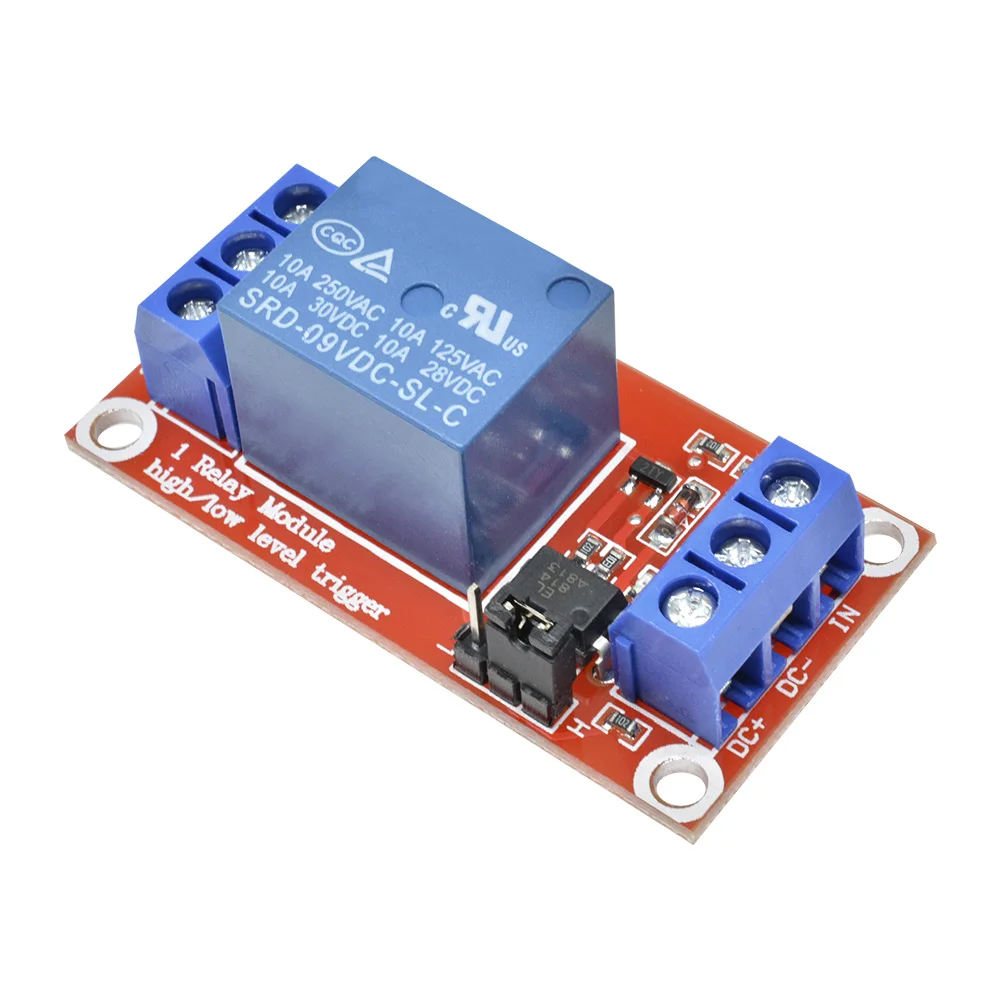

9V 1 channel
Parameters:
Maximum load: AC 250V/10A, DC 30V/10A
Trigger current: 5mA
Working voltage: 9V
Module size: 50 × twenty-six × 18.5 mm (length x width x height)
Four fixing bolt holes with a diameter of 3.1 millimeters

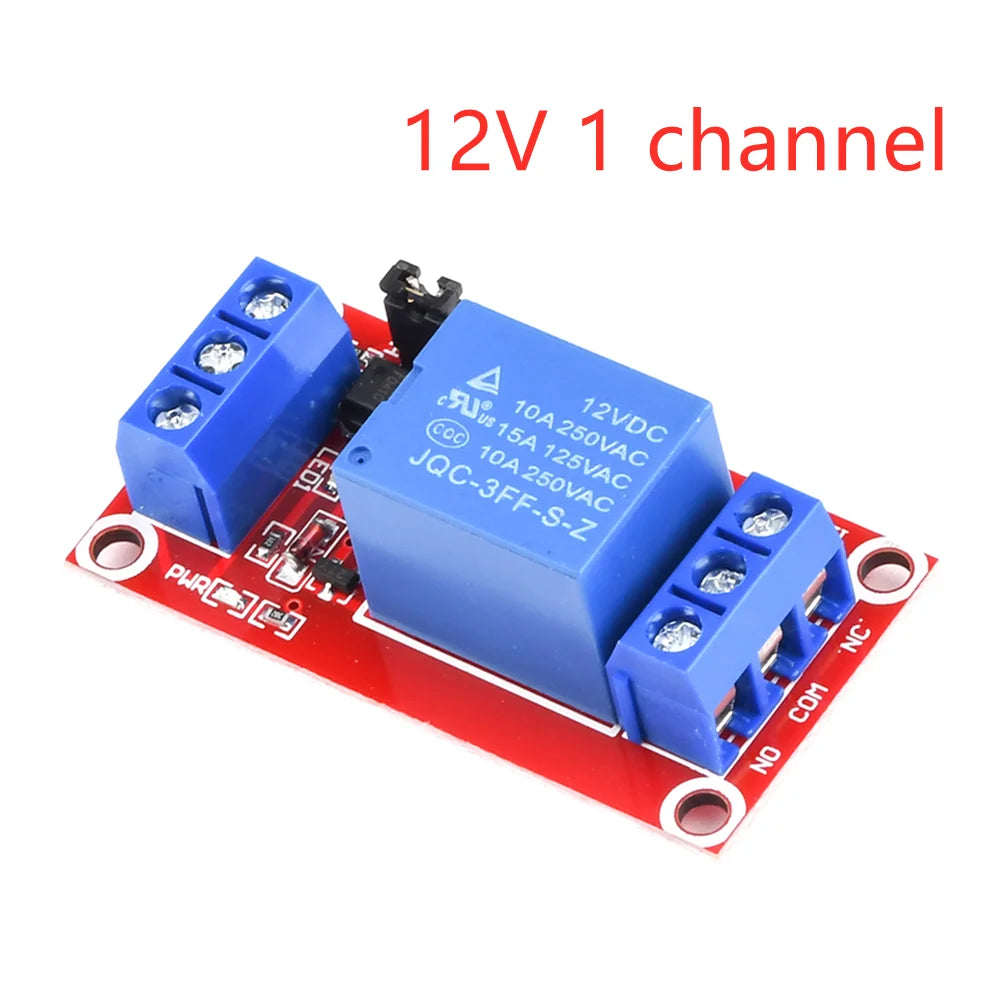

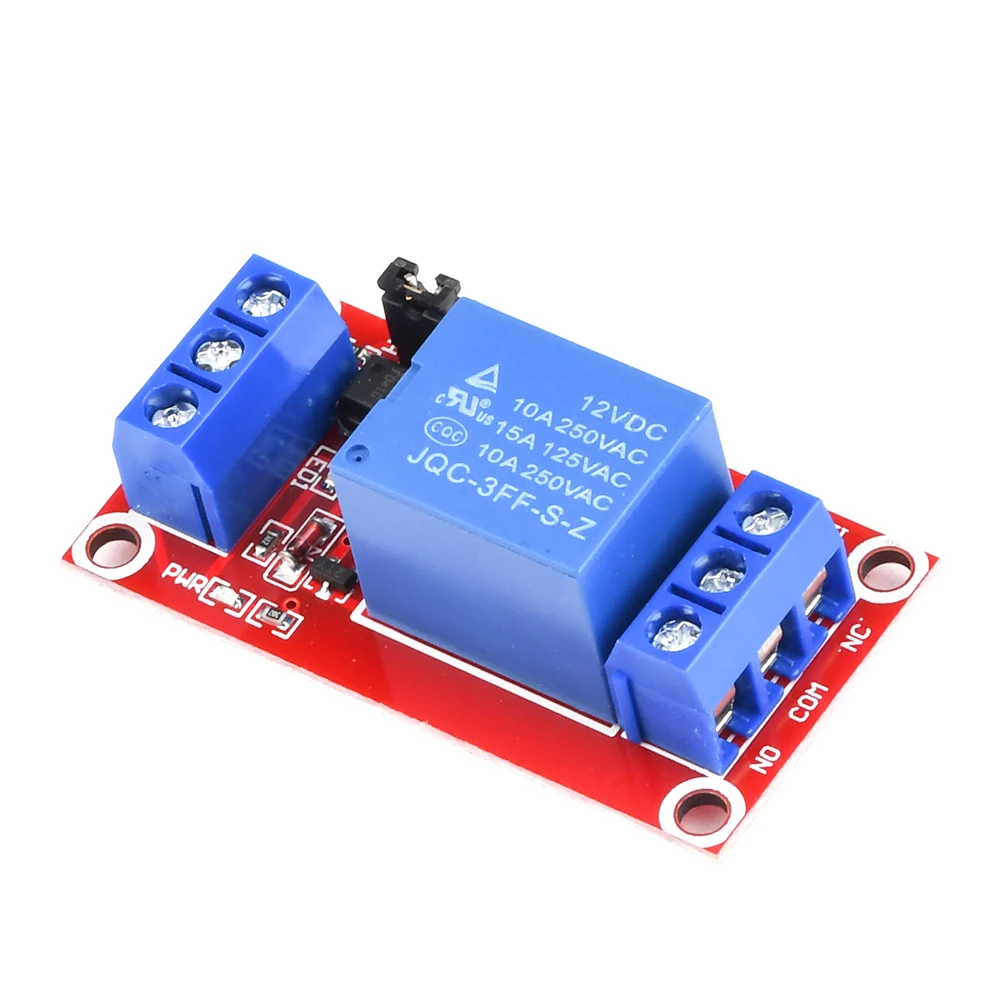

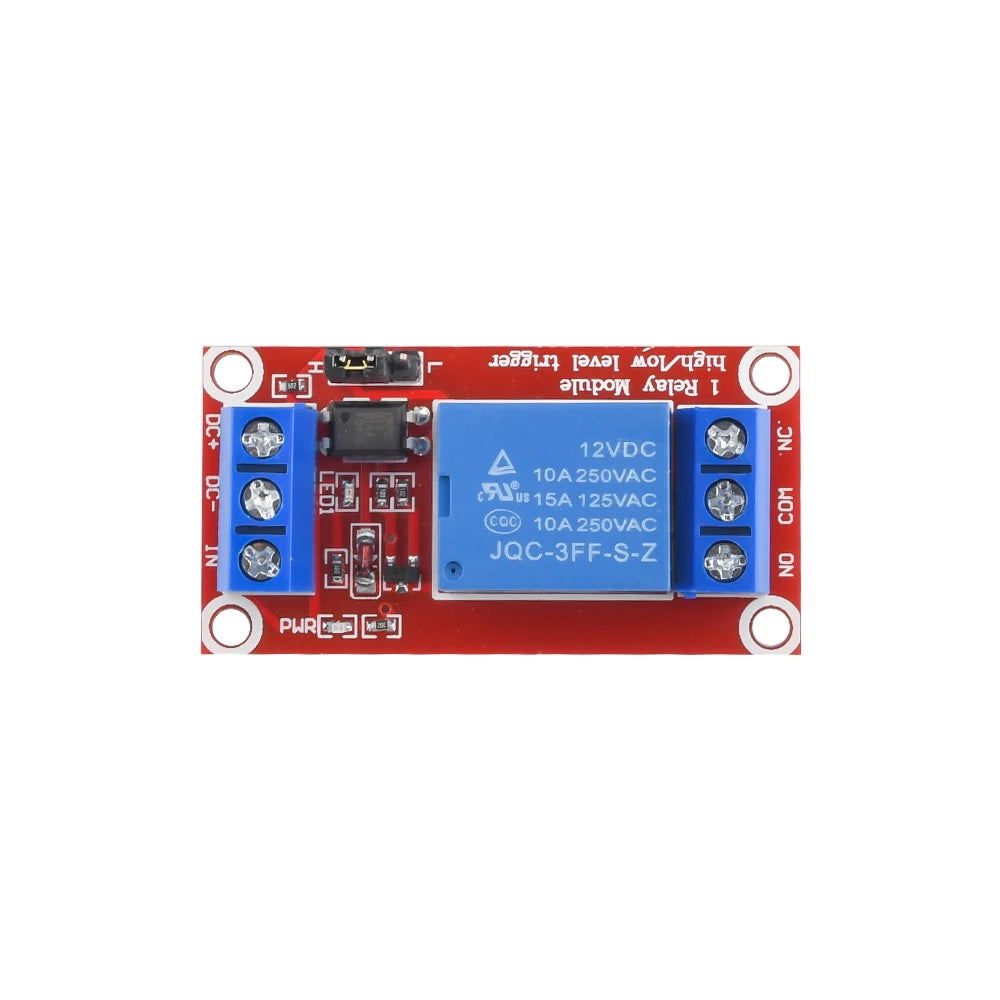

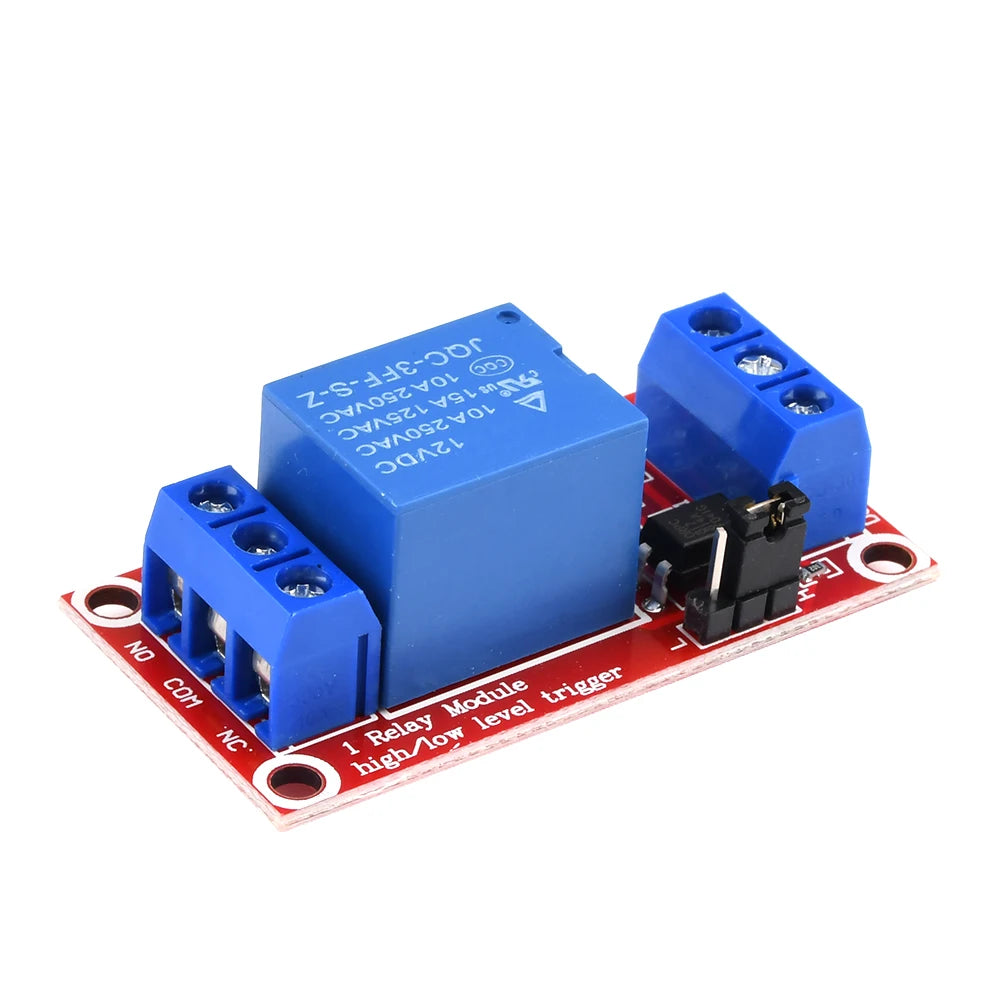

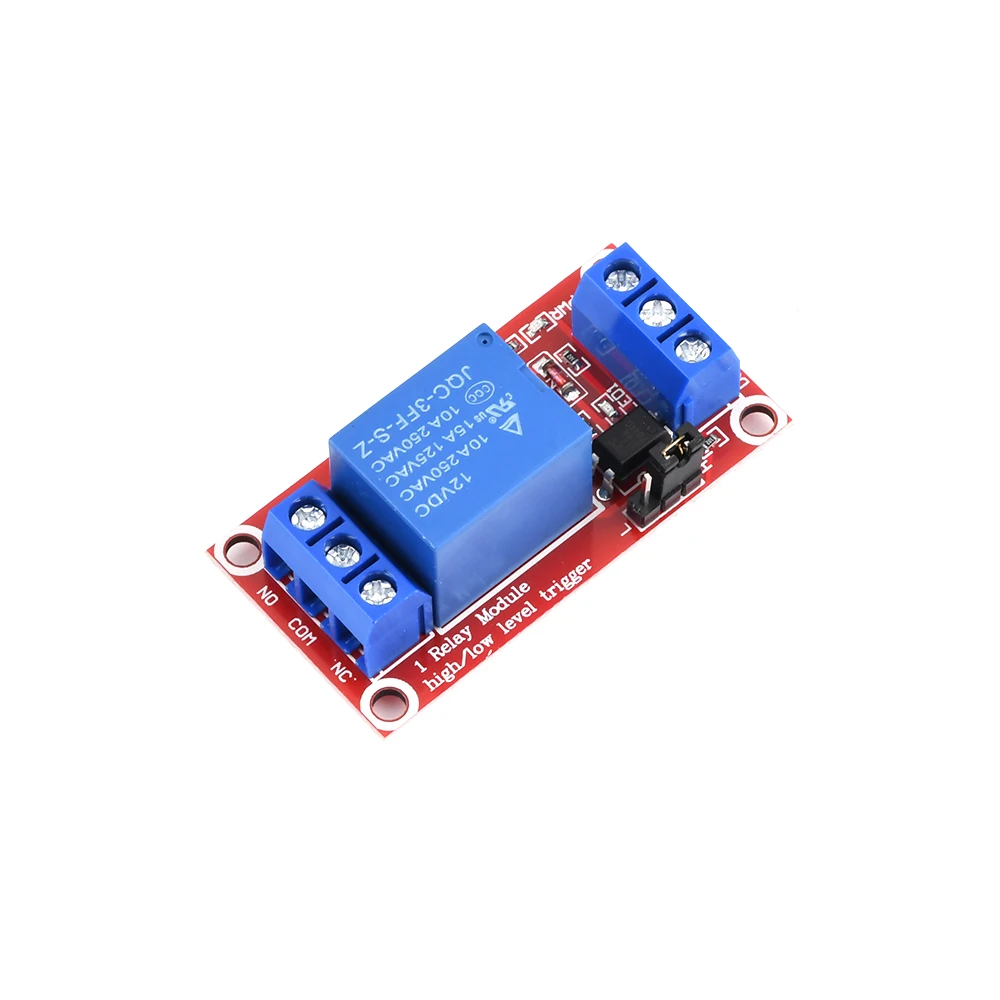

12V 1 channel
Trigger current: 5mA
Module working voltage: DC12V
Load current: 2A
Module size: 50 * 26 mm * 18.5 mm (L * W * H)
There are four fixed bolt holes, with a spacing of 3.1mm and 44.5mm * 20.5mm

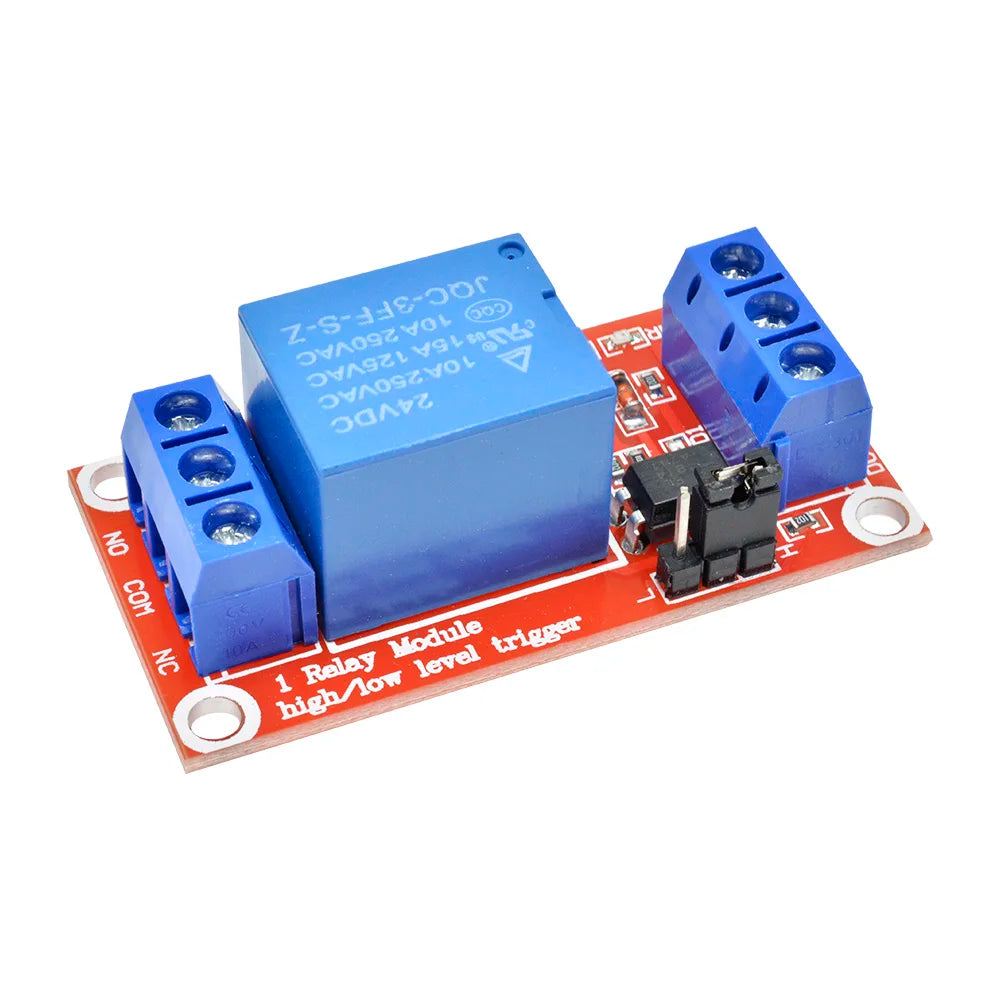

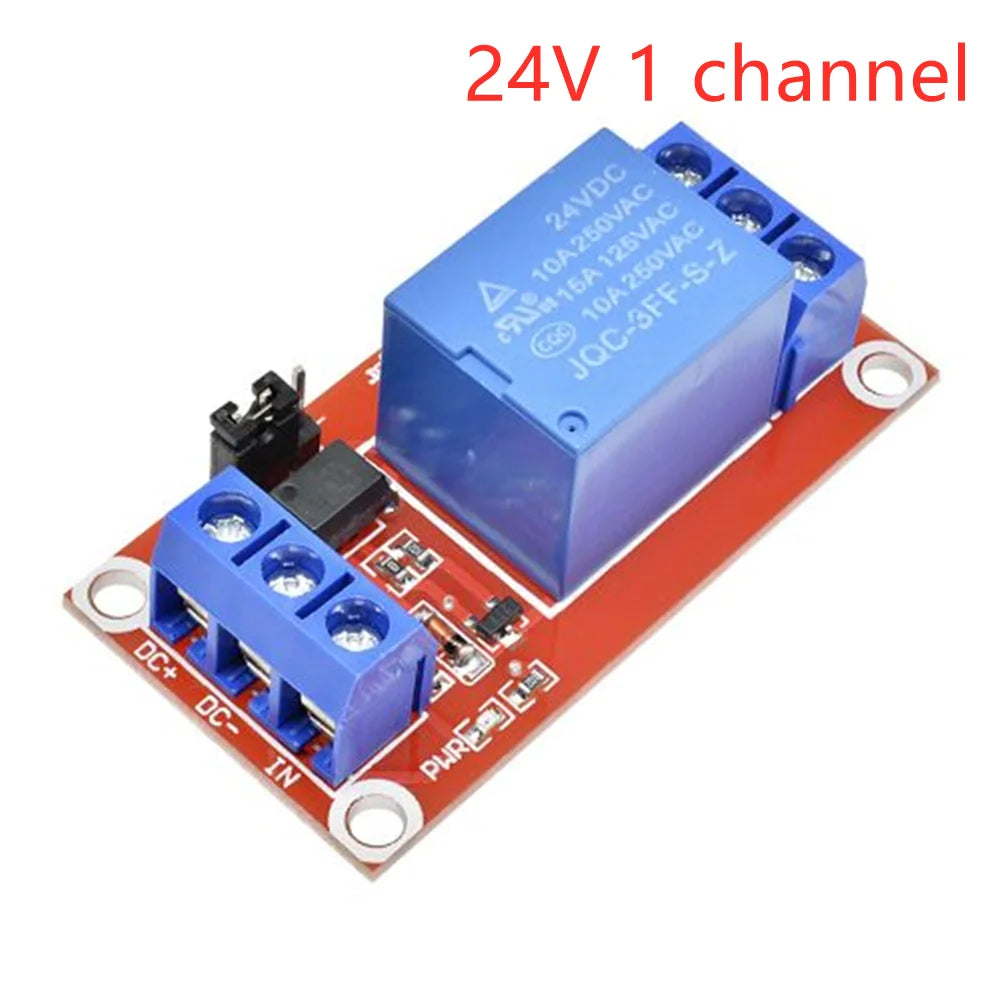

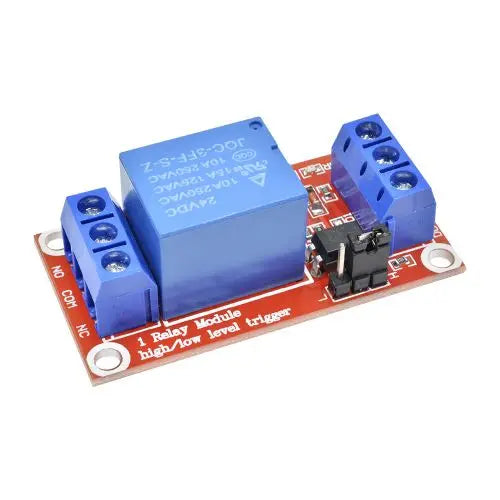

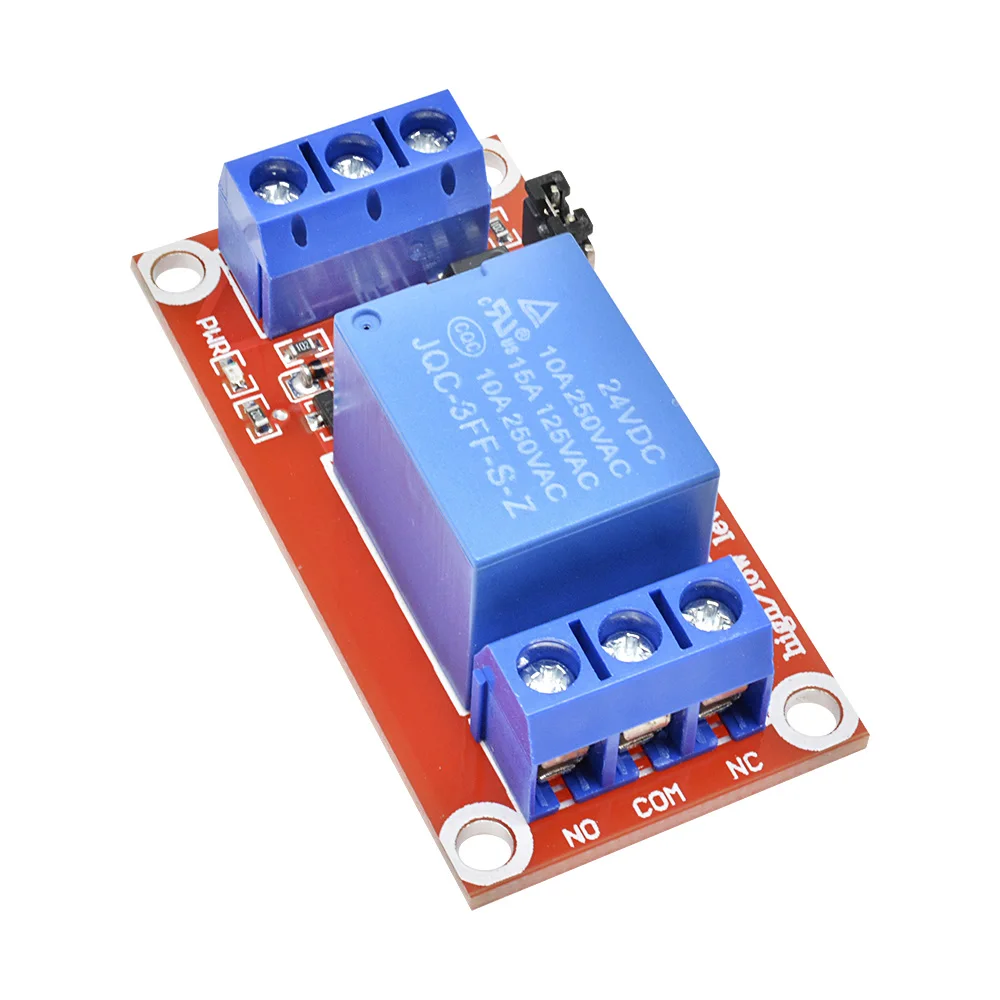

24V 1 channel
Drive current: 5mA
Power supply voltage:+24VDC
Equipped with 4 positioning holes with a diameter of 3.1mm for easy bolt fixation

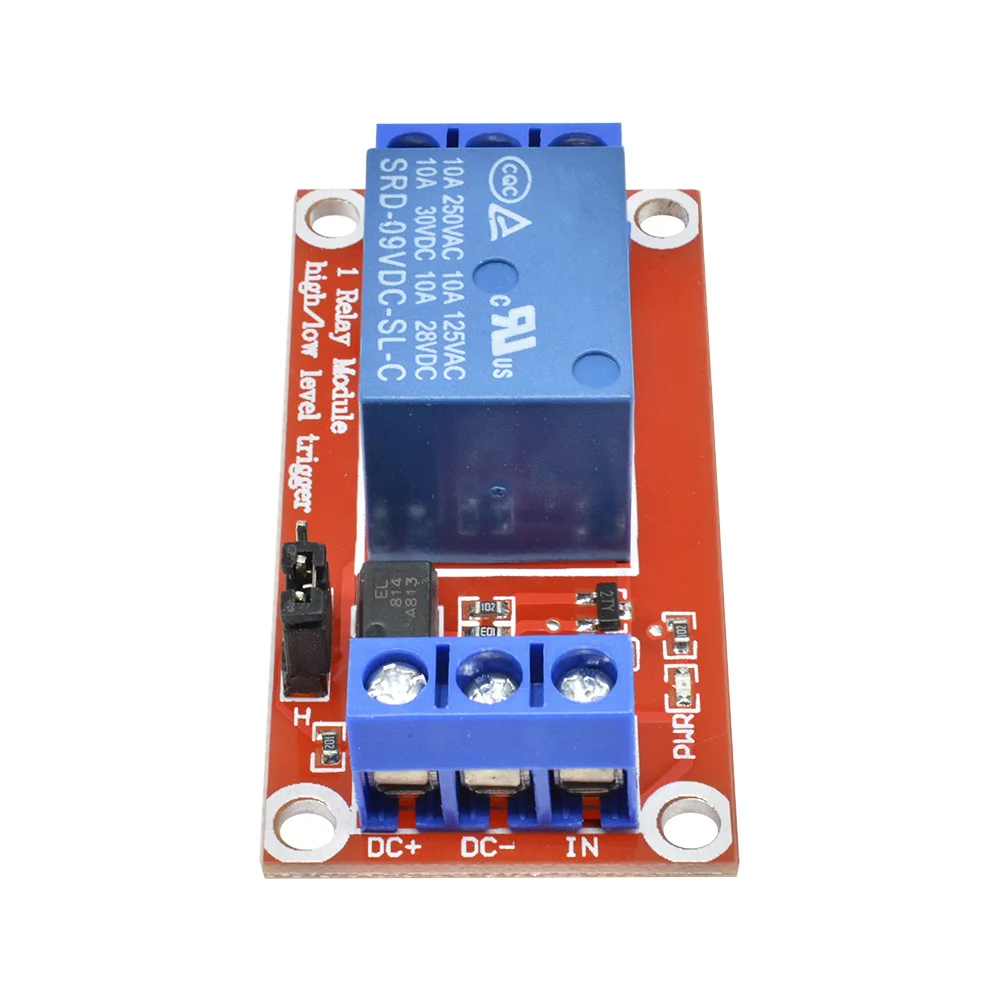

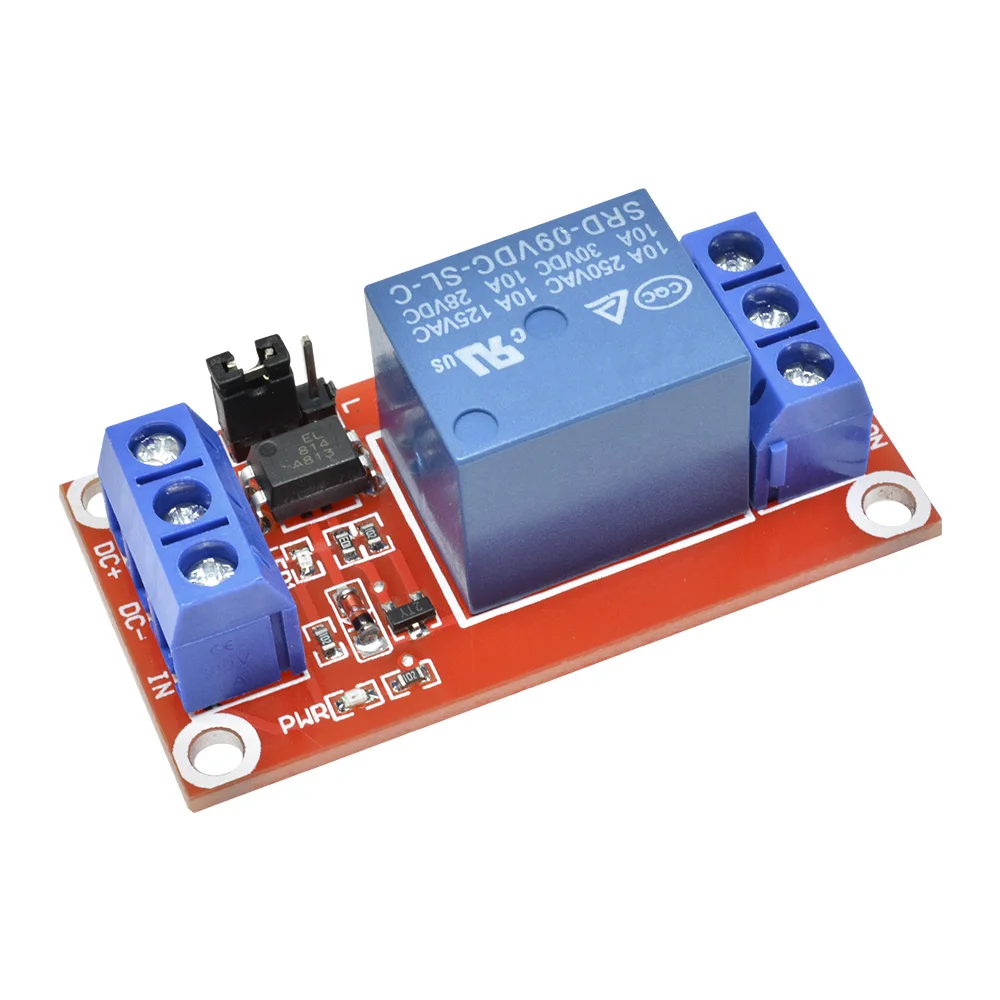

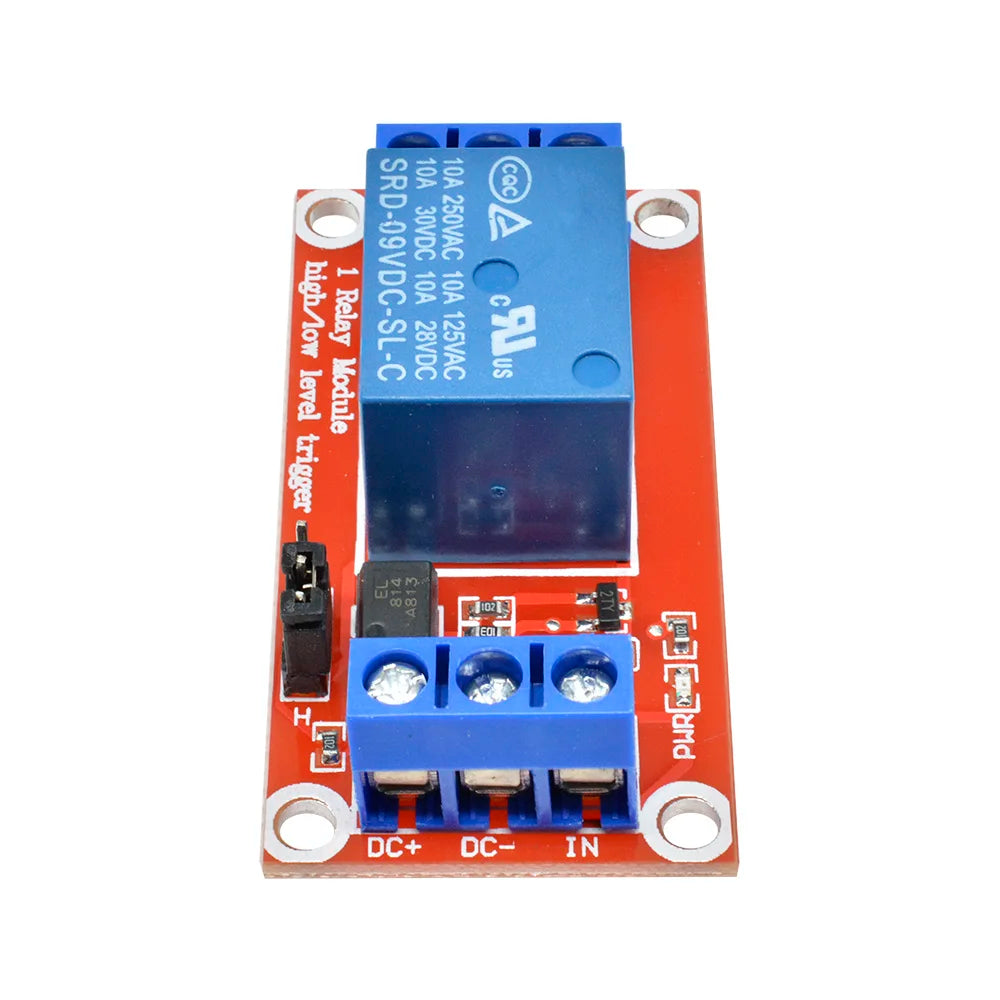

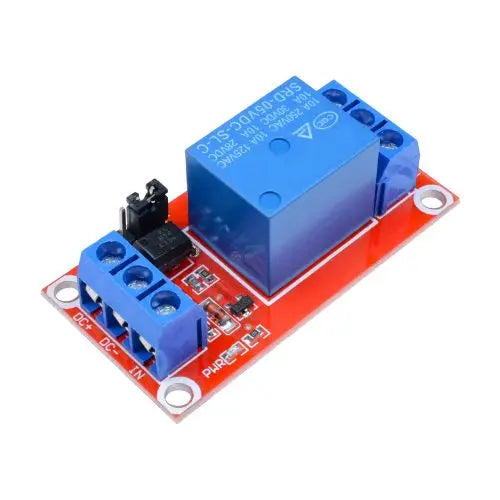

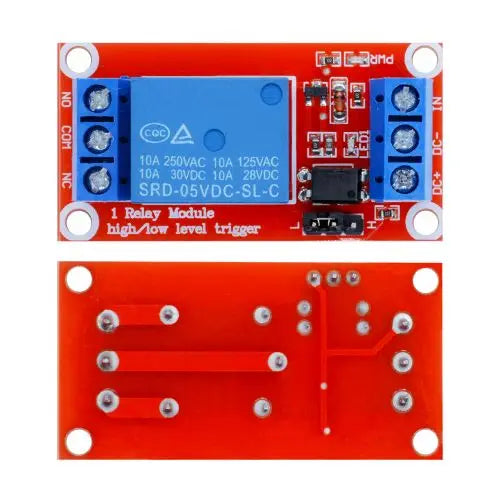

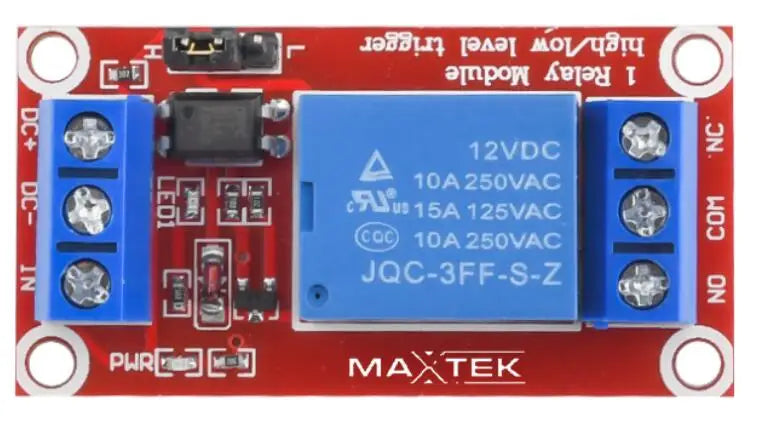

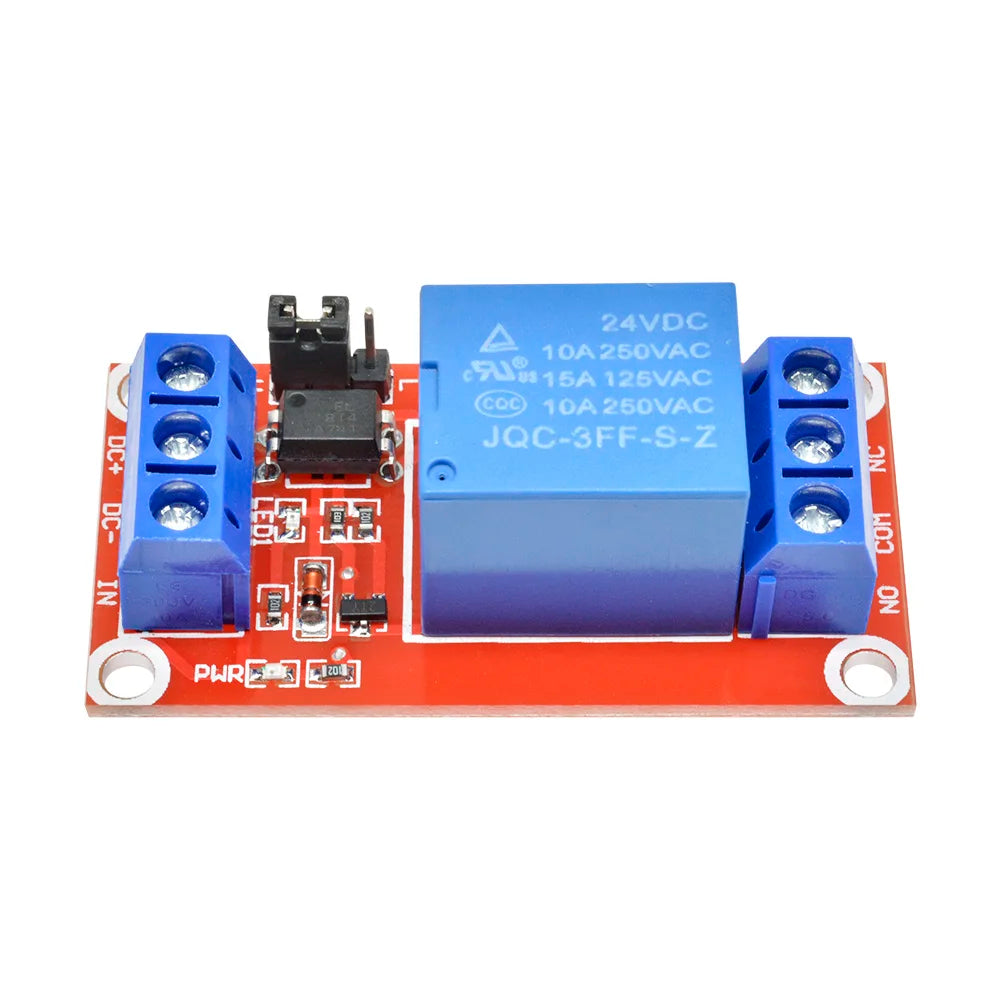

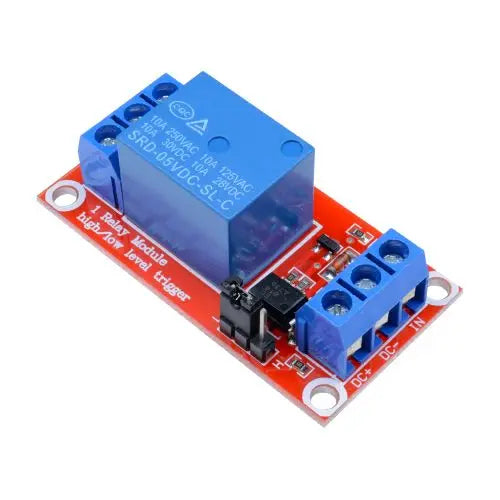

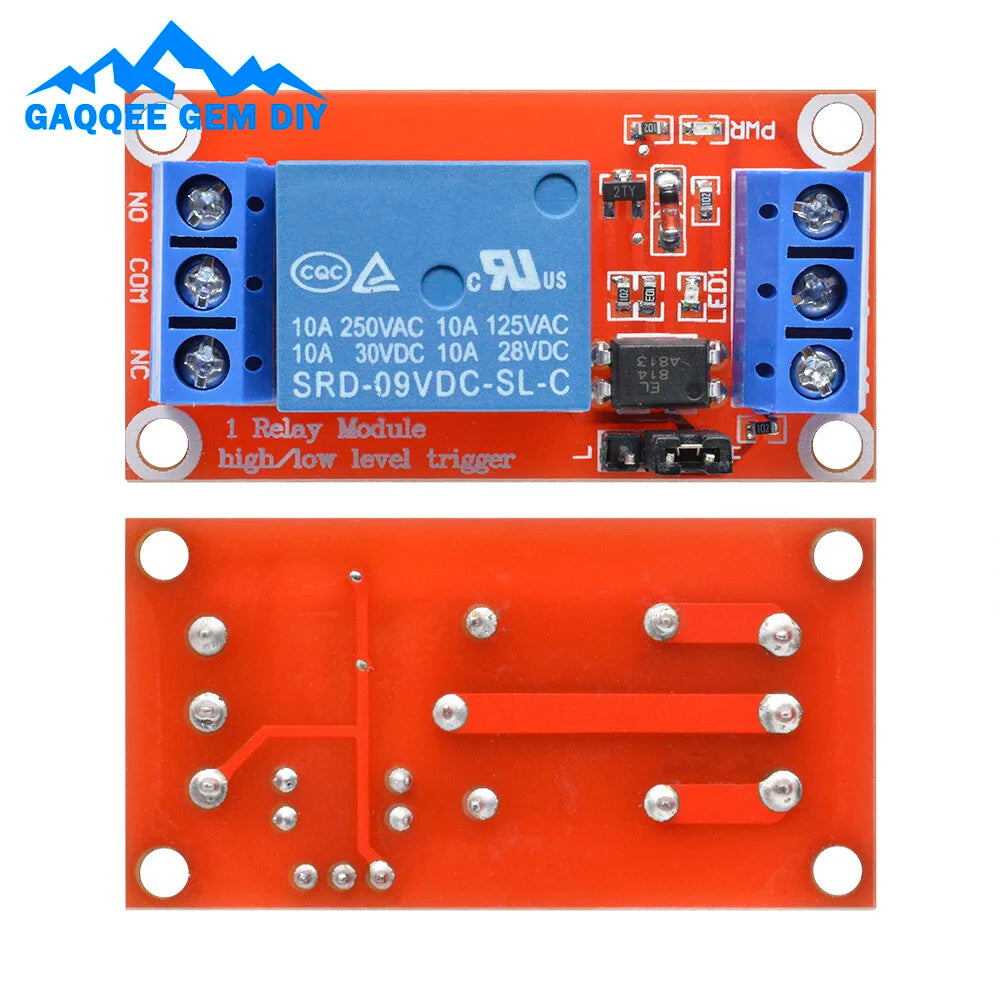

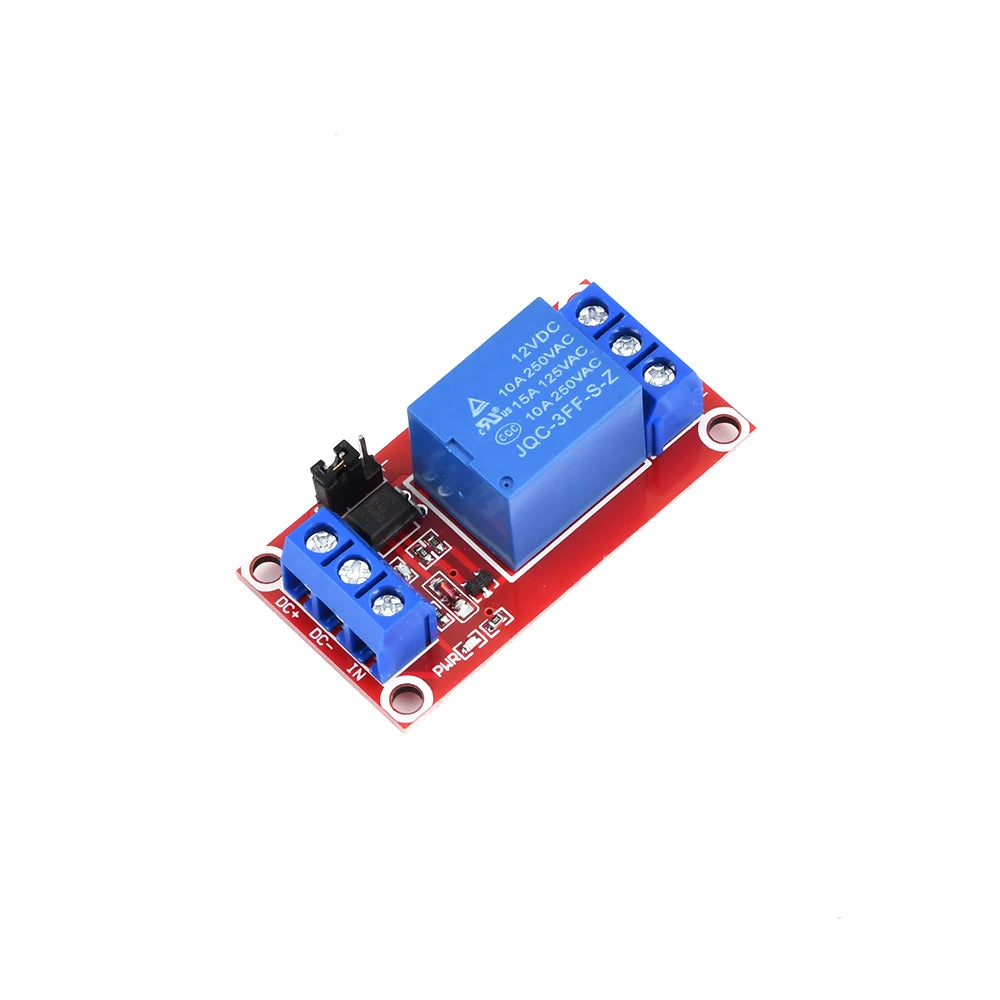

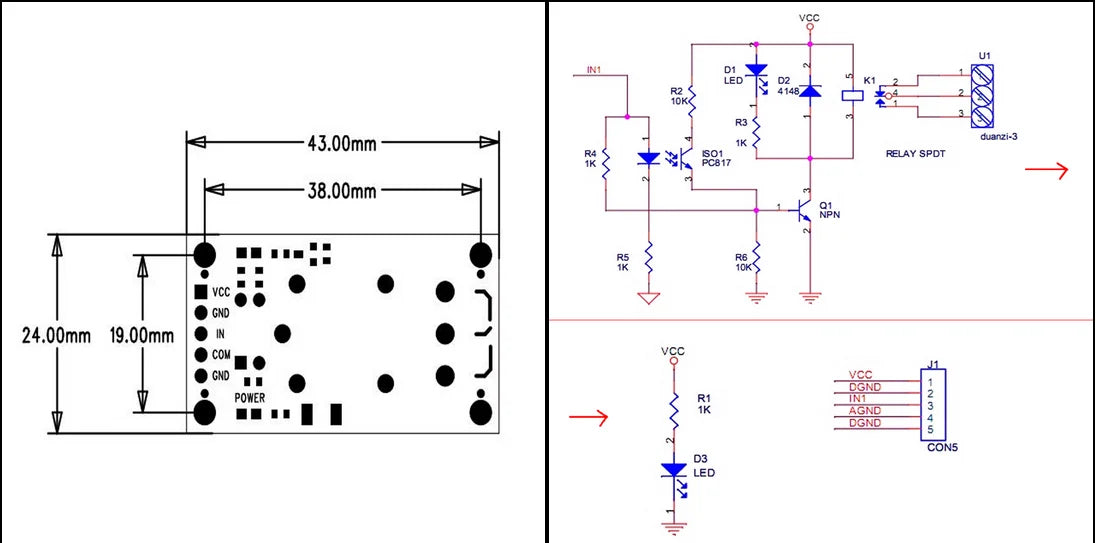

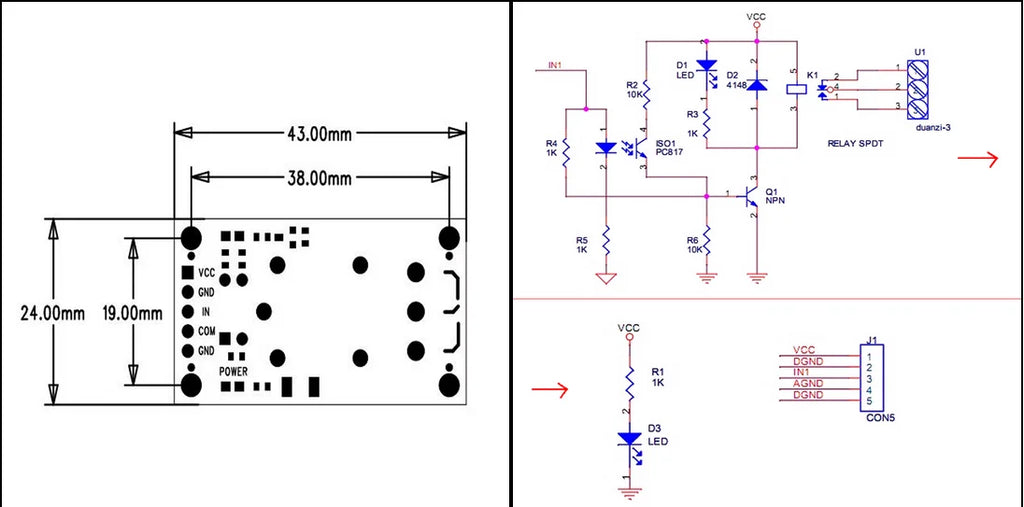

Module Interface
DC+: Connected to the positive pole of the power supply (voltage according to relay requirements)
DC -: Connected to the negative pole of the power supply
IN: The relay can be controlled to engage at high or low levels

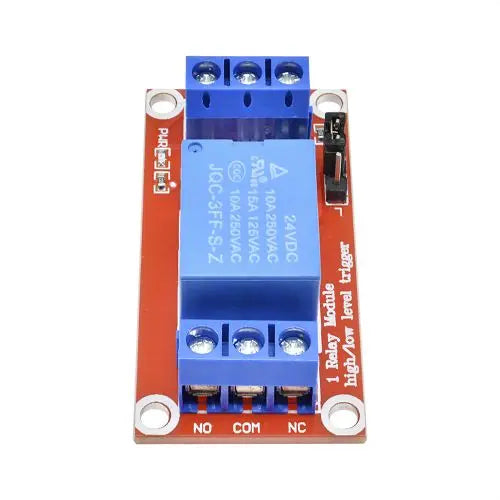

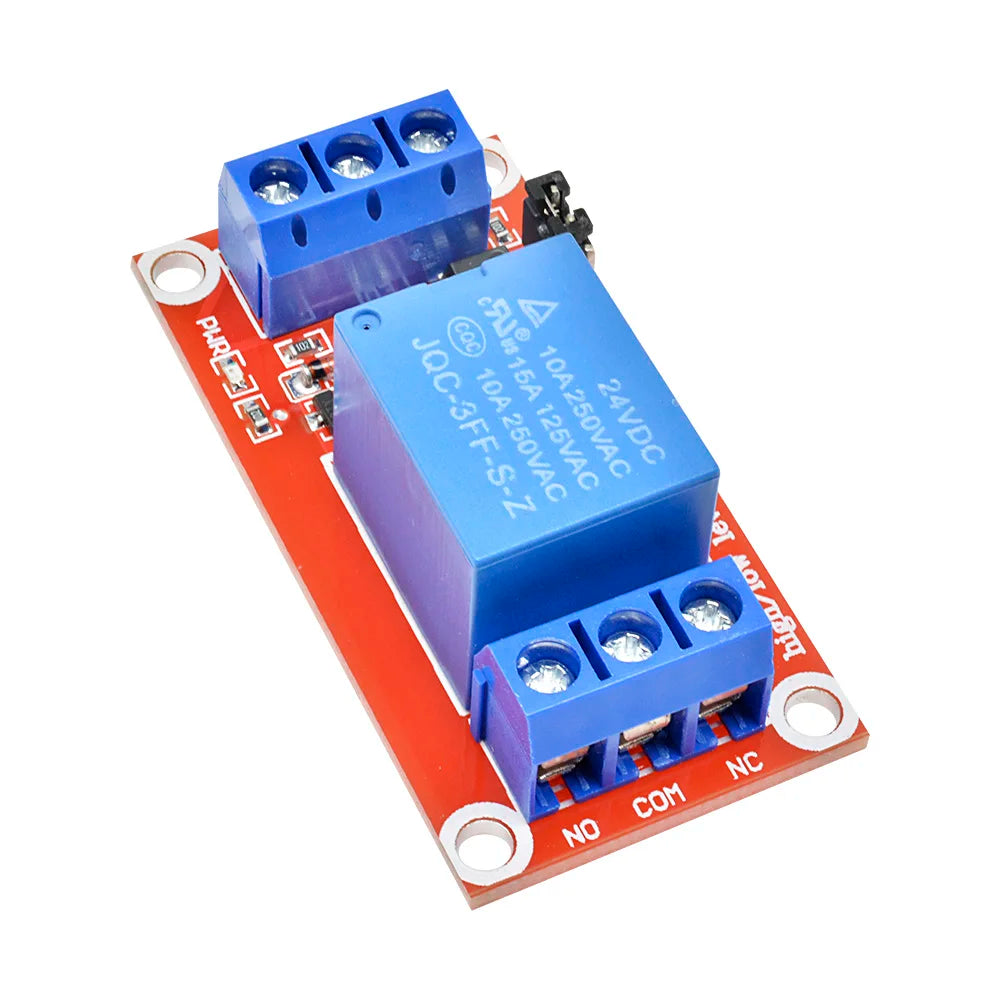

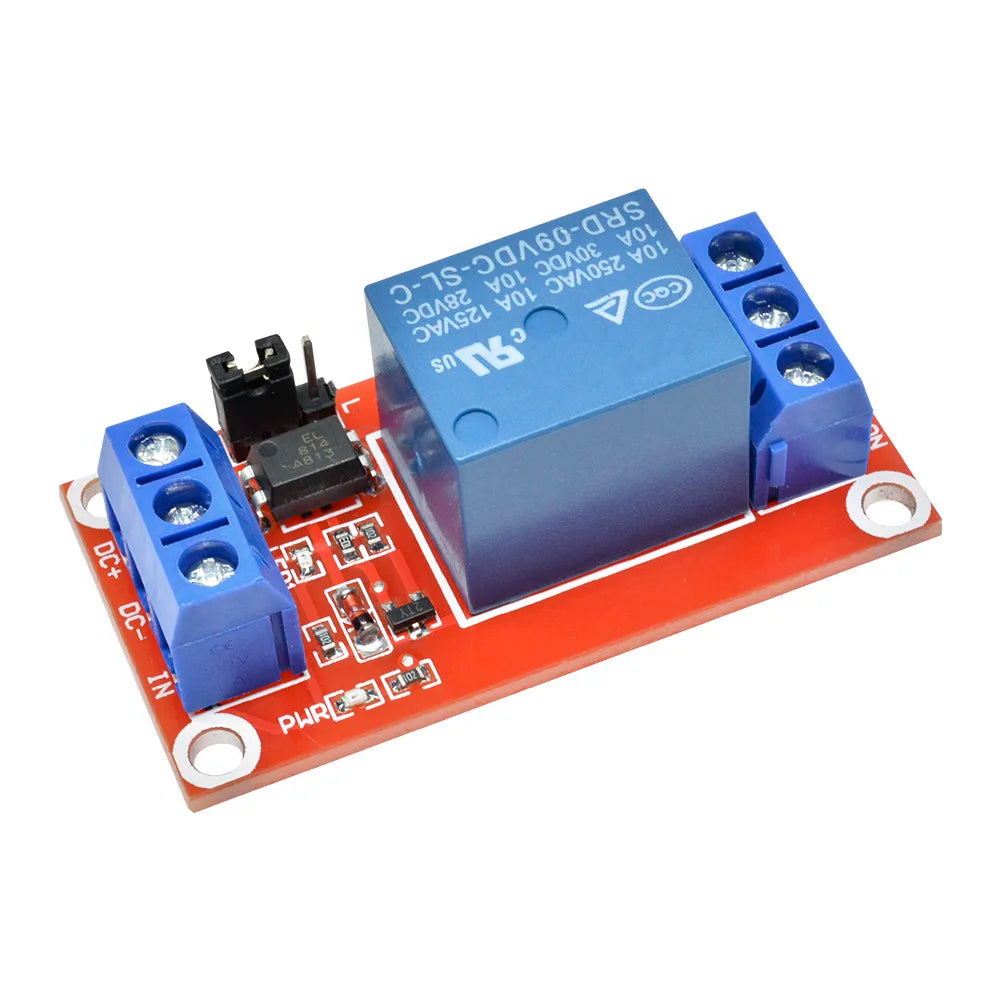

Relay output terminal:
NO: Normally open interface of the relay, suspended before the relay is pulled in, and short circuited to COM after pulling in
COM: Relay Common Interface
NC: Normally closed interface of the relay, short circuited to COM before relay engagement, suspended after engagement

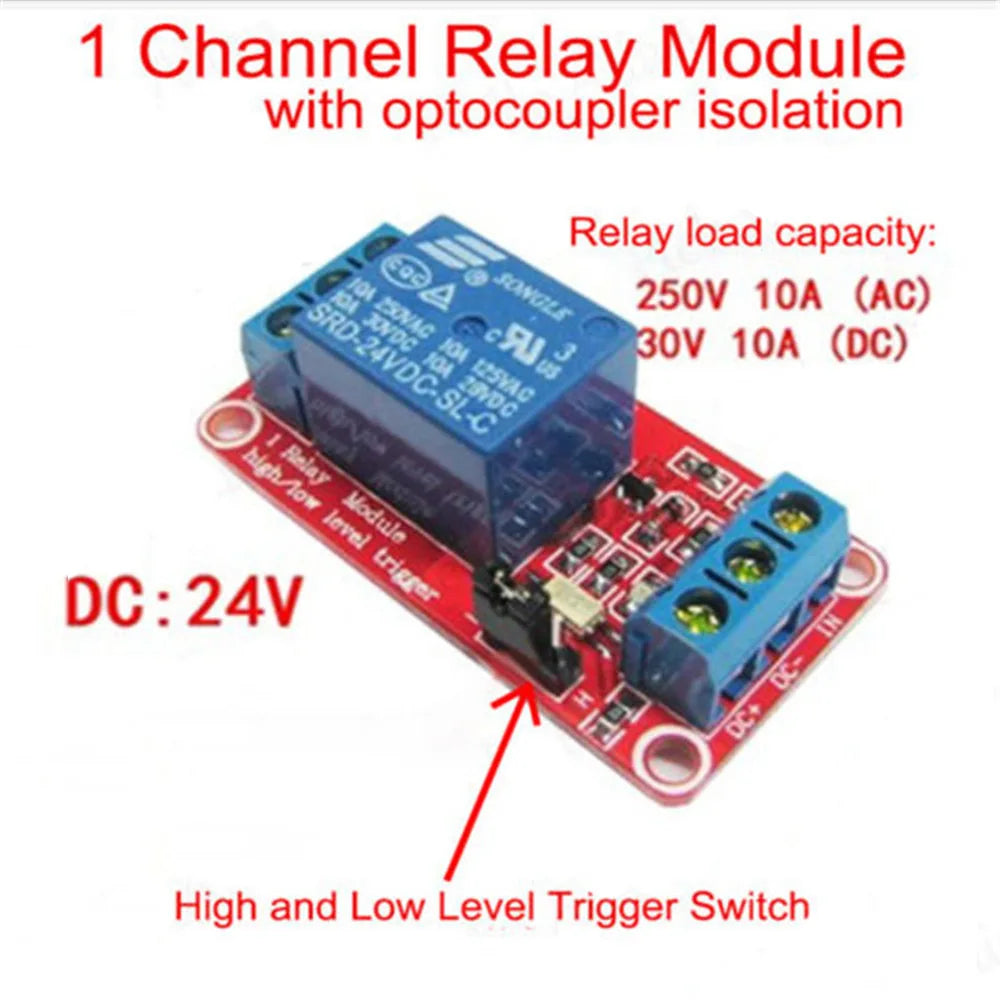

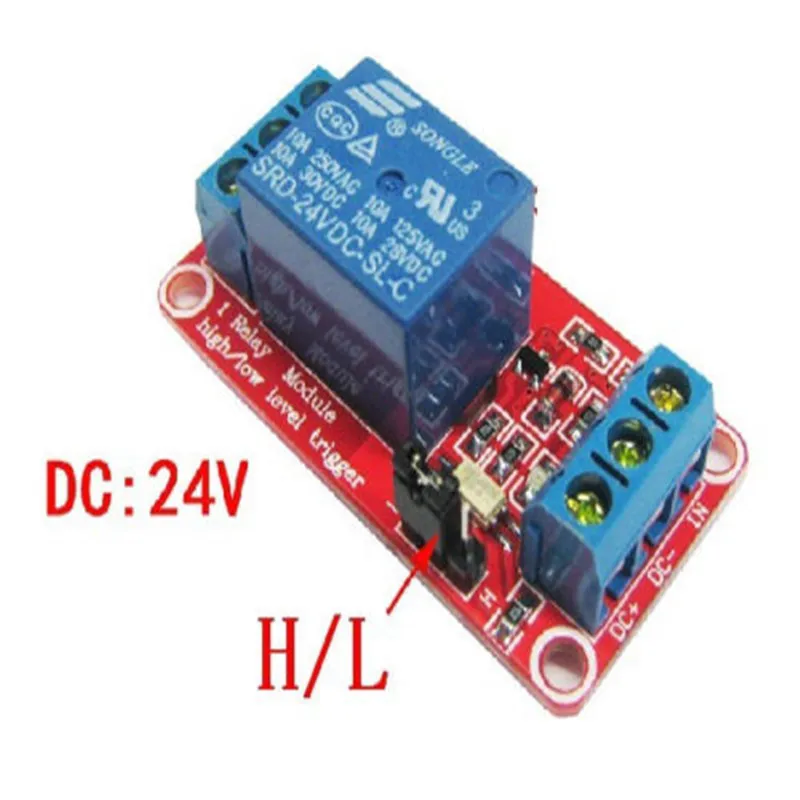

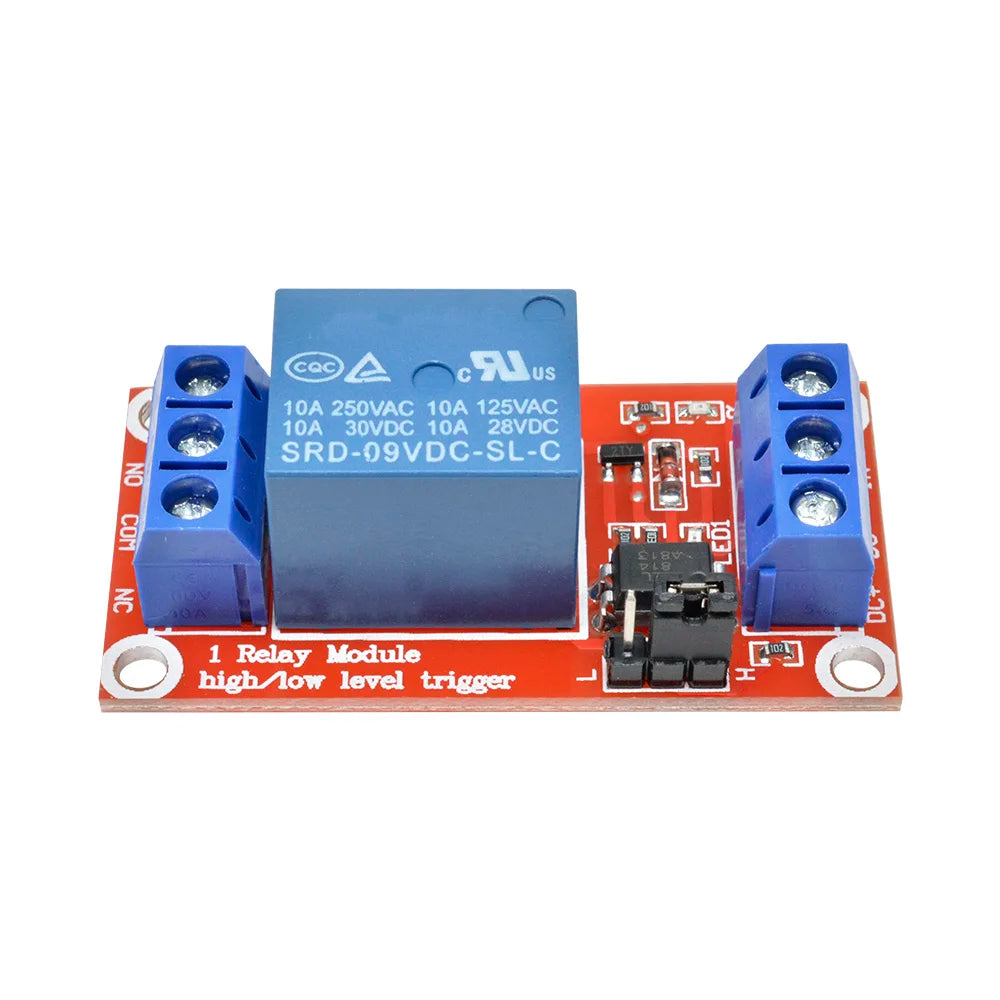

High and low level trigger selection terminal
1. When the jumper is shorted to LOW, it is triggered at a low level;
When the jumper is short circuited to high, it is triggered at a high level.

Package include:

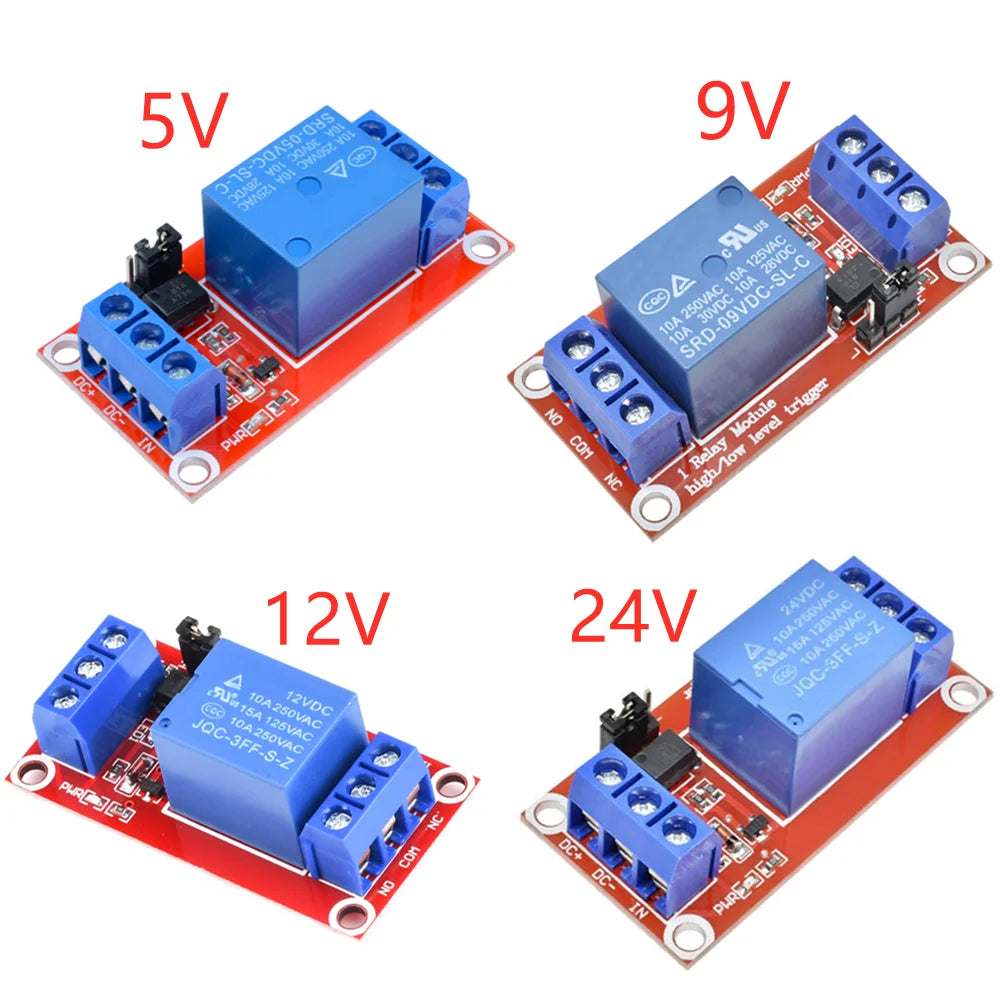

Relay module * 1（5V 9V 12V 24V optional）
