SPECIFICATIONS

Average Life (hrs): More than 50000hours

Brand Name: TNALANT

Certification: CCC,ce,FCC,ROHS

Color Temp(K): 3000k-6500k

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: Yes

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/144leds/m

Luminous Flux: 249-2000

Model Number: SK6812 RGBW (Similar WS2812B)

Nominal Voltage: 5V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30/60/144

Strip type: SMD

Voltage: 5V

Waterproof: Yes

Notice:

1.The Price is only Led Strip, Not Included Power Supply or Led Controller!

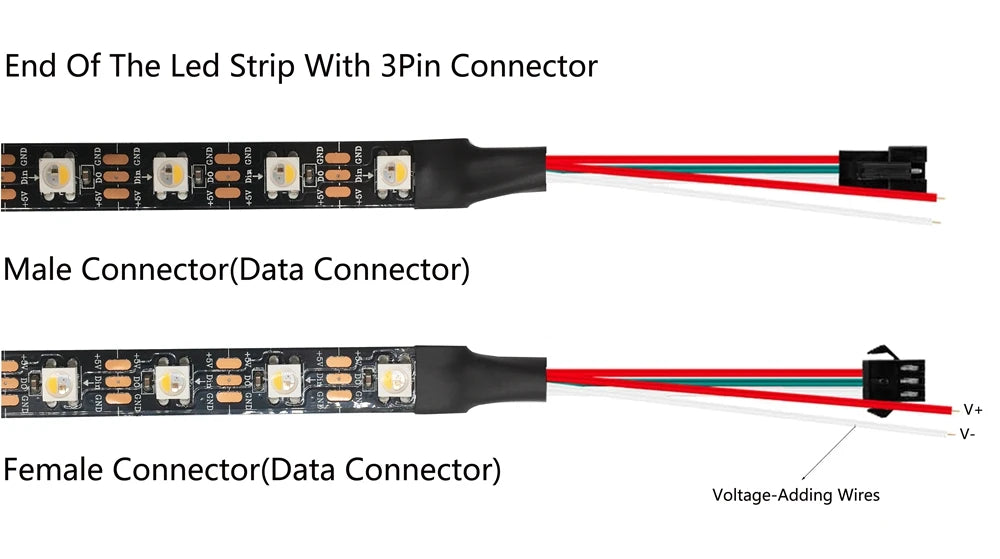

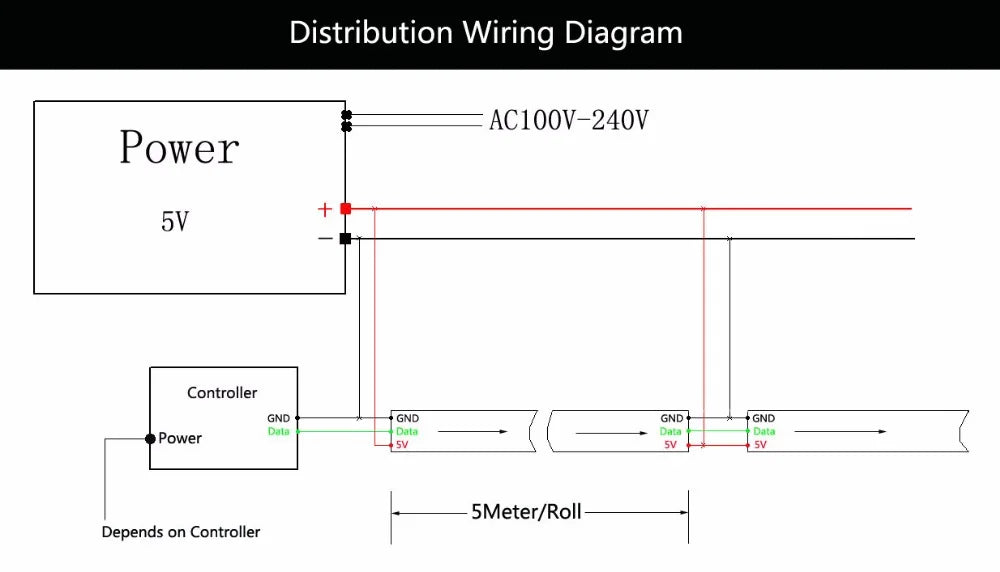

(SK6812 RGBW Must Use DC5V Power Supply AND Led Controller to Control)

2.Every 0.5meter with solder joints, Please note!

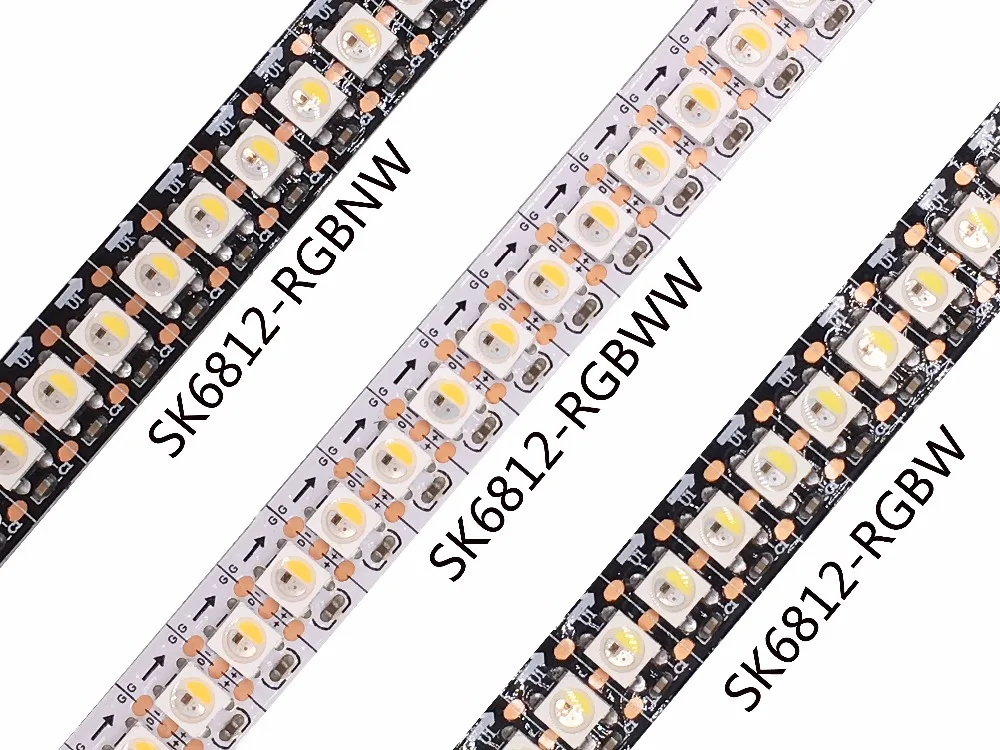

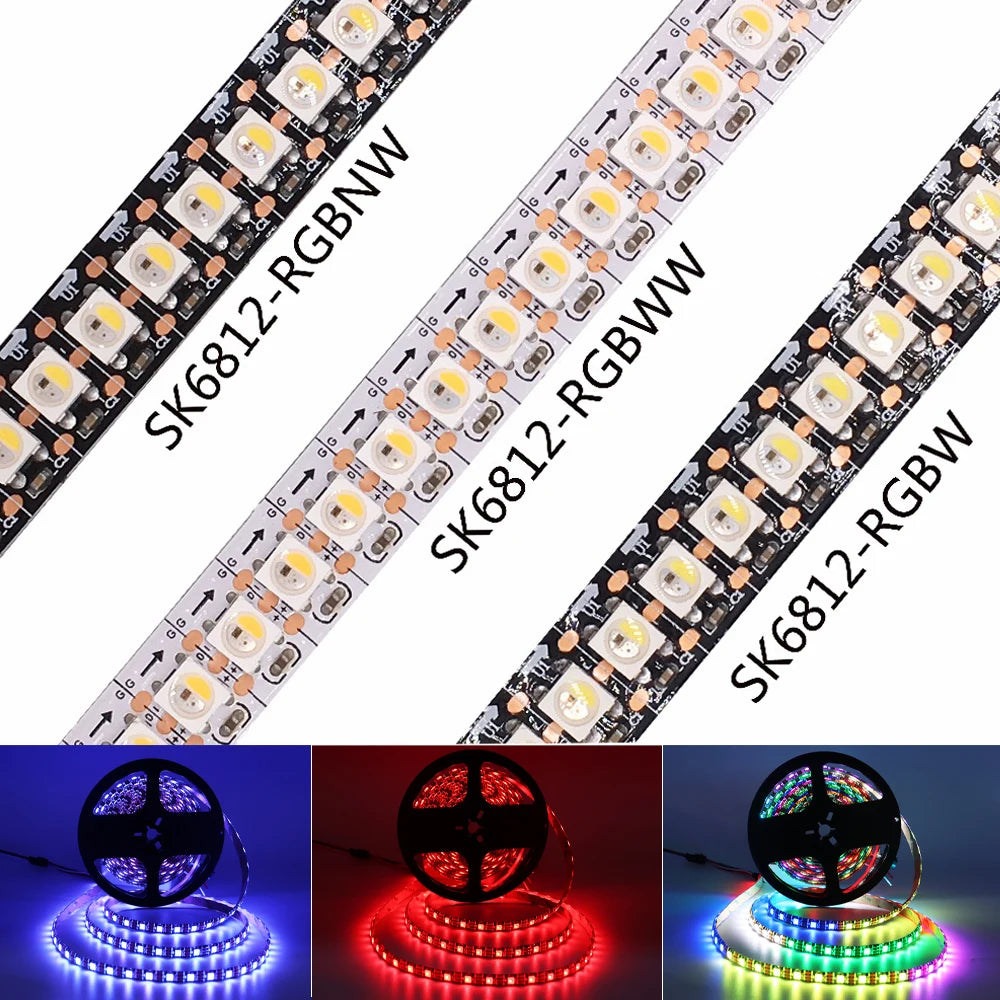

RGBCW=RGB+Cool White

RGBNW=RGB+Nature White

RGBWW=RGB+Warm White

Waterproof Level:

IP30: Non- waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube

The Length As You Choose

Product Details:

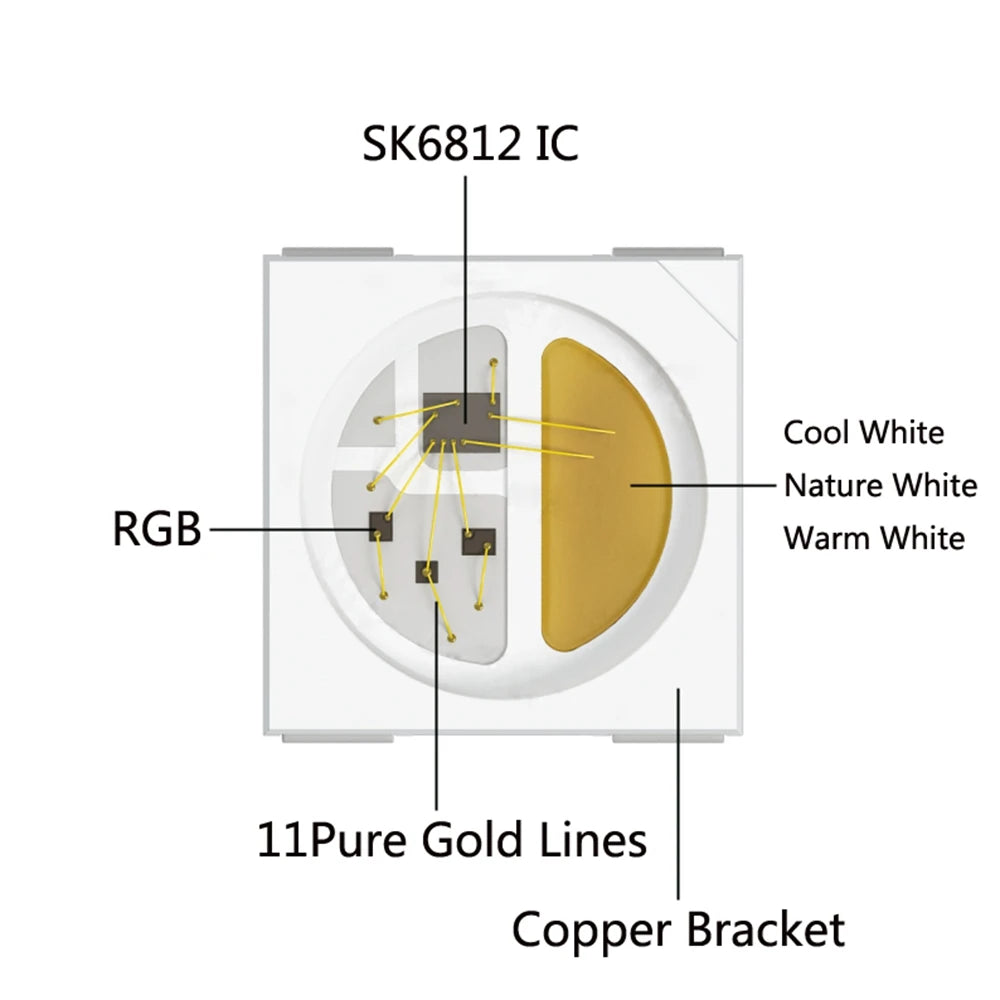

Led Source : 5050SMD RGBCW/RGBNW/RGBWW Built-In SK6812 Chipset

Voltage:DC5V

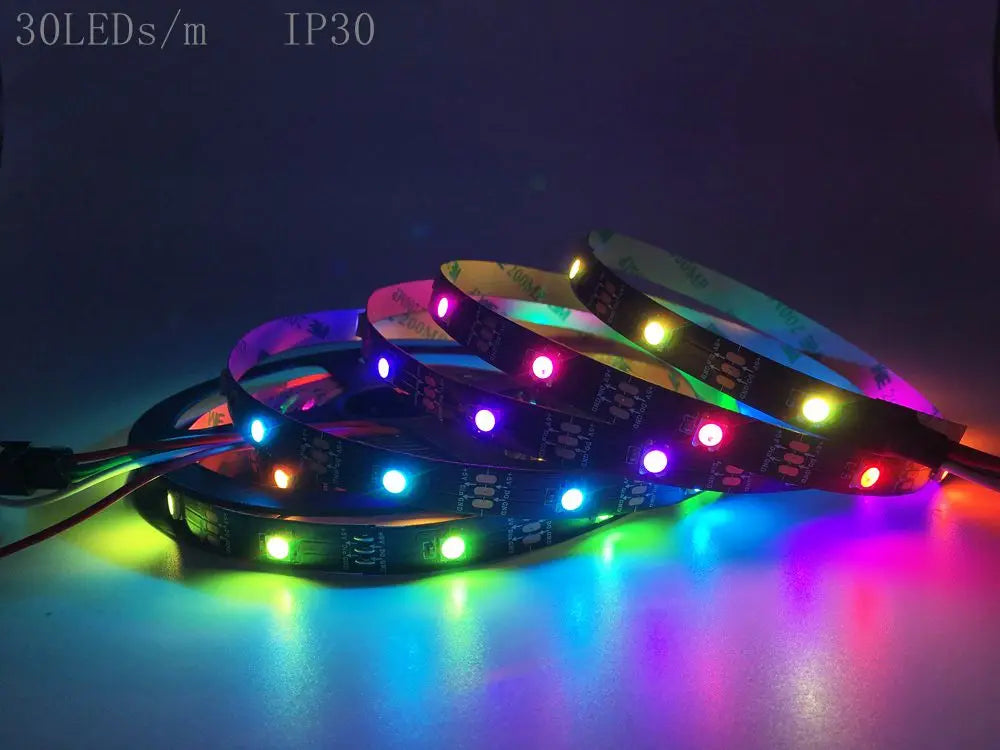

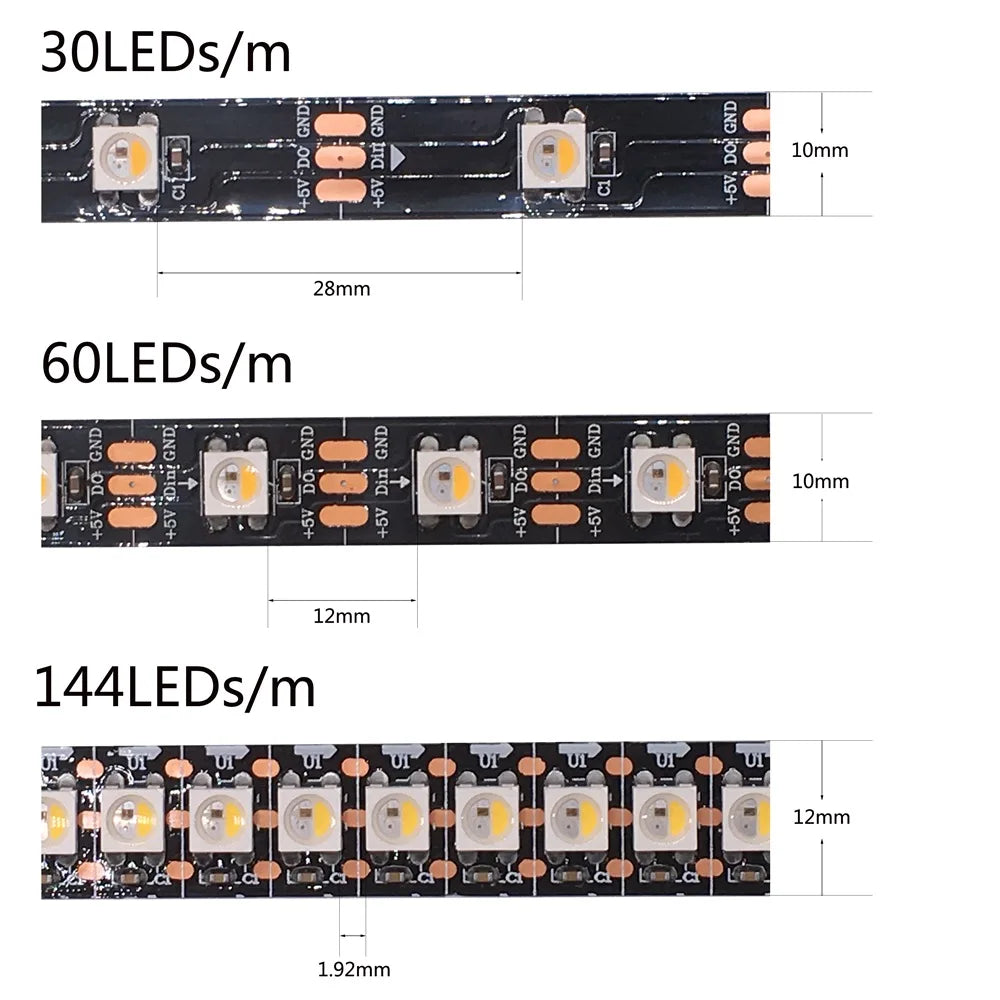

Power:30LEDs/meter ---------9W / Meter

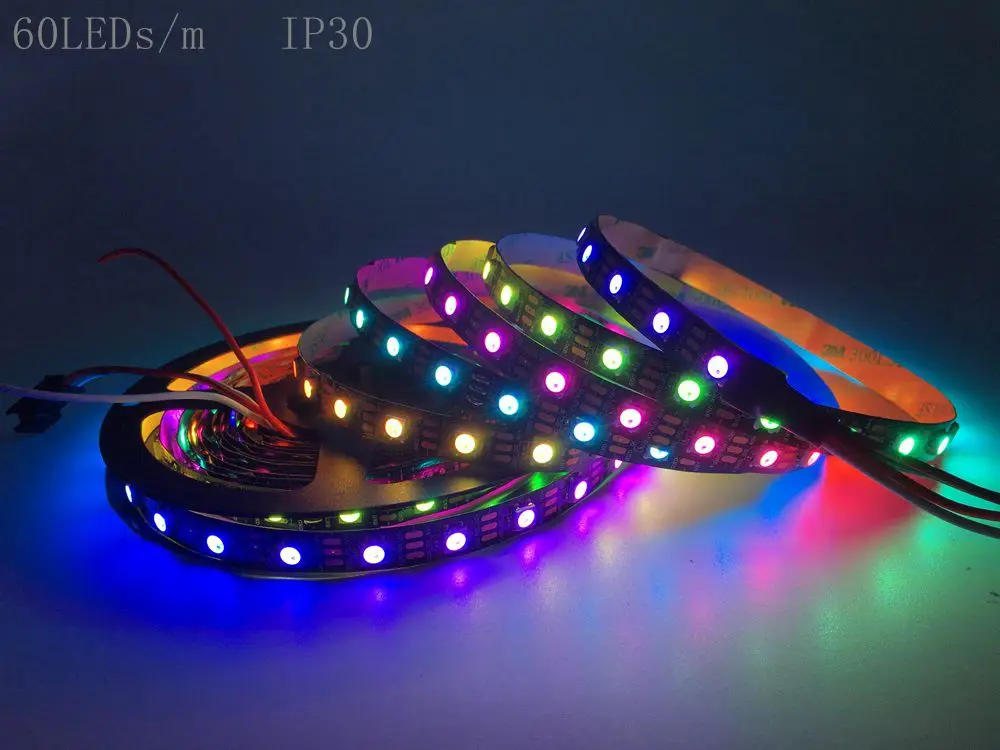

60LEDs/meter ---------18W / Meter

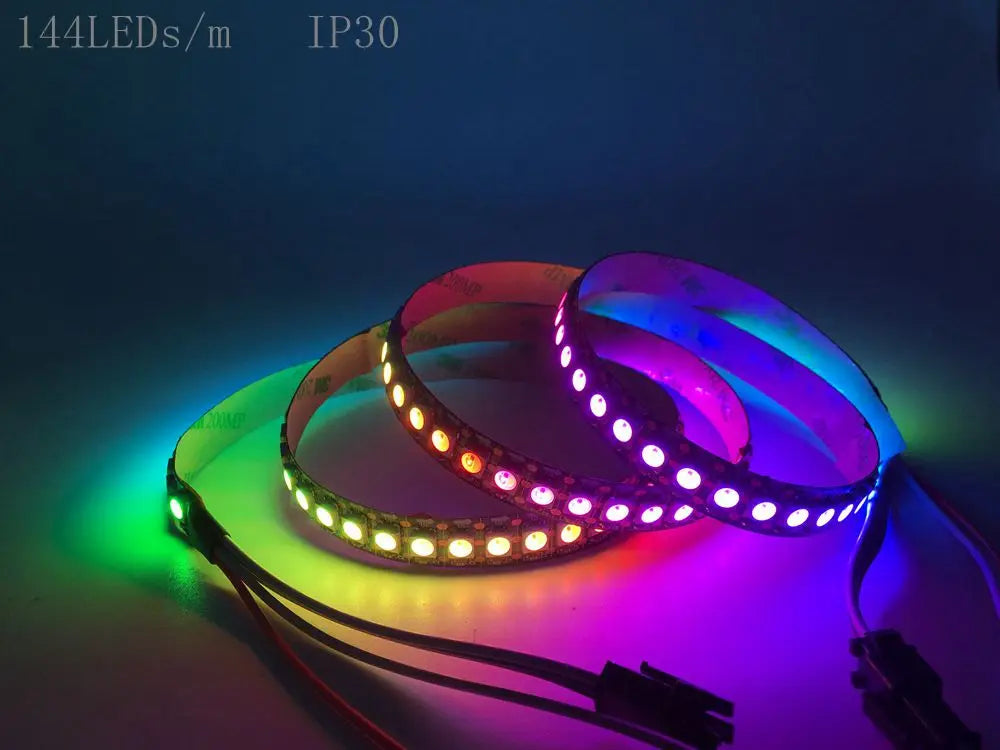

144LEDs/meter -------43.2W / Meter

Led Type : SMD5050

IC Type : SK6812(Similar WS2812B)

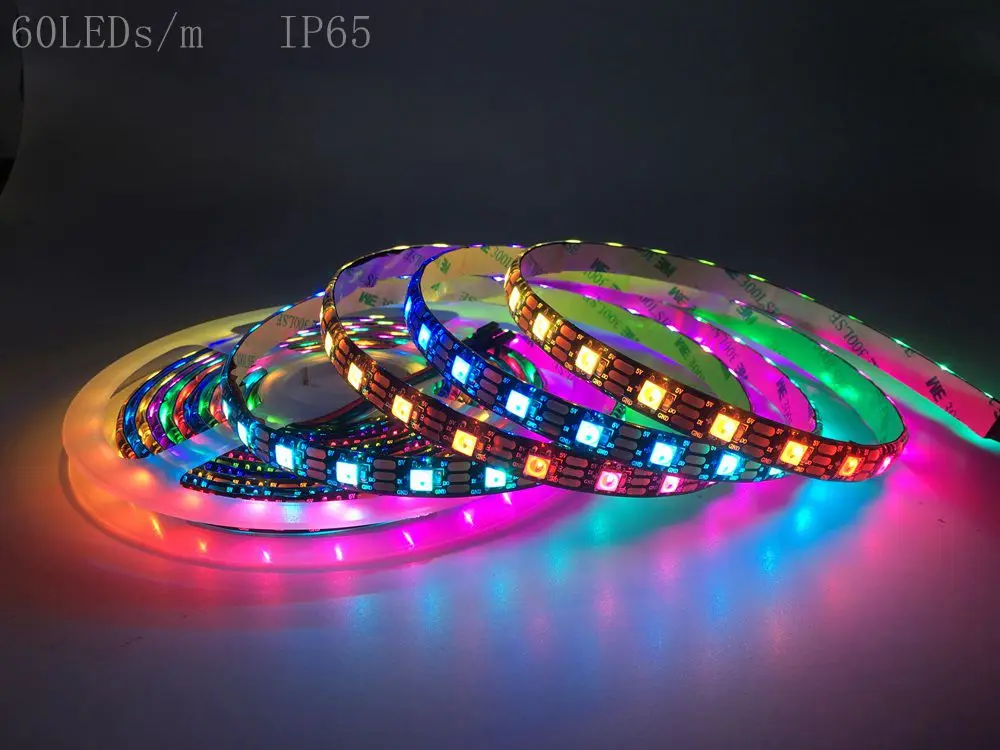

LED/Per Meter: 30, 60,144Leds/Meter (Each Led Is Separately Controlled)

IC/Per Meter: 30, 60,144IC/Meter (1 IC drives 1 led chip)

Pixel /Per Meter : 30, 60,144Pixels/Meter

Grey Grade: 256

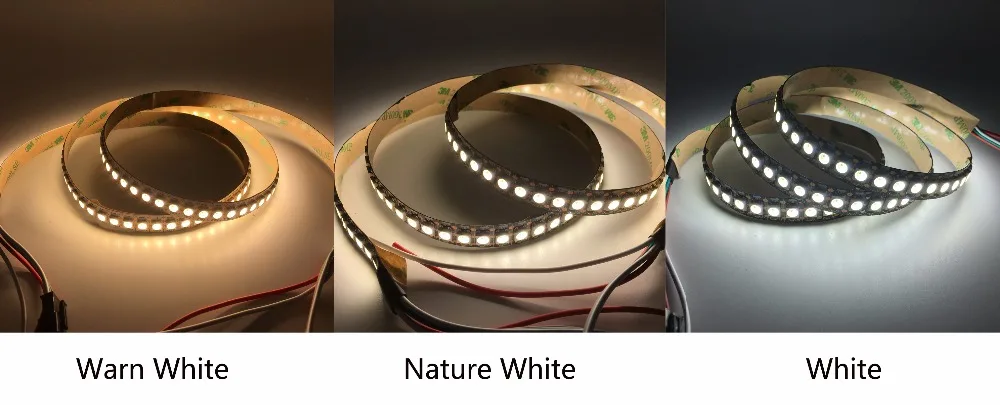

Color: RGBCW/RGBNW/RGBWW(WW 2700-3000K ; NW 4000-4500K ;

CW6000-6500K)

PCB Color: White / Black Available

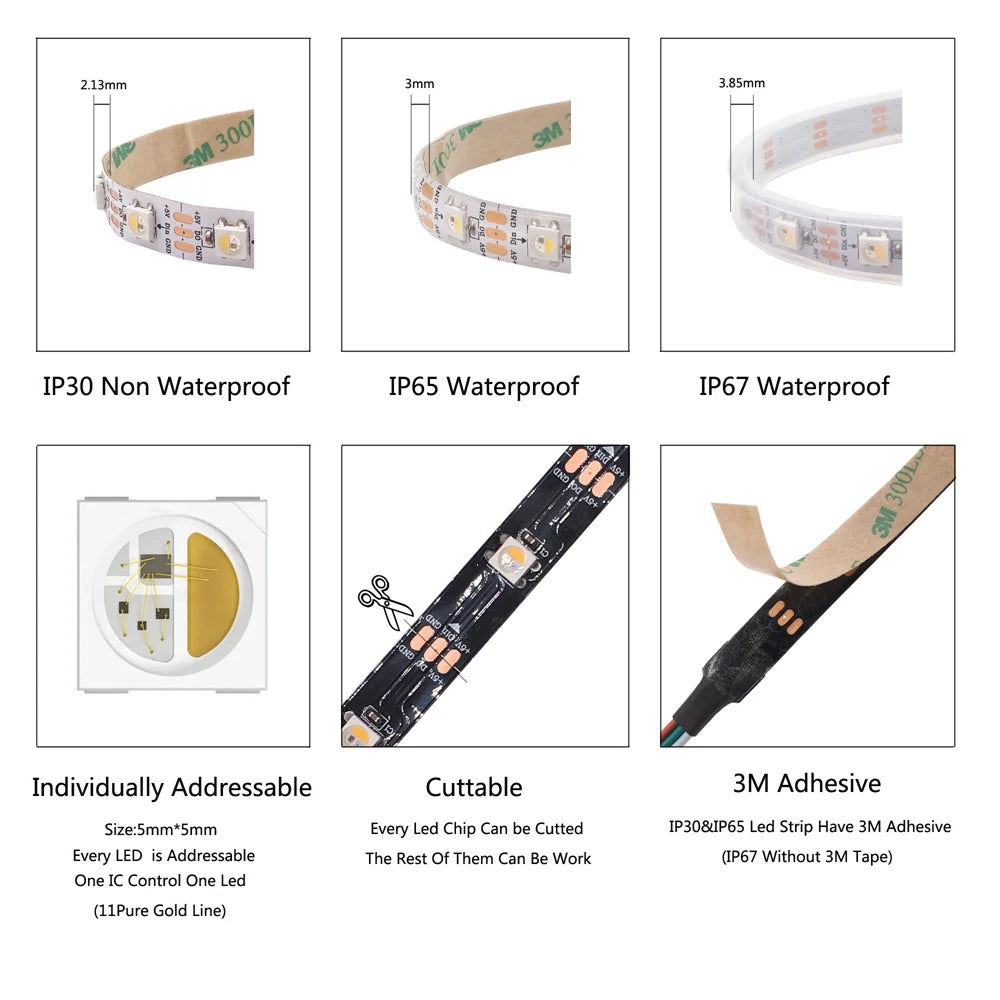

Waterproof Grade: IP30-----NON-Waterproof

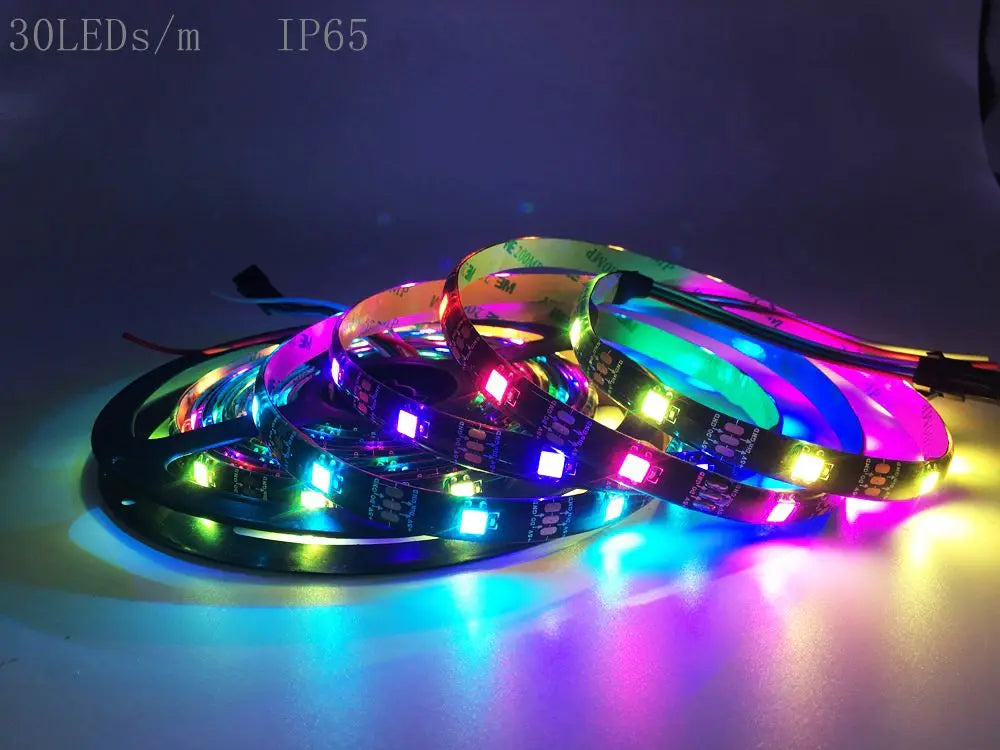

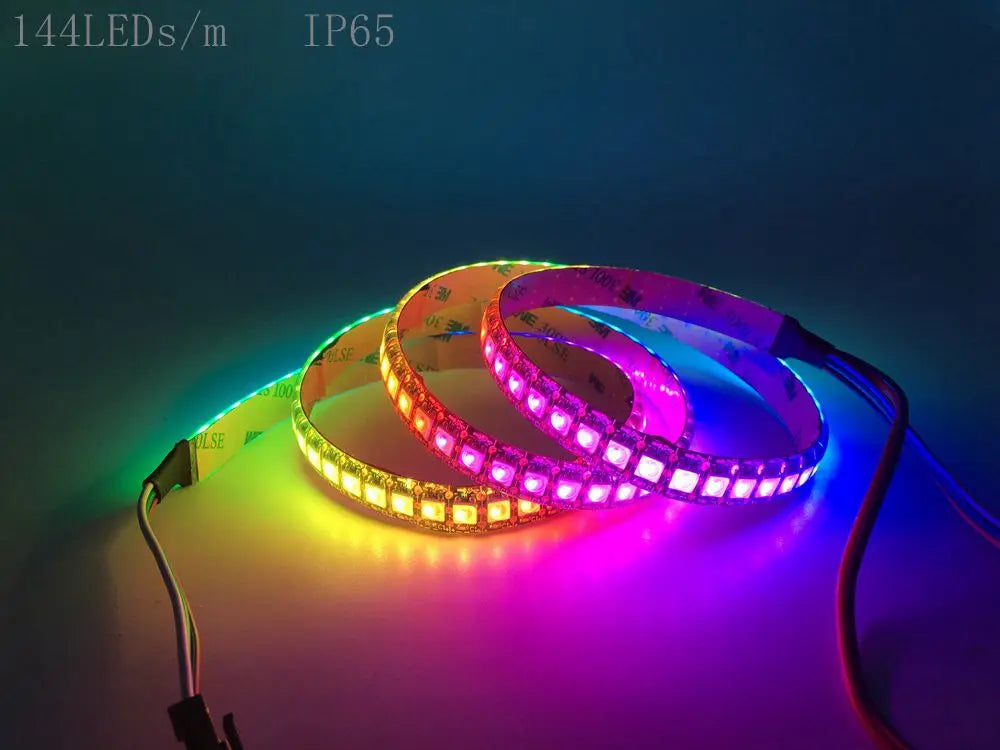

IP65-----Epoxy

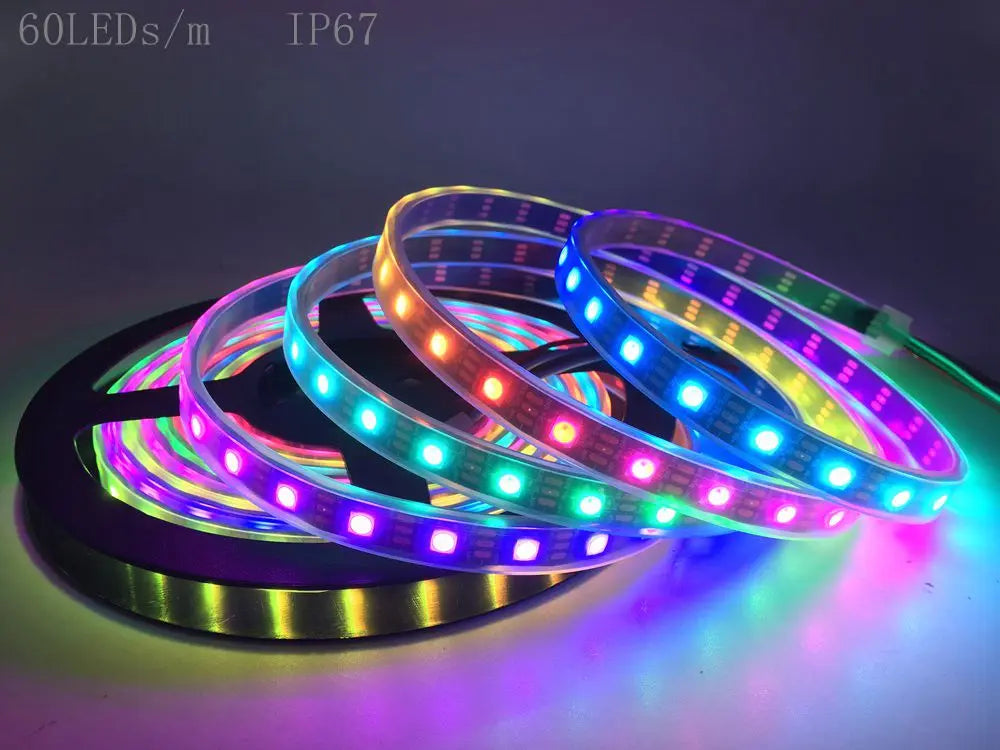

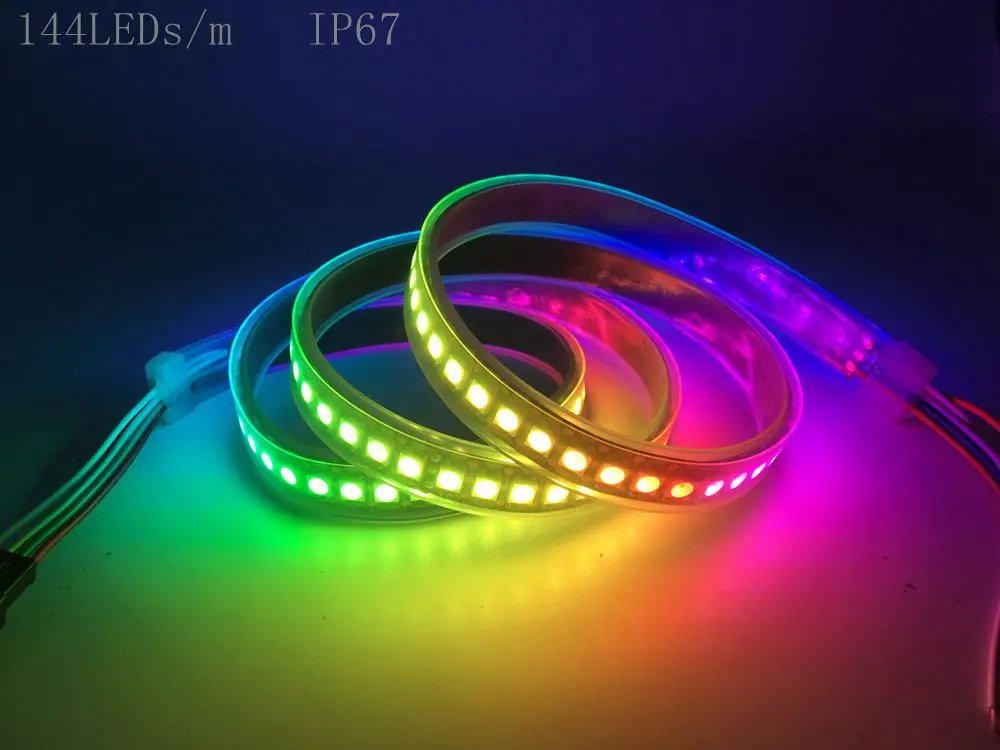

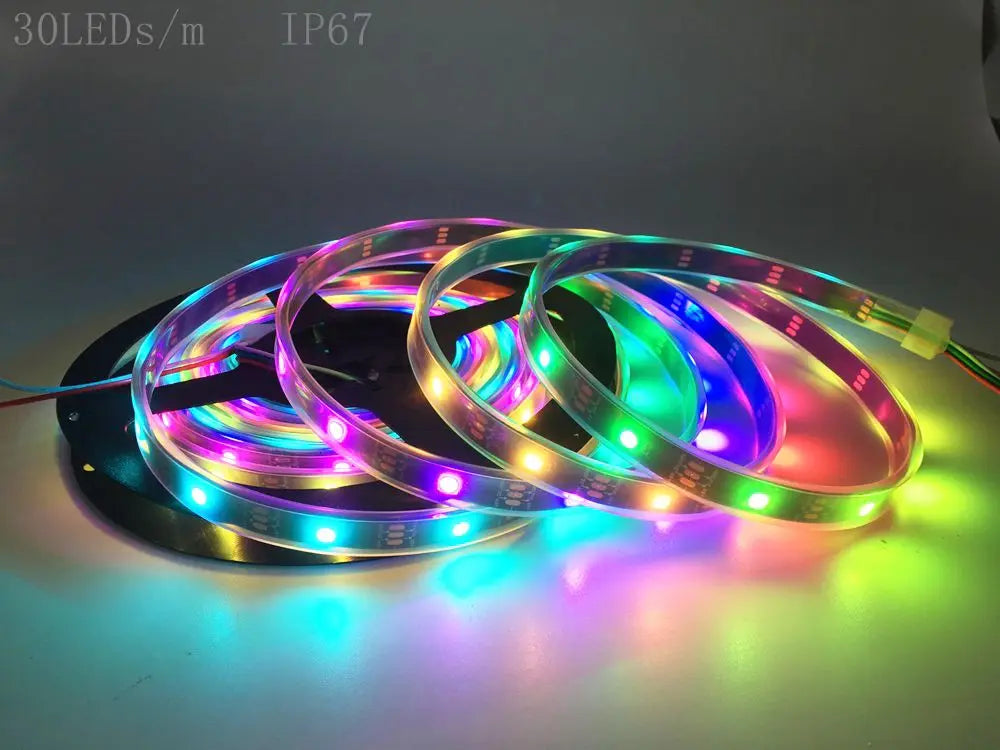

IP67-----silicone tube

IP30,IP65 ,There is a 3M Self-Adhesive Tape at the back side. You can install easily

Application:

Applicable for automobile and bicycle decoration, border or contour lighting

Widely used for home decoration use, hotels, clubs, shopping malls

Architectural decorative lighting, boutique atmosphere lighting

Extensively applied in Backlighting, concealed lighting, channel letter lighting

Emergency & security lighting, advertisement sign lighting

Decorative lights for holiday, event, show exhibition

SK6812RGBW/RGBWW/RGBNWis a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of thepixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constan
