SPECIFICATIONS

Bluetooth Version: 5.0

Brand Name: Gaqqee

Choice: yes

Condition: New

FM Radio Frequency: 87.5-107.5 MHz

High-concerned chemical: none

Music Formats: MP3 / WMA / WAV / APE / FLAC lossless music formats

Origin: Mainland China

Power: 2*25W, capable of connecting two 25W speakers simultaneously

Type: Module

Product Features:

1. Manufactured using premium materials, ensuring assured product quality

2. Modular functionality for audio systems, controllable players, domestic appliances, and industrial applications

3. Designed for straightforward audio production, offering simple functionality at an affordable price point, ideally suited for the mass-market mid-range consumer segment

4. Upgrades standard audio systems to facilitate playback of MP3/WMA files from USB drives and TF cards, enhancing sound quality and delivering premium audio at optimal value

5. Enables secondary development for integration with other devices, circuits, and modules in applications such as toys, gifts, fitness equipment, household appliances, and broadcasting systems

6. Effortlessly achieves Bluetooth wireless connectivity for unrestricted music streaming

Product Specifications:

Bluetooth Version: 5.0

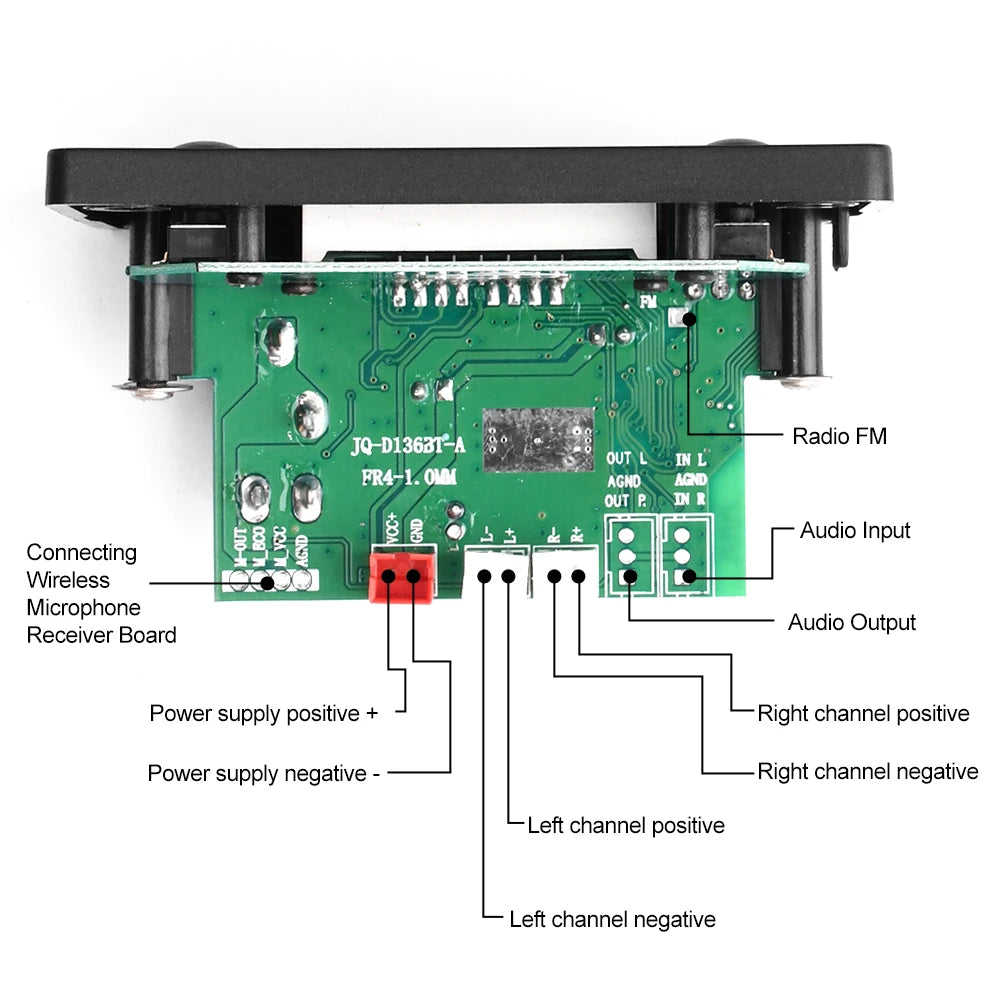

Power Supply Voltage: 12V (range 7V-16V), current not less than 2A

Power: 2*25W, capable of connecting two 25W speakers simultaneously

Microphone connection function, folder switching function

Music Formats: MP3 / WMA / WAV / APE / FLAC lossless music formats

FM Radio Frequency: 87.5–107.5 MHz

Supported Functions: MP3 / USB / TF / LINE IN / FM / BLUETOOTH / Remote Control Input / DC12V

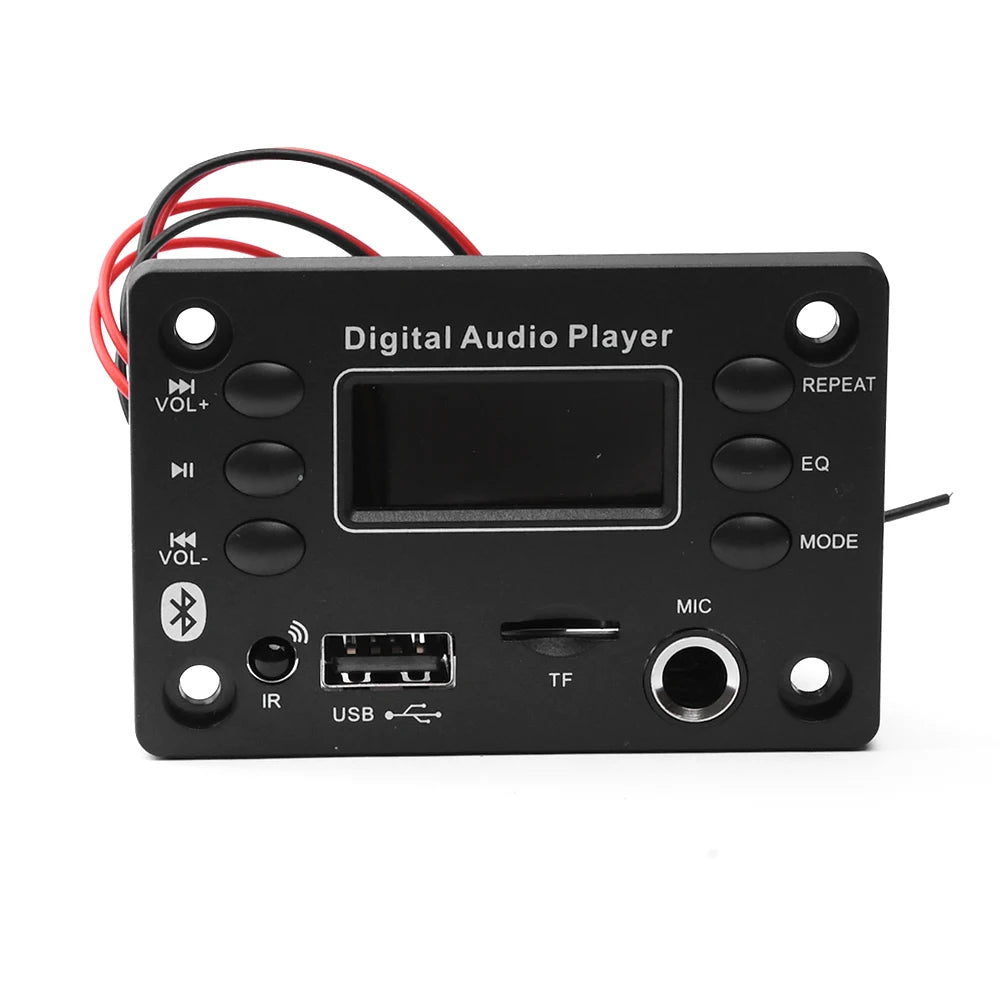

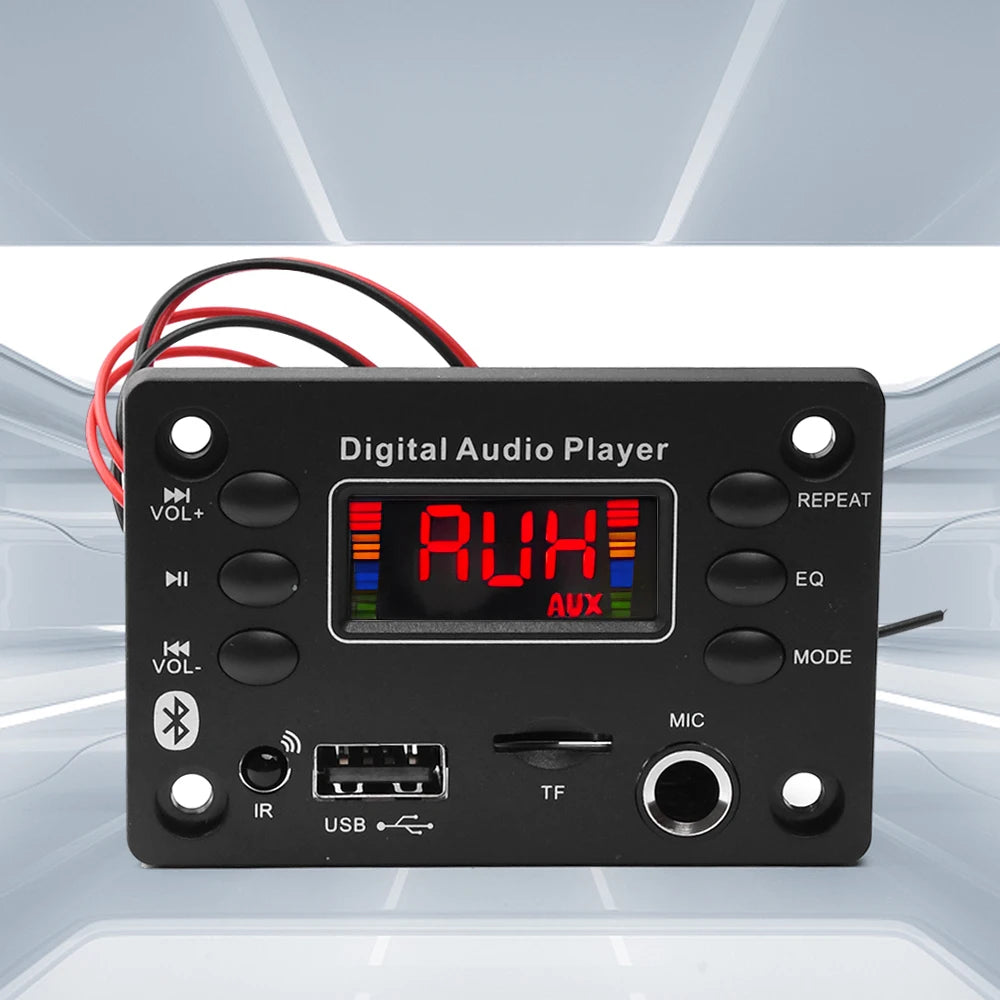

Physical Dimensions: Panel Size: 75 × 50 mm, Depth: 40 mm, Panel Mounting via Four Corner Screw Holes

Button Functions:

VOL+: Short press skips to next track; Long press increases volume; Double press switches to next folder;

SCAN: Short press toggles play/pause; in FM radio mode, short press activates auto-tuning;

VOL-: Short press selects previous track; long press decreases volume; double press switches to previous folder;

LED: Colour display with red numeric indicators;

REPEAT: Press once for single-track repeat; press again to cancel repeat and resume sequential playback;

EQ: Sound field modes, test 6 sound qualities: (Classical) (Jazz) (Rock) (Bass Boost) (Pop) (Normal)

MODE: Switches between USB / TF / FM / AUX / BLUETOOTH; long press to activate recording function, press again to cancel recording and play recorded file; recording requires connection to a storage device such as a USB drive or TF card;

IR: Infrared receiver module;

USB: Connects to USB flash drives (supports up to 32GB);

TF card: Connects to TF memory cards (supports up to 32GB);

MIC: Microphone input;

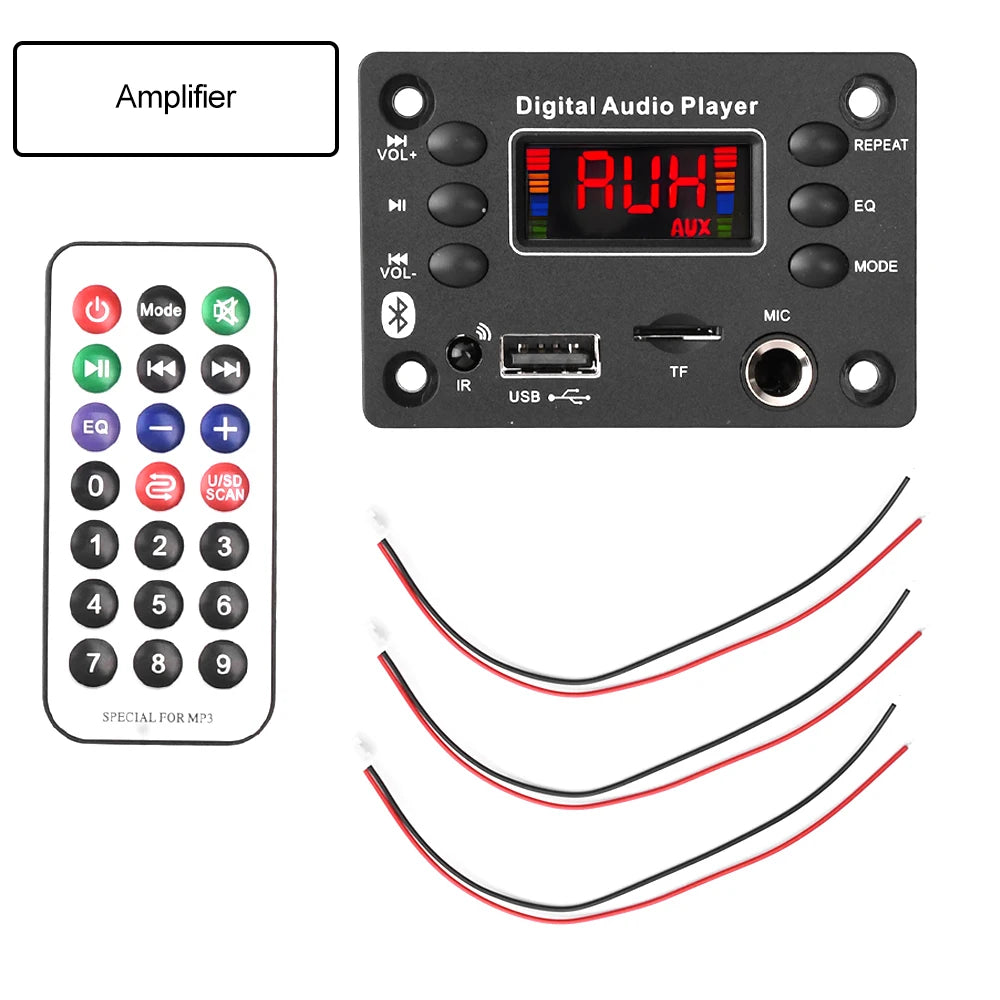

Package contents:

Module ×1

Remote control ×1

Terminal cables ×4
