Description

SPECIFICATIONS

Brand Name: Gmilli

Certification: CE

Coupling: Threaded Coupling

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Hole Size: 25mm

Insert material: Bakelite

Model Number: DF25 25M GX25

Origin: Mainland China

Pin No.: 2 3 4 5 6 7 8 10 12 Pin

Product Name: M25 Power Connector

Rated Current: 5A 7A 12A 15A 20A

Rated voltage: 150V/ 200V/ 250V

Voltage: 220 V

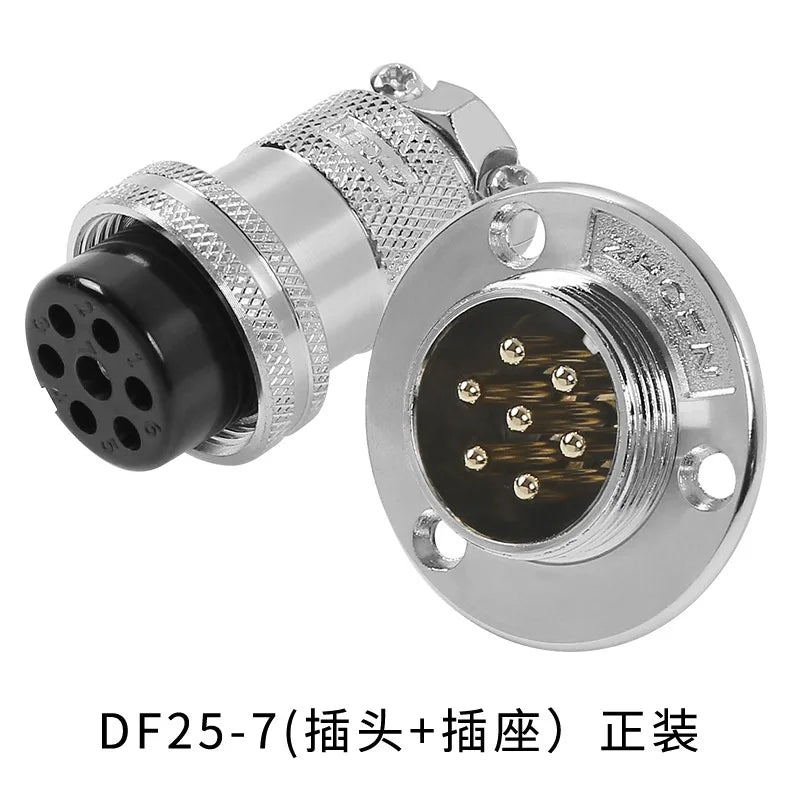

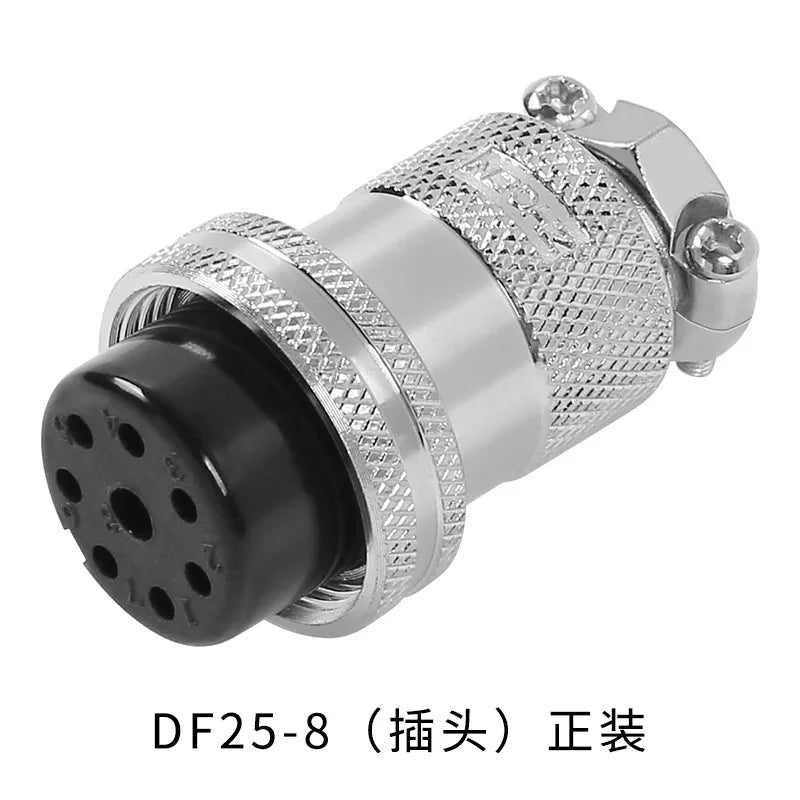

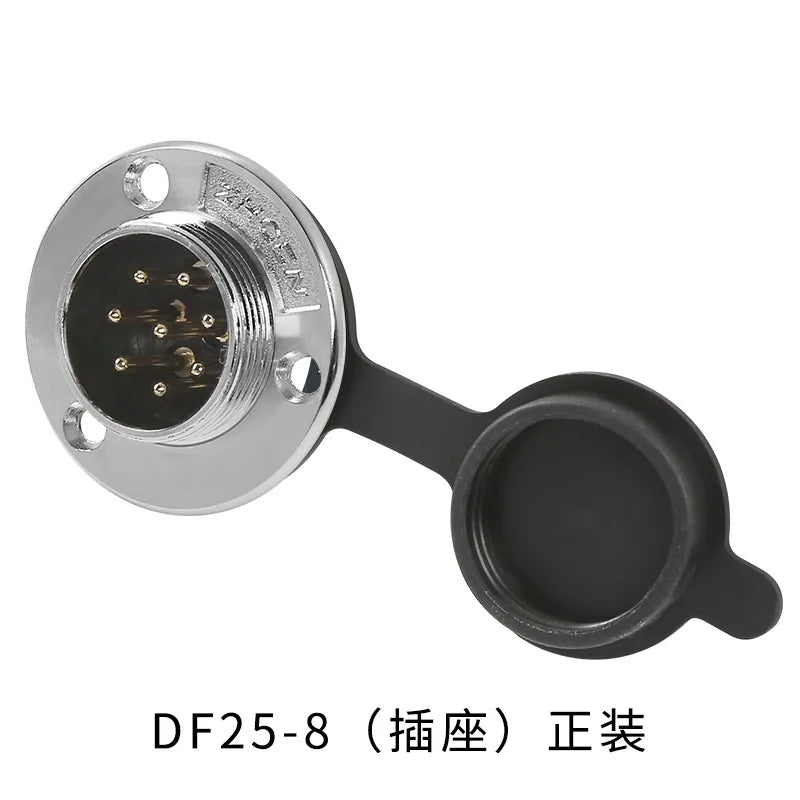

DF25 GX25 Metal Industrial Adapter 25M Circular Charger 2 3 4 5 6 7 8 10 12 Pin Waterproof Electrical Panel Aviation Connector

Specification

Coupling: Threaded Coupling
Shell material: Zinc alloy with nikelplate
Insert material: Bakelite
Contact material: Copper(Gold)
Termination: Solder
Cable diameter: ≤ φ 11.5mm
2 3 Pin Technology parameter:
Rated current/voltage: 20A/300V
Operation limit voltage(AC.V.rms) : 500V
Withstanding voltage(AC.V.rms) 1 minute: 2000V
Insulation resistance(MΩ MAX.) at DC 500V: 2000
Solder cup mouth aperture: 2.4
Solder inter diameter: φ3.5
4 5 Pin Technology parameter:
Rated current/voltage: 15A/250V
Operation limit voltage(AC.V.rms) : 400V
Withstanding voltage(AC.V.rms) 1 minute: 2000V/ 1500V
Insulation resistance(MΩ MAX.) at DC 500V: 2000
Solder cup mouth aperture: 2.4
Solder inter diameter: φ3.5mm/φ3mm
6 7 Pin Technology parameter:
Rated current/voltage: 12A/250V
Operation limit voltage(AC.V.rms) : 300V
Withstanding voltage(AC.V.rms) 1 minute: 1500V
Insulation resistance(MΩ MAX.) at DC 500V: 2000
Solder cup mouth aperture: 2.4/ 1.6
Solder inter diameter:φ3mm
8 10 12 Pin Technology parameter:
Rated current/voltage: 7A/250V; 7A/150V; 5A/150V
Operation limit voltage(AC.V.rms) : 200V
Withstanding voltage(AC.V.rms) 1 minute: 1500V
Insulation resistance(MΩ MAX.) at DC 500V: 2000
Solder cup mouth aperture: 1.6/ 1.6/ 3
Solder inter diameter:φ2mm/φ2mm/φ1.5mm
