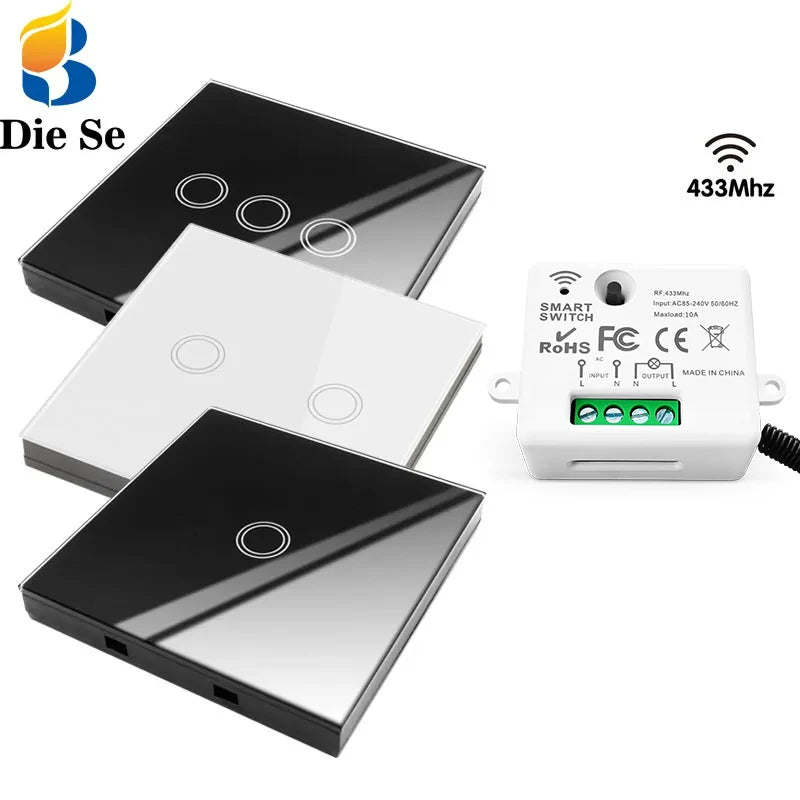

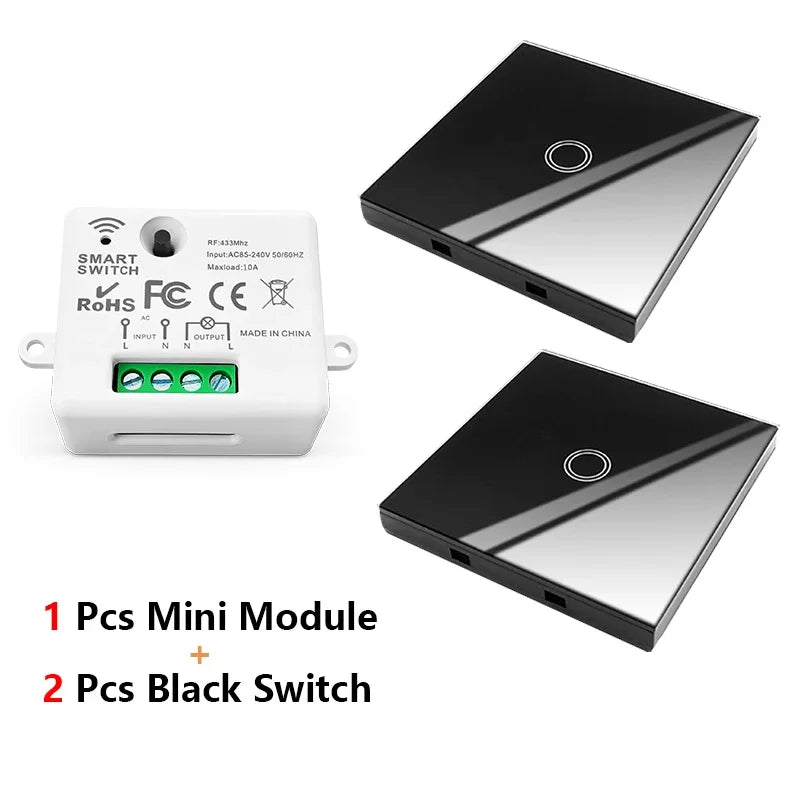

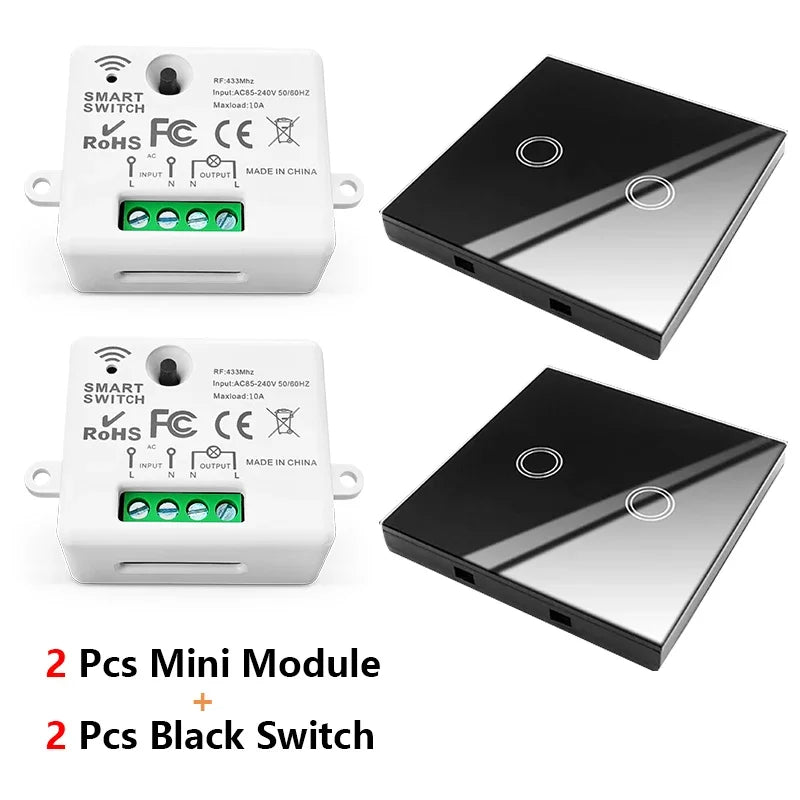

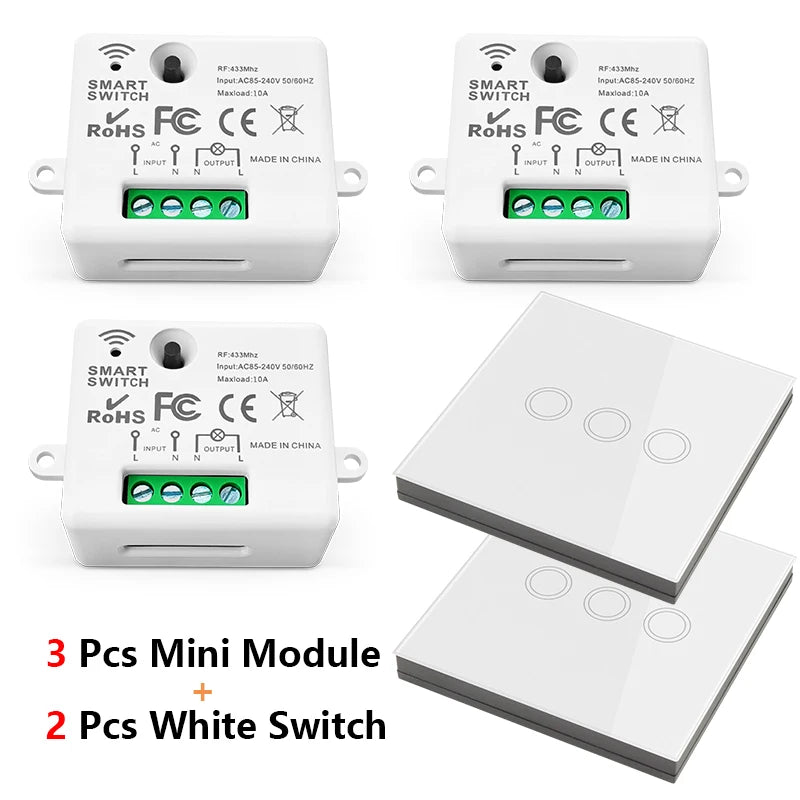

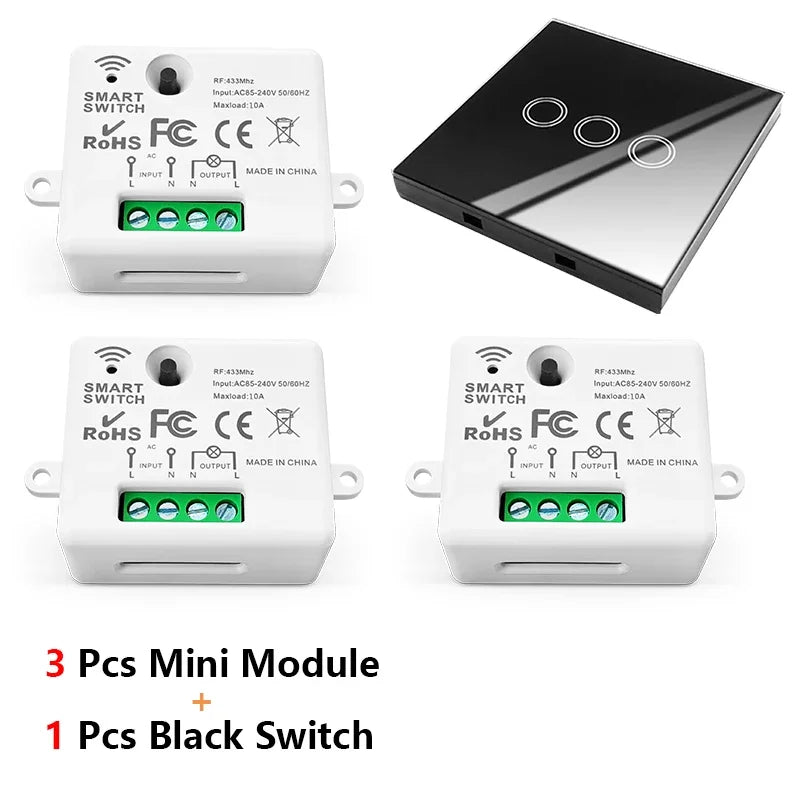

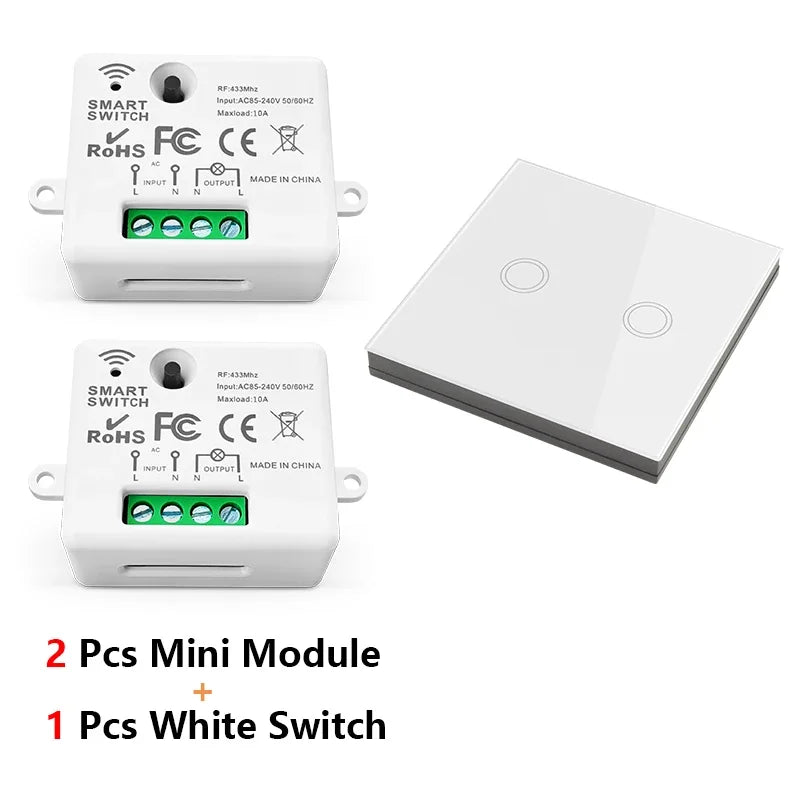

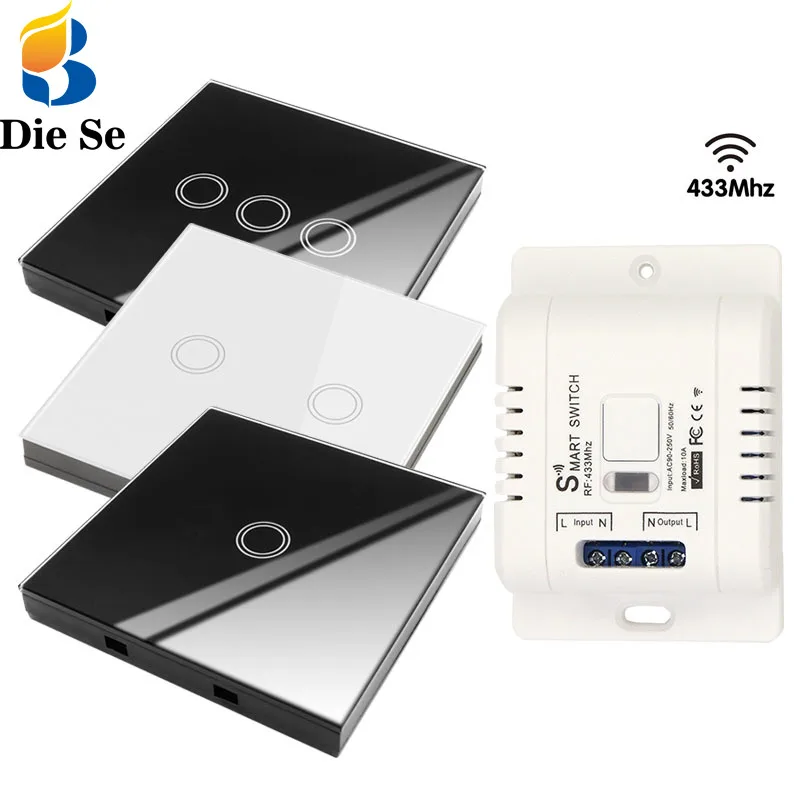

Diese 86 Switch Panel ON/OFF Touch Switch Wireless Light Switch 433Mhz Remote Control ,AC 85V~240V 10A Interruptor for Lighting

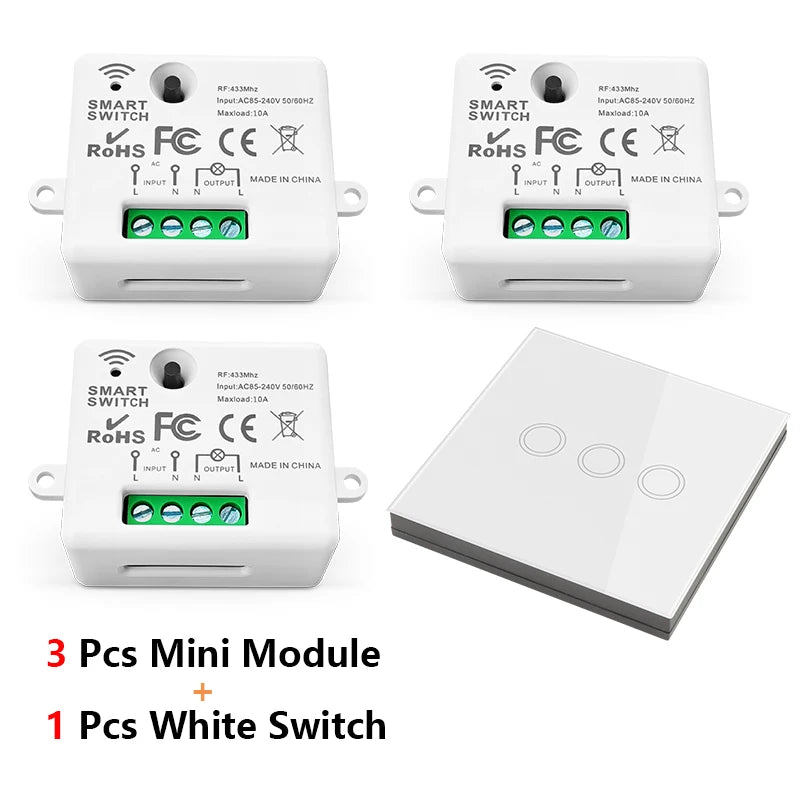

3Receivers 1Switchs

$133.61

Sale price $133.61 Regular price $0.00

Skip to product information

Diese 86 Switch Panel ON/OFF Touch Switch Wireless Light Switch 433Mhz Remote Control ,AC 85V~240V 10A Interruptor for Lighting

Diese 86 Switch Panel ON/OFF Touch Switch Wireless Light Switch 433Mhz Remote Control ,AC 85V~240V 10A Interruptor for Lighting

$133.61

Sale price $133.61 Regular price $0.00

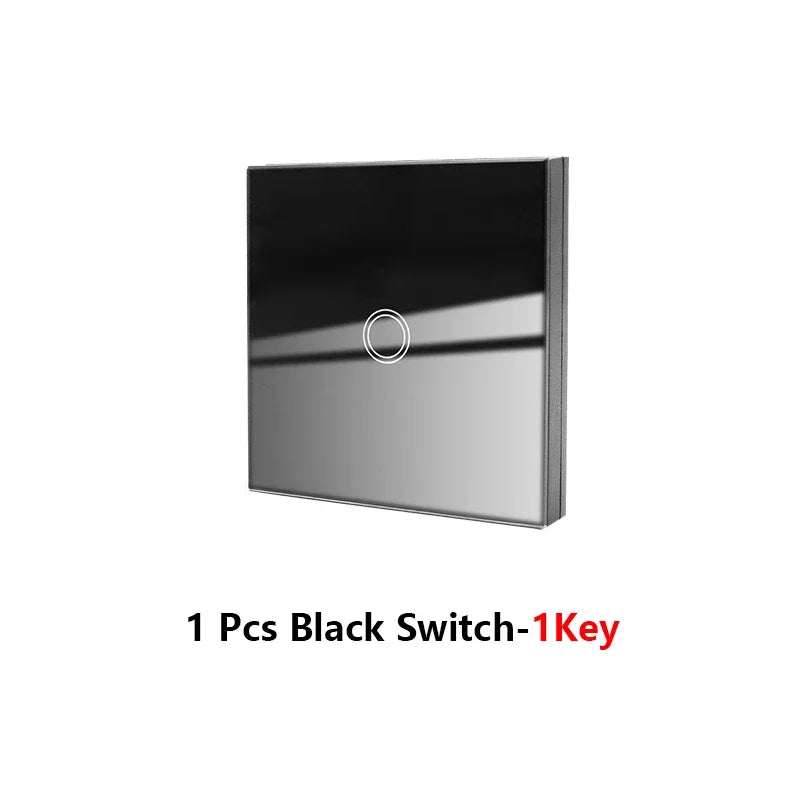

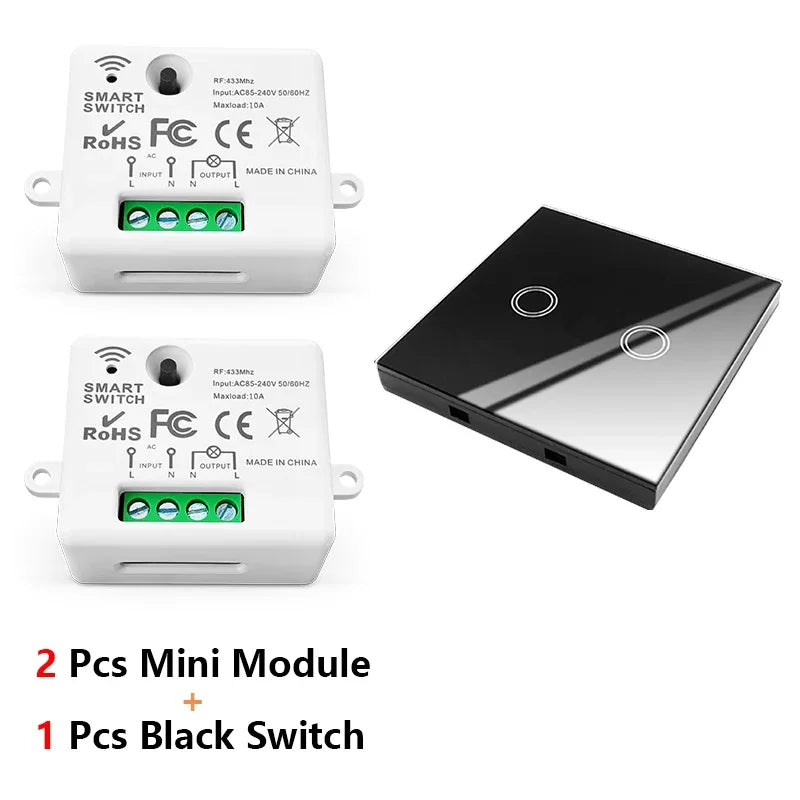

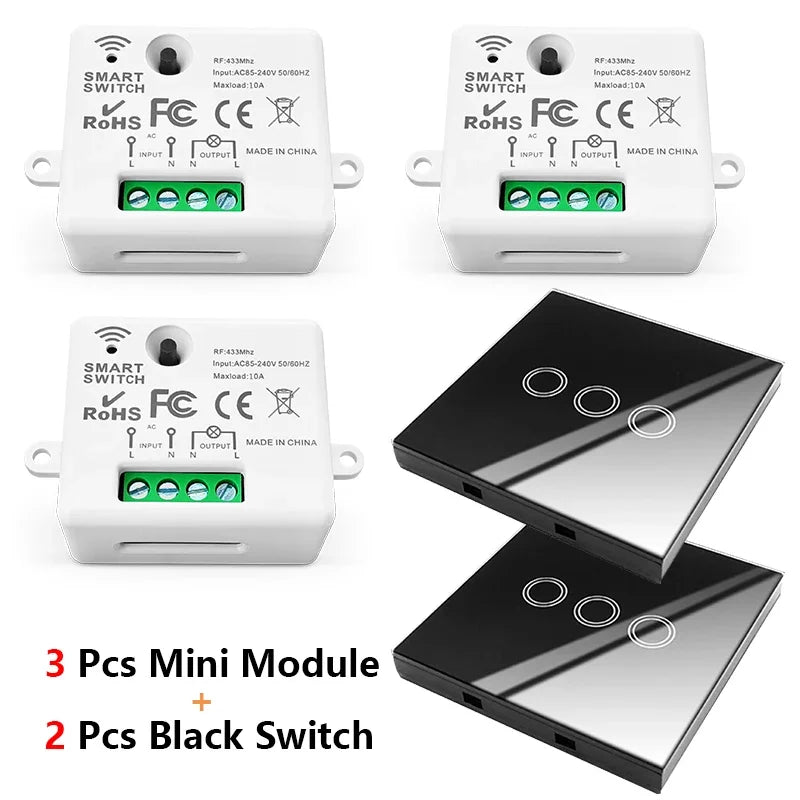

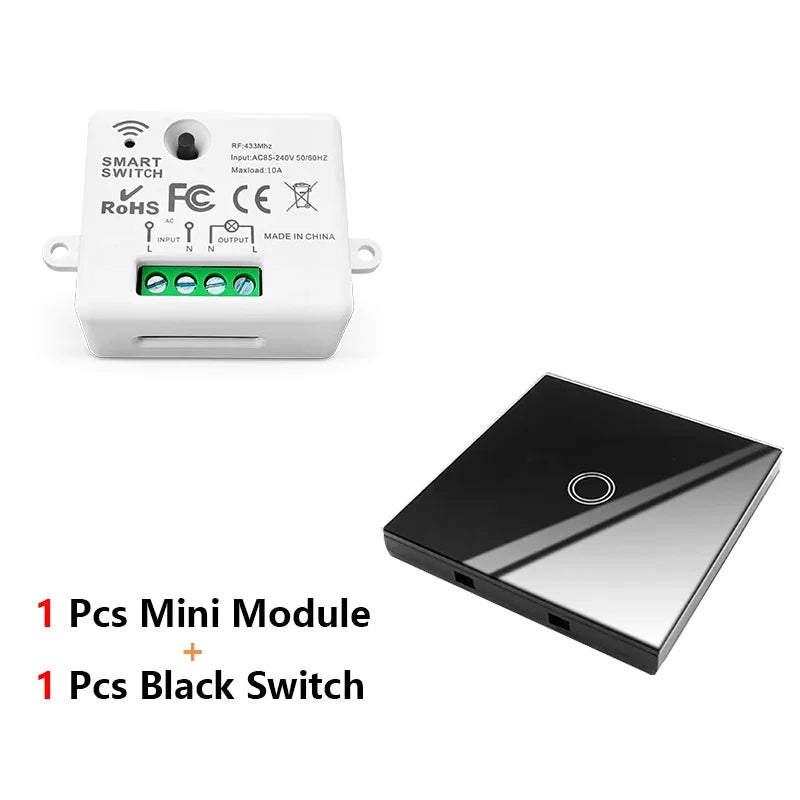

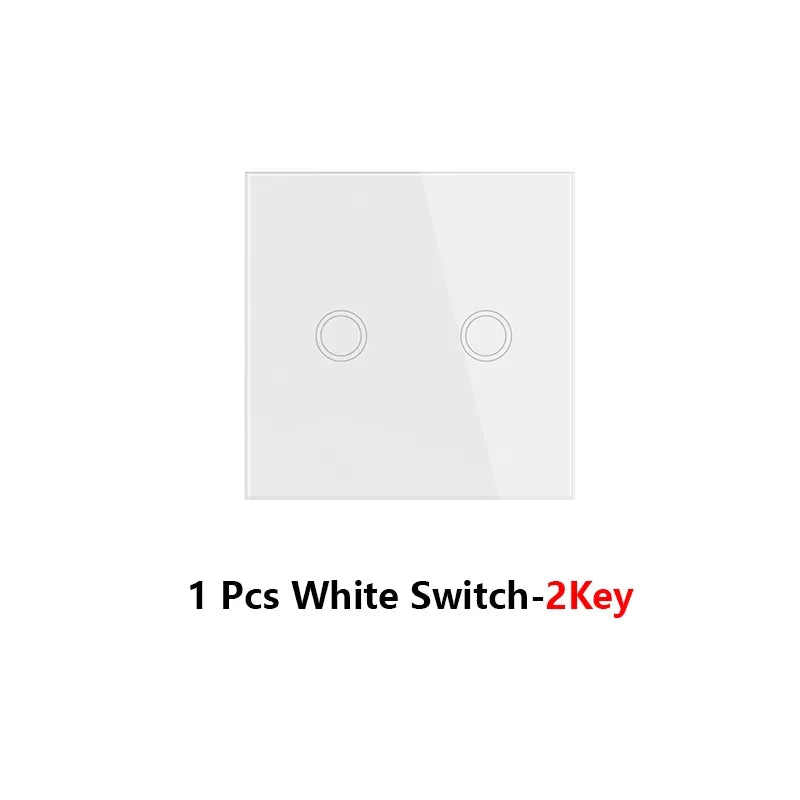

Color 3Receivers 1Switchs 2Receivers 2SwitchsW 3Receivers 1SwitchsW 3Receivers 2Switchs 1Receiver 3Receivers 2SwitchsW Switch2-2gang Switch1-1gang 1Receiver 1Switch 1Receiver 1Switch W 1Receiver 2Switchs 2Receivers 1Switch 1Receiver 2Switchs W 2Receivers 1Switch W 2Receivers 2Switchs Switch1-1gang W Switch3-3gang Switch3-3gang W Switch2-2gang W

Description

SPECIFICATIONS

Application 2: water heaters

Application scenario: Home, Farm, Factory, Office, Supermarkets and so on

Application1: Light, Bulb, LED,Lamps, Fan, Door, Gate and other

Brand Name: Diese

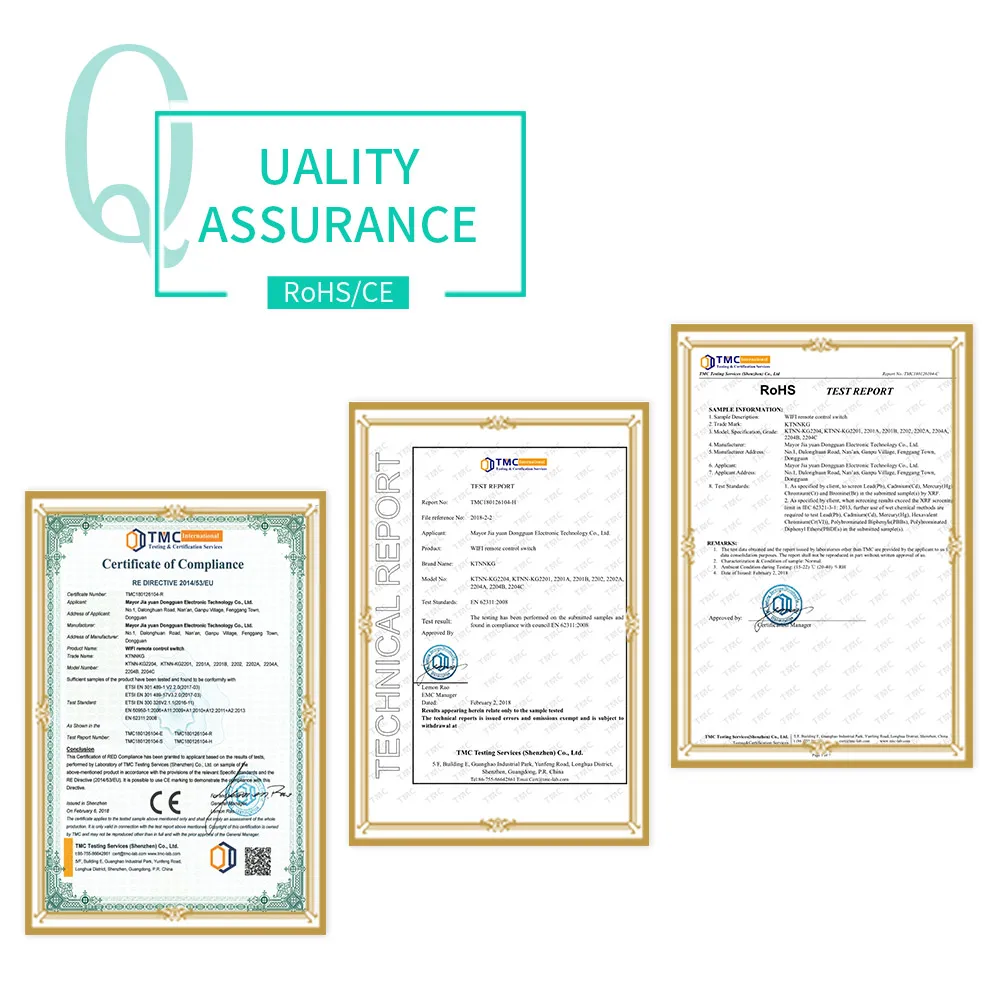

Certification: CCC,ce,ROHS

Choice: yes

Code: Learning Code EV1527

Connection Method: Wireless remote control

Current: 10A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: RF 433 mhz /touch on off switch /start stop buttons

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

Material: Plastic

Max Current: 10A

Max Load: 2000W

Model Number: 2201M Wireless smart home control Switch Lighting Controller Switch

Origin: Mainland China

Remote Distance: up to 50m (theoretical distance)

Switch Type: Touch On/Off Switch

Switch size: 86*86mm

Voltage: AC 85V-250V

Warranty: 1 Year /Wireless Interrupter High quality

frequency: 433 mhz

semi_Choice: yes

switch type: touch on/off switch

Diese 86 Switch Panel ON/OFF Touch Switch Wireless Light Switch 433Mhz Remote Control ,AC 85V~240V 10A Interruptor for Lighting

Wide Availability

-Touchable with wet hands

-Powerful functions

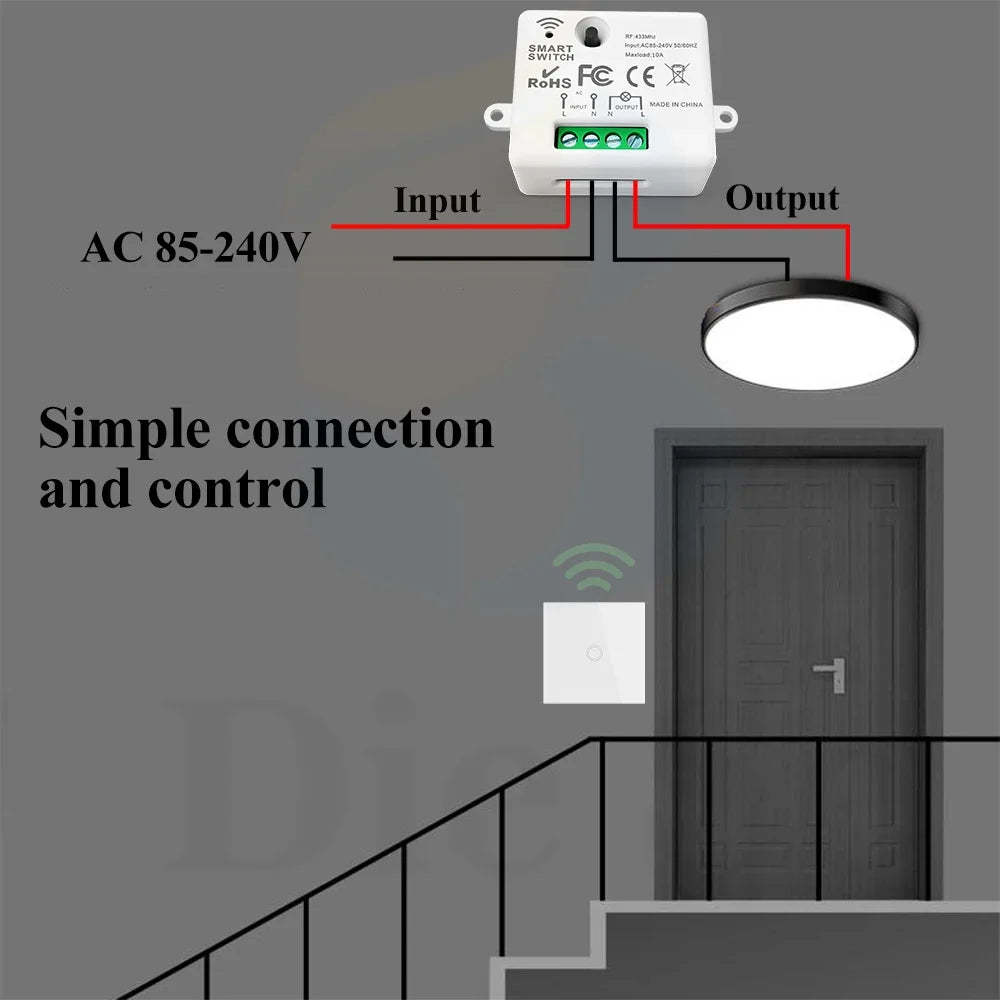

Wiring Diagram

-Wiring is simple,Safety

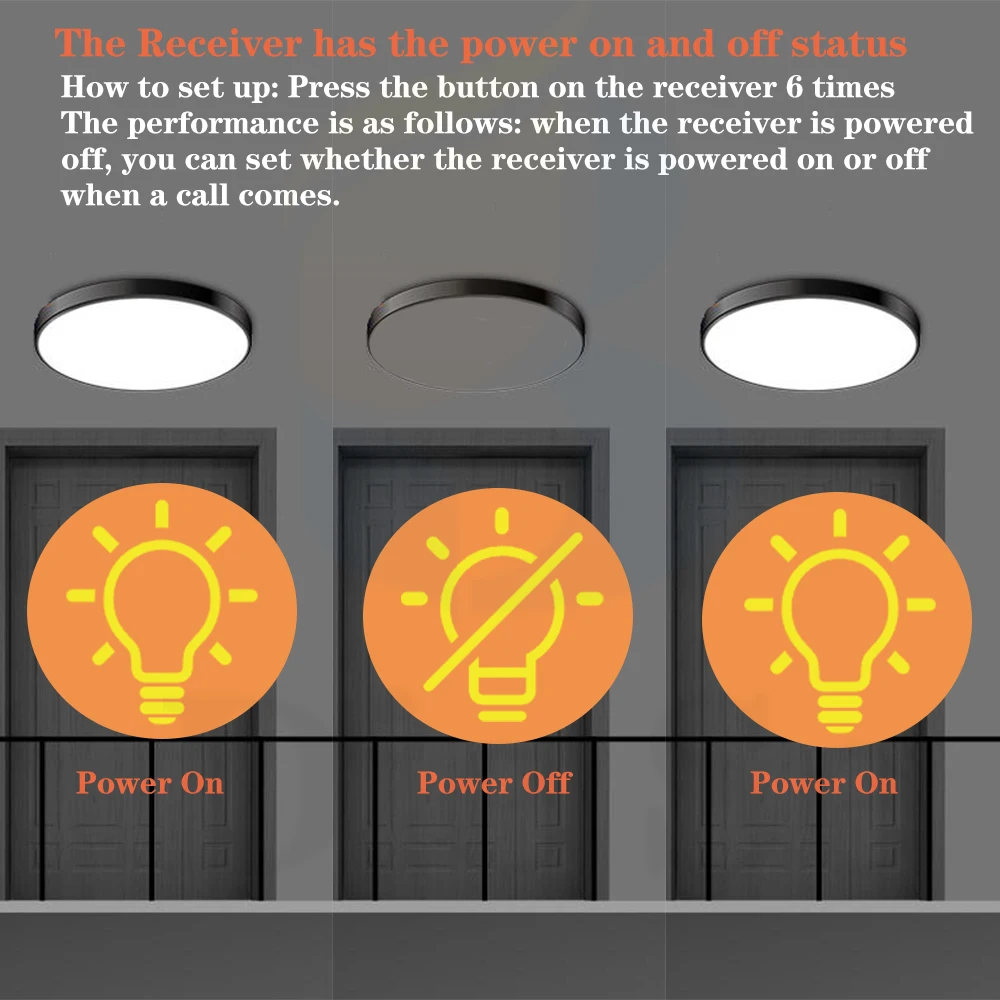

Call on and off function

--The performance is as follows: when the receiver is poweredoff, you can set whether the receiver is powered on or offwhen a call comes.

Perfect Craft & Detail Control

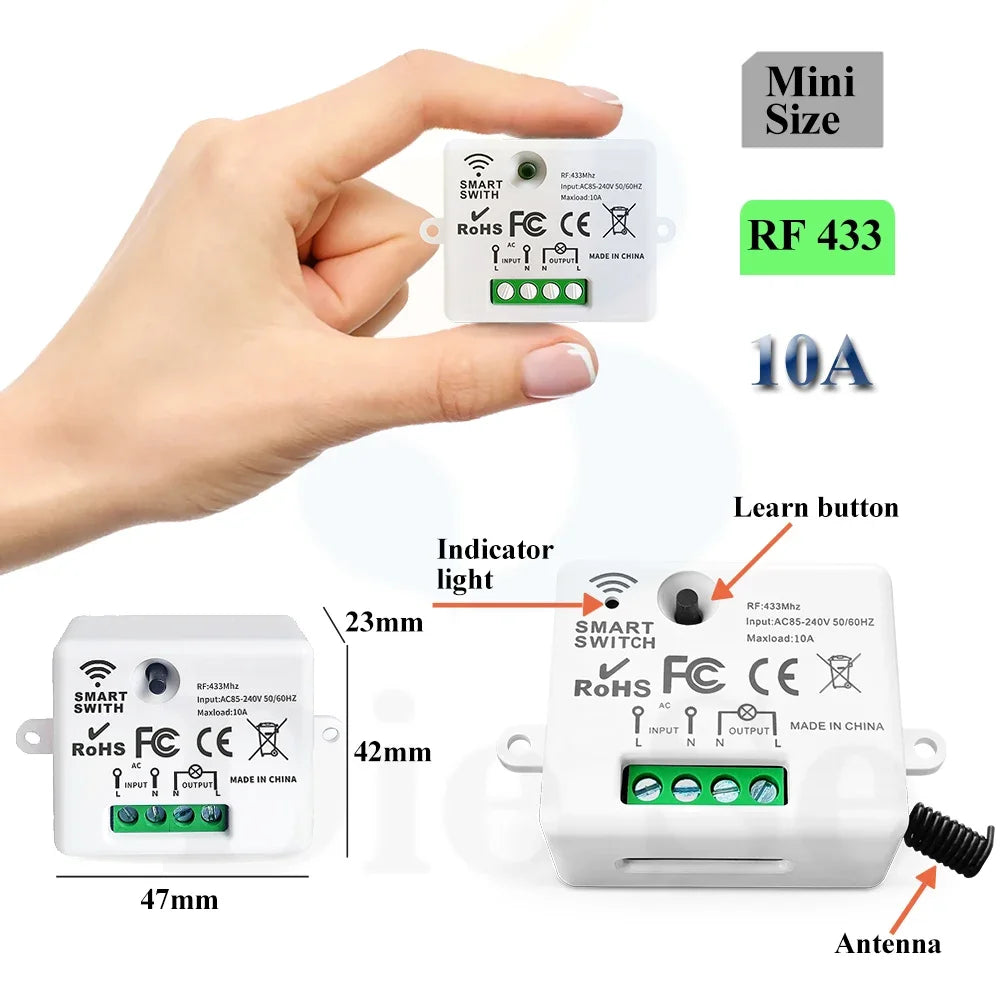

Product Detail

Working voltage : AC 85V~240V
Quiescent Current : <5MA
Max current :  10A
Max load : 2000W
RF frequency : 433MHz
Working temperature : -30~+80
Receiving Sensitivity  :  >97dbm
Amount of storage remote controls  : 10 pieces
Support encoding  :  1527 Leaning code,2262 fixed code
RF Operating mode  :  ASK superheterodyne wireless reception
Receiving range  :  up to 50m (theoretical distance)

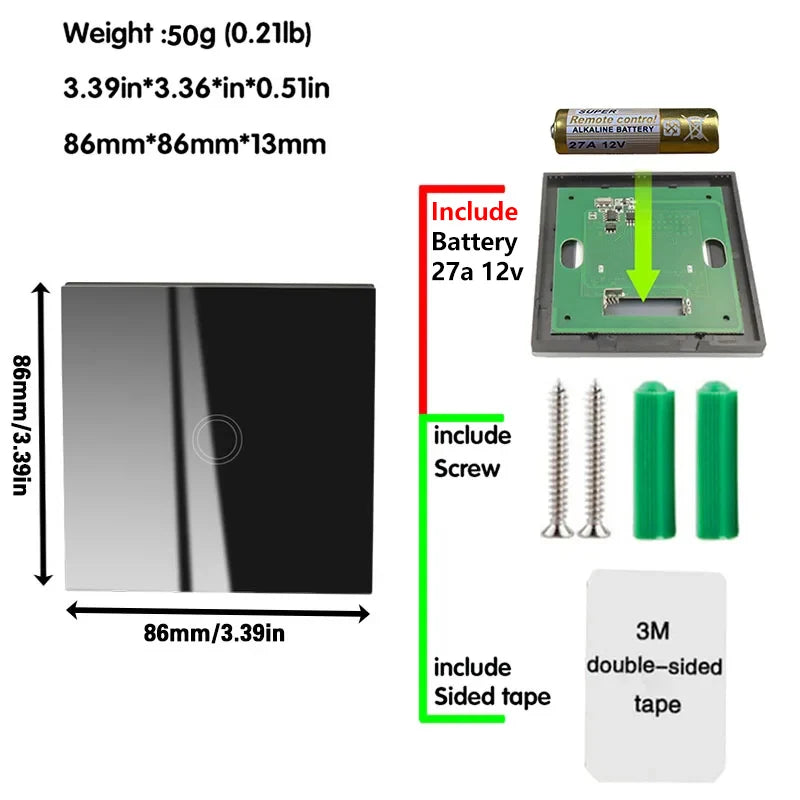

Wall switch size: 86 *86 mm
Switch battery : include

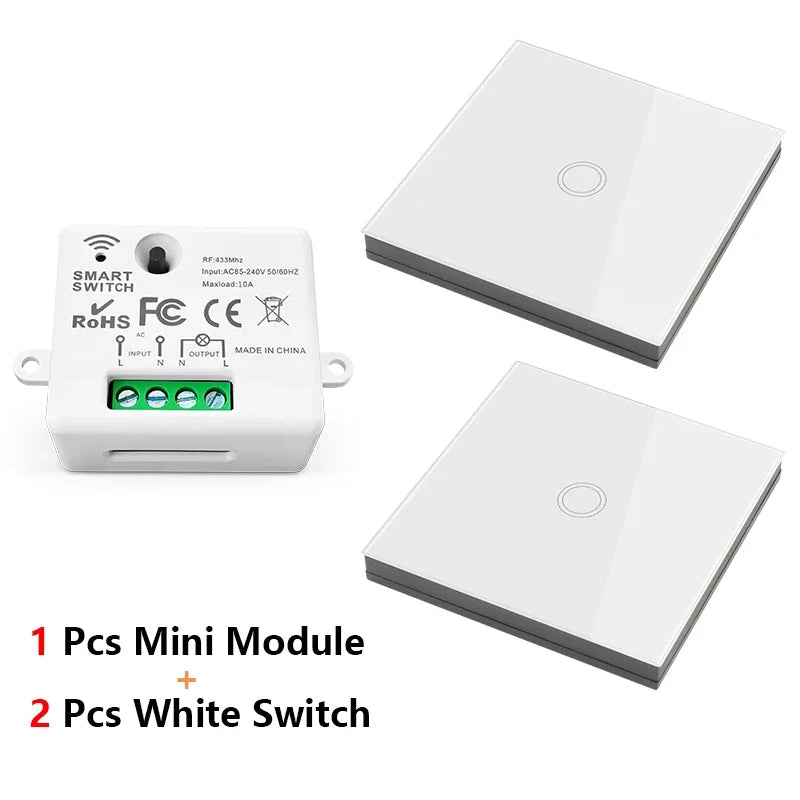

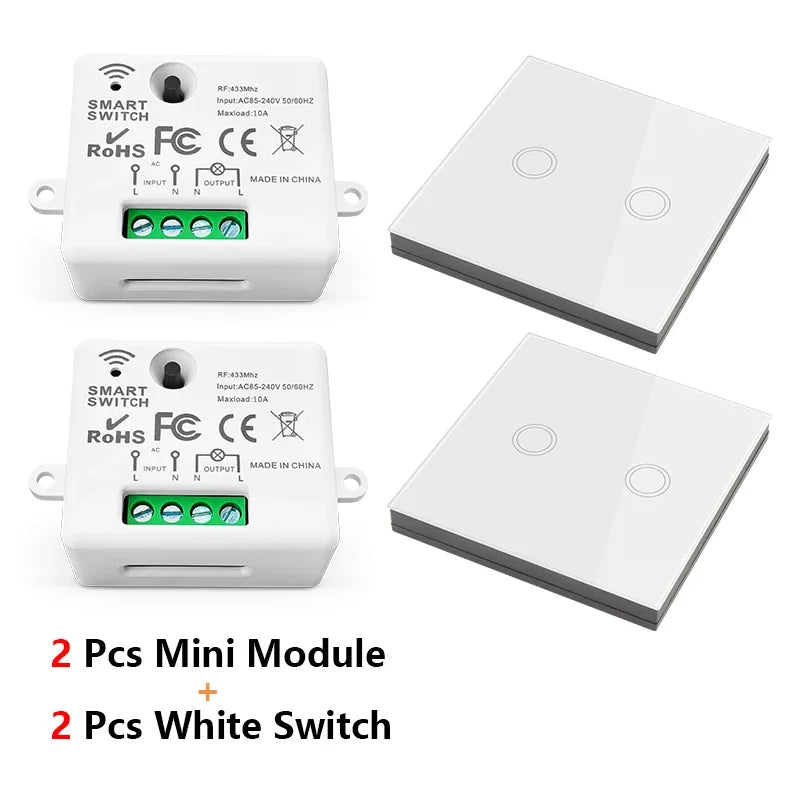

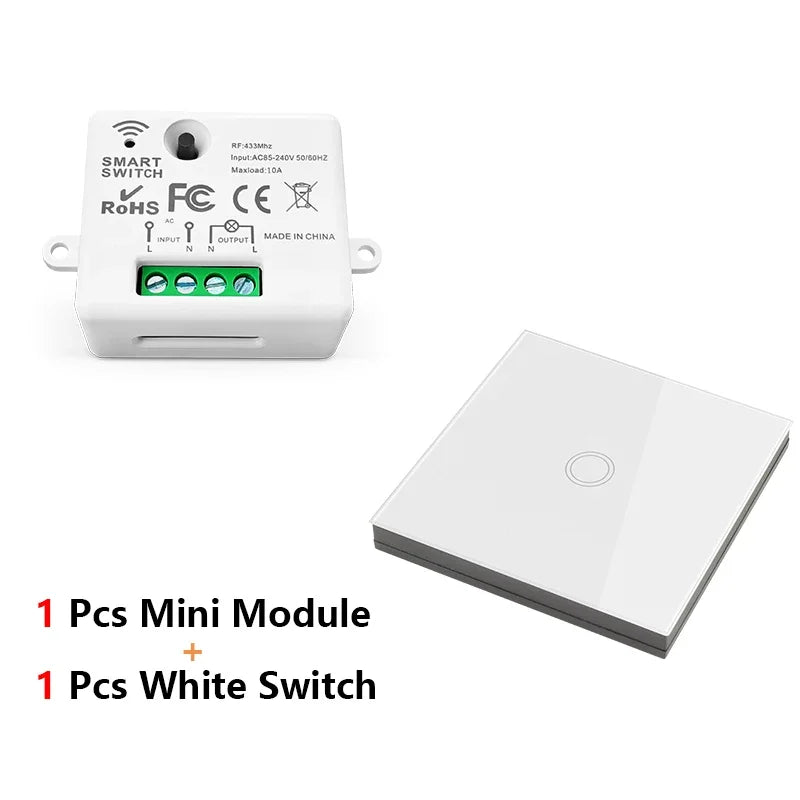

Package include

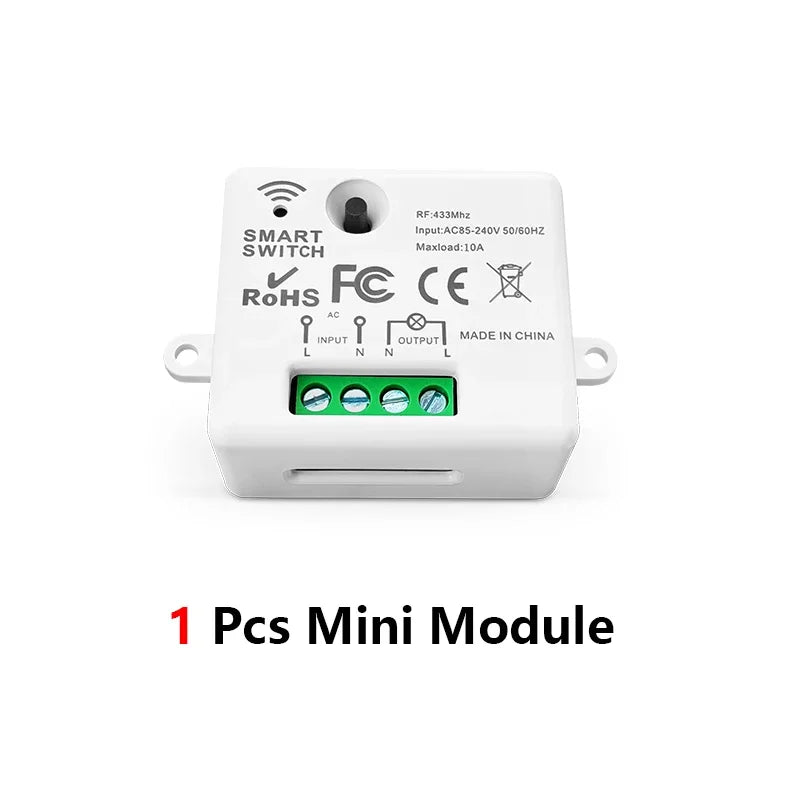

Receiver module ( include Shell )

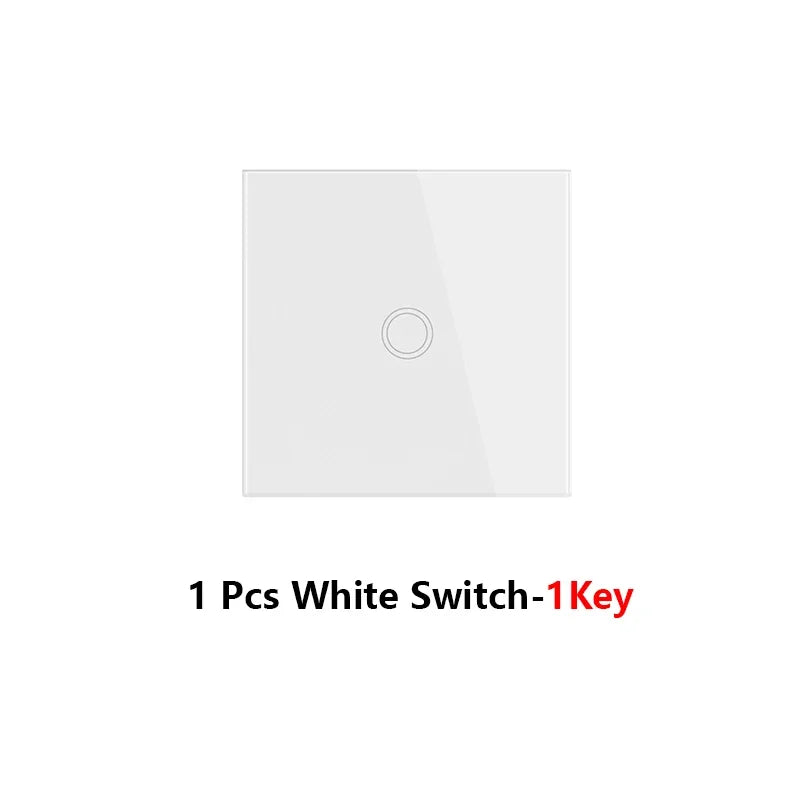

Wall switch ( include battery )
The Quantity depends on the option you choose

Operating Mode

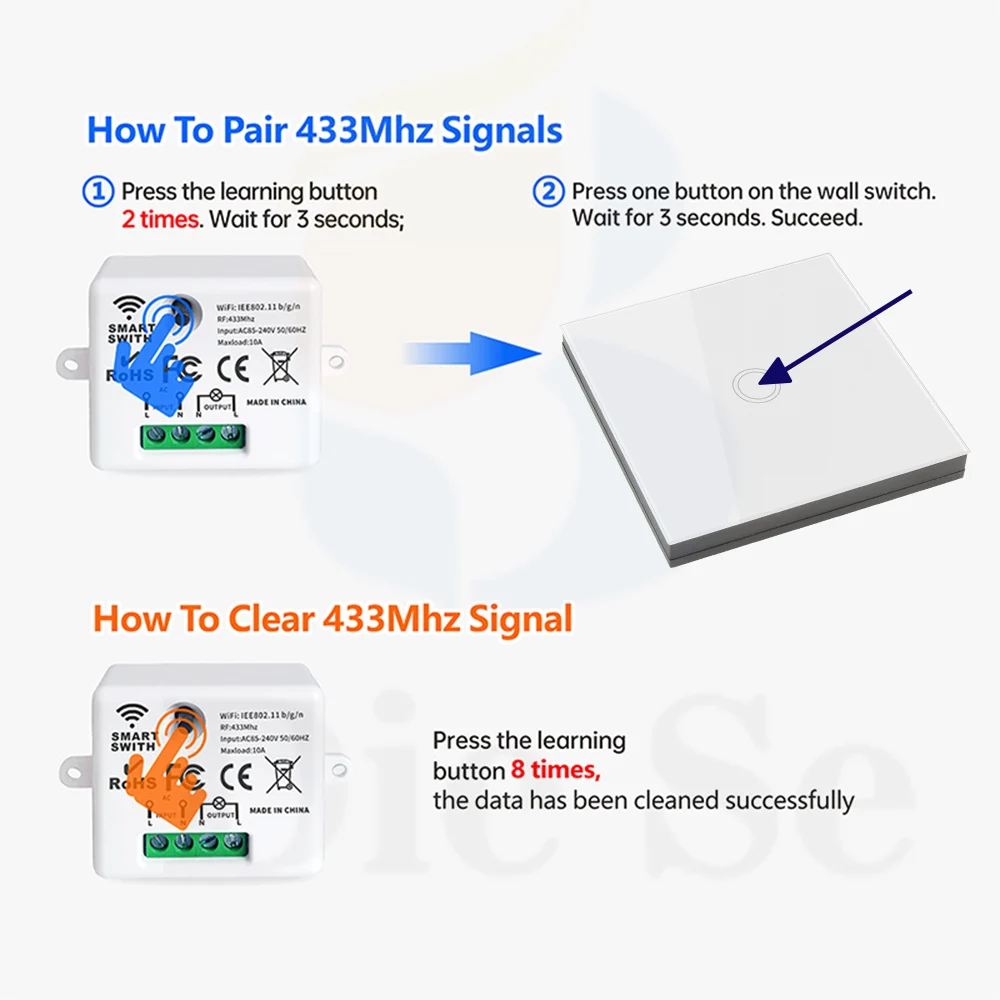

Set up

-Set up Toggle Mode

1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;

2. Press one button on the wall switch. Wait for 3 seconds. Succeed.

Reset

1.Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.

Q & A

Q : C an one receiver be controled by diffrent wall switch?
A : Yes, each receiver can add about 10 wall switch .

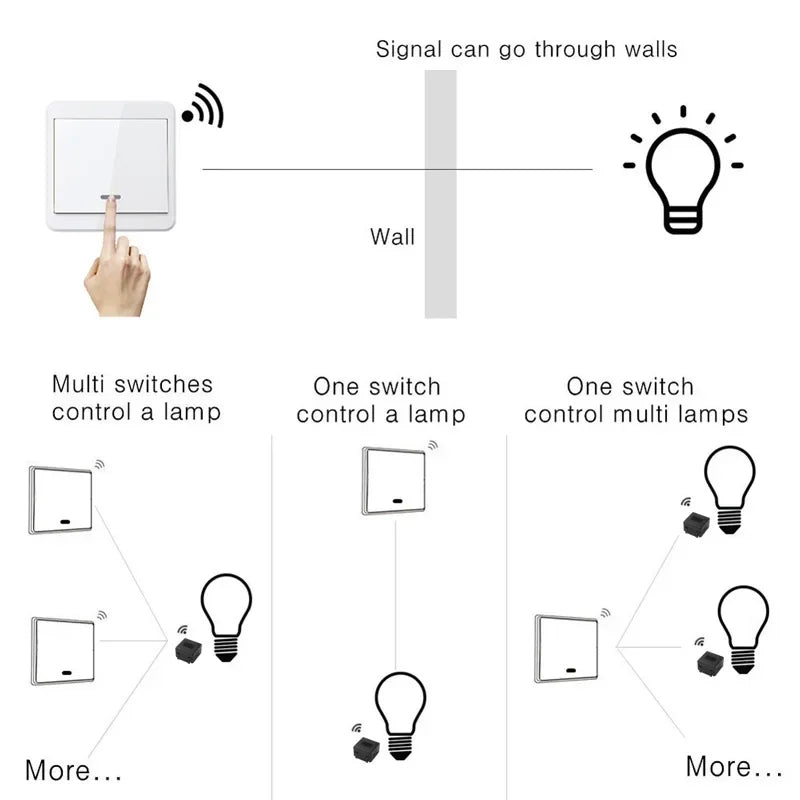

Q : Can one wall Switch control 2 receivers individually ?
A : Yes, wall switch with 2 buttons can control 2 receivers , wall switch with 3 buttons can control 3 receivers.

Q : Can 1 button on wall switch control 2 receivers at the same time?
A : Yes , You can program it by yourself. For example, matched Button "1" with receiver "1",and then matched Button "1" with receiver "2" too. This Button "1" can control receiver "1" and receiver "2" at the same time.

On this product detailed page, there is a demonstration video for your reference.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
